Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:

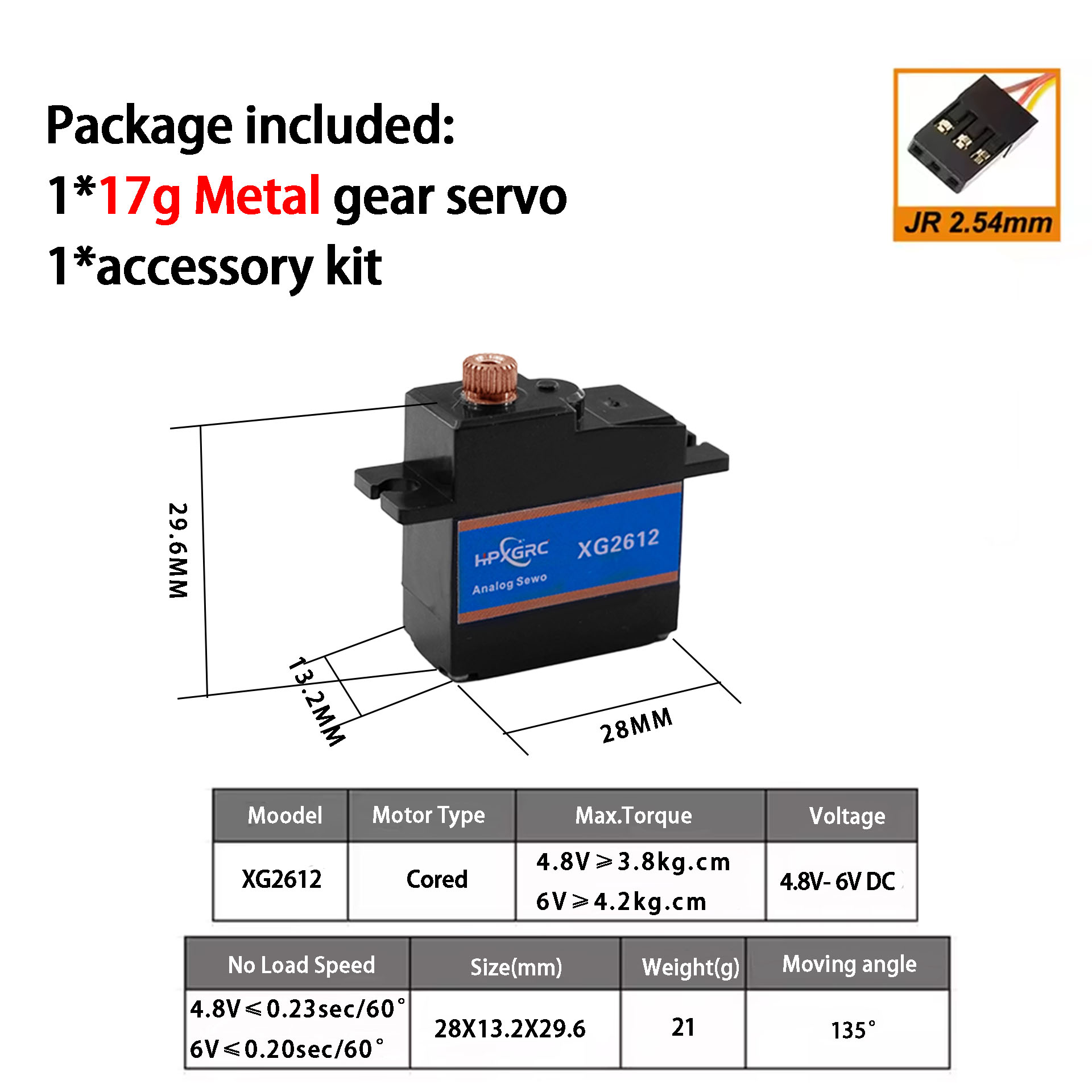

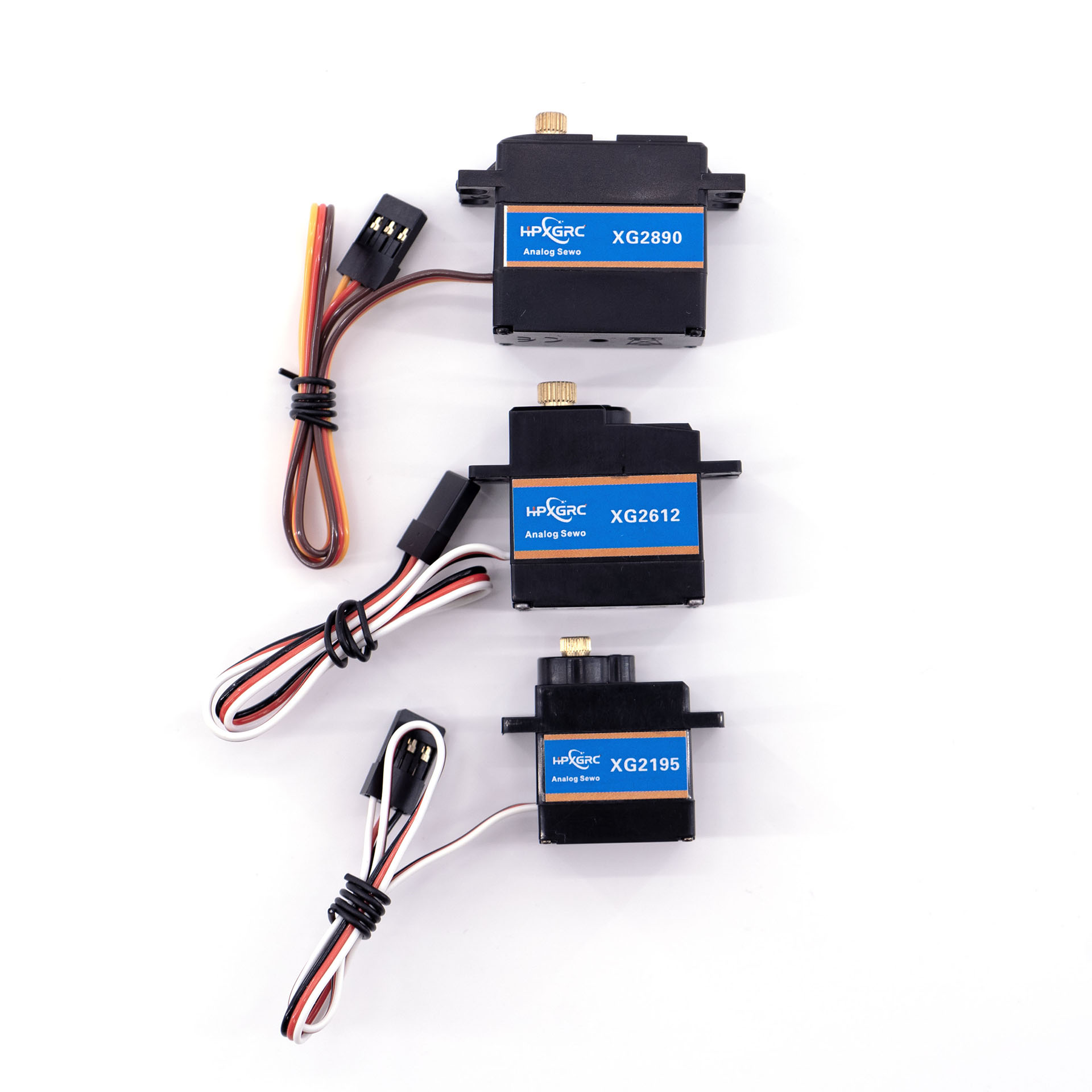

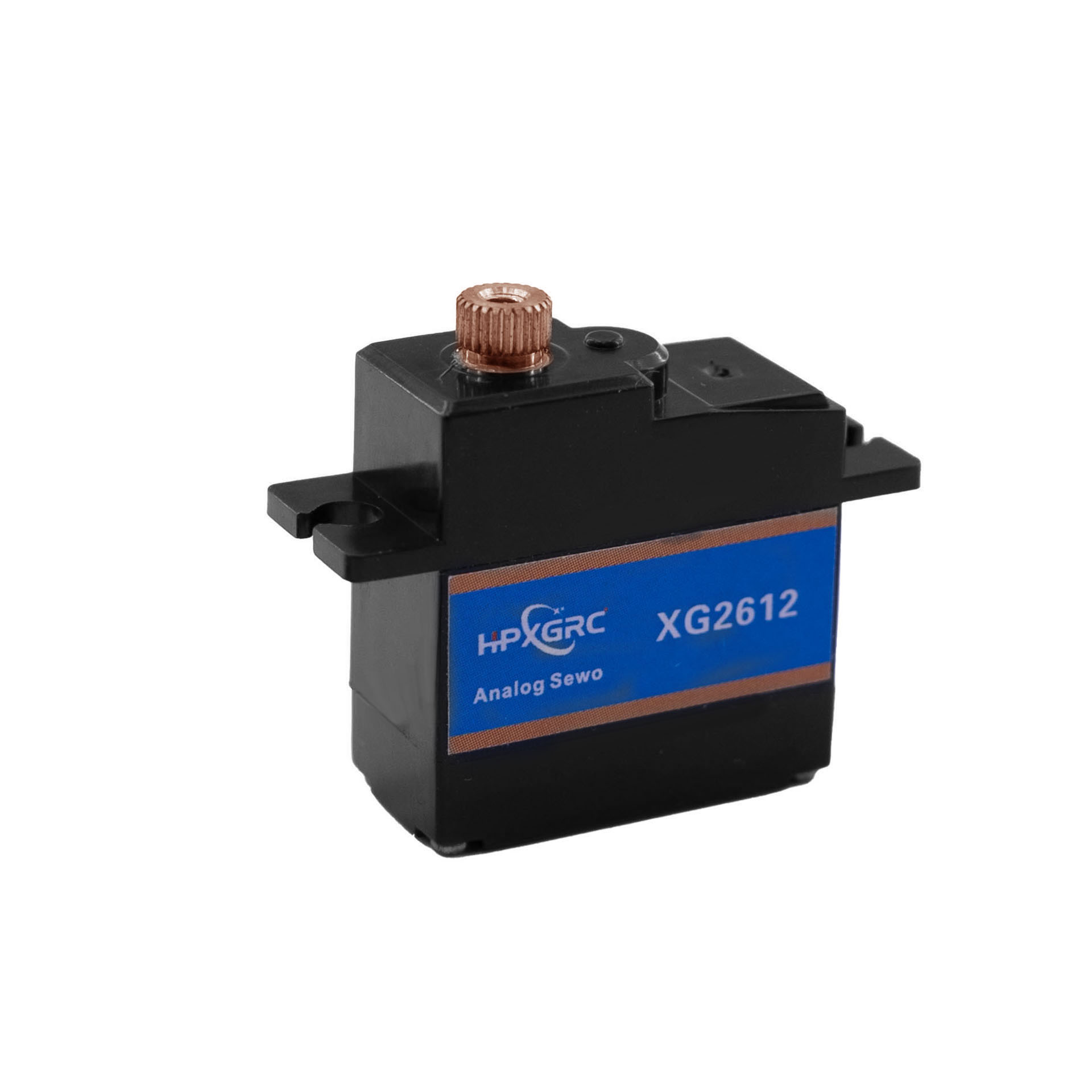

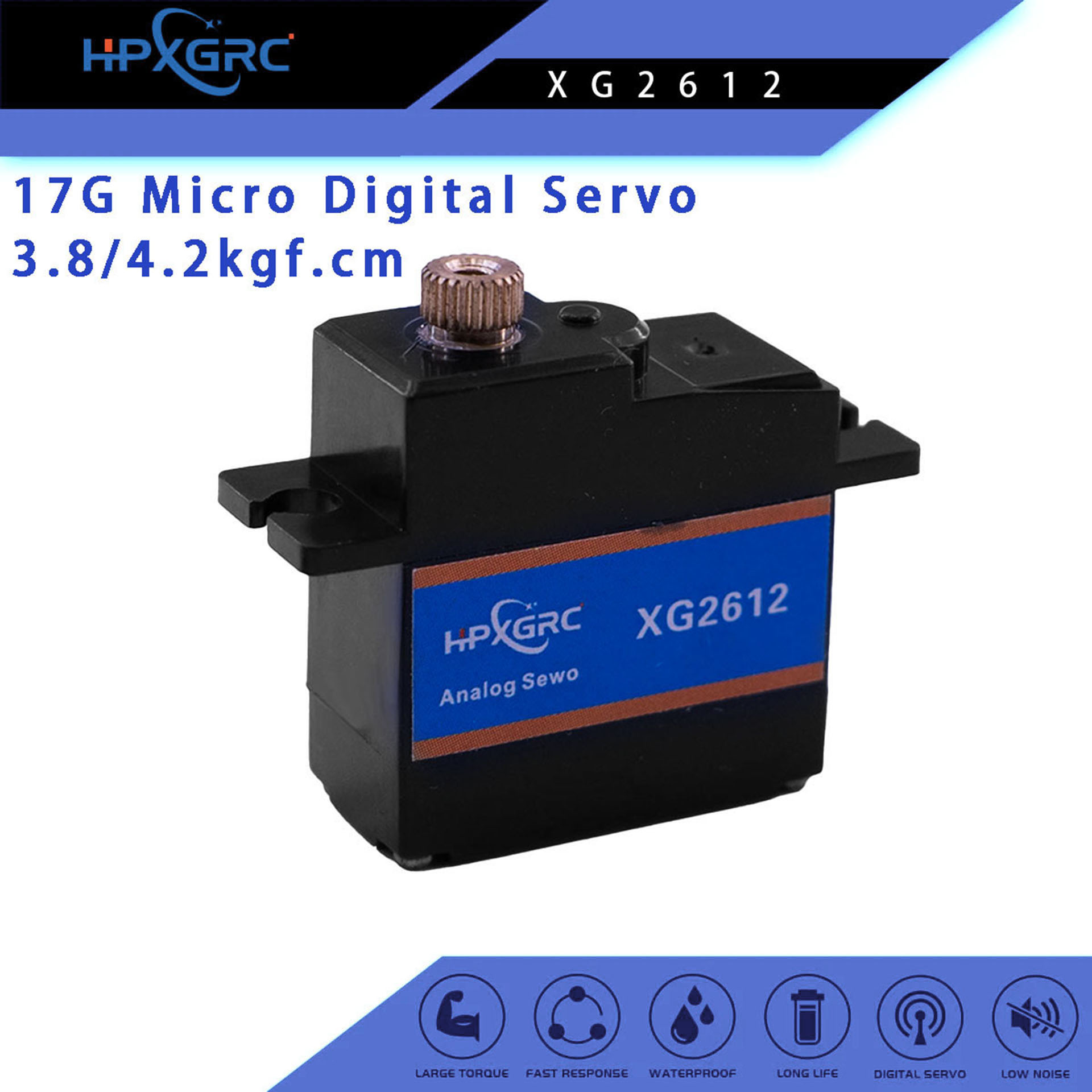

Item name: XG2612
Control systeam：PWM control (1500 usec is the central point)
Working voltage ：4.8V / 6V
Working temperature：-20c°_+60c°
Testing voltage：4.8V / 6V
Stall Torque：3.8kgf.cm/4.2kgf.cm
Idle speed：0.23sec/60deg / 0.20sec/60deg
Stall current：≤1.5A/ ≤1.8A
Load current：≤1.5A / 450mA
Dead band ：4usec
Lifetime ：>15000 times witthout load
Moving angle：135°
Drive type：MOS drive
Motor type：Cored motor
Potentiamter type：Direct drive
Signal bosster tupe：simulation
Size：28*13.2*29.6mm
Weight：21g( Excluding accessories）
Gear material：metal gear
Case material：ABS
Output shaft：25T,Φ5.8mm
Wire length：200mm（exposed without plug）
Wire gauge No and plug type：JR-3P
Black wire：negative
Red wire：Positive
White wire：Singal
Application：RC,car,RC airplane

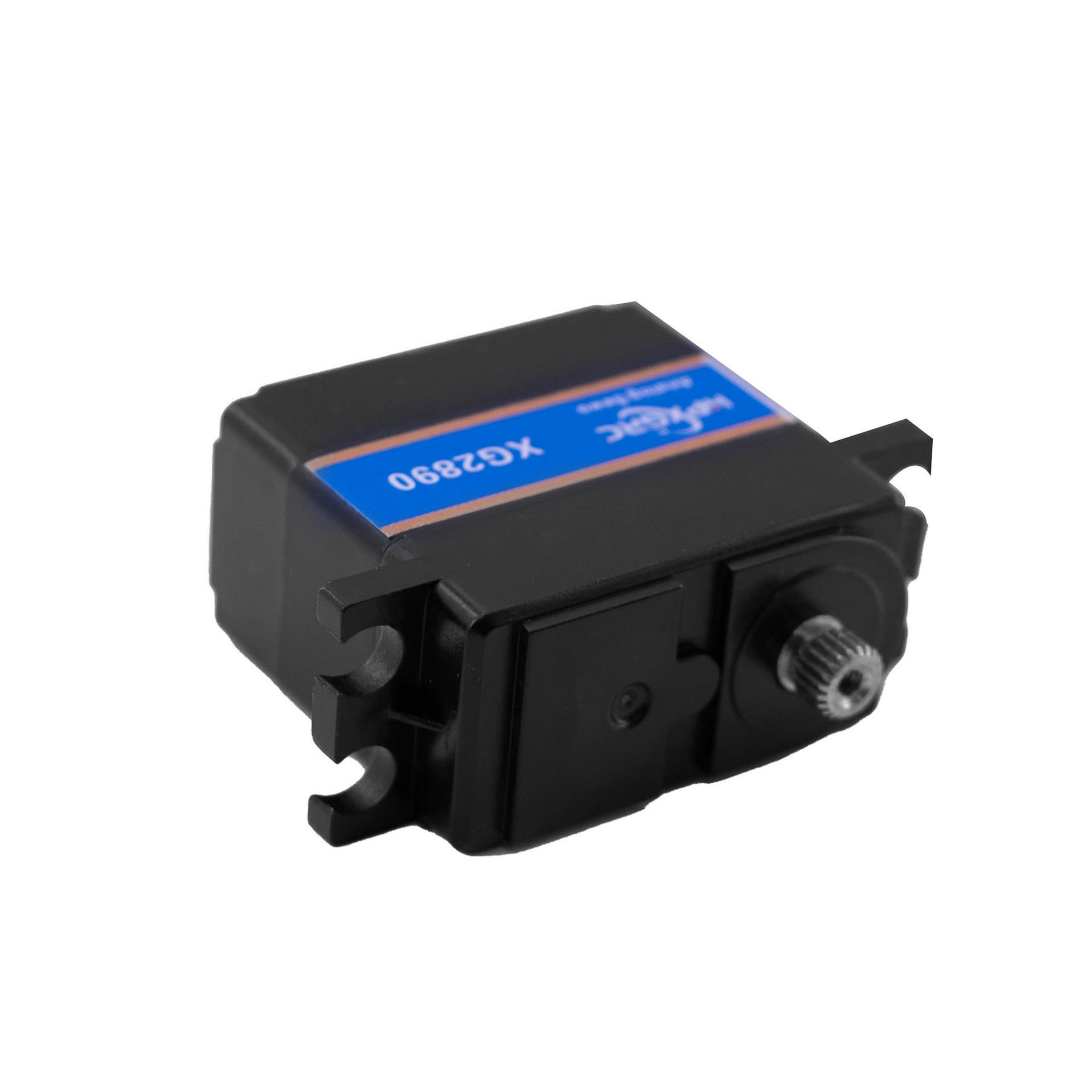

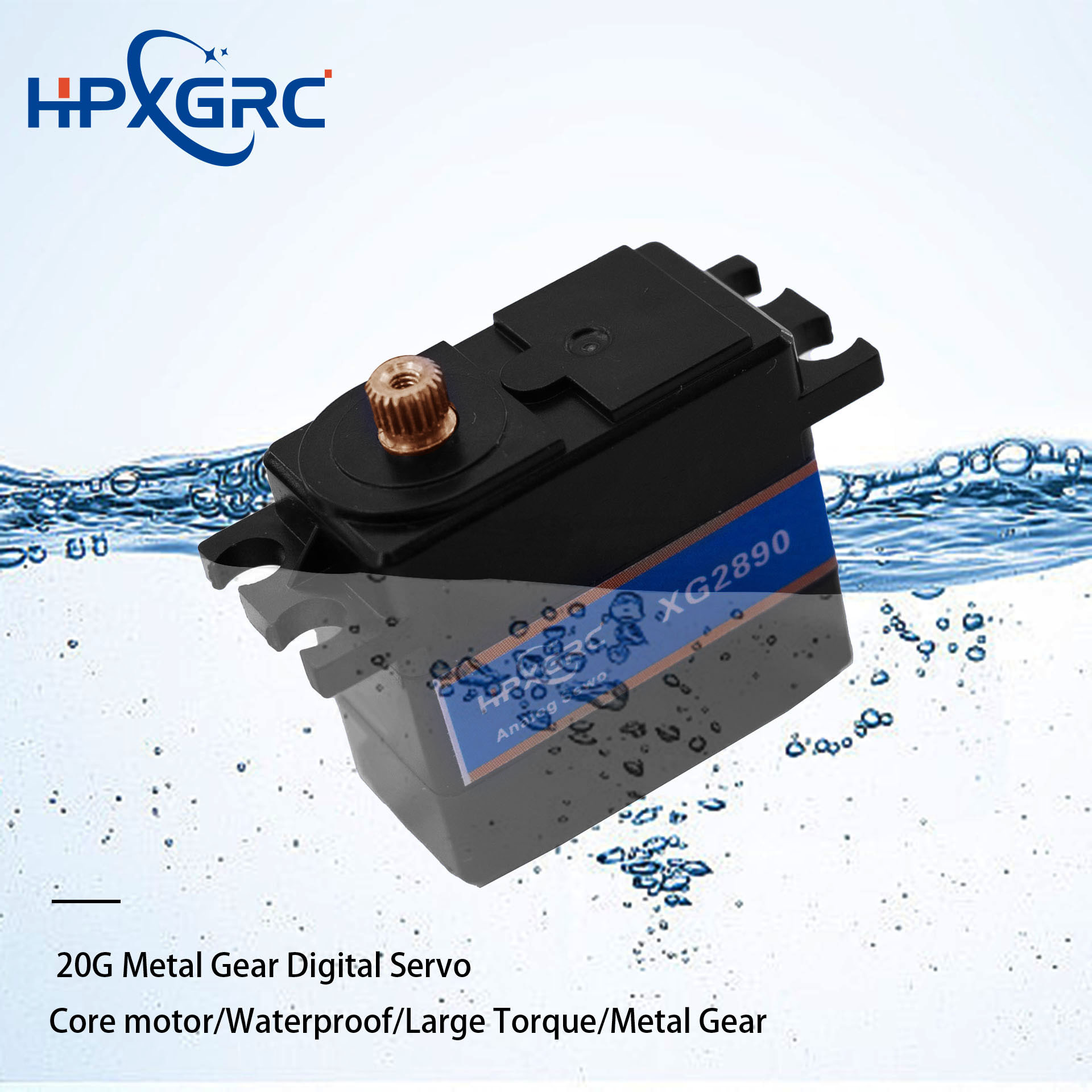

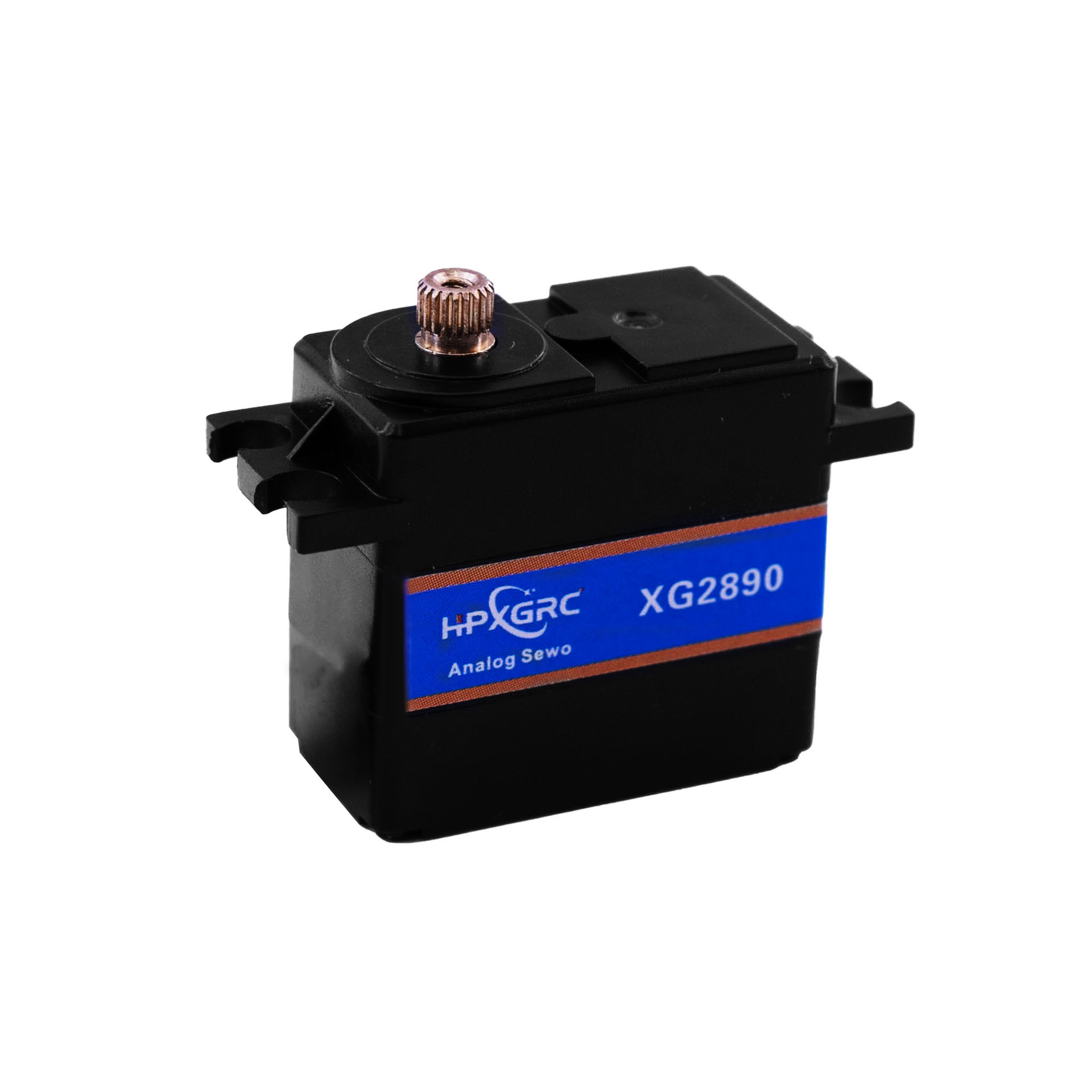

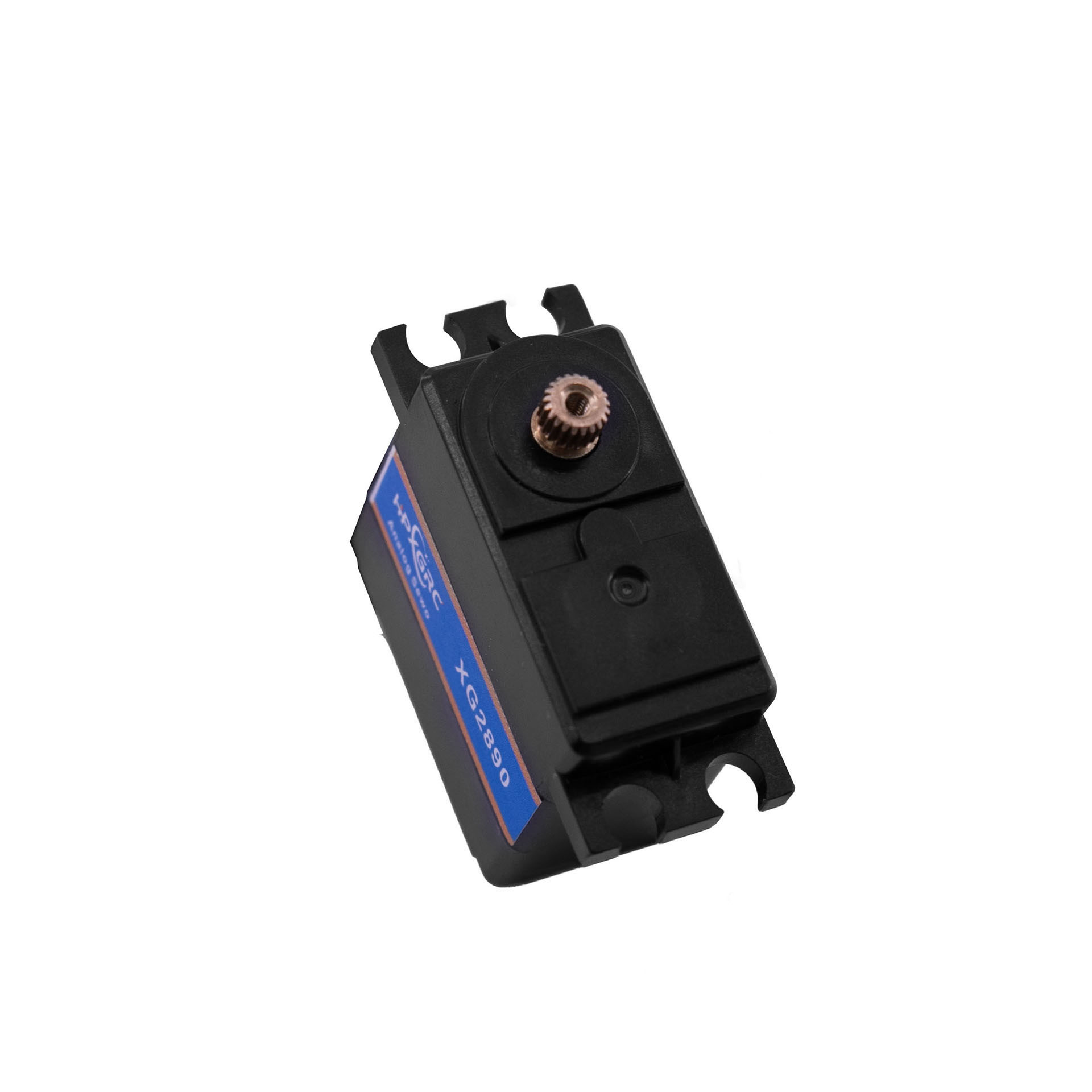

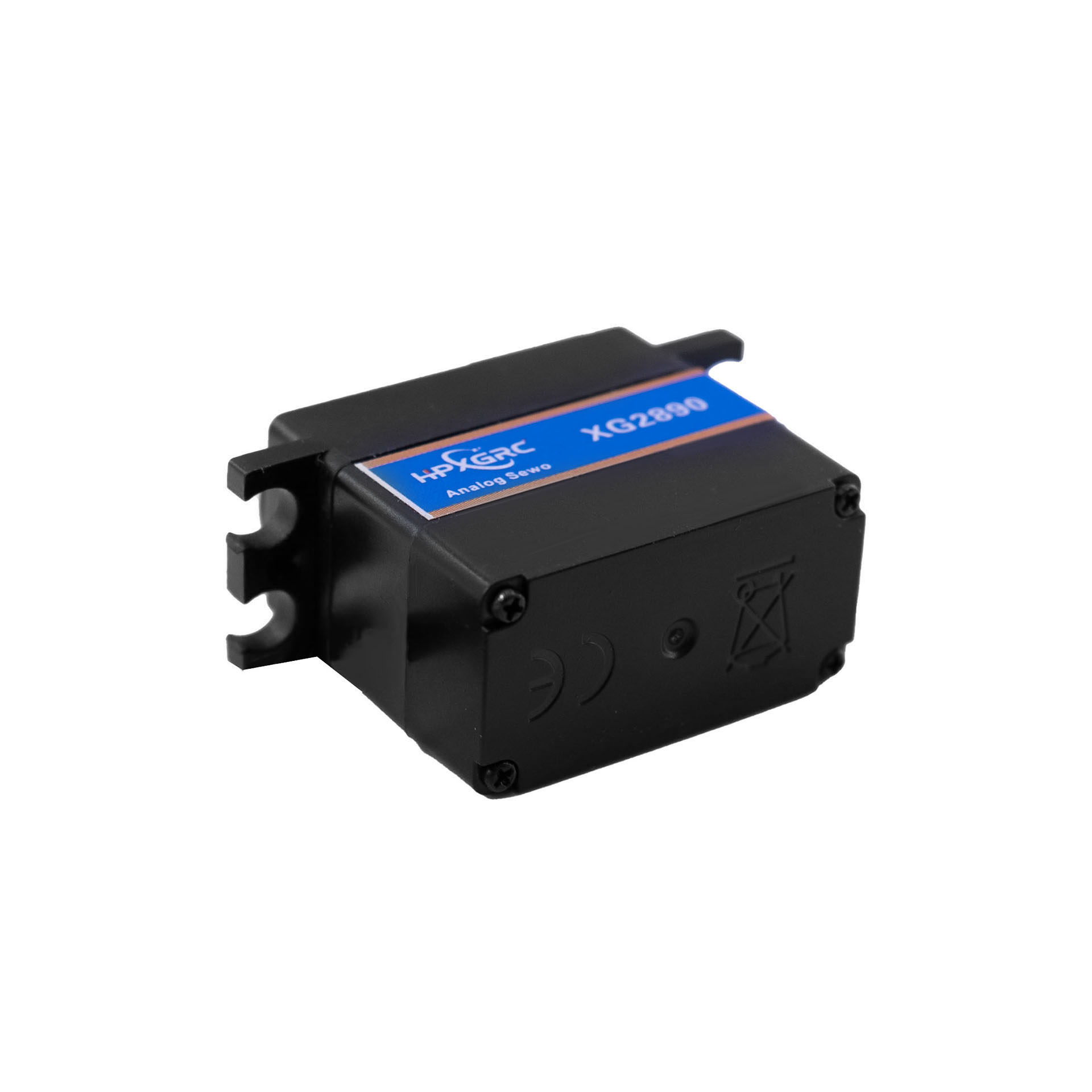

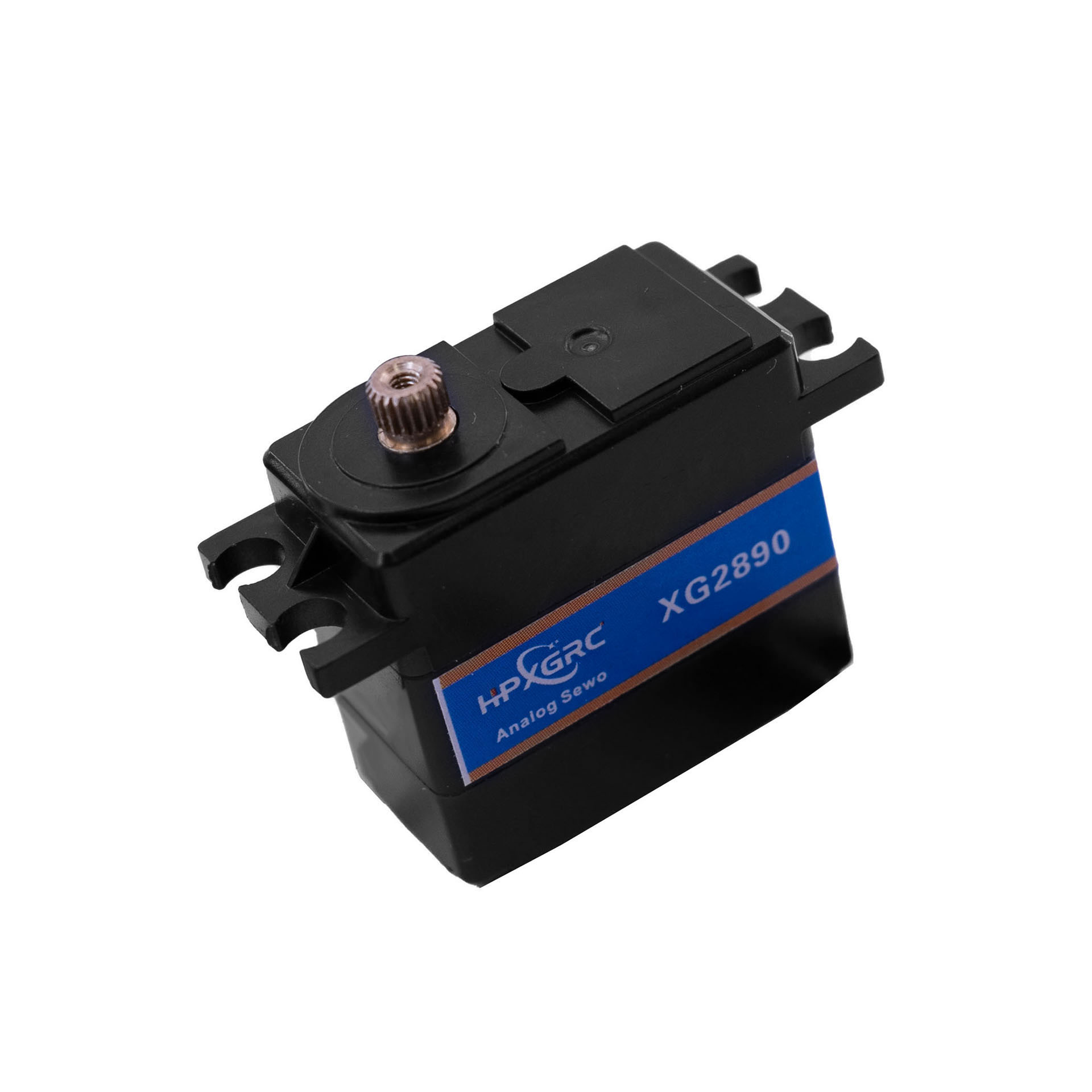

Item name: XG2890
Control systeam：PWM control (1500 usec is the central point)
Working voltage ：4.8V / 7.4V
Working temperature：-20c°_+60c°
Testing voltage：4.8V / 7.4V
Stall Torque：7.5kgf.cm / 11kgf.cm
Idle speed：0.19sec/60deg / 0.15sec/60deg
Idle current: 260mA / 360mA
Load current：460mA / 560mA
Dead band ：4usec
Lifetime ：>15000 times witthout load
Moving angle：60° ± 10°
Drive type：MOS drive
Motor type：Cored motor
Potentiamter type：Direct drive
Signal bosster tupe：simulation
Size：31.3*16.5*29.5mm
Weight：24g( Excluding accessories）
Gear material：metal gear
Case material：PA66+40% PA66+fiber40%
Wire length：230mm（exposed without plug）

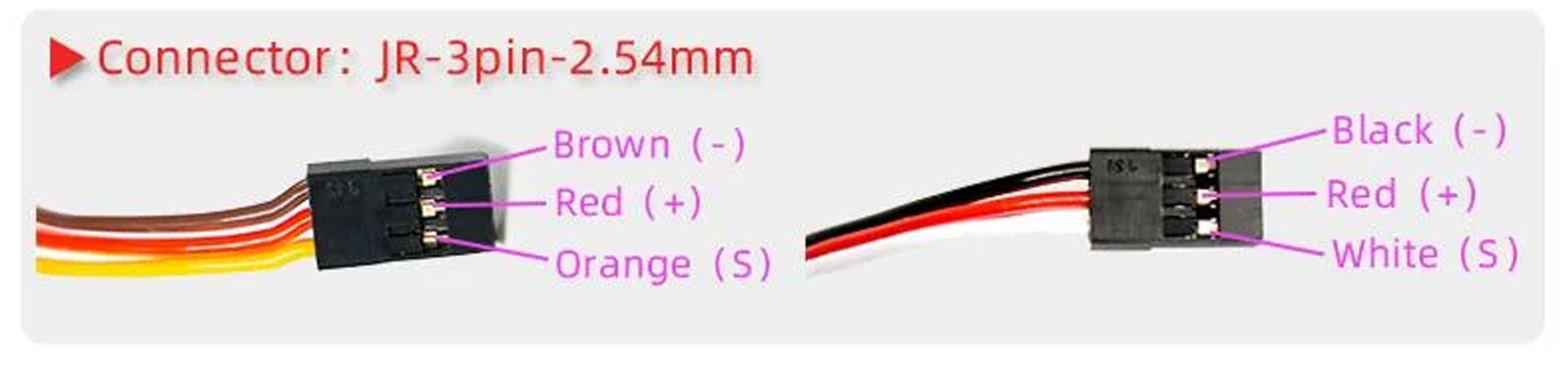

Wire gauge No and plug type：JR-3P, 28AWG Silicone single wire
Brown wire：negative
Red wire：Positive
orange wire：Singal
Application：RC,car,RC airplane

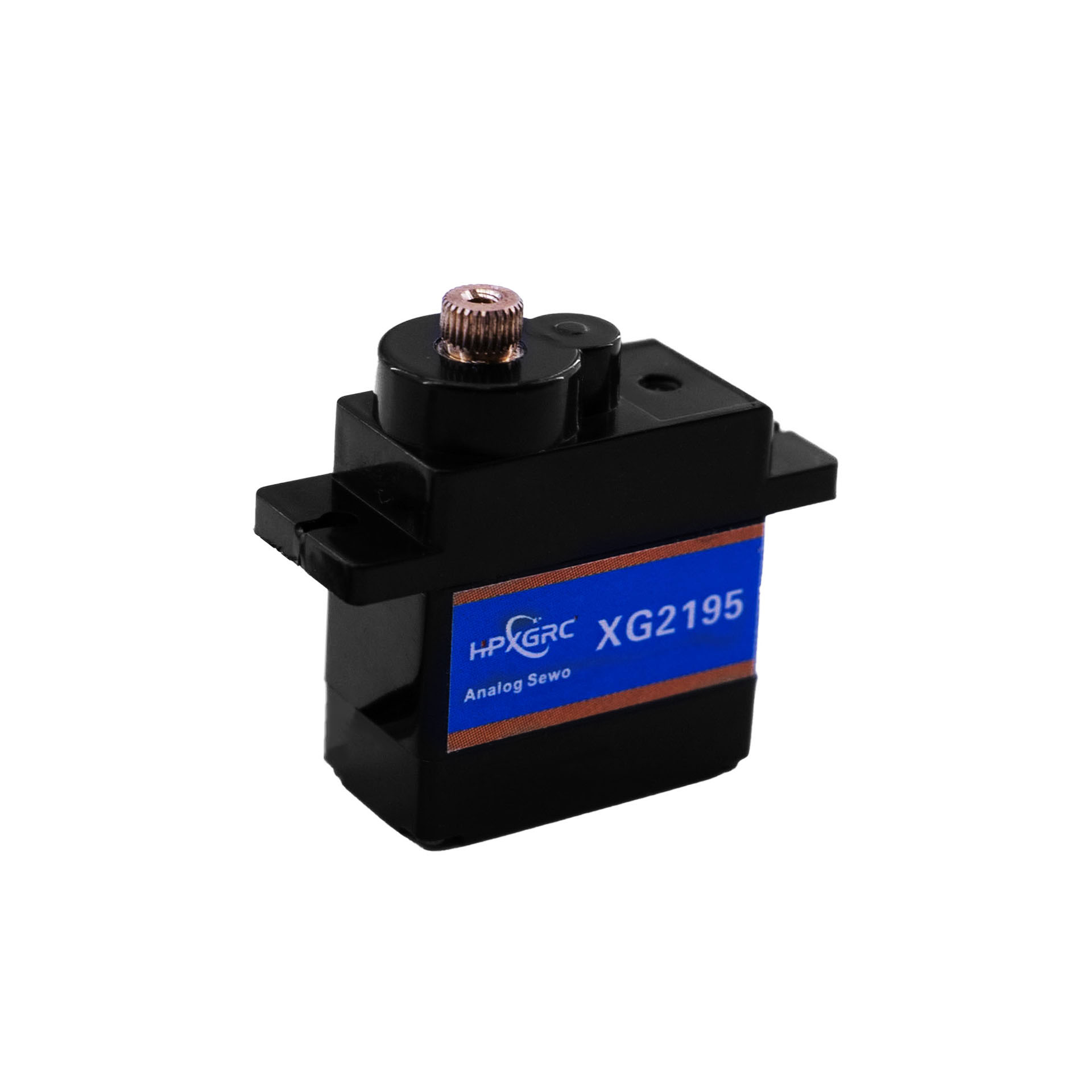

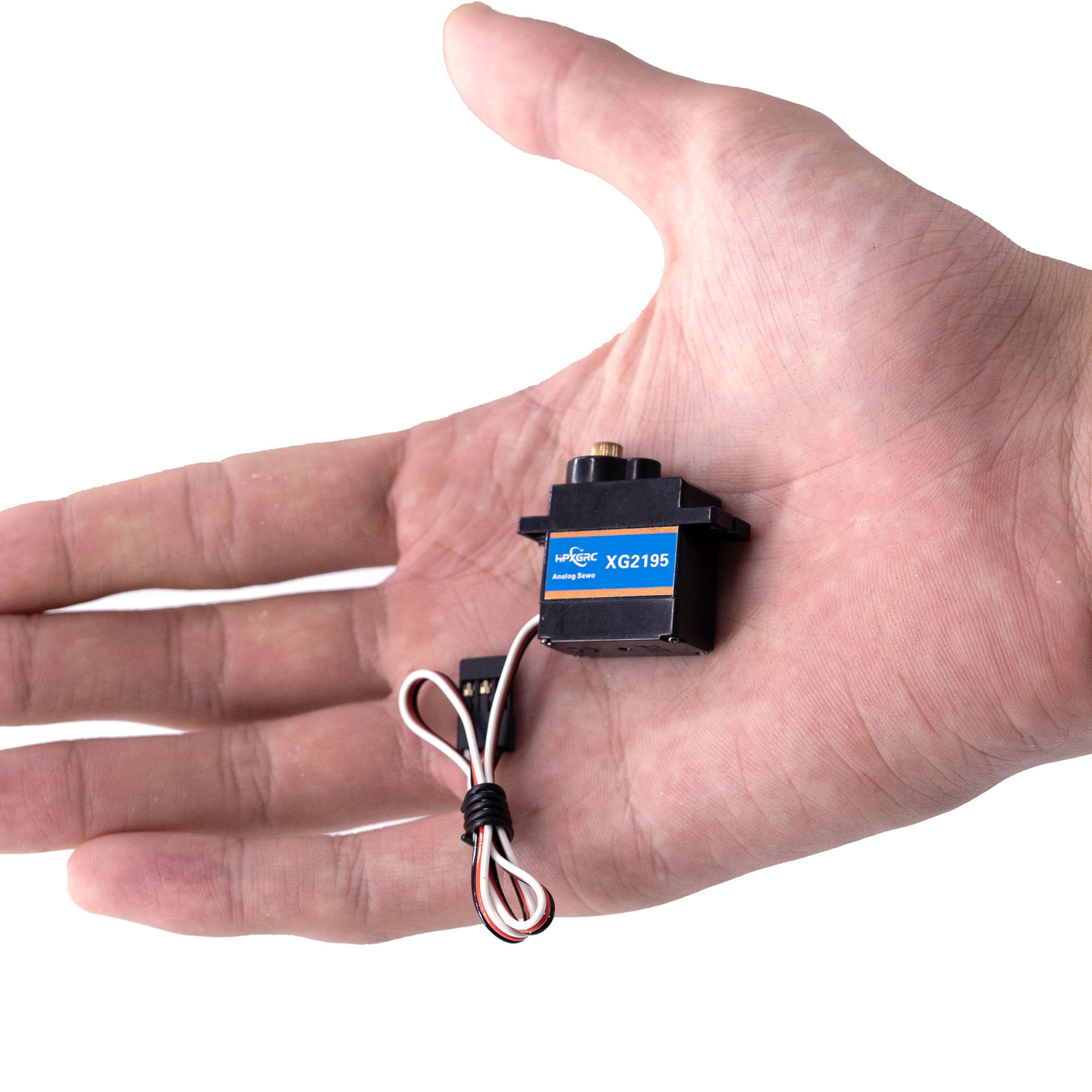

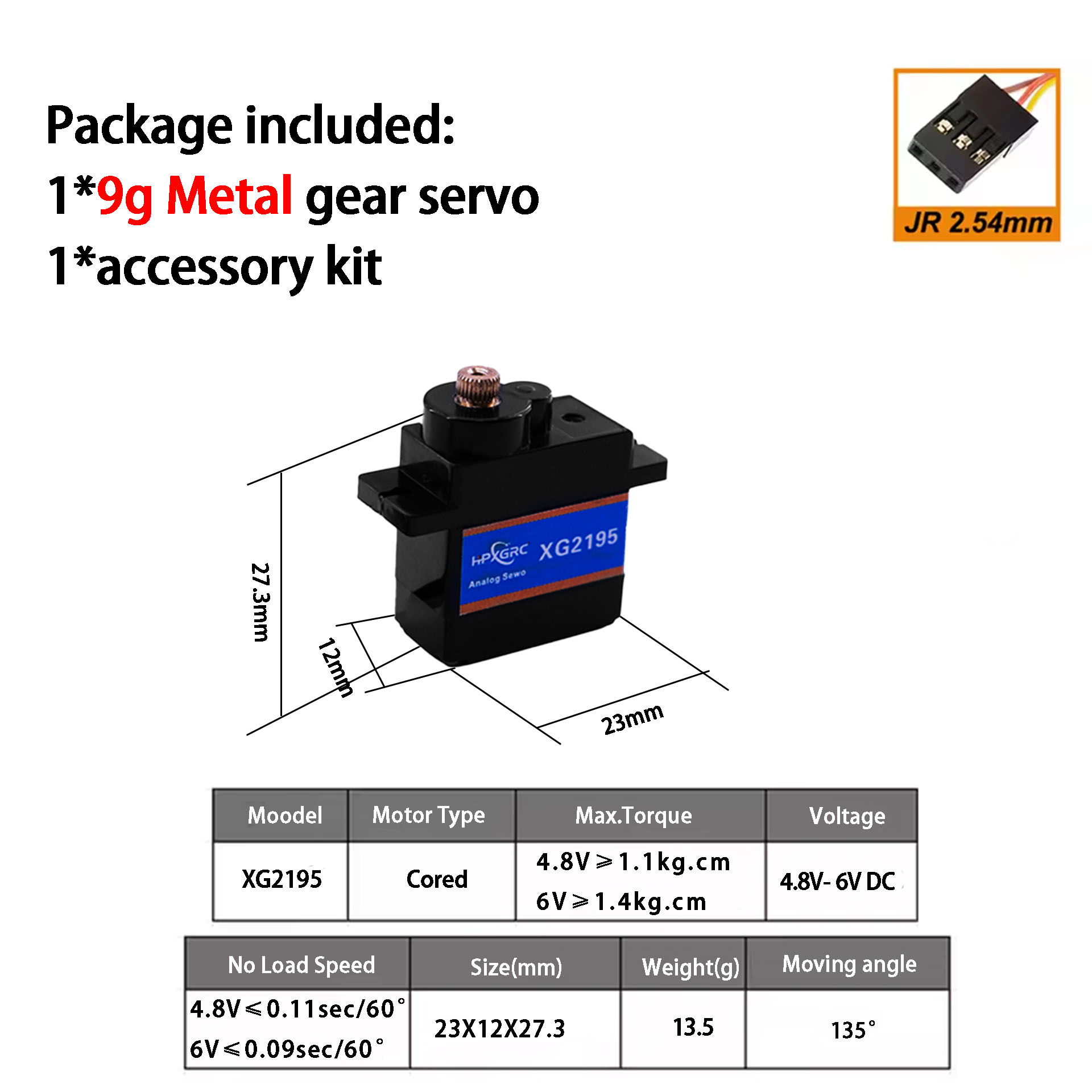

Item name: XG2195
Control systeam：PWM control (1500 usec is the central point)
Working voltage ：4.8V / 6V
Working temperature：-20c°_+60c°
Testing voltage：4.8V / 6V
Stall Torque：1.1kgf.cm / 1.4kgf.cm
Idle speed：0.11sec/60deg / 0.09sec/60deg
Stall current：≤1.5A/ ≤1.8A
Load current：300mA / 350mA
Dead band ：4usec
Lifetime ：>15000 times witthout load
Moving angle：135°
Drive type：MOS drive
Motor type：Cored motor
Potentiamter type：Direct drive
Signal bosster tupe：simulation
Size：23*12*27.3mm
Weight：13.5g( Excluding accessories）
Gear material：metal gear
Case material：ABS
Output shaft：29T,Φ4.85mm
Wire length：200mm（exposed without plug）
Wire gauge No and plug type：JR-3P
Black wire：negative
Red wire：Positive
White wire：Singal
Application：RC,car,RC airplane

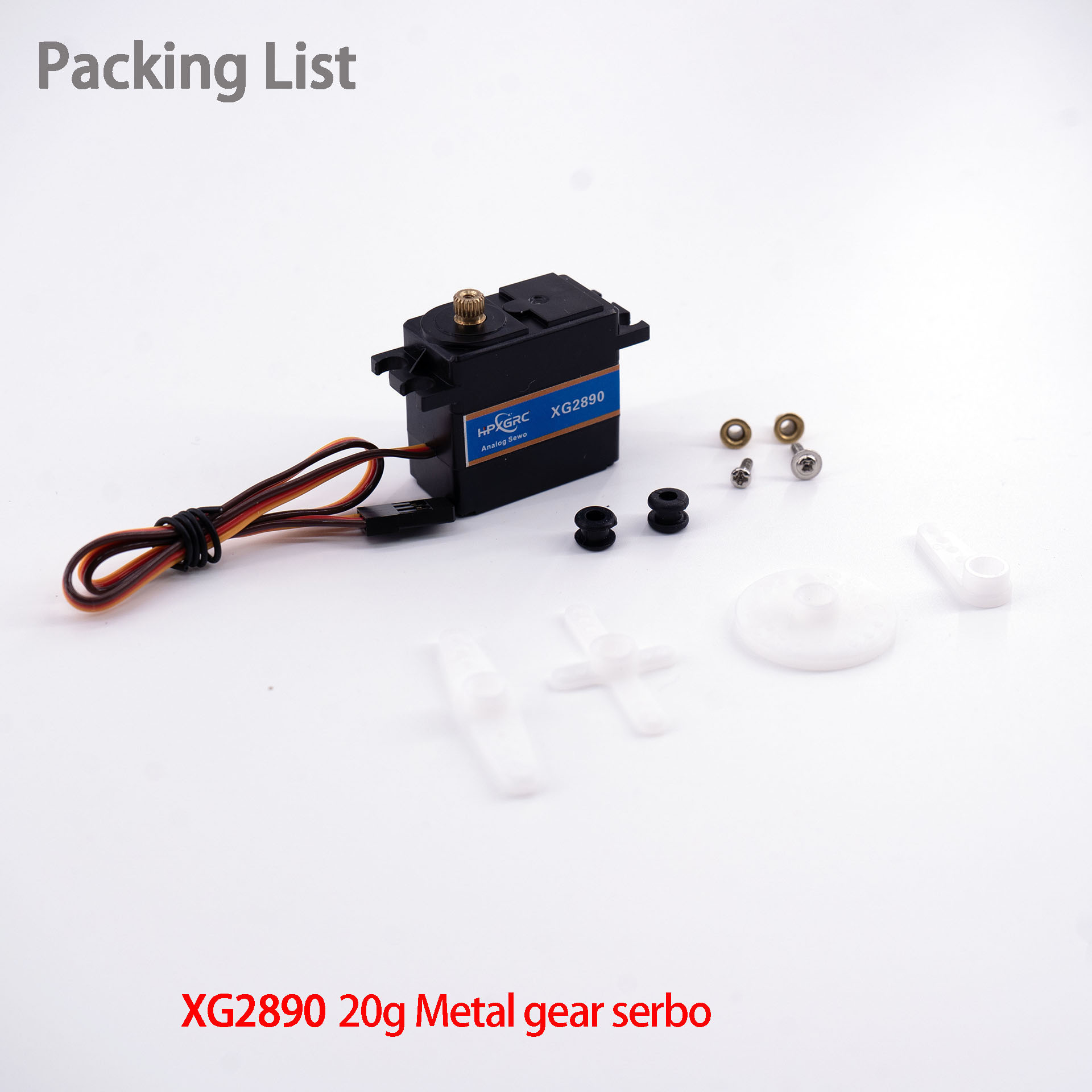

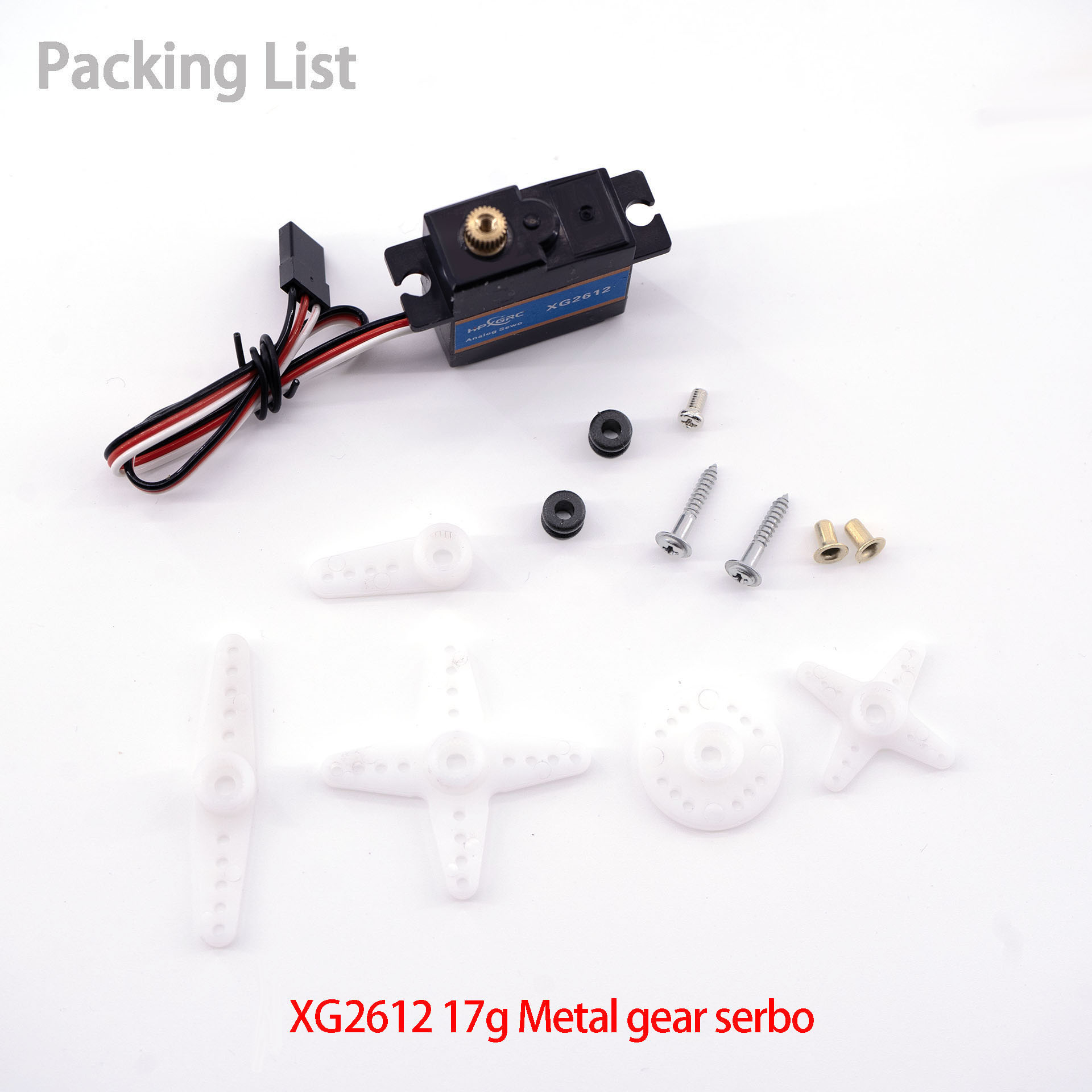

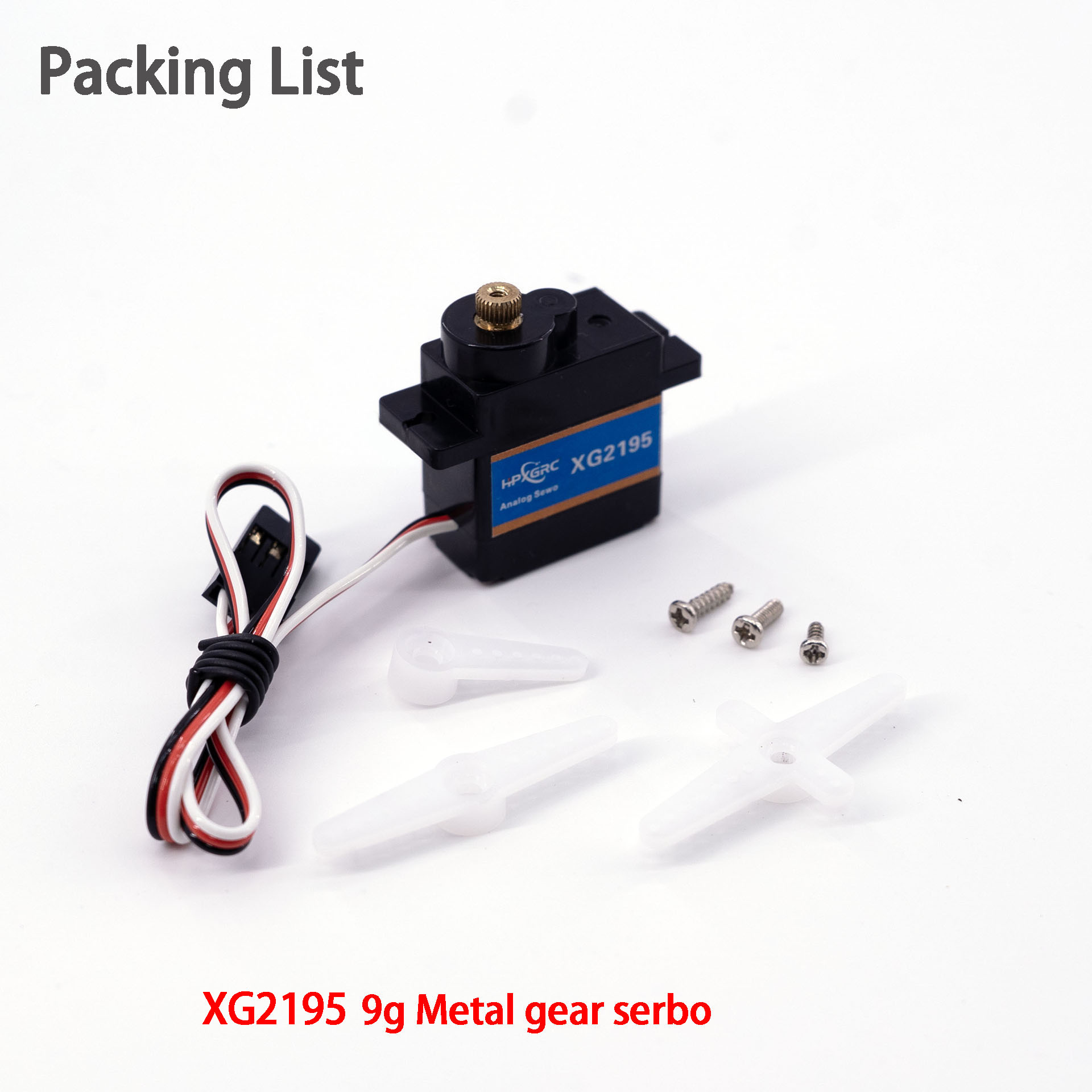

Package included:
Digital Servo*1
Servo Arm Accessories*1
