IFlight Albatross V2 SMA 5.8GHz 2.4dBi Antenna LHCP RP SMA / RHCP SMA 60MM/100MM/150MM

• Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

• Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

Feature

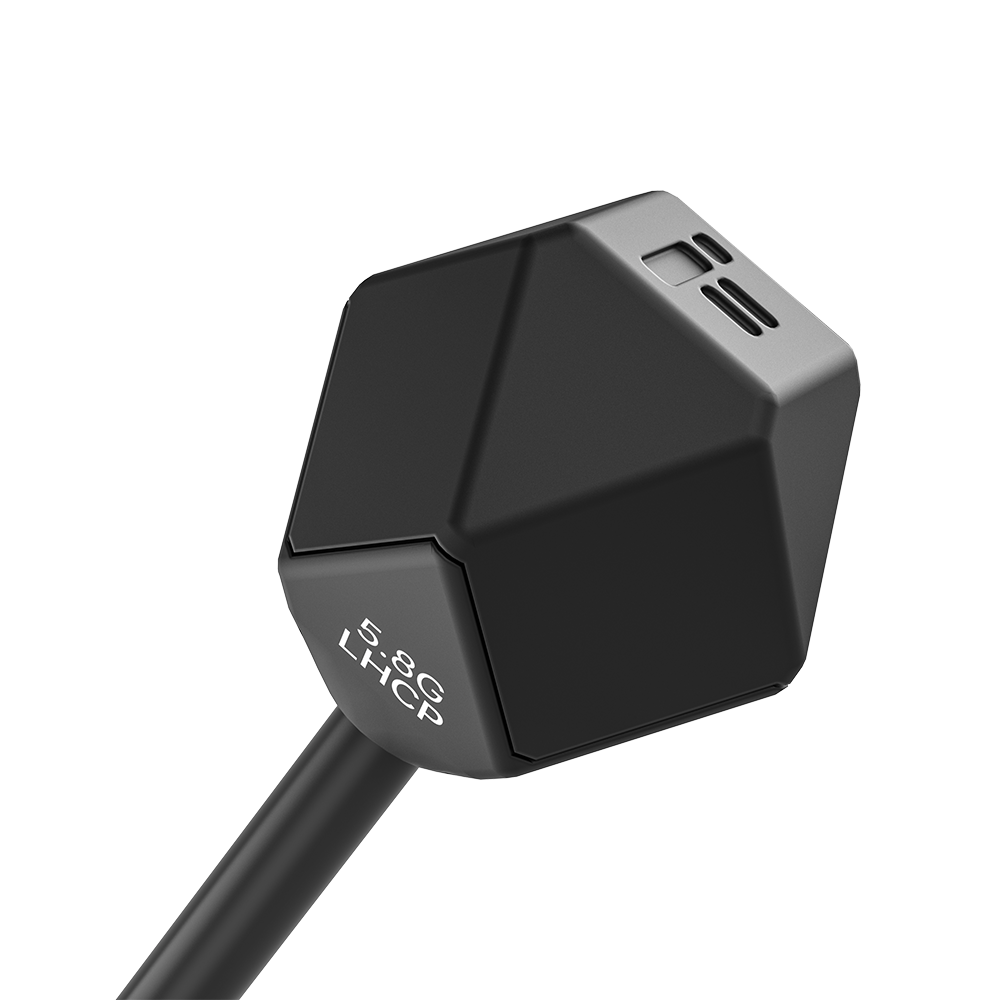

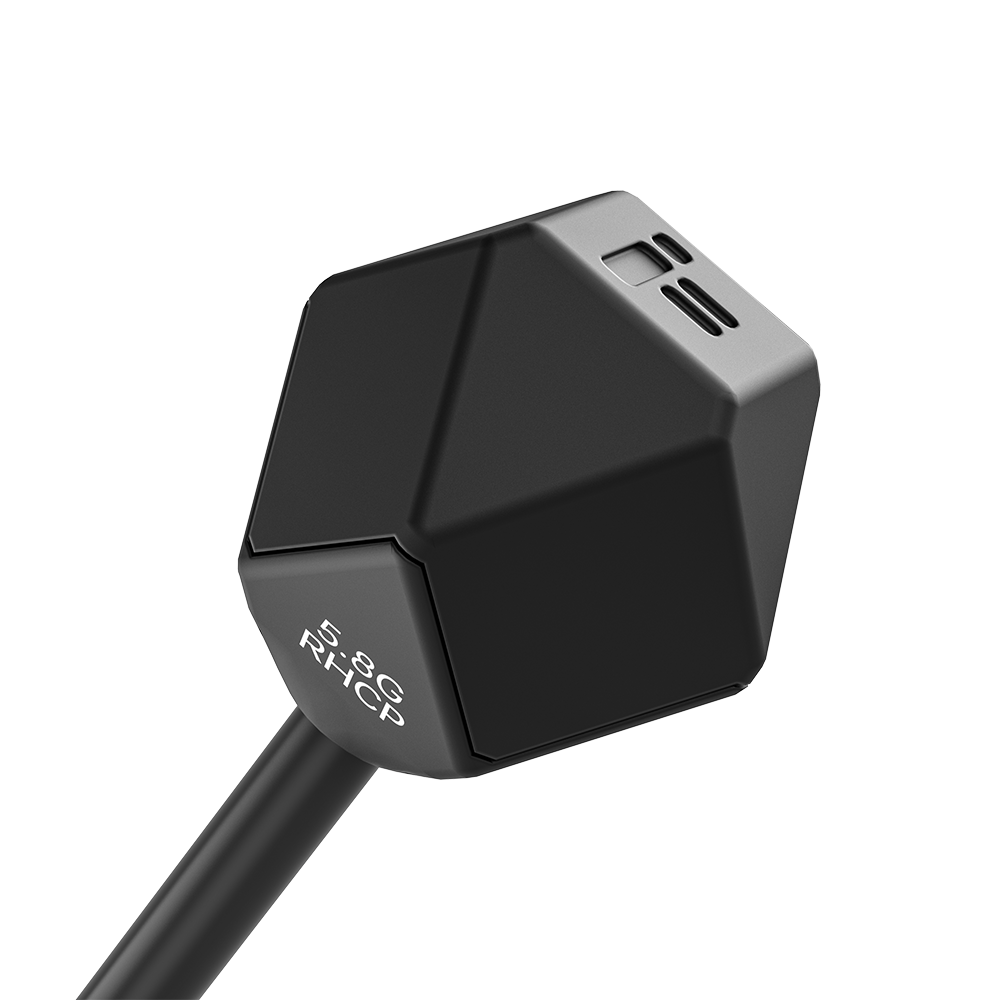

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications

• Model: Albatross LHCP RPSMA 5.8GHz FPV Antenna

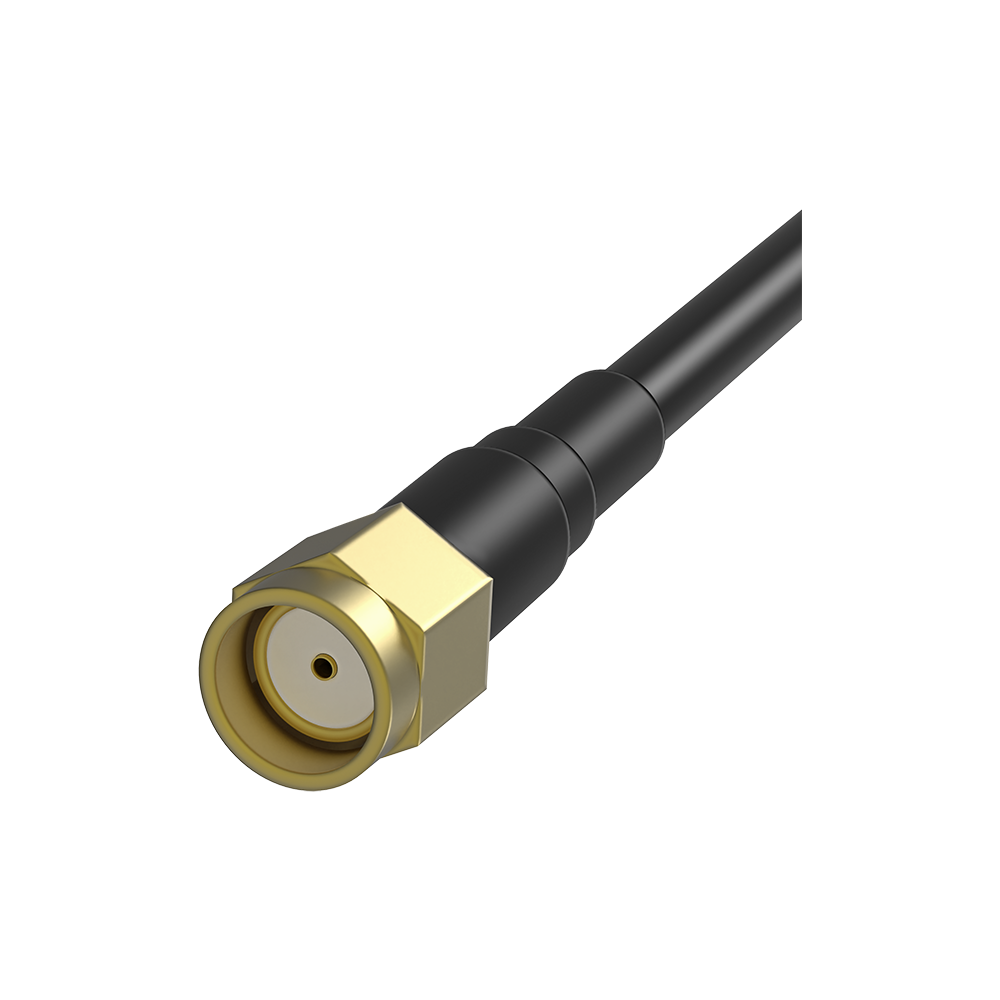

• Interface: LHCP RPSMA

• Frequency range: 5.3GHz-6GHz

• Max Gain: 2.72dBi(5621MHz)

• MIN Gain: 2.12dBi(5436MHz)

• AVG Gain: 2.42dBi

• MAX VSWR: 1.72(5326MHz)

• MIN VSWR: 1.35(5917MHz)

• AVG VSWR: 1.62

• MAX radiation efficiency: 84.25%(5917MHz)

• MIN  radiation efficiency: 73.5%(5326MHz)

• AVG radiation efficiency: 80.3%

• Polarization: LHCP

• Cross polarization suppression: -26.7dB

• Axial Ratio:≤3

• Cable: RG141

• Weight: 7g/9.5g/11.5g

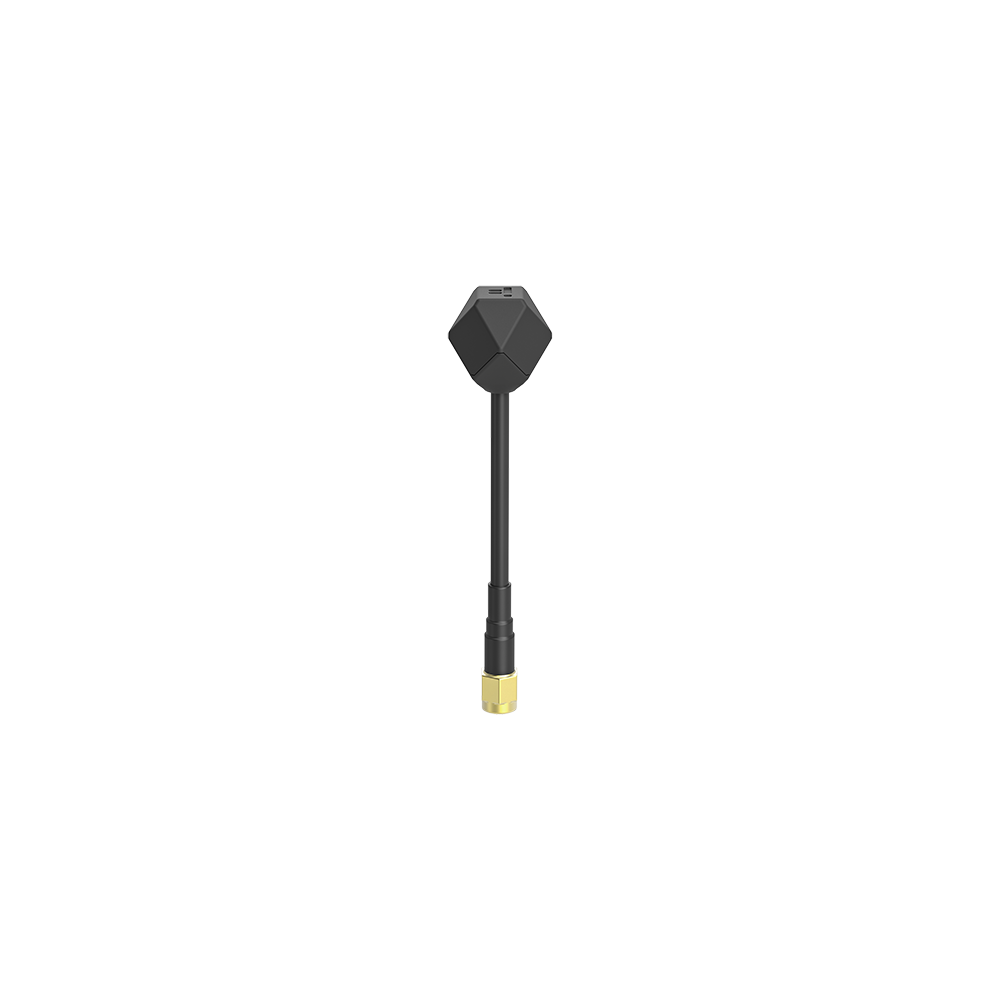

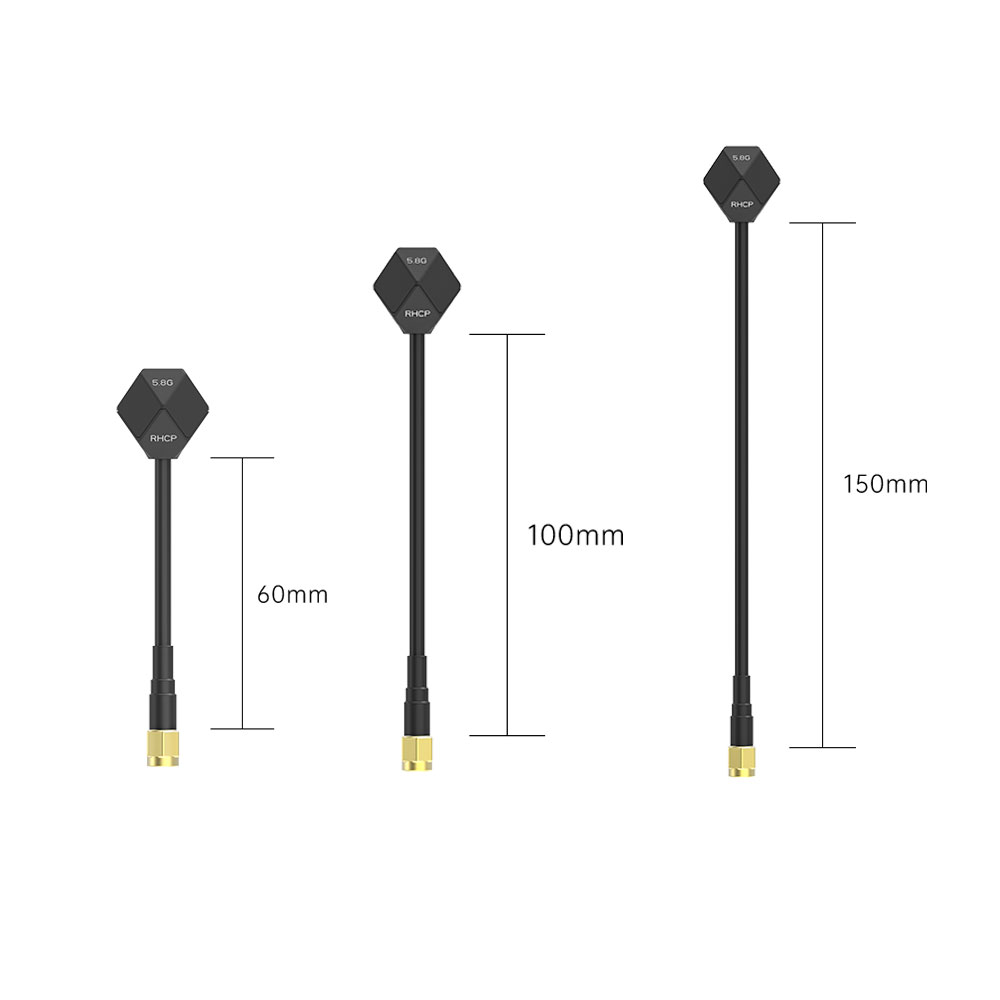

• Size: Total length: 85mm, cable length:60mm

•         Total length: 125mm, cable length:100mm

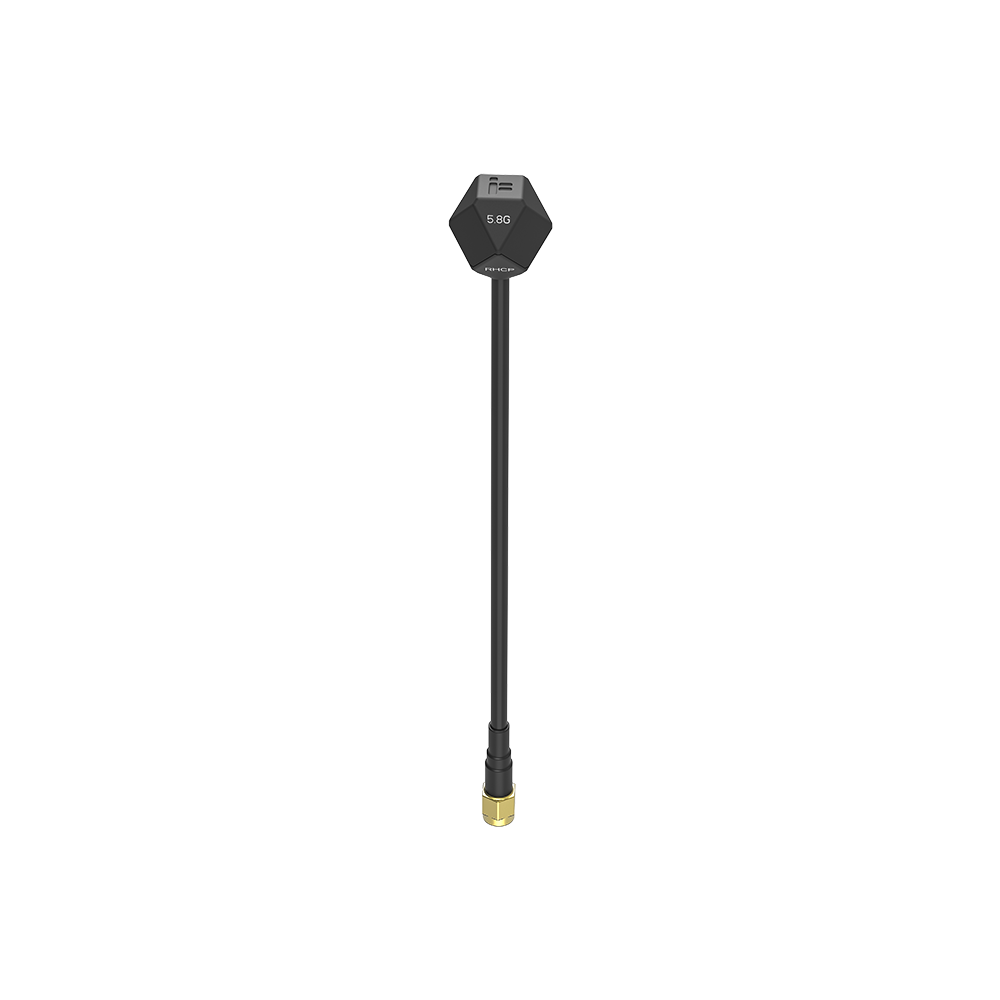

•         Total length: 175mm, cable length:150mm

Package List

• 1 x 5.8GHz FPV Antenna
