Note
When using this ESC on a 7-10 inch drone, please add an additional capacitor to prevent overloading the onboard capacitor of the ESC. This precaution will help ensure optimal performance and reliability of your drone's power system.
Changelog
Mar. 14, 2025: Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" in the "Download" column of this page.
Specifications
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 15.3g
Supports 2-6S lipo input
MCU：G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: IFLIGHT_BLITZ_G2 / IFLIGHT_BLITZ_G3 32.9
Packing List

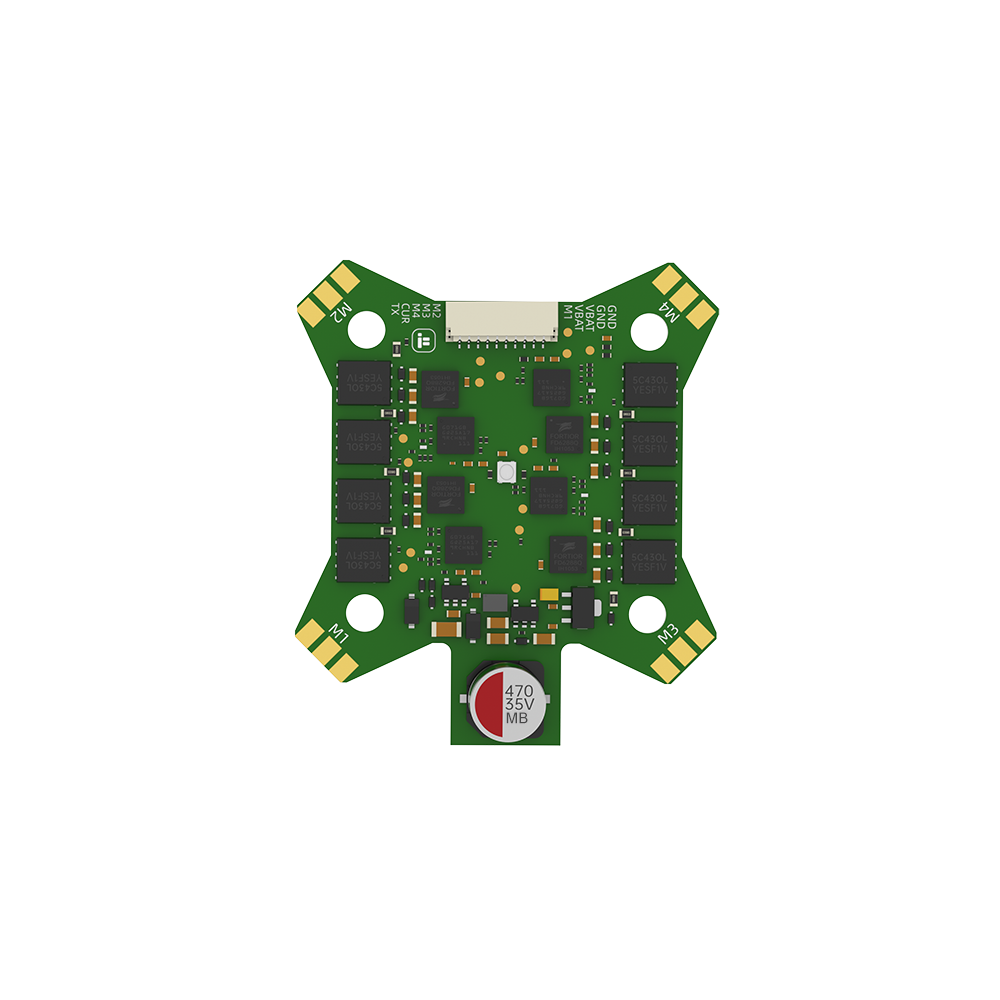

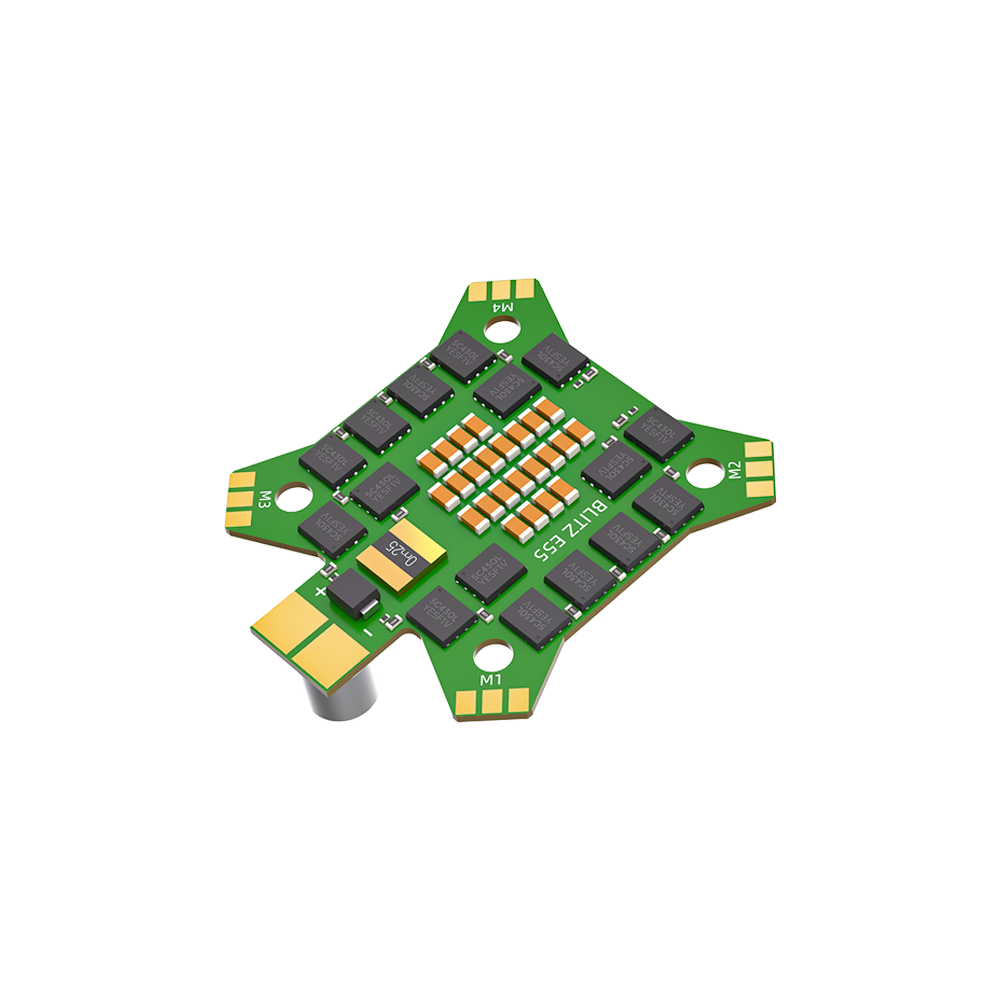

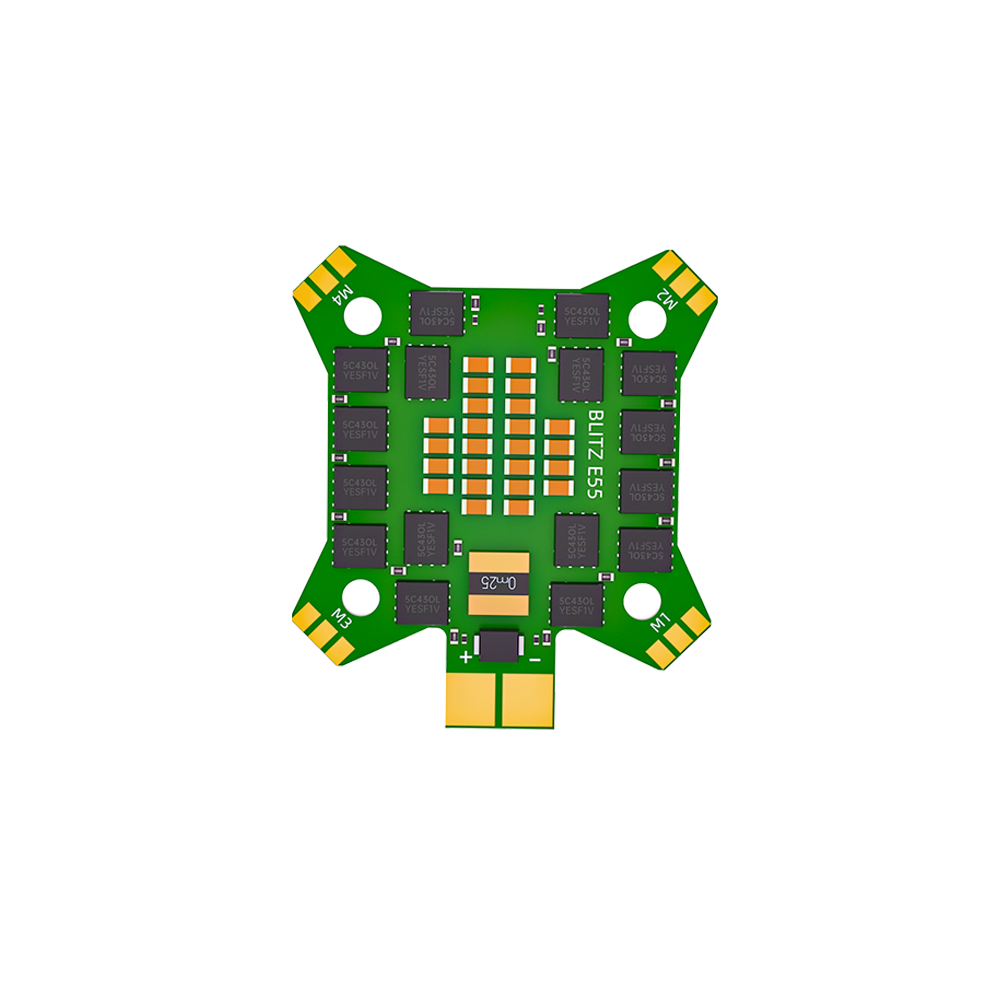

1 x BLITZ E55 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
