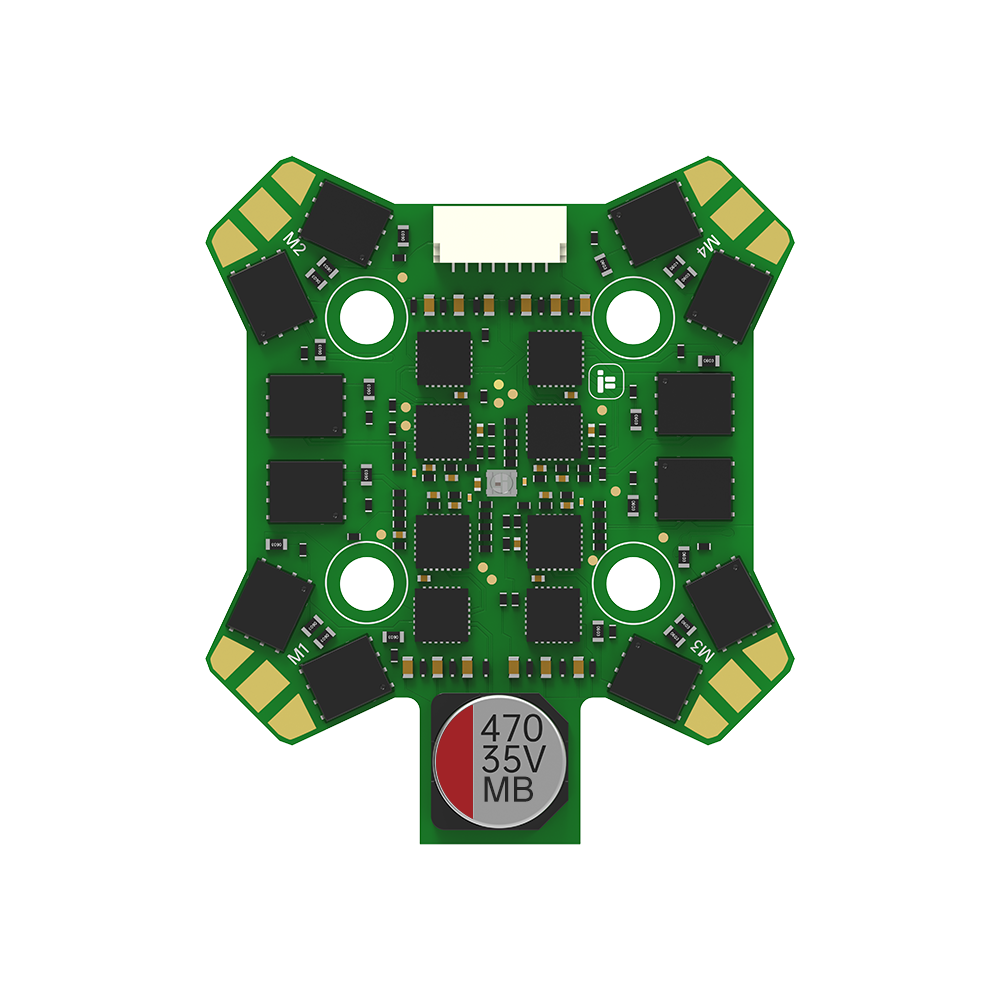

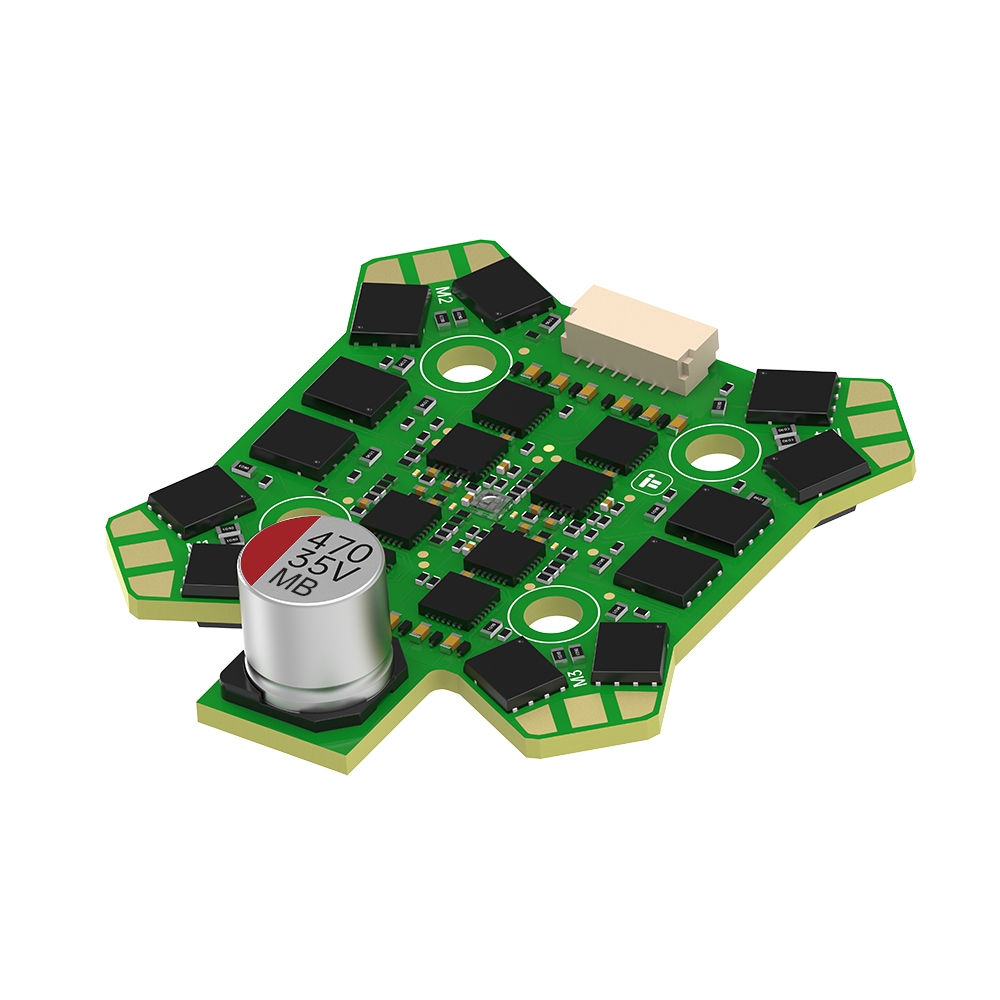

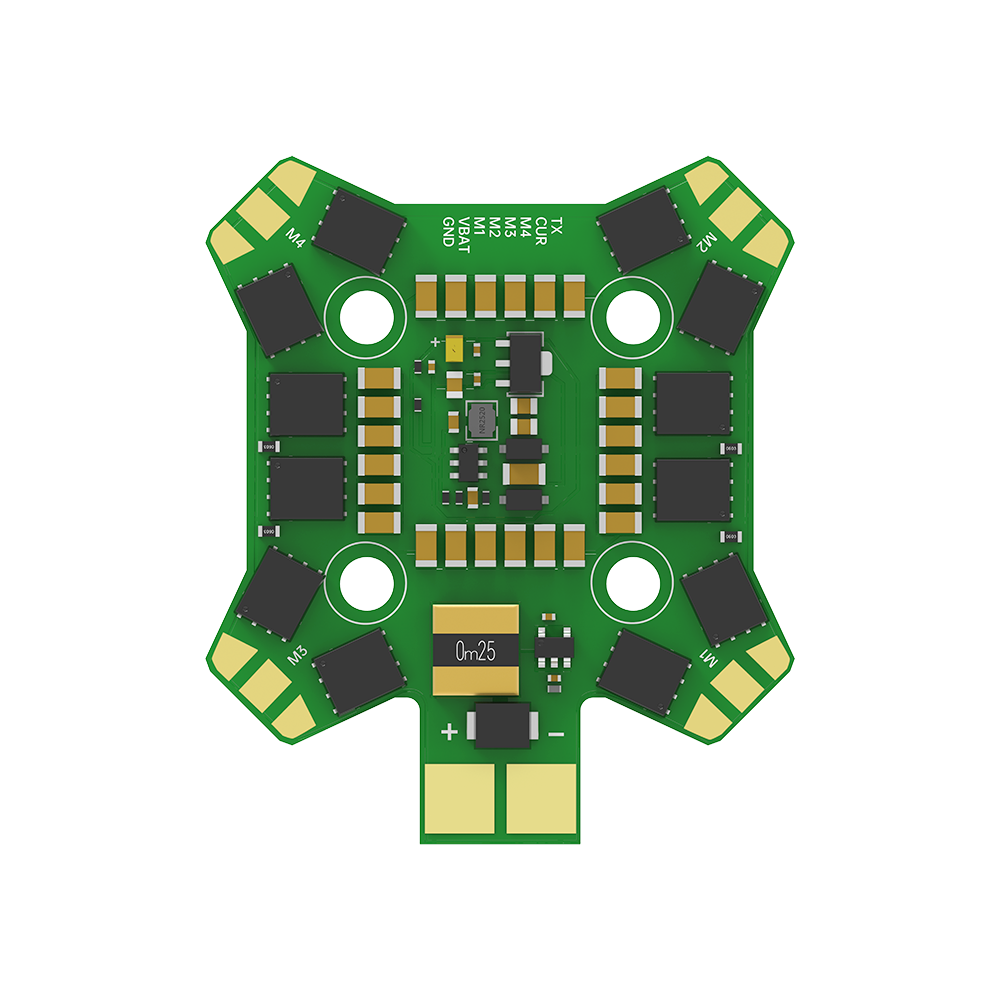

iFlight BLITZ E55R 4-IN-1 ESC

The next generation of ESCs from iFlight has arrived. These new 55Amp BLHeli32 BLITZ 4in1 ESCs can handle even the most amp-hungry motors. Lager Mosfets and bigger PCB for maximum heat dissipation. Powerful 55A for 2-6S batteries and 20x20 mounting pattern. The perfect match for the BLITZ Flight Controller series.

• Larger MOSFET for more durable
• Better heat dissipation
• Safer with high redundancy
• Outstanding performance

Product Name: BLITZ E55R 4-IN-1 ESC (G3)

Input Voltage: 2-6S

Max. Continuous Current: 55A

Max. Burst Current: 65A

MCU: G071

BEC: No

Firmware: BLHeli32

Current Sensor: Yes

Current rate: 200

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2/ IFLIGHT_BLITZ_G3 32.9

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 15.3g

Protocol: Supports DShot150/300/600/MultiShot/ OneShot etc.

Compatibility

Mach R5 V1/Sport Frame kit

AOS 5R Frame kit

Not suitable

Nazgul Evoque F5

Nazgul Evoque F6

1 x BLITZ E55R 4-IN-1 2-6S ESC

1 x Power cables & ESC signal wires
