iFlight Borg 60 Mini ESC

Introducing the All-New Borg Series – Power Meets Precision!

The new ESCs feature an integrated anti-spark circuit, providing protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, this ESC eliminates the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.

Support 2- 6S Battery Input for versatile power options.

8-Layer high flow resistant PCB allows for continuous current handling of 60A, with a peak current of 65A.

Integrated Anti-Spark Filter protects your equipment from voltage spikes.

Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.

Product Name: Borg Mini 60 ESC

Input Voltage: 2-6S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: Yes

BEC: None

Telemetry: Supported

Bidirectional DSHOT: Supported

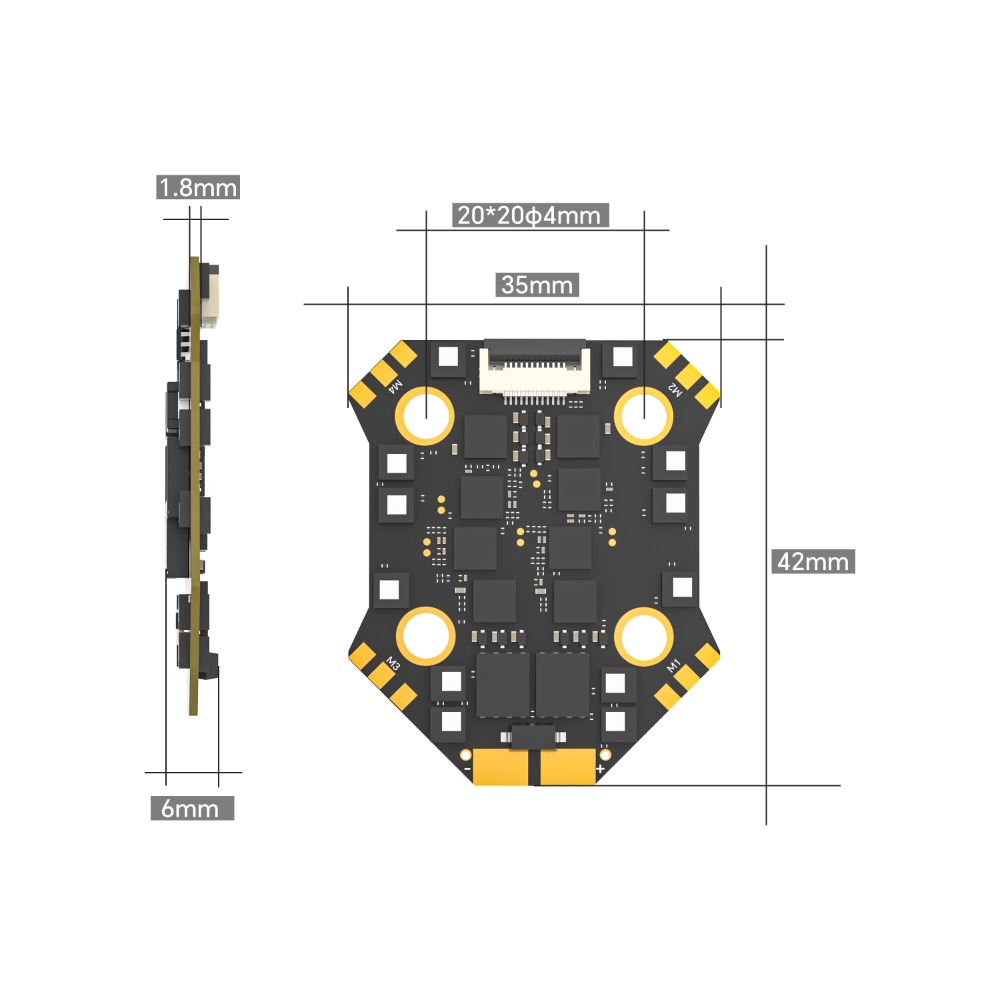

Dimensions: 42*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 9.8g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

1 x Borg 60 Mini ESC

1 x Cables set

4 x silicon grommets
