Description:

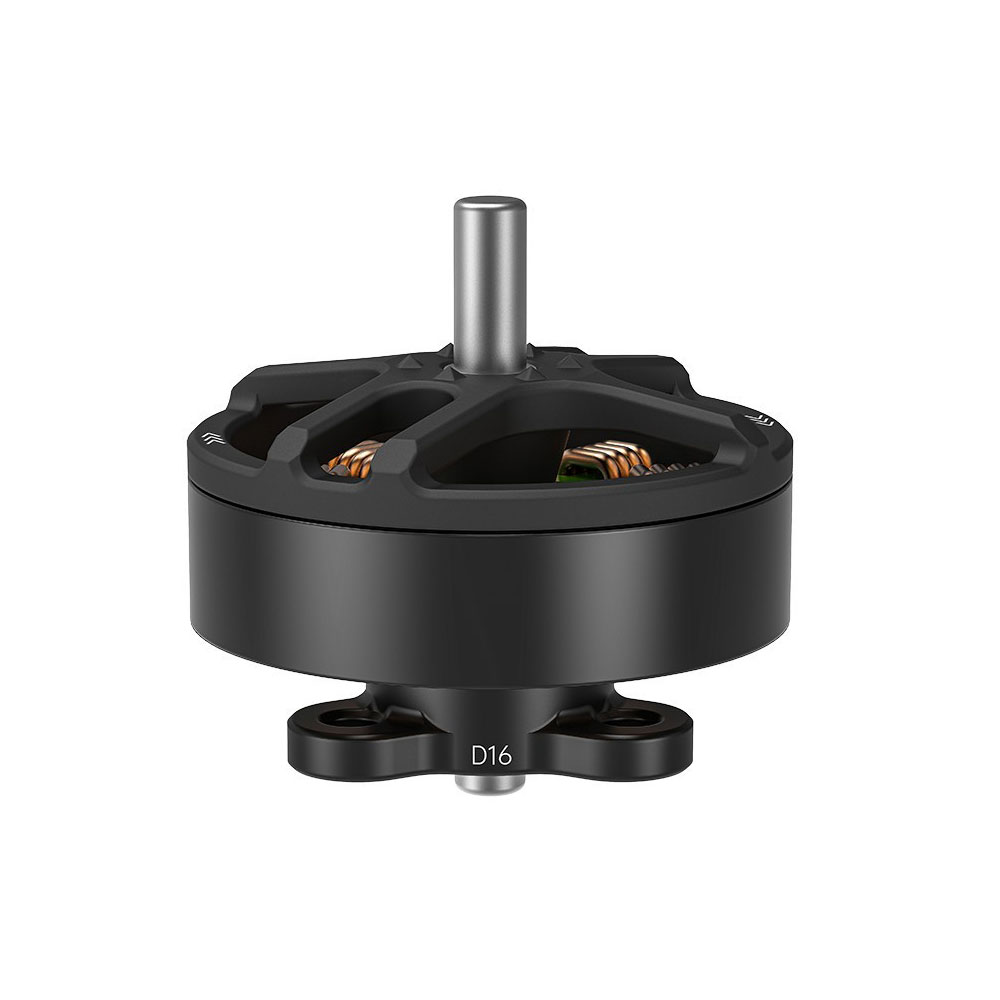

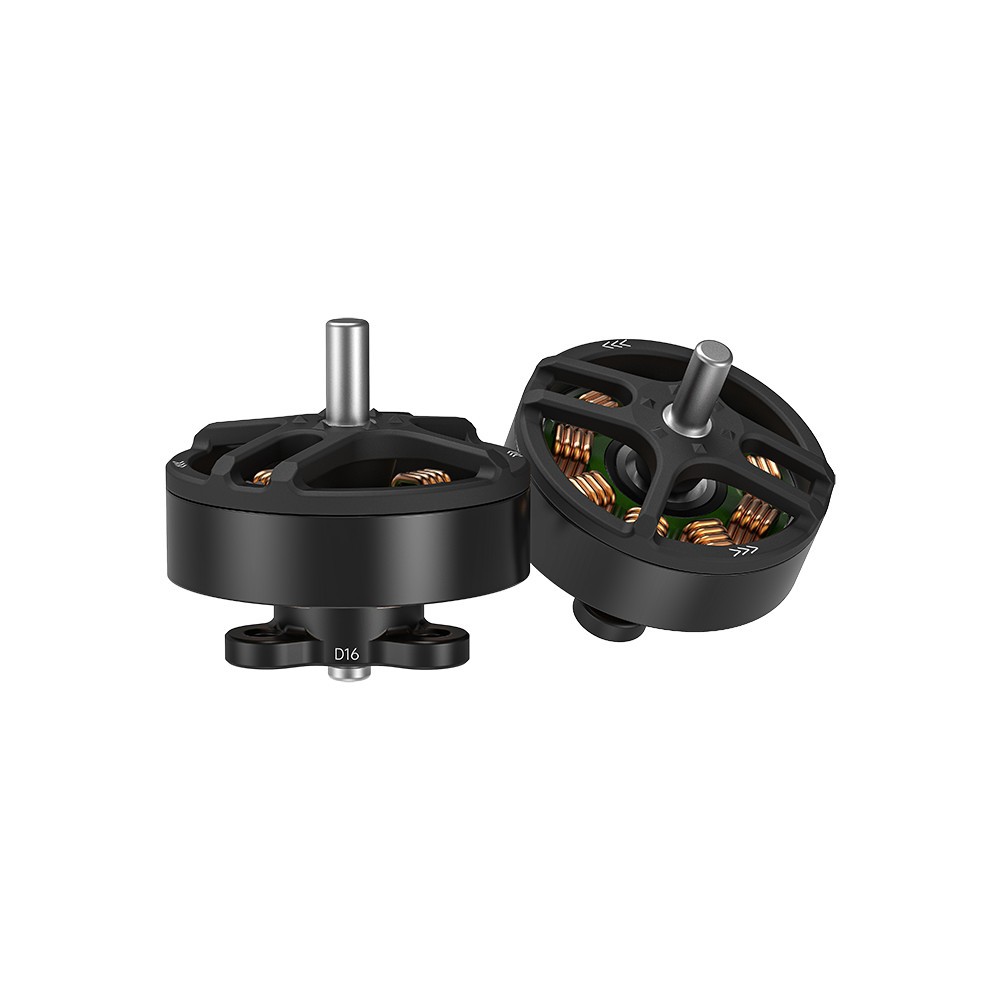

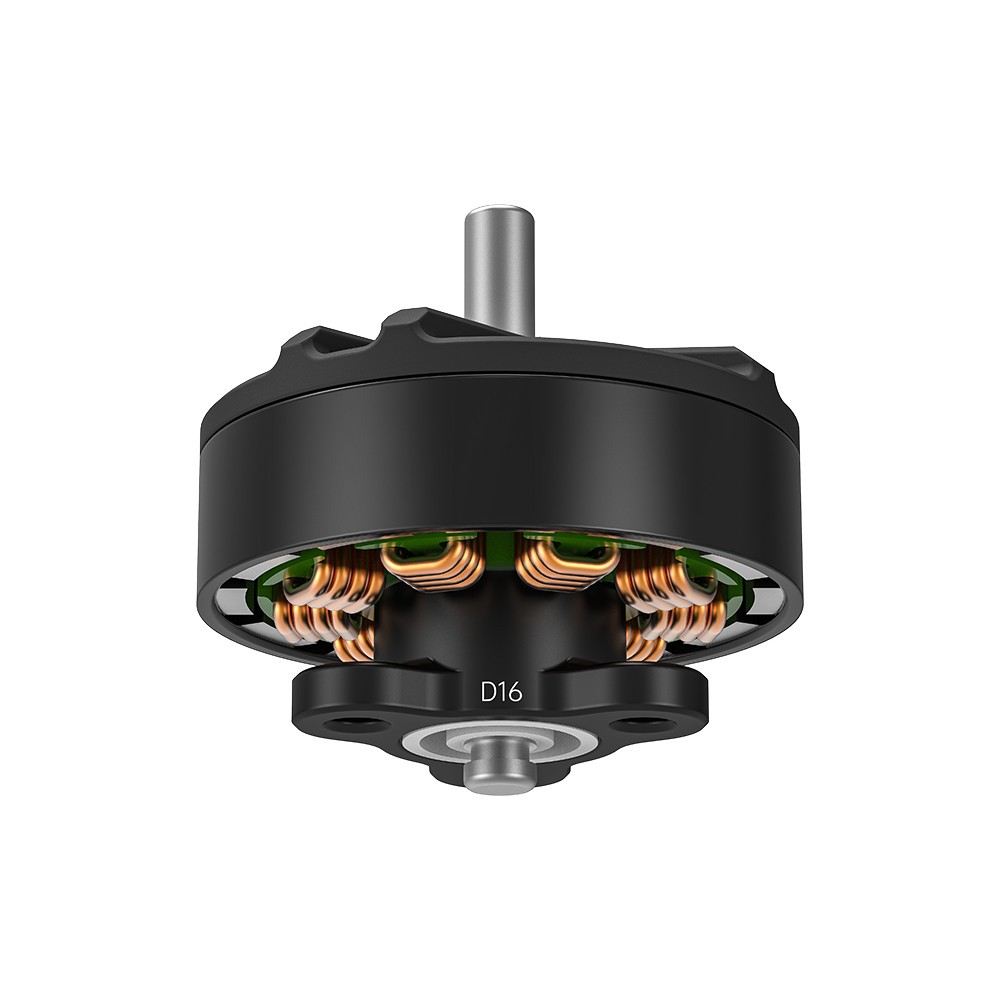

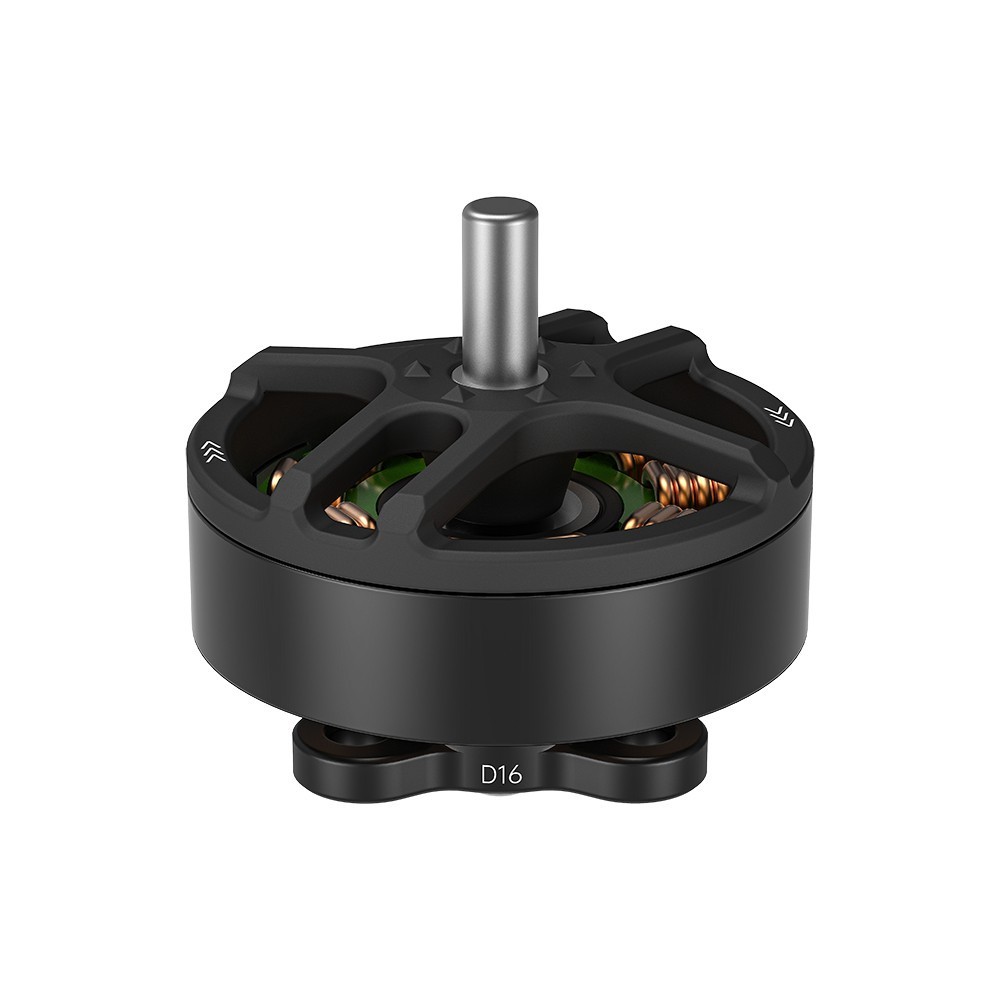

The new Defender 16 Motor is designed for ultralight build, that micro drone change FPV in nowadays. Sub 250grams Defender 16 builds like these just got much nicer since we got the newest generation whoop style all in one (AIO) with iflight new Defender 16 frame you can build the ultralight micro drone.

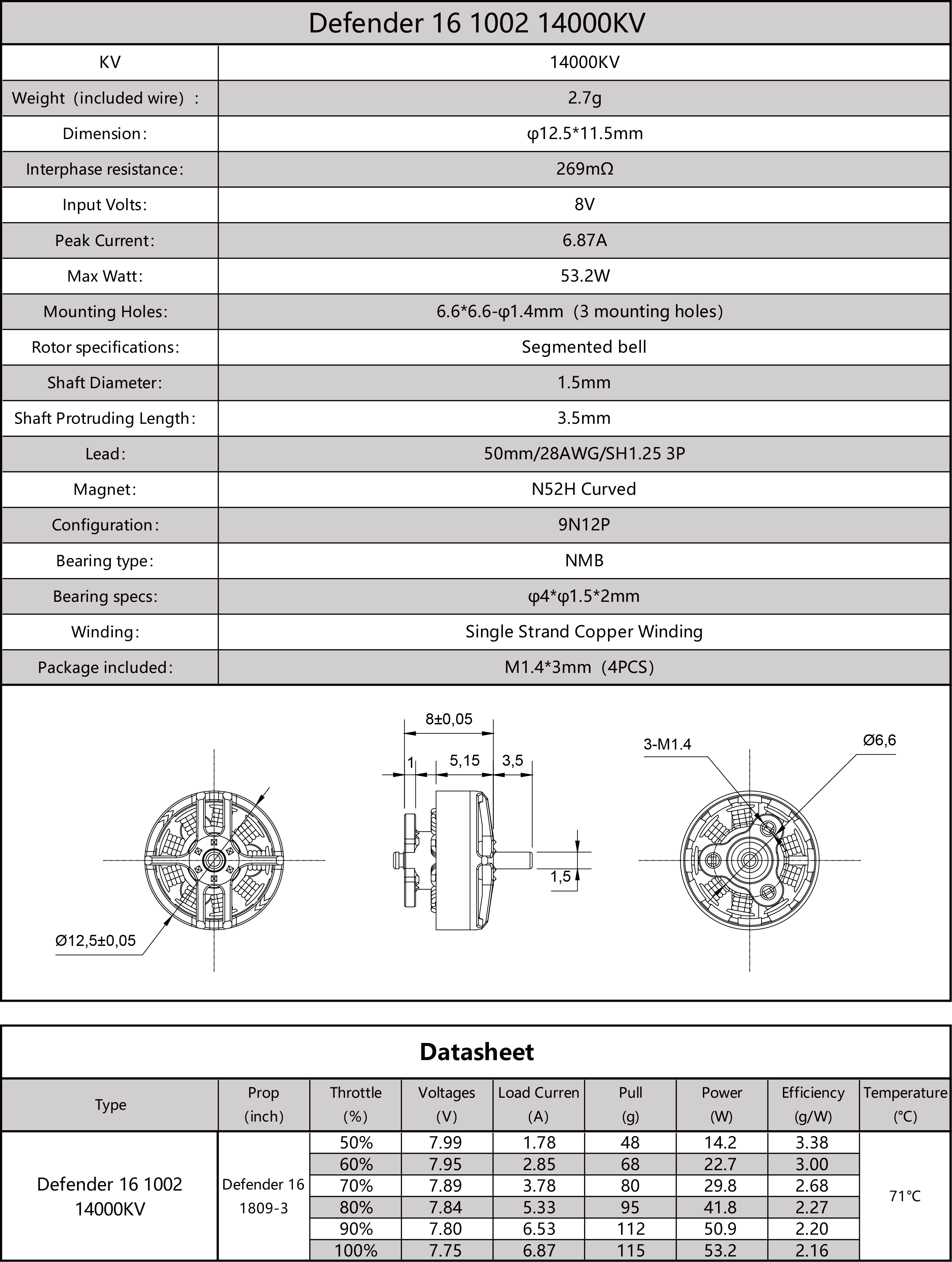

Specifications:
Model: Defender 16 1002 Motor
KV: 14000V
Weight(included wire): 2.7g
Dimension: 12.5*11.5mm
Interphase Resistance: 0.269Ω
Input Volts: 8V
Peak Current: 6.87A
Max Watt: 53.2W
Mounting Holes: 6.6mm/φ1.4mm (3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3mm
Lead: 50mm/28AWG/SH1.25 3P
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: φ4*1.5*2.mm
Winding: Single Strand copper winding
Package includes:
1 x Defender 16 1002 Motor
4 x M1.4x3 mm mounting screws
