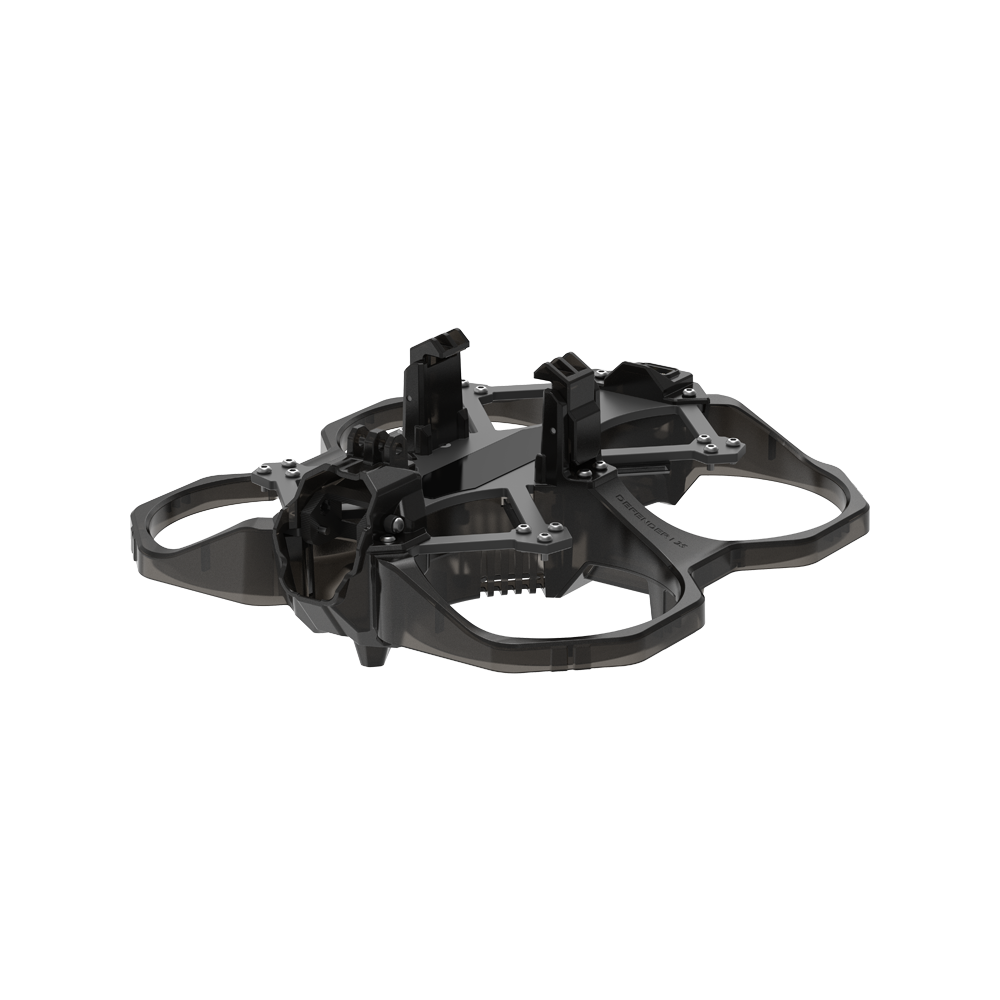

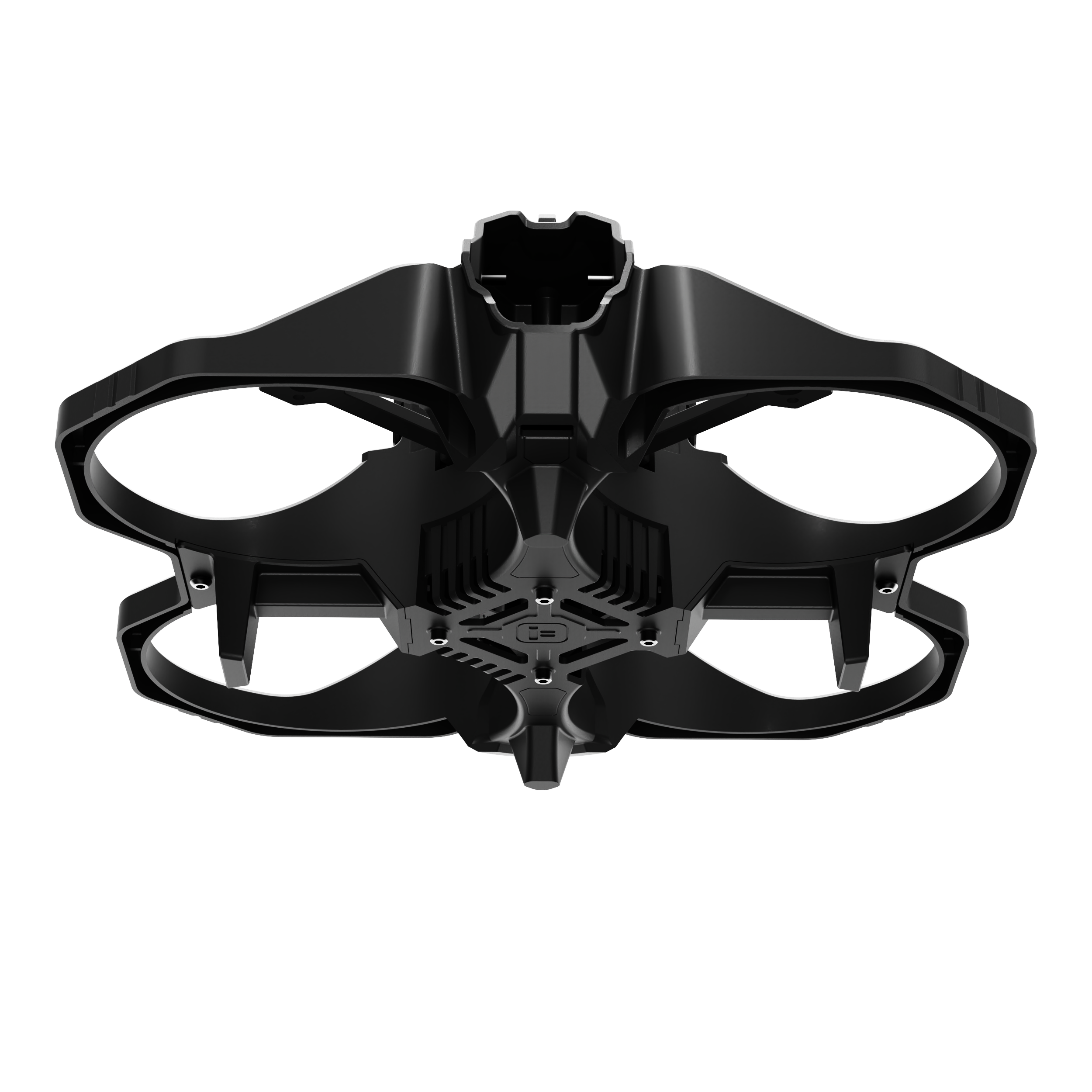

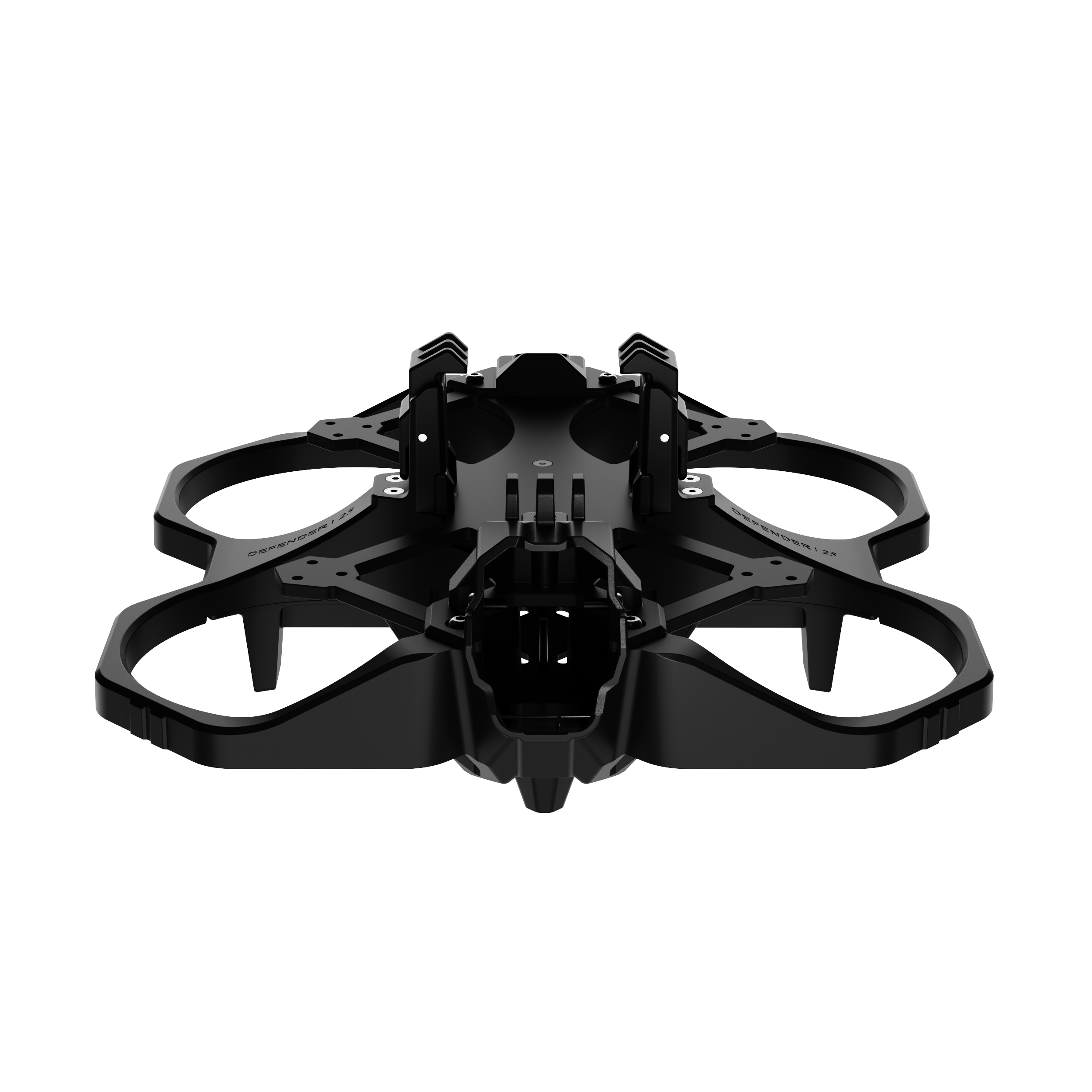

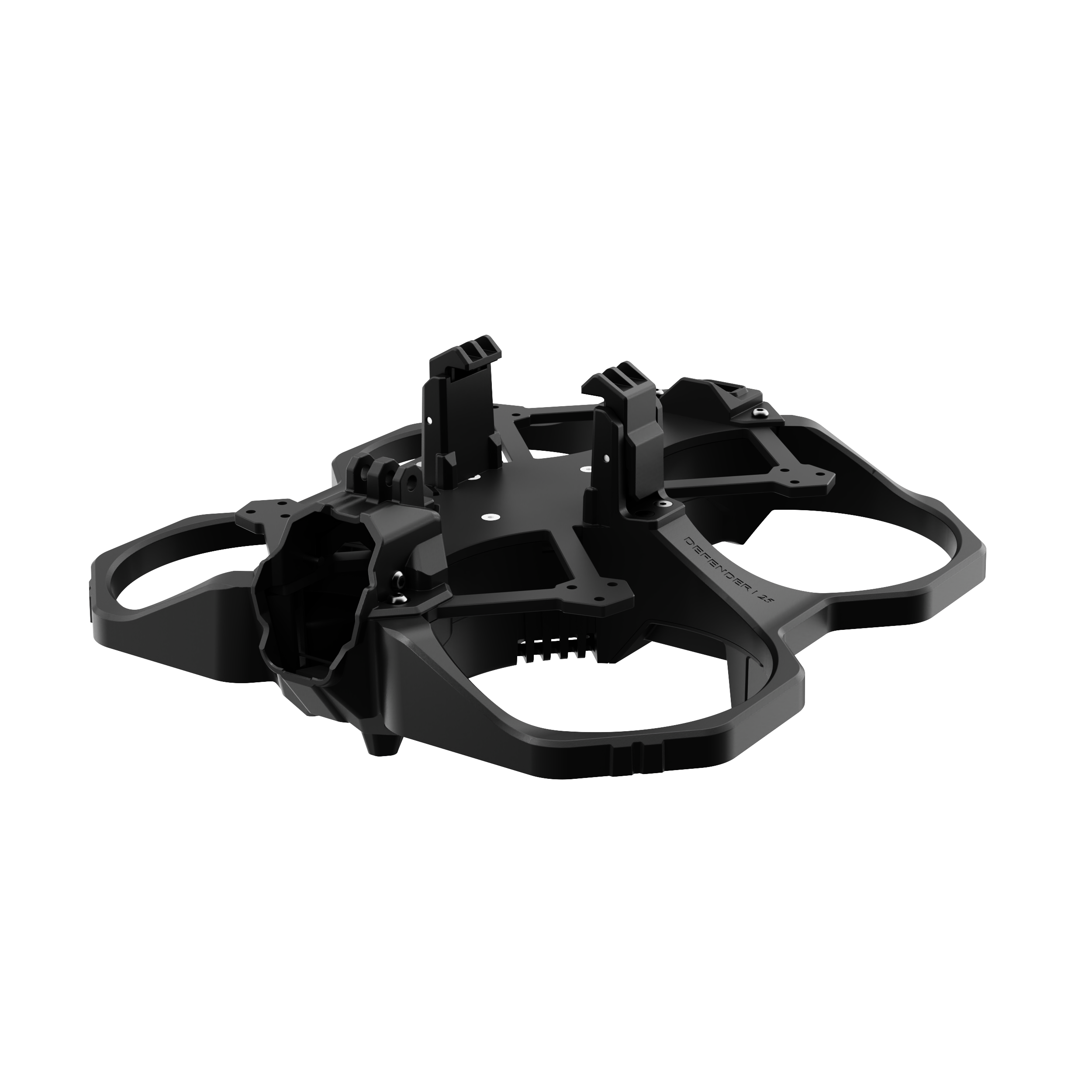

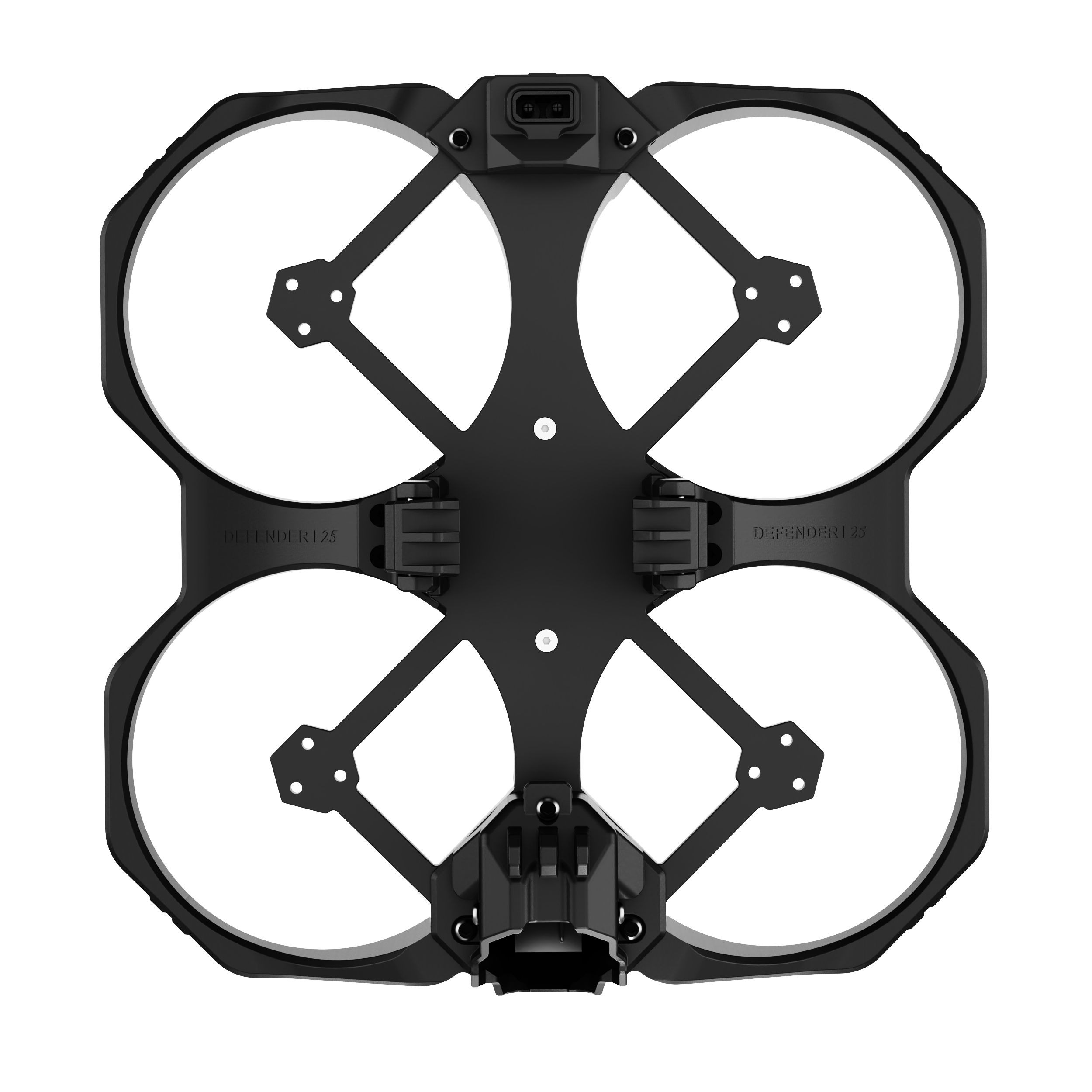

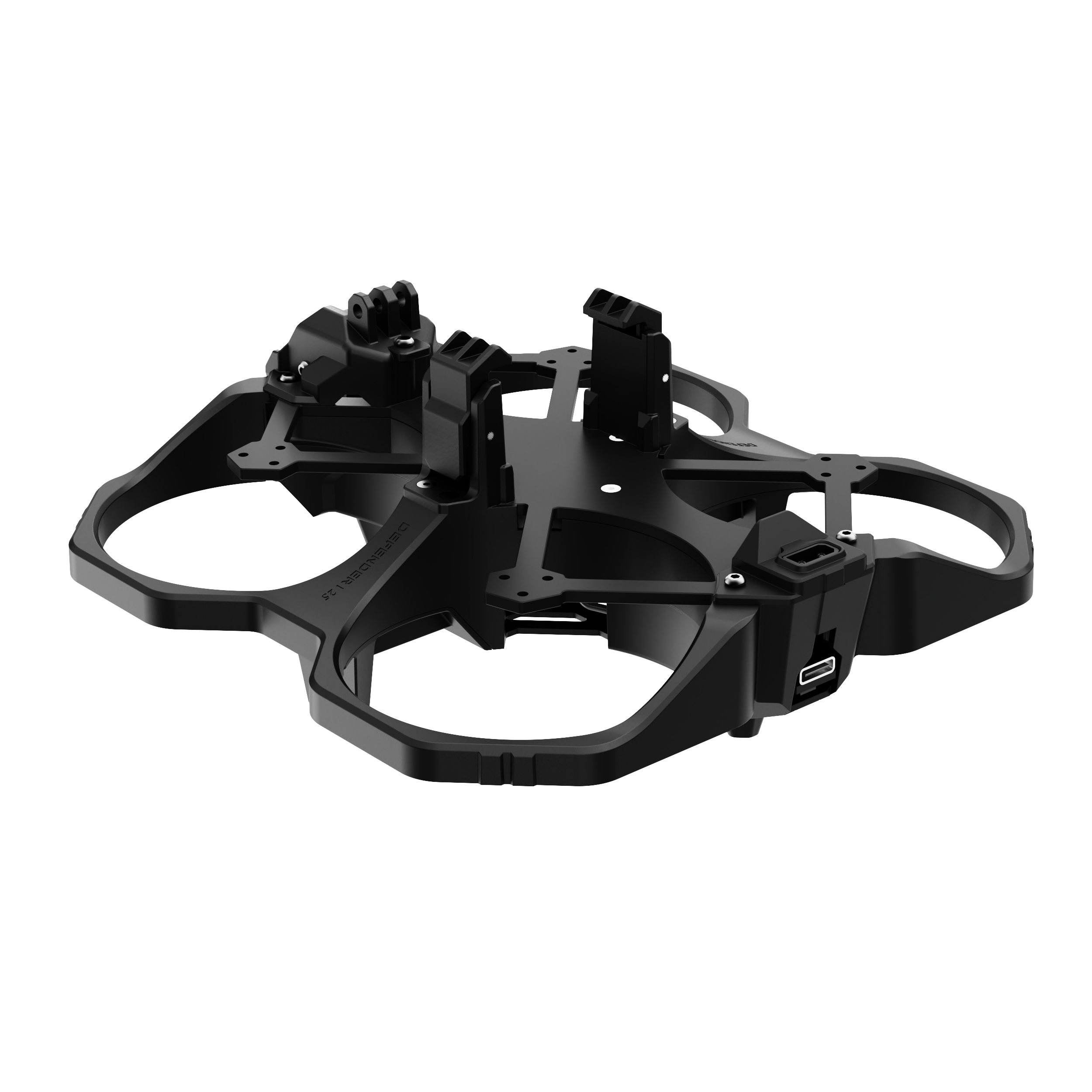

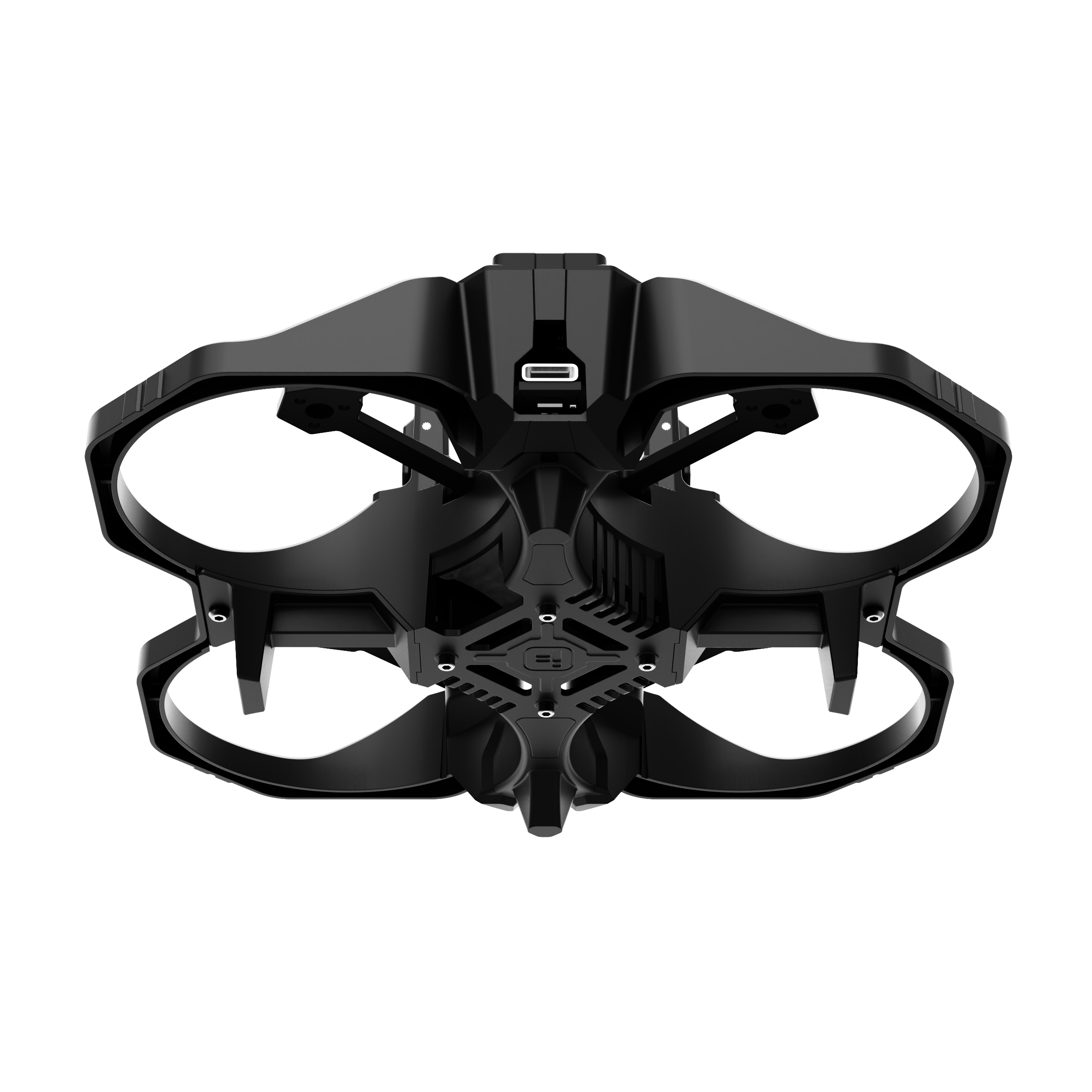

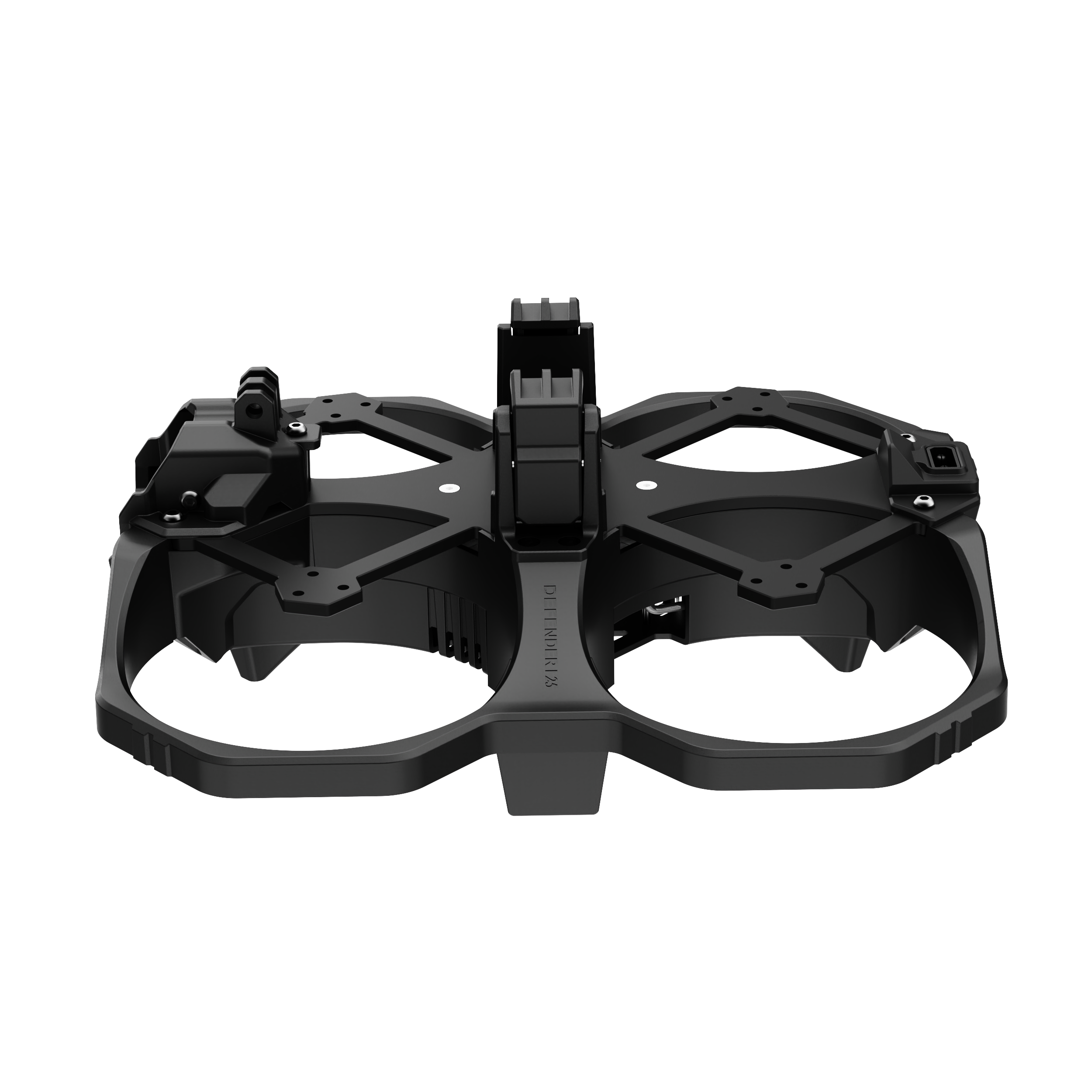

iFlight Defender 25 Frame Kit

Battery with XT30 Connector, like 650mAh / 850mAh / 1100mAh. You need to do a bit of a DIY job to tie your battery.

Small But Mighty

The built-in 2.5inch propeller guards were designed to fly bold. You’ll experience a complete new creative freedom to fly whenever and wherever. The durable injection molded frame does not only prevent damage to your motors or propellers, but also protects the environment of small flight errors.

We’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization.

Product Name: Defender 25 Frame Kit

Frame wheelbase: 112±2mm

Frame Dimension: L158*W155*H37.5 mm

Arm Thickness: 2.5mm

Top Plate Thickness: 2.5mm

Max Flight Stack Height: 25.7mm

Motor Mounting: 9x9mm-φ2mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Weight: 90g

1 x Defender 25 Frame Kit

1 x Anti-Spark Filter

1 x Screw Bag

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
