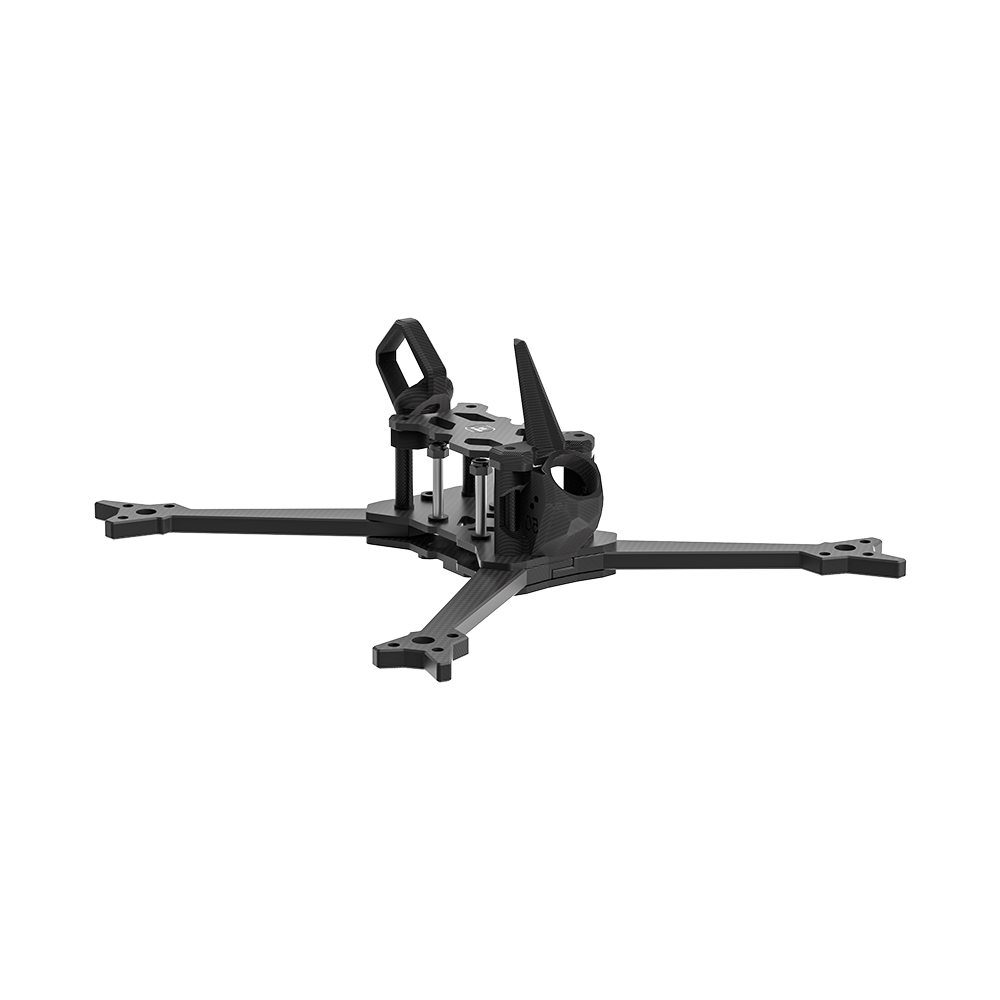

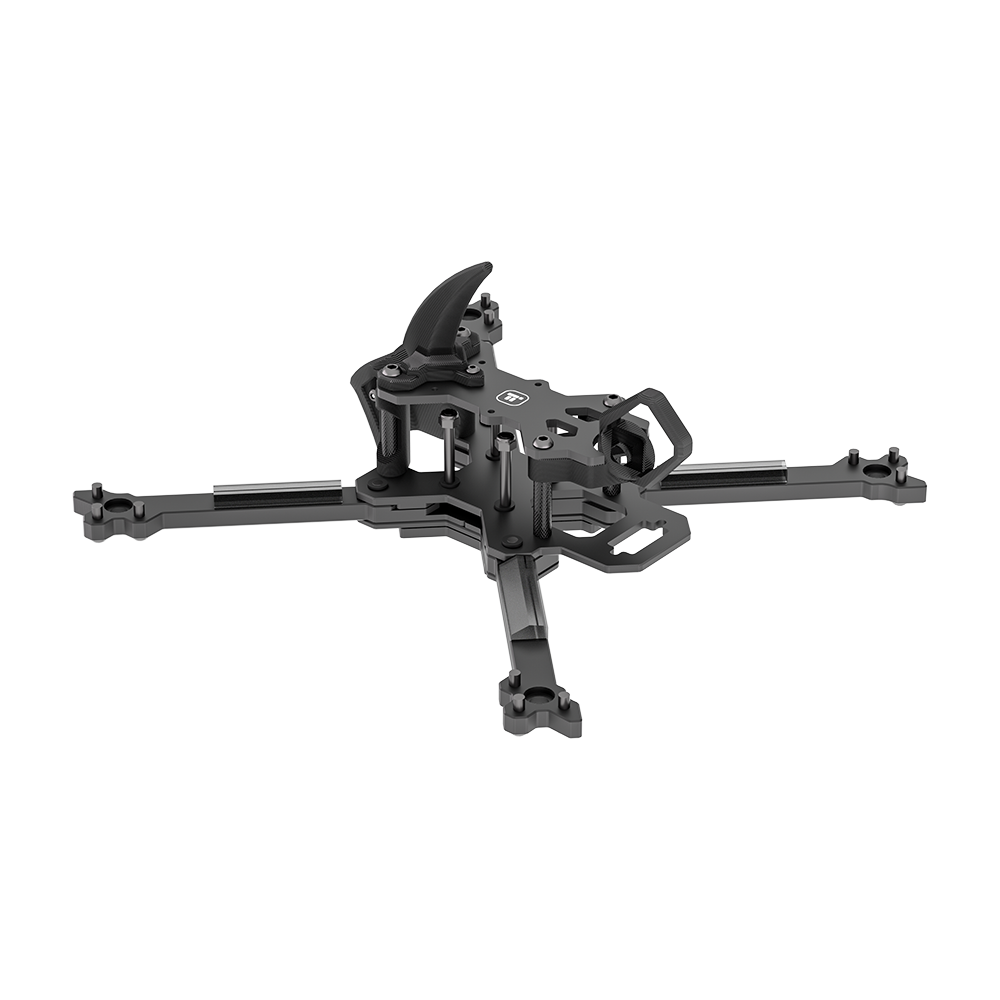

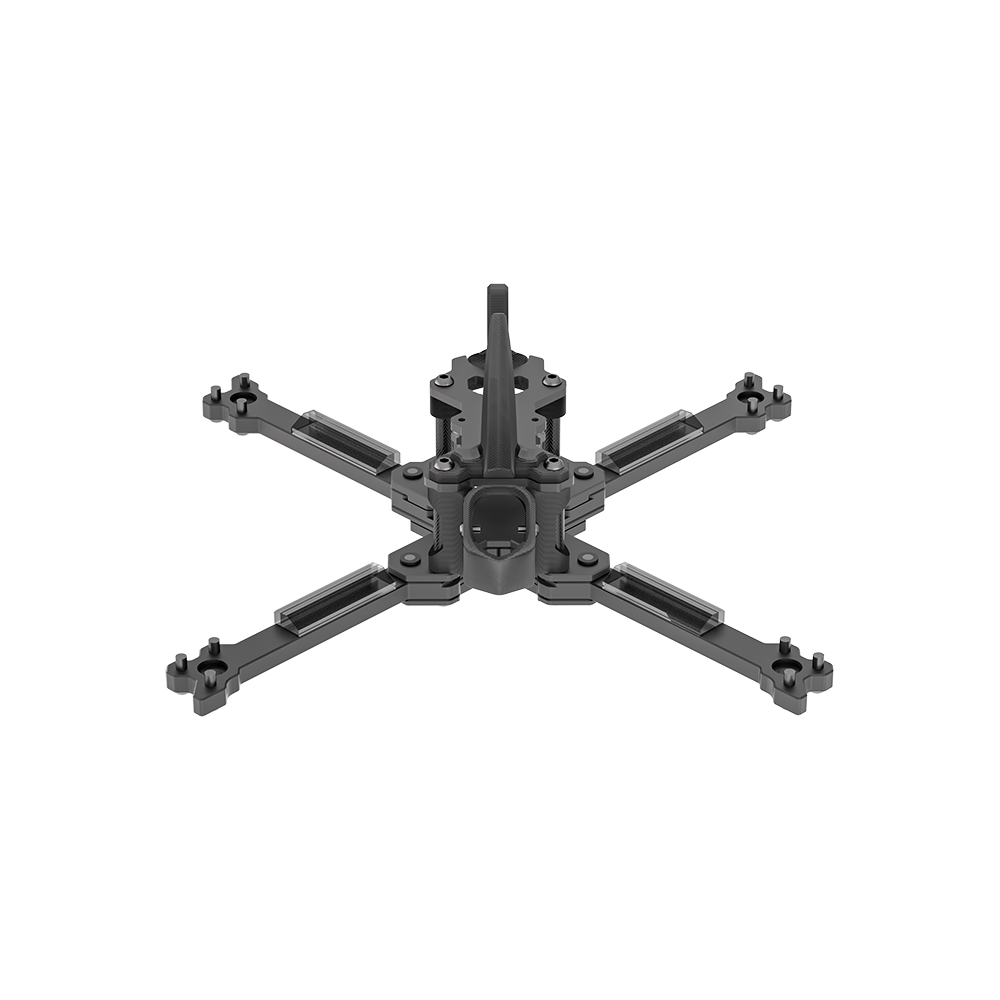

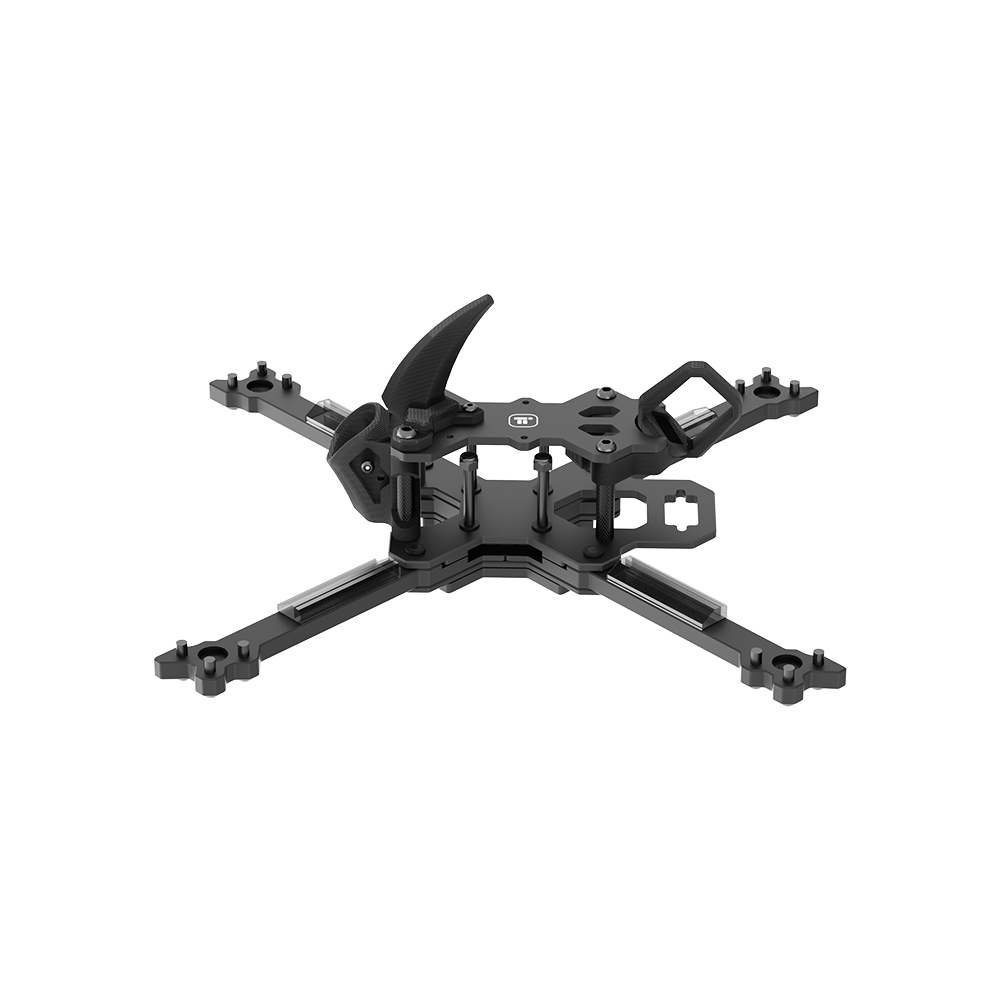

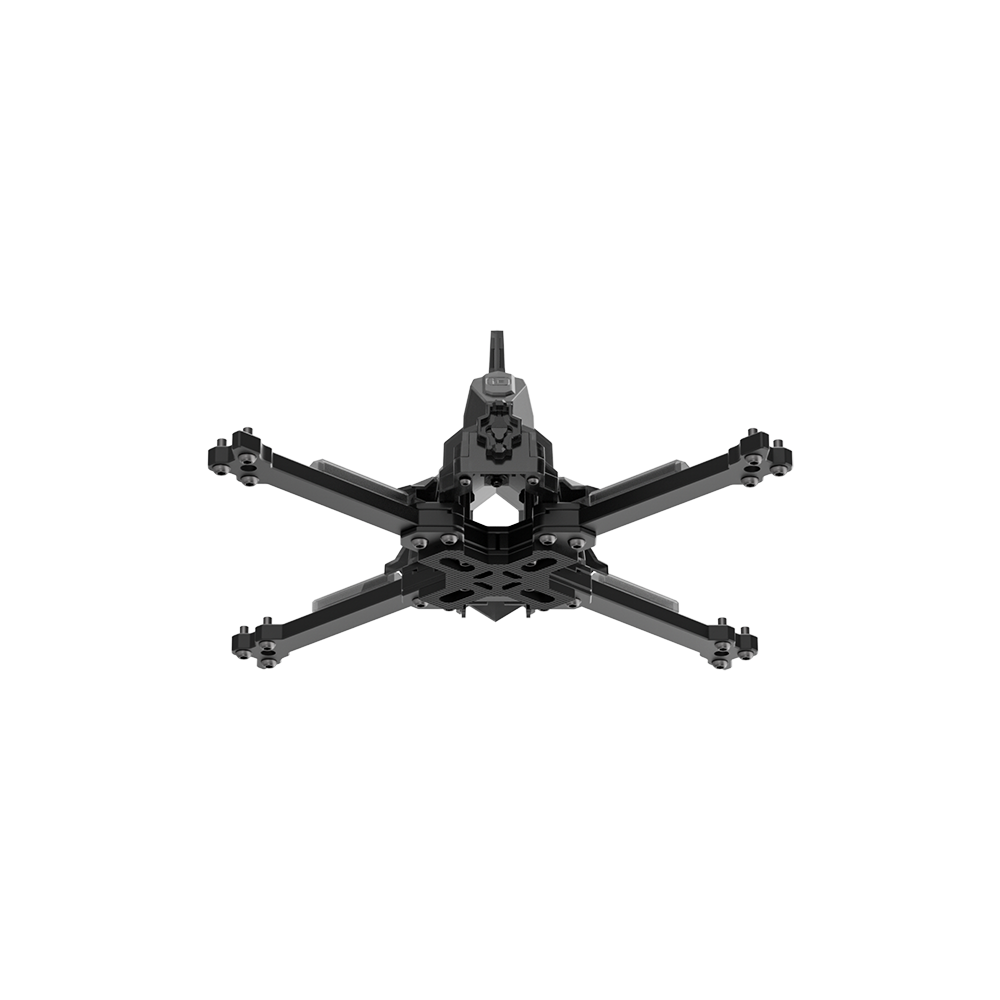

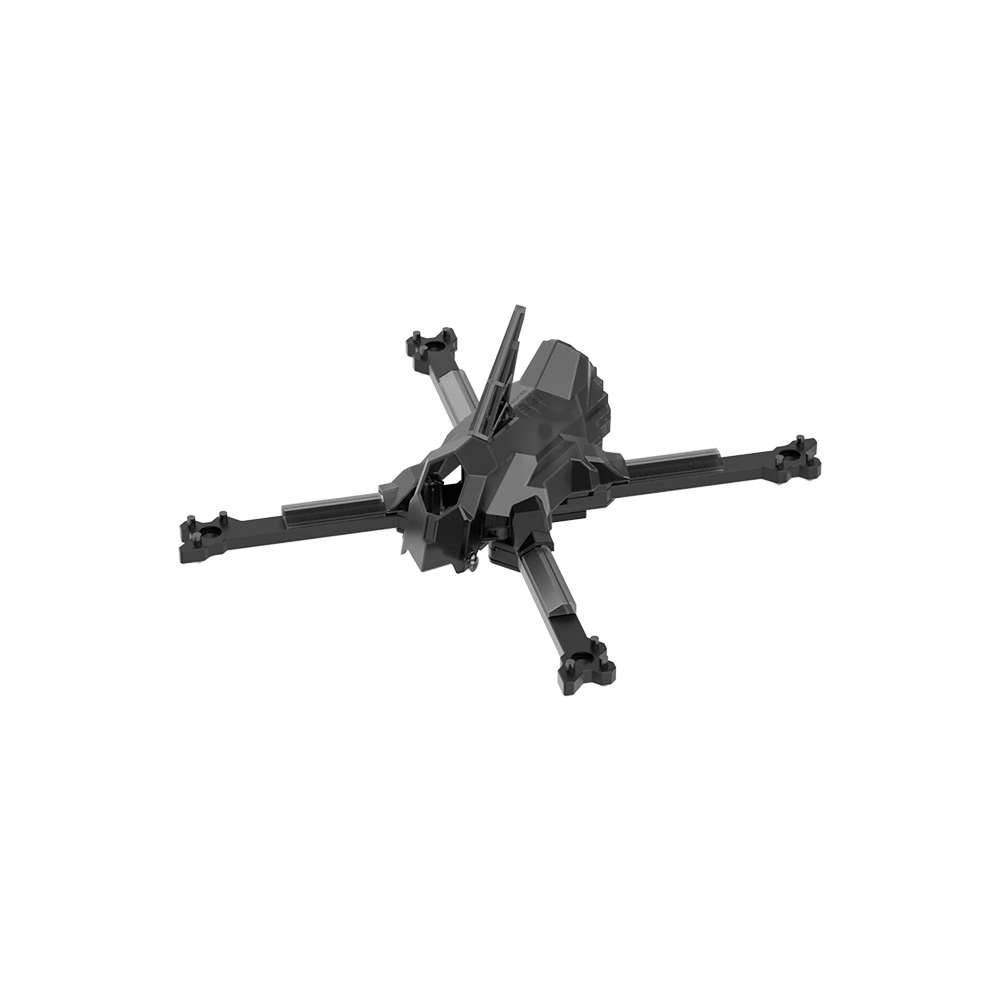

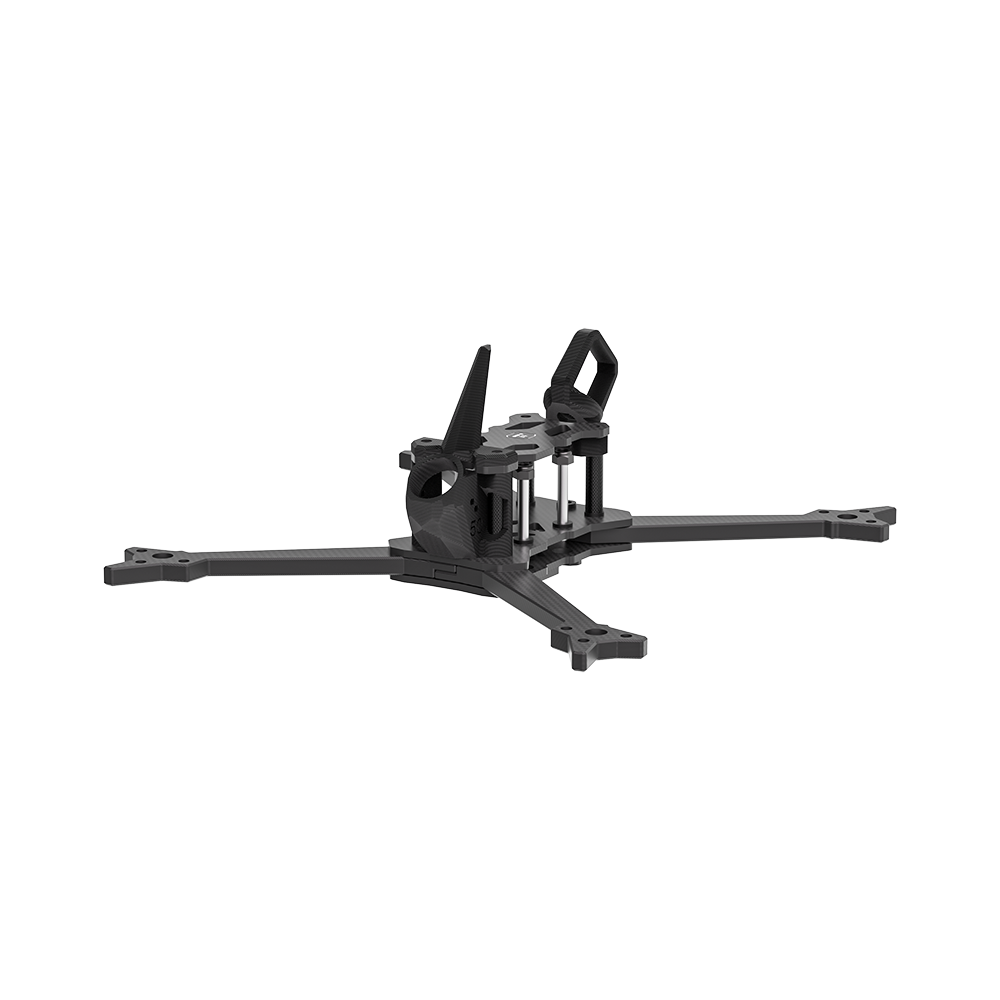

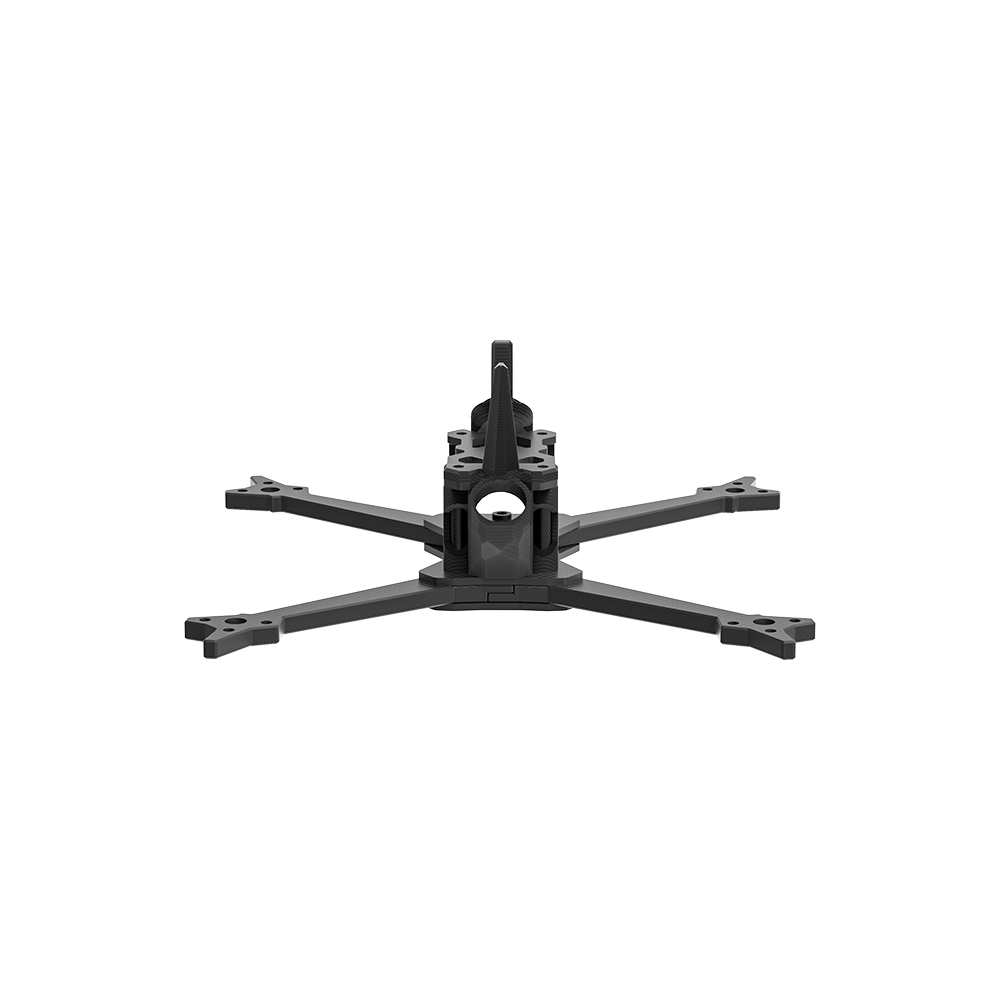

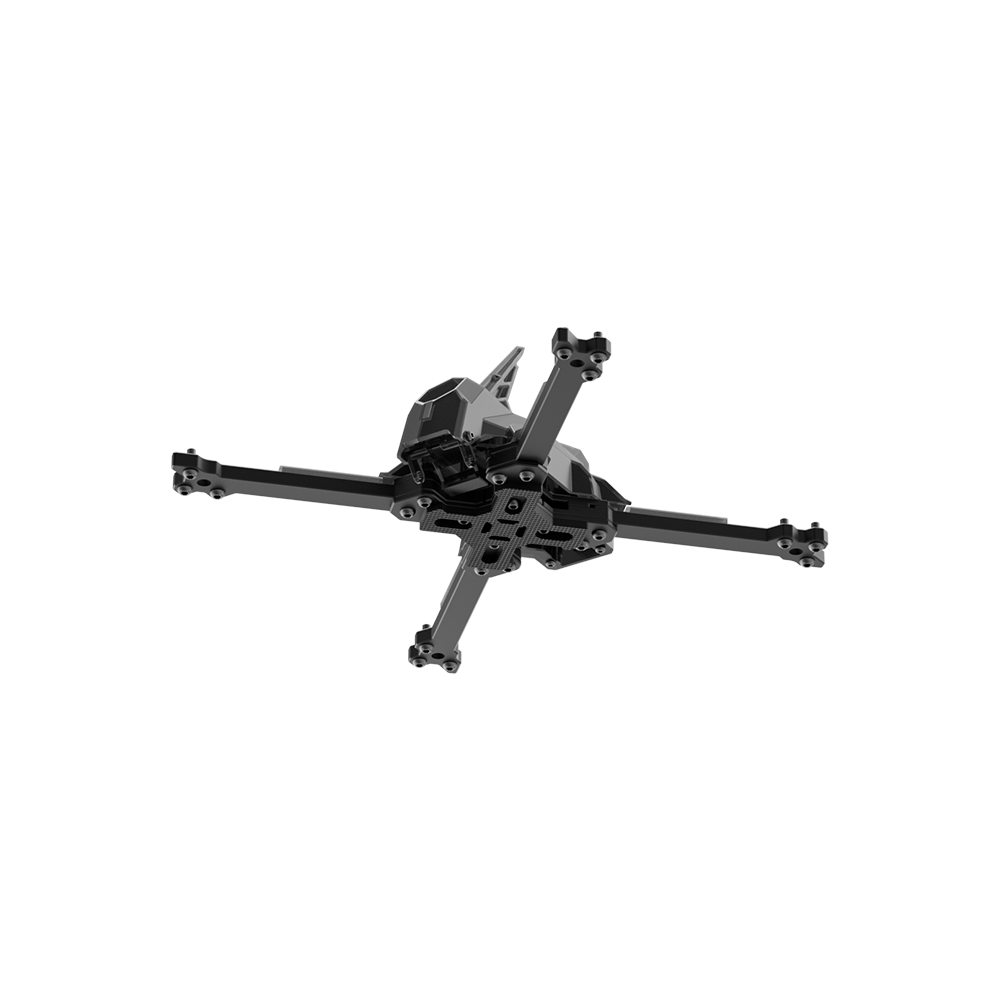

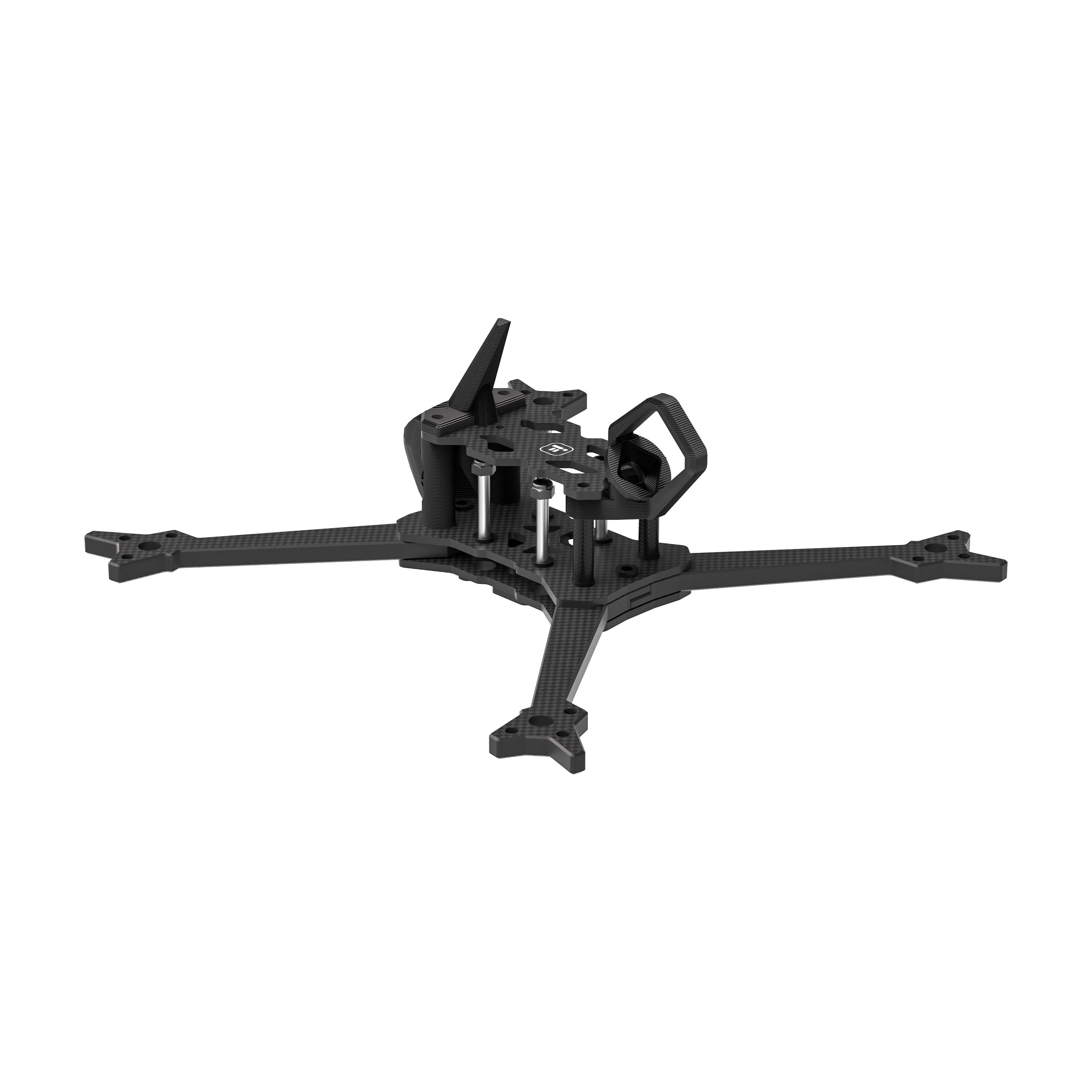

Product Name: Mach R5 Sport Race Frame Kit
Wheelbase: 210mm(Canopy Ver./ Lite Ver.) / 222mm(Ultra ver.)
Frame Dimension: 148*148*51mm(Canopy ver.) / 148*148*37mm(Lite ver.) / 148*148*42mm(Ultra ver.)
Top Plate: 2mm (Lite ver./Ultra ver.)
Arm Thickness: 5.5mm(Canopy Ver./ Lite Ver.) / 5mm(Ultra ver.)
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 4mm(Canopy Ver./ Lite Ver.) / 2mm(Ultra ver.)
Max Flight Stack Height: 25mm(Canopy Ver./ Lite Ver.) / 23mm(Ultra ver.)
Max VTX Height: 25mm(Canopy Ver./ Lite Ver.) / 23mm(Ultra ver.)
FC Mounting：20*20/Φ3 mm
Motor Mounting：16*16/Φ3mm
VTX Mounting：20*20/Φ3 mm
Weight: 107g (Canopy Ver.)/128g (Lite ver.)/ 92g(Ultra ver.)
Recommended motor: 22**/23**/24**/25** series motor
Recommended parts(not included)
BLITZ Mini F722 Flight Controller
BLITZ E55R 4-IN-1 2-6S 55A ESC
R5 2207 motors
Packing List
1 x Mach R5 Sport Frame Kit (Non-assembled)
2 x Battery straps (20*250mm)
1 x TPU Set
2 x Anti-slip Battery Pads
Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
