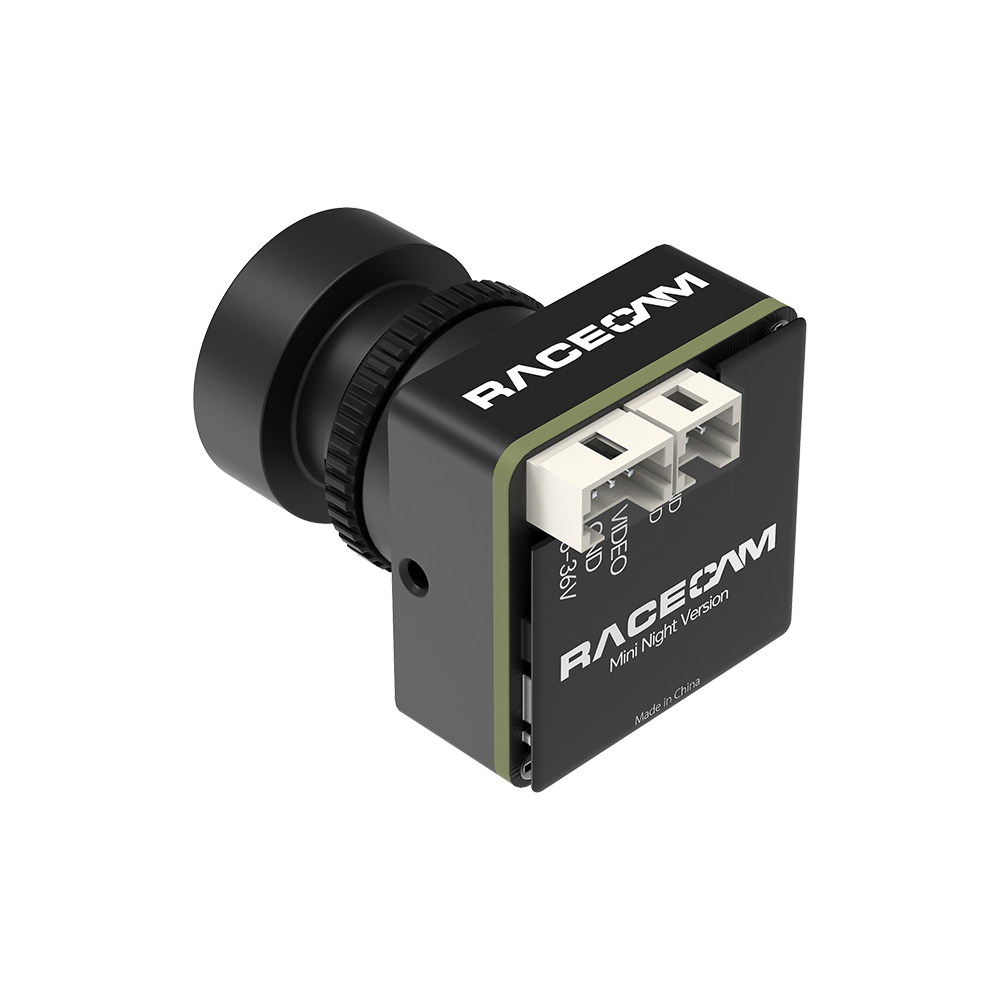

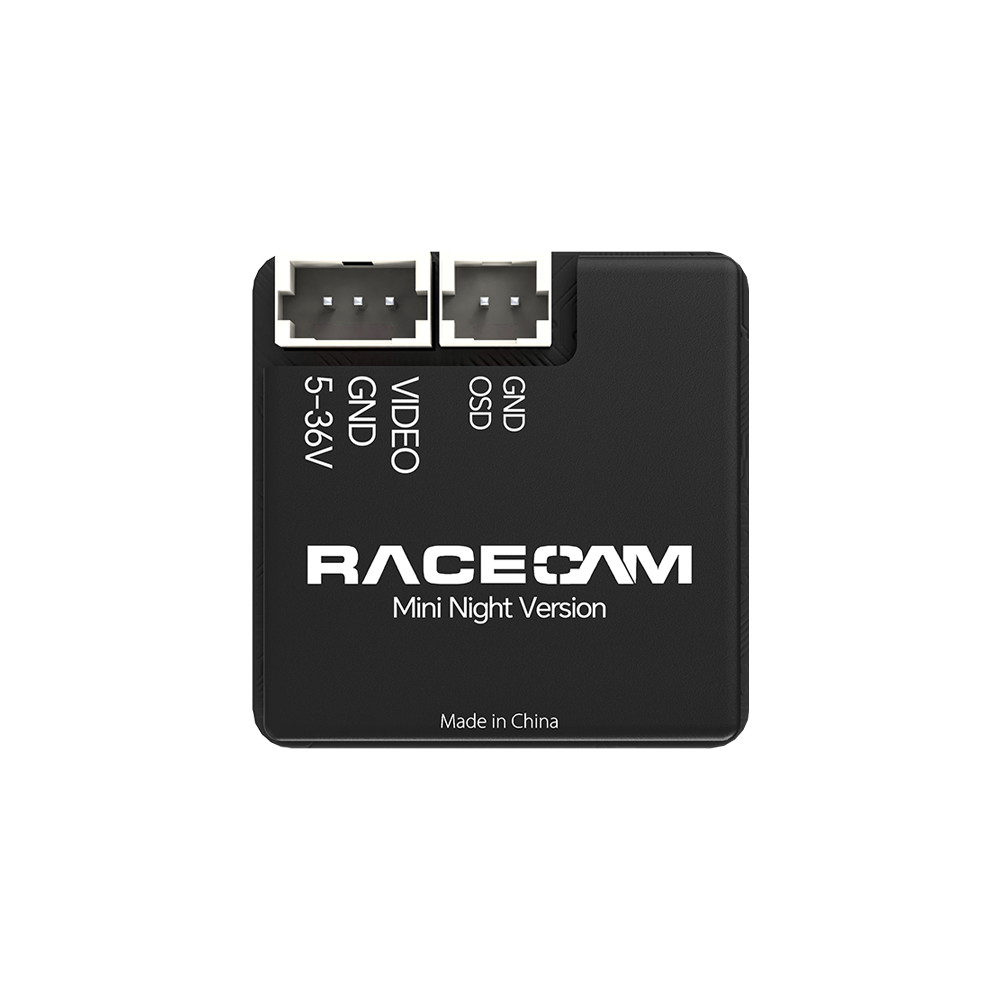

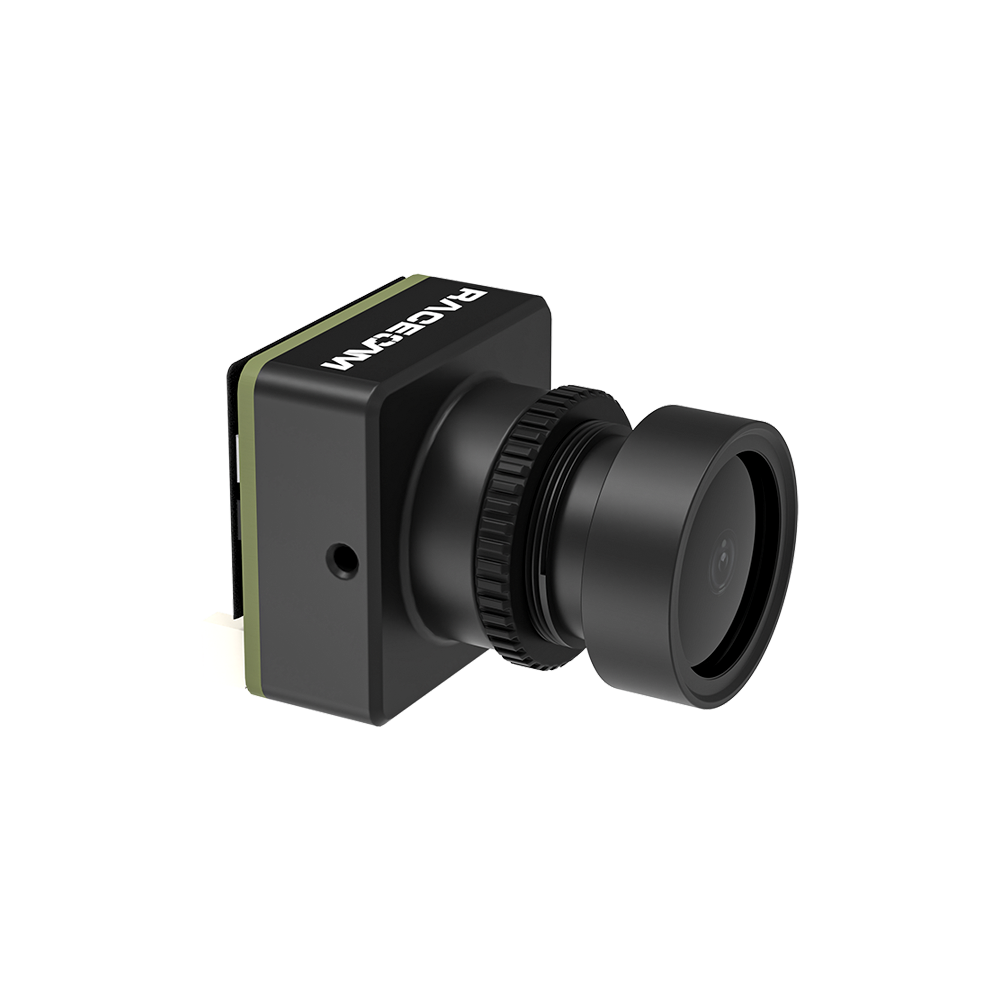

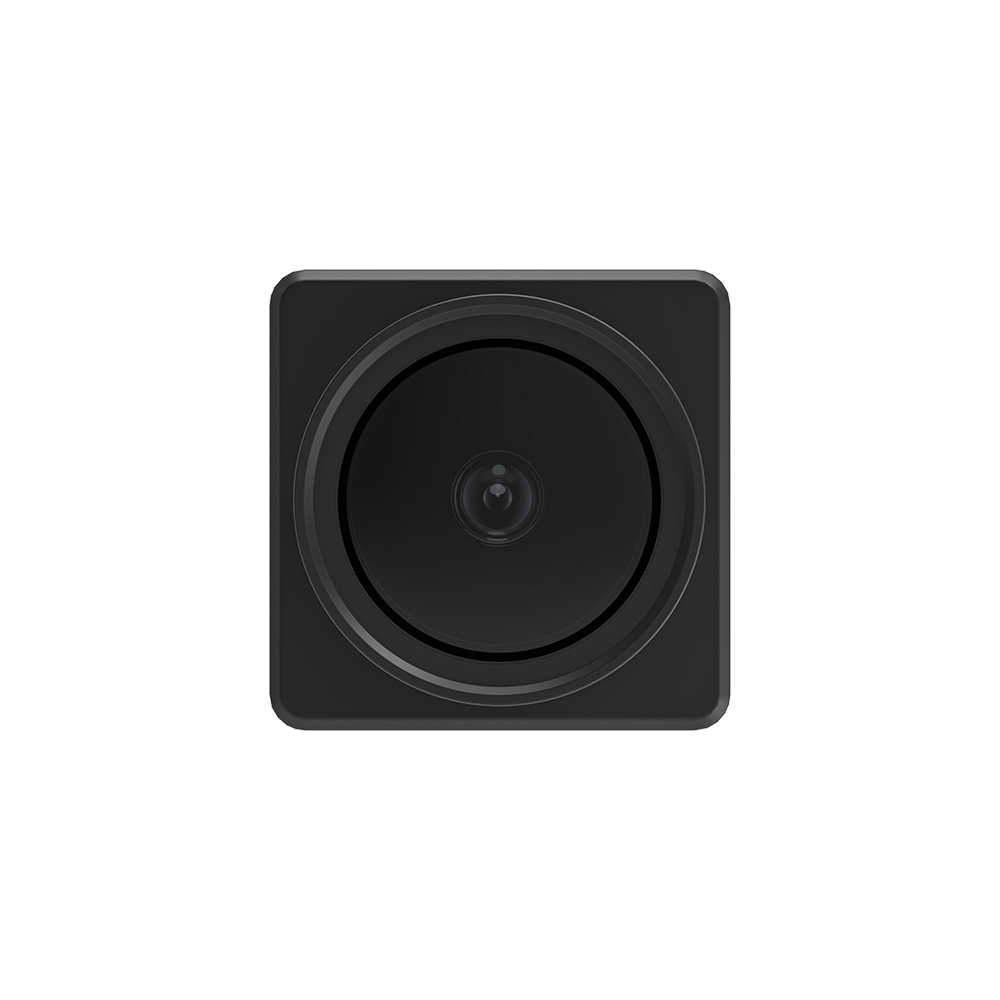

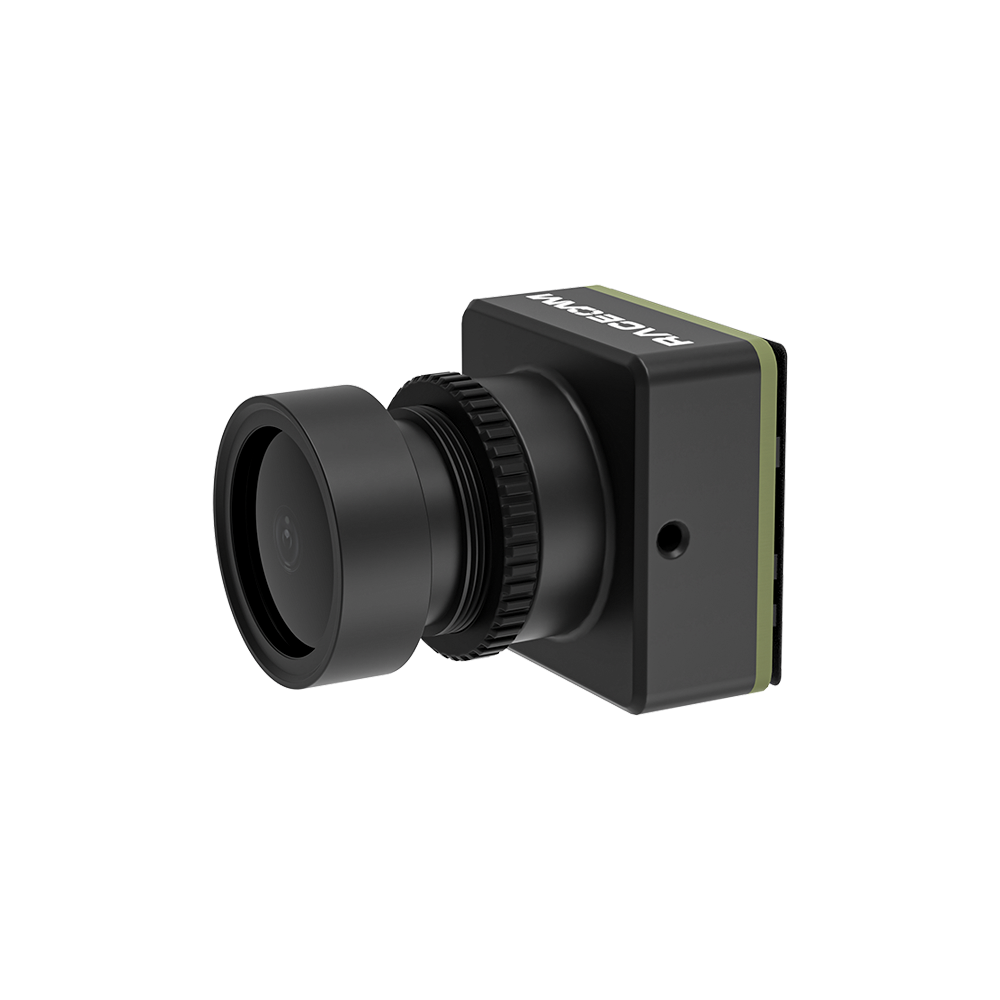

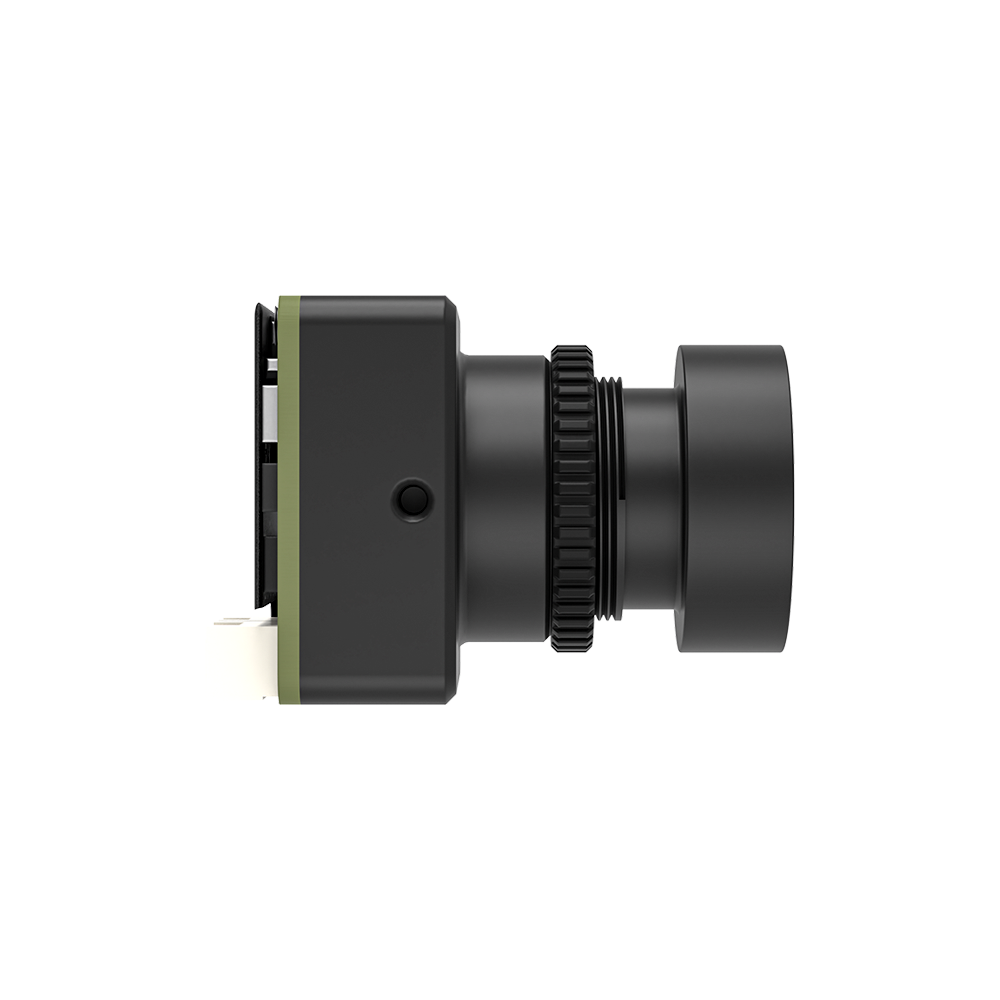

iFlight RaceCam Mini Night Camera

Introducing the RaceCam Mini Night Version, where night vision capabilities have been enhanced to elevate your flying experience. Upgrade now for an unparalleled aerial adventure!

Horizontal Resolution up to 1500TVL

Support Wide Dynamic

Night vision sensitivity 12400mV/Lux-sec

Built-in OSD, menu-adjustable basic camera functions

PAL/NTSC adjustable

Switch effortlessly between 16:9 and 4:3 screen ratios

Image Sensor: 1/2.8″ CMOS Sensor

Horizontal Resolution: 1500TVL

Signal System: PAL/NTSC Switchable

Angle: FOV D:125° H:105° V: 55°

Screen Format: 4:3/16:9 Switchable(default 4:3)

Min. Illumination: Black and white:0.000001Lux(F1.6,50IRE,AGC ON)

Sensitivity: 12400mV/Lux-sec

Lens: M12

S/N Ratio: > 50dB

WDR: Available

White Balance: Automatic

Color: Color/BW

Integrated OSD: Yes

Video output: CVBS

Power: DC 5V-30V

Temperature: -10℃～50℃

Work Humidity: ＜90%

Dimensions: 19*19mm

1 × RaceCam Mini Night Camera

1 x SH1.25 3P Cable

1 x SH1.0 4P to SH1.25 3P Cable

3 x M2*4mm Screws

3 x M2*5mm Screws
