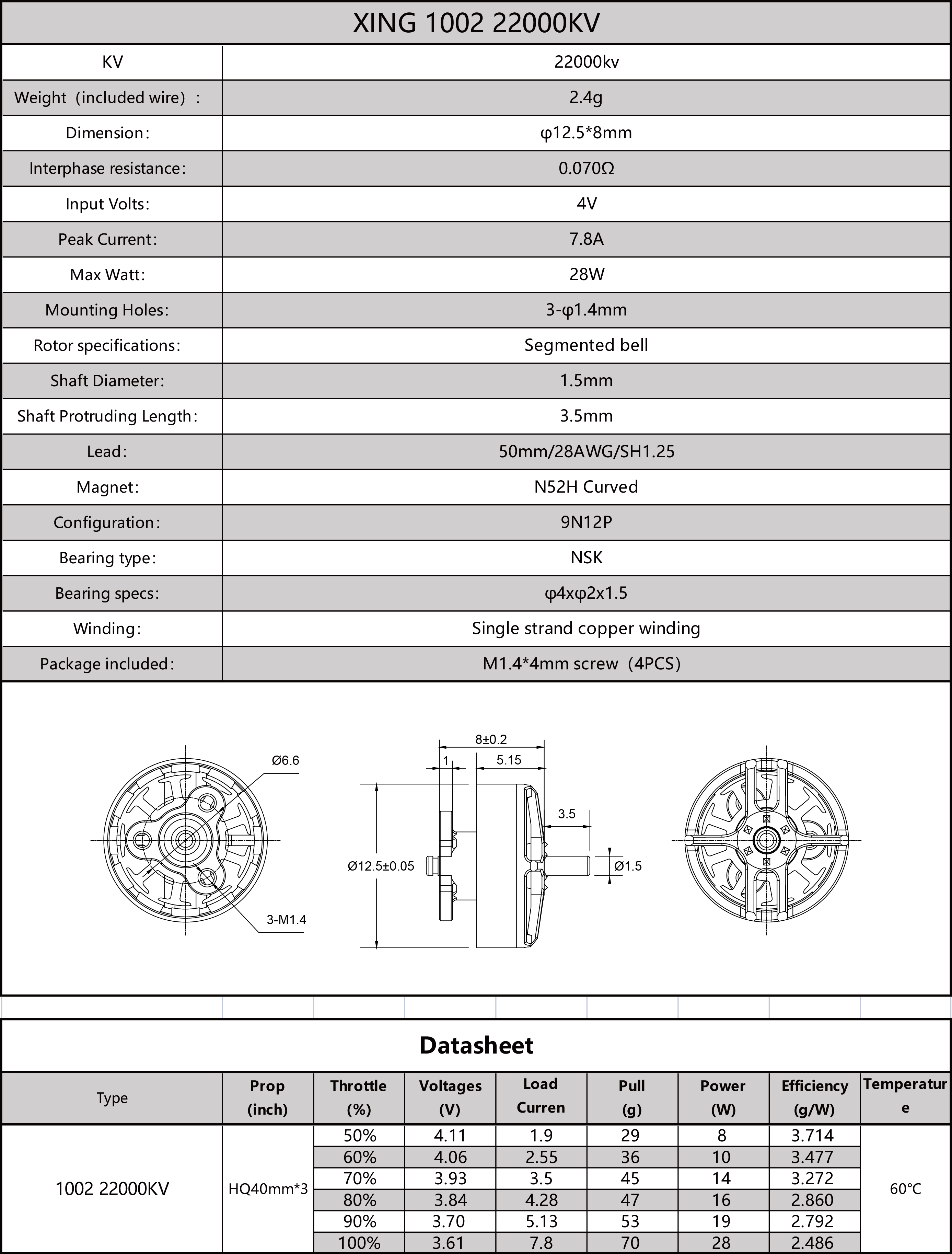

Specifications
Model: XING 1002 Black Motor
KV: 19000KV/22000KV
Weight(included wire): 2.4g
Dimension: φ12.5*8mm
Interphase Resistance: 0.086Ω/0.070Ω
Input Volts: 4V
Peak Current: 5.3A/ 7.8A
Max Watt: 19W/ 28W
Mounting Holes: 3*3 φ1.4mm
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3.5mm
Lead: 50mm/28AWG/SH1.25
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NSK
Bearing Specification: φ4*φ2*1.5
Winding: Single Strand copper winding
1 x XING 1002 FPV Motor(KV is optional)
4 x M1.4*4mm screws
