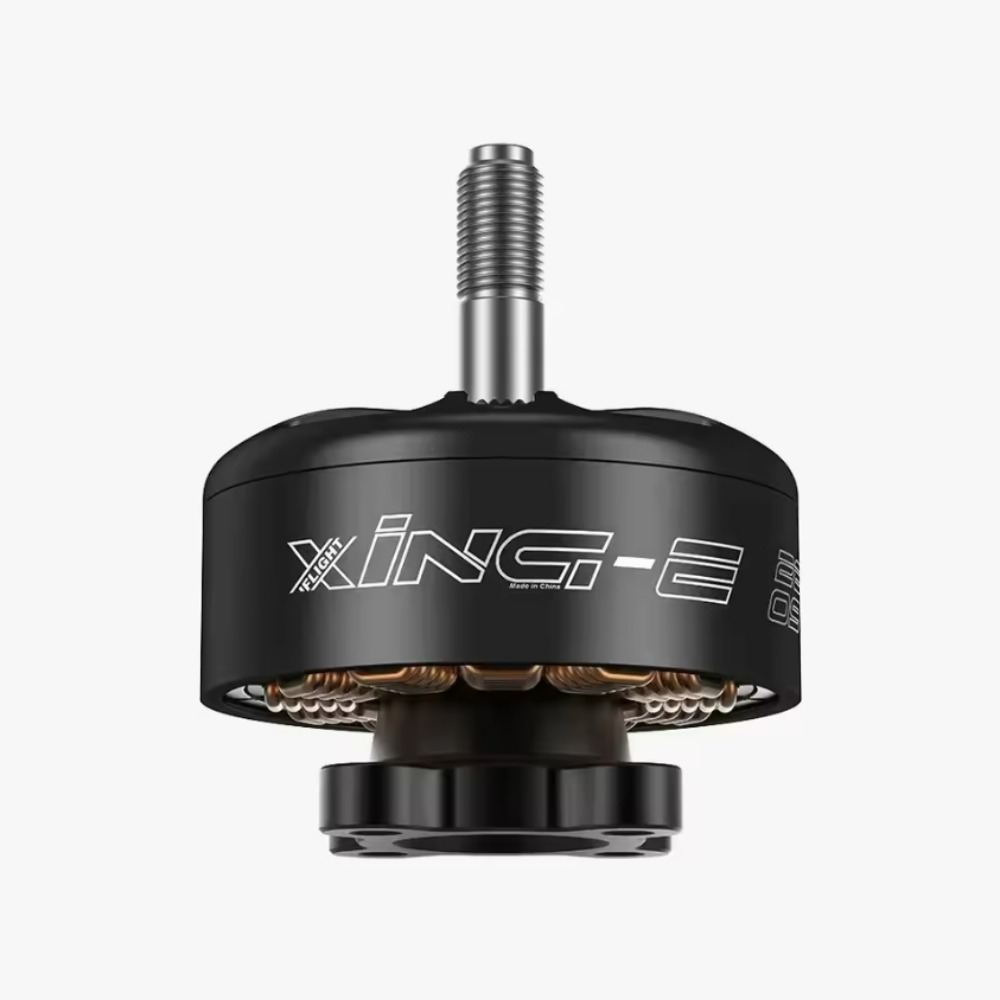

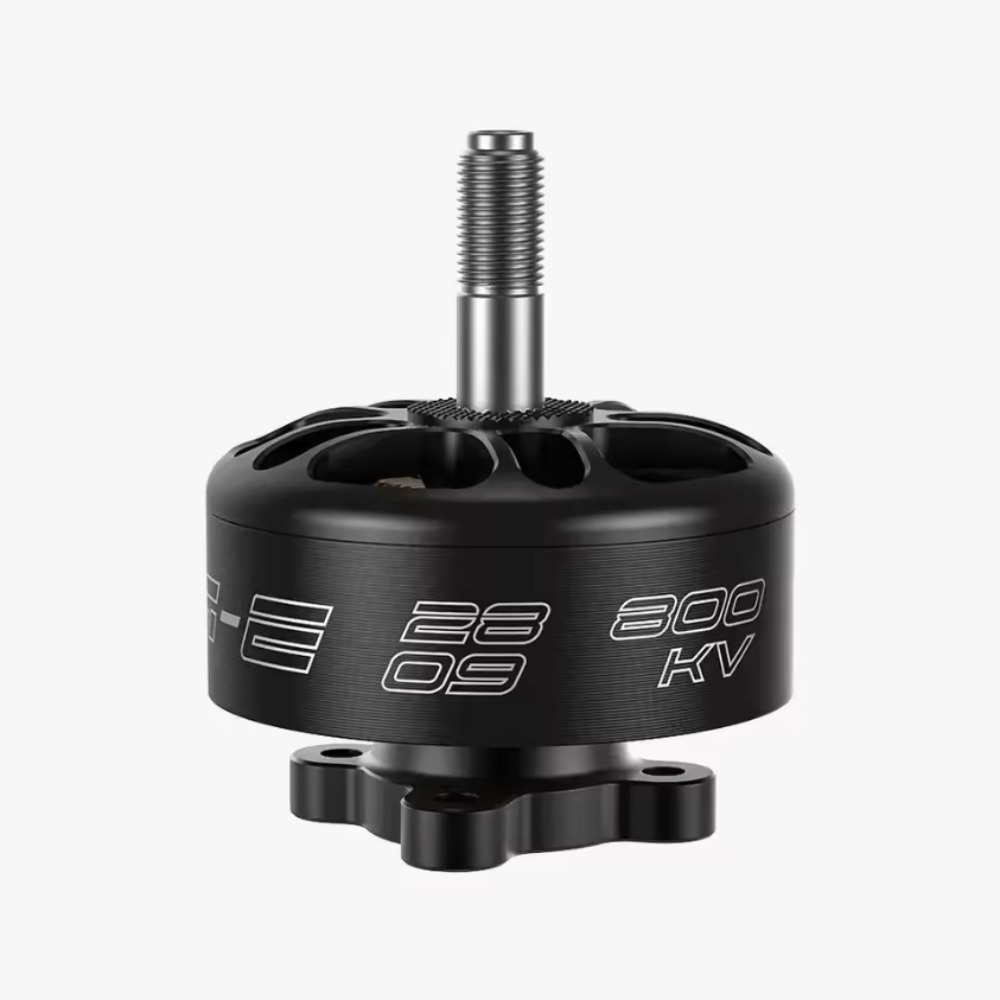

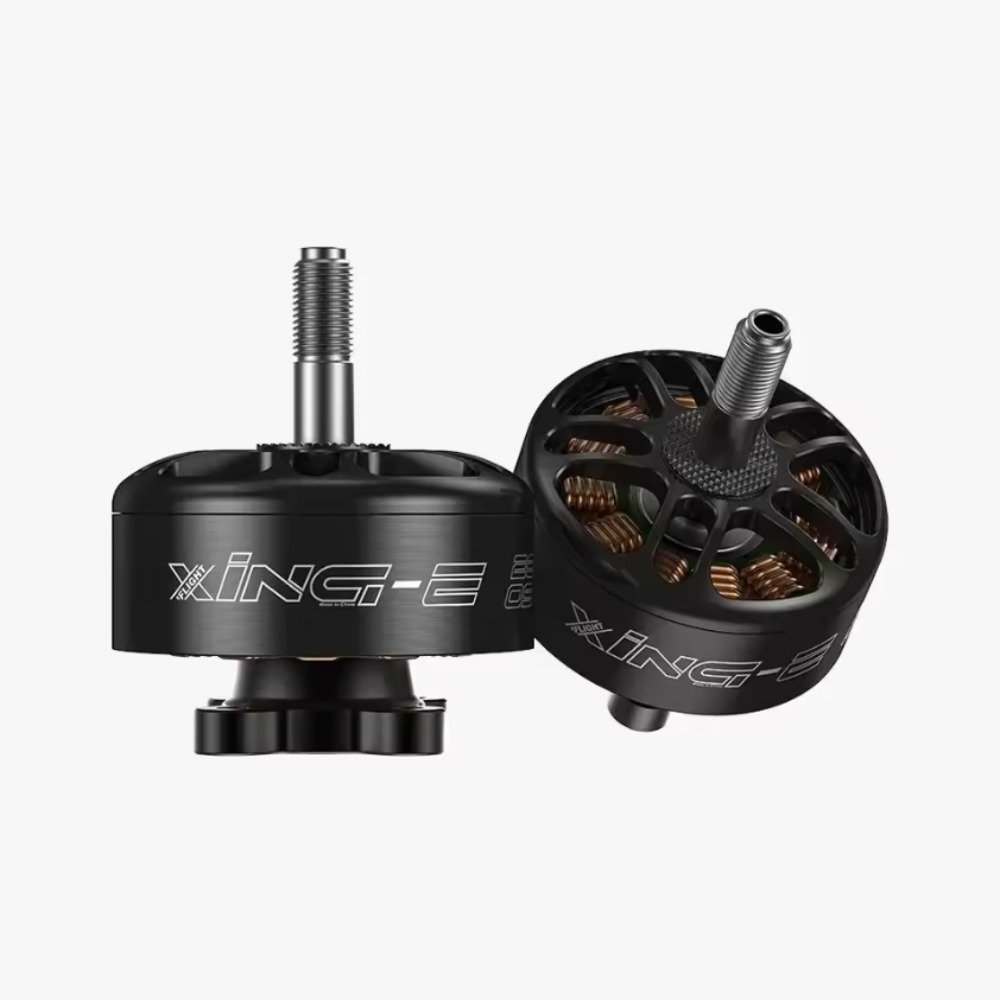

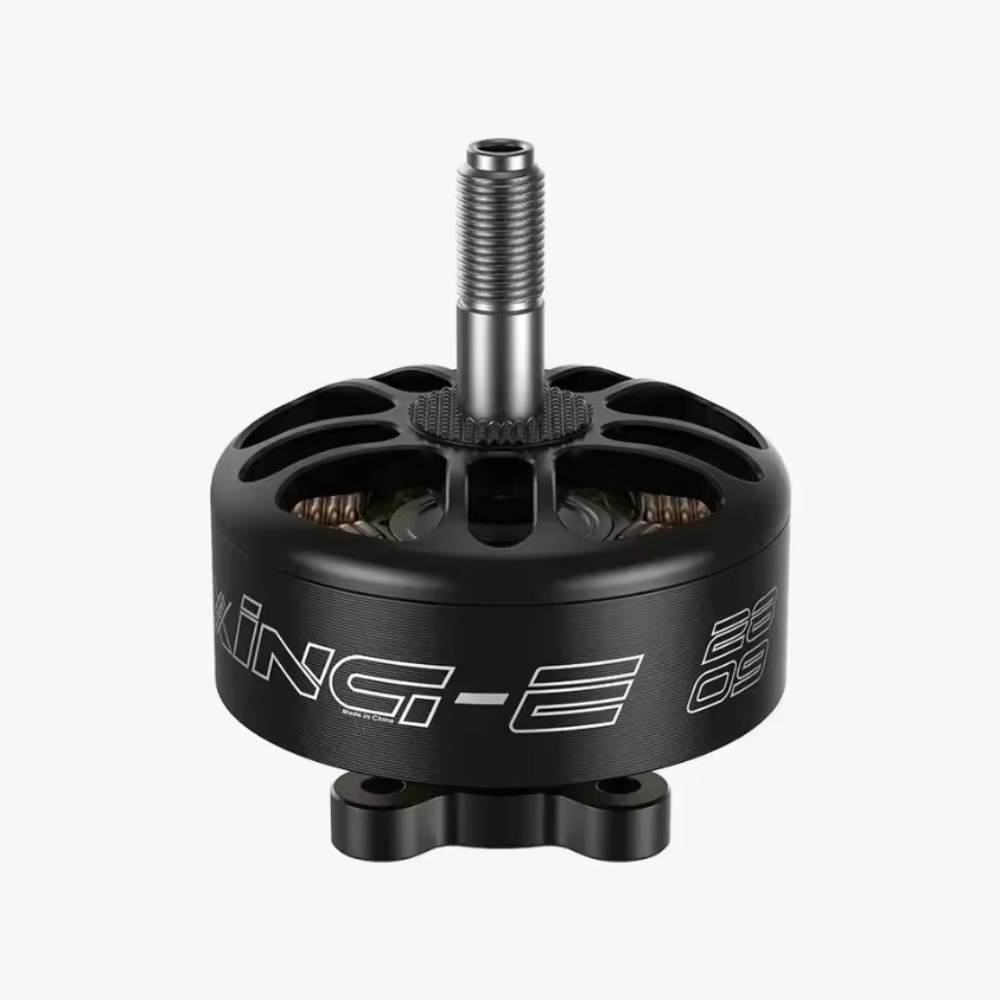

iFlight XING-E 2809 1250KV / 800KV 4-6S FPV Cinelifter Motor

The iFlight XING-E 2809 FPV Cinelifter motor offers a robust 5mm steel shaft, N52H high-temperature curved magnets, and single strand copper winding. Supporting 4–6S power, it delivers high efficiency, durability, and optimal performance for demanding aerial cinematography applications.

Features

High-strength 5mm Steel shaft

N52H High-temperature magnets

19x19mm hole pattern

Single strand copper winding

Model: XING-E 2809 Motor

KV: 800KV/1250KV

Weight(included wire): 61g/60.4g

Dimension: φ33.2*23.8mm

Interphase Resistance: 129.3mΩ/65mΩ

Input Volts: 24V

Peak Current: 25.63A/42.23A

Max Watt: 610.3W/1147.1W

Mounting Holes: 19*19 φ3mm

Rotor Specifications:  Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.5mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

1 x XING-E 2809 Brushless Motor

4 x M3x11 screws

1 x M5 Flange Nut
