Description:
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focuses on quality, the XING-E series affordable motors that are strong and durable.

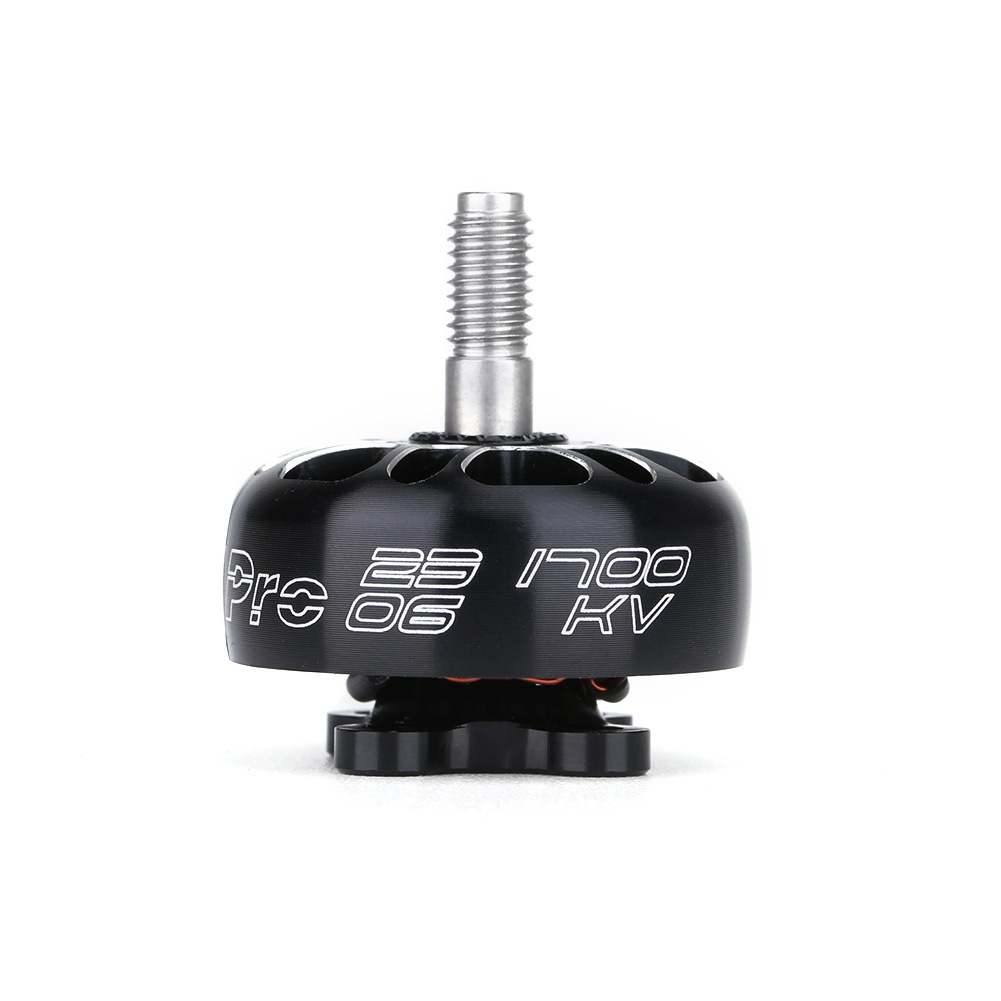

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
High-strength 4mm Steel shaft
N52SH High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
6061 CNC machined aluminum top and base parts
Hex bolt shaft set screw

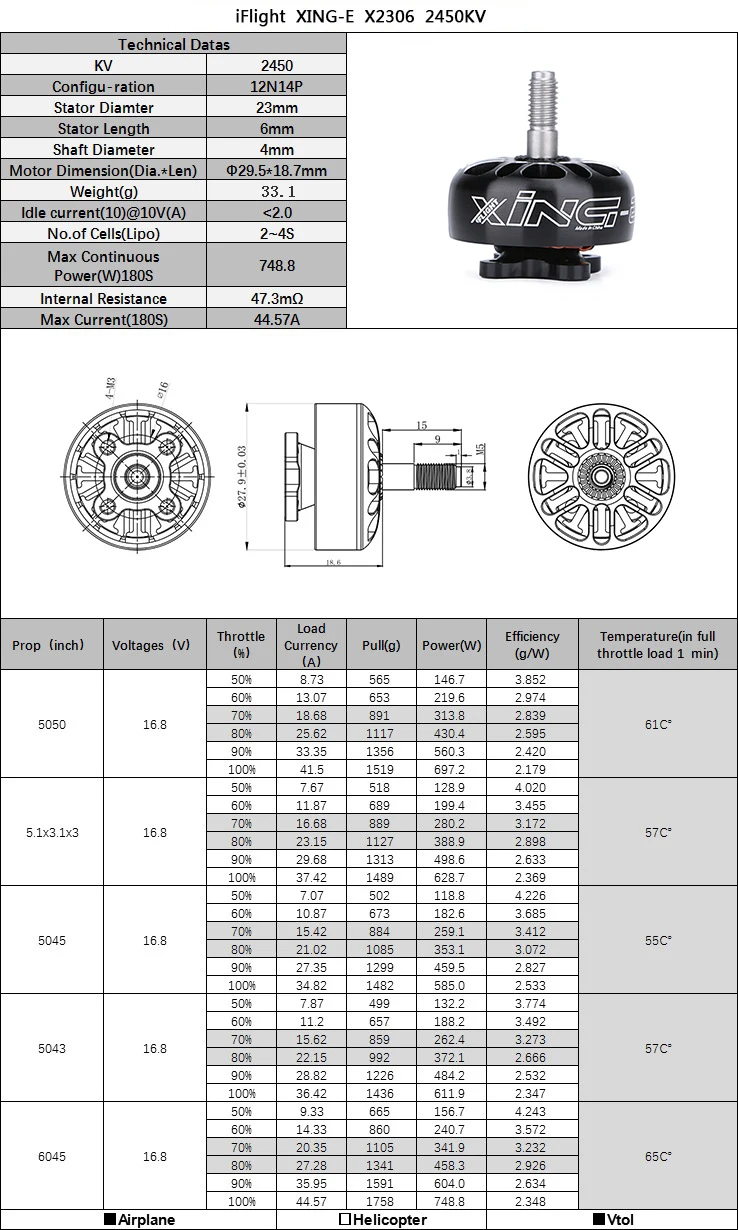

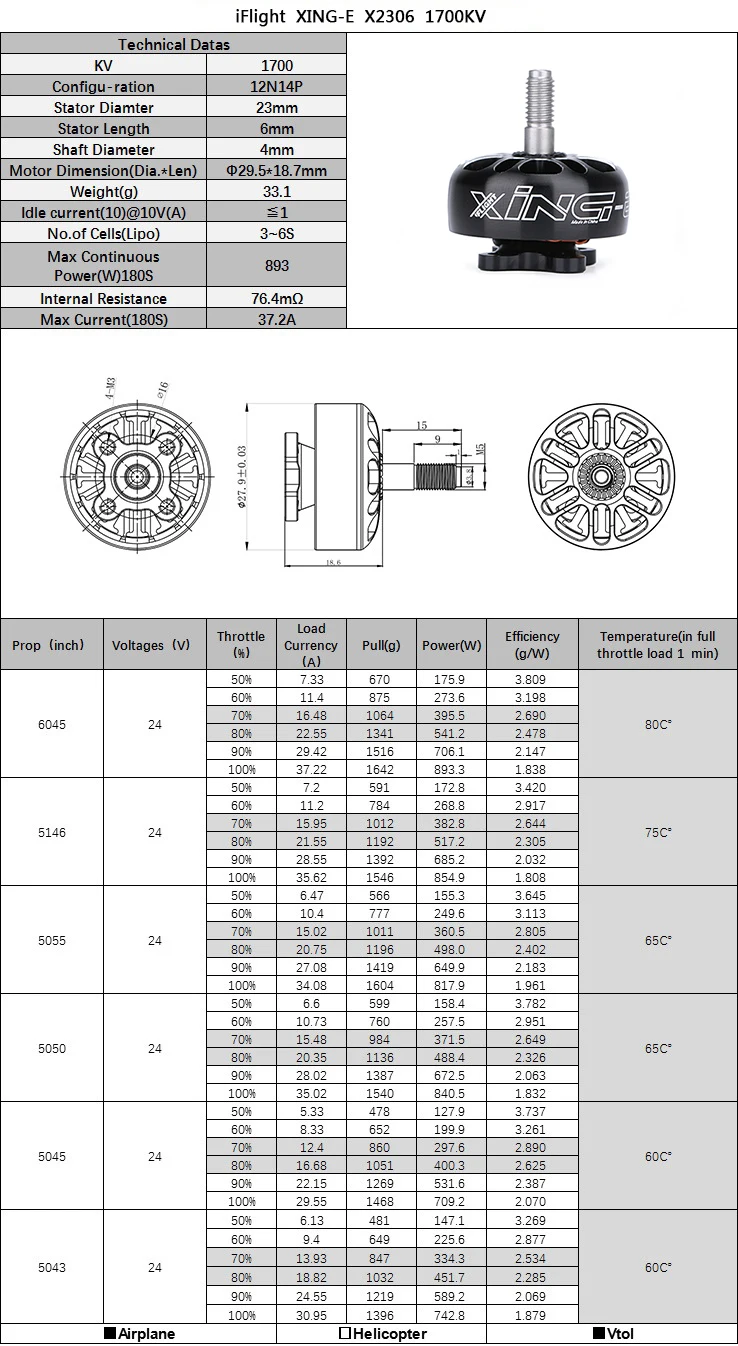

Specifications:
Configuration: 12N14P
Stator Diameter:24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension:29.5x18.7mm

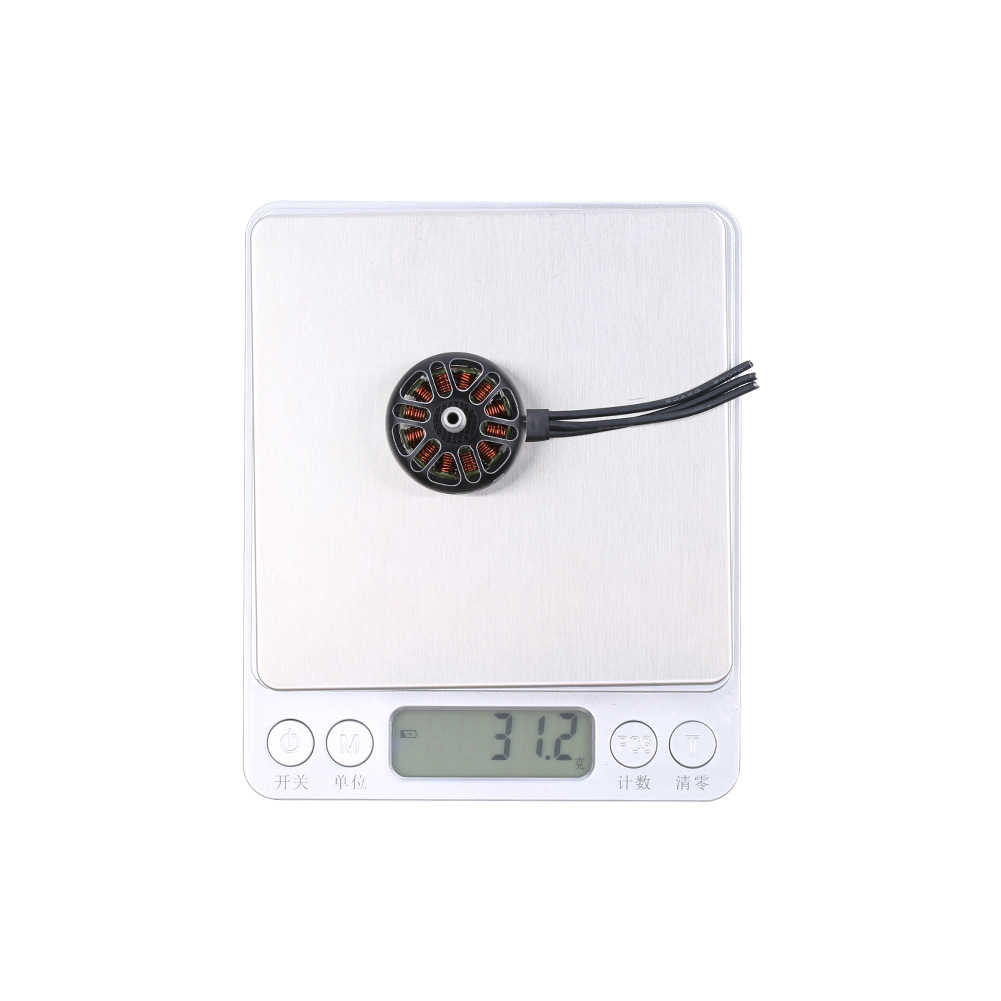

Weight:33.1g (150mm wires)
Idle Current @12.6v (Io):2.1A
Cells (LiPo): 2-6S
Max Burst Current <10s:55.22A
Max Power (W) 60s:885.4W
Internal Resistance (Rm):40.6mΩ
Motor Wire Length: 150mm / 20AWG

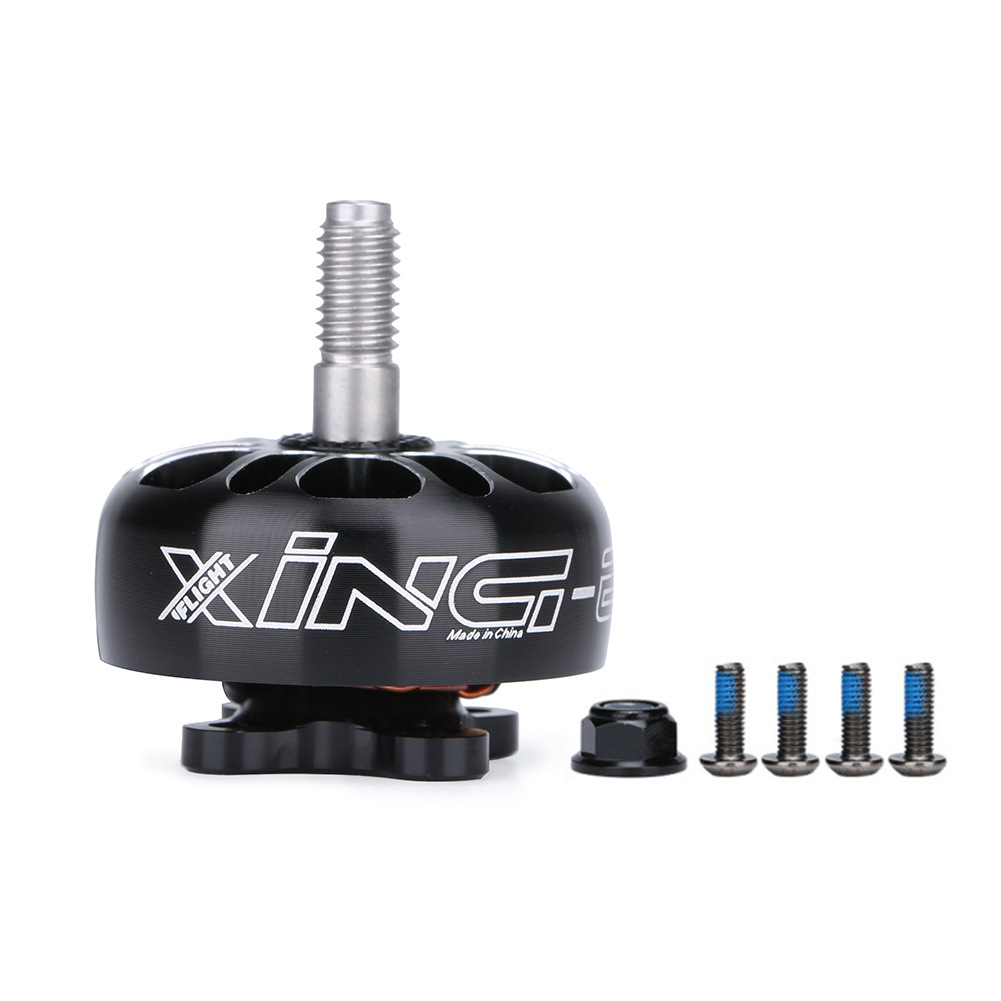

Package included:
1pcs x MOTOR XING-E 2306 Pro motor
