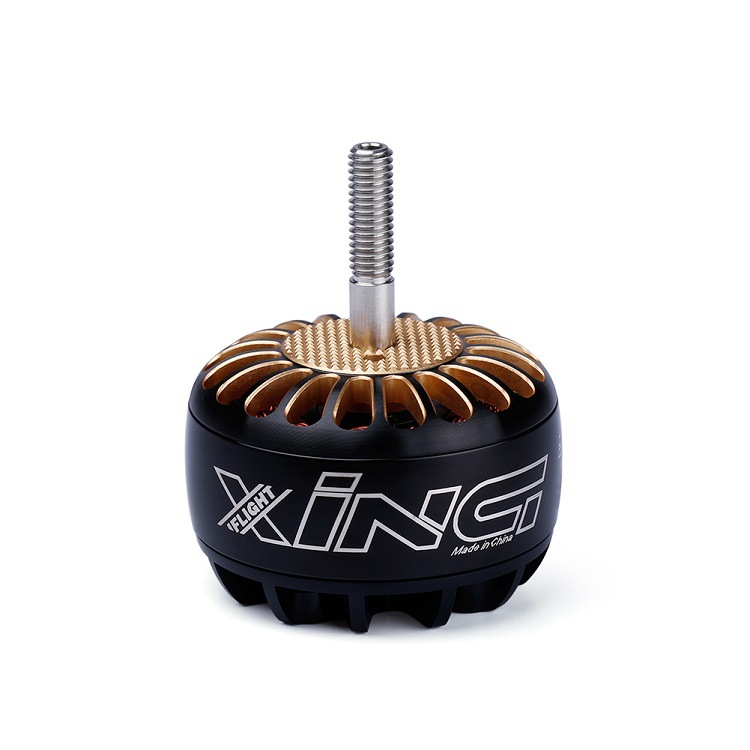

iFlight XING T4214 4214 400KV / 660KV 3-8S X-CLASS Brushless Motor compatible 14/15/16inch Propeller for iX15 X-class FPV Drone

The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!

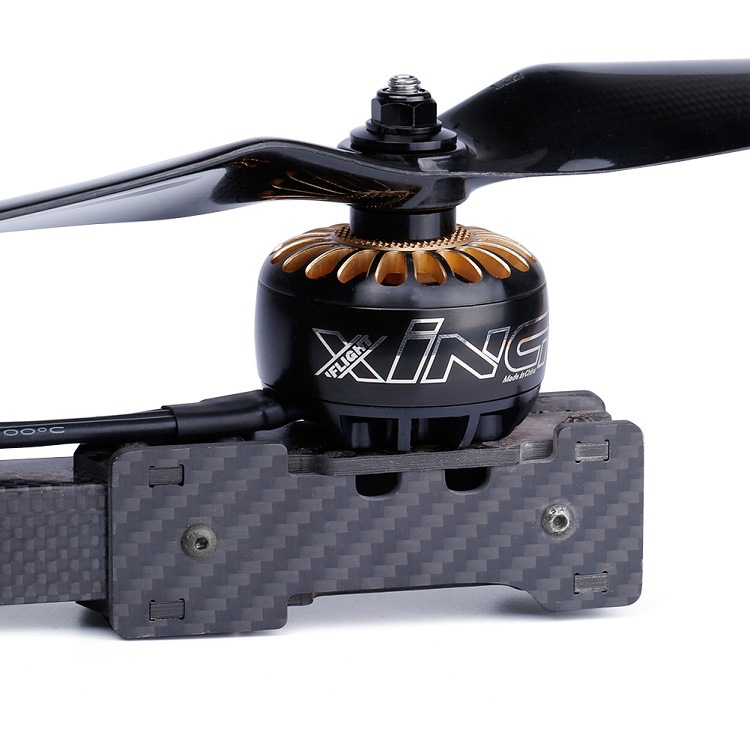

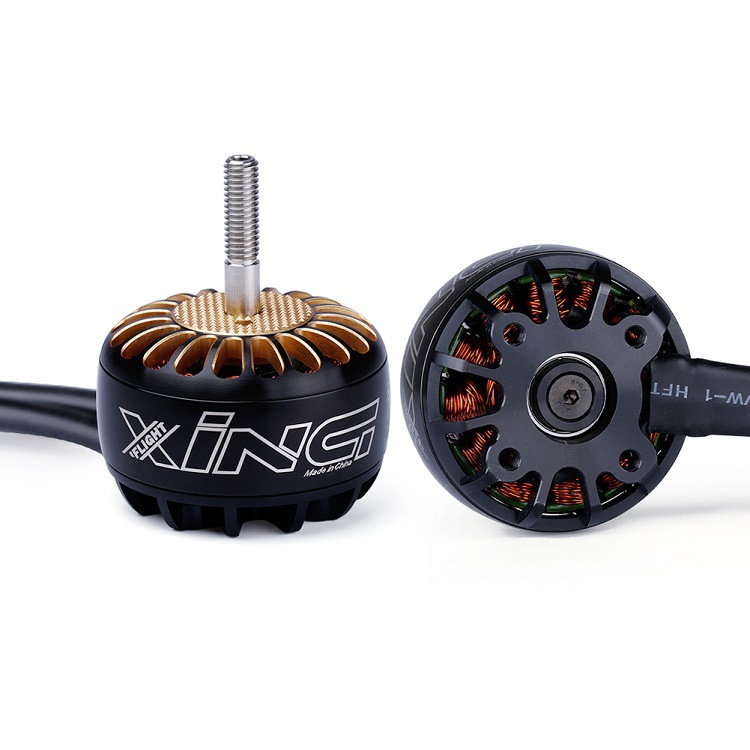

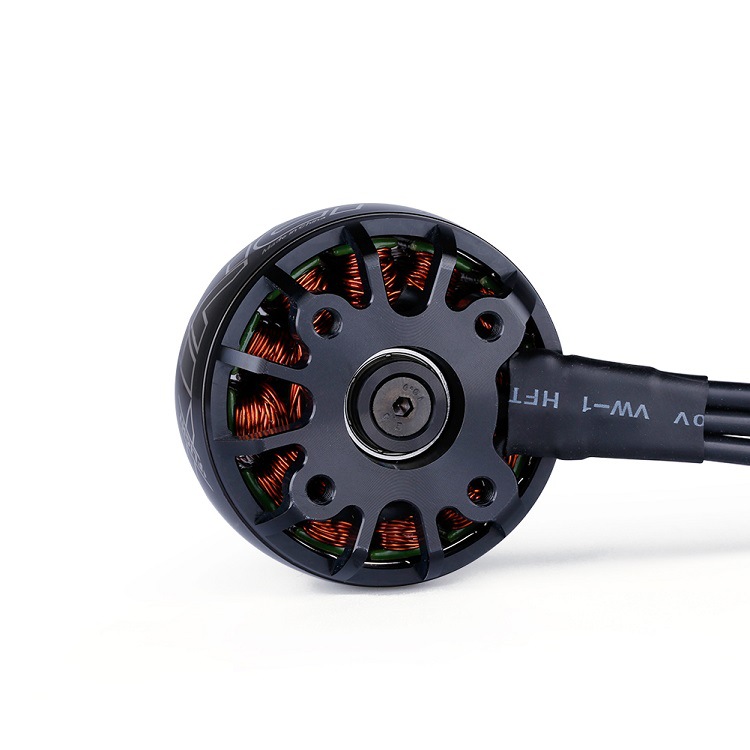

Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.

All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!

Specially designed for X-Class Racing

Oxidation-Color 7075 T6 milled aluminum Bell and Base

420 stainless steel

Japanese Kawasaki 1200 Iron Core

Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding

Long life Japanese EZO bearings

N45SH High-temperature tegular magnets, small air gap

Electromagnetically matched magnets and stator

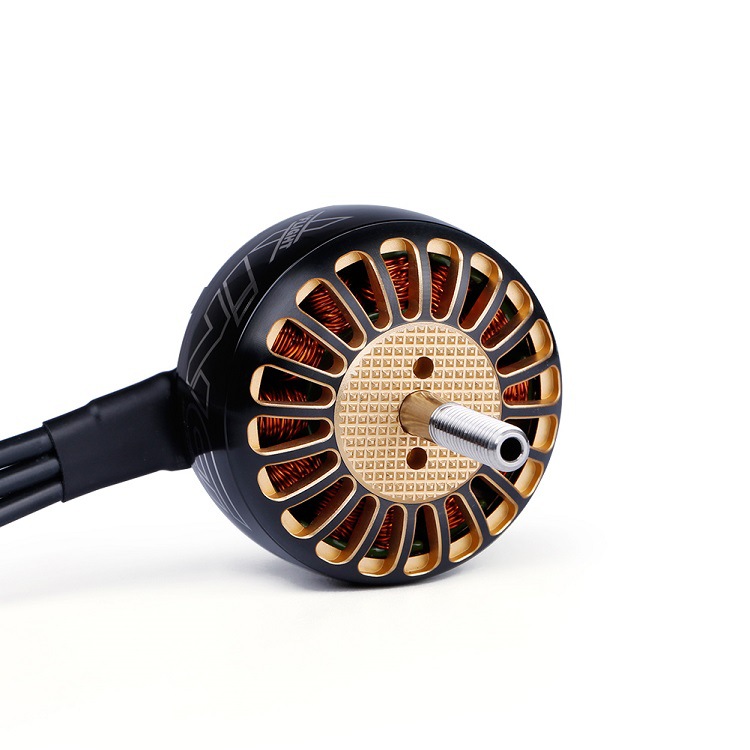

Optimized heat dissipation structure design, 20% heat reduced

Max 7.9kg thrust of 660kv

50%-90% thrust max efficiency and thrust

Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits

Hex bolt shaft set screw for easy maintenance

Dynamically balanced

Motor wire protected

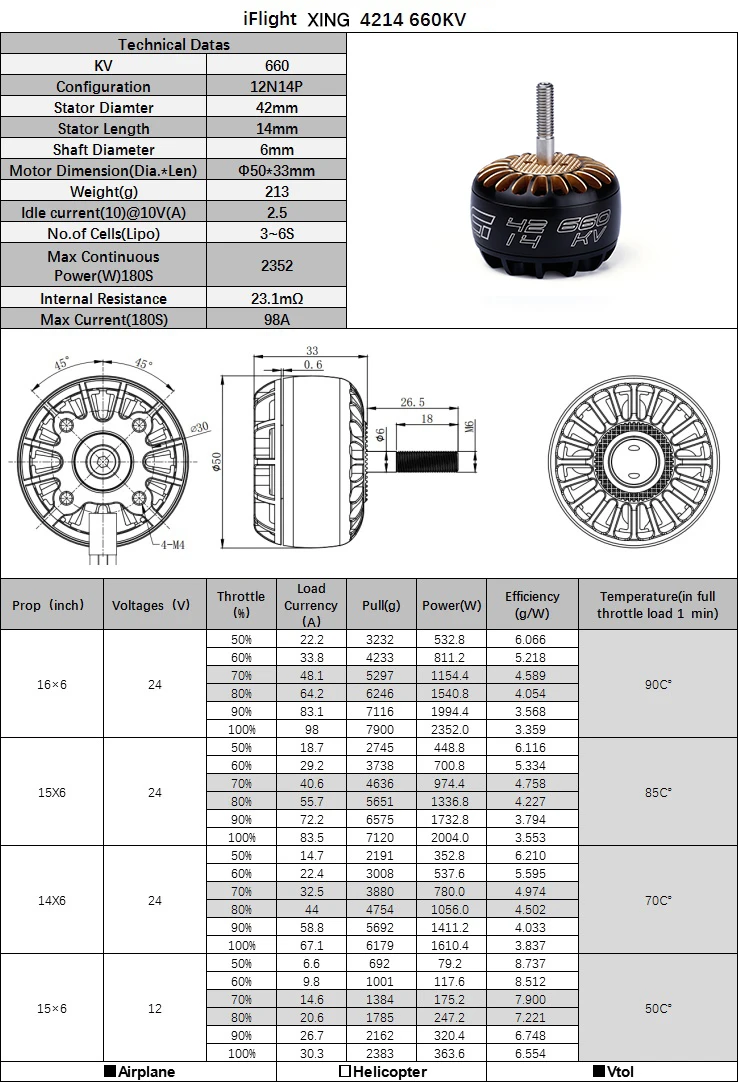

Model: XING 4214 Motor

KV: 400KV / 660KV

Weight(included wire): 255.8g/255.2g

Dimension: φ50*33mm

Interphase Resistance: 61.6mΩ / 35.6mΩ

Peak Current: 30.9A / 98A

Max Watt: 741.6W / 2352W

Shaft Diameter: 6mm

Shaft Protruding Length: 26.5mm

Configuration: 12N14P

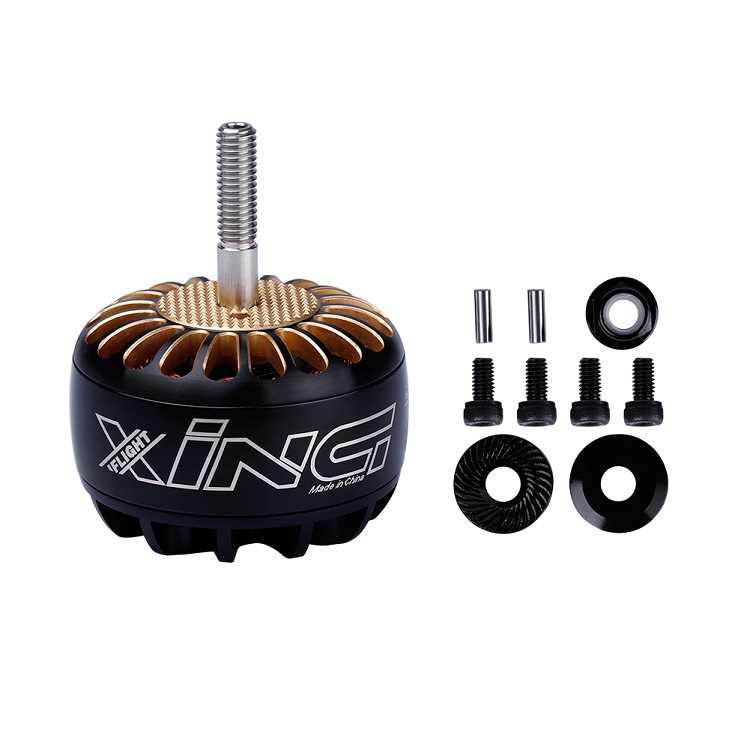

1 x XING 4214 X-Class Racing Motor

1 x Screws & nut Pack
