Name: iFlight XING2 2207 2755KV / 1855KV 4S 6S FPV Brushless Motor
Brand: iFlight
Price: 20.99 USD
Availability: InStock

🎁 New Customers Save 6%

iFlight XING2 2207 2755KV / 1855KV 4S-6S FPV Brushless Motor Unibell compatible Nazgul 5140 propeller-HPXGRC

1 / 7

iFlight XING2 2207 2755KV / 1855KV 4S 6S FPV Brushless Motor

$20.99 USD

结账时计算运费

有货

Options :

1855KV 2755KV

数量

Share:

Secure Payments
Get 1% HPXGRC Credit of the total purchase value
Leave a review and get 2% OFF your next order.
15-Day Returns

Description

Engineured for peak performance and ultimate precision, the iFlight XING2 2207 motor brings next-level responsiveness to your FPV drone. Featuring a ultra-durable 5mm titanium alloy shaft, high-grade NSK 9x4x4 bearings, and center-slotted N52H curved magnets, it minimizes response delay for faster PID loops and crisp control. With its Unibell design and optimized magnetic gap, the XING2 delivers incredible power, efficiency, and reliability for both 4S and 6S setups.

Features

5mm titanium alloy shaft, our strongest prop shaft ever!

Crash resistant 7075 aluminum bell

Smooth and long-lasting NSK 9x4x4 bearings

Center slotted N52H curved arc magnets

XING O-ring bearing gap protection

Motor wires protector

Dynamically balanced

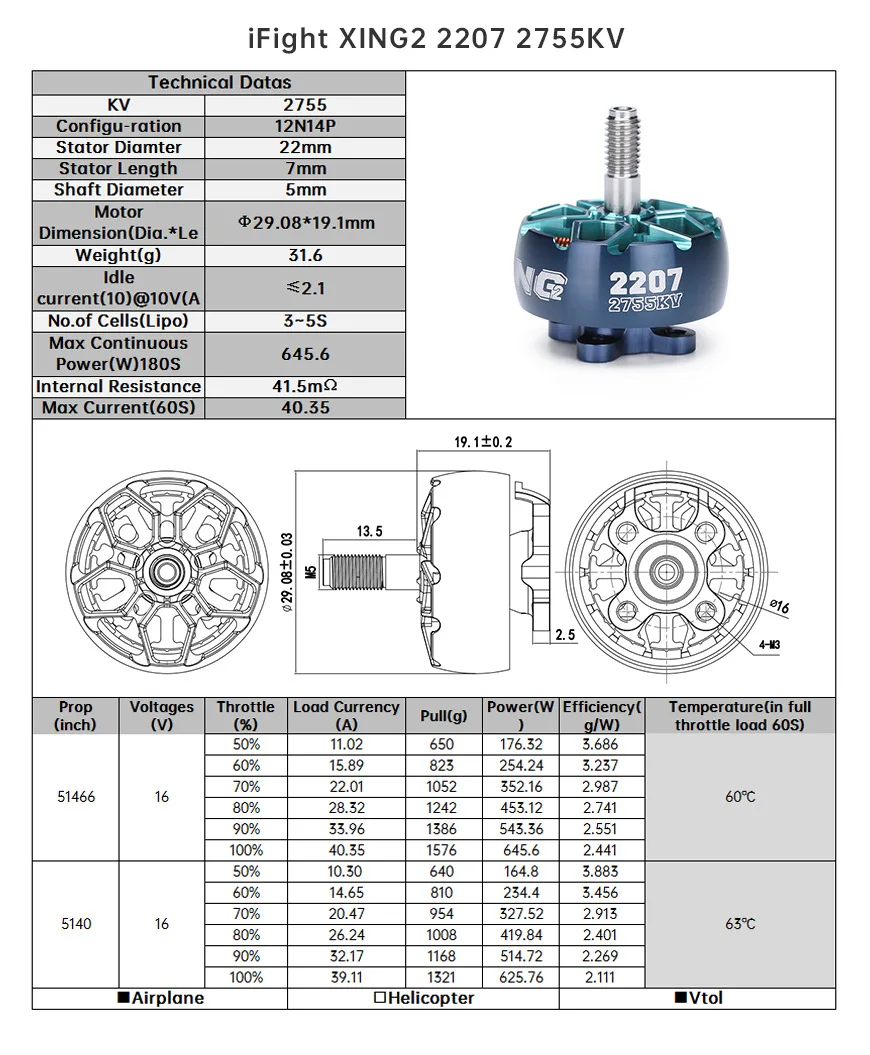

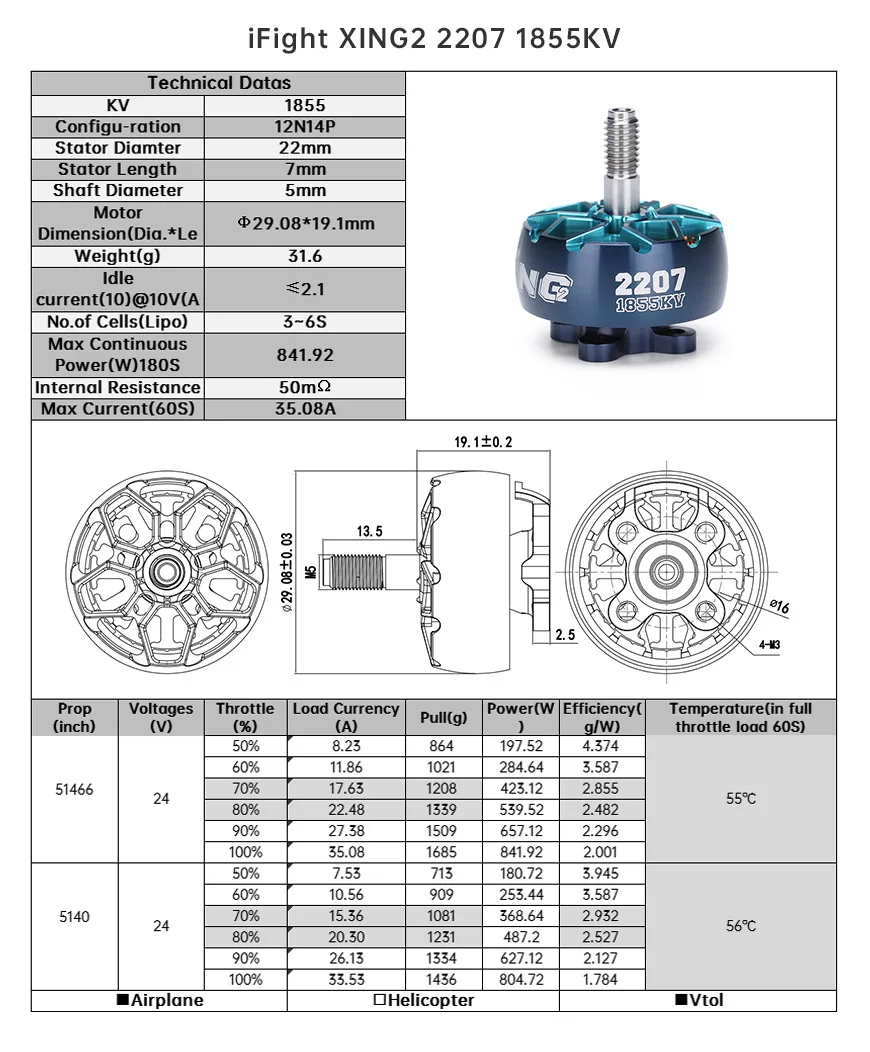

Specifications

KV: 1855KV / 2755KV

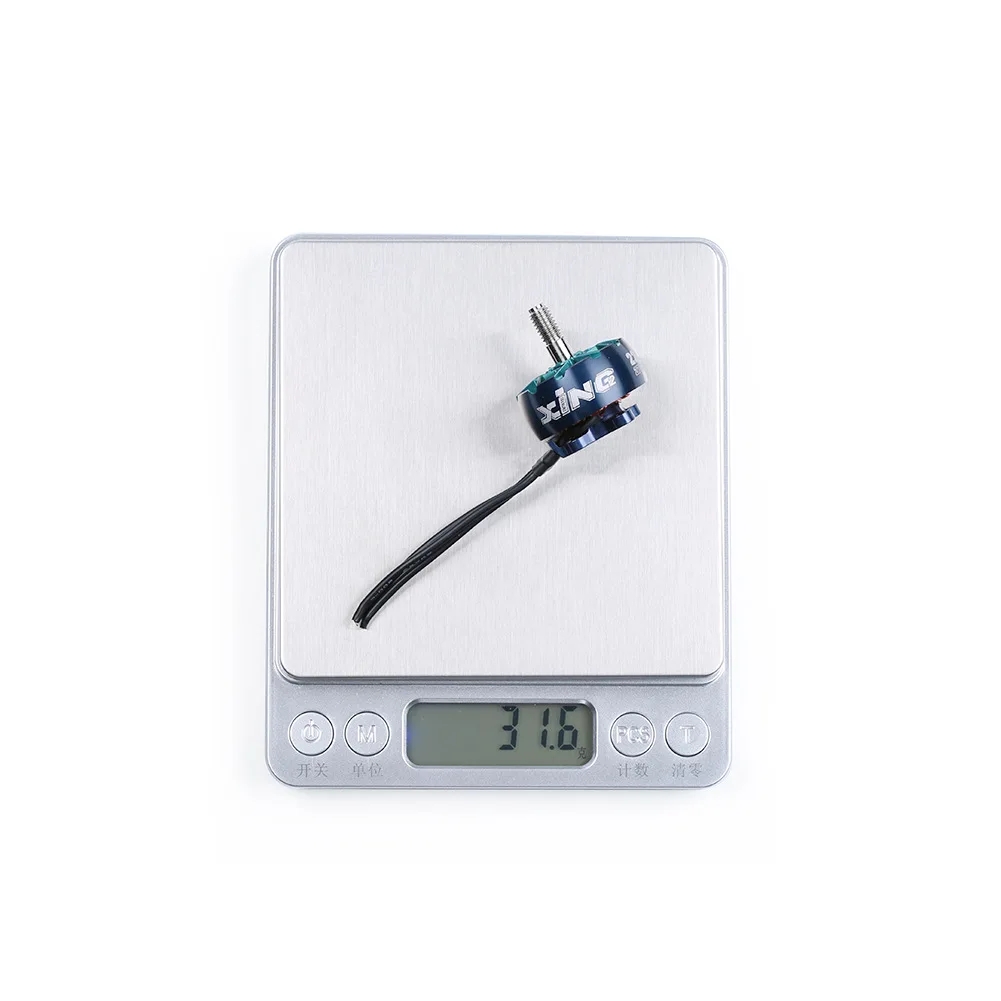

Weight(included wire): 31.6g

Dimension: φ29.08*19.1mm

Interphase Resistance: 50mΩ / 41.5mΩ

Input Volts: 24V / 16V

Peak Current: 35.08A / 40.35A

Max Watt: 841.90W / 645.60W

Mounting Holes: 16*16 φ3mm

Rotor Specifications: Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 13.5mm

Lead: 160mm/20AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ9*φ4*4

Winding: Single Strand copper winding

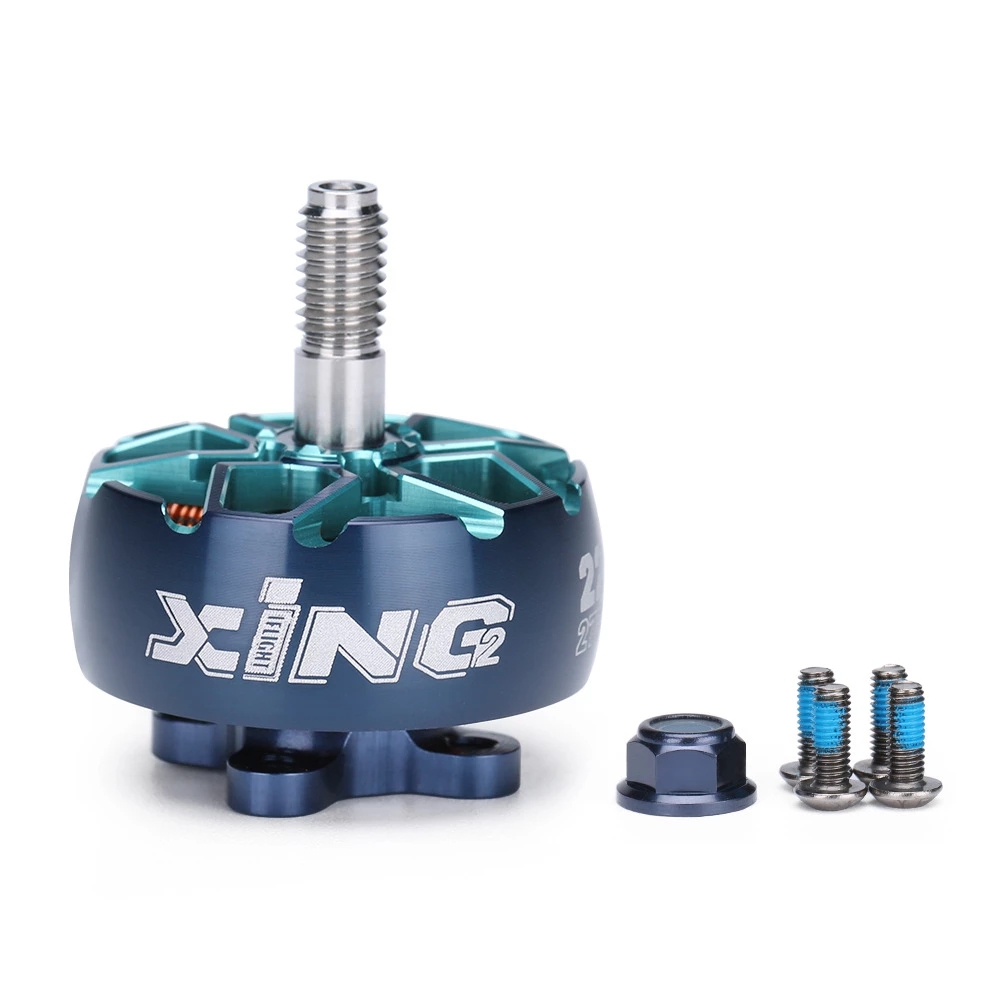

Packing List

1x XING2 2207 Brushless Motor (KV is optional)

4x M3*7 screws

1x M5 Flange Nut
