Name: iFlight XING2 3314 6S Cinelifter Motor - 900KV
Brand: iFlight
SKU: ACP2856
Price: 52.99 USD
Availability: InStock

🎁 New Customers Save 6%

iFlight XING2 3314 6S Cinelifter Motor - 900KV

1 / 5

iFlight XING2 3314 6S Cinelifter Motor - 900KV

$52.99 USD

结账时计算运费

有货

数量

Share:

Secure Payments
Get 1% HPXGRC Credit of the total purchase value
Leave a review and get 2% OFF your next order.
15-Day Returns

Description

The iFlight XING2 series motors are upgraded with an advanced design featuring N52H curved arc magnets, delivering faster response, higher efficiency, and increased power output. Built with premium materials, high-quality bearings, and optimized magnetic structure, XING2 motors provide smooth, reliable, and precise performance for demanding FPV applications.

Specification

Model: Xing2 3314

KV: 900KV

Weight(included wire): 129g

Dimension: φ41.9*29.8mm

Interphase Resistance: 36.5mΩ

Input Volts: 24V

Peak Current: 58.48A

Max Watt: 1366.1W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 17mm

Lead: 400mm/16AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NMB

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

Packing List

1 x XING2 3314 Brushless Motor

4 x M3x12 screws

1 x M5 Flange Nut

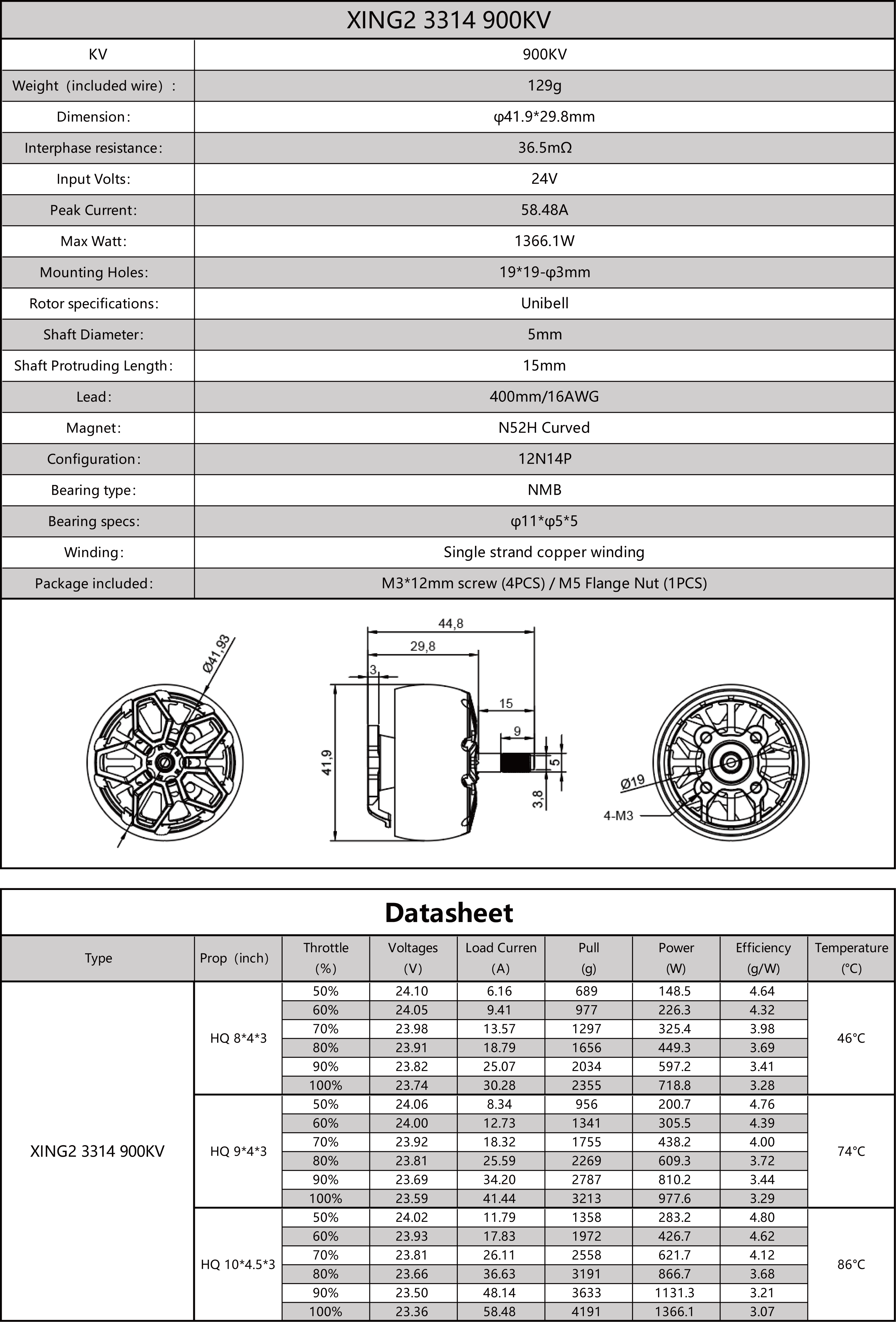

Test Report

Description
