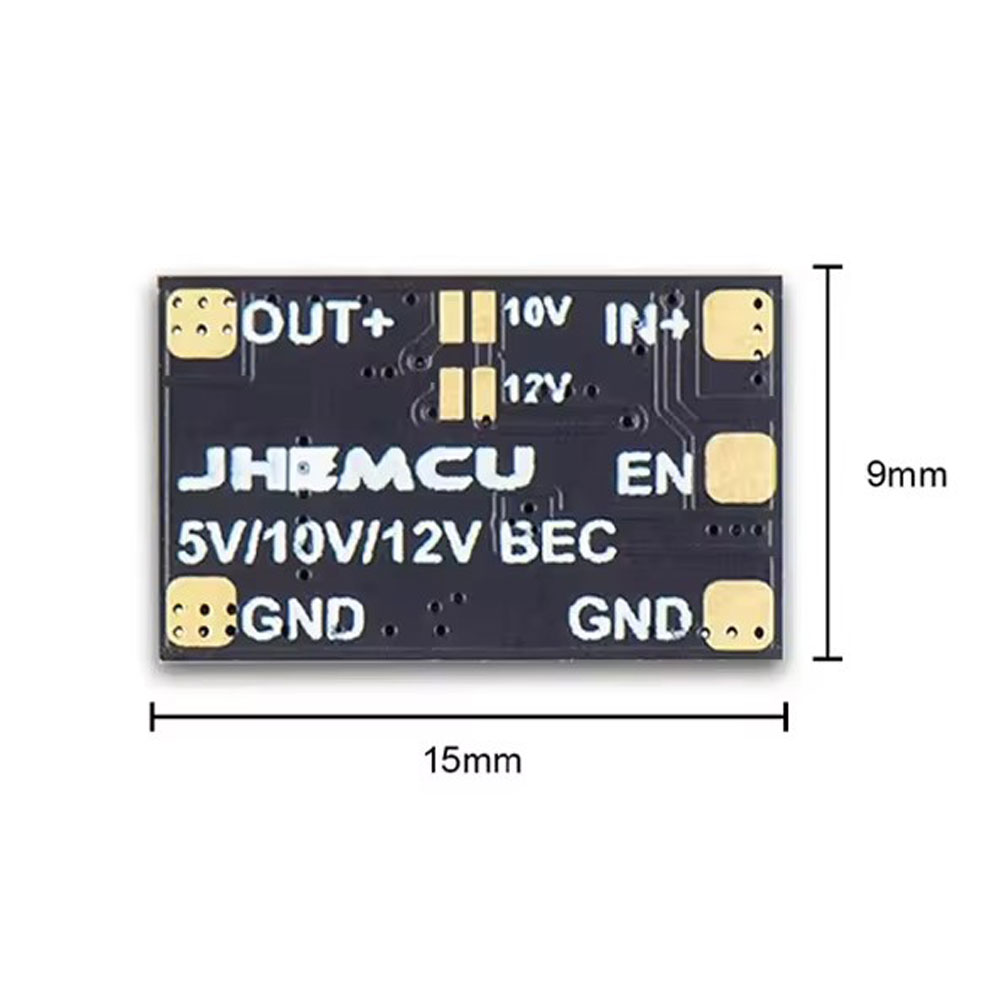

JHEMCU COB Module 5V 10V 12V for Strange 25/ 35 COB 15*9MM Light With Control Switch for RC FPV Freestyle Drone

Specifications:

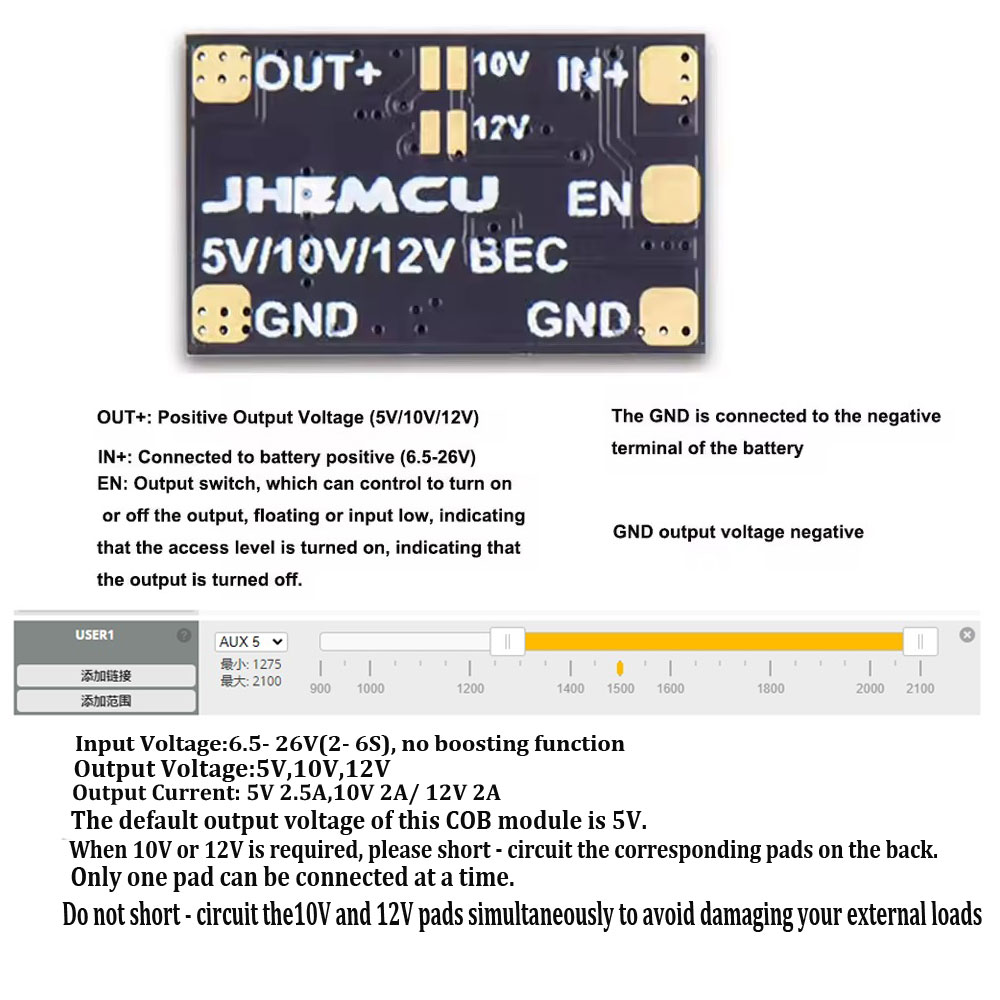

IN +: Connect to the positive terminal of the battery(6.5-26V)
GND: Connect to the negative terminal of the battery
OUT +: Positive terminal of the output voltage (5V/10V/12V)
GND: Negative terminal of the output voltage
EN: Output switch, which can control the output on or off.
When left floating or input with a low - level signal, it means the output is on;
when input with a high - level signal, it means the output is off.
The EN pad is usually used to connect to the USER function in theFPV flight controller, and can control the on or off of the output light strip.  It needs to cooperate with the USER pad of the flight controller.  Since the definitions of the positions by different flight controller manufacturers vary, you can consult your corresponding flight controller manufacturer. Generally, it is a functional pad that can be controlled by high and low levels.

Input Voltage:6.5- 26V(2- 6S), no boosting function
Output Voltage:5V,10V,12V
Output Current: 5V 2.5A,10V 2A/ 12V 2A
*The default output voltage of this COB module is 5V.

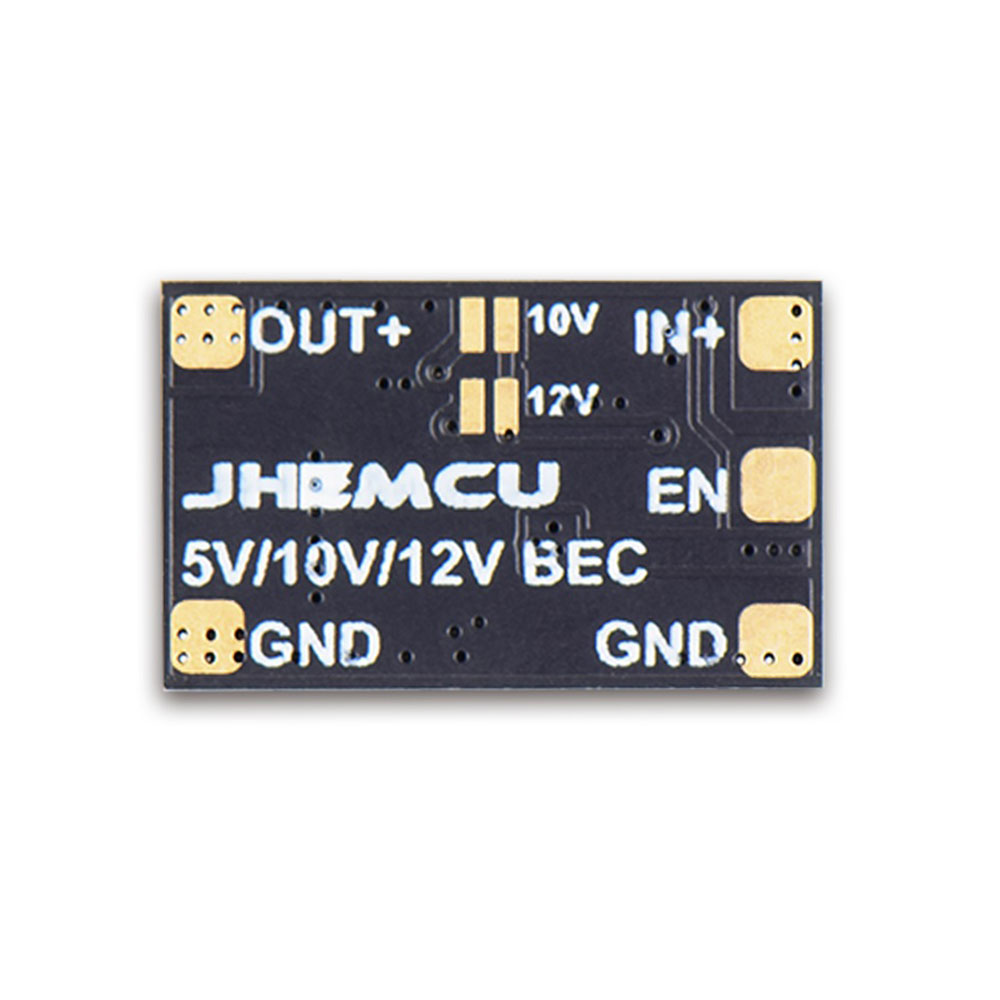

When 10V or 12V is required, please short - circuit the corresponding pads on the back.
Only one pad can be connected at a time.
Do not short - circuit the10V and 12V pads simultaneously to avoid damaging your external loads (such as light strips or other devices)
