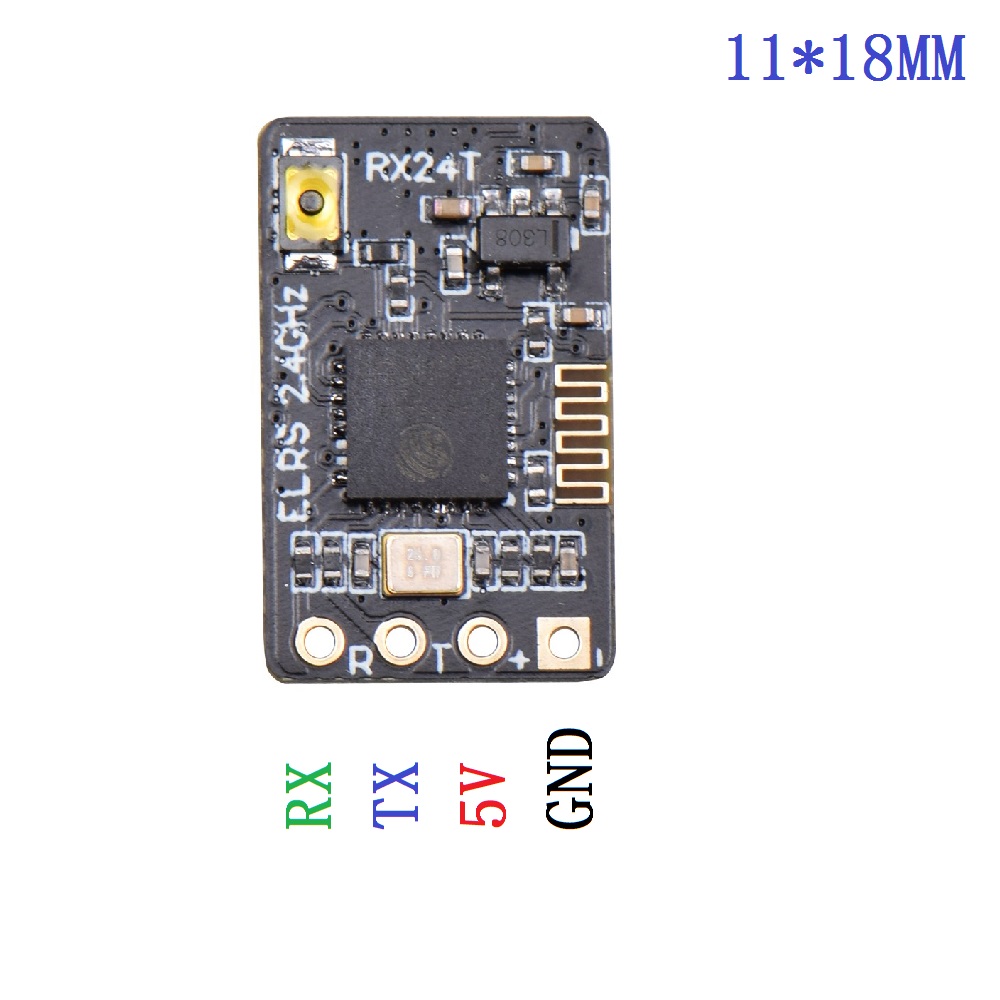

JHEMCU ExpressLRS RX24T 2.4G ELRS Radio Nano Long Range Receiver

JHEMCU ExpressLRS RX24T 2.4G ELRS Radio Nano Long Range Receiver Specifications:

• Type: 2.4G ISM
• MCU: ESP8285
• RF: SX1280IMLTRT
• Frequency Range: 2400 MHZ To 2500 MHZ
• Maximum Receiving Refresh Rate: 500HZ
• Minimum Receiving Refresh Rate: 25HZ
• Working Voltage: 5V

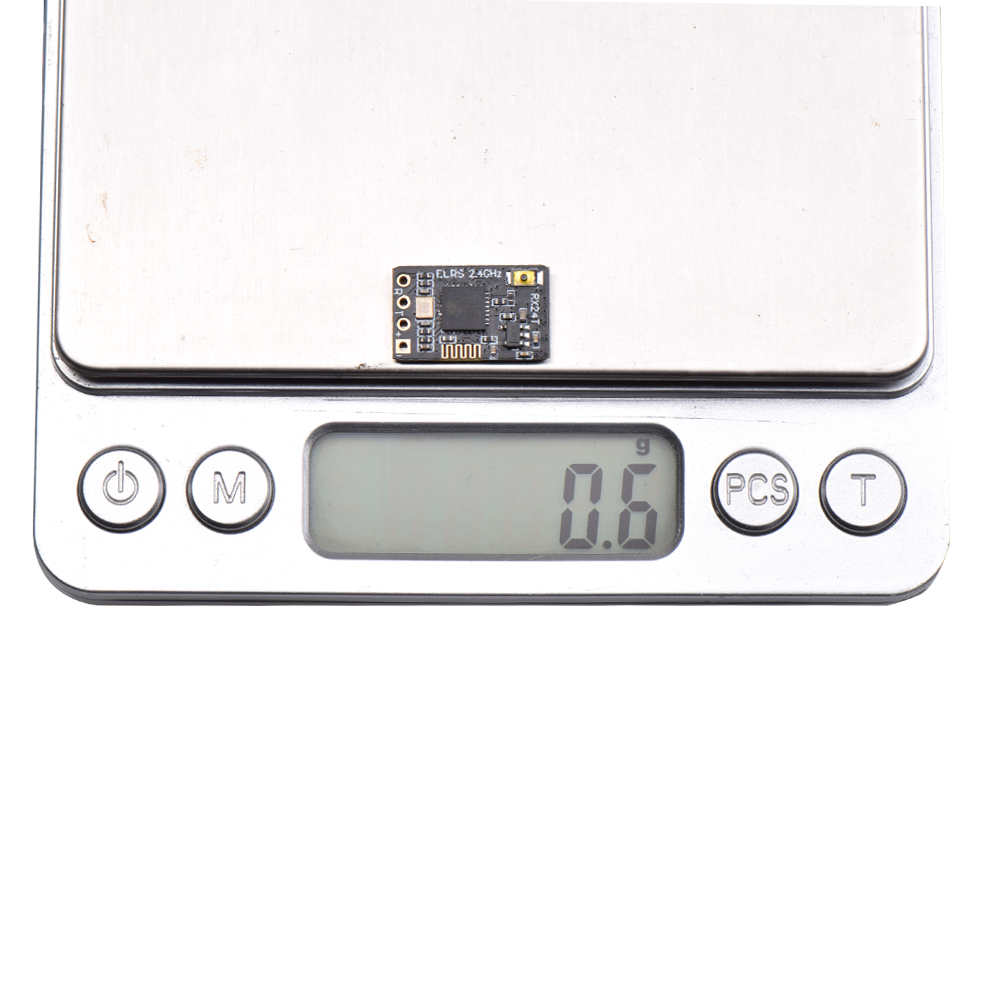

• Weight: 0.6g (without antenna)
• Size: 11mm * 18mm * 3mm

RX24T Antenna Specifications:

• Type: Half-wave dipole omnidirectional T-shaped antenna
• Peak Gain: 3.16dB

Indicator Status:

• Double Flash: Code matching mode
• Slow Flashing: No transmission signal is received
• Steady On: Receive the transmit signal
• Fast Flashing: WIFI upgrade mode

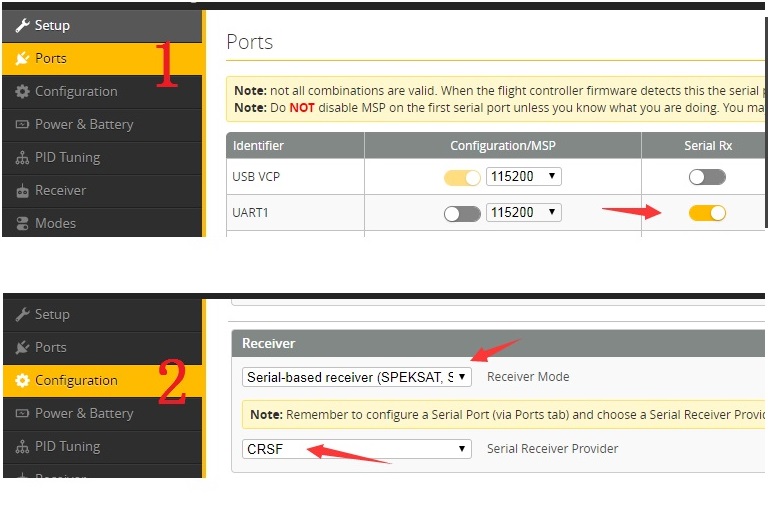

Linking Steps:

1. After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
2. After correctly connecting the 2.4G ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
3. After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

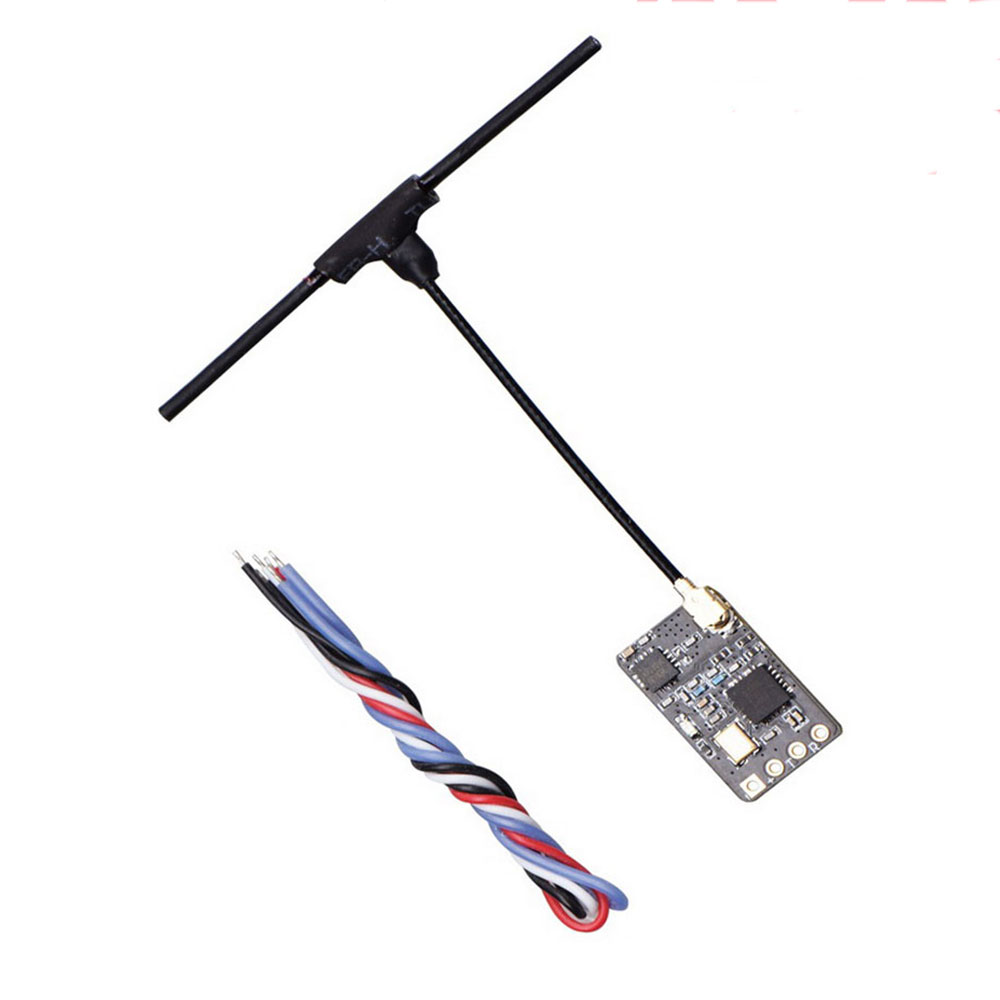

Shipping Package Contents:

• Receiver * 1
• Wire * 4
• T-type antenna * 1

Notice:

Regarding the processing of RX24T getting closer after the customer has updated the firmware: Because the RX24T firmware provided in the ELRS system has bugs, please flash the BETAFPV_2400_RX firmware.
