Parameter:

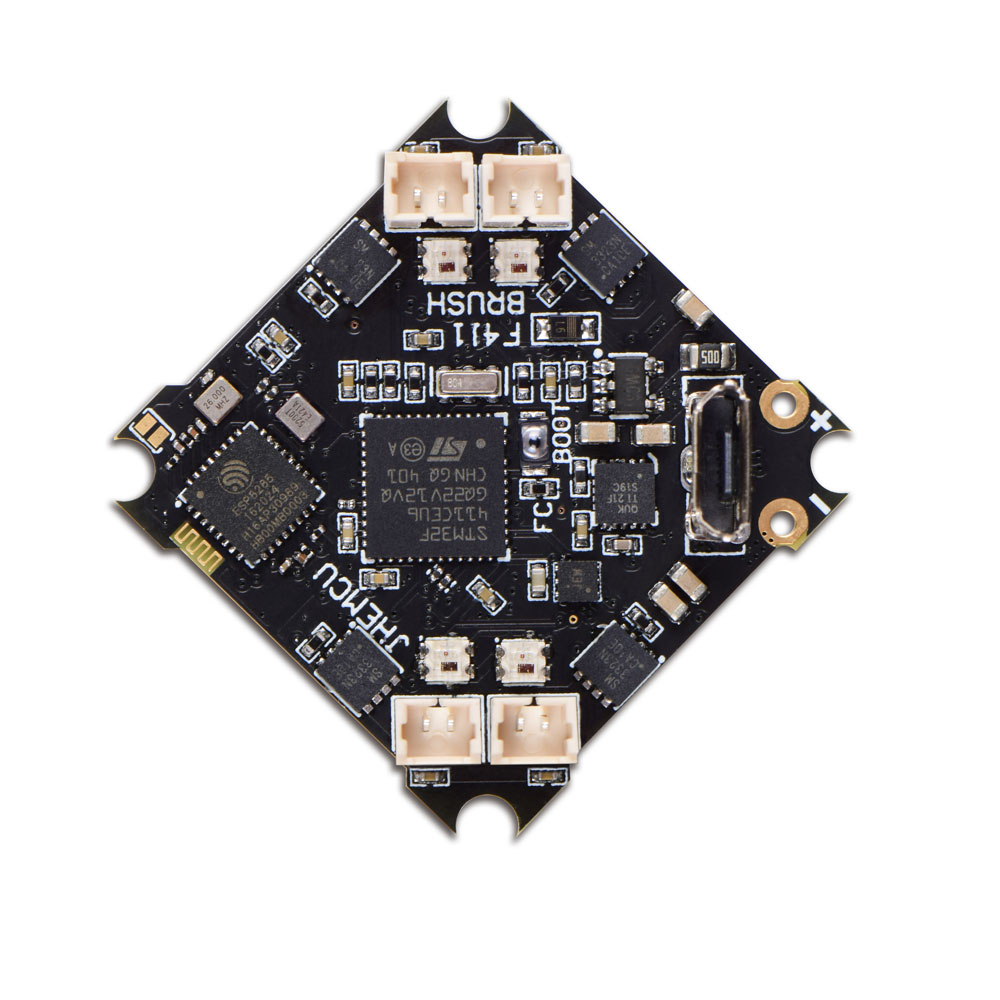

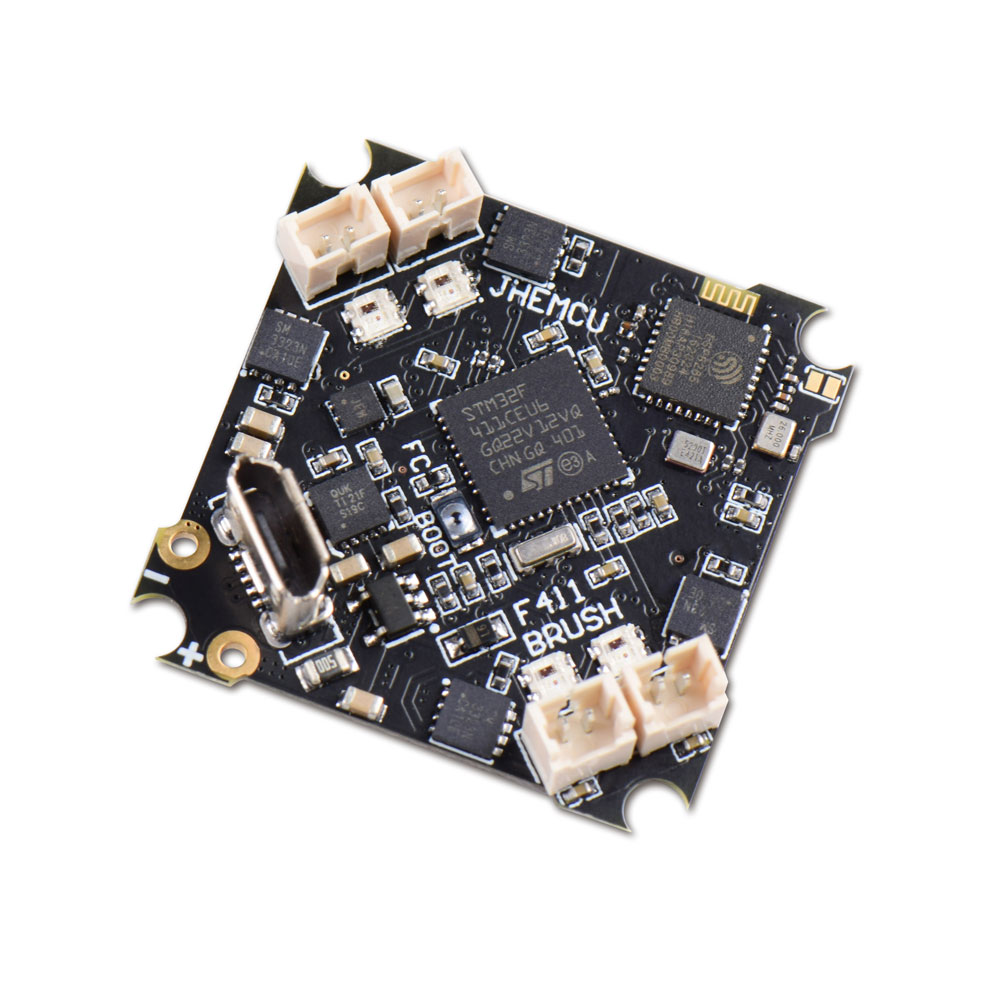

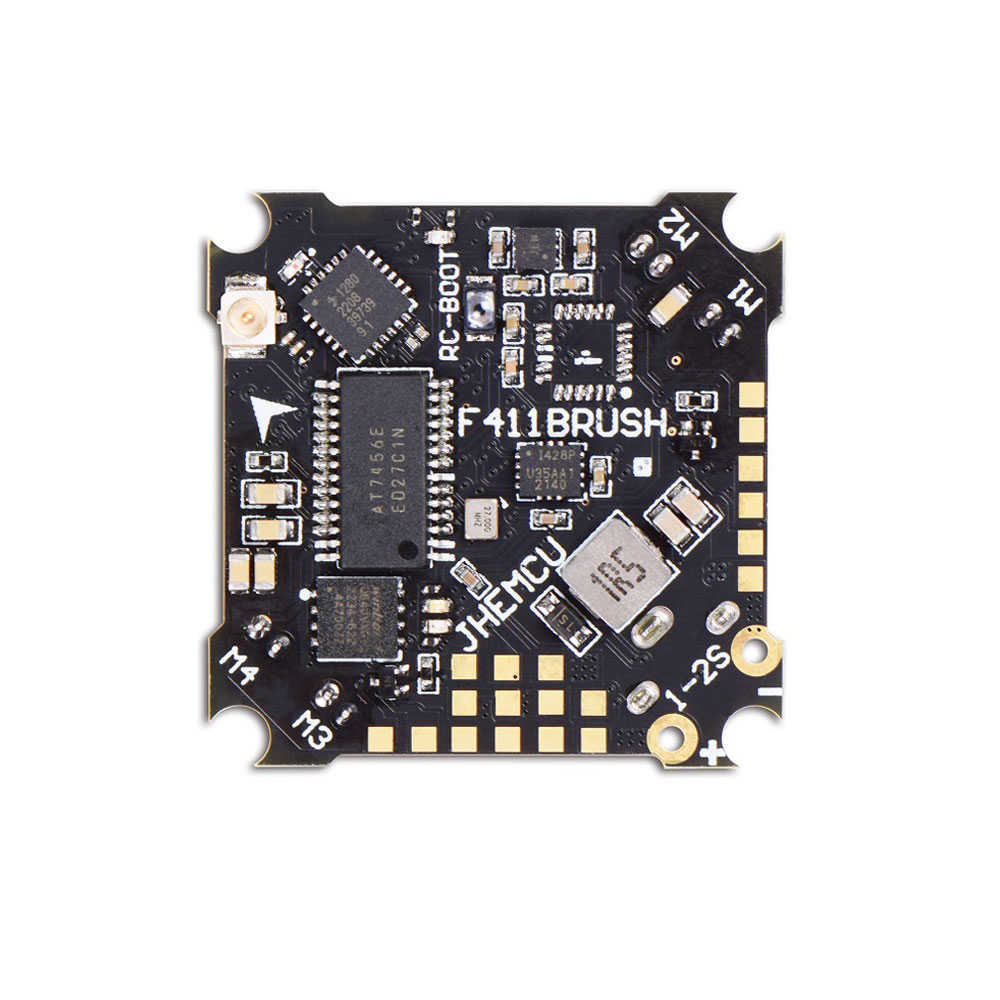

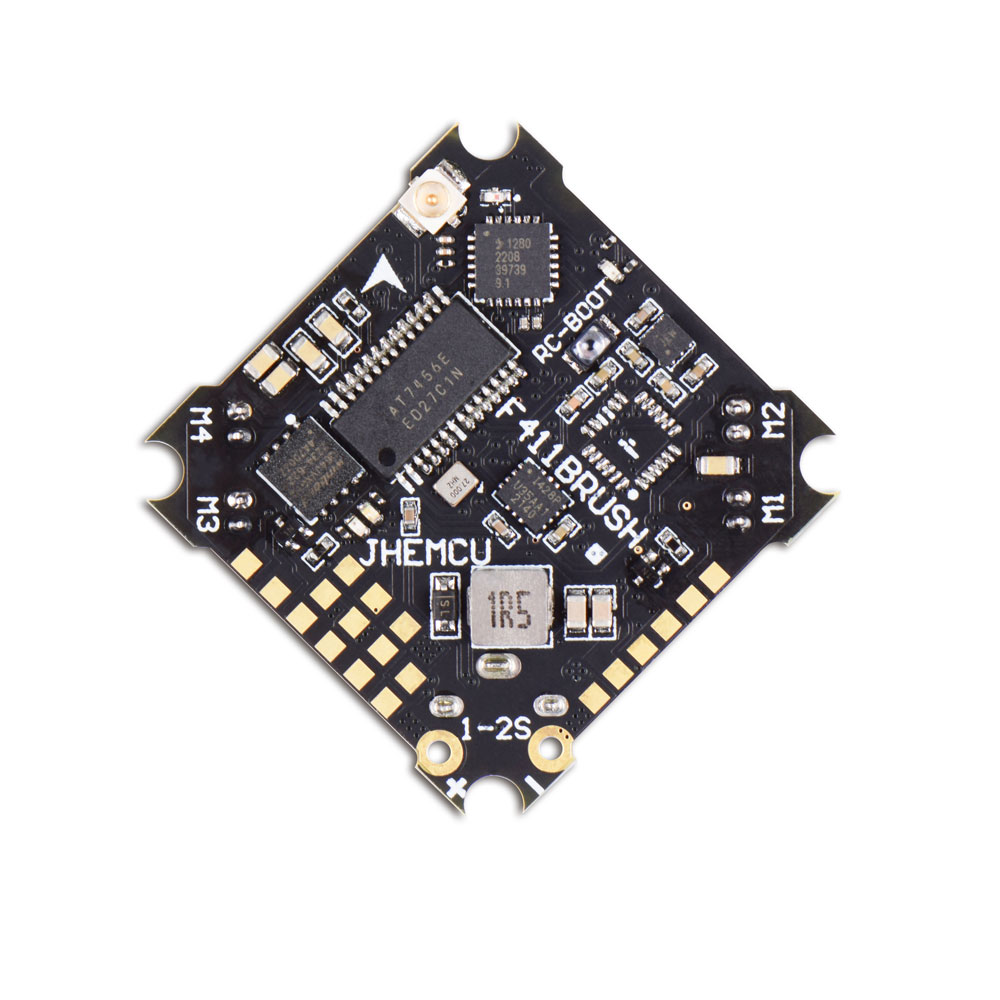

Name :JHEF411 BRUSH
MCU:STM32F411CEU6
Power supply :1-2S (3V-8.7V)

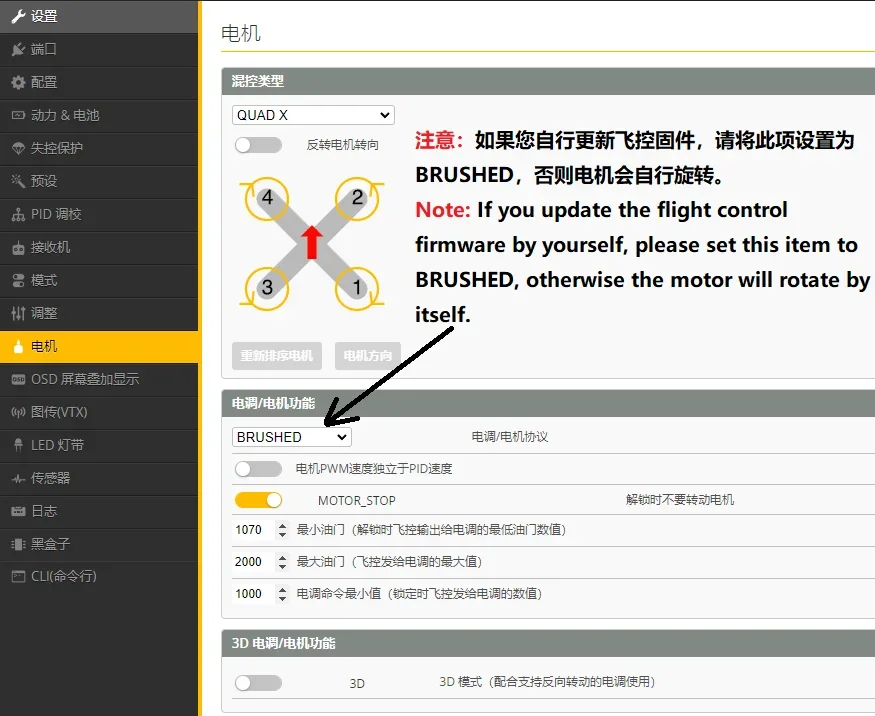

Signal protocol :BRUSHED
Sensor :ICM-42688-P
OSD:AT7456E
Black box :8MB
Barometer: None
USB:Micro usb
UART:UART1, UART2.
BEC:BEC 5V/1.5A±0.1V
Support receiver protocols :ELRS(CRSF),TBS(CRSF),SBUS,IBUS

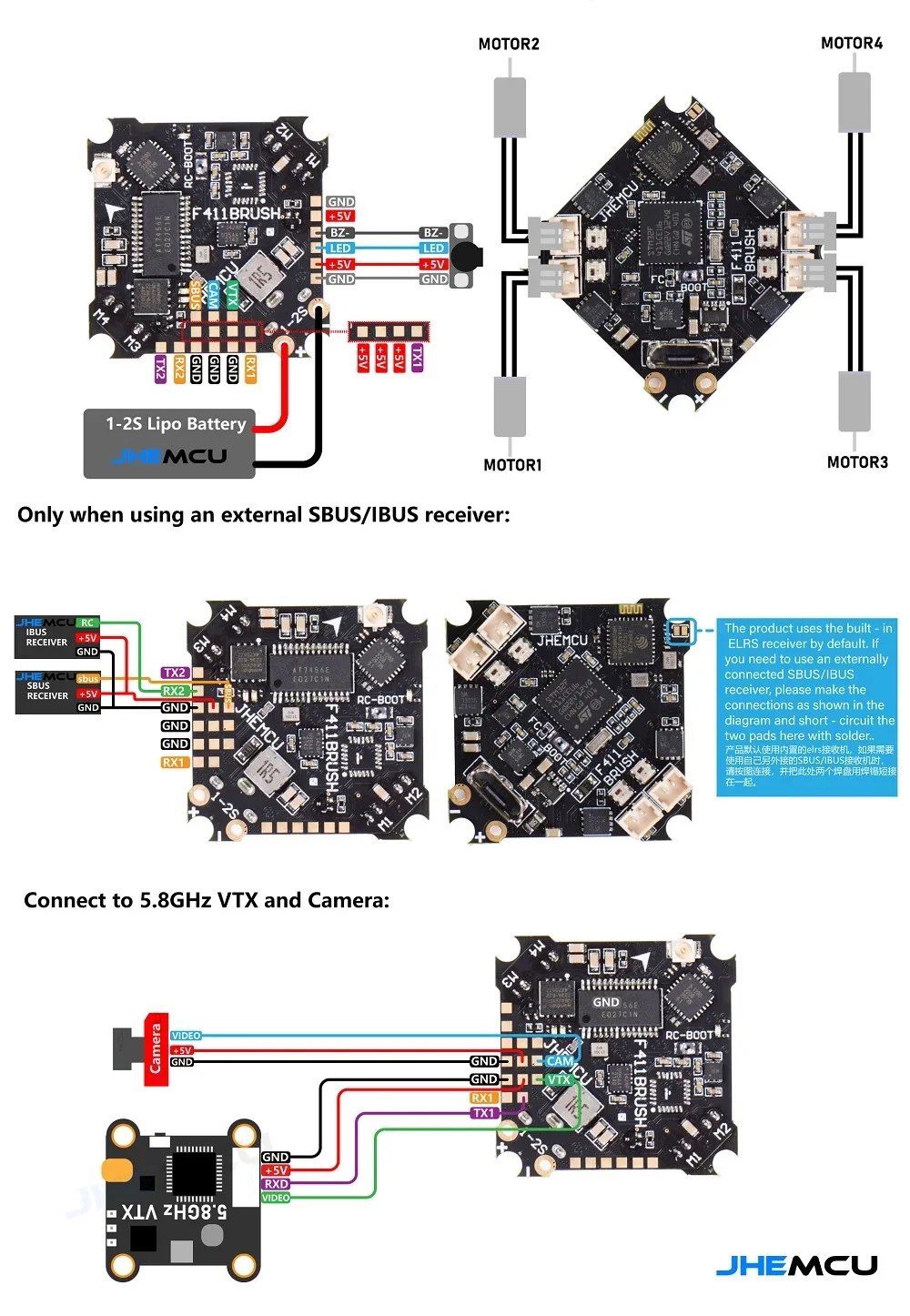

Built-in ELRS receiver connected at UART2.
Support :WS2812 Programmable LED(board with four)
Supported: Buzzer
Built-in voltage sensor
Built-in current sensor
Flight control firmware :Betaflight JHEF411.HEX
Receiver frequency band :2.4GHZ
Receiver protocol :CRSF
Receiver type: Independent ELRS
Receiver firmware :betafpv.rx_2400.lite
Receiver supports WIFI update firmware
Motor drive :15A
Motor type: Brush
Anti-turtle: Not supported

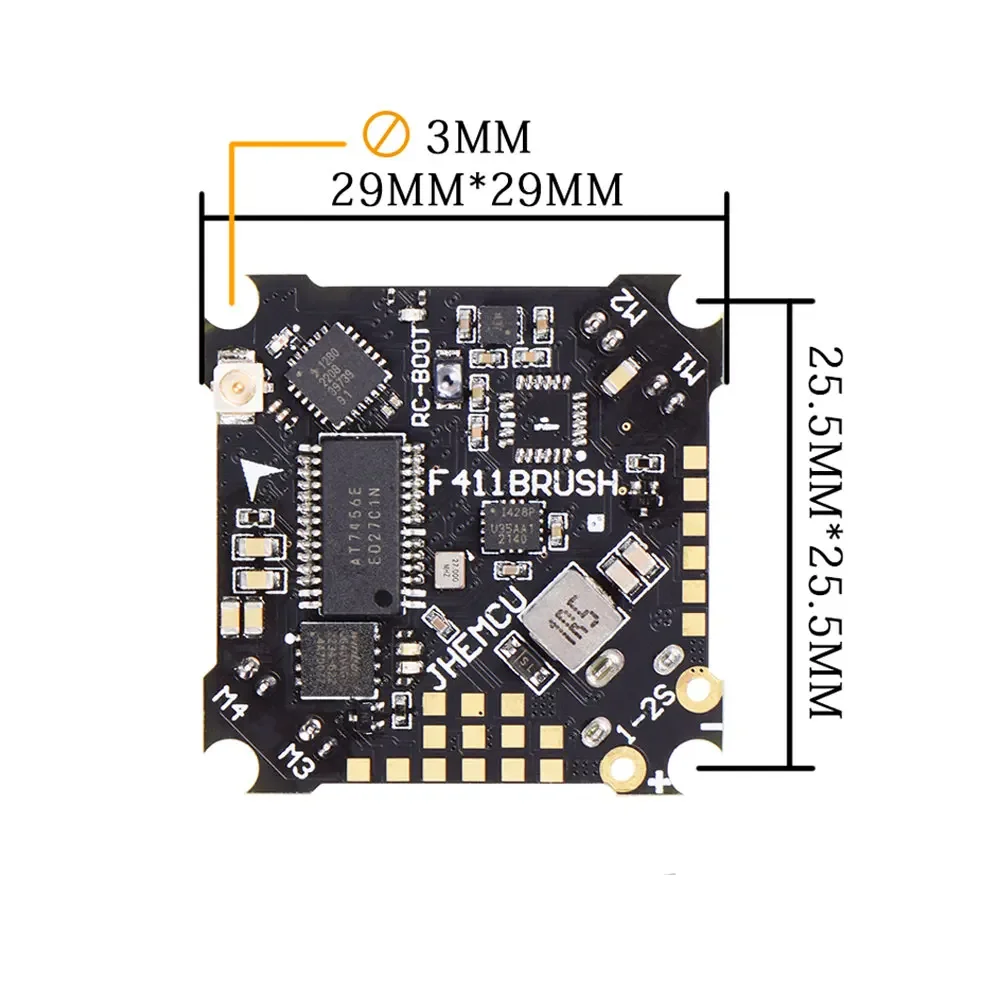

Mounting hole spacing :25.5MM x 25.5MM x 3MM
Dimensions :29MM*29MM
Weight: 3.2g
