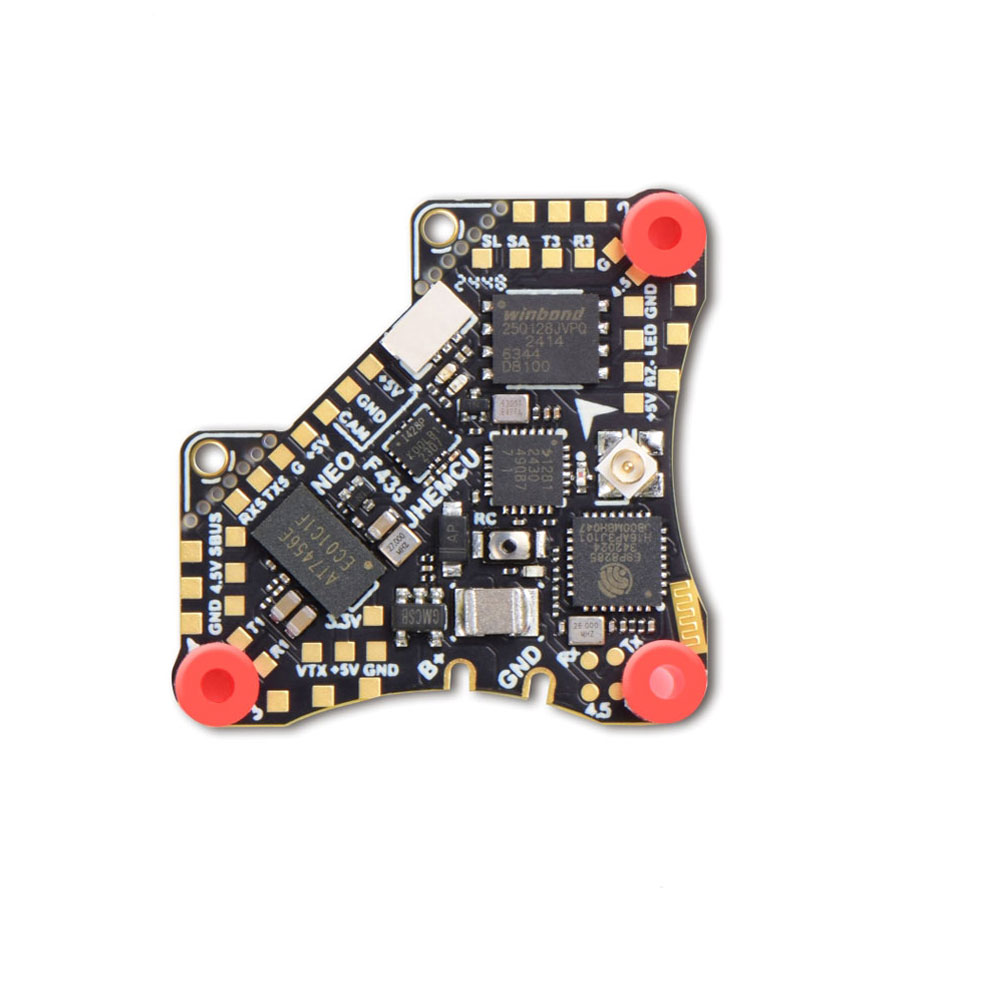

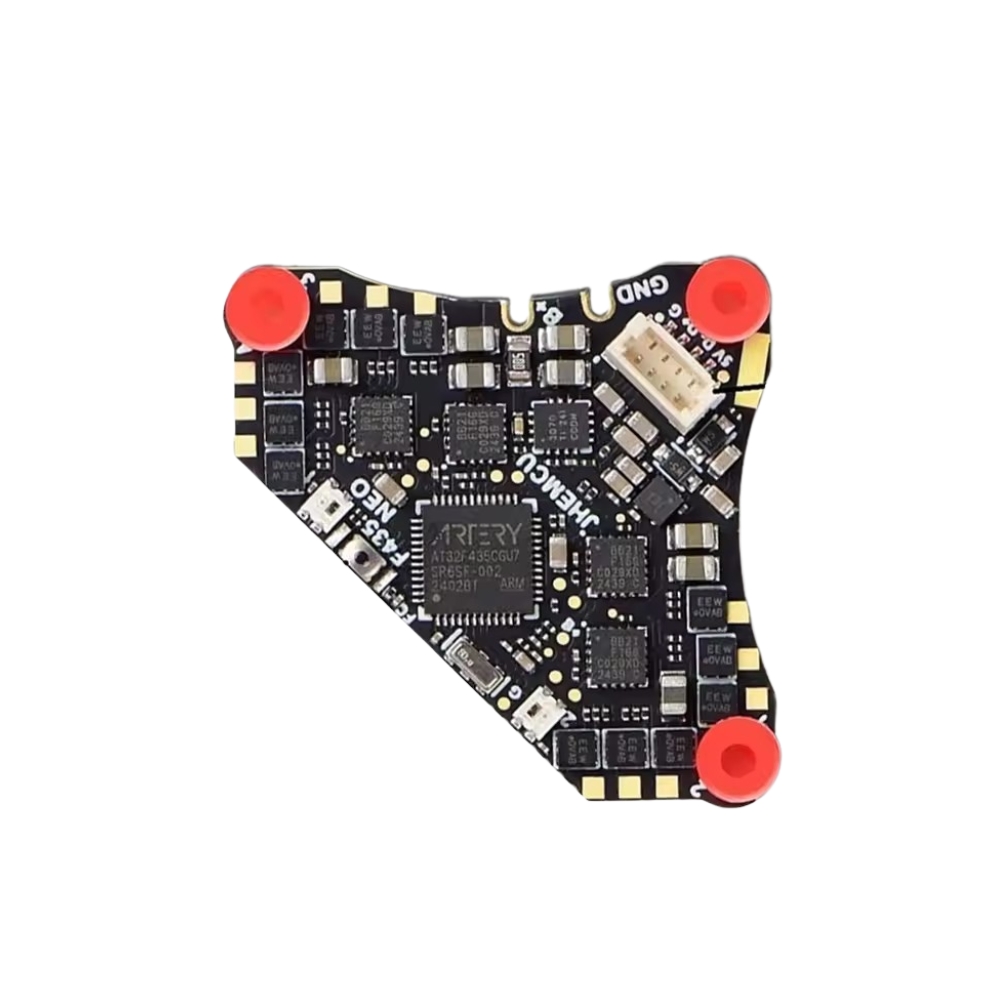

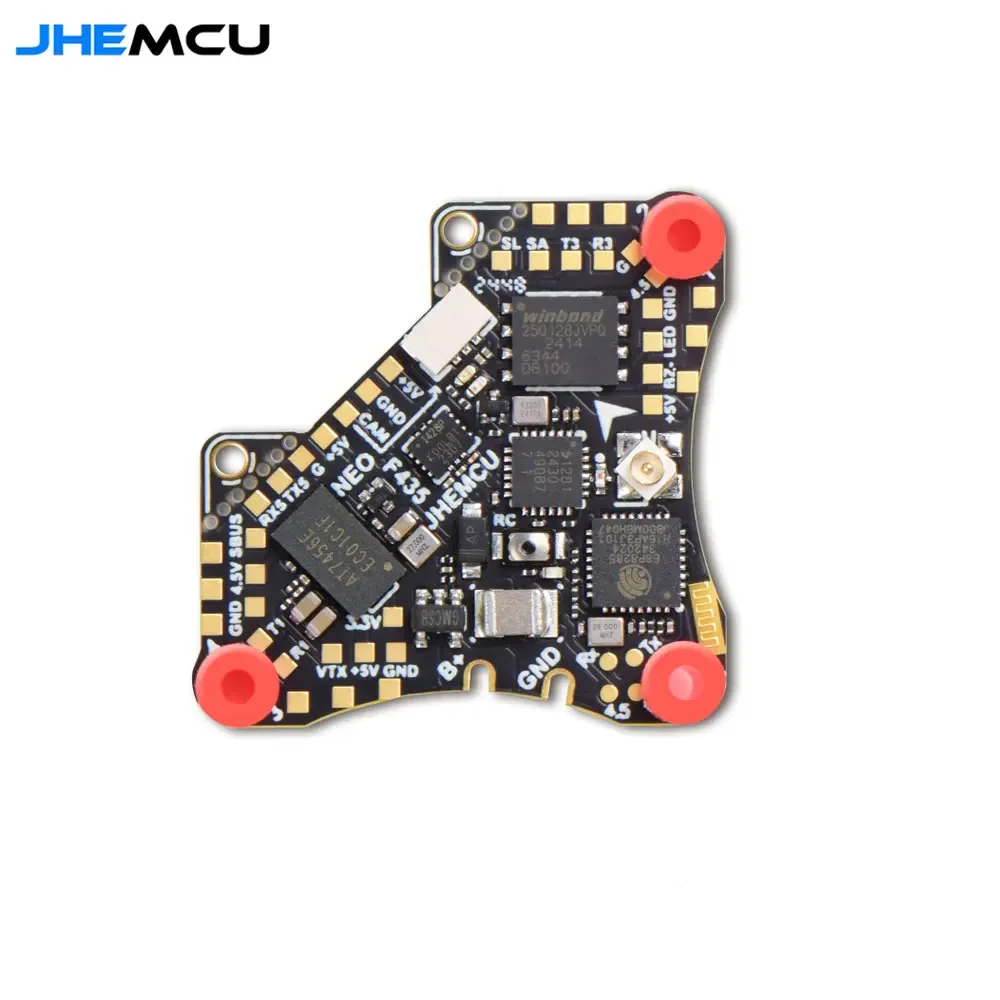

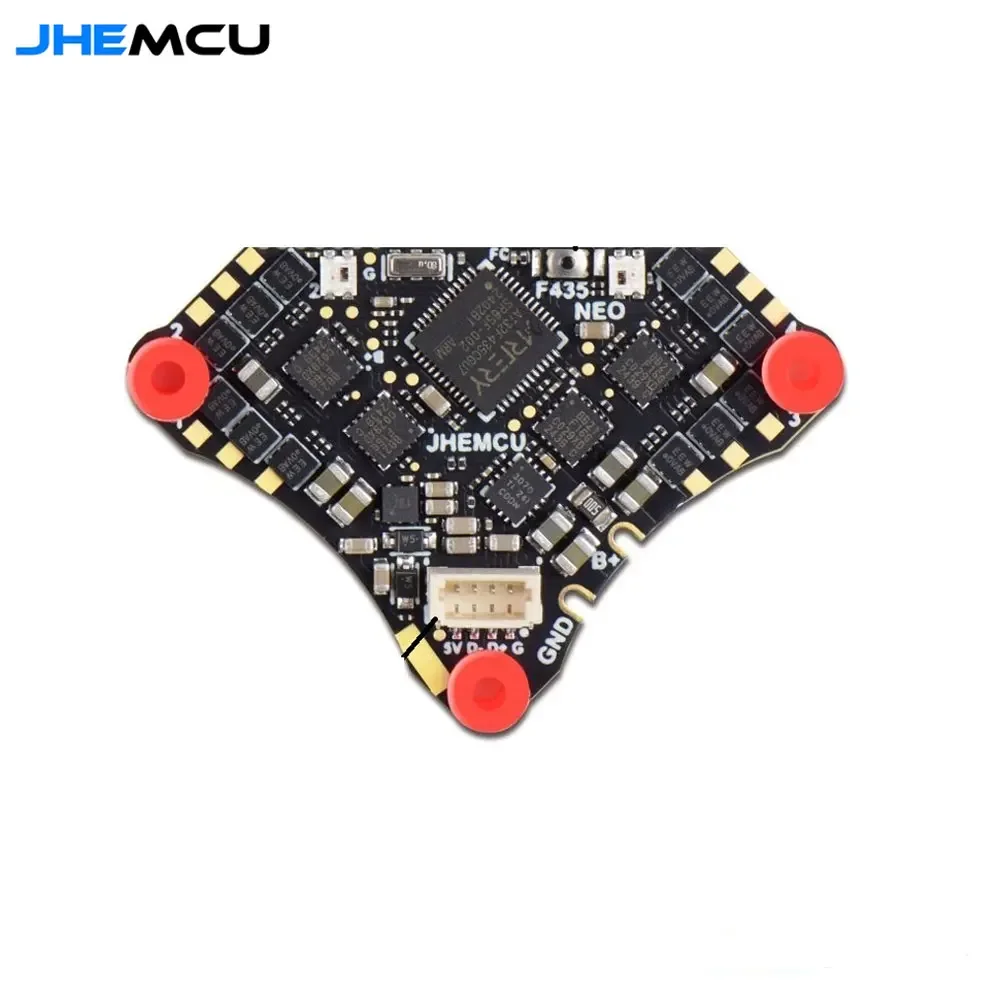

JHEMCU F435 NEO 1S AIO Flight Controller 5A 4-in-1 ESC Dshot300 External Type-C Board

Brand name:JHEMCU
Model:F435NEO
MCU:AT32F435CG/288MHZ
IMU:ICM-42688-P/Gyro/Accel
OSD:AT7456E
Baro:NO
Blackbox:16MB
Input voltage:1S (3V-4.35V)
5V-BEC:5V/1.5A ±0.1V
UART:UART1, UART2, UART3, UART5
Receiver:ELRS(CRSF), TBS(CRSF),SBUS,IBUS
LED-strip:WS2812
Buzzer:YES(5V)
USB: External TYPE-C adapter board
Current port:YES
Voltage sensor:YES
DFU button:YES
FC Firmware:Betaflight JHEF435

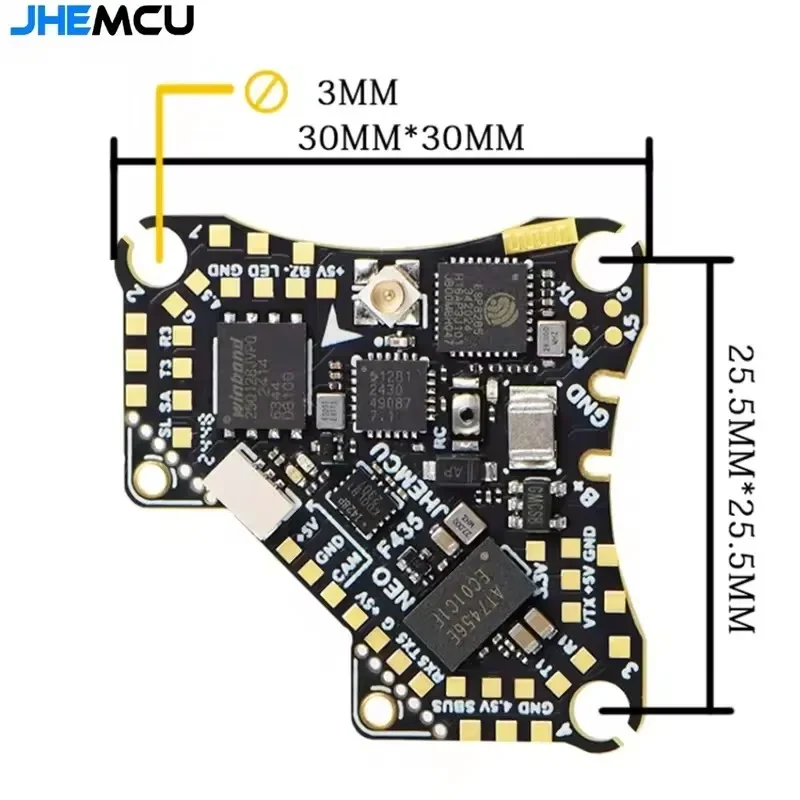

Size:30*30MM
Mounting Hole:25.525.53MM
Weight:3.2g
ESC Current:5A
ESC MCU:EFM8BB21
ESC TYPE:Bluejay
ESC Firmware:O_H_5_48_v0.19.2
ESC protocol:Dshot300
Receiver Type:ELRS
Receiver frequency:2.4GHZ
Receiver Signal Protocol:CRSF
Receiver firmware:betafpv.rx_2400.lite.
WIFI firmware update:YES
Independent receiver:YES

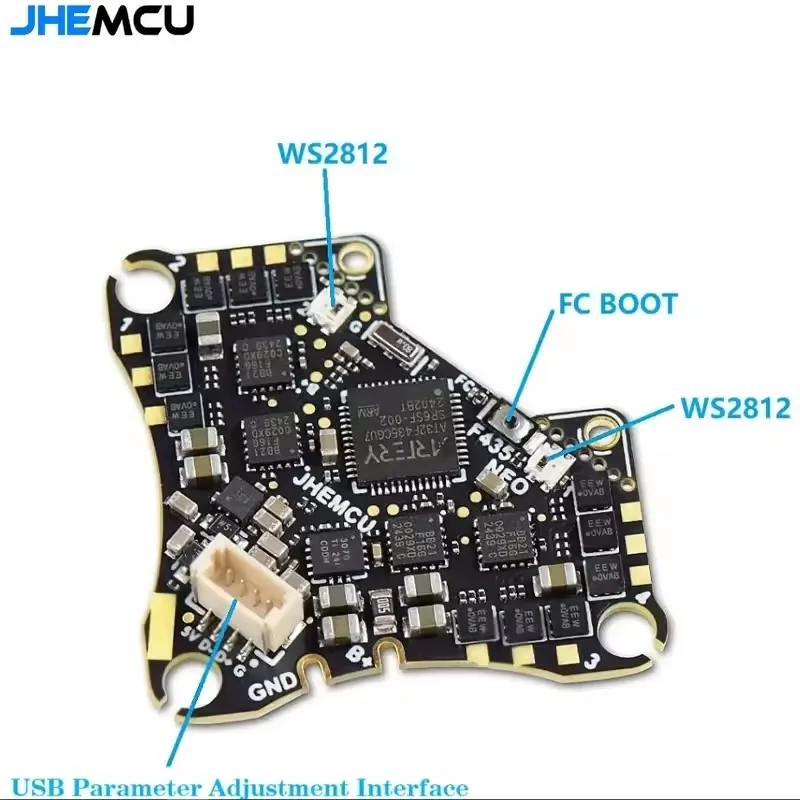

If you need to press and hold the FC BOOT button to flash the flight controller firmware, please remove the SBUS receiver. Otherwise, UART1 will experience DFU hijacking, preventing successful entry into the DFU mode.
