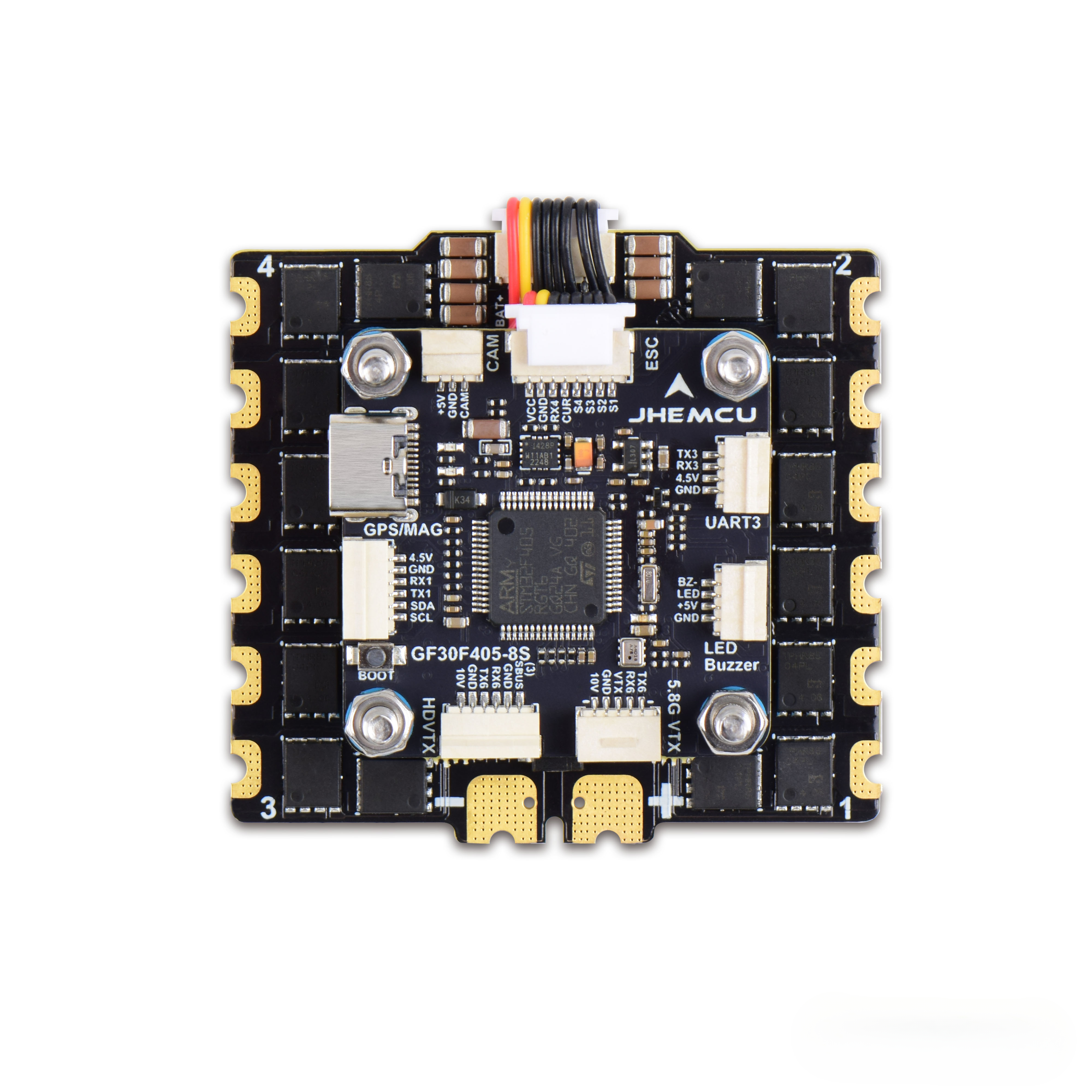

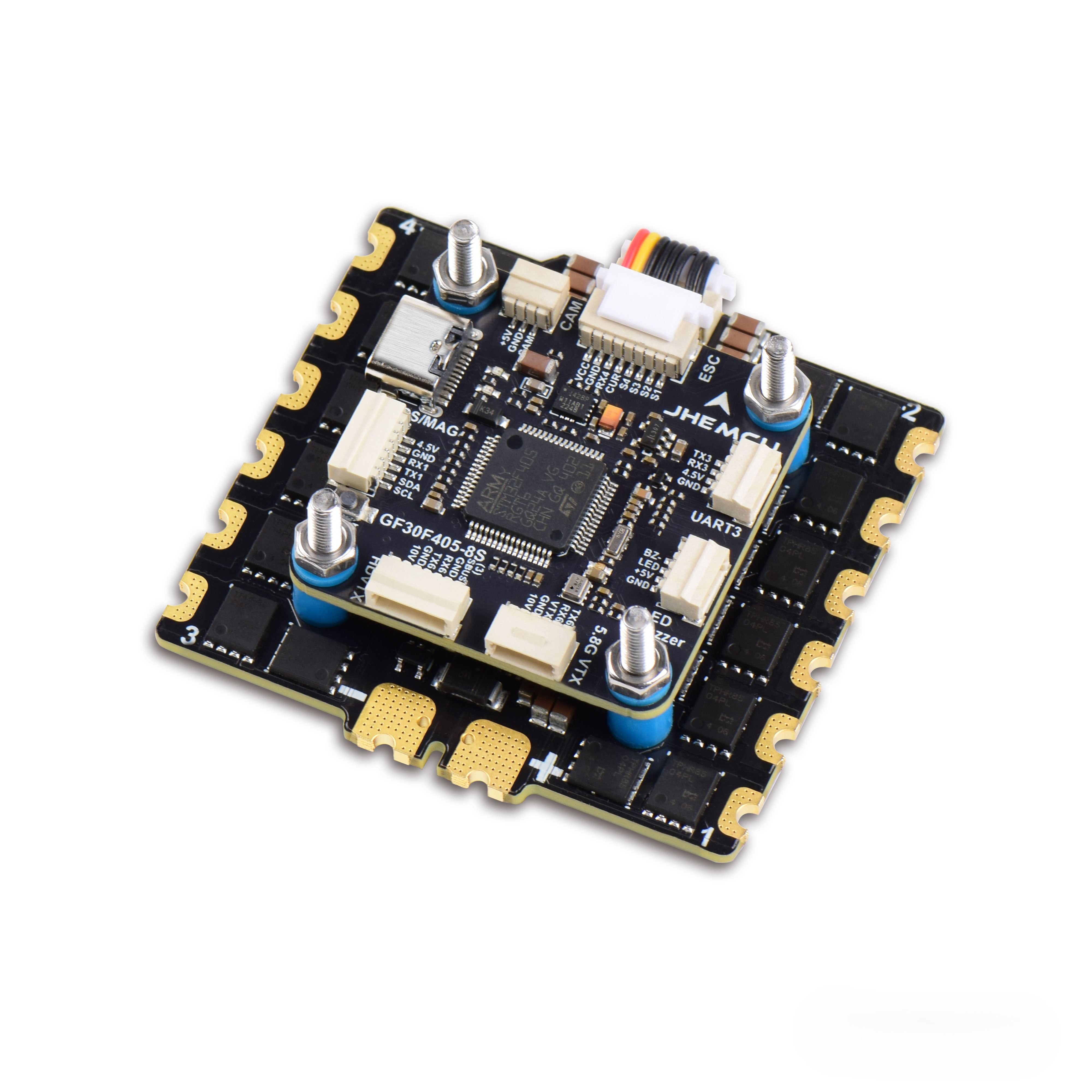

JHEMCU GF30F405 Flight Controller ICM42688P With 90A/ 110A ESC 3-8S Lipo for RC FPV Long Range Drone

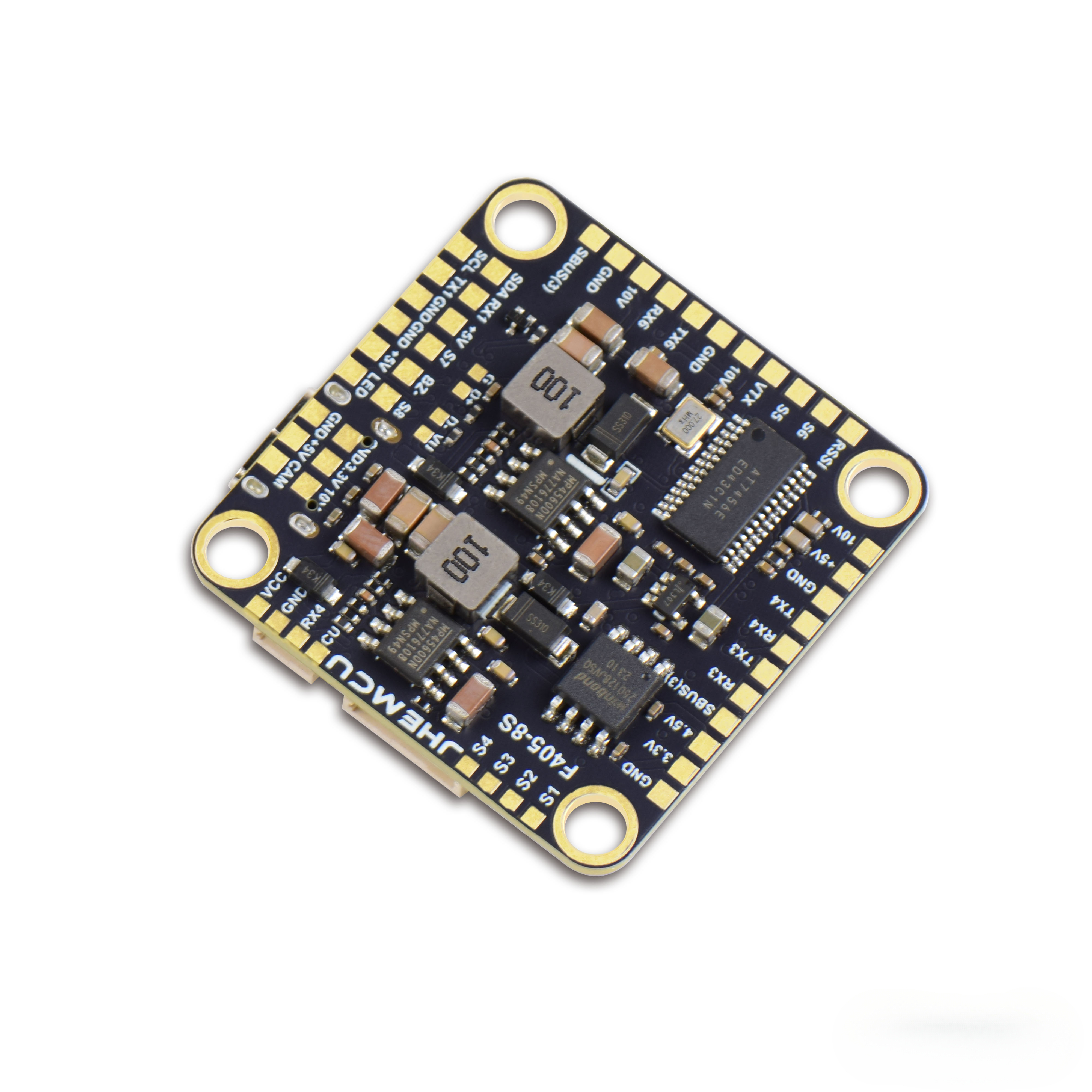

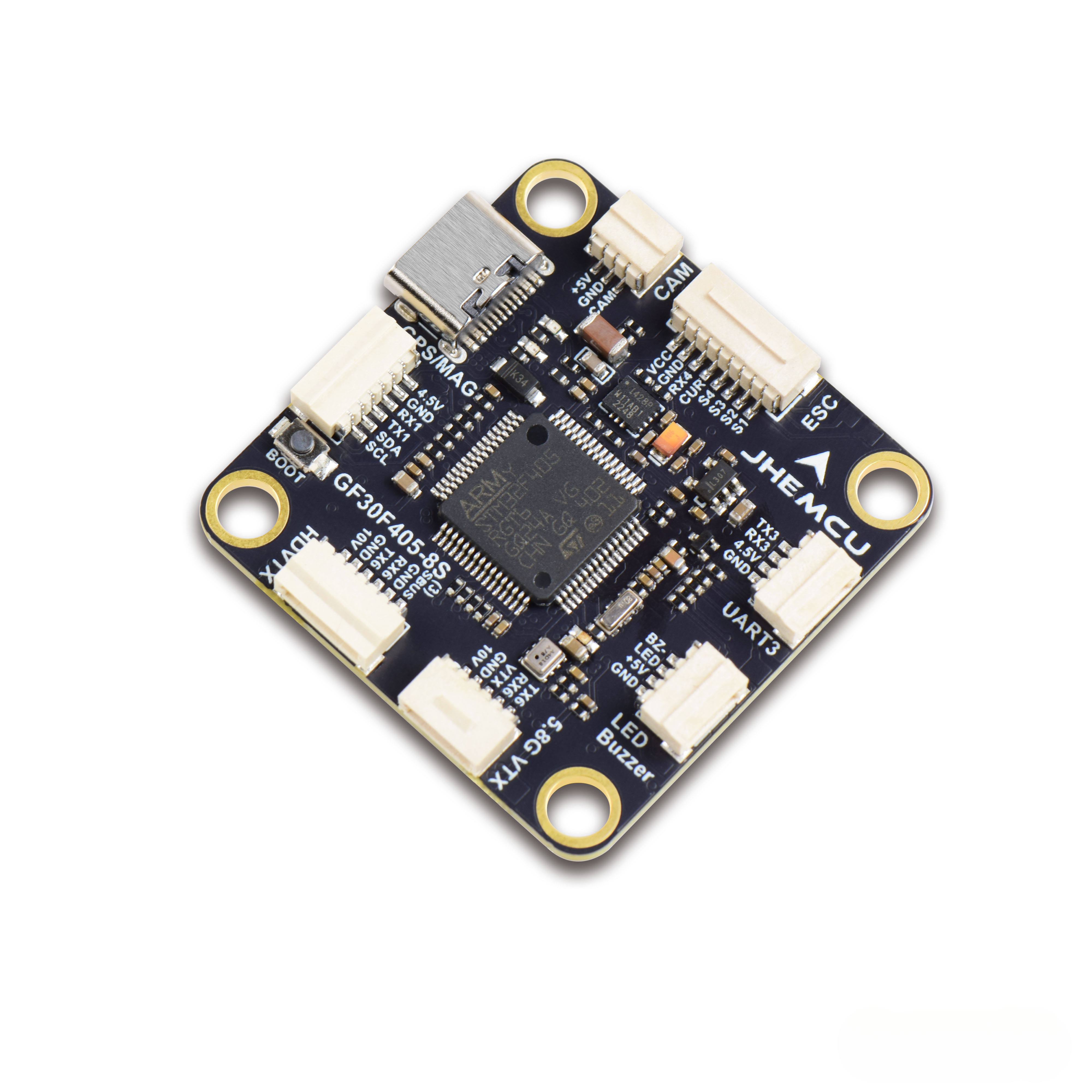

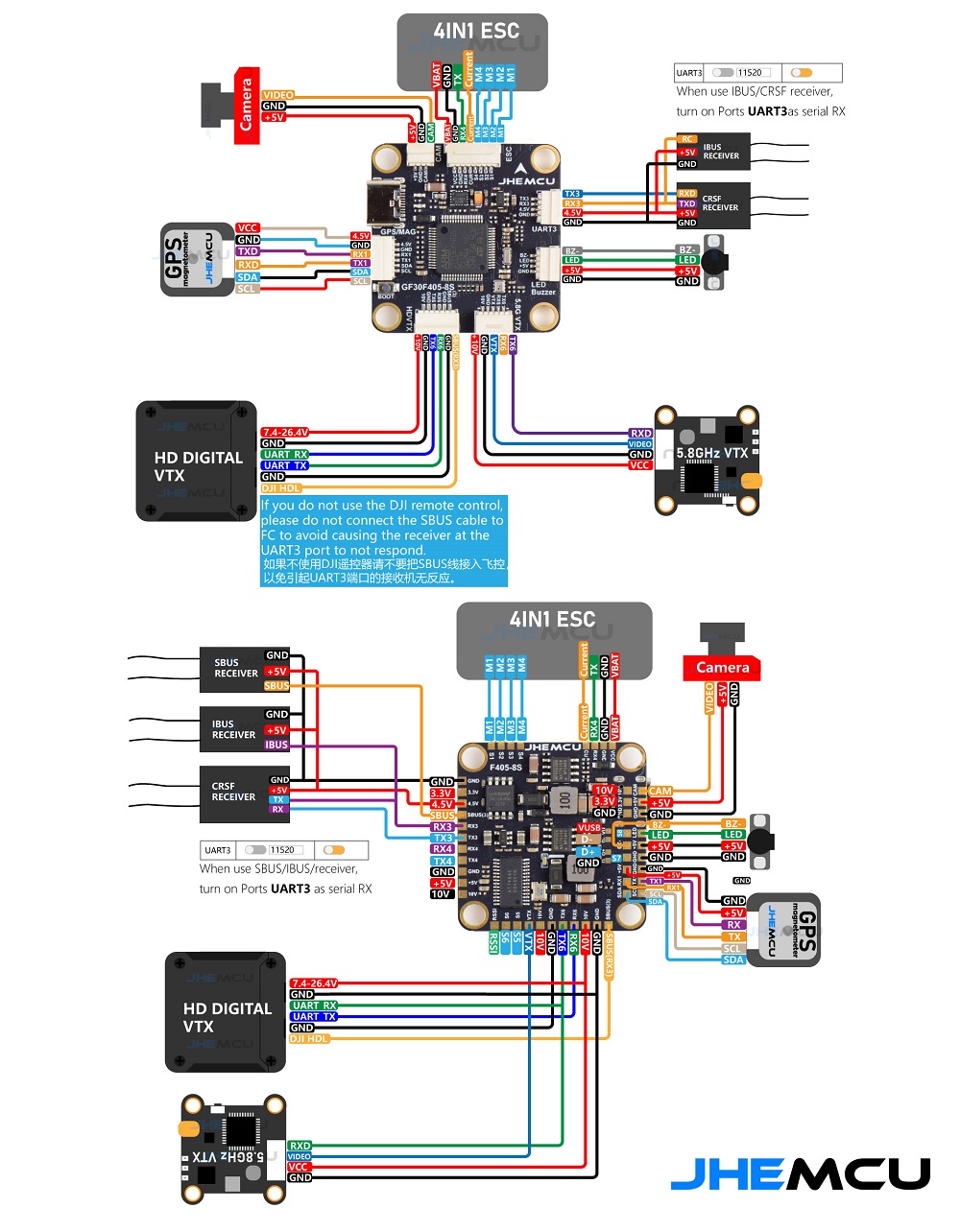

GF30F405 3-8S Flight Controller:

MCU: STM32F405RGT6
Power supply: 3-8S (11V-35V)
Signal protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
Sensor: ICM-42688-P
Size: 36*36mm (30.5mm mounting hole, diameter 4MM)
Firmware version: Betaflight JHEF405PRO.   HEX
Support INAV, can flash INAV JHEMCUF405.   HEX
Black box: 16MB
Barometer: Yes
OSD: Supported
DJI VTX: There is a reserved interface, support
USB: TYPE-C interface
IIC: Support
GPS: Support
Electronic compass: Support
UART: 4 channels, UART1, 3, 4, 6.
BEC: BEC 5V/3A and 10V/2A
Receiver: SBUS, IBUS, DSM2/X, TBS (CRSF), ELRS (CRSF)
BF only supports CRSF by default, and you can update the firmware if you need other protocols
Support WS2812 programmable LED
Support buzzer
Built-in voltage sensor with current detection port
Weight: 9.1g

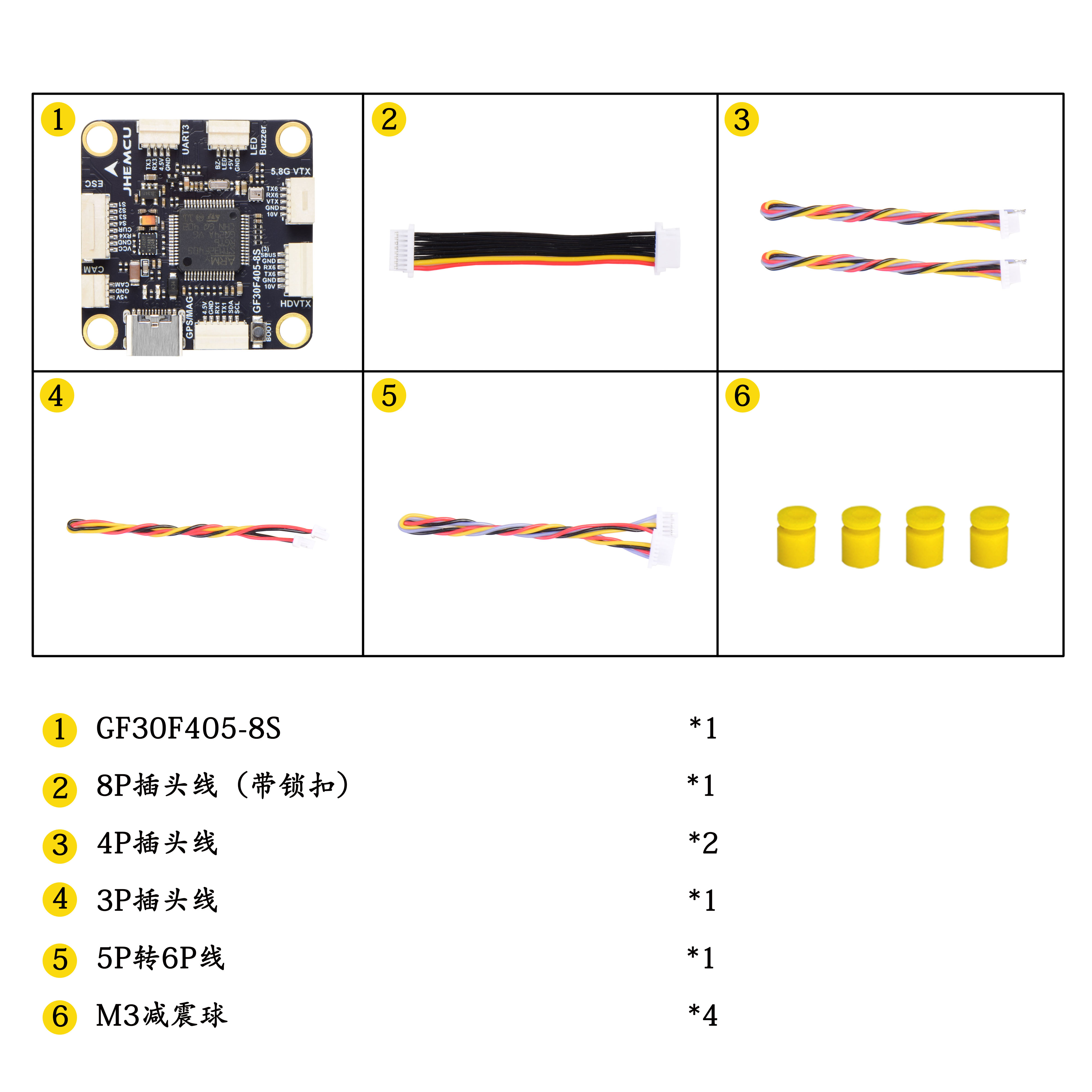

Packing list:
GF30F405-8S *1
8P plug cable (with lock) *1
4P plug cable *2
3P plug cable *1
5P to 6P cable *1
M3 shock absorber *4

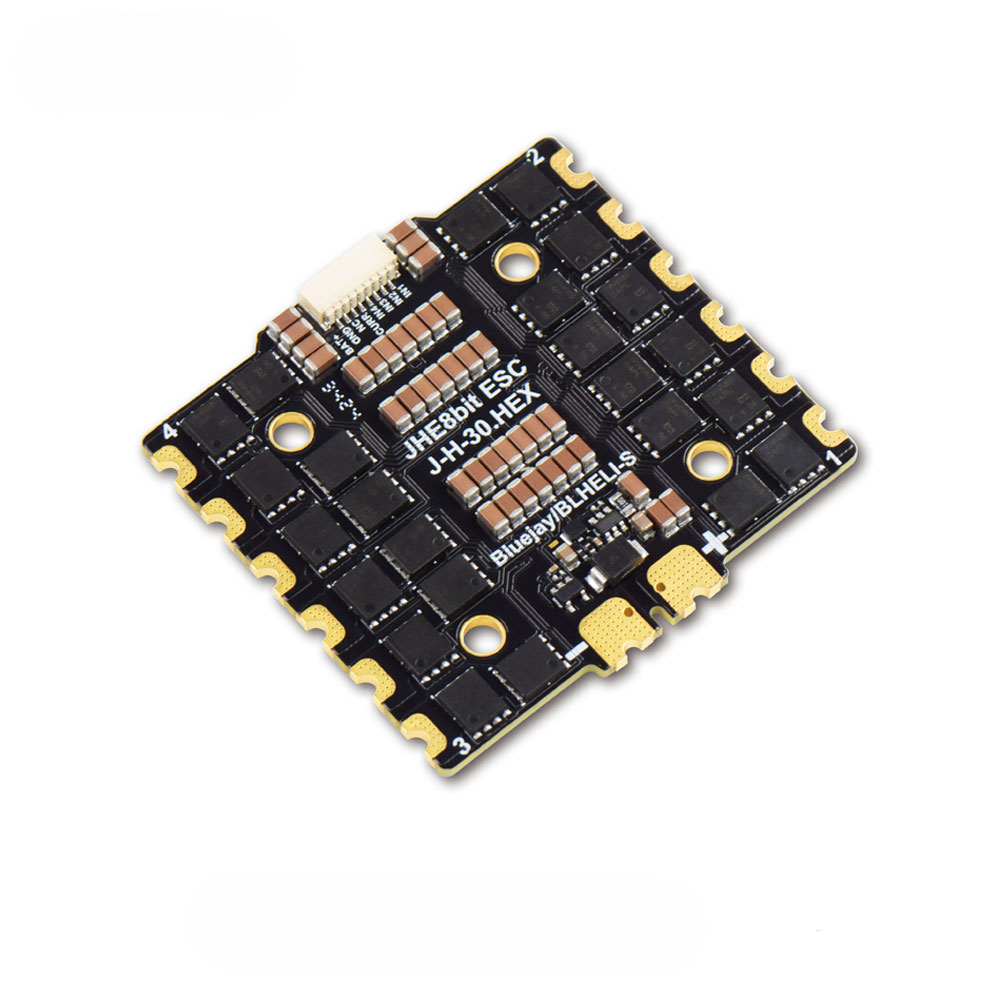

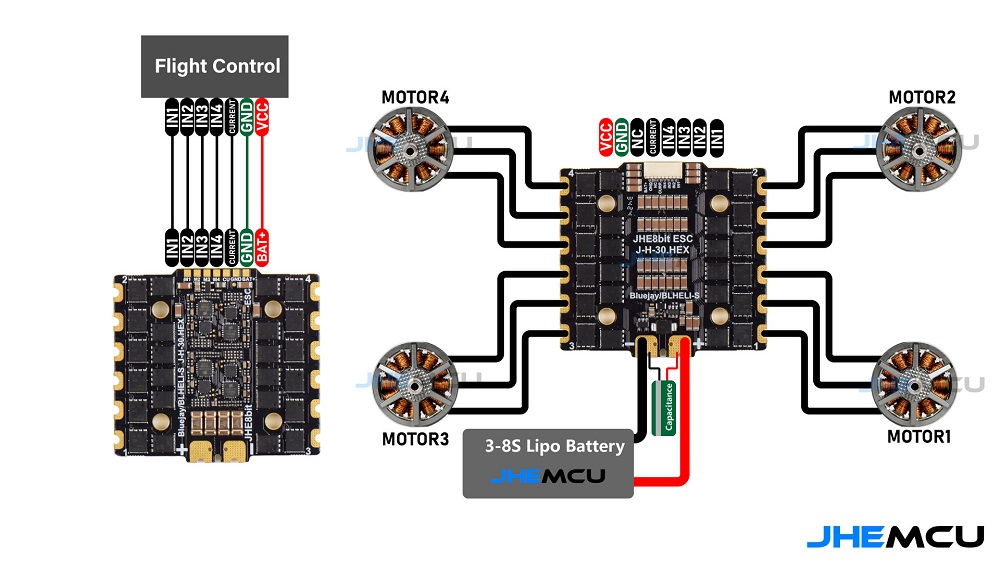

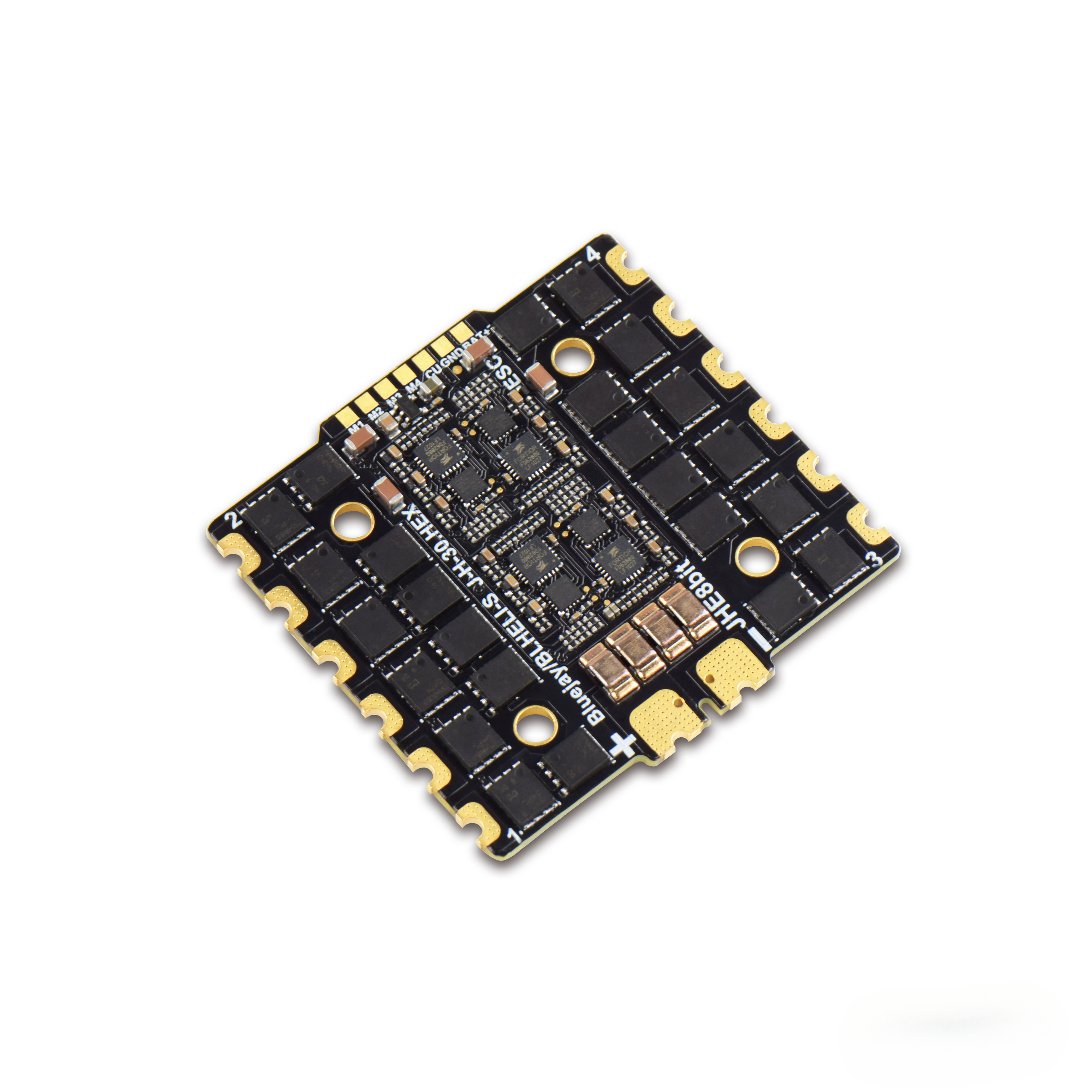

JHEMCU 90A/110A 4-in-1 ESC:
Input voltage: 3 - 8S (11 - 35V)
Continuous current: 90A/110A * 4 channels
Input signal: DSHOT (need to turn on bidirectional DSHOT)
(If you need to use PWM signal, you need to flash BLHELI - S firmware yourself)
BEC: No
Ammeter: Yes
Installation: hole spacing 30.5MM* 4MM
Dimensions: 56MM*53MM
Firmware: Bluejay J - H - 30.   HEX
Weight: 30.3g

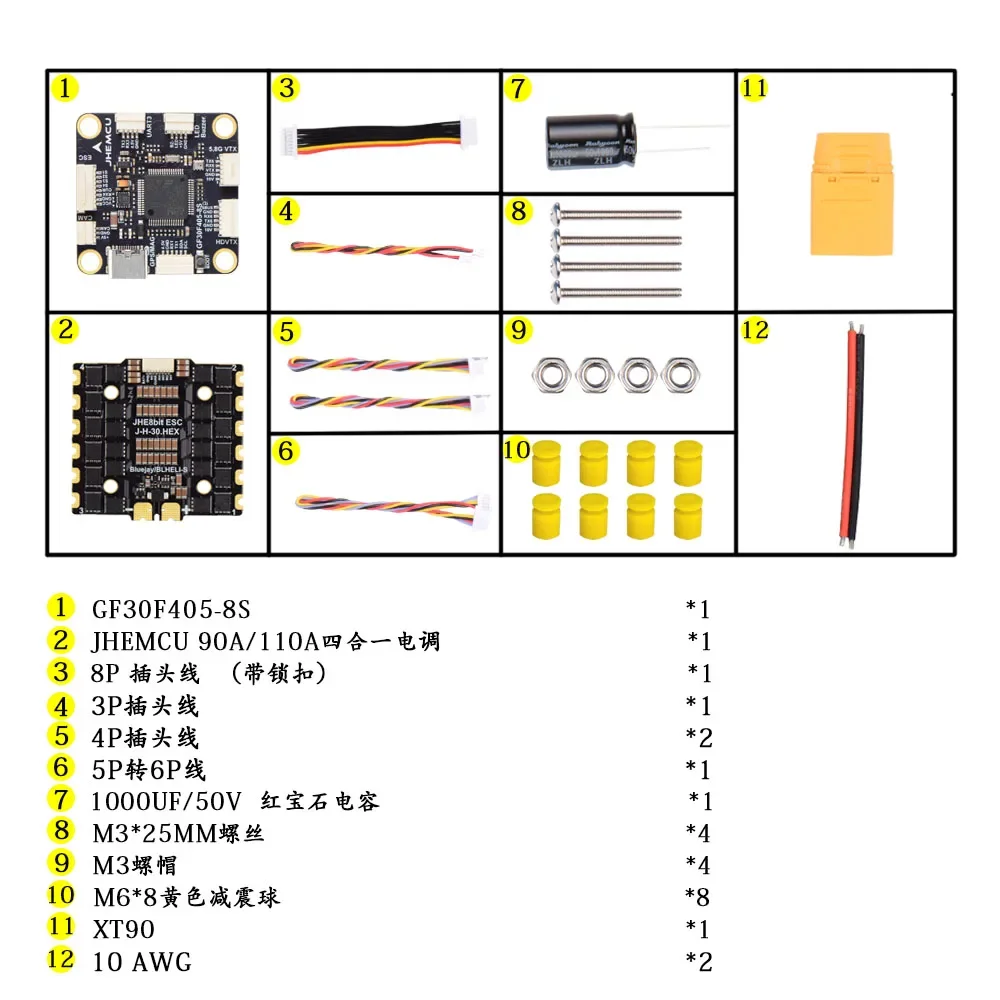

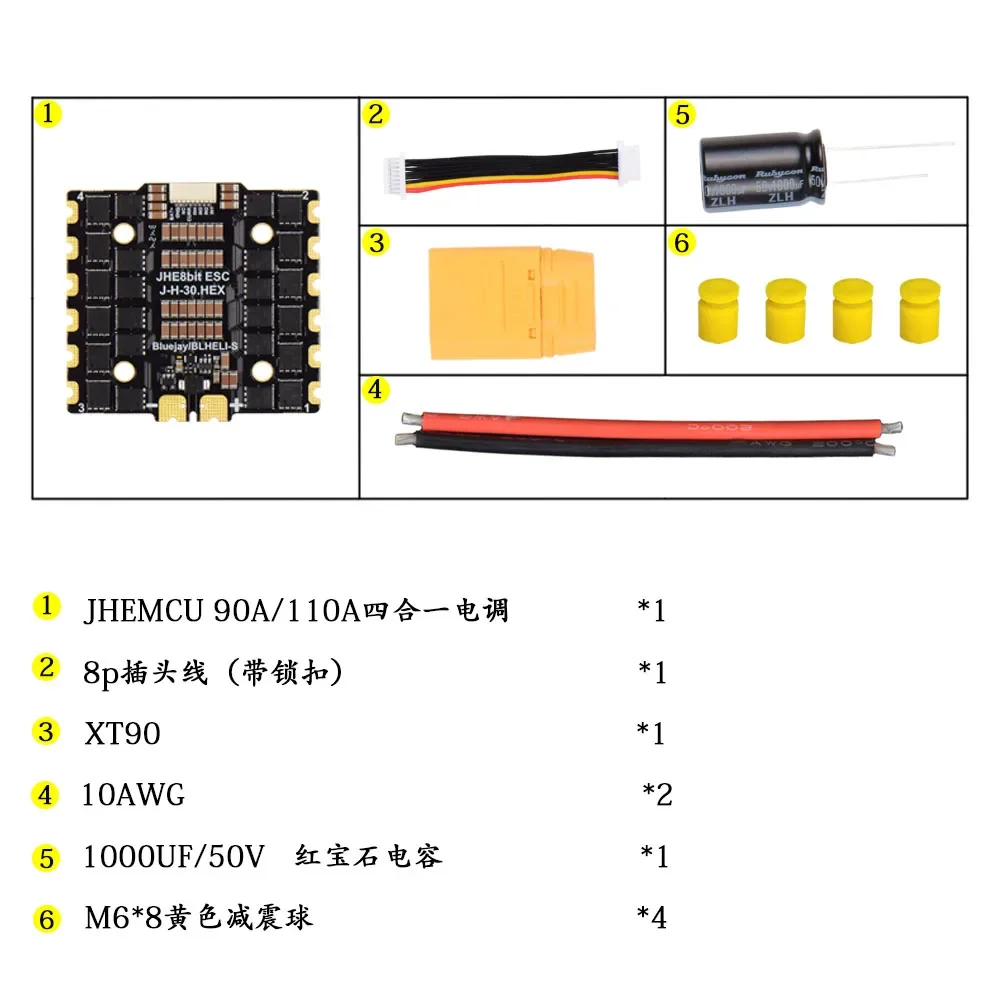

Packing list:
JHEMCU 90A/110A 4-in-1 ESC *1
8p plug cable (with lock) *1
XT90 *1
10AWG *2
1000UF/50V ruby capacitor *1
M6*8 Yellow shock absorber *4
