Specifications:
Brand Name:JHEMCU
Model:GH743AIO
MCU:STM32H743/480MHZ

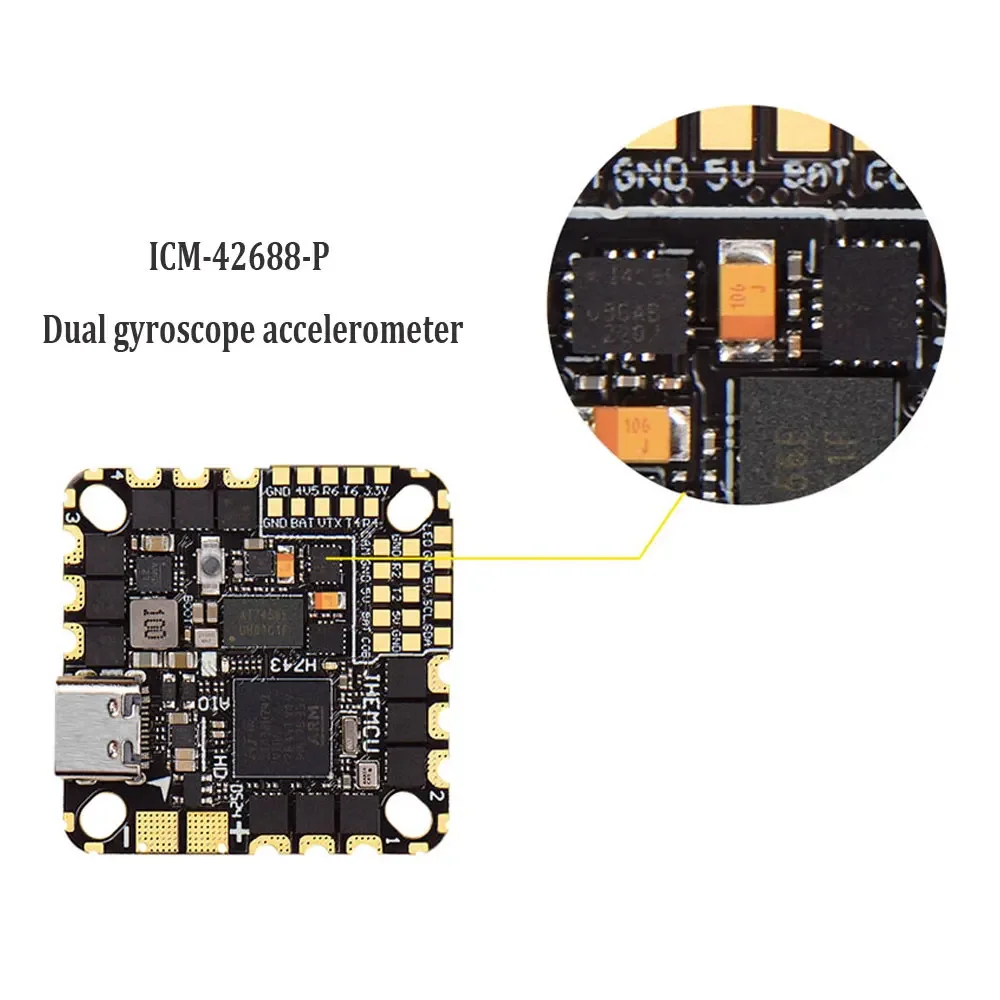

IMU:ICM-42688-P *2 /Gyro/Accel
OSD:AT7456E
Baro:YES

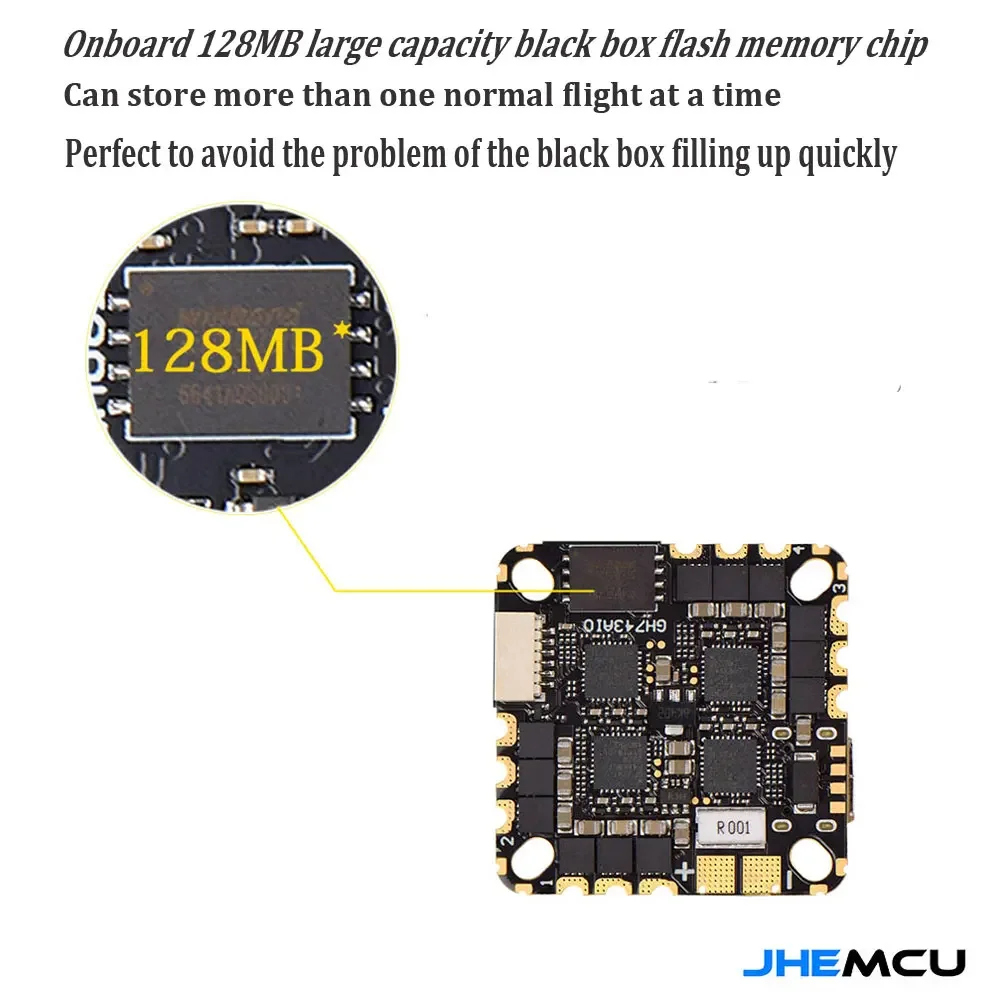

Blackbox:128MB
Input voltage:3S-6S (11.5V-26V)
5V-BEC:5V/2.5A ±0.1V
10V-BEC:NO
Receiver:ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
HD:YES
USART:UART1,UART2,UART3,UART4,UART5,UART6,UART7
IC:IIC1
Led_Strip:YES
USB:TYPE-C
Buzzer:5V
ESC Signal:Dshot150,Dshot300,Dshot600
Current Port:YES
Voltage Sensor :YES
DFU Button:YES
FC Firmware:betaflight_4.4.3 JHEH743HD. HEX
ESC Current:40A/50A
ESC TYPE:AM32
ESC Firmware:AM32_F4A_4IN1_F421_1.98.HEX

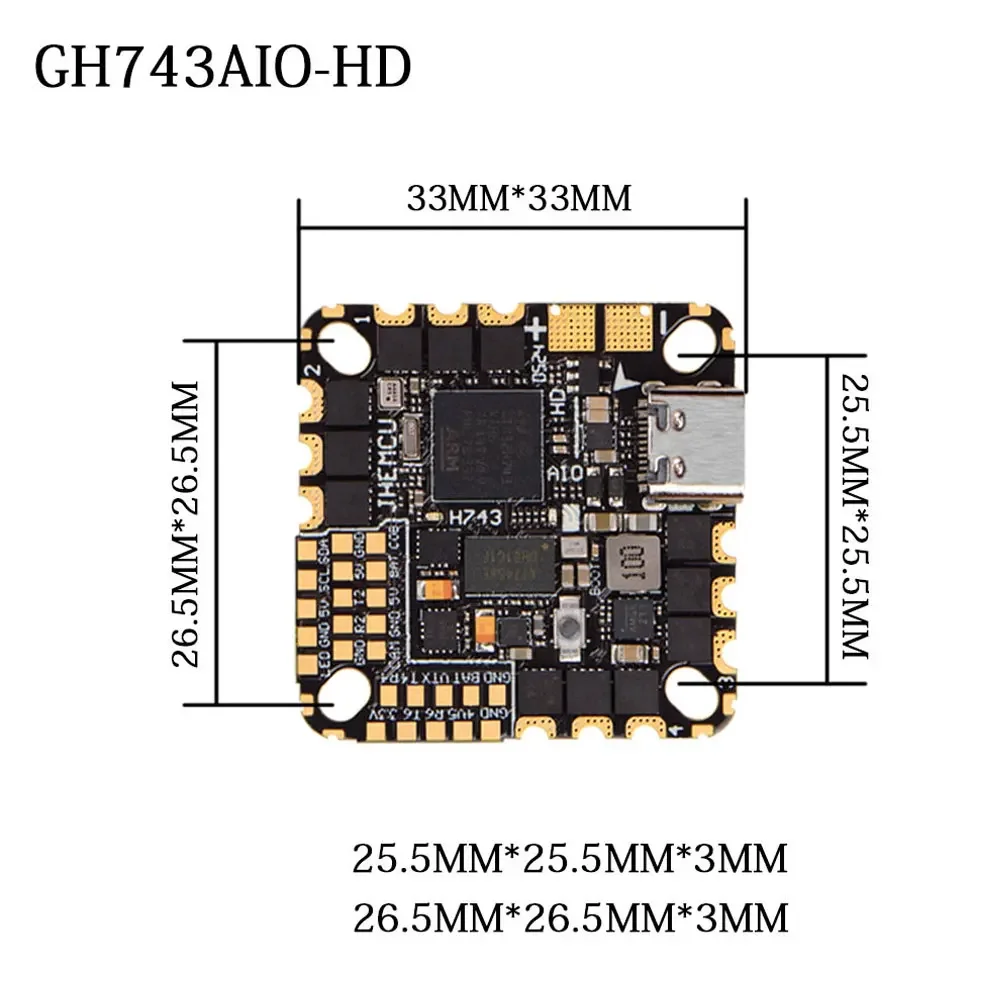

Size:33MM*33MM
Mounting Hole:
25.5MM*25.5*3MM
26.5MM*26.5*3MM
Weight:8.5g
