ELRS diversity receiver adopts dual antennas and dual receivers, integrates dual-channel signal return, and has better receiving effect and more stable signal. It is equipped with a built-in TCXO high-precision temperature-compensated crystal oscillator. Two channels of radio frequency share the same crystal oscillator to provide a more synchronous and stable radio frequency clock. Omnidirectional connection, not afraid of dead corners, better signal, more stable connection, and no fear of losing the aircraft.

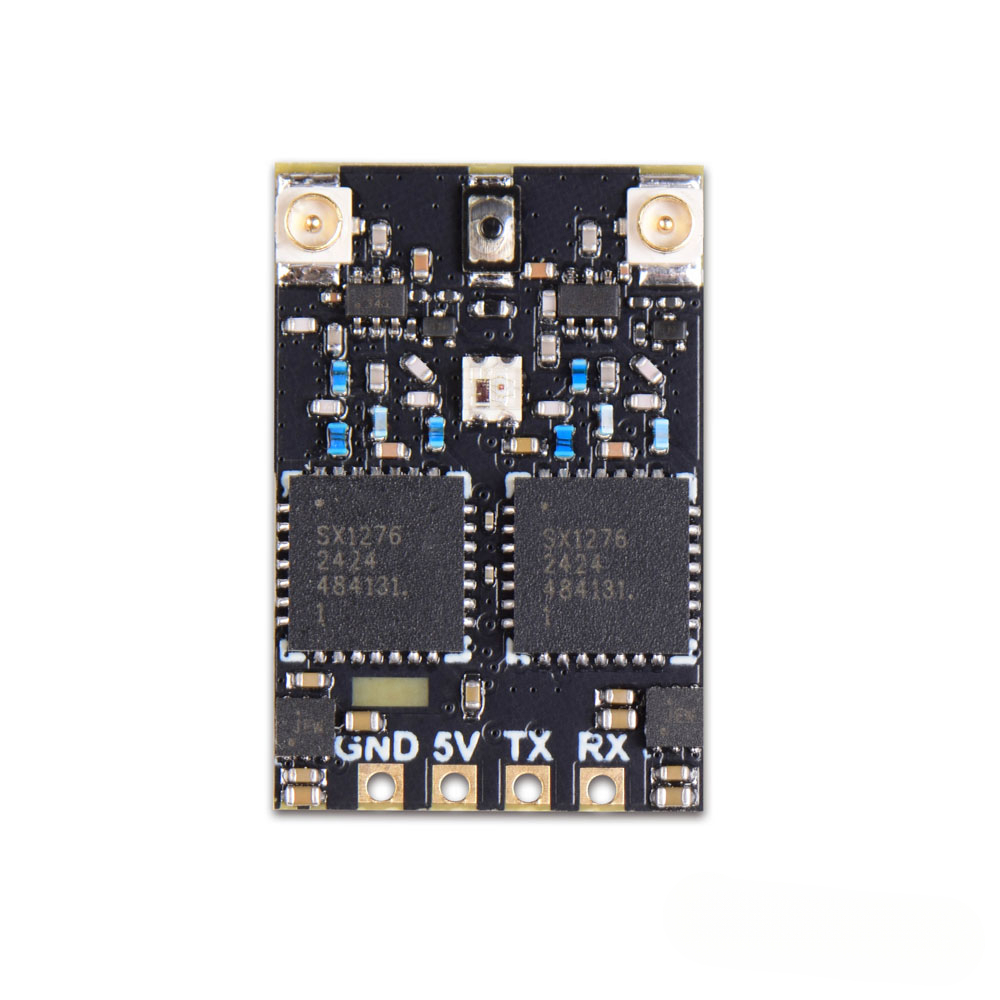

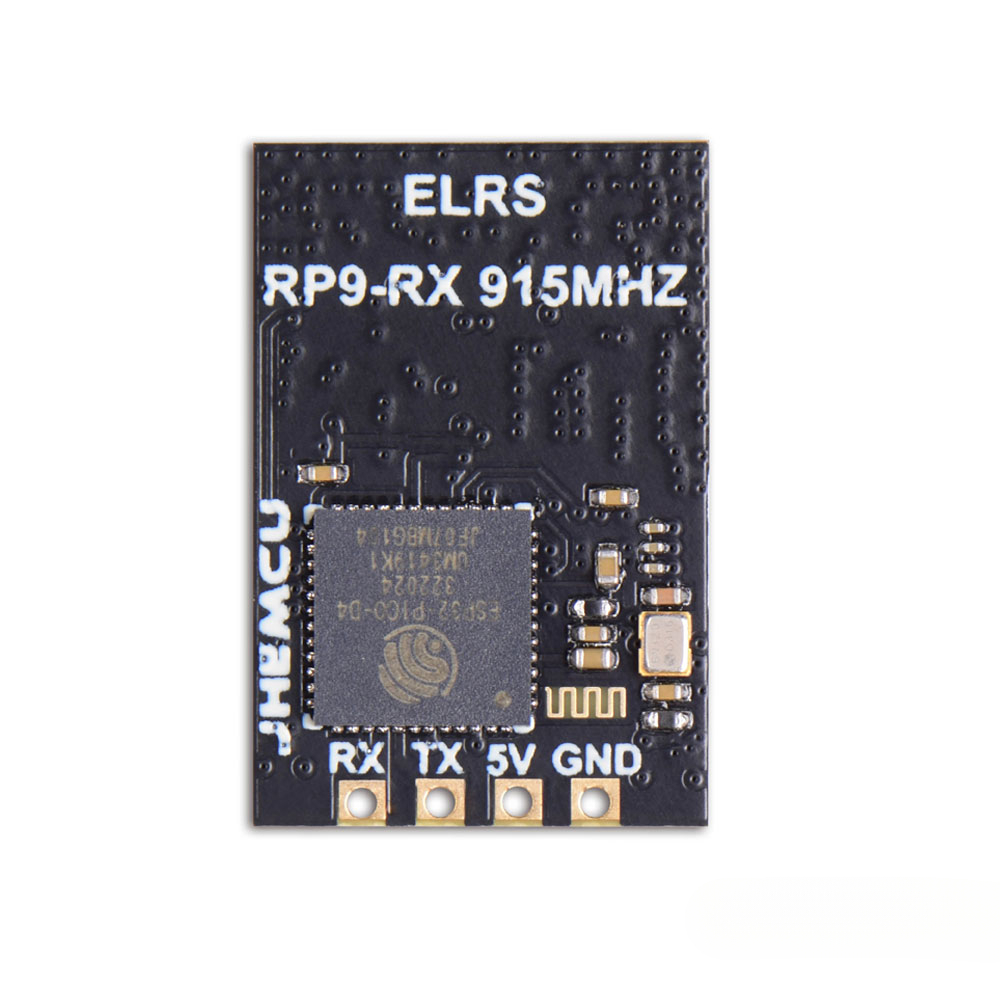

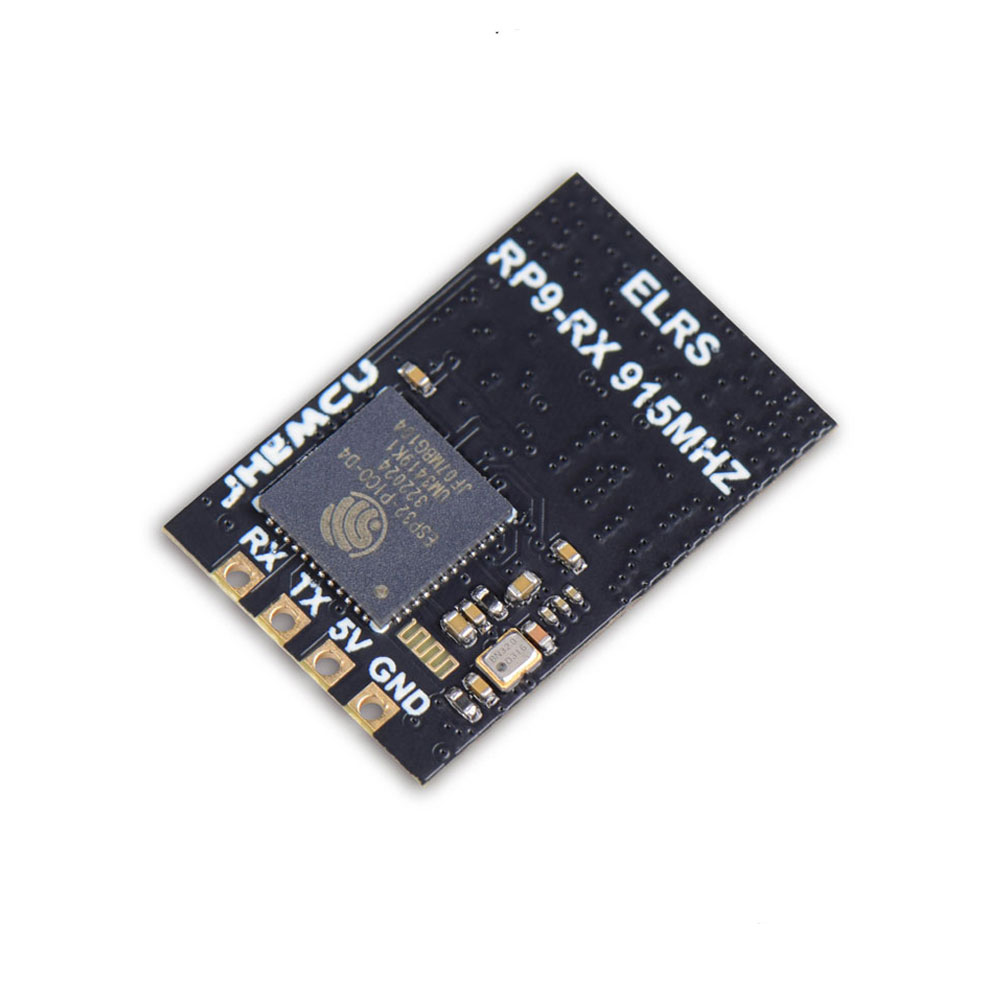

Name: JHEMCU RP9-RX 915MHZ diversity receiver
MCU: ESP32 PICO D4, DUAL SX1276
Antenna: IPEX MHF 1/U. FL
Communication frequency: 915MHZ & 868MHZ
Telemetry power: 17dBm
Receiver protocol: CRSF
Input voltage: DC +5V
Current: 120MA - 200MA
Size: 15MM * 22.5MM
Weight: 1.1 grams (excluding antenna)
Firmware version: ELRS V3.3.0

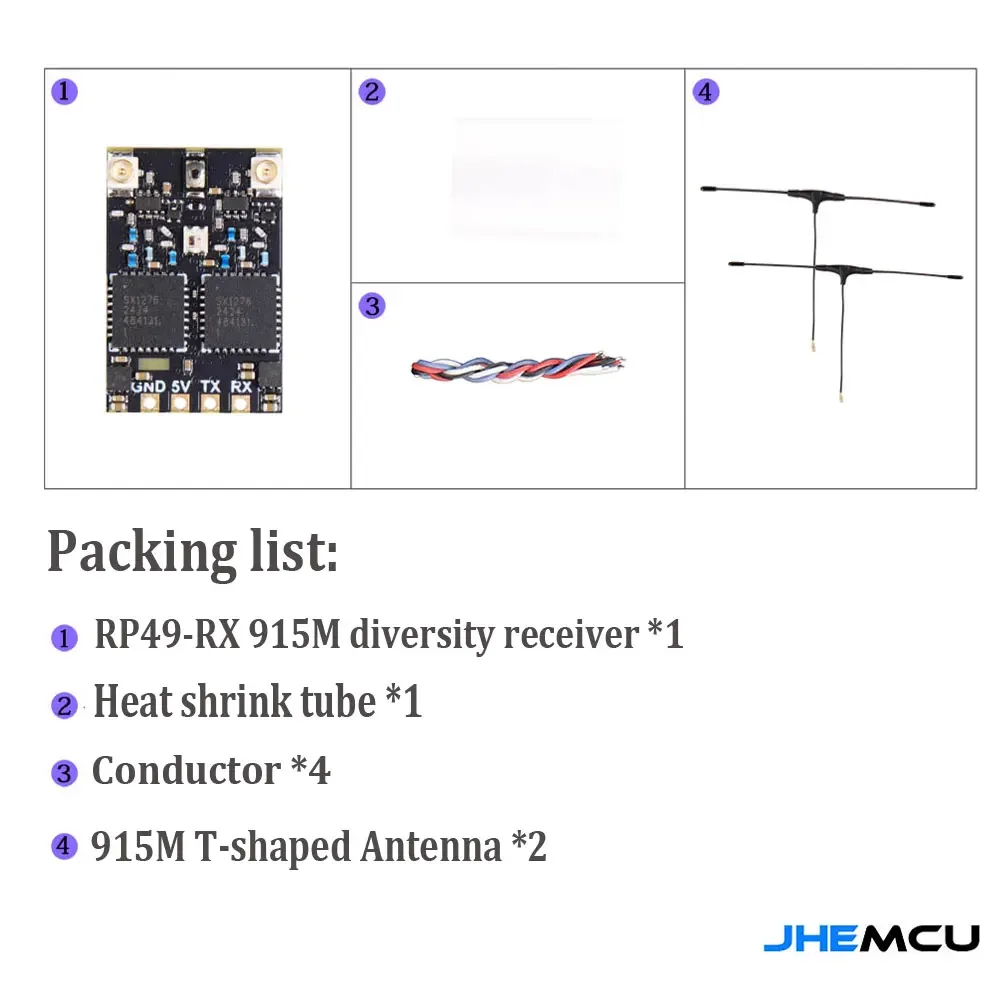

Packing list:
RP49-RX 915M diversity receiver *1
915M T-shaped antenna *2
Heat shrink tube *1
Conductor *4
