Features:
Dual ball bearings
Small size and light weight
Large stall torgue of 4.52Kg.cm
High performance digital coreless servo
High strength design increase its durablity
High-precision Taiwan-made aluminium gears with hard anodizing
Suitable for RC 450 500 helicopter fixed-wing airplane
Specifications:
Brand: JX
Model: PDI-2504MG
Dead band: 2μs
Working frequence: 1520μs / 330Hz

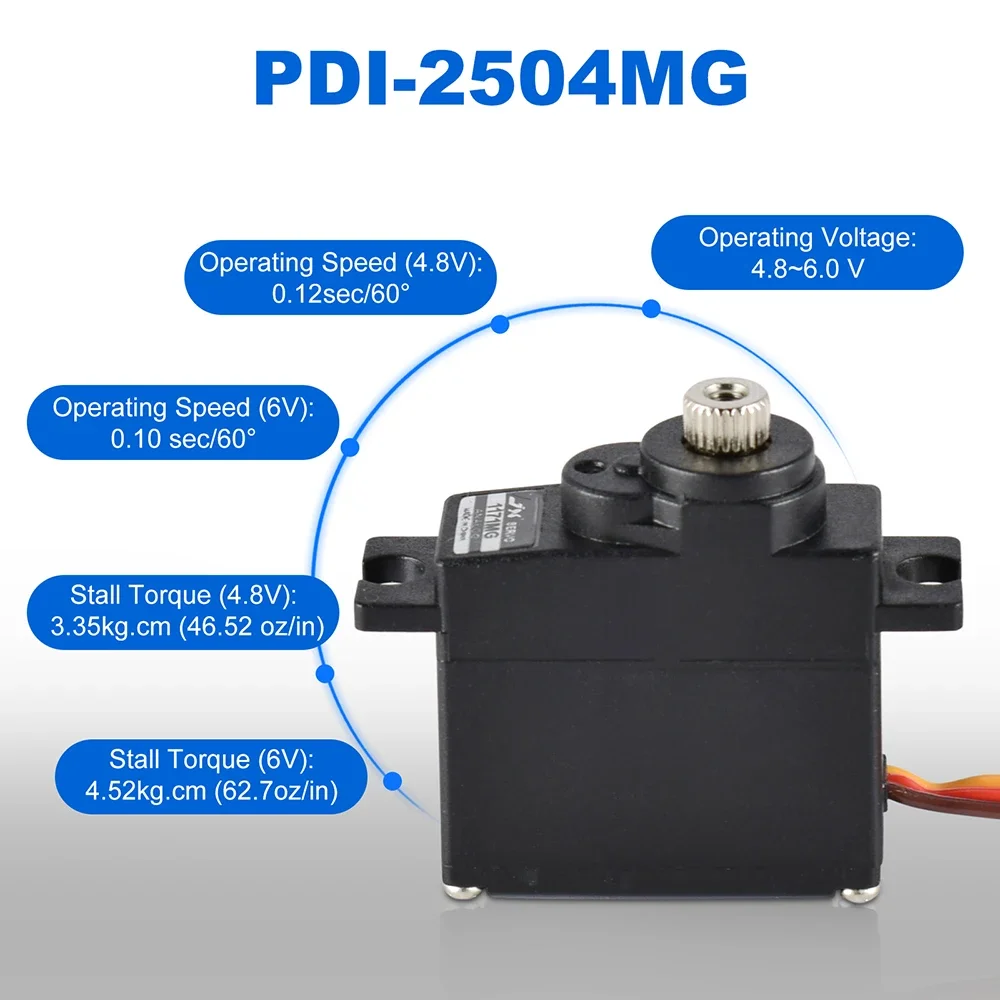

Operating speed (4.8V): 0.12sec/60°
Operating speed (6V): 0.10 sec/60°
Stall torque (4.8V): 3.35kg.cm (46.52 oz/in)
Stall torque (6V): 4.52kg.cm (62.7oz/in)

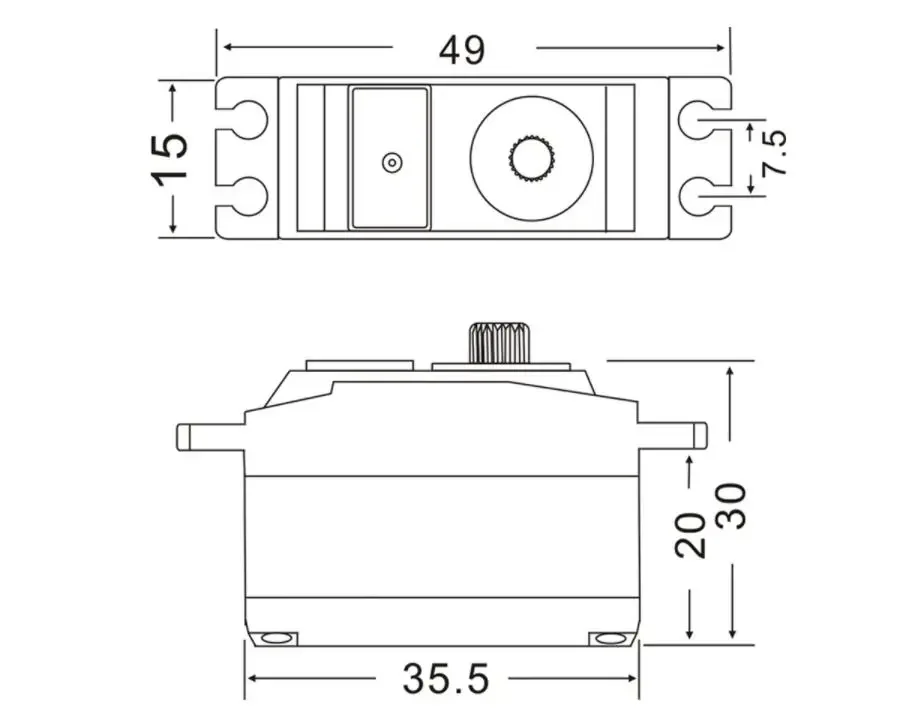

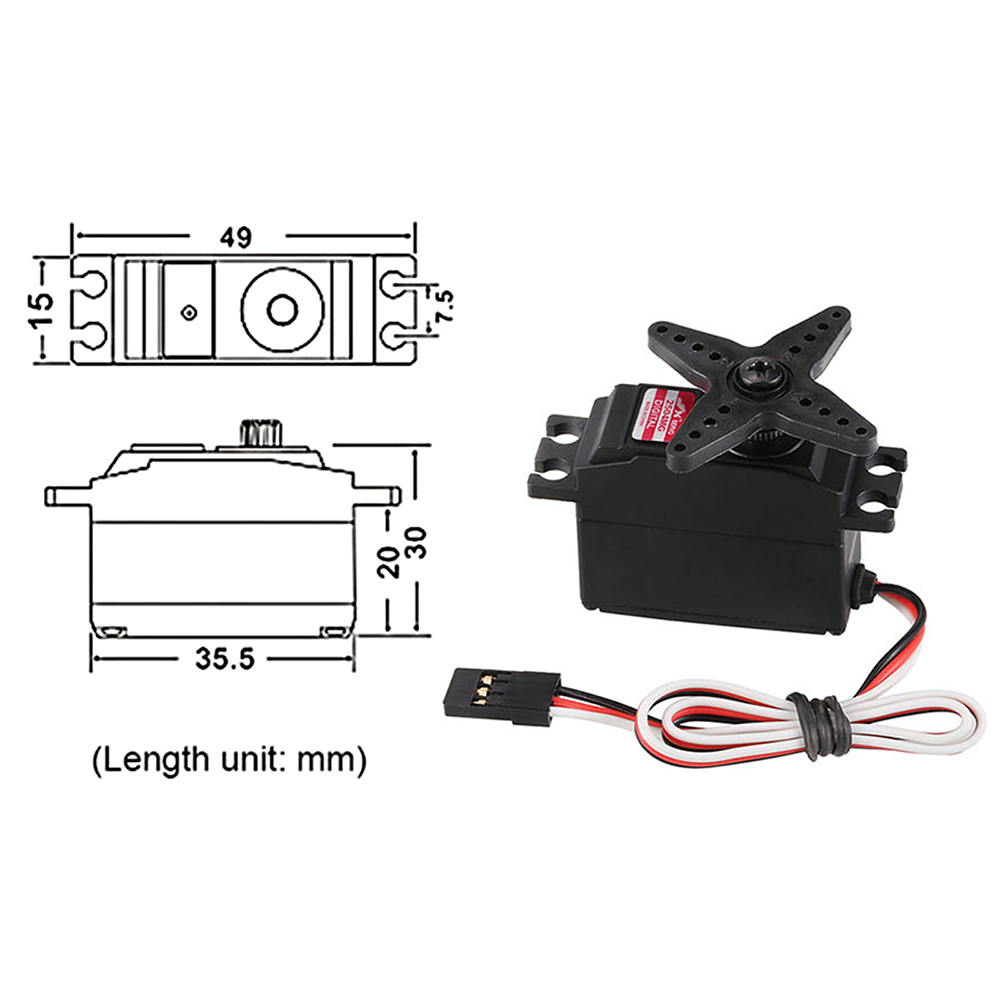

Dimensions: 35.5 * 30 * 15mm
Connector wire length: about 250mm
Bearing: 2BB
Weight: 25.65g
Package List:

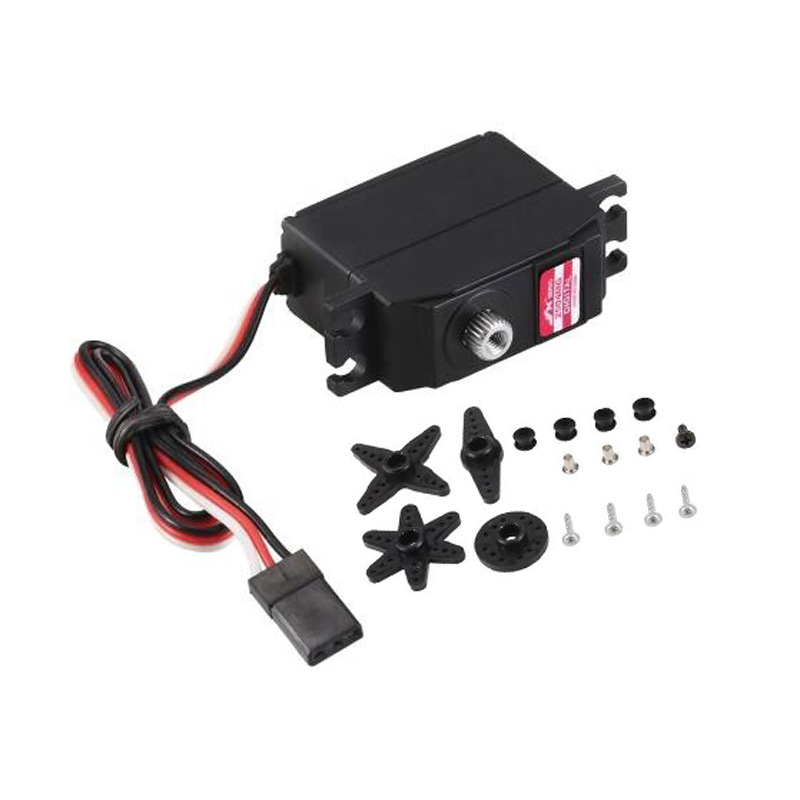

1 * JX PDI-2504MG 25g Metal Gear Digital Coreless Servo
