About this product
Specifications
6V to 55V Operating Input Range(2S-12S Li-xx)
5.2V output on “5V” pin/pads
Support total 4A Continuous load current. 1A for each JST-GH port
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
No protection for reversed input polarity
Output Short-circuit tolerant (3 seconds)
5x CAN-H/CAN-L are in parallel
CAN port connector: JST-GH 4pin(SM04B-GHS-TB)

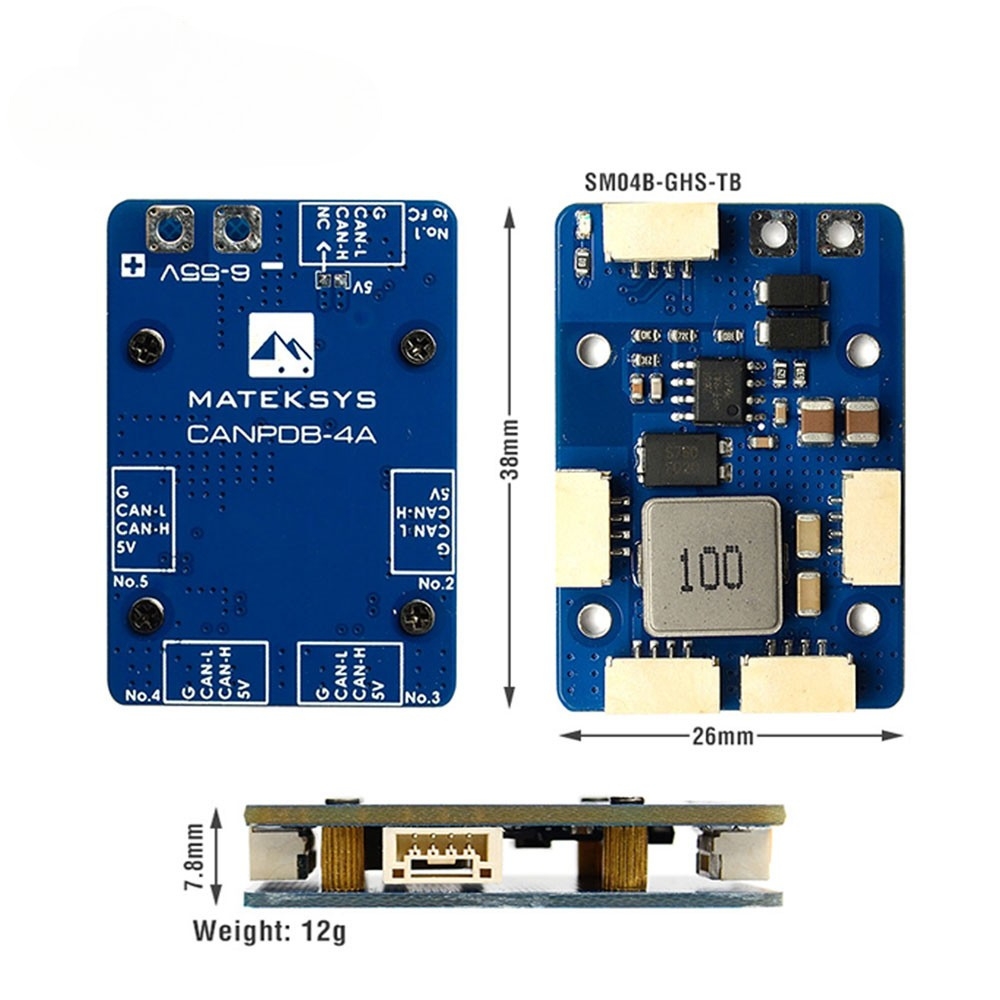

Size & Weight: 38 x 26 x 7.8mm, 12g
Packing: 1x CANPDB-4A, 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
