MATEKSYS DIGITAL AIRSPEED SENSOR ASPD-DLVR

About this product

• All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications & Features

• ArduPilot AP_Periph L431/F405/F303 CAN node

• All sensors DLVR-L10D,  Industrial temperature range

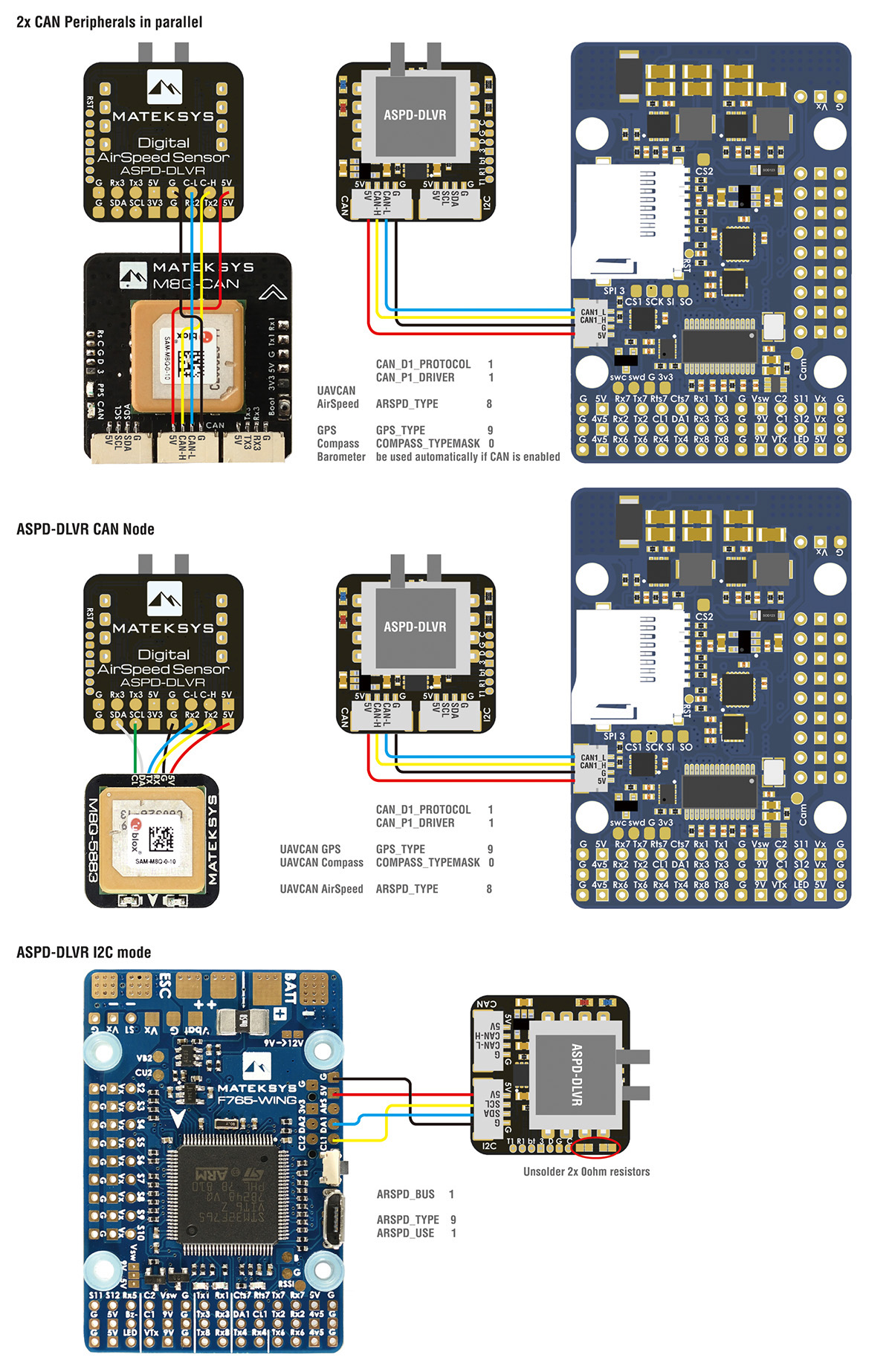

• CAN  & I2C Interface

• Typical Platforms: Fixed-Wing, QuadPlane, VTOL

• CAN JST-GH connector,  DroneCAN Protocol

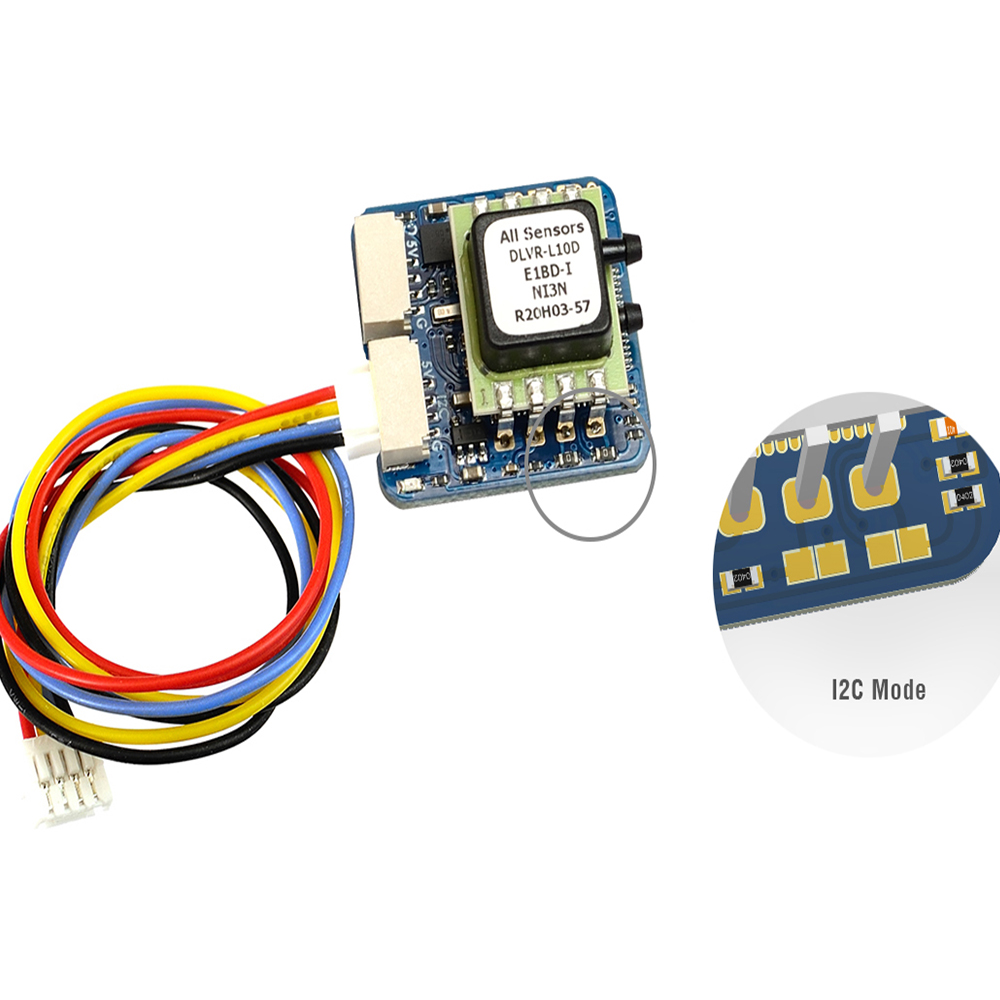

• I2C JST-GH connector,  DLVR-L10D I2C mode (I2C address 0x28)

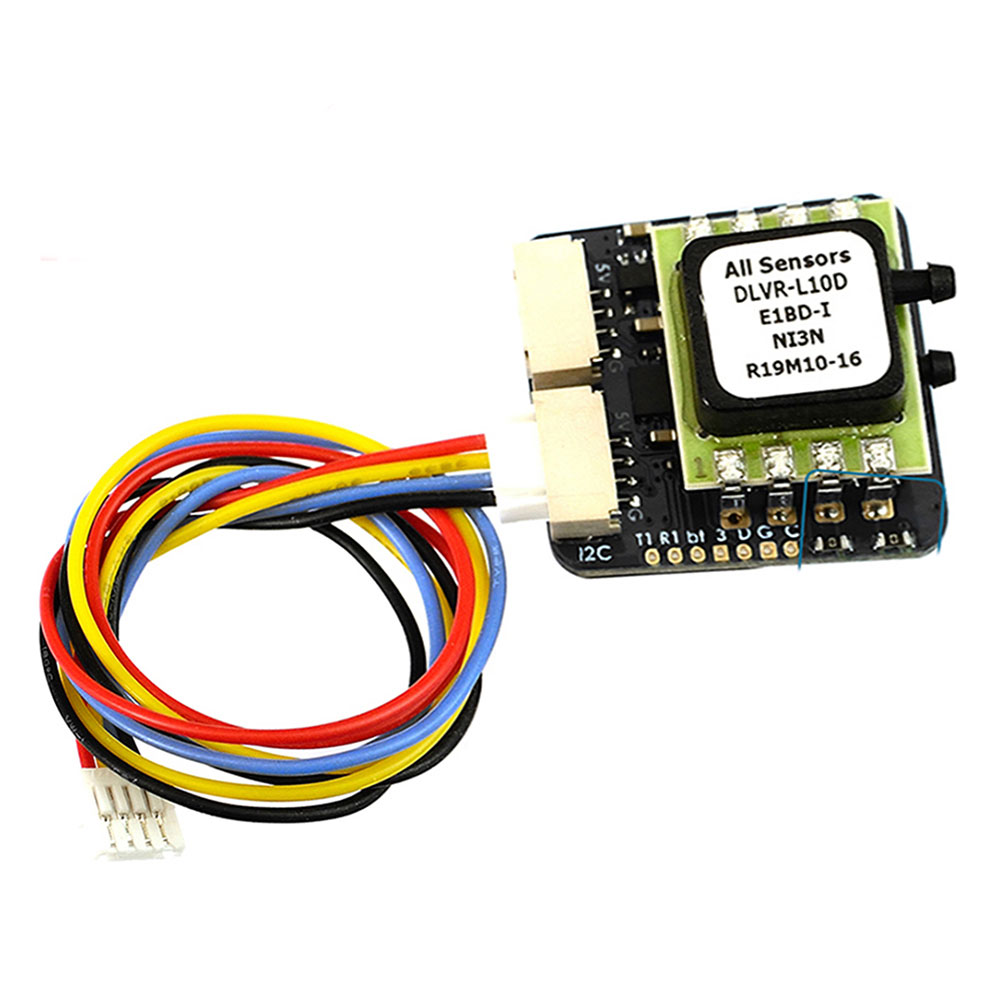

• F303 ver. (Black PCB)

  • UART1, Firmware update

  • UART2, Spare for external GPS

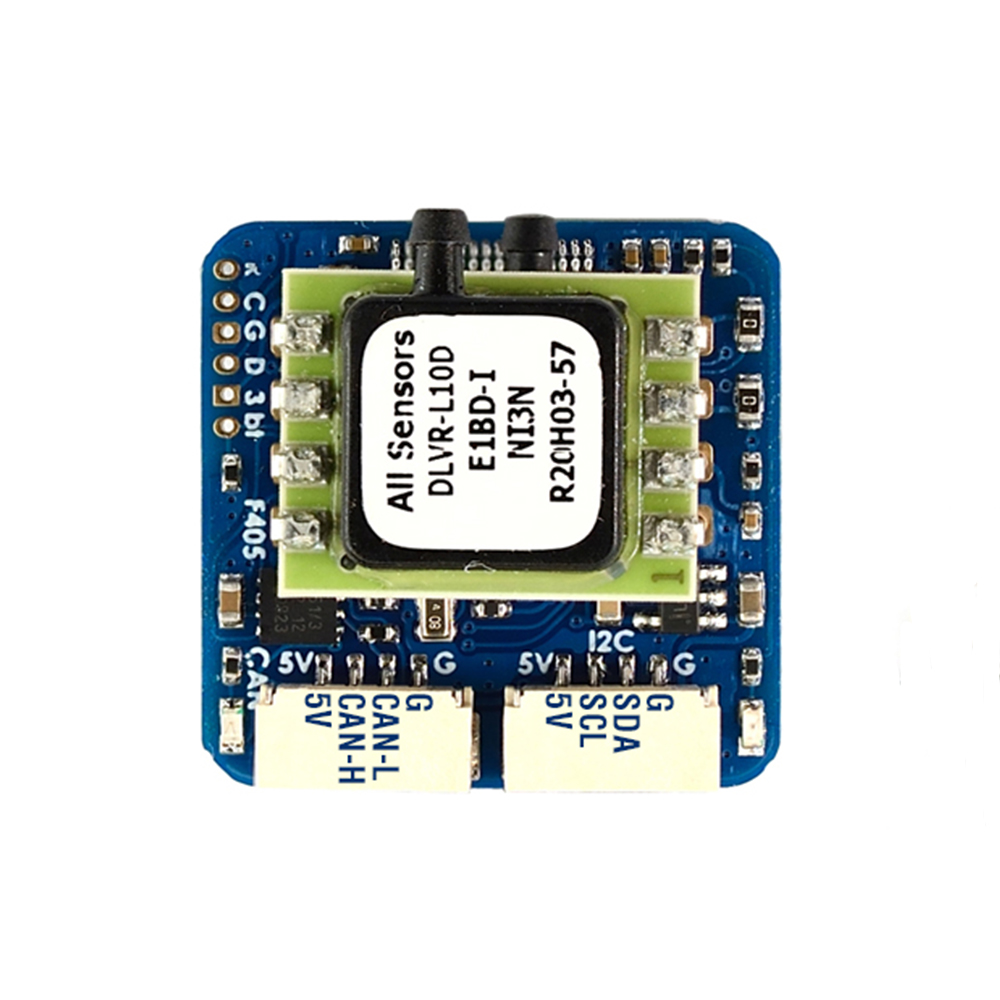

• F405 ver. (Blue PCB)

  • UART1, Firmware update

  • UART4, Spare for external GPS

• L431 ver. (Purple PCB)

  • UART2, Firmware update

  • UART3, Spare for external GPS

• CAN bootloader LED, Blue

  • Fast blinking,  AP_Periph bootloader

  • Slow blinking, CAN Node ready

• 3.3V Power LED, Red

• Input voltage range: 4.5~5.5V

• Power consumption: 60mA

• Operating Temperatures: -20°C to 85°C

• Pressure Range:  2500Pa (± 10 inH2O)

• Burst Pressure: 75kPa

• Speed Range: 227 km/h

• 22mm*22mm*12.5mm(F303 ver.)

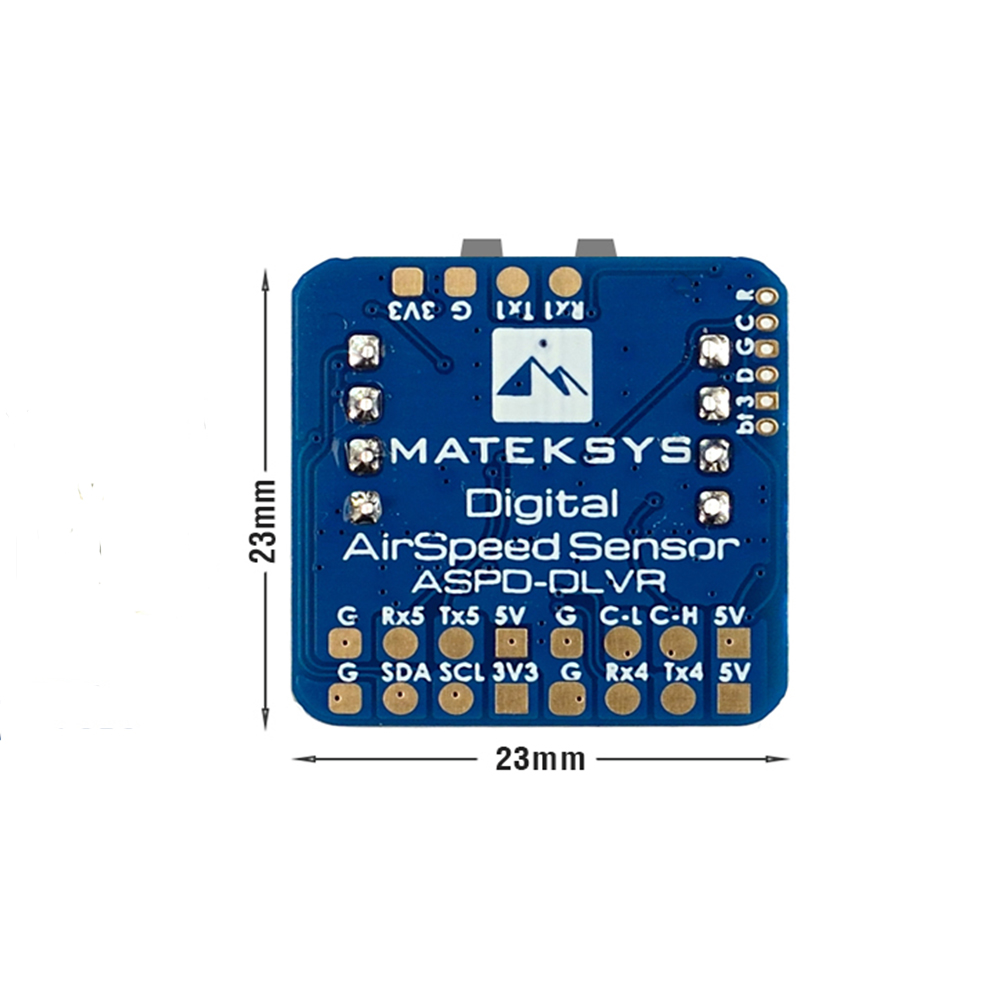

• 23mm*23mm*12.5mm(F405 ver.)

• 4g

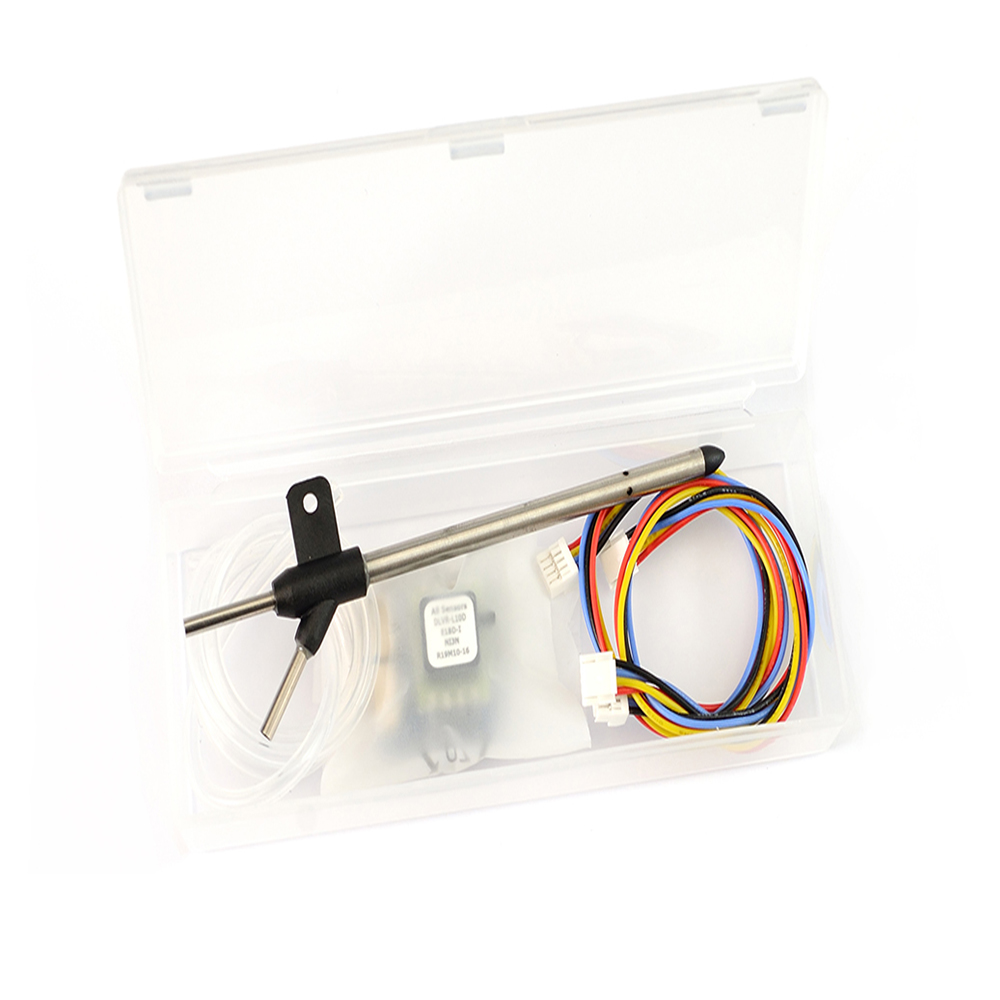

Includes

• 1x ASPD-DLVR

• 2x JST-GH-4P to JST-GH-4P 20cm silicon wire

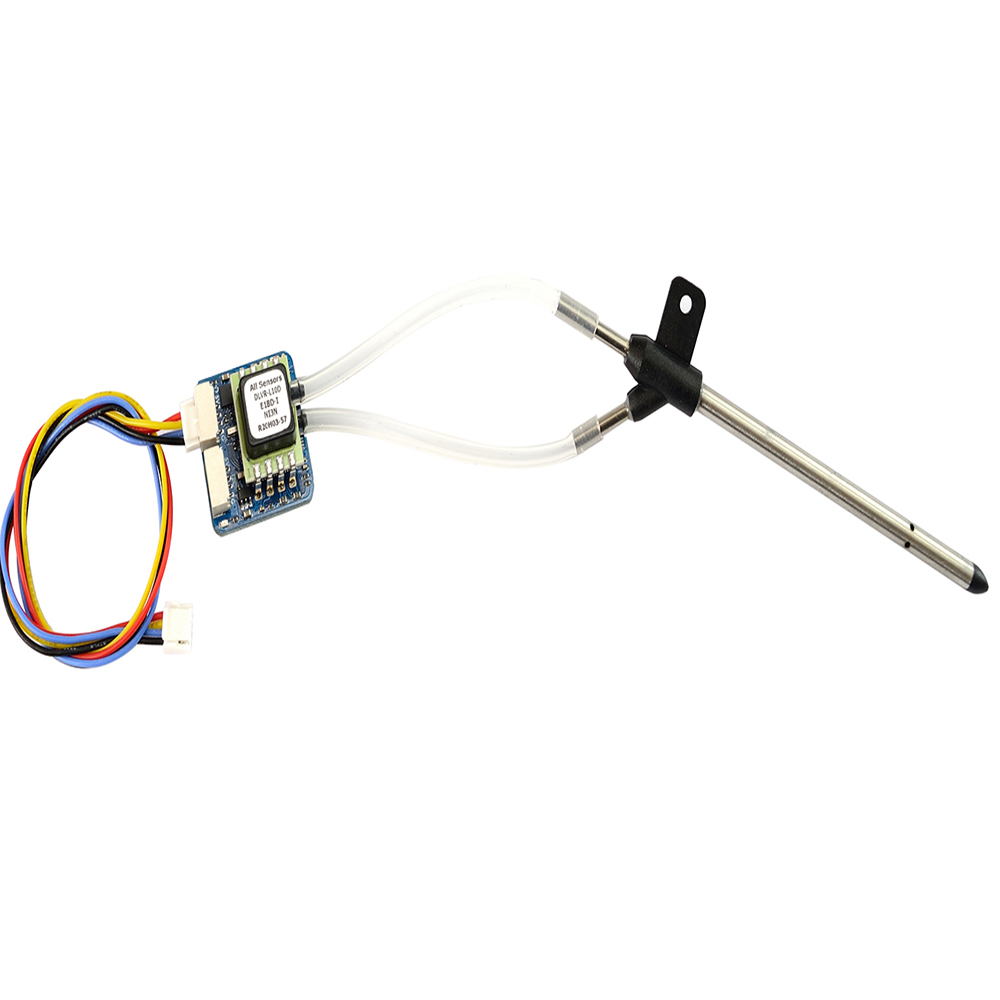

• Pitot Tube

• Clear silicon tubing  40cm
