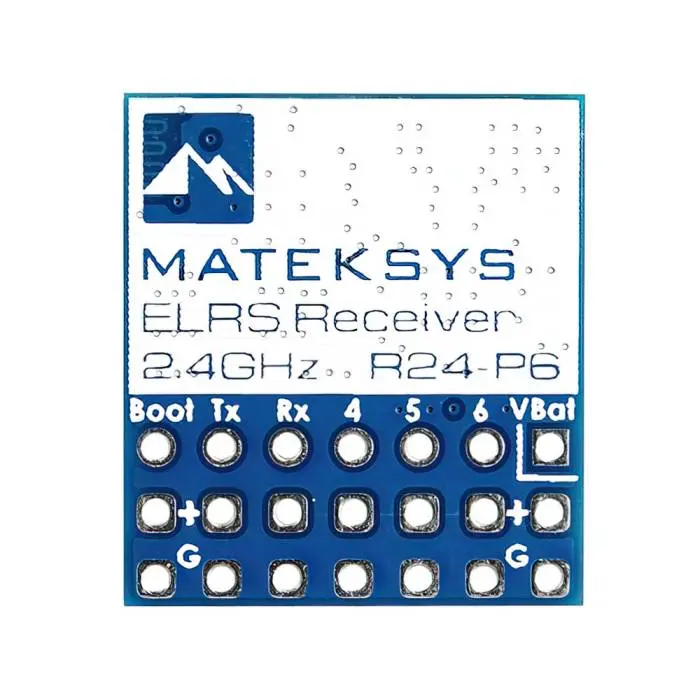

MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6

About this product

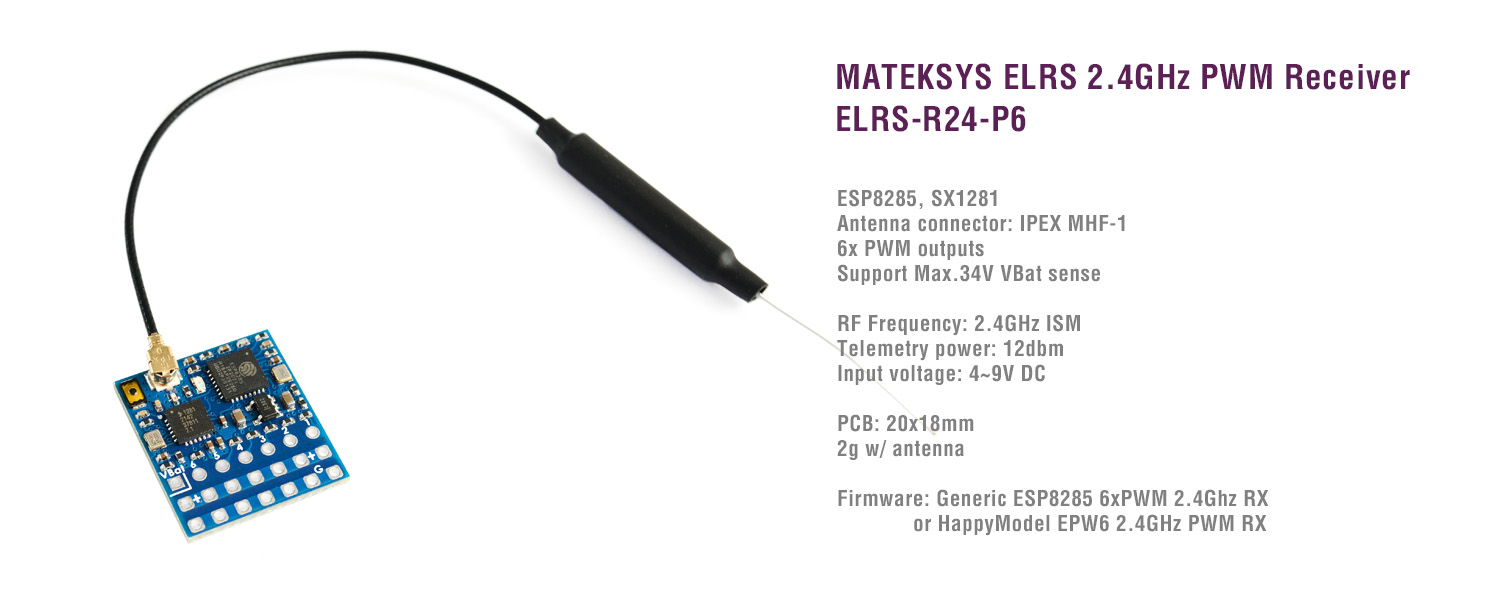

Specifications

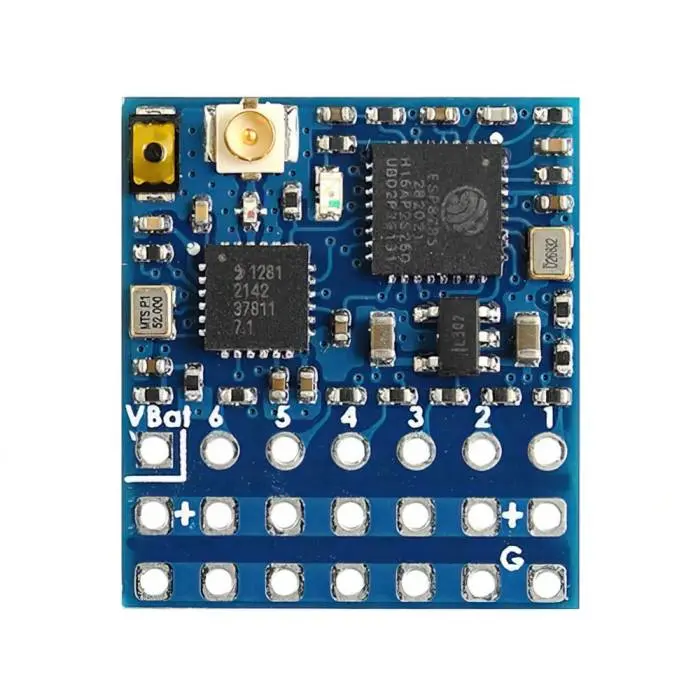

• ESP8285, SX1281
• Antenna connector: IPEX MHF 1
• 6x PWM outputs
• Support 2~8S VBat voltage sense
• RF Frequency: 2.4GHz (2400~2480MHz)
• Telemetry power: 12dbm
• Receiver output protocol: PWM
• Input voltage: 4~9V DC @ “+” pad
• Voltage sense: 34V Max. @ “VBat” pad
• Power dissipation:  45mA(binding), 85mA(wifi mode)
• PCB size: 20mm x 18mm
• Weight: 2g w/ antenna
• Packing:
  • 1x ELRS-R24-P6

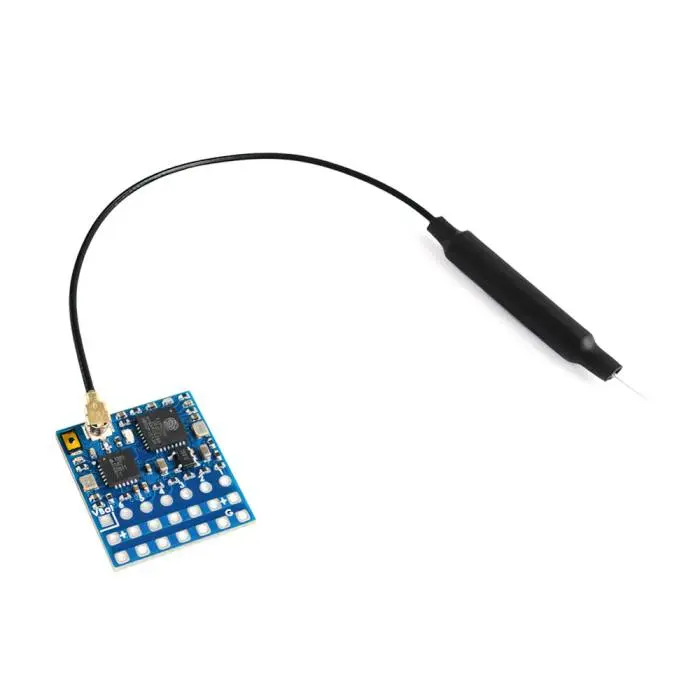

  • 1x IPEX MHF1 Antennas. 15cm
  • Dupont 2.54 pins  (Board is shipped unsoldered)

Firmwares

• Generic ESP8285 6xPWM 2.4Ghz RX,  or  HappyModel EPW6 2.4GHz PWM RX
• ExpressLRS wiki for PWM receiver, Click HERE
• Make sure Receiver and TX module both are running ExpressLRS 3.0 or newer

• Receiver has ExpressLRS 3.0 preloaded with binding phrase “123456”,  the Receiver will never enter binding mode if using the traditional binding procedure.
• You need to reflash it with your binding phrase OR go into WebUI to set your binding phrase.

Flashing via Wifi

• Disconnect ESC and servos from receiver first.
• Power on receiver by 5V source. Receiver’s LED(Red) will blink slow at first, and after 20s, it should blink fast indicating it’s on Wifi Hotspot Mode.
• More detailed steps,  pls refer this page.
• Target: HappyModel EPW6 2.4GHz PWM RX

Flashing via UART

1. Disconnect ESC and servos from receiver first.
2. Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to 5V and GND of the Receiver.
3. Press the boot button while powering on the receiver, then release – the Red LED on receiver should now be solid.
4. configurator ,  Select the target HappyModel EPW6 2.4GHz PWM RX  and  “UART” for Flashing Method,  set your bind phrase and Firmware Options , Check “erase before flash” and “Force FLash “.
