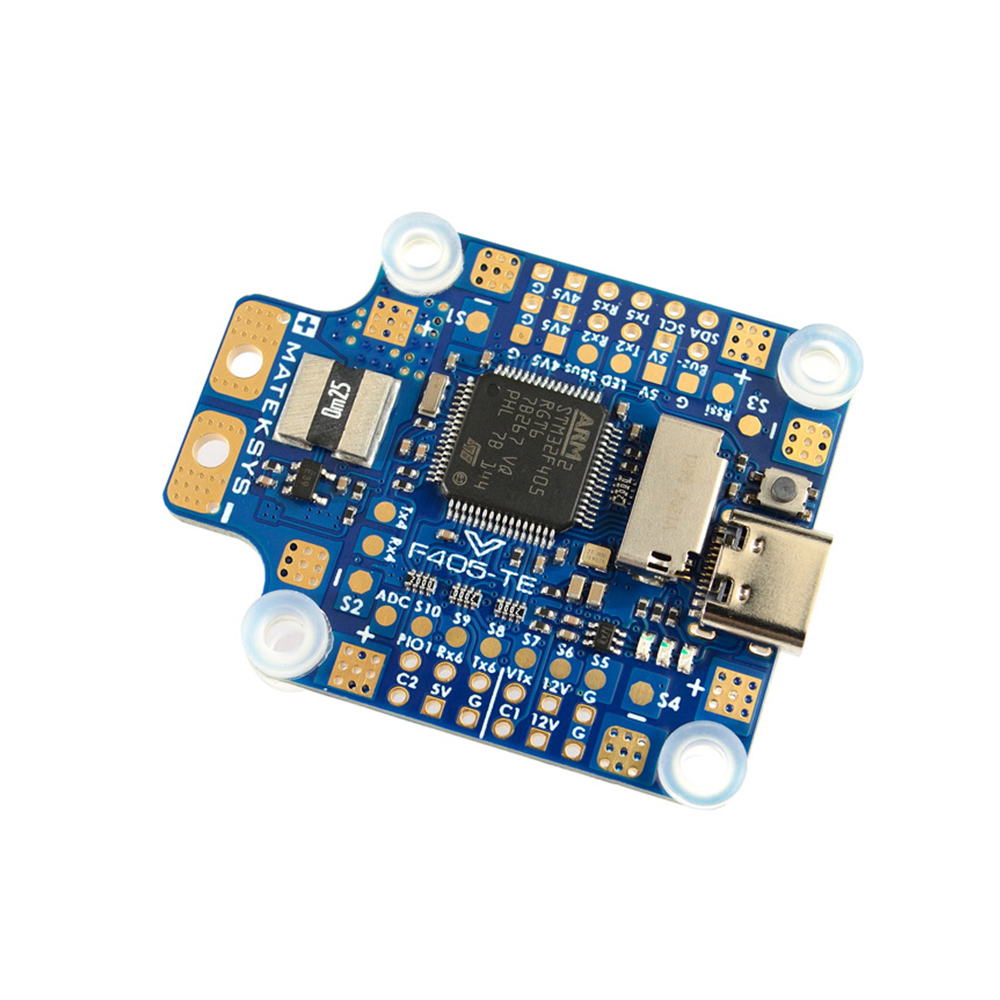

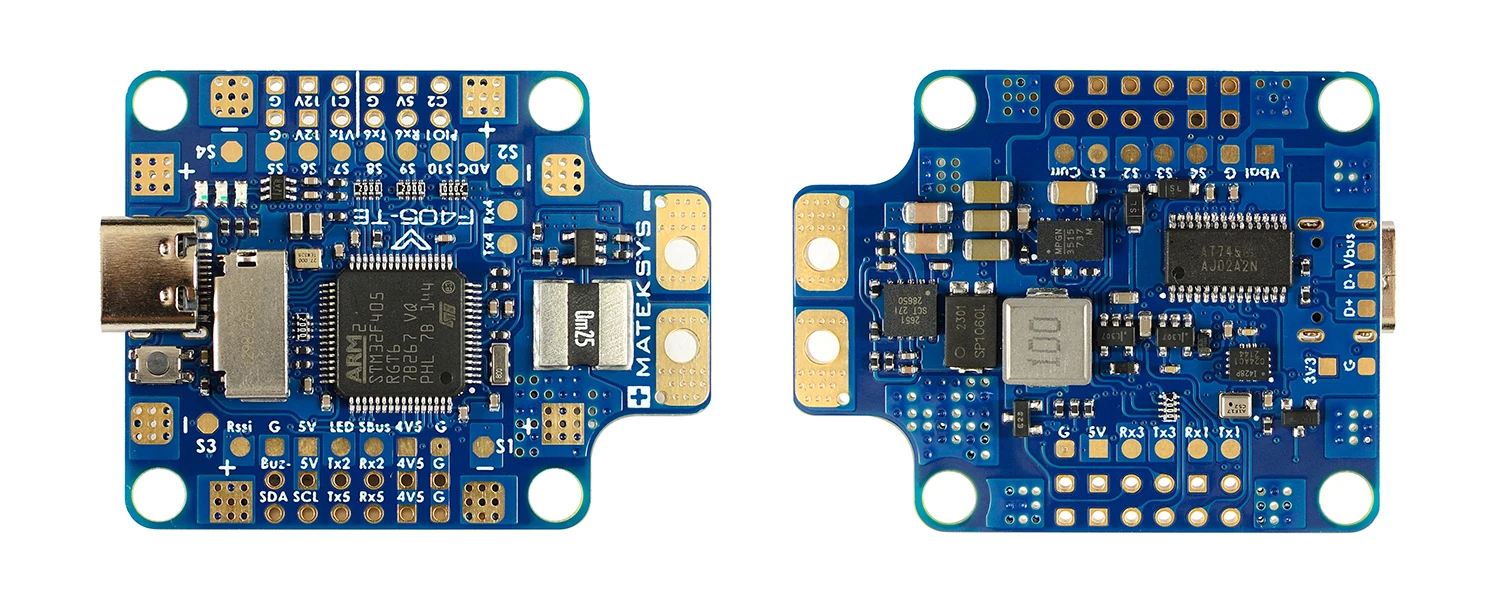

MATEKSYS F405-TE F405 STM32F405RGT6 Flight Controller Built-in OSD SD Slot Dual BEC For FPV Drone F405-SE Updated Version

Specifications
MCU: 168MHz STM32F405RGT6
IMU: ICM42688-P (SPI)
Baro: SPL06-001 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD slot (SPI)
6x UARTs,  1x Softserial_Tx option(INAV/BF)
11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
1x I2C
4x ADC (VBAT, Current, RSSI, Airspeed)
1x spare PINIO
4x individual ESC power/signal pads
1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
Built in inverter on UART2-RX for SBUS input
Switchable Dual Camera Input

PDB Specifications
Input: 9~36V (3~8S LiPo)
PDB: 4x 35A (Max.4x 50A)
BEC: 5V 1.5A
BEC: 12V 2A
LDO 3.3V: 200mA
Current Senor: 220A,  3.3V ADC  (INAV/BF scale 150,  ArduPilot  66.7 A/V)
Battery Voltage divider 1K:20K (INAV scale 2100,  BF scale 210,  ArduPilot BATT_VOLT_MULT 21.0)

Firmware
ArduPilot: MatekF405-TE
INAV: MATEKF405TE_SD
BetaFlight: MATEKF405TE

Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions:  36 x 46 mm
Weight: 10g

Including
1x F405-TE
6x silicon grommets M4 to M3
1x Rubycon ZLH 35V/470uF (Low ESR)
