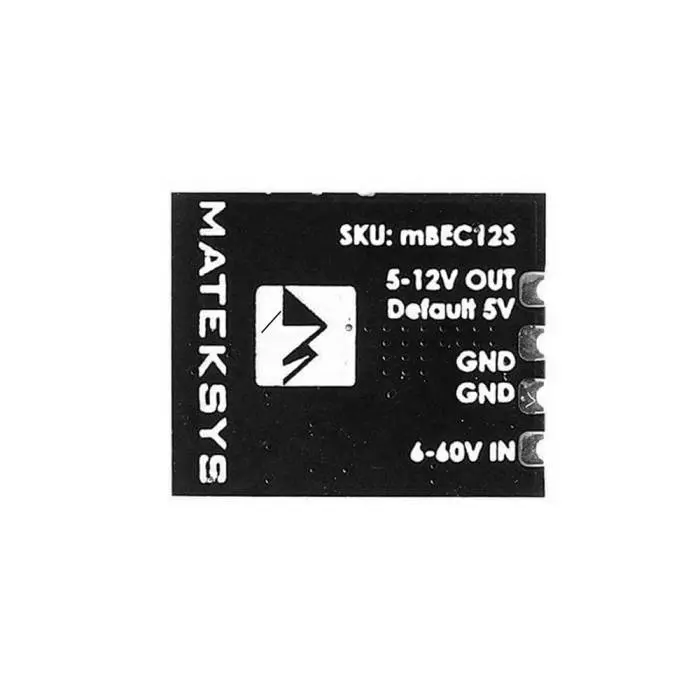

About this product
Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.

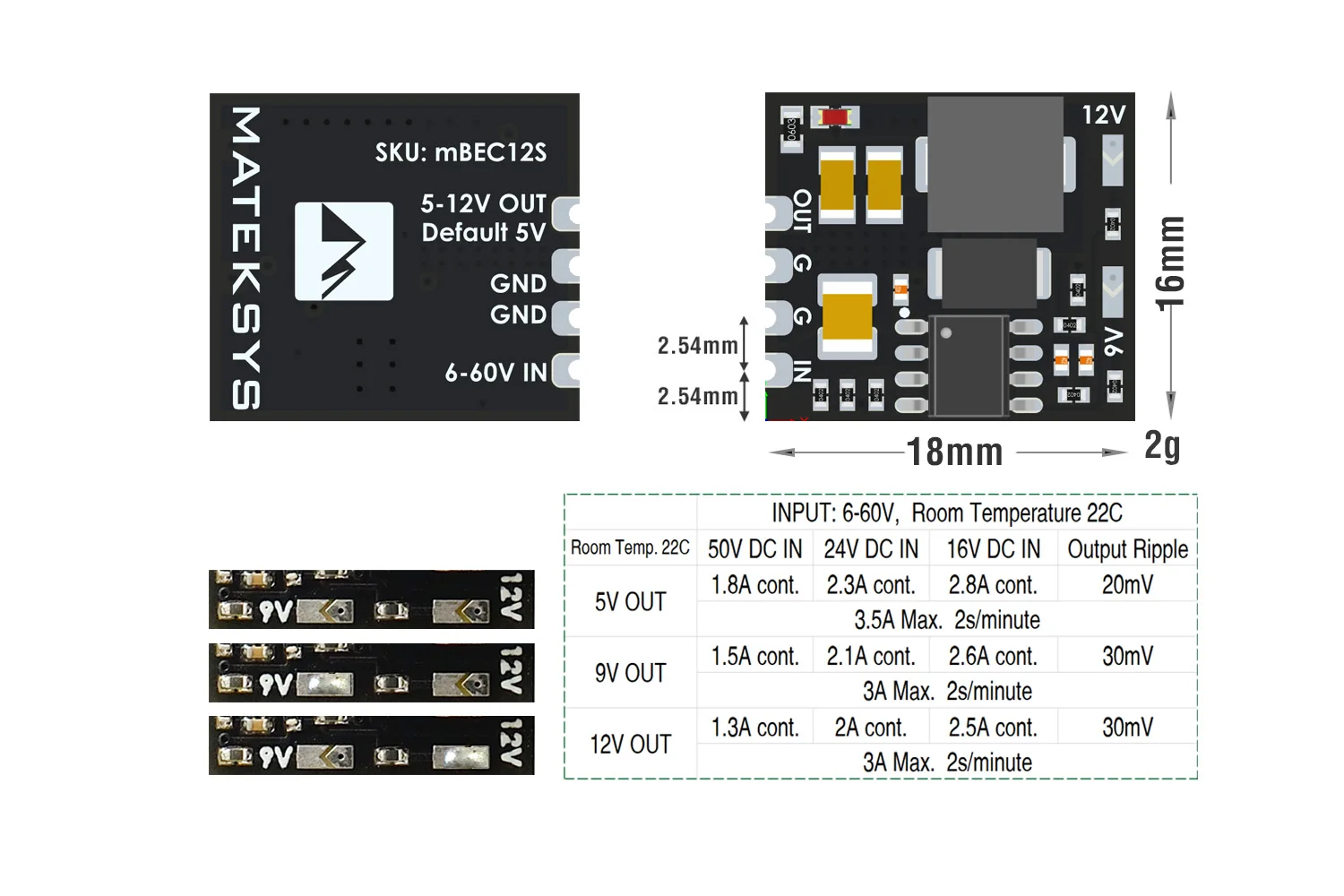

PCB 1mm wider.
Identical performance as previous version.
Wide 6V to 60V Operating Input Range
Start-up Voltage >=6.7V
VOut 5V, 9V or 12V Adj. Default is 5V.
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Continuous load current: Depends on input voltage and heat dissipation.
|
|
INPUT: 6-60V, Room Temperature. 22C, without additional heat sink |
|||
|
|
50V DC IN |
24V DC IN |
16V DC IN |
Output Ripple |
|
5V OUT |
1.8A cont. |
2.3A cont. |
2.8A cont. |
20mV |
|
3.5A Max. 2s/minute |
||||
|
9V OUT |
1.5A cont. |
2.1A cont. |
2.6A cont. |
30mV |
|
3A Max. 2s/minute |
||||
|
12V OUT |
1.3A cont. |
2A cont. |
2.5A cont. |
30mV |
|
3A Max. 2s/minute |
||||
Standby current: <5mA
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (3 seconds/minute)
No protection for reversed input polarity
Pins distance: 2.54mm

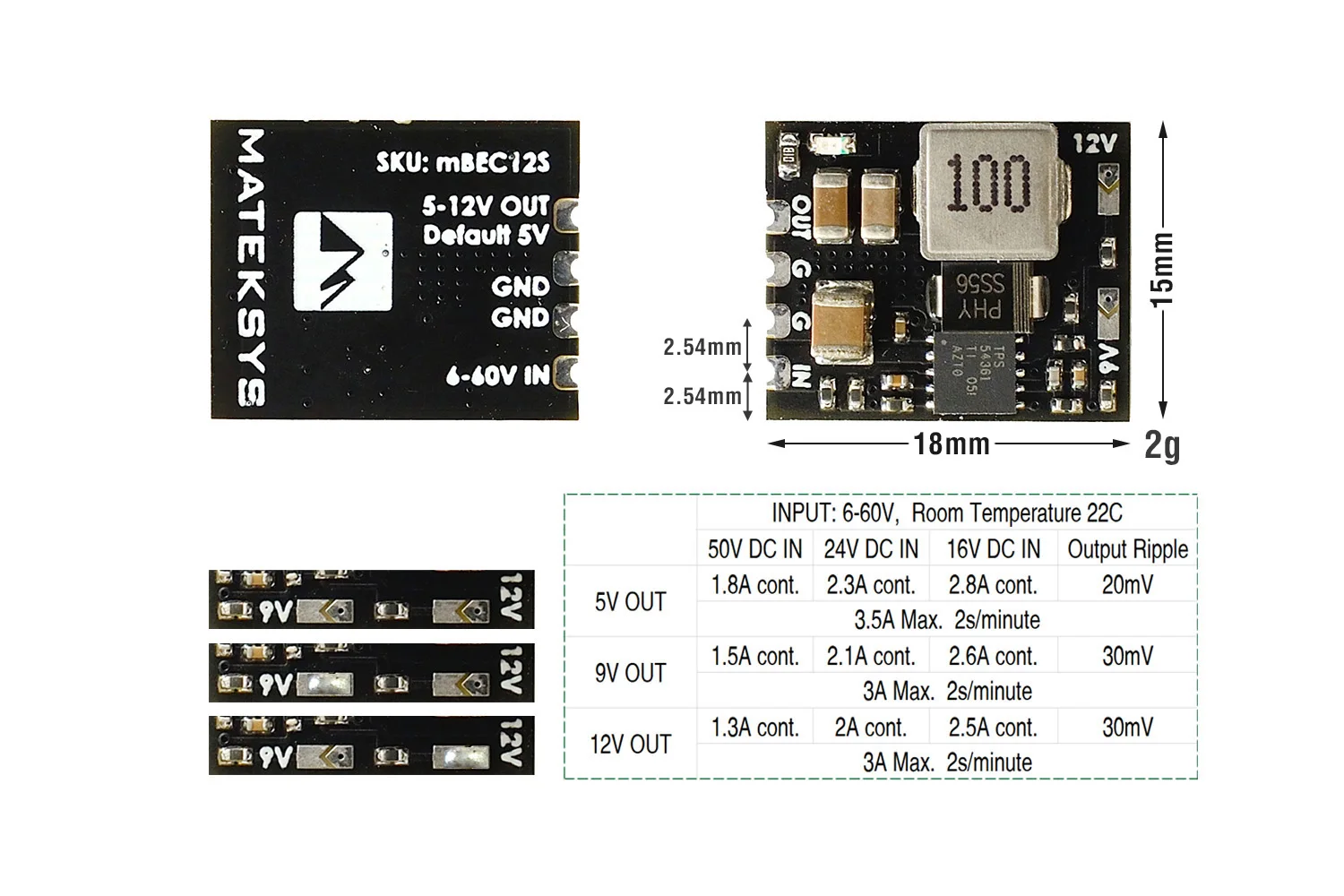

Size & Weight: 18×15(16)x4.5mm, 2g
Packing: 1pc/package
