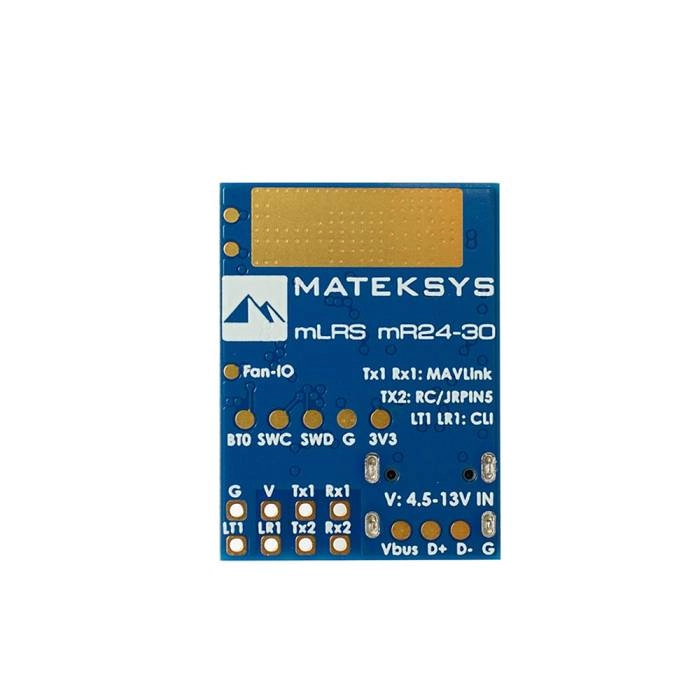

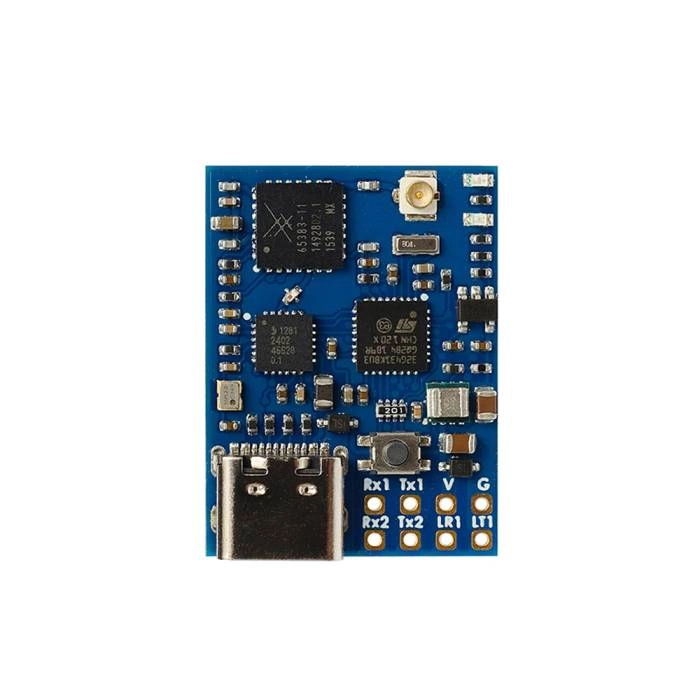

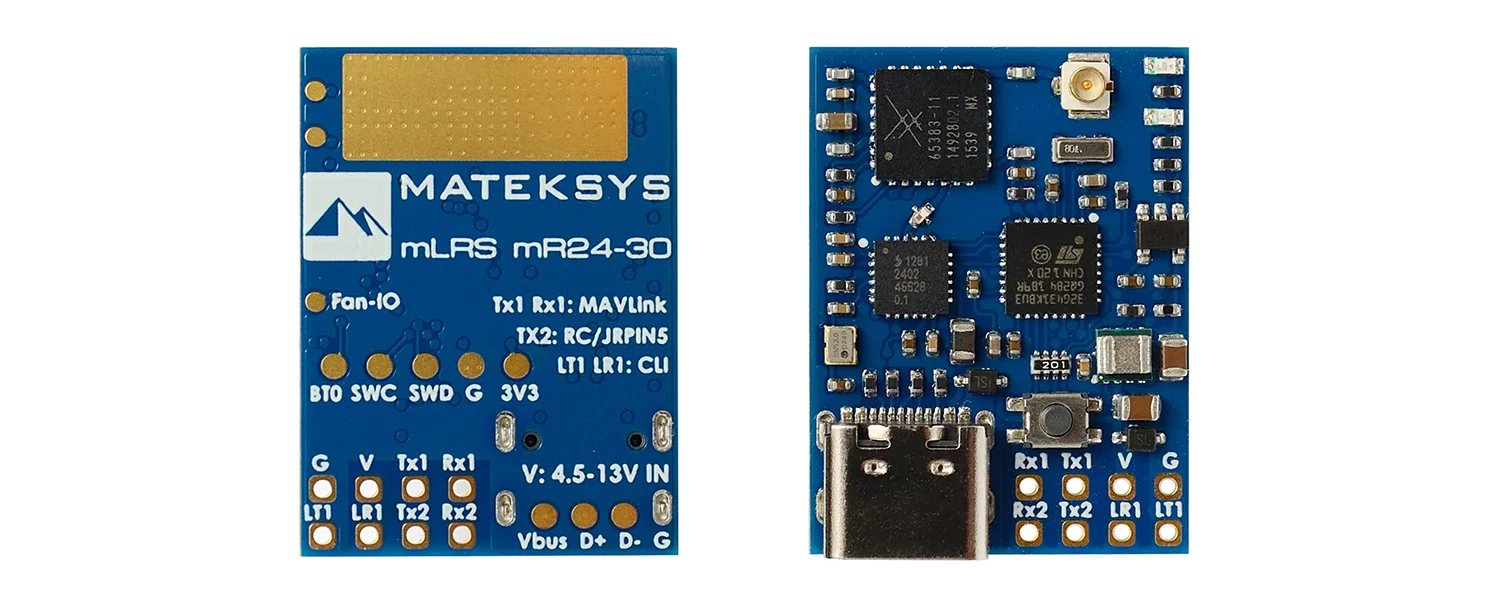

MATEKSYS mLRS MAVLink 2.4GHz Receiver, mR24-30

About this product

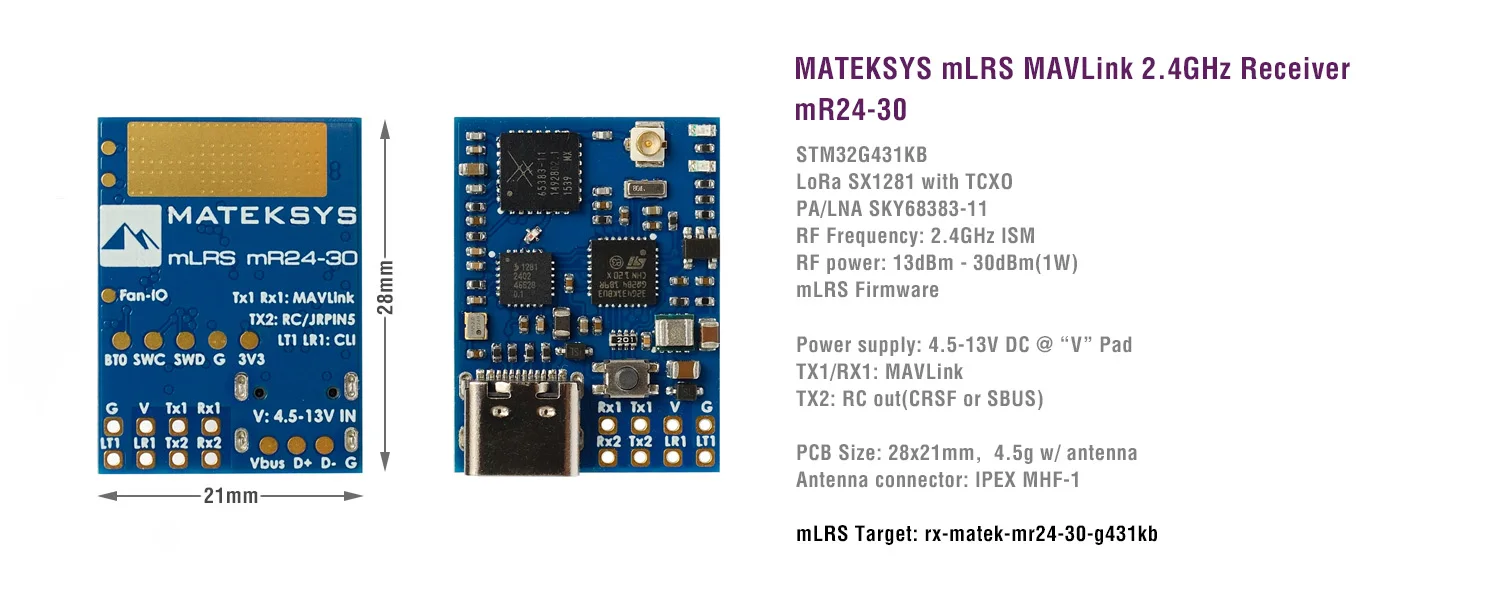

Specifications

• STM32G431KB,  mLRS firmware

• LoRa SX1281 with TCXO

• PA/LNA SKY68383-11

• RF Frequency: 2.4GHz ISM

• RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)

• Antenna connector: IPEX MHF-1

• TX1/RX1: Bi-directional Serial MAVLink

• TX2: RC out(CRSF or SBUS)

• one buttom for DFU mode and Bind

• Power supply: 4.5-13V DC @ “V” Pad

• Power dissipation:  360mA@5V IN(50Hz, 30dbm)

• PCB Size: 28x21mm

• Weight: 4.5g w/ antenna

• Packing:

  • 1x mR24-30

  • 1x IPEX MHF1 sleeve dipole antenna. 15cm

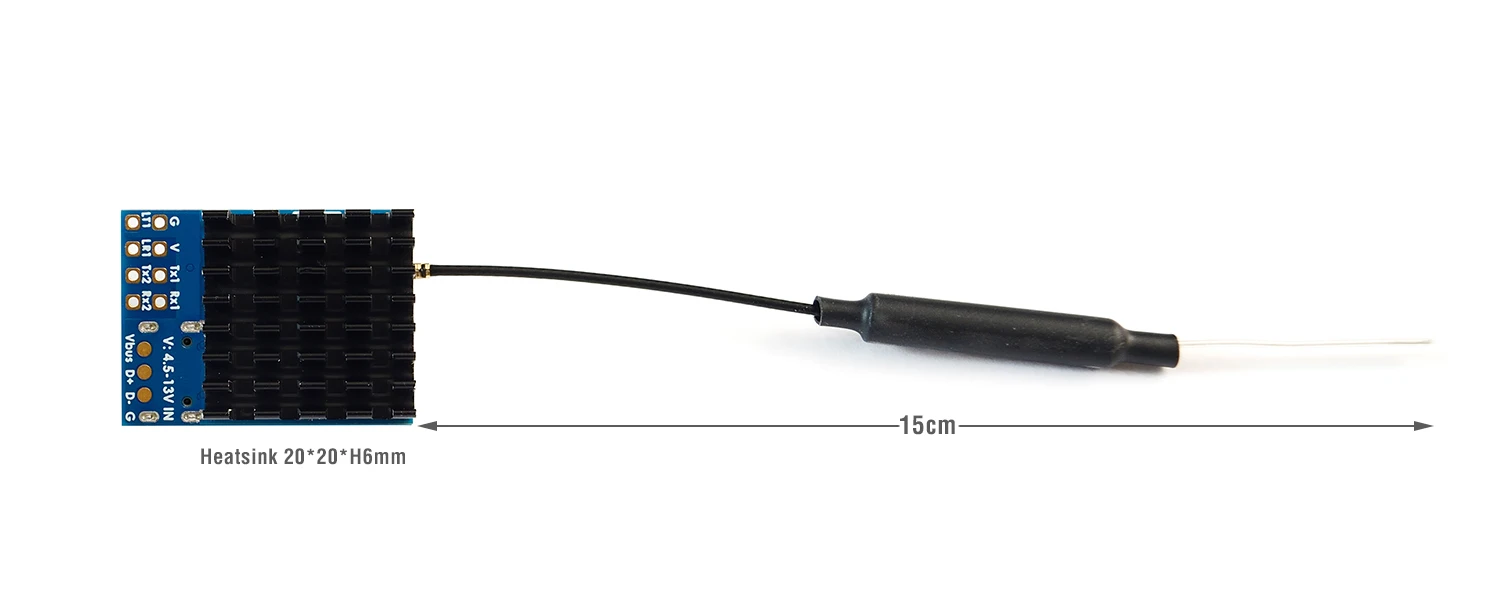

  • 1x Heatsink 20*20*6mm

LED Status

• [Red flashing 2Hz], not connected to transmitter

• [Green flashing 1Hz], connected to transmitter

• [Red and Green alternately ], Binding mode enabled

Binding

• After powering on,  press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.

• https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md

Firmware

• mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek

• Targets:

  • RX Receiver: rx-matek-mr24-30-g431kb

  • TX module mode: tx-matek-mr24-30-g431kb-default

  • TX SiKtelem mode: tx-matek-mr24-30-g431kb-siktelem

Tips

• mLRS Github  & Documentation

• mLRS Discord

• mLRS Facebook group

• If set RF power >=500mW, It is recommended to attach the heatsink to the bottom side of PCB. The gaps between fins can be used for mounting with M3 screws
