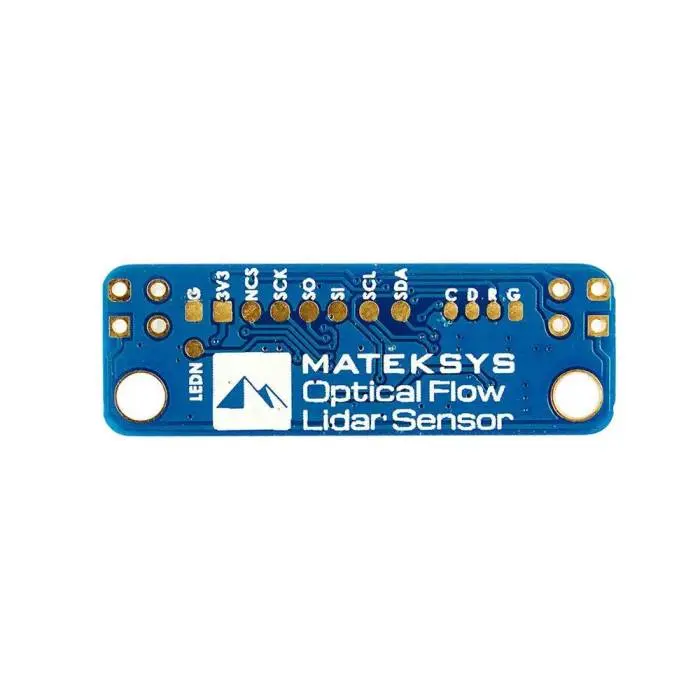

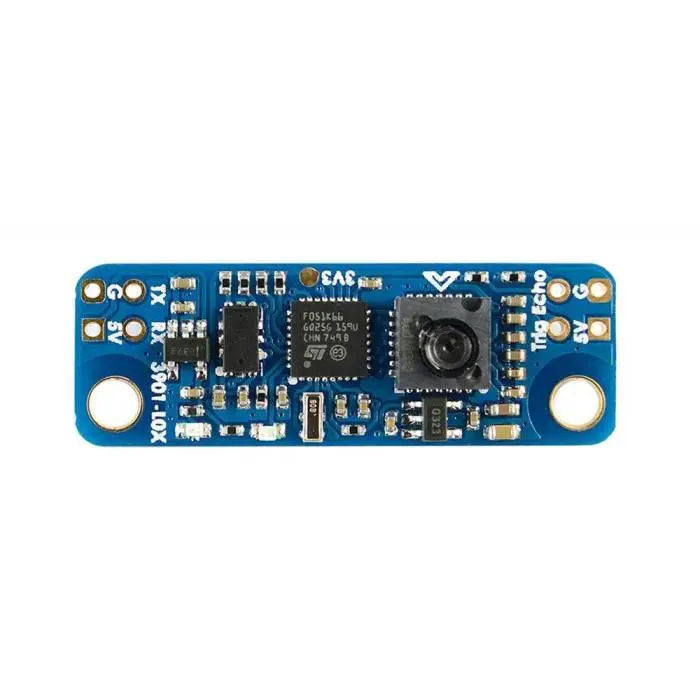

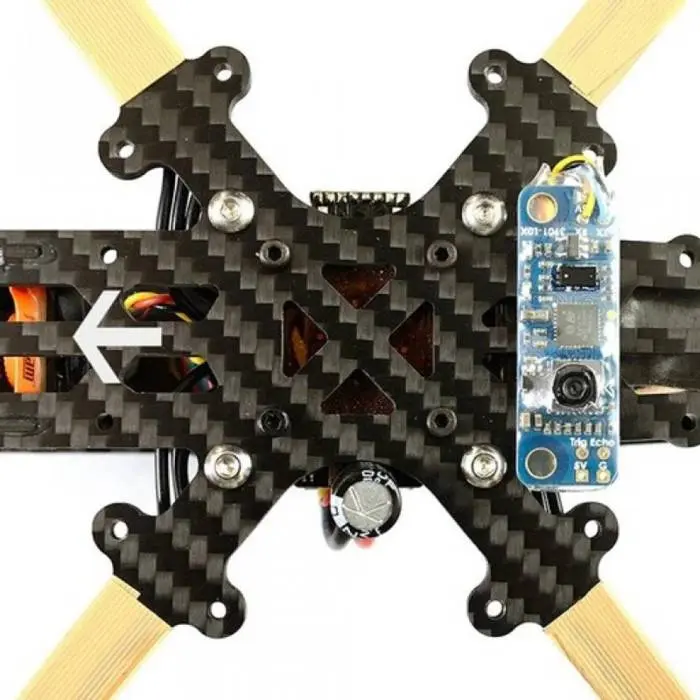

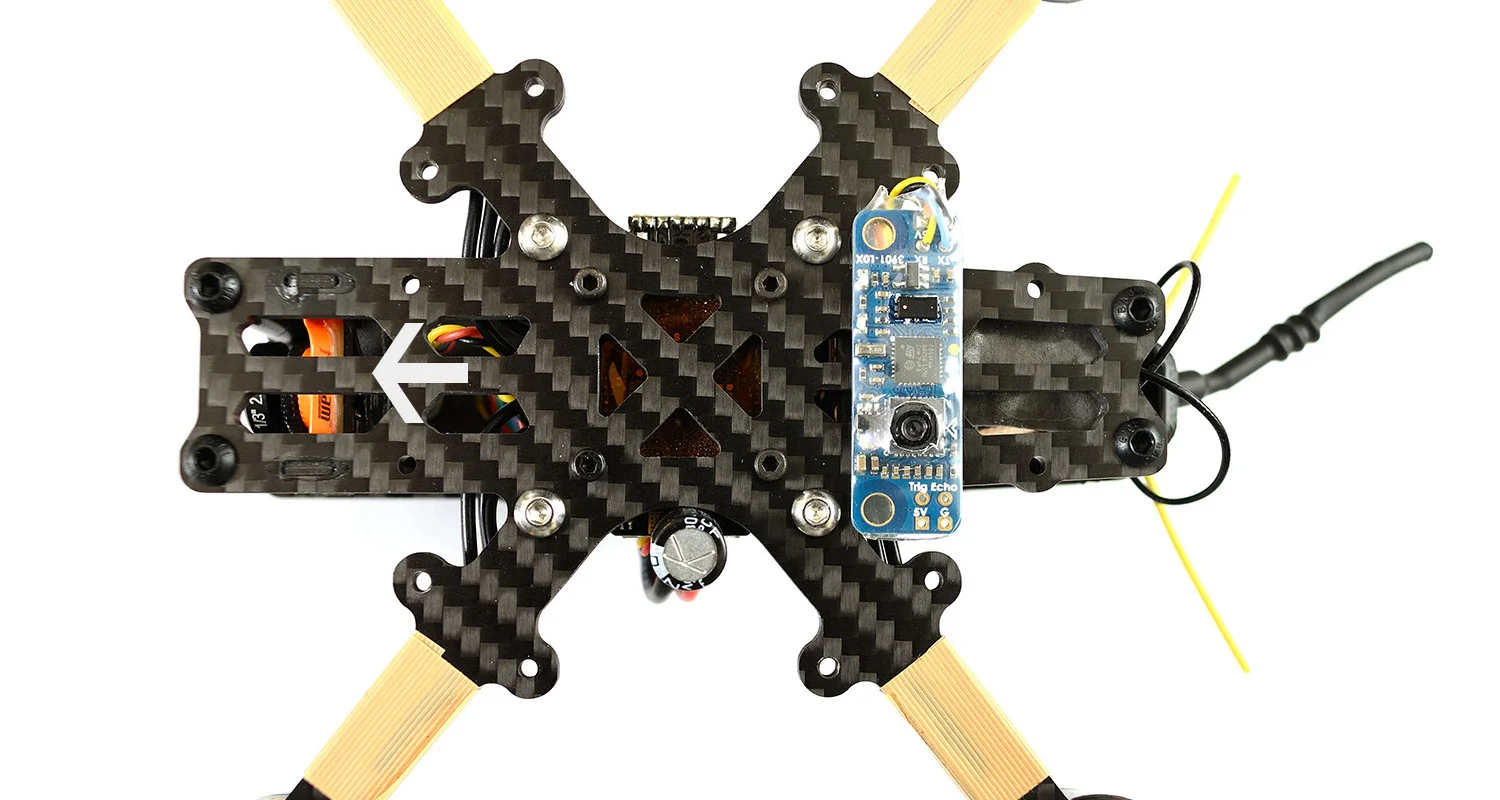

MATEKSYS Optical Flow & Lidar Sensor - 3901-L0X

Specifications

• Optical Flow: PMW3901

• Lidar: ST VL53L0X (max. range 2 m)

• Interface UART

• Protocol: MSP

• Working Range: 8cm~200cm

• Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)

• Minimum Illumination >60Lux

• Input voltage: 4.5~5.5V

• Power Consumption: 40mA

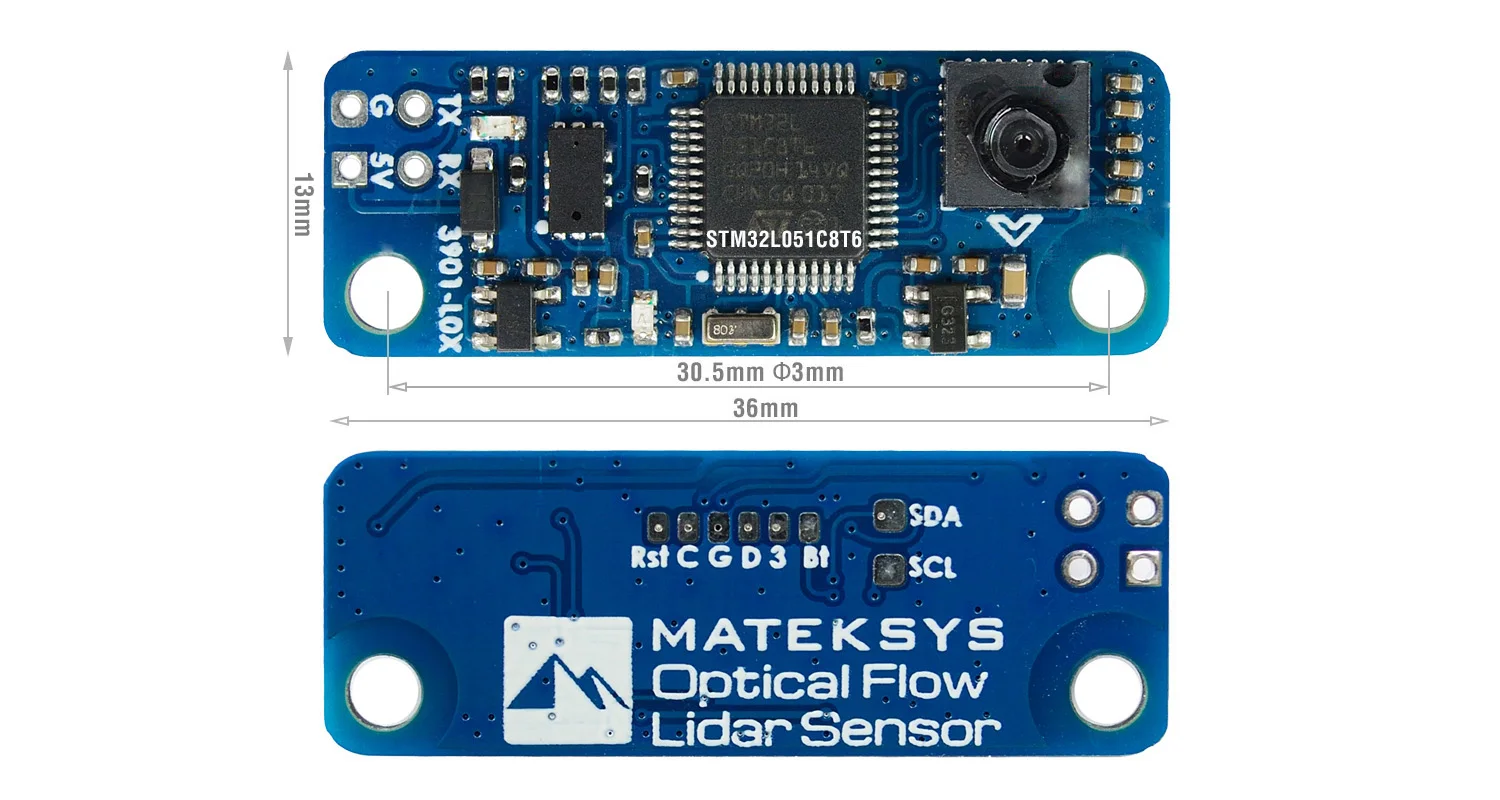

• Size: 36*12mm (F051 version),  2g

• Size: 36*13mm (L051 version)  2g

Packing

• Module 3901-L0X,  1pc

Tips

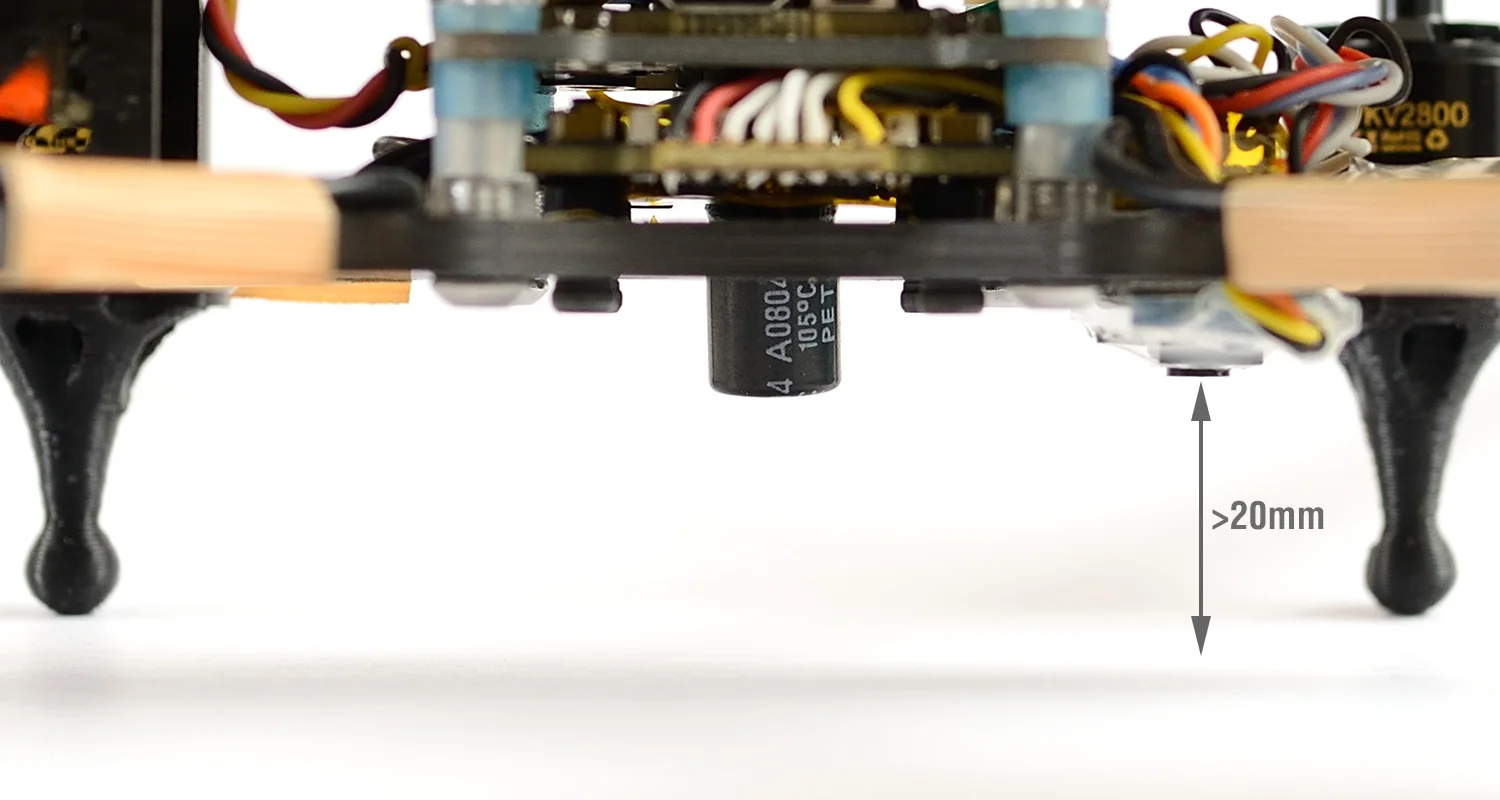

• Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.

• Maximum range of VL53L0X is 2m,   Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

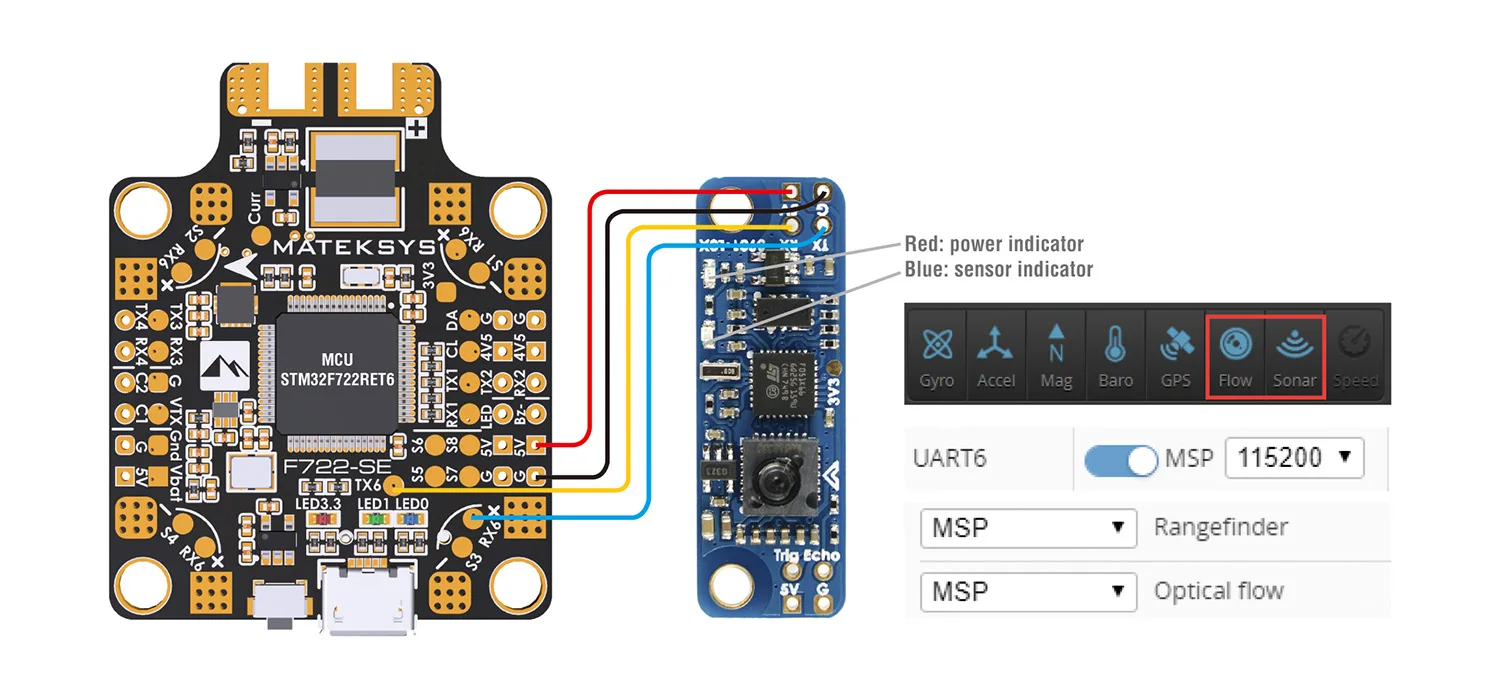

• Any unused UART of FC supports it

• Sonar connection (Trig & Echo) has not been implemented

• If your flight controller doesn’t have a barometer detected, you won’t be able to select “NAV ALTHOLD” in modes tab.

Setting up Optic Flow in INAV   PDF manual by digitalentity
