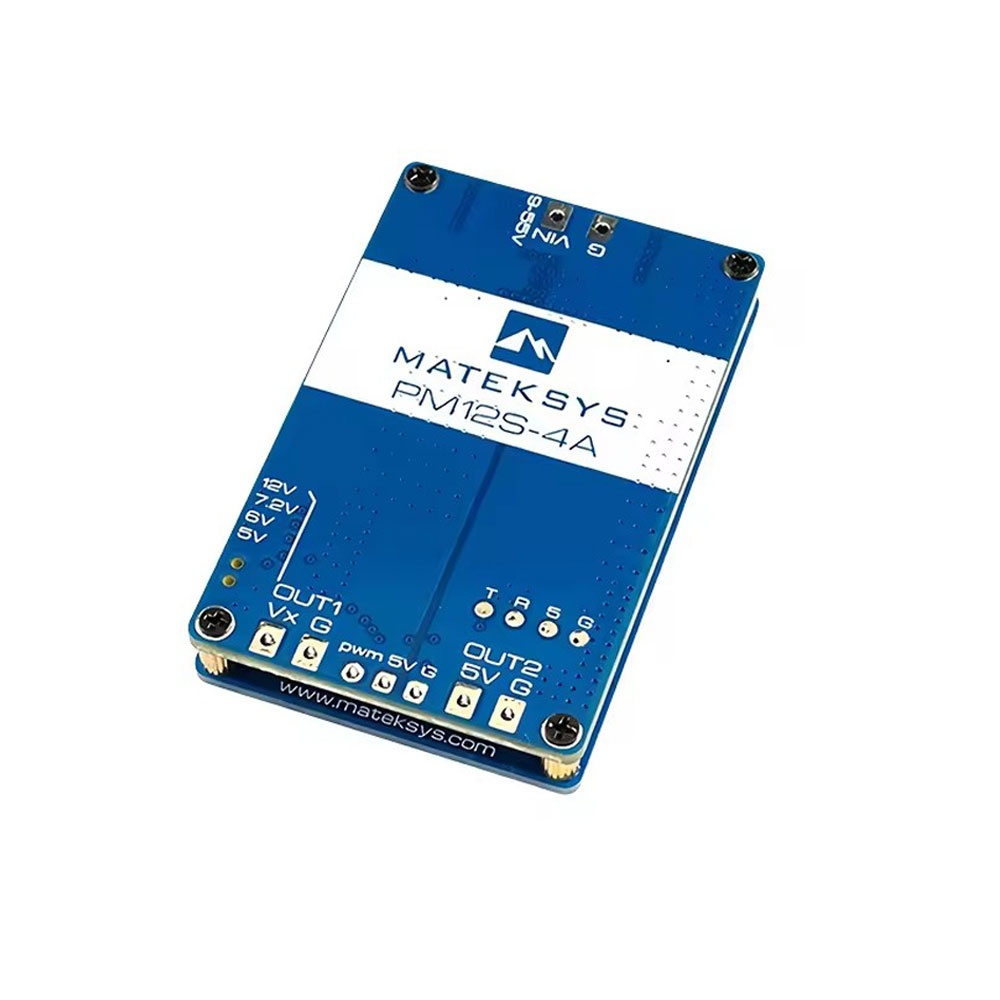

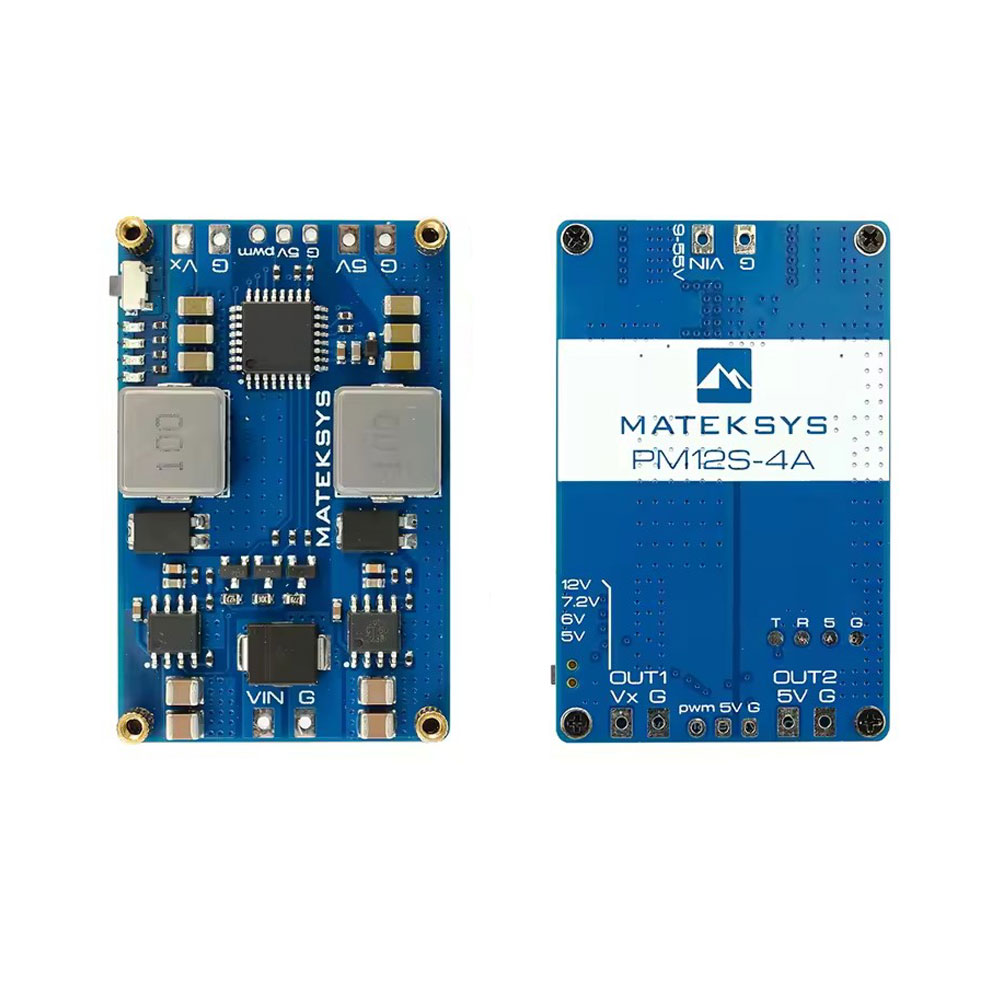

MATEKSYS Power Module PM12S-4A

MATEKSYS Power Module PM12S-4A offers reliable power distribution for RC and UAV applications, supporting up to 12S LiPo batteries and 4A continuous current. Precision voltage and current sensing ensures safe, efficient operation for demanding projects.

Specifications

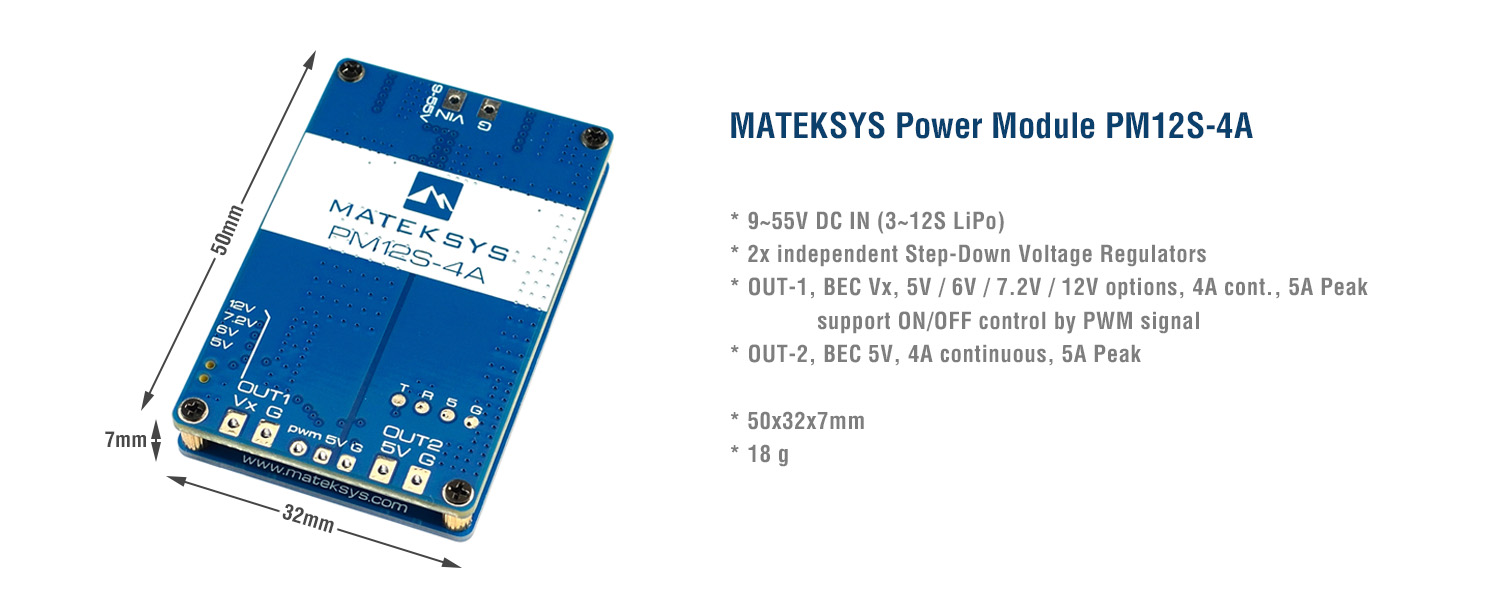

• Wide 9V to 55V Operating Input Range with TVS protection

• 2x independent Step-Down Voltage Regulators

• OUT-1 Vx,  5V / 6V / 7.2V / 12V output options(5v default).  4A continuous,  5A Peak. ON/OFF is controllable by PWM signal.

• OUT-2 5V (Fixed), 4A continuous,  5A Peak

• Output ripple: 20mV (VIN=50V,  Output 5v @ 4A),  40mV (VIN=50V,  Output 12V @ 4A),

• Size & Weight: 50 x 32 x 7mm, 18g

• Packing: 1x PM12S-4A  (no wires)

Settings

1. Set the OUT-1(Vx) voltage

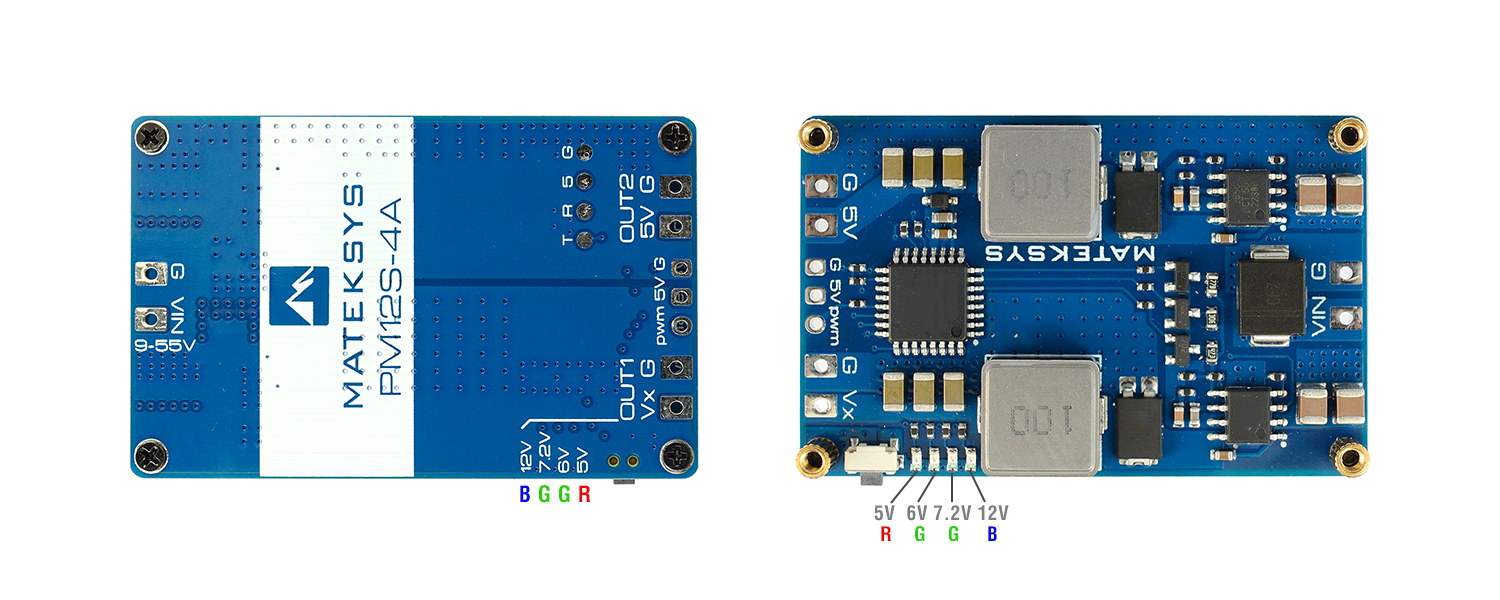

• Output voltage indicators, 5V Red, 6V Green, 7.2V Green, 12V Blue

• Press and hold the button for 3 seconds to enter the setting of the OUT-1 voltage.

• The LED on the current output voltage will blink. then press button to choose the voltage between 5V(Red), 6V(Green), 7.2V(Green), 12V (Blue) .

• The value will be saved if no button action within 3 seconds.

2. PWM control

• PWM Freq & Range:  50Hz-330Hz, 900-2100

• OUT-1 Default output is ON if no PWM signal connected

• Connect the PWM pin and GND to a spare PWM channel on the receiver or flight controller.

• OUT-1 will be turned OFF when the auxiliary switch’s pwm value becomes higher than 1800. It will be turned ON when the value falls below 1200.
