MATEKSYS SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V

About this product

Specifications

• 9V to 55V Operating Input Range

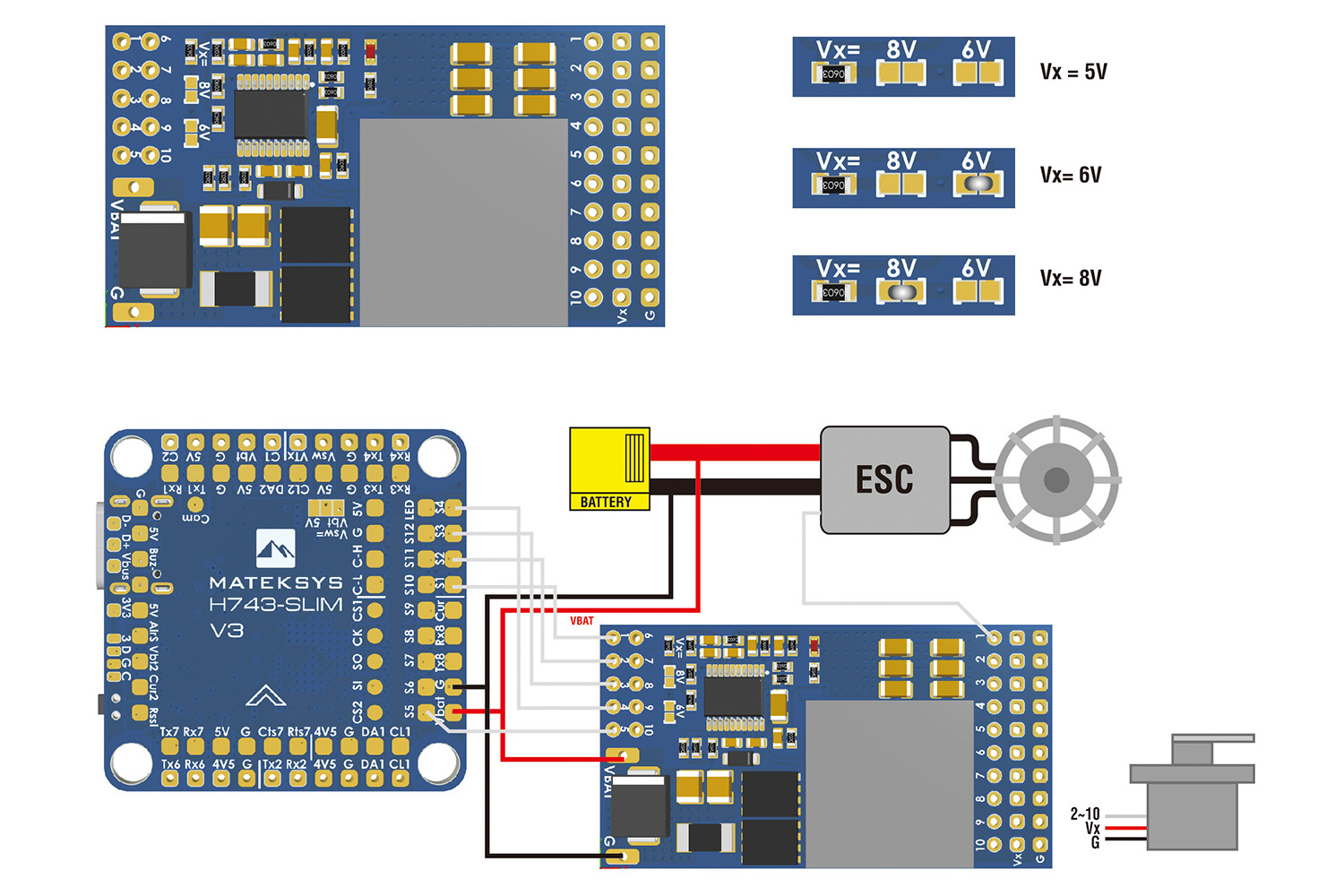

• Vx for servos,  5V, 6V, 8V Adj. Default is 5V.

• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%

• Supports continuous output current of up to 12A,  peak current of 20A.

• Standby current: 5~10mA

• No protection for reversed input polarity

• Thermal Shutdown

• Output Short-circuit tolerant (2 seconds)

• Overcurrent protection & self-recovery

• Dropout voltage: 2V  (Input>=10V is required for stable 8V output)

• Pins distance: 2.54mm

• Size & Weight: 50 x 27 x 8mm, 18g

• Packing: 1x SVPDB-12S,  Dupont 2.54mm pins shipped unsoldered

Applications

• Flight controllers without dedicated BEC for servos

• Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
