MATEKSYS ULTRA-PRECISE I2C POWER MONITOR,I2C-INA-BM

About this product

• I2C-INA-BM is an ultra-precise digital power monitor based on TI INA228.

• The resistance of this conductive path is 200 μΩ typical, providing low power loss in the application.

• Support 3x I2C-INA-BM on one I2C bus in parallel.

• No calibration required,  Flight controller with ArduPilot fw can easily get accurate current & bus voltage readouts via I2C bus.

Specifications

• INA228 85-V, 20-Bit, Ultra-Precise Power monitor IC With I2C Interface

• Battery Voltage sense input: 0~85V

• Current Sense Range:  0~204.8A

• Load current on current sensing resistor:  150A(Continuous),  204.8A(Burst)

• Voltage accuracy: ± 0.1%

• Current accuracy: ± 2%

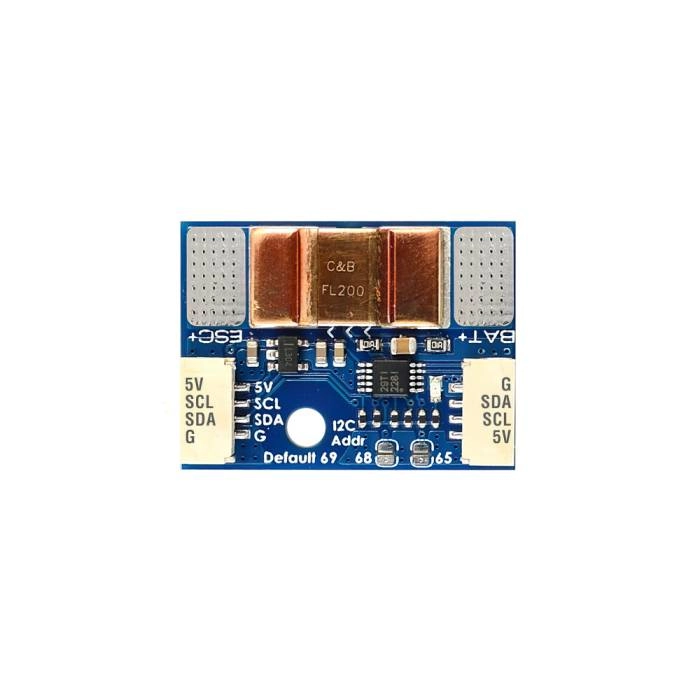

• Interface: I2C  (Decimalism Address 69 by default, 68 and 65 options)

• Power supply for I2C-INA-BM board : 4~9V  @5V pad/pin

• Power consumption: 1mA

• LED Red, 3.3V indicator

• Operating Temperatures -40~125 °C

• Physical

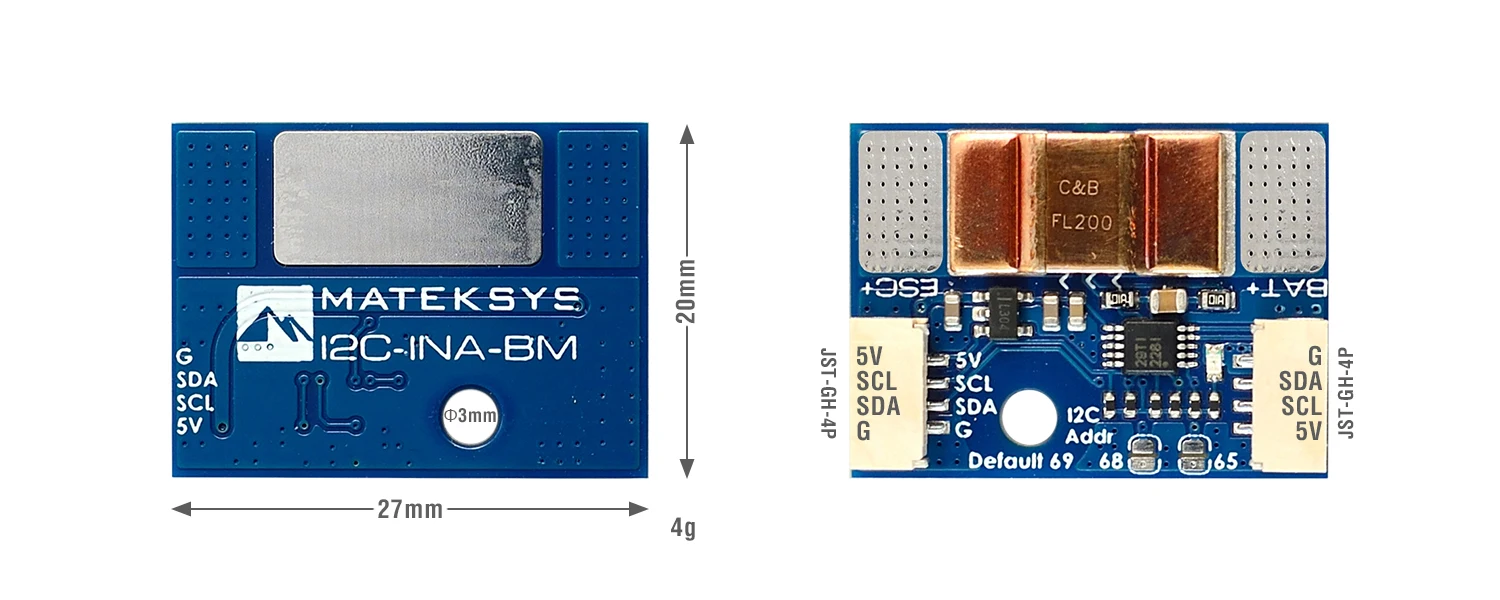

  • Board Size: 27mm*20mm*6mm.  4g

  • 3D file : I2C-INA-BM_STEP.zip

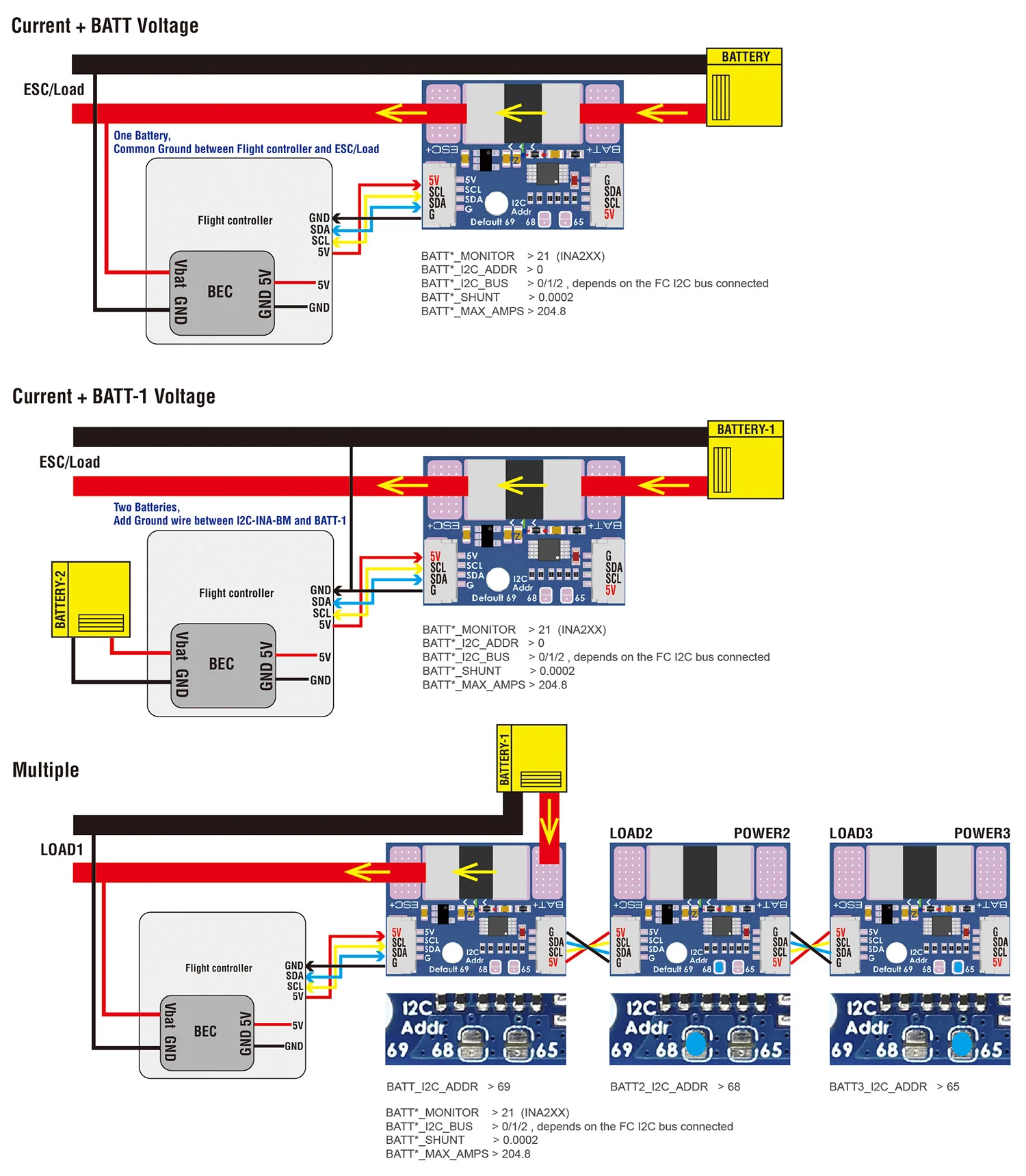

• Parameters

  • BATT*_MONITOR  ->21 (INA2XX)

  • BATT*_I2C_ADDR -> 0 (or 69, 68, 65)

  • BATT*_I2C_BUS   -> 0/1/2 , depends on the FC I2C bus connected

  • BATT*_SHUNT   -> 0.0002

  • BATT*_MAX_AMPS  -> 204.8

Packing

• 1x I2C-INA-BM board

• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

Tips

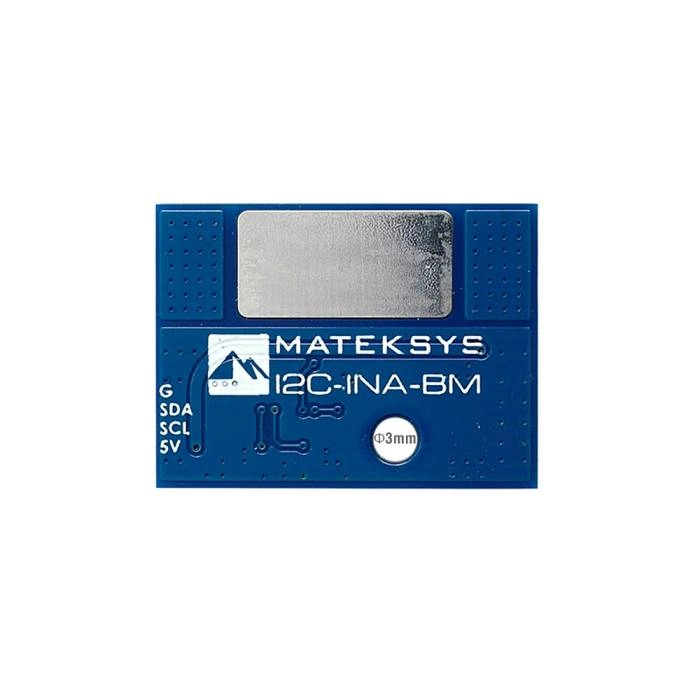

• The big pad on the bottom side is a dead pad. No any circuit network on it.

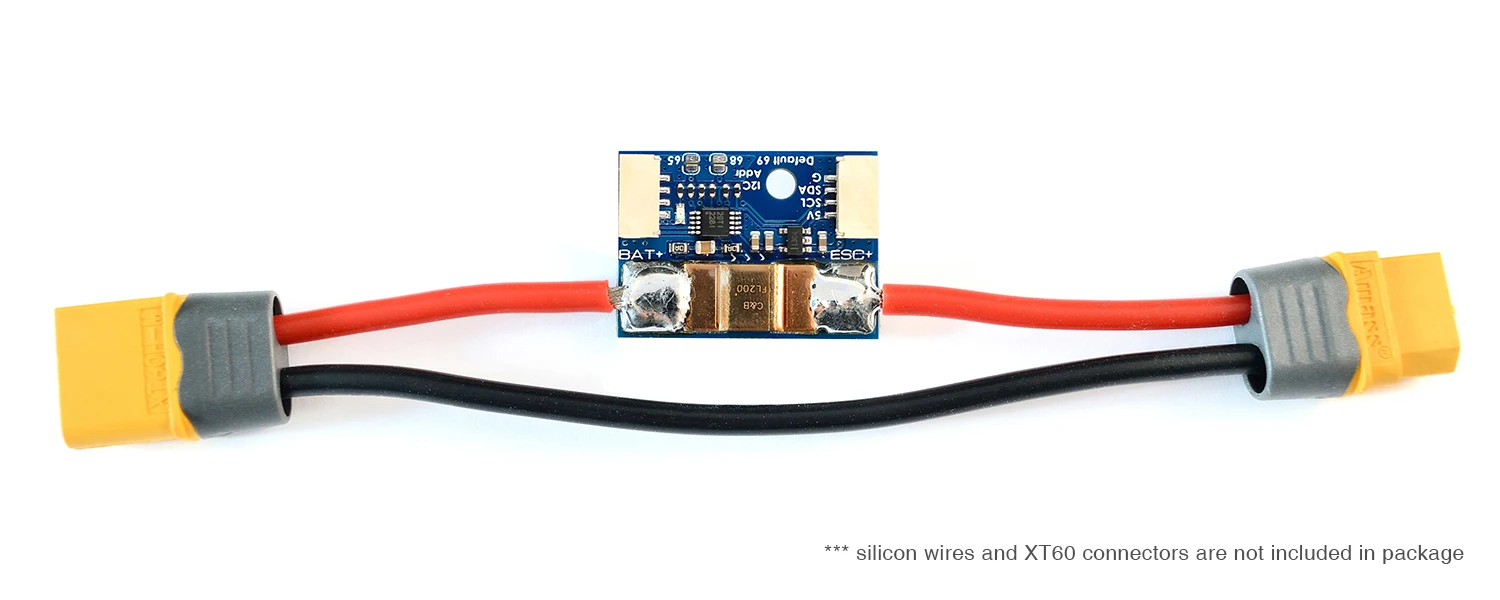

• Solder the positive wires as close as possible to both sides of the current sensing resistor.

• Compatible with ArduPilot series FC only now.
