Radiolink 8 Channels Mini Receiver R8XM 2.4GHz Integrated Telemetry Vehicle Voltage 4000 Meters Control & Telemetry Distance

R8XM Specifications:
Channel:8

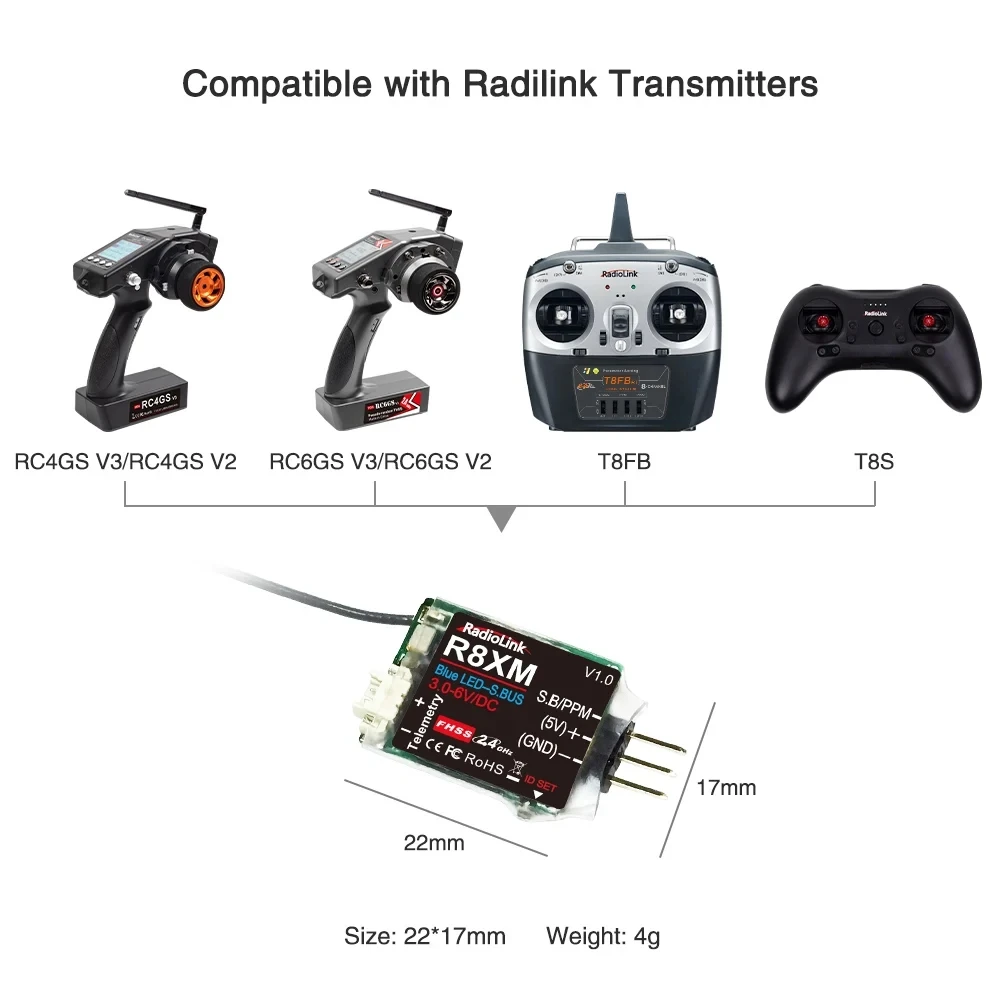

Size: 22*17mm
Weight: 4g
Signal Output: SBUS/PPM
Operating Voltage: 3-6V DC
Operating Current: 40mA±5mA@5V
Model Telemetry Voltage: 2S-6S LiPo battery
Control Distance: 4000 meters (2.49Miles) in air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Telemetry Distance:The same with control distance
Adaptable Models: Racing Drone/Rotary Wing/ Fixed Wing/ Glider/ Multicopter/ Car/ Boat/ Robot (must work with flight controller).
Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping

R8XM Features:
【Excellent Anti-interference】: With pseudo random FHSS algorithm, R8XM has excellent anti-interference ability, highly constant, and stable transmission signal present on all 8 channels.
【Long Range Control】: The maximum tested control distance up to 4000 meters in the air in an unobstructed area free of interference.

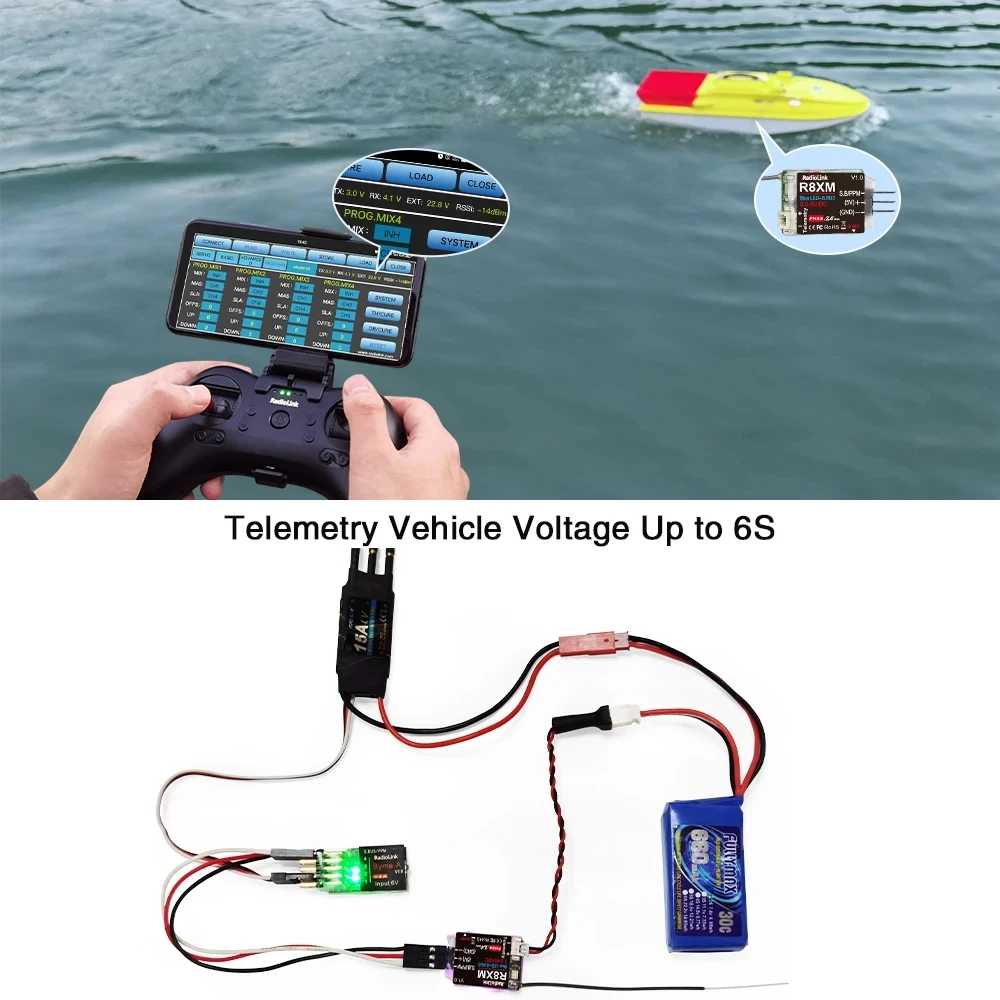

【Real-time Telemetry】:Support telemetry real-time vital information like vehicle's battery voltage(2S-6S LiPo battery), RSSI signal and receiver voltage to the radio screen, avoiding the battery over-discharge and damage.

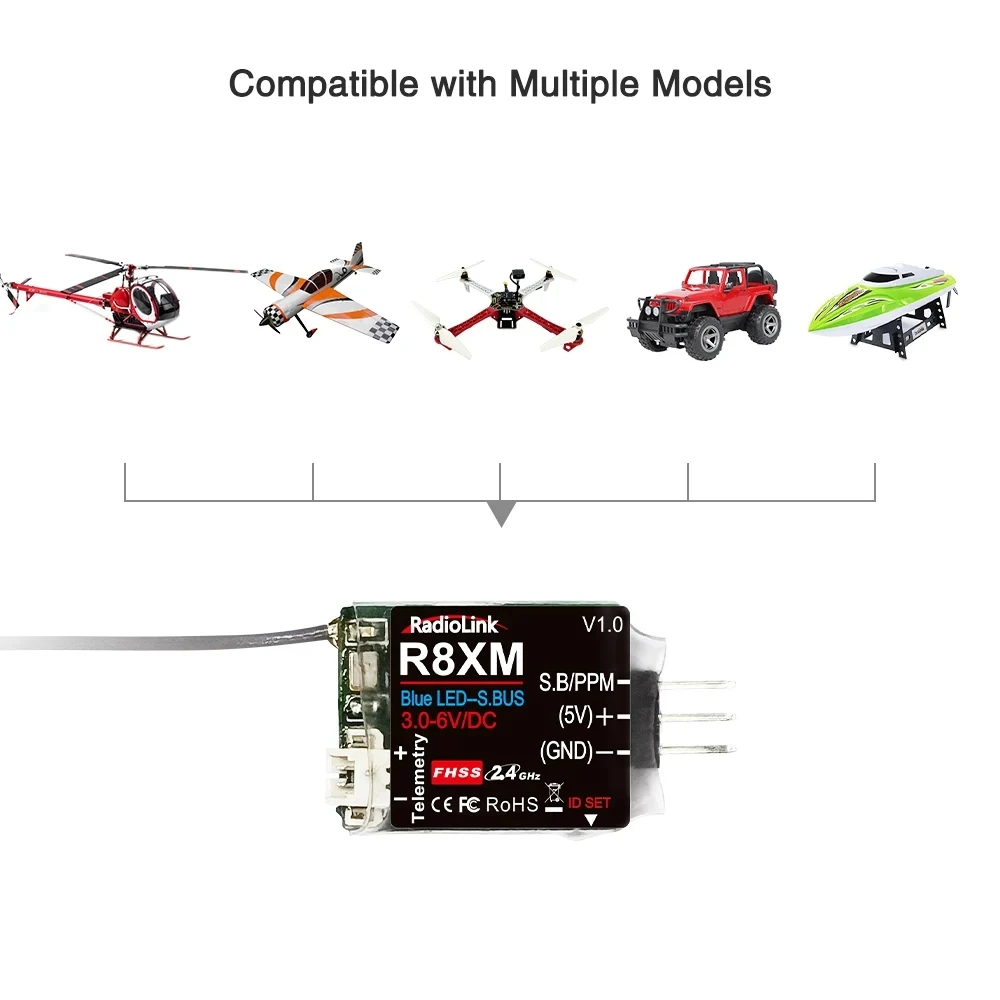

【Compatible with Multiple Models】: The mini size and lightweight make it perfect for mini racing drone and glider.  It's also compatible with rotary wing, fixed wing, multi-rotor, car, boat and robot when working with flight controller.
【Work Well with FPV Device】: Compatible with flight controllers such as PIXHAWK, Mini Pix, TURBO PiX, APM, F4, F7 etc;  Combined with the image transmission camera and FPV display screen/ FPV goggles, to realize long-distance interesting driving.

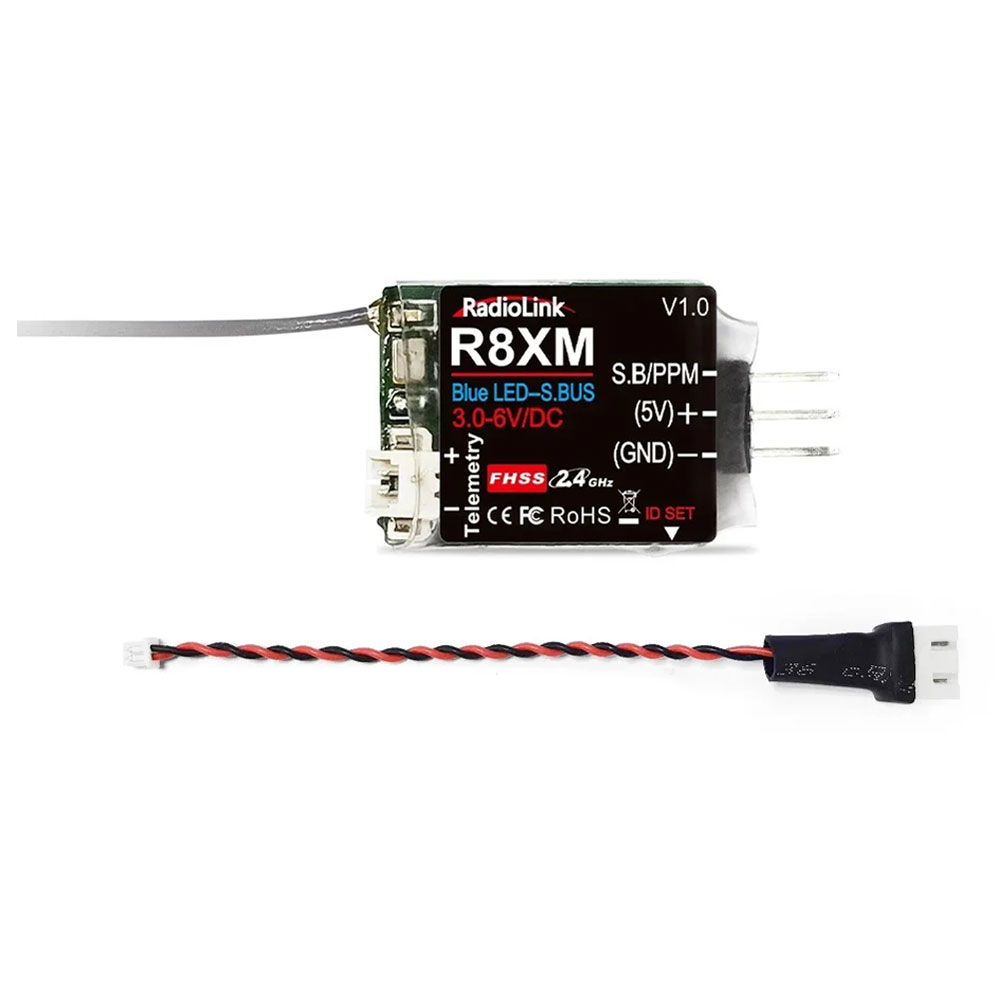

Packaging List:
R8XM receiver *1
Telemetry cable *1

Please don't put the R8XM receiver at closer distanc with radio, otherwise it will hard to complete the binding and it is easy to cause signal loss.
