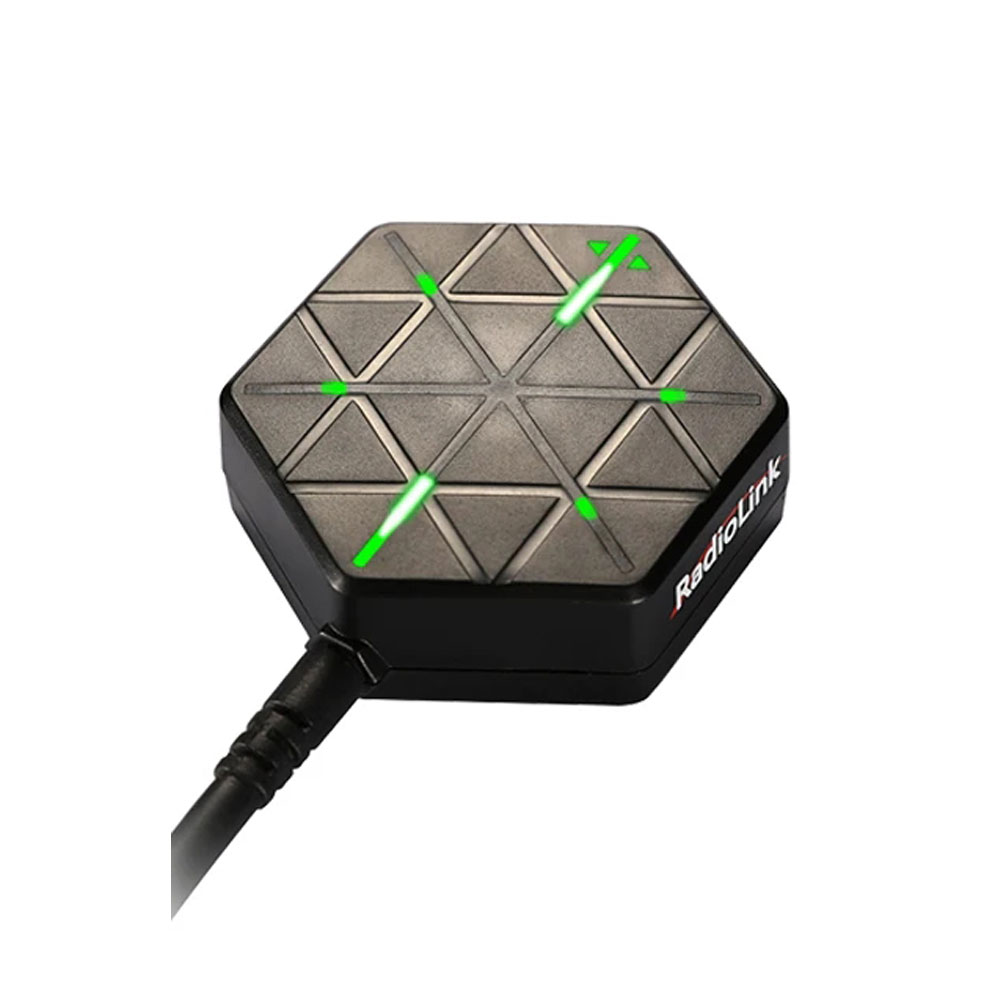

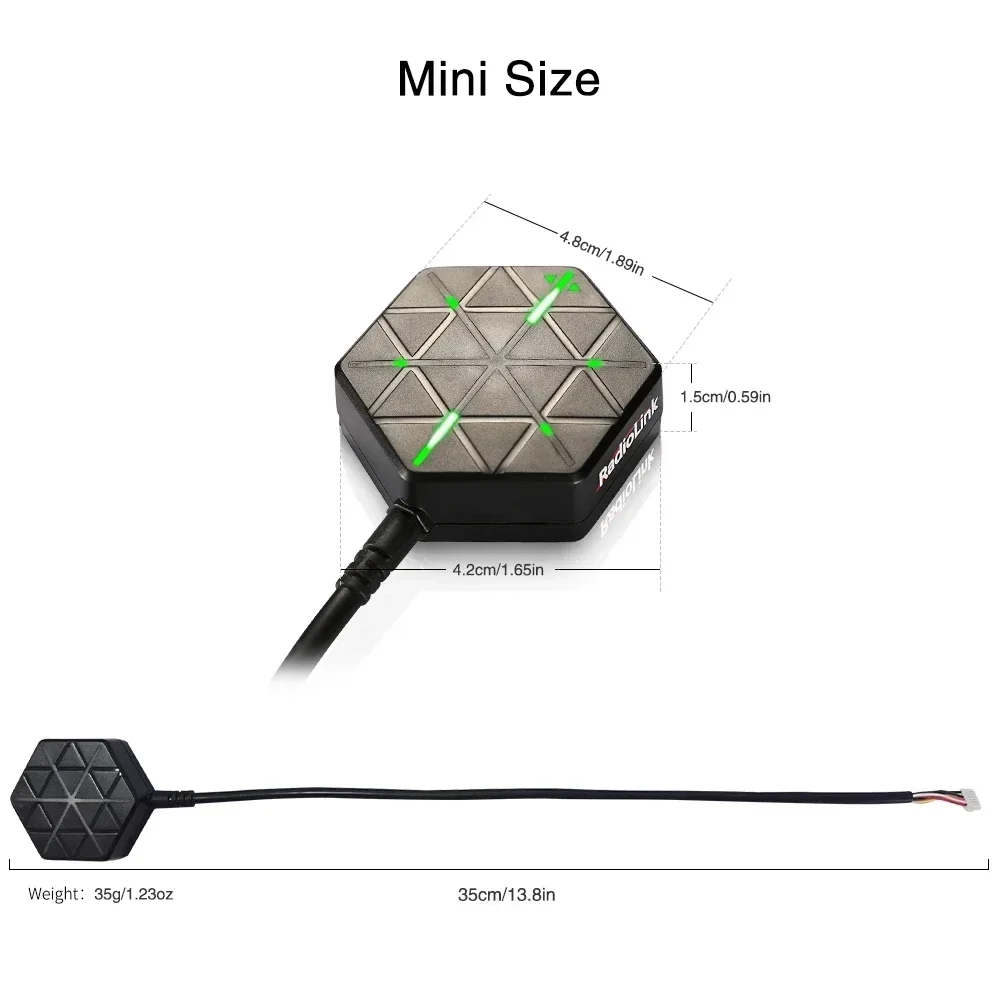

【Mini Size】: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it's perfect for you racing drone and quadcopter.
【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter. Double Filter: SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.
【Top Configuration】: Design with U-box UBX-M10050(M10), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.

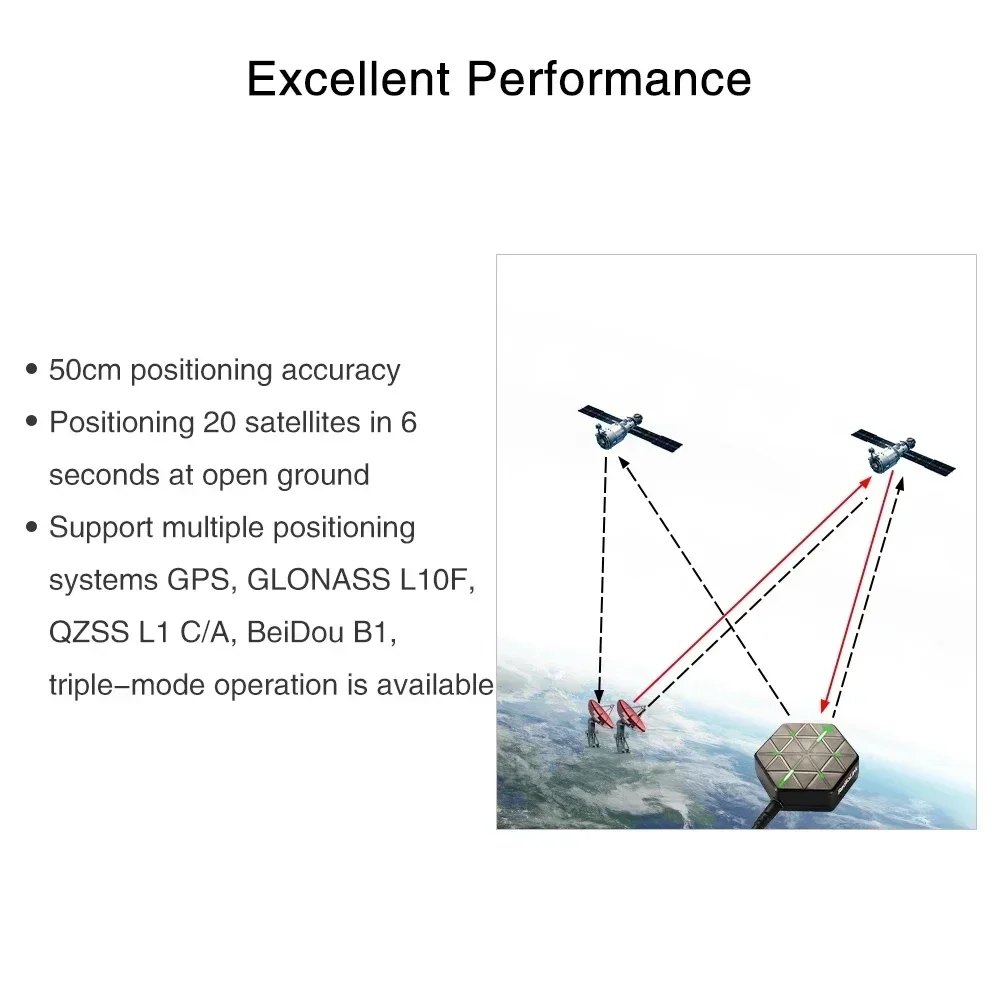

【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1, triple-mode operation is available.
【High-performance】:Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.
【You Will Get】: excellent mini GPS and 12 months warranty and 24 hours friendly customer service.

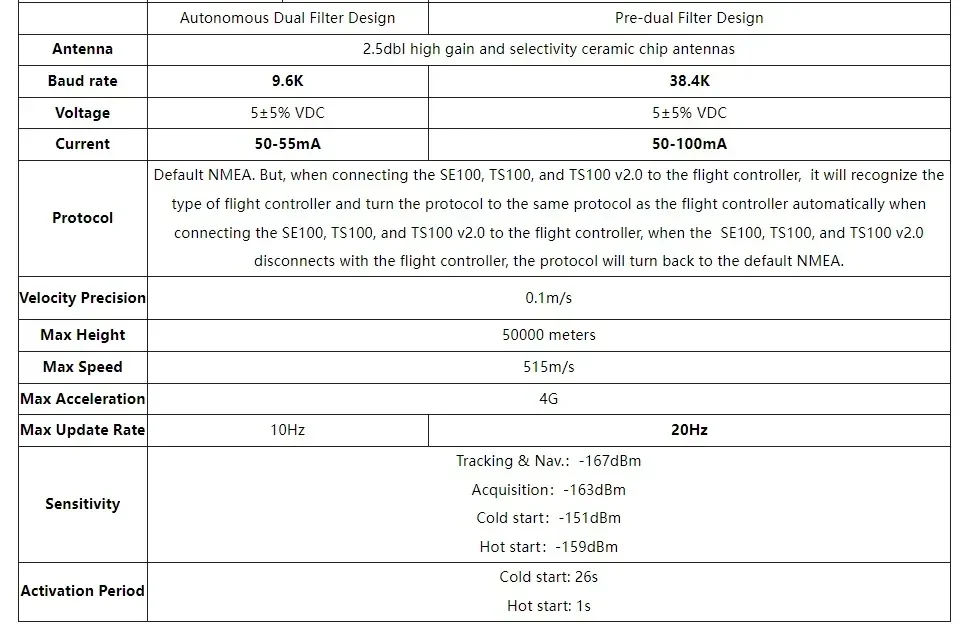

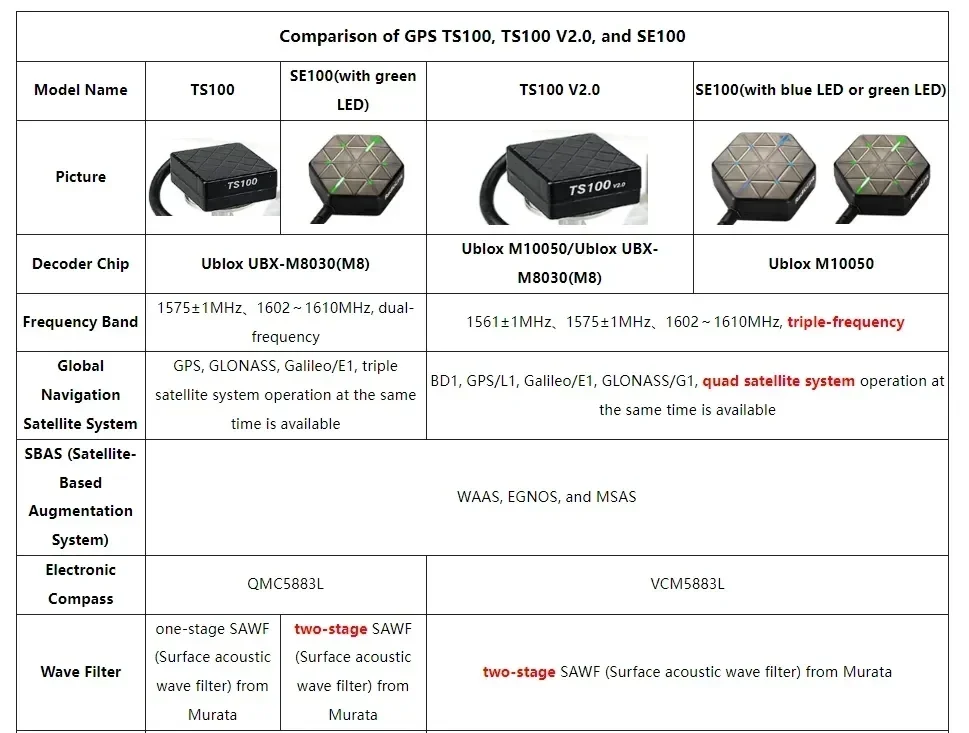

GPS decoder chip: Radiolink GPS, with u-blox UBX-M10050(M10), 72-channel, MMIC BGA715L7 from Infineon,is much better than single GNSS 7N,
Geomagnetic: HMC5983 from Honeywell,
Antenna : 2.5dbI high gain and selectivity ceramic antenna,
Power amplify IC: MMIC BGA715L7 from Infineon,
Double Filter: SAWF(Surface acoustic wave filter) form Murata

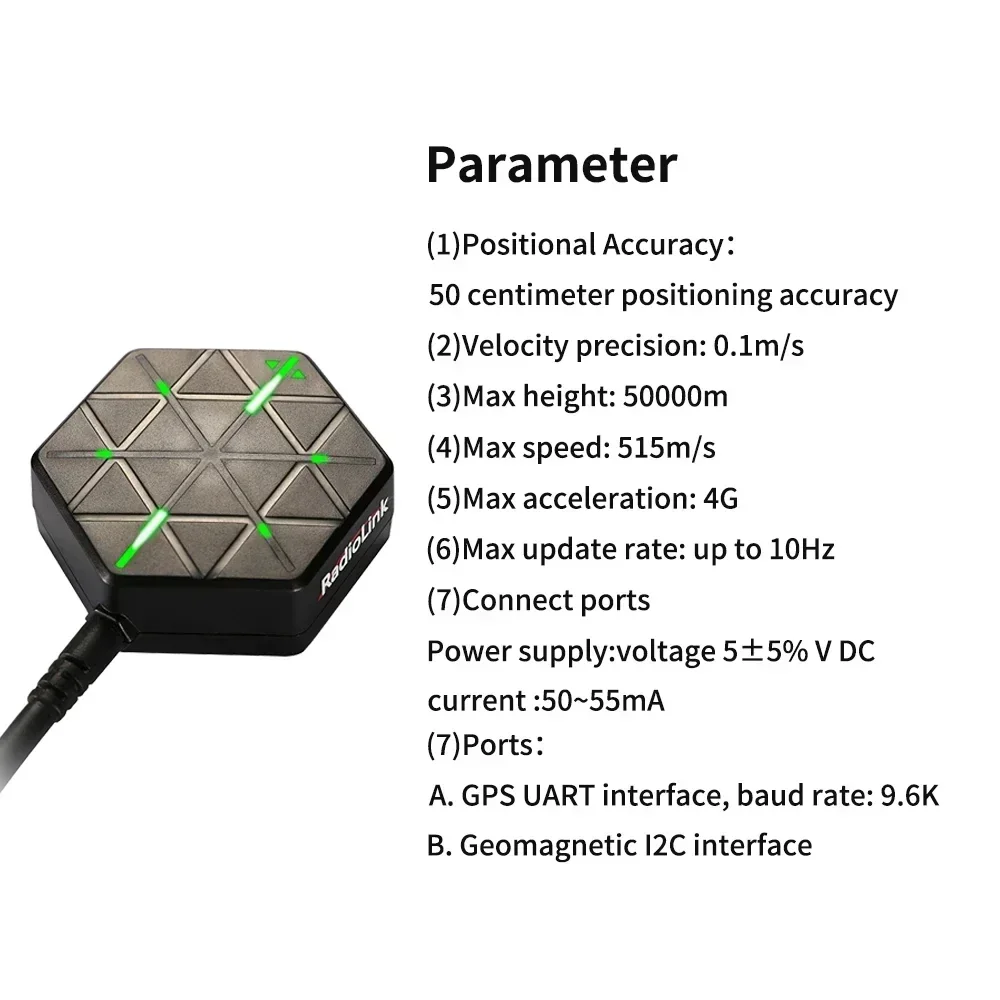

50 centimeter position accuracy.
Positioning 20 satellites in 6 seconds as open ground.
Valley station-keeping ability.
Concurrent reception of GPS, QZSS L1 C/A, GLONASS L10F, Beidou B1,
SBASL1 C/A: WAAS,EGNOS,MSAS.

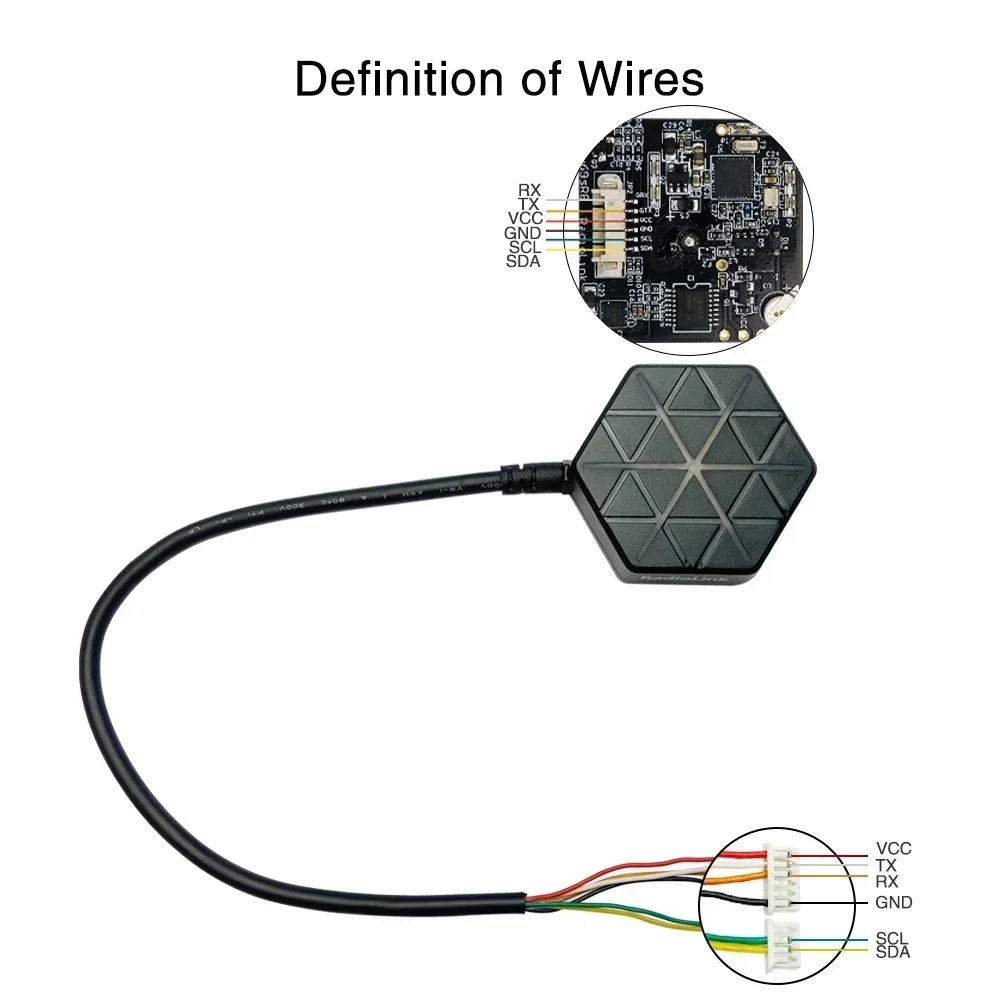

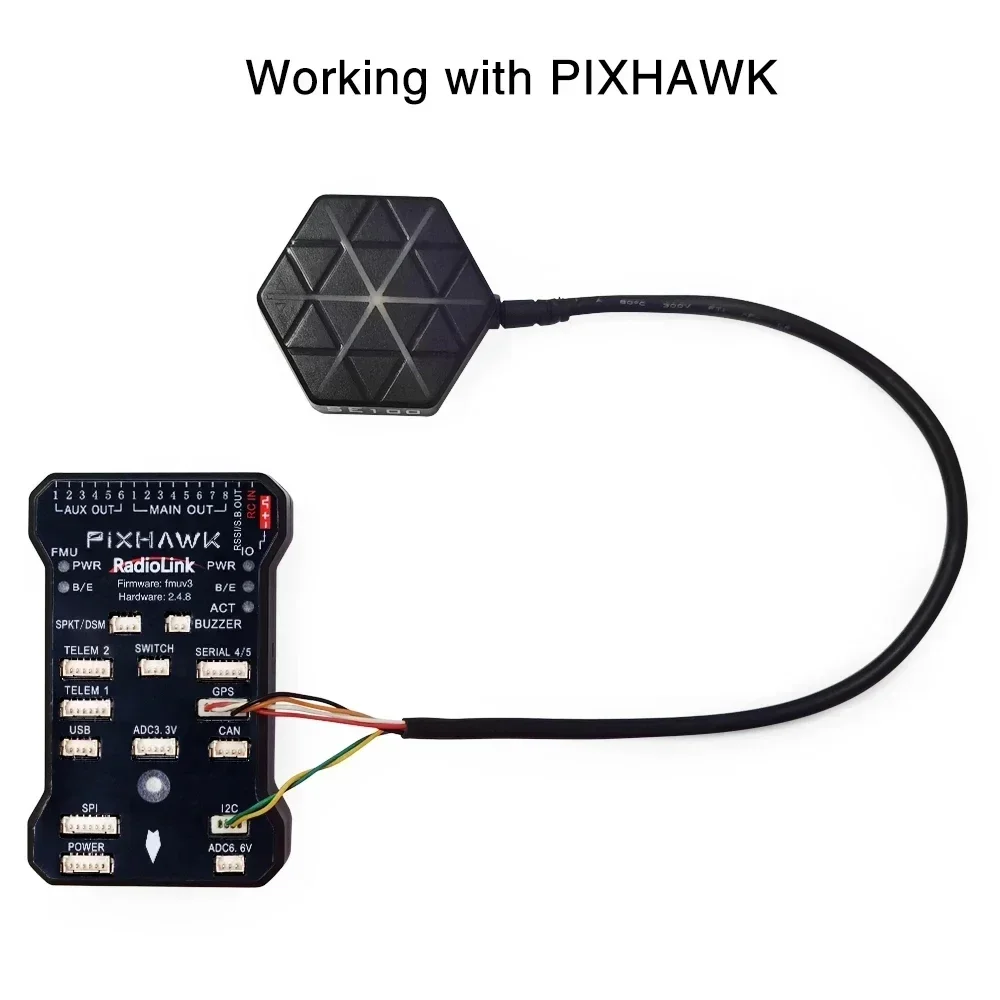

The connection cable interface of the Radiolink M10N SE100 is the same as the external socket of the PIXHAWK. It is a 6P MX interface. Users who want to use it on the Radiolink Mini PIX need to purchase a new socket extension for connection, The weight is only 1.89*1.6*0.59in.
Package Included
M10N SE100 GPS x 1
Metal rod bracket x 1
Connecting cable x 1
Metal fixing gasket x 2
Foam fixed sticker x 1
