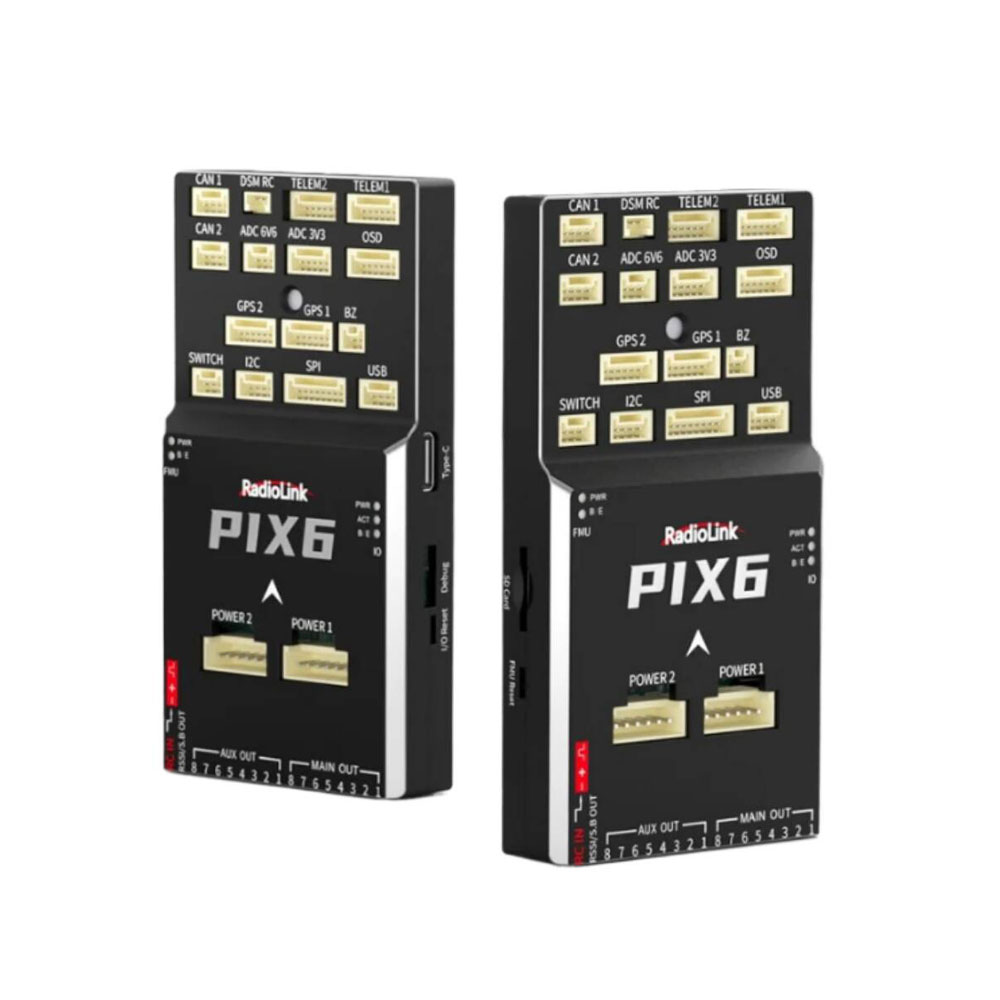

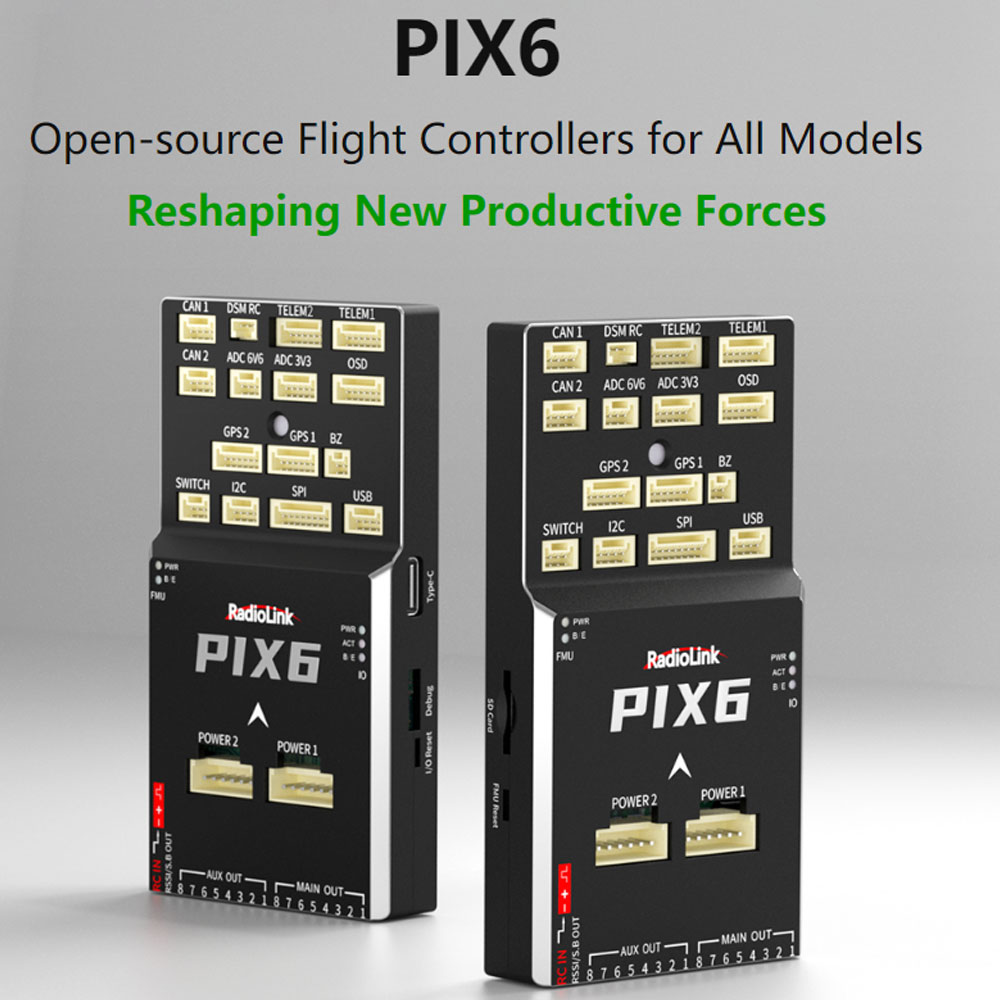

Radiolink PIX6 Open-source APM Flight Controller FC with GPS M10N SE100 for RC Drone Quadcopter/2-8 Axis Multirotor

User Instruction Reference:http://ardupilot.org/planner/docs/mission-planner-overview.html
https://www.radiolink.com/pix6_manual

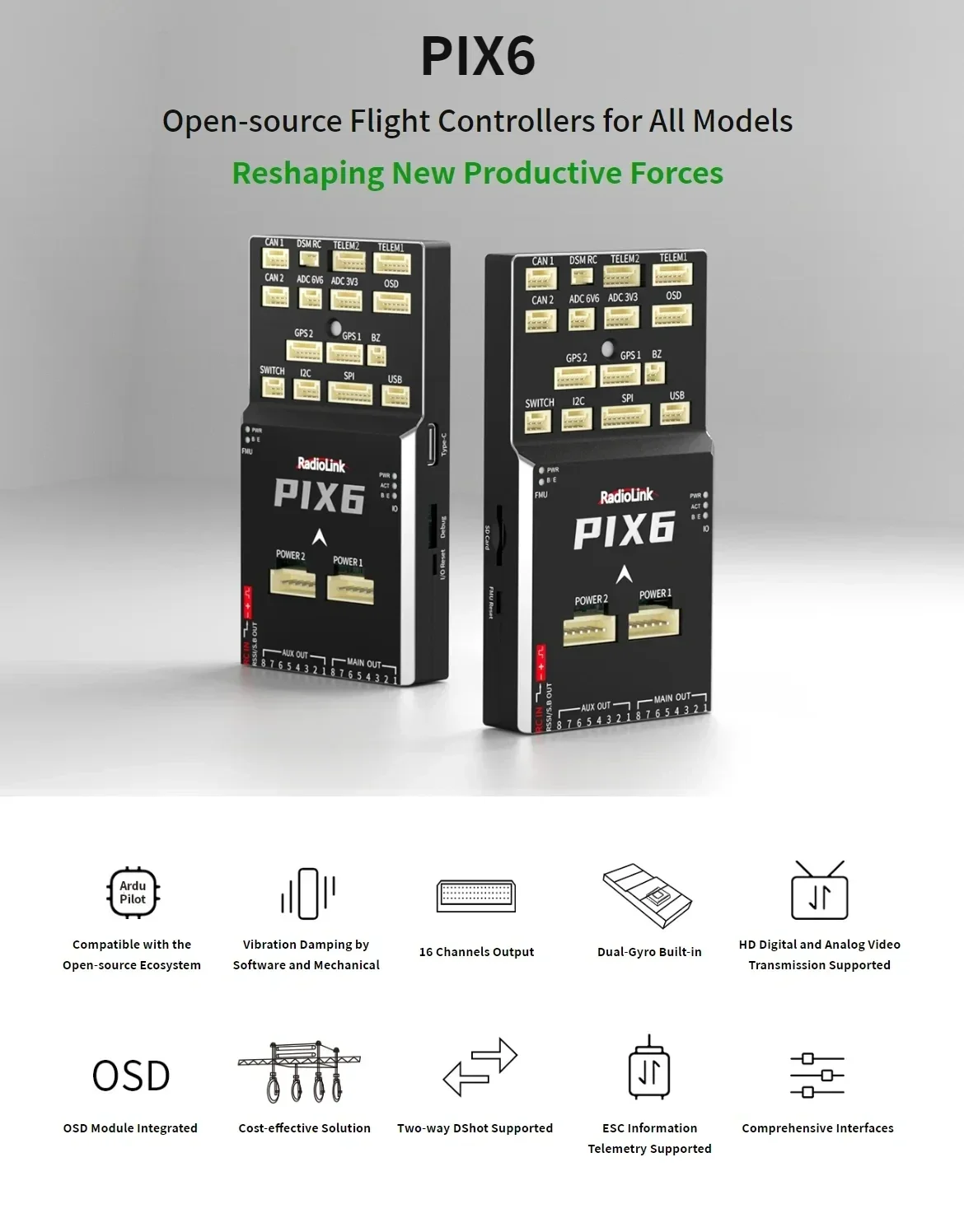

Radiolink PIX6 Features:

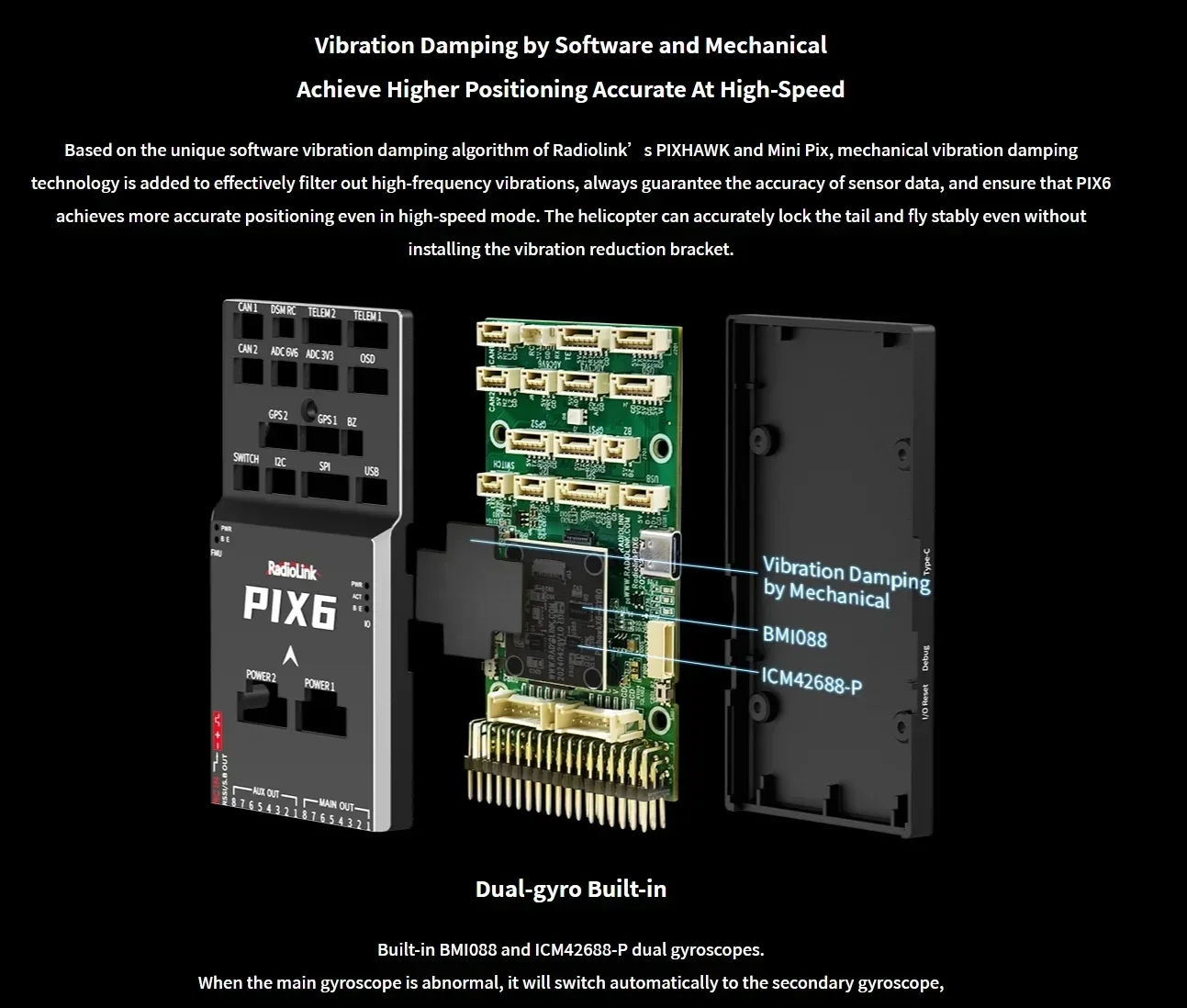

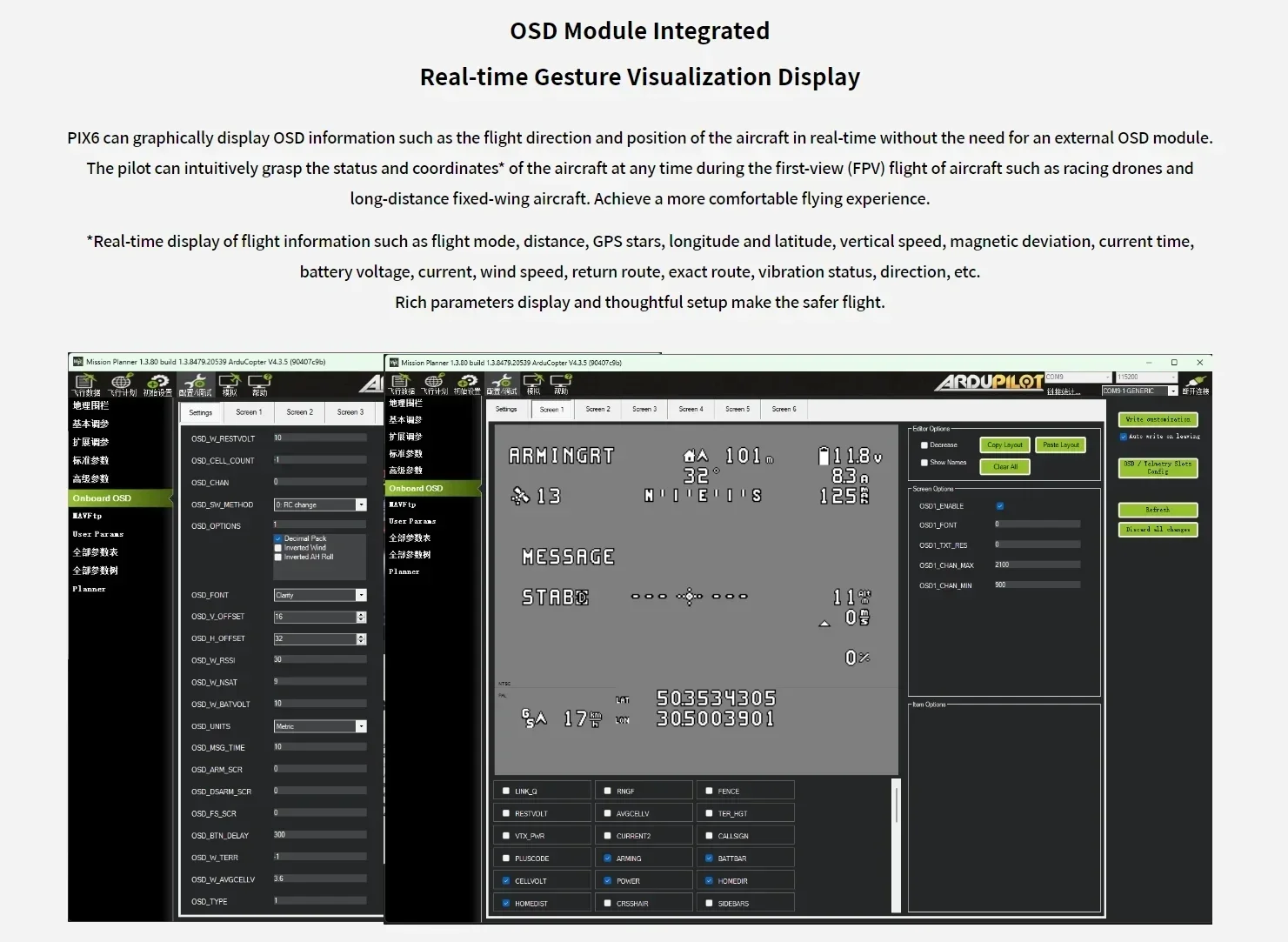

【High-end Configuration】--Built-in BMI088 and ICM42688-P dual gyroscopes,integrate OSD Module ,with 216MHz basic frequency memory, 2MB flash memory, 512K RAM, and 32KB FRAM.
【Excellent Performance】--Compatible with the ArduPilot Open-source Ecosystem,multiple mission planner is supported.      A powerful hardware device can create, you can implement more functions as you want by simple programming.     The source code of RadioLink PIX6 can be downloaded by clicking the link below:

https://github.com/ArduPilot/ardupilot/tree/master/libraries/AP_HAL_ChibiOS/hwdef/RadiolinkPIX6

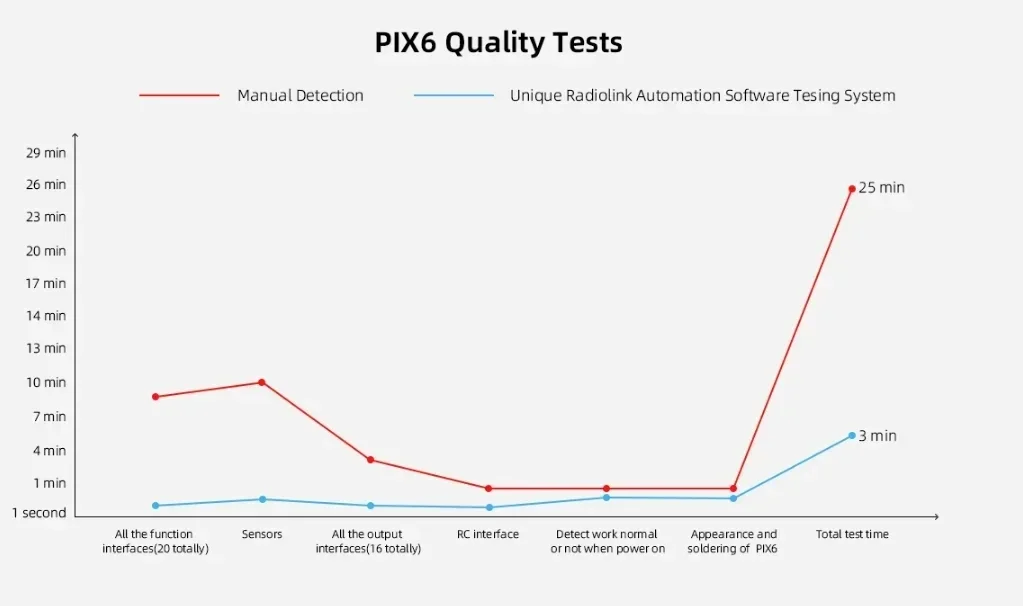

【Stabilization】--Producing by automatic and unique automation software testing, it achieved interference less from inner components, built-in barometer sensor to make altitude hold stabilization.
【Easier Setting】--No complicated setup for beginner and professor player, easy to operation calibration settings on Mission Planner, you will have a good experience of using Radiolink PIX6.

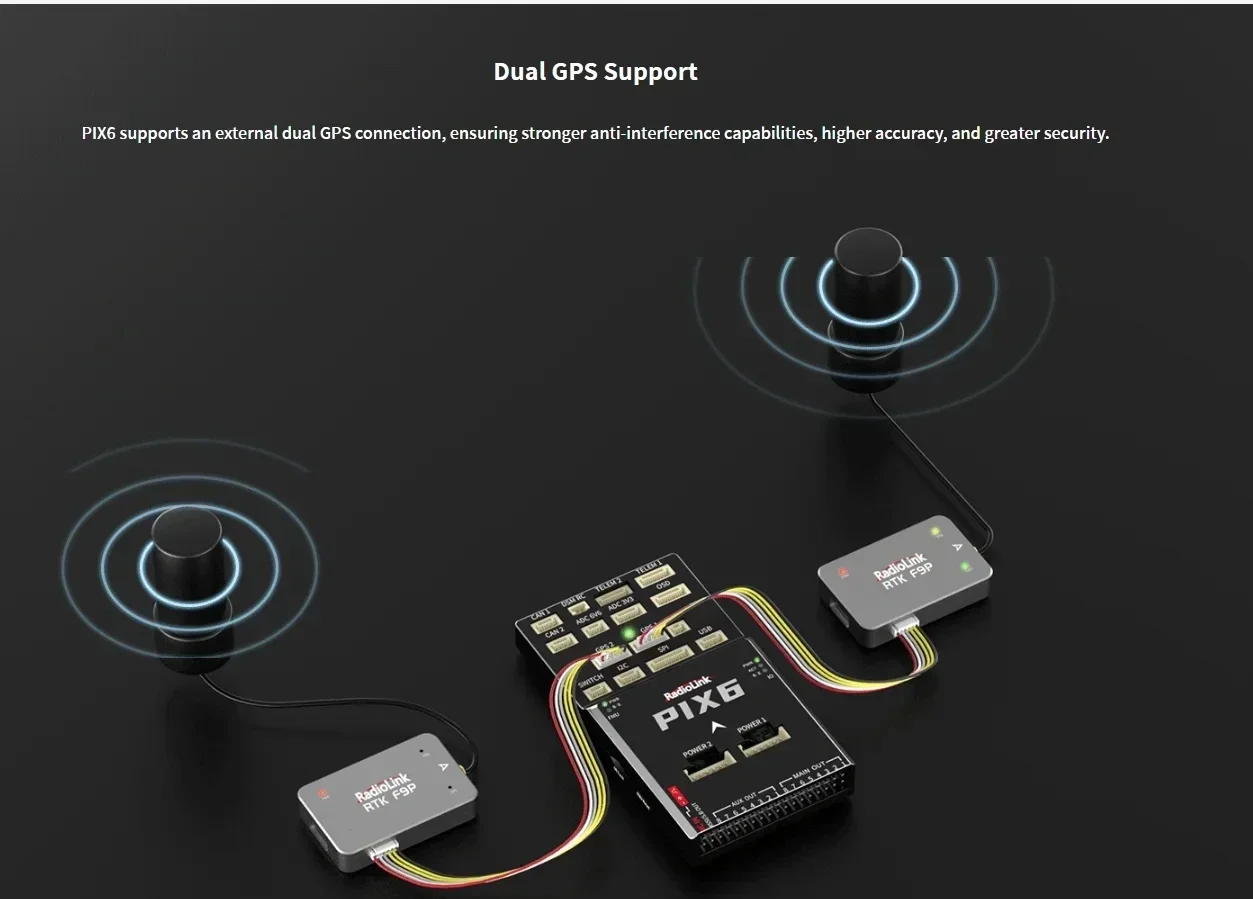

【Multiple Function】--Support Dual GPS ,support econdary development ,higher accuracy, and greater security.

Radiolink PIX6 Description:
Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website.      Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner.      Then, enjoy your fly.
A Good Choice for DIY Drone
Complete installation tutorial, easy to set up, eliminating the cumbersome and complicated installation and calibration process, making your DIY racing drone easier.      The Mission Planner can be downloaded from the official website of the Radiolink brand for debugging.
Radiolink PIX6 supports a variety of fixed-wing and helicopters, vehicle models and boat models.      Supporting Althold, Stabilize, Loiter, Poshold, Return and other flight modes.

PIX6  Flight Controller Specifications:
Hardware Specification
Main Processor: STM32F765VIT6 Coprocessor: STM32F100
Sensor
Gyro & Accelerometer:BMI088,ICM-42688
E-compass: IST8310
Barometer:SPA06-003
RAM Memory:512 KB
Flash Memory: 2MB
FRAM: 32KB, FM25V02A

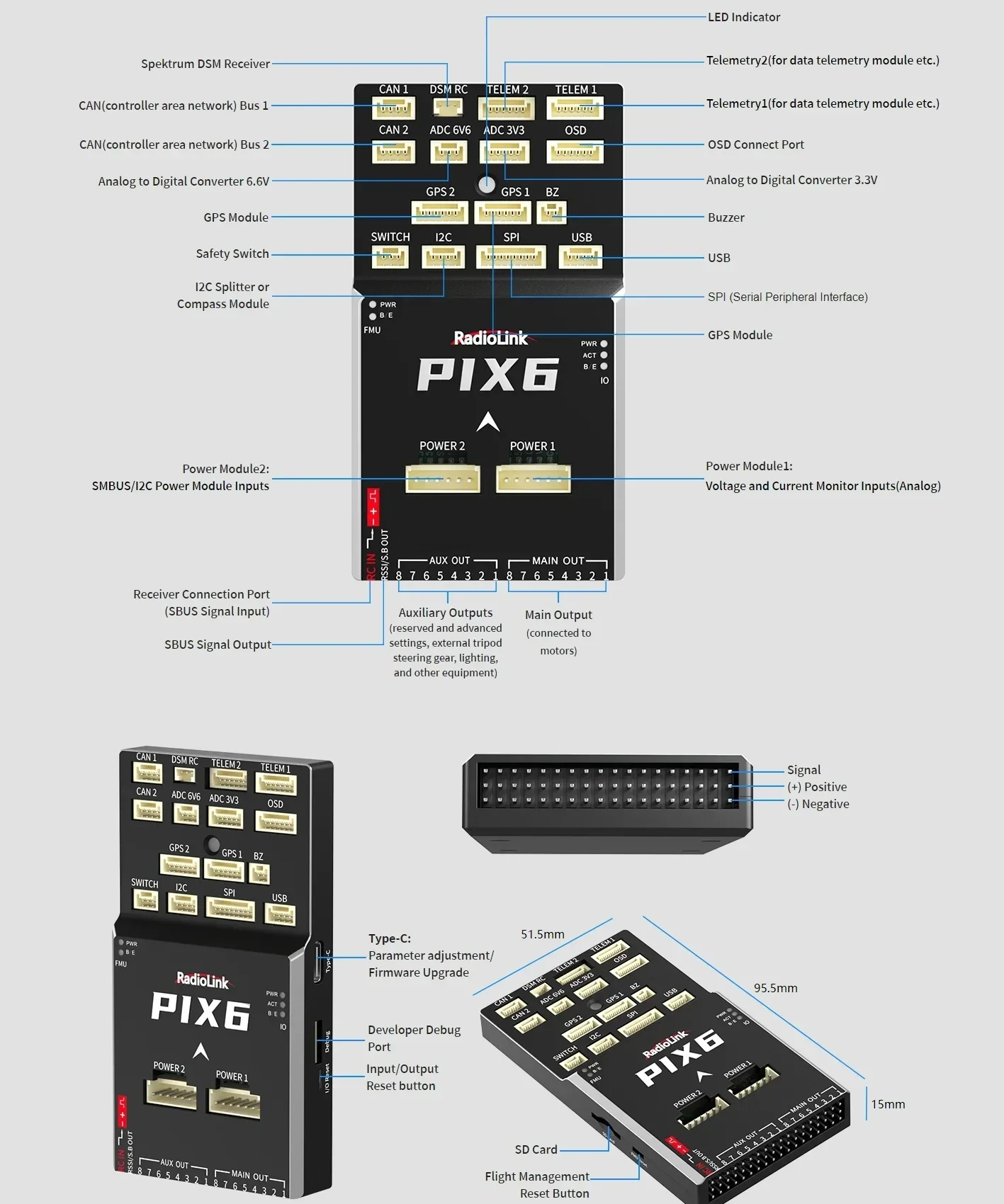

Connector
Channel Output: 16 Channels Output(Main Outputs: 8 channel;      Auxiliary Outputs: 8 channel)
Connector:POWER1,2 Port: HY-6P;      DSM RC Port: XH1.25-3P;      Debug Port: 1.0-8P;      Other Port: GH1.25
CAN Port/ Mavlink UART/ GPS UART:2
DSM RC/ OSD/ Buzzer/ Safety Switch/ I2C Port/ SPI Port/ USB Port/ Type-C Port/ SD Card Port/ FMU Reset/ Debug Port/ I/O Reset Button: 1
POWER Port: 2 --Power1: voltage and current monitor inputs(Analog) Power2: SMBUS/I2C Power Module Inputs(I2C)
Signal (RC In): PPM/SBUS

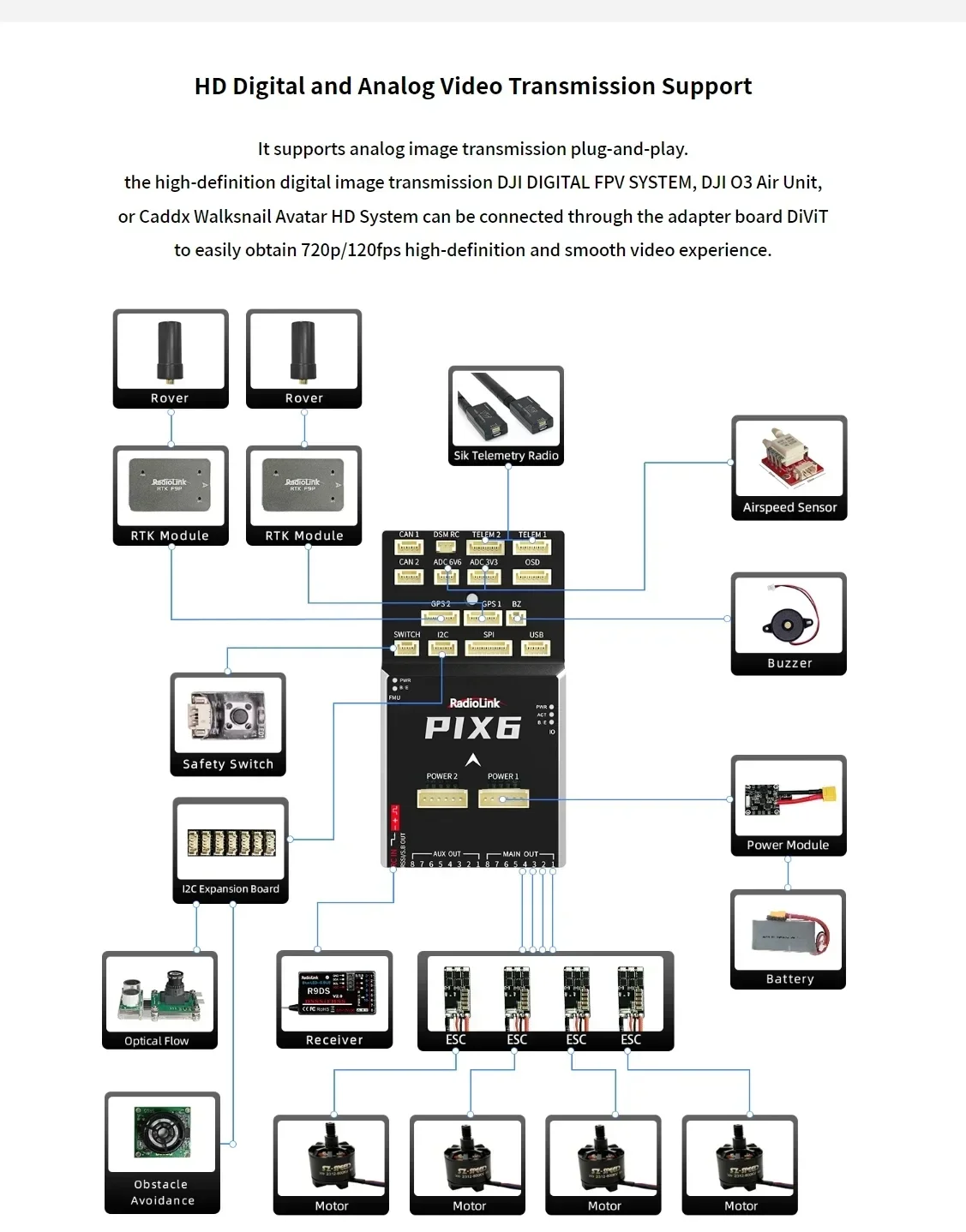

Video Transmission: HD Digital and Analog Video Transmission Supported
RSSI Signal Input: PWM/3.3V
ESC Protocol: PWM/OneShot/DShot
Support: RSSI Signal Output/ OneShot/DShot / Neopix Led Connection/ Gripper Function/ OSD Module Integrated

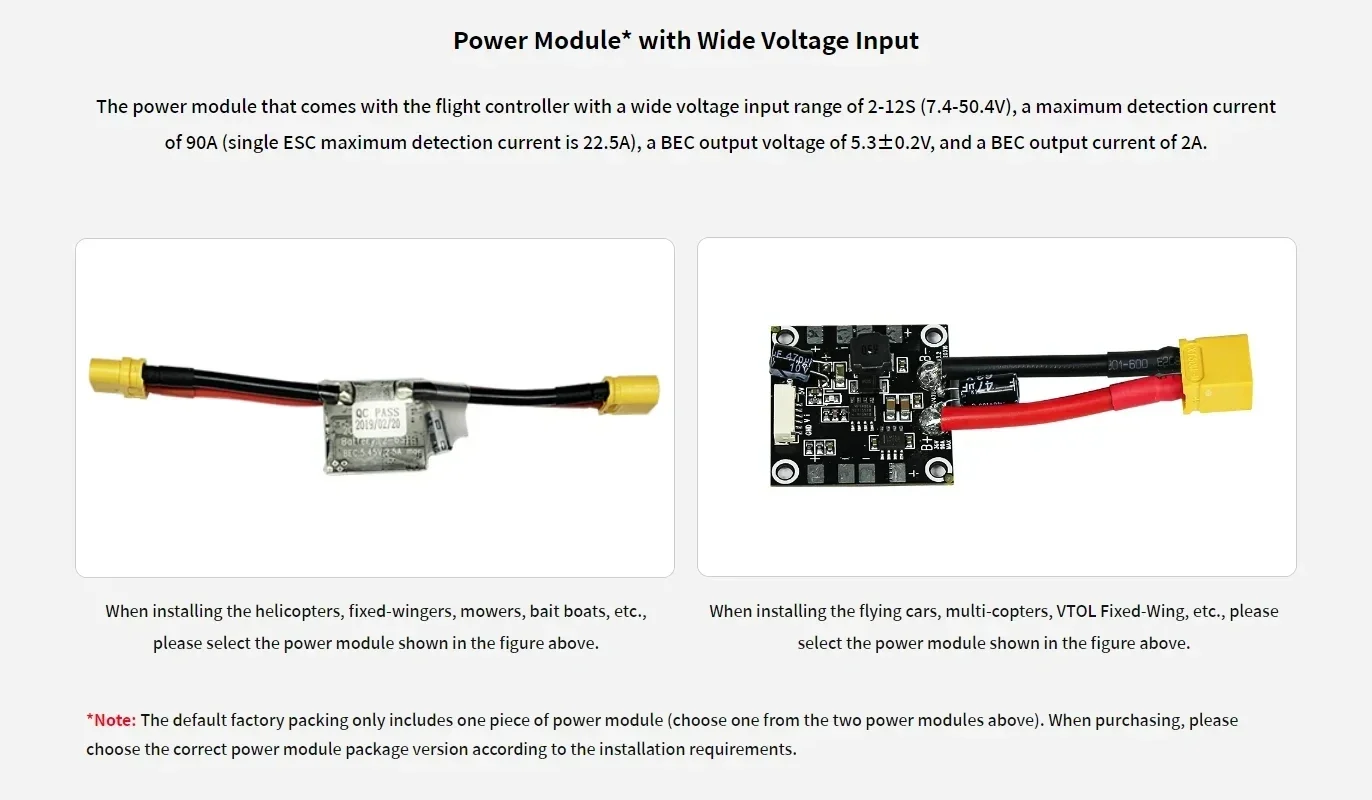

Power Module Specifications
Weight: 24.5g (0.86oz) without wire
RTK: Support
Input Voltage: 2-12S
Maximum Detection Current: 90A
Output Voltage(BEC):5.3V±0.2V
Output Current(BEC): 2A
Single ESC Maximum Detection Current: 22.5A
Adaptable Firmware: Ardupilot
Adaptable Models: Airplane/2-8 Copters/Helicopter/Car/Boat/VTOL/Submarine/Radartracker/Robot/Mower

Specifications:
Dimension: 95.5*51.5*15mm
Weight: 50g(without wires)
USB Voltage: 5V±0.3V
Operating Temperature: -30~85℃
Package Included
PIX6(Flight Control)*1
Power Module(2-12S)*1
Buzzer * 1
Safety Switch * 1
4G TF (MicroSD) Card* 1
Double-sided Adhesive Tape*2
Port Connect Cable
Receiver Connect Cable*1
USB Port Connect Cable*1
