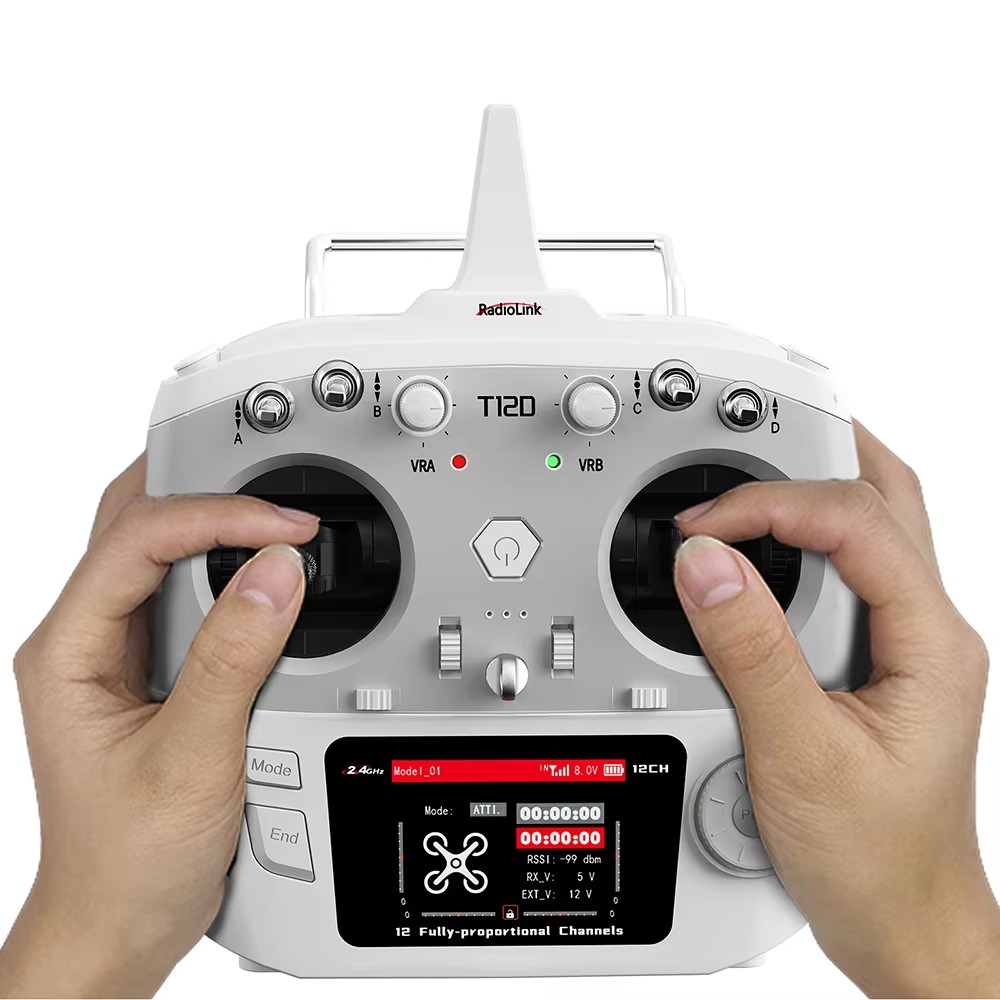

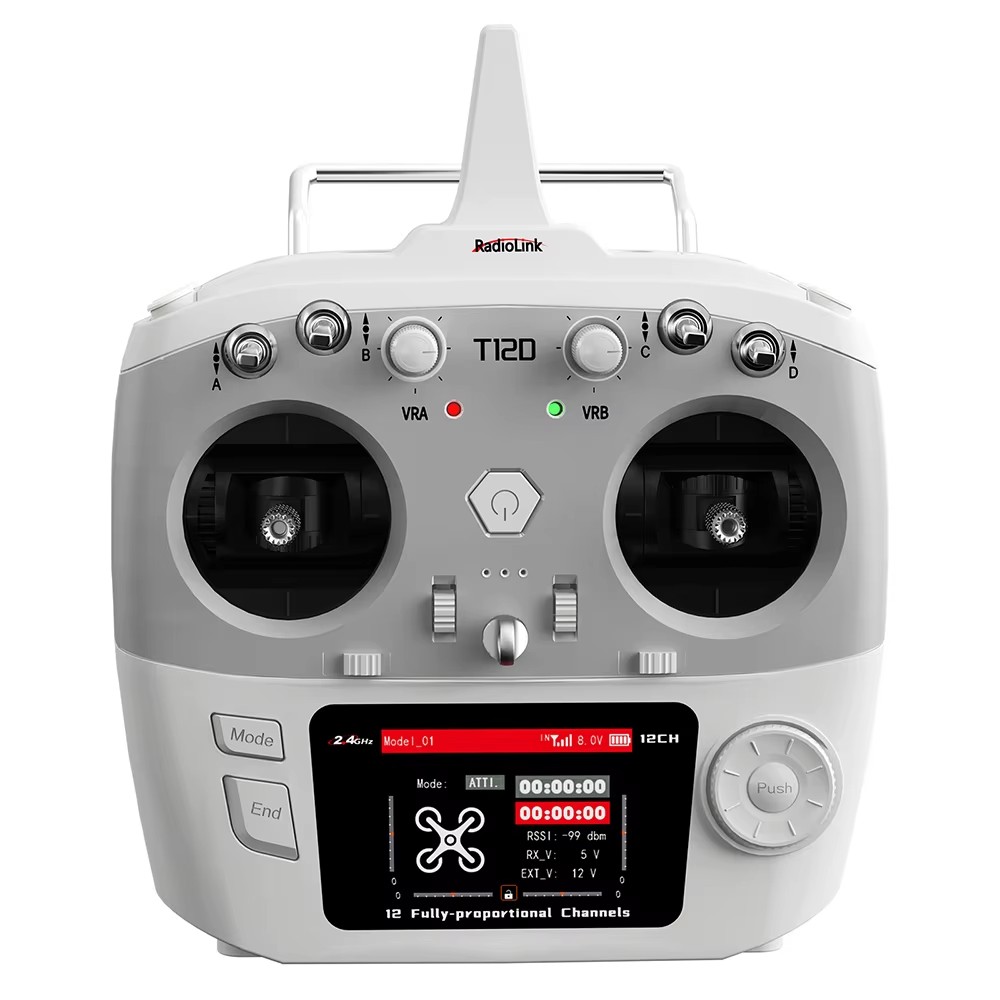

RadioLink T12D 12 Channels RC Transmitter 2.4GHz with R16F Receiver Remote Controller for FPV Drone Fixed Wing Airplane Car

Note:

According to the color name to select T12D mode:Mode 1 Right hand throttle or Mode 2 Left hand throttle

Radiolink T12D 2.4Ghz 12 Fully-proportional Channels Transmitter with Receiver R16FG Remote Control Support Long-range Module for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more

T12D Features:

1.Twelve Fully-proportional Channels

The current high-end 12channels remote control which is only eight fully-proportional channels.

2. Cutting-edge Communication Technology

Pioneering communication algorithms,
the Radiolink remote controllers are widely used in robotics, automotive, security, and other fields.

Upgraded and optimized the original communication technology,
improving the response speed and fault tolerance rate.

3.Top Configuration

1M bytes flash Memory, 208MHz Basic Frequency Memory, 2.8 inches, 320*240 pixels 16 colorful screens.

4.Supports ELRS, Crossfire, and Other Mainstream Long-range Modules

It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize most of the aircraft parameters such as protocol, baud rate, WIFI mode, etc. can be adjusted by the T12D.

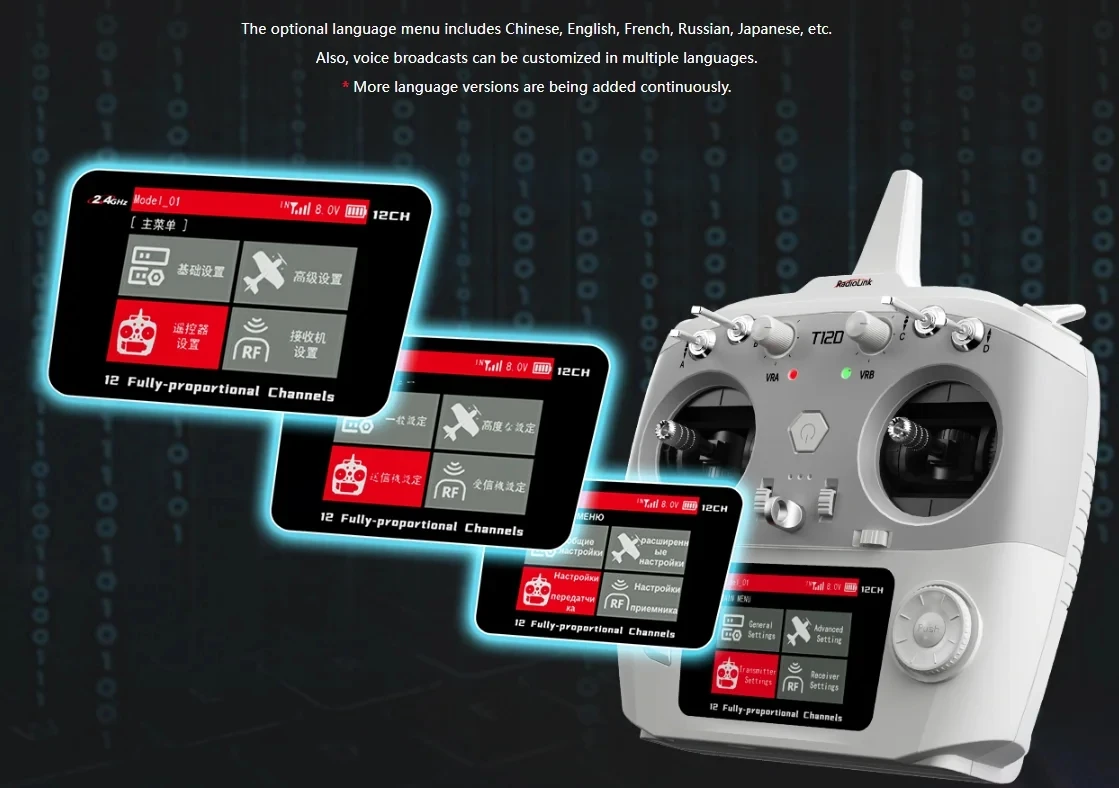

5.Multiple Languages

The optional language menu includes Chinese, English, French, Russian, Japanese, etc.

freeRTOS system achieved adding a new language that only needed a text file.

Also, the voice broadcast can be customed with multiple languages.

6.Wide Compatible

Compatible with R16F(Std)/R8EF/R8FM/R8SM/R8XM/R8FGH/R8FG/R7FG/R6FG/R6F/R4FGM/R4F(discontinued

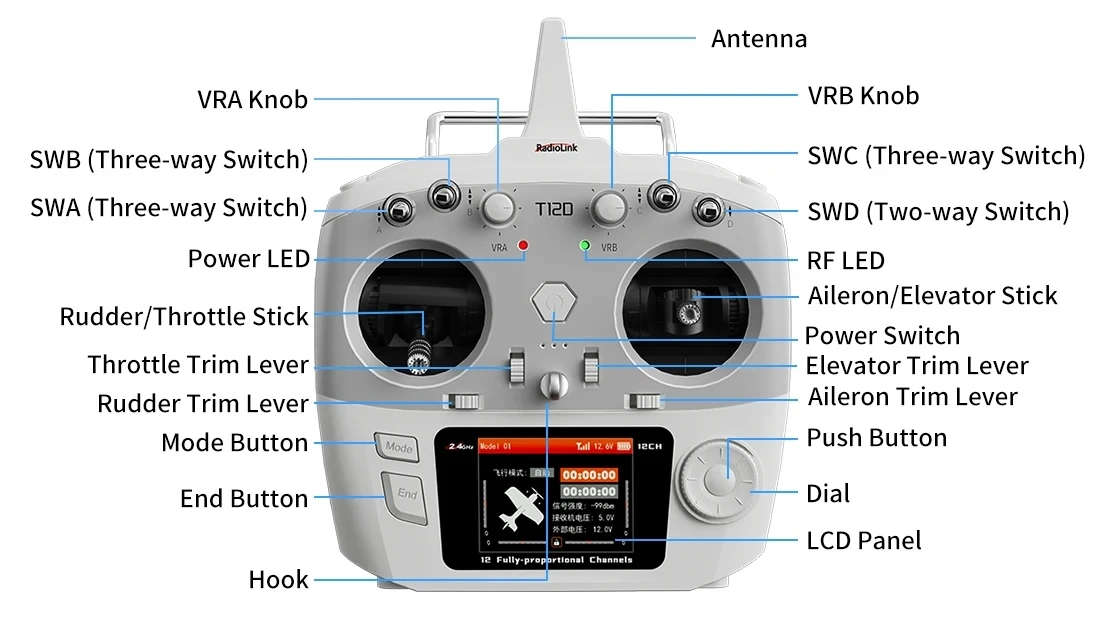

T12D Transmitter Specifications:

• Channels: 12 fully proportional channels, 5-12 channels can be programmed

• Mode: Mode 1 or Mode 2

• Signal: PWM&SBUS&PPM

• Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

• Channel Bands width:400KHz

• Spectrum: FHSS 67 channels pseudo-random frequency hopping/CRSF

• Operating Systems: freeRTOS+LVGL GUI

• Modulation Mode:GFSK

• Adjacent Channel rejection: >36dBM

• Transmission Power:<100mW(20dBM)

• Operating Current: DSSS&FHSS < 90mA@12V

• CRSF Depends on the transmission power select

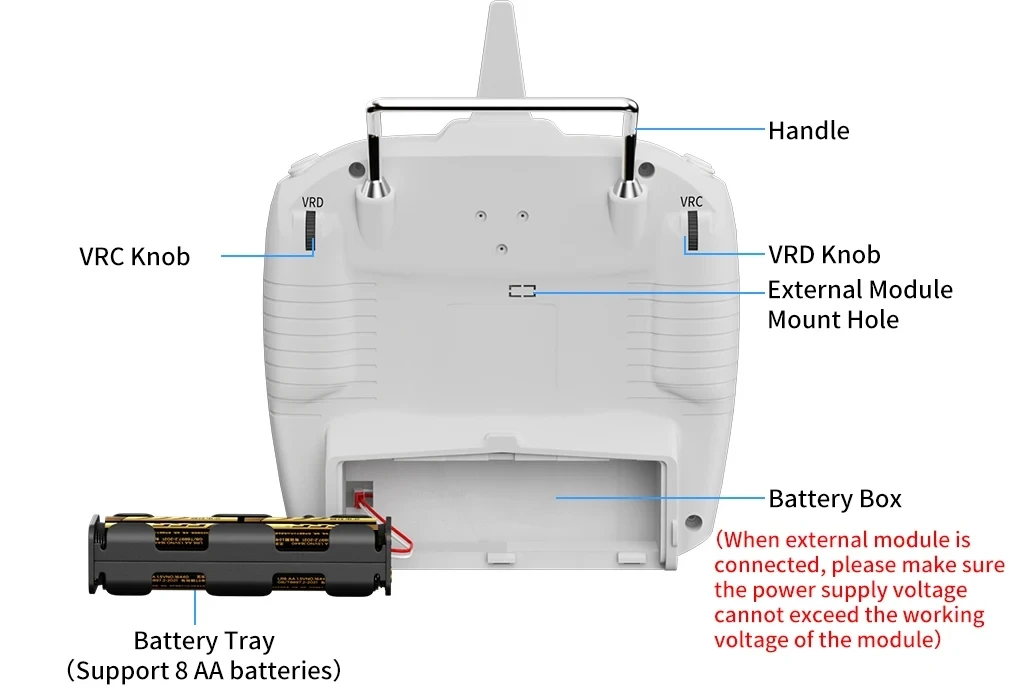

• Operating Voltage: 7.4~18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)

• Operating Current: 100mA(±10mA)@8.4VDC

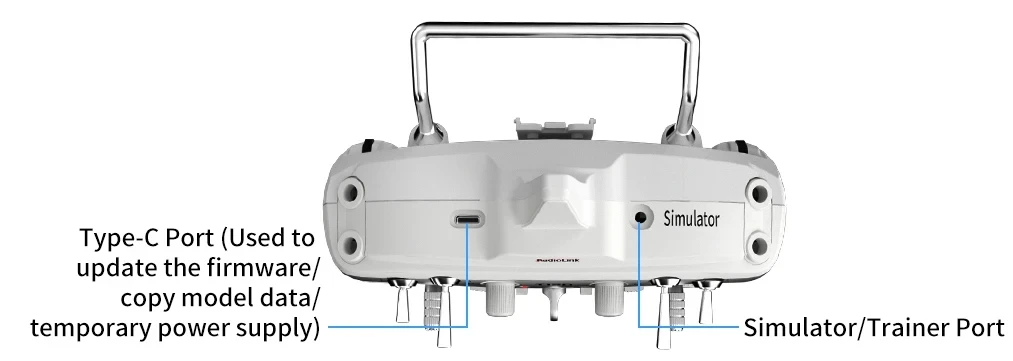

• Type-C Port Input Voltage: 5 V(T12D also can powered by computer or mobile power bank via Type-C cable)

• Type-C Port Input Current: 500mA

• Type-C Port Output Voltage: 4.6V-5.0V

• Type-C Port Output Current: Maximum 1A

• Control Distance:

• ① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

• ② CRSF: Depends on the RX and TX of the long-range module

• Screen: 2.8 inches 16 colorful screens, 320*240 pixels

• Size:174.3*206.9*106.9mm

• Weight: 536g

• Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

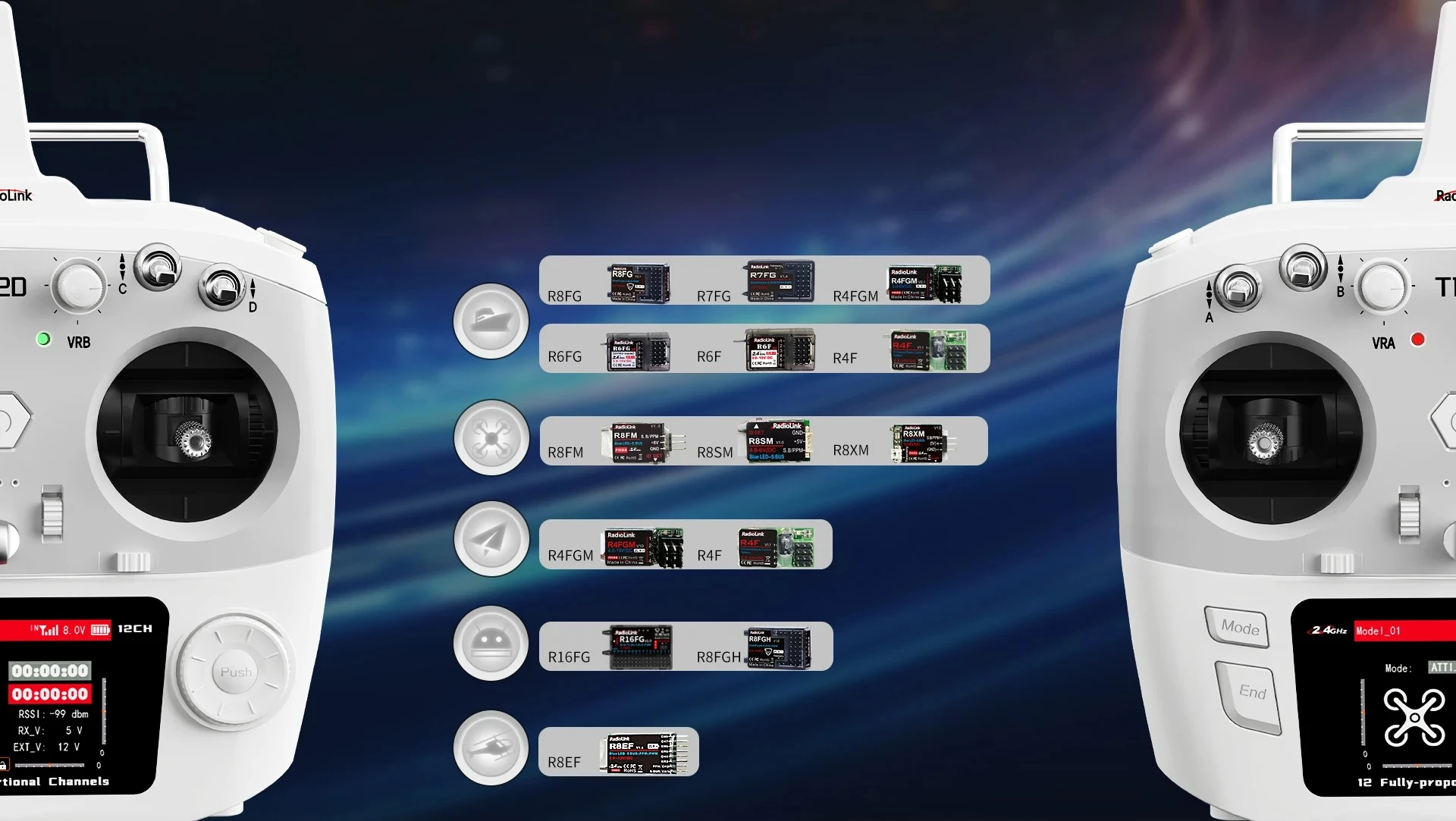

• Compatible receivers:R16FG(Std), R8EF,R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F

• Trainer Function and Simulator Mode: Support



R16F Receiver Specifications

• Signal: SBUS+PWM

• Channel: 16 channels

• Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

• Operating Voltage: 3-12V

• Operating Current: 50±10mA@5V

• EXT Battery Input: 1S-8S(3.0-33.6V)

• Size: 45*32*15mm

• Weight: 17g

• Antenna Length: 205mm

• Water Splash Proof: The waterproof grade is IPX4

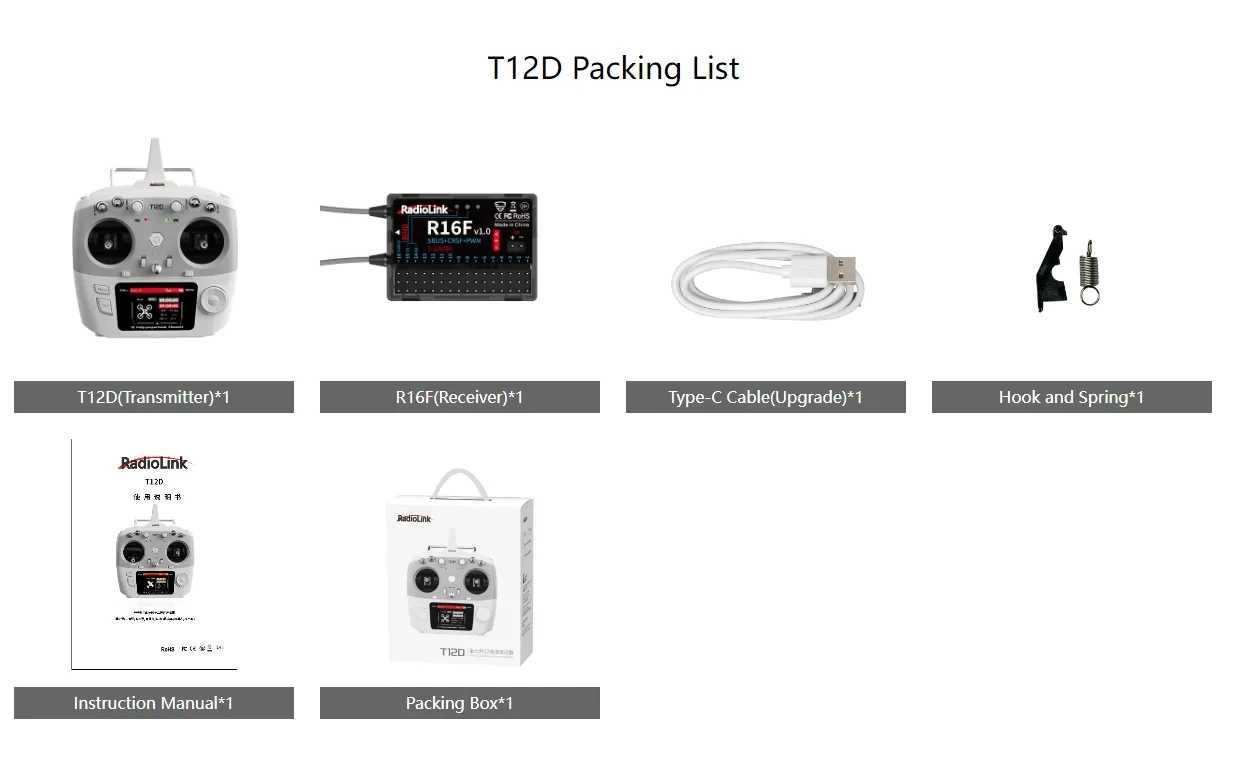

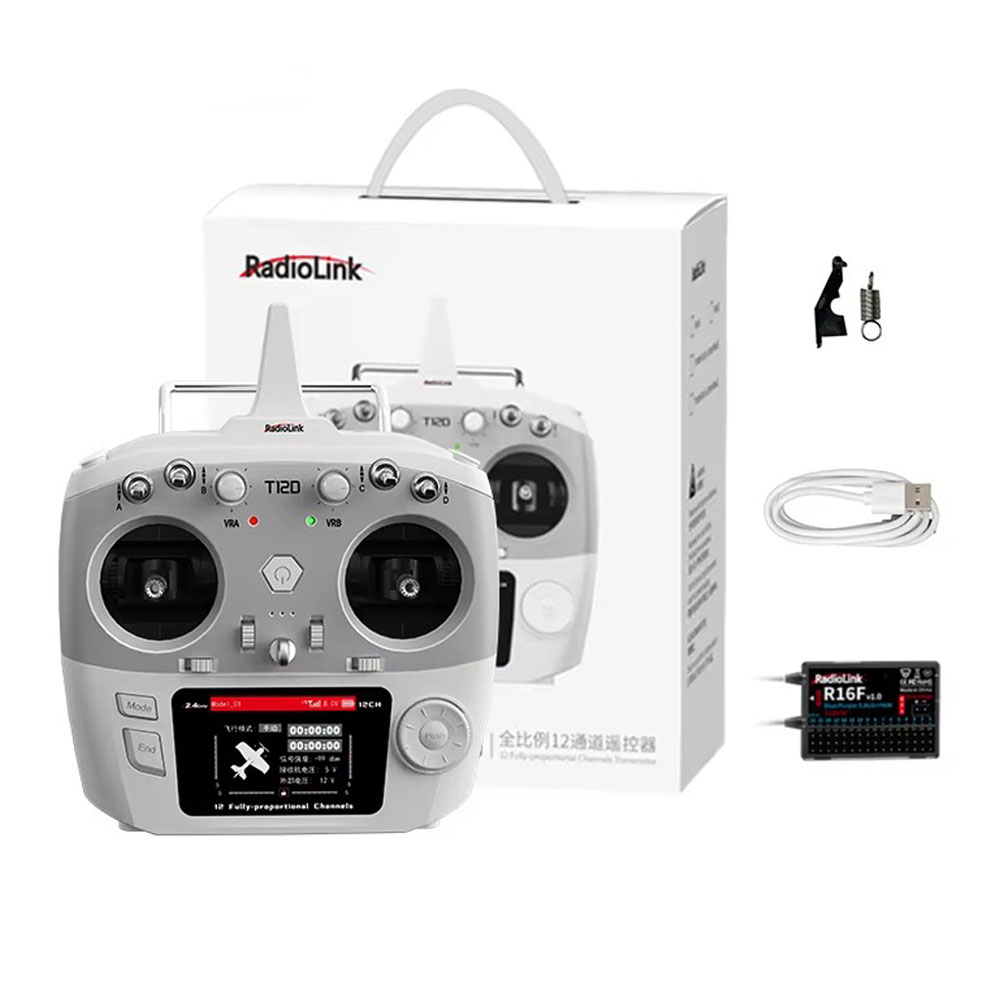

Package Included:

• T12D(Transmitter) x1

• R16F(Receiver) x1

• Type-C Cable (for Upgrade) X1

• Hook and Spring x1

• Instruction Manual x1

• Packing Box x1

Note: If you need parameters in detail, here's the Radiolink official link: https://www.radiolink.com/t12d

1.Twelve Fully-proportional Channels

Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.

3. Cutting-edge Communication Technology
