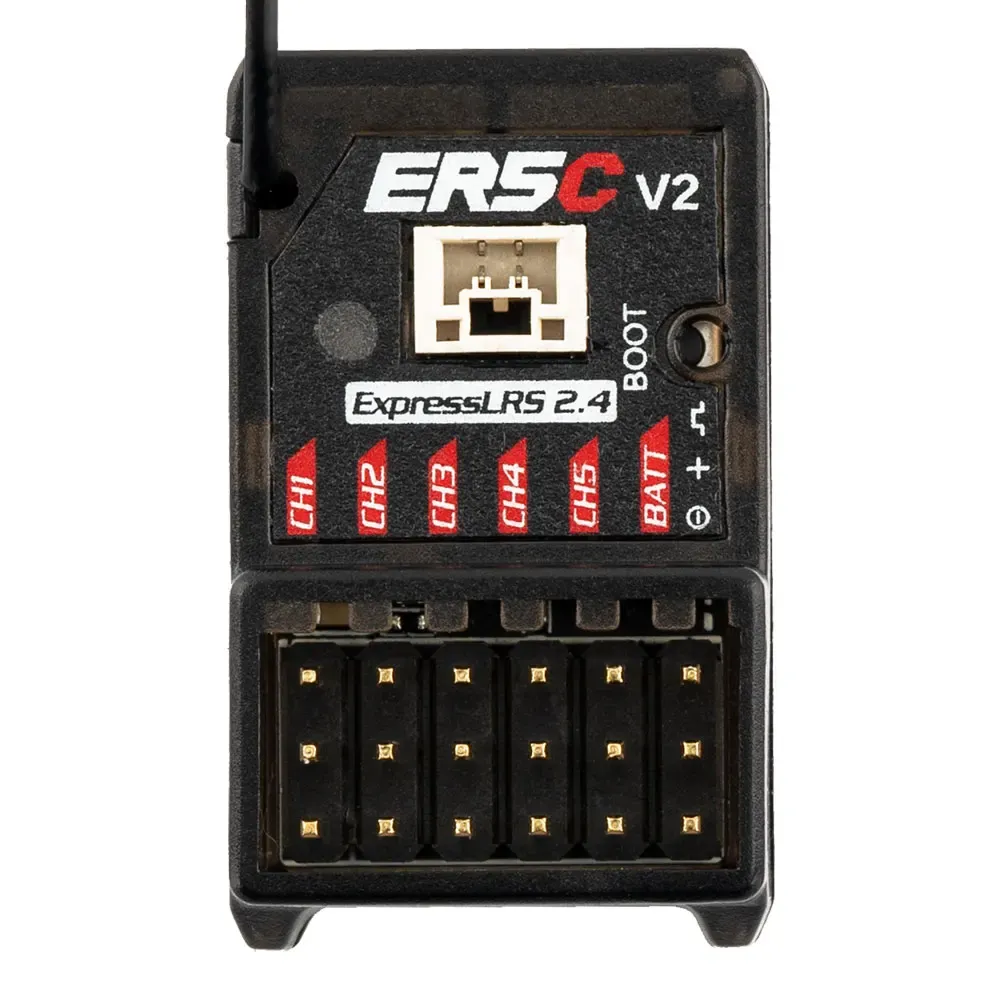

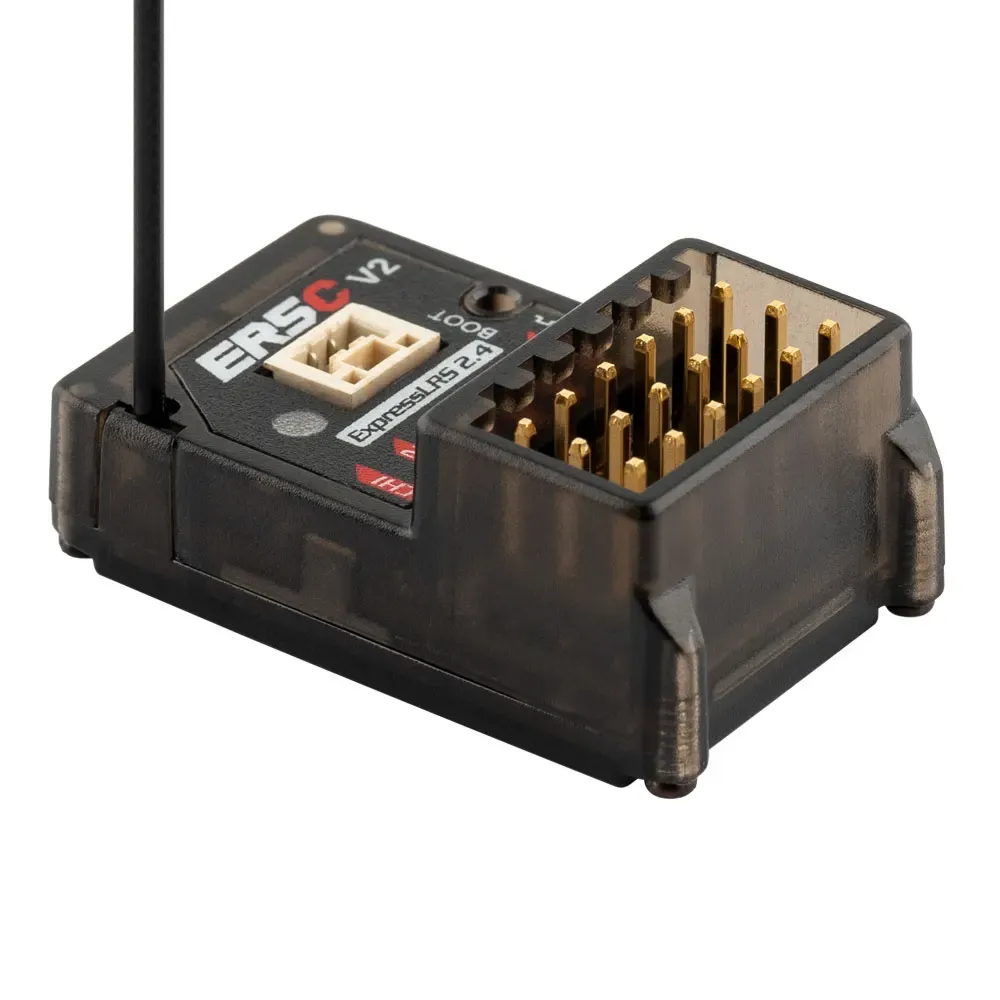

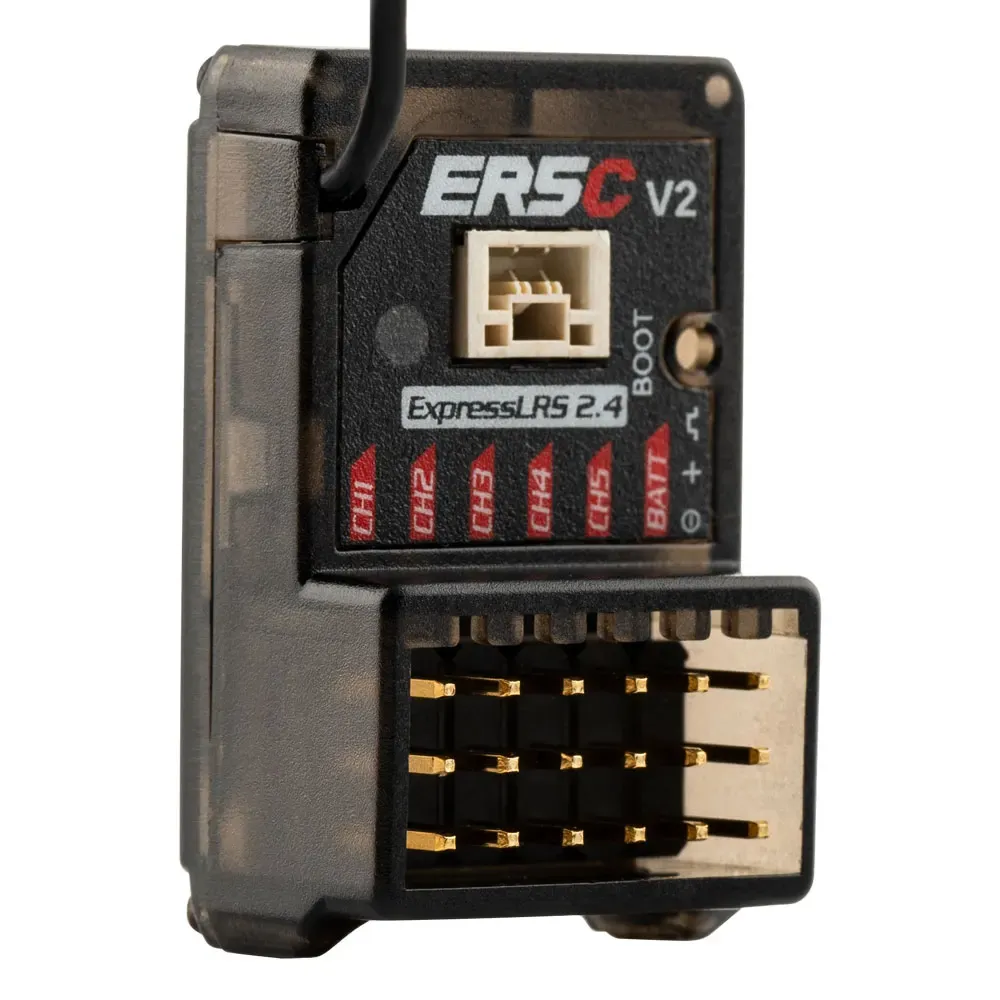

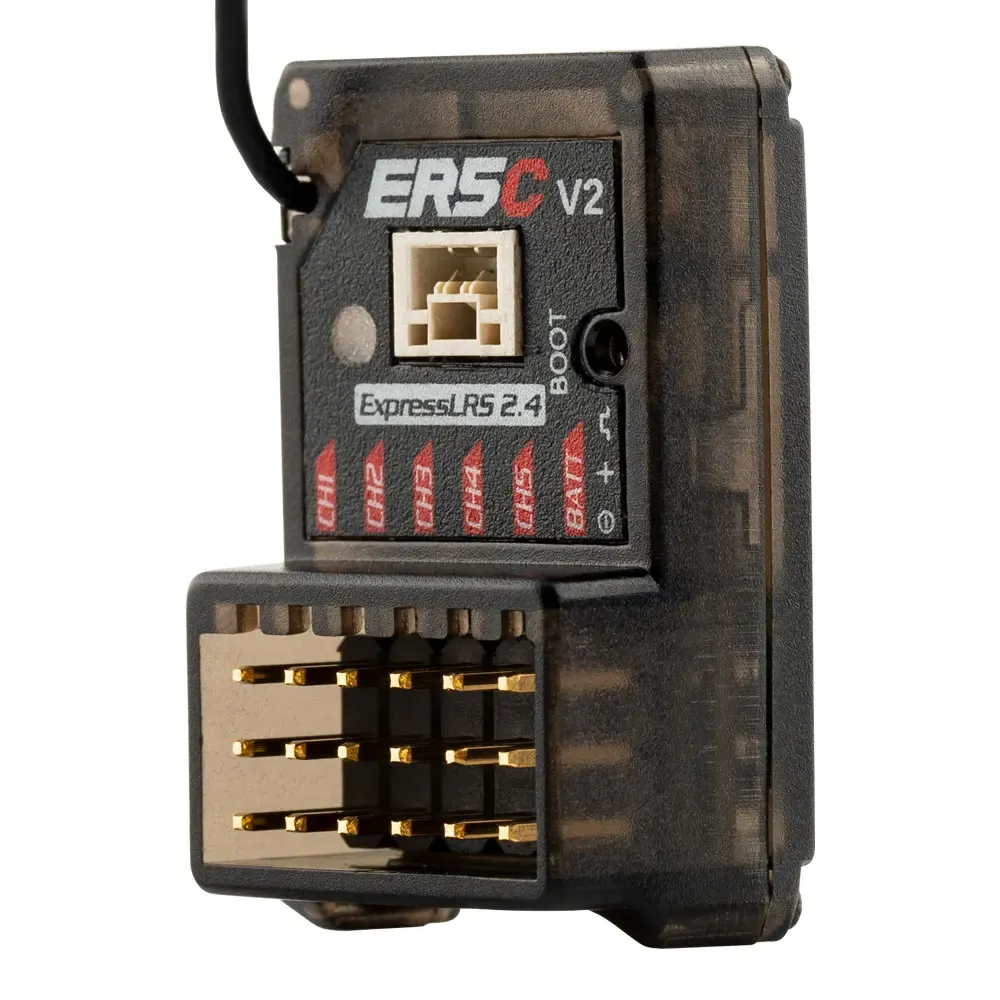

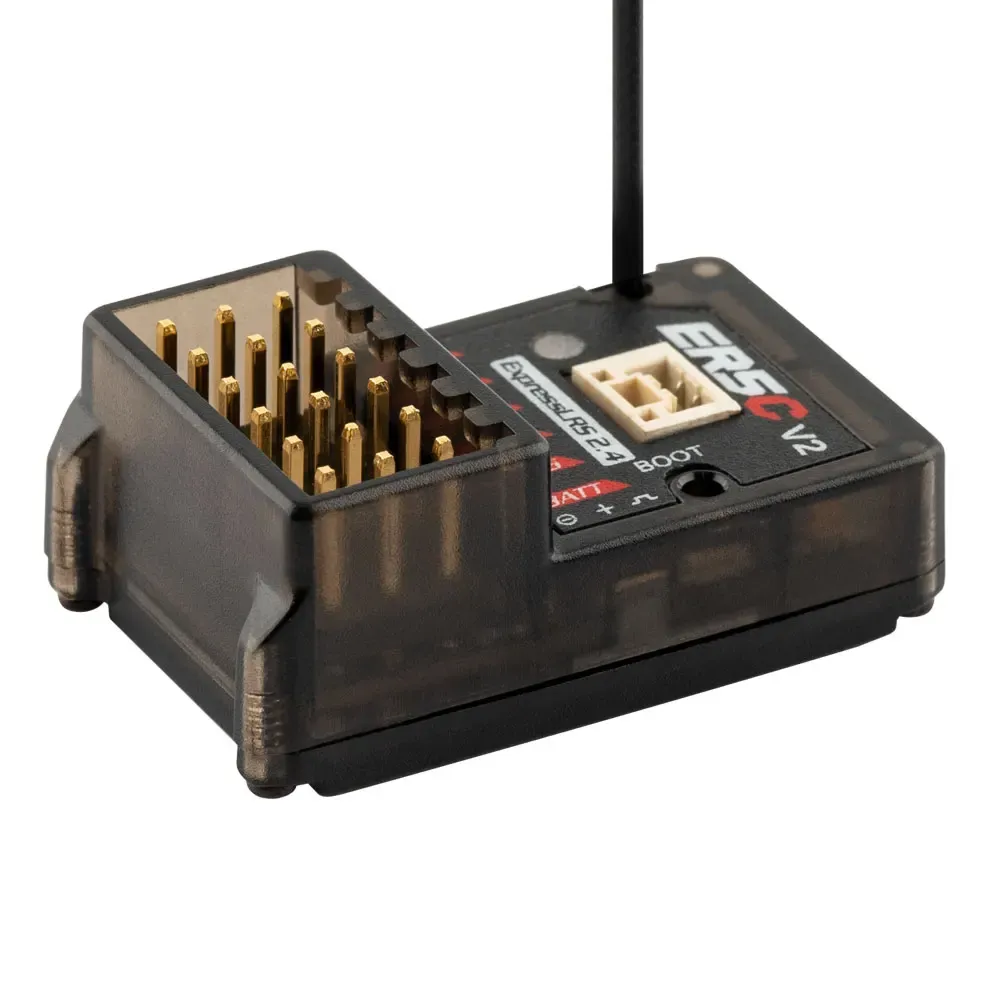

Radiomaster ER5C V2 2.4GHz ELRS PWM Receiver

Features

• Based on the Revolutionary ExpressLRS System

• High performance, high reliability, flexible configuration, fast response speed and ultra-long range

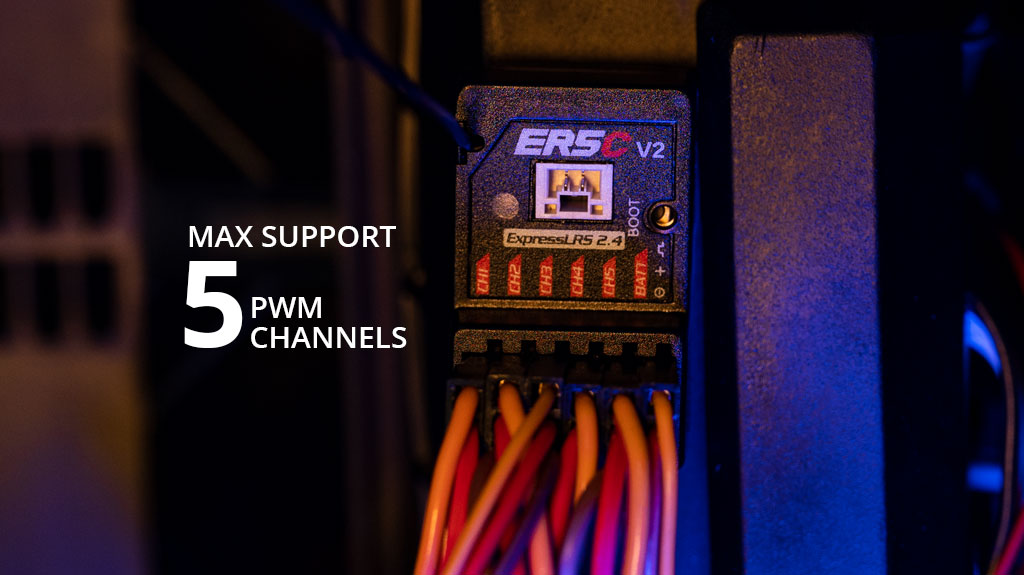

• Support 5 PWM Channels

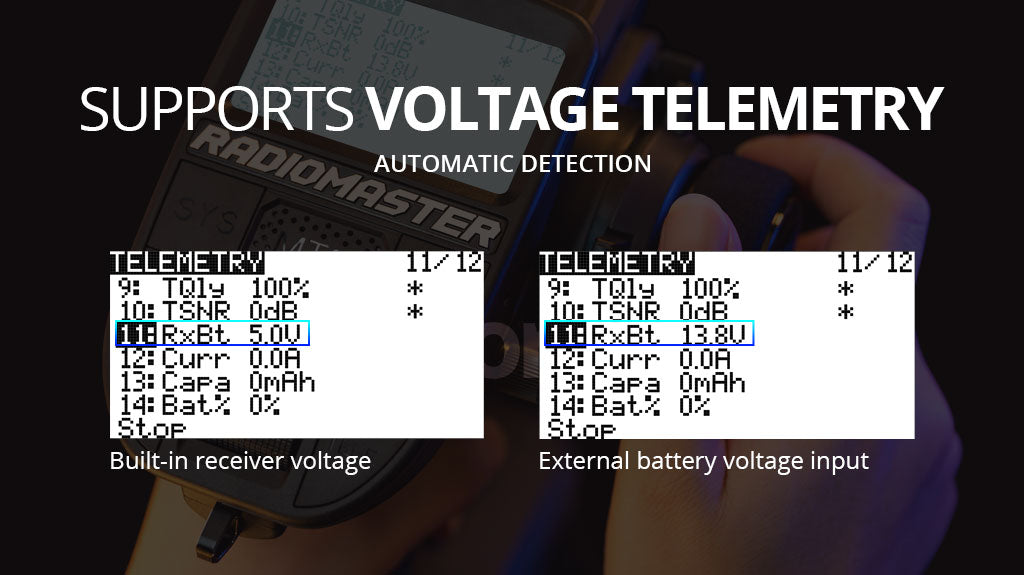

• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

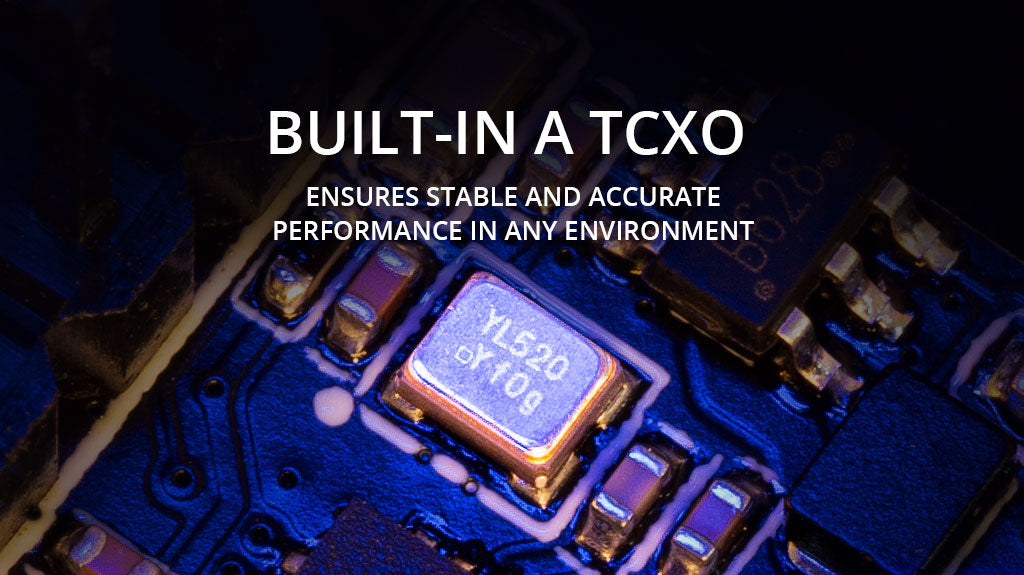

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

• Optimized ground up PCB design

• Supports Wi-Fi updates and WEBUI configuration

• Compact size, easy to install. Perfect for surface & marine R/C applications

• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

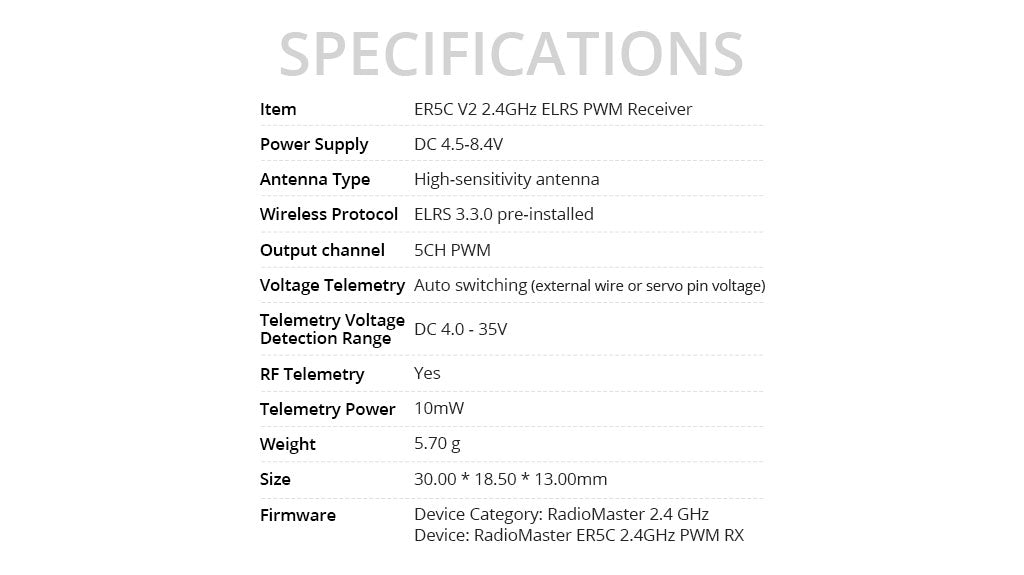

Specification

• Item: ER5C V2 2.4GHz ELRS PWM Receiver

• Power supply: DC 4.5-8.4V

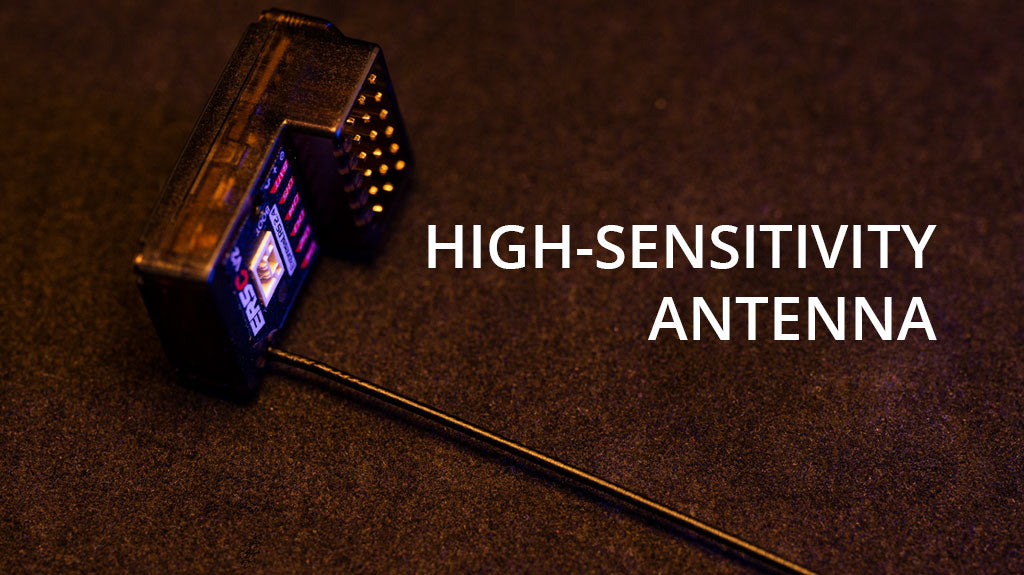

• Antenna type: High-sensitivity antenna

• Wireless Protocol: ELRS 3.3.0 pre-installed

• Channels: 5

• Telemetry Voltage Detection Range: DC 4.0 - 35V

• RF Telemetry: Yes

• Telemetry Power: 10mw

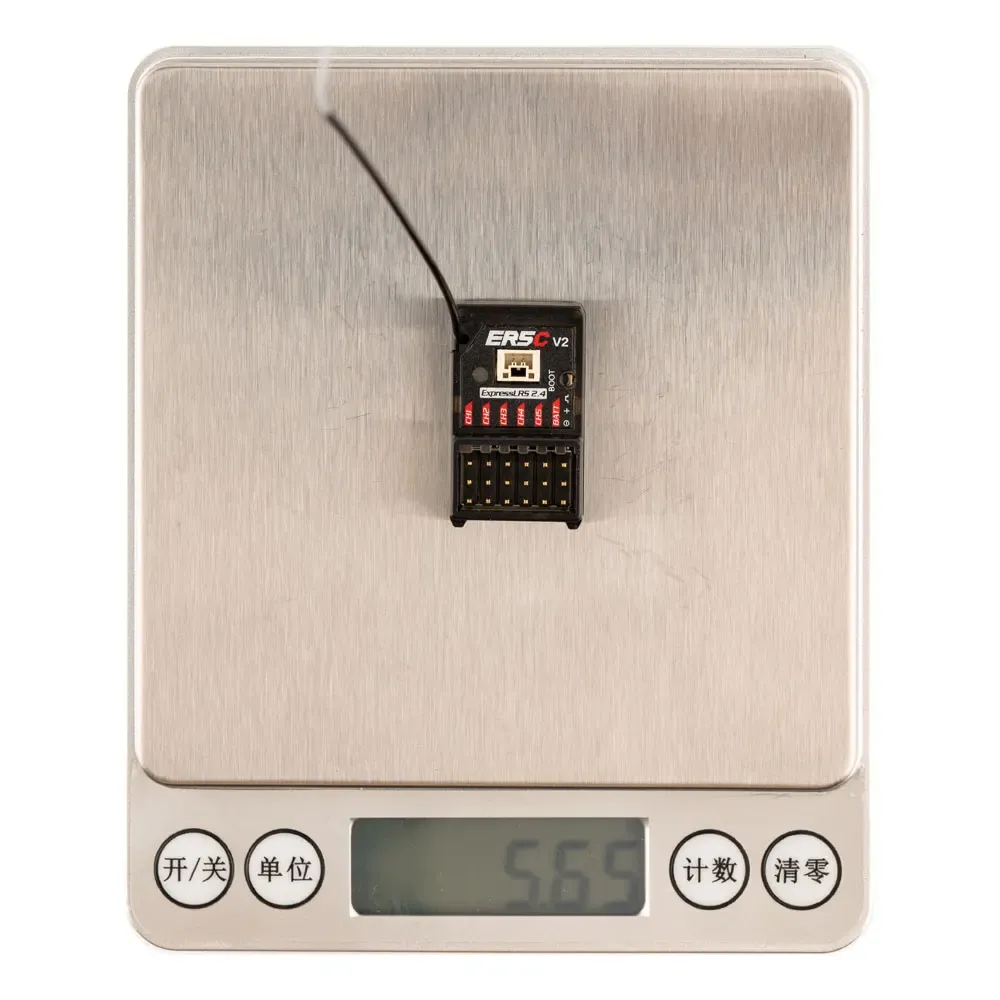

• Weight: 5.7 grams

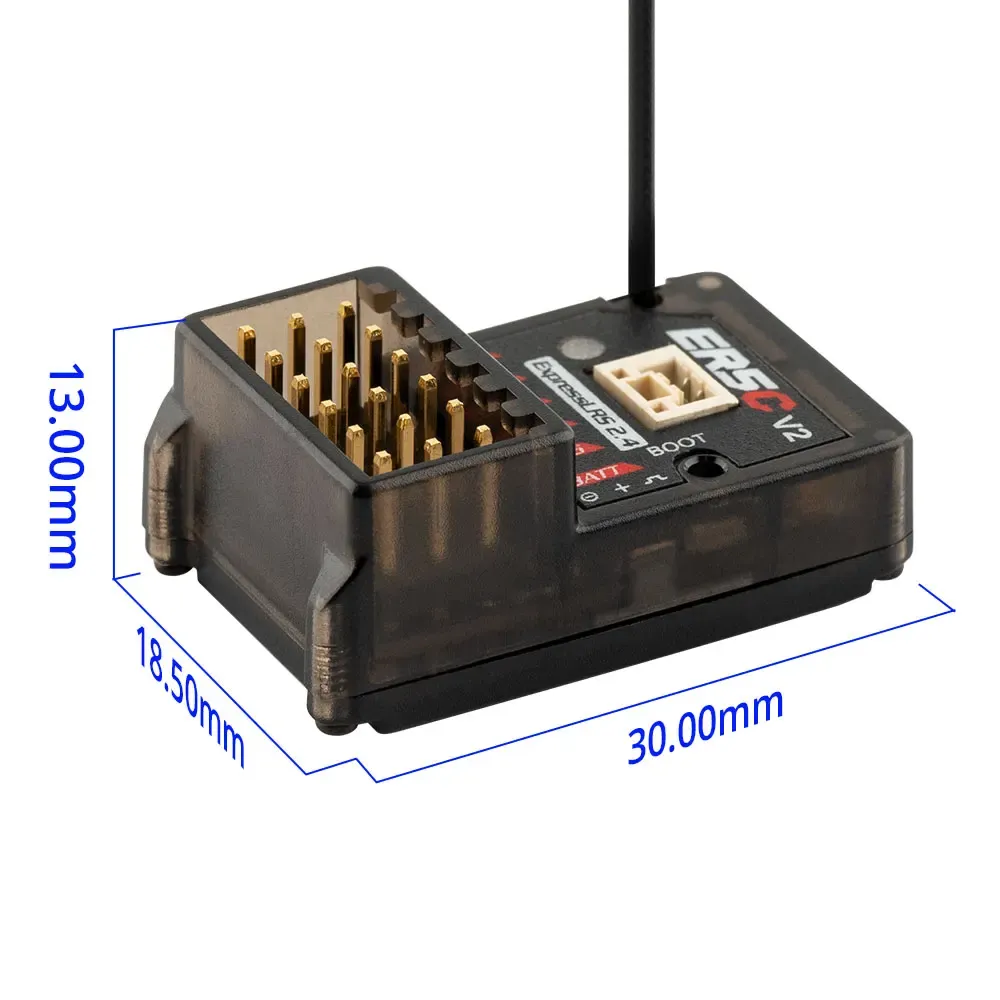

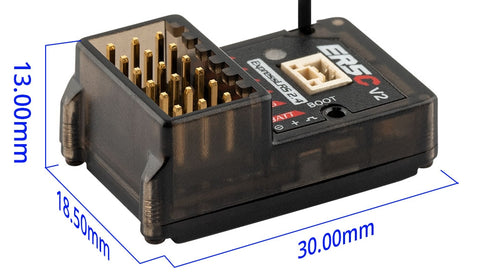

• Size: 30.0 * 18.5 * 13.0mm

• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

Size

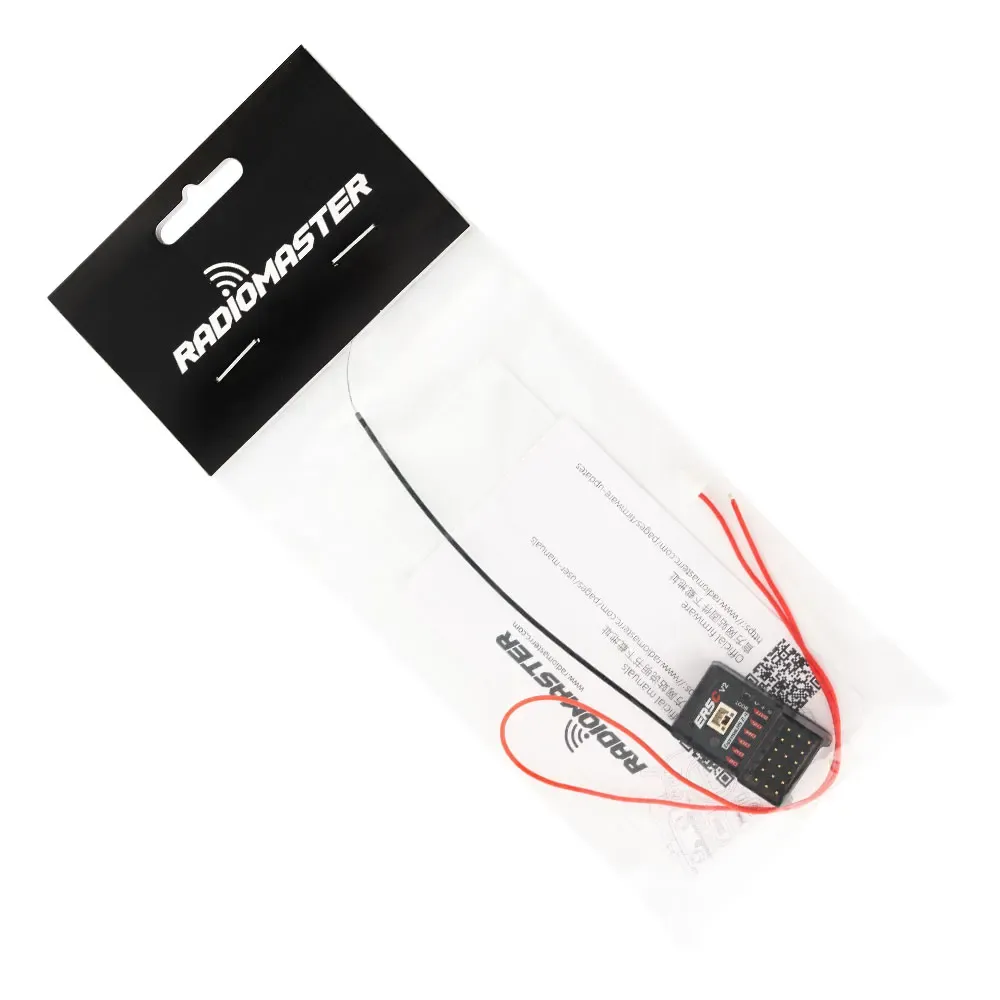

Package Includes

• 1 * ER5C V2 2.4GHz ELRS PWM Receiver

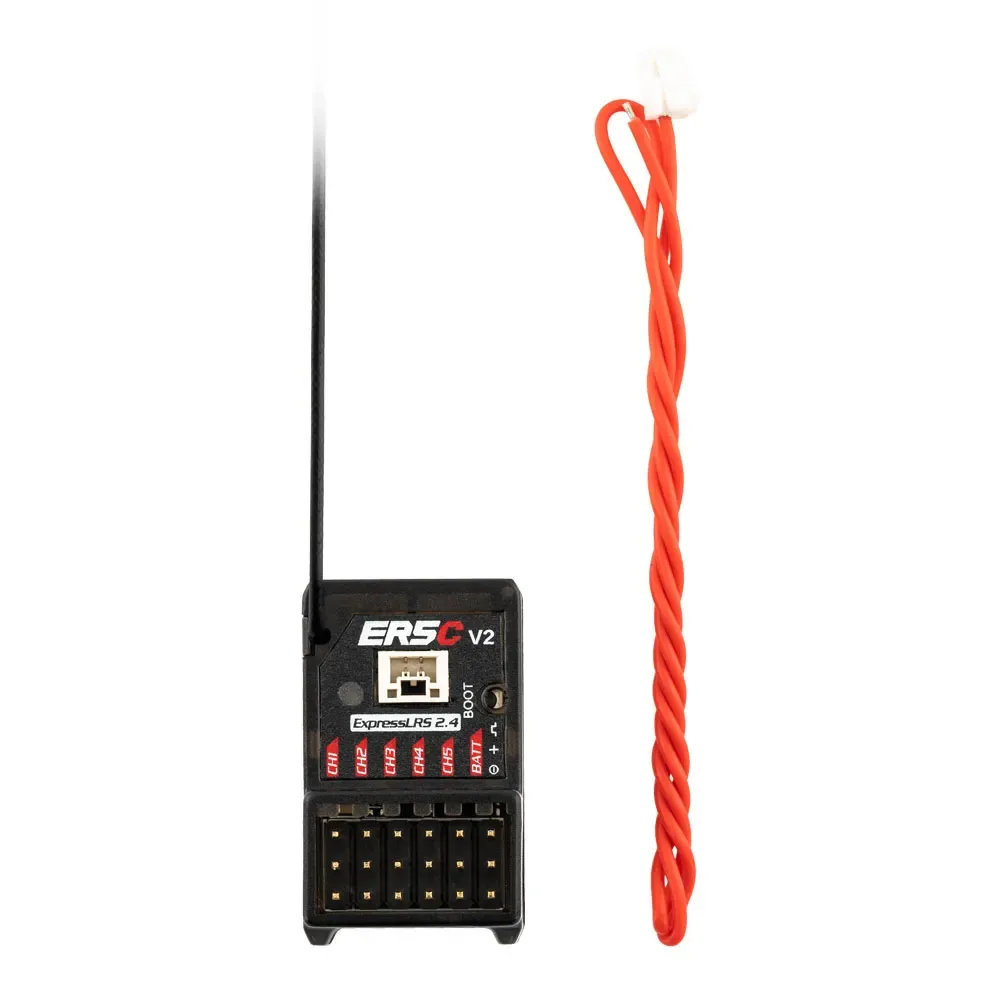

• 1 * Voltage telemetry wire

• 1 * User Card
