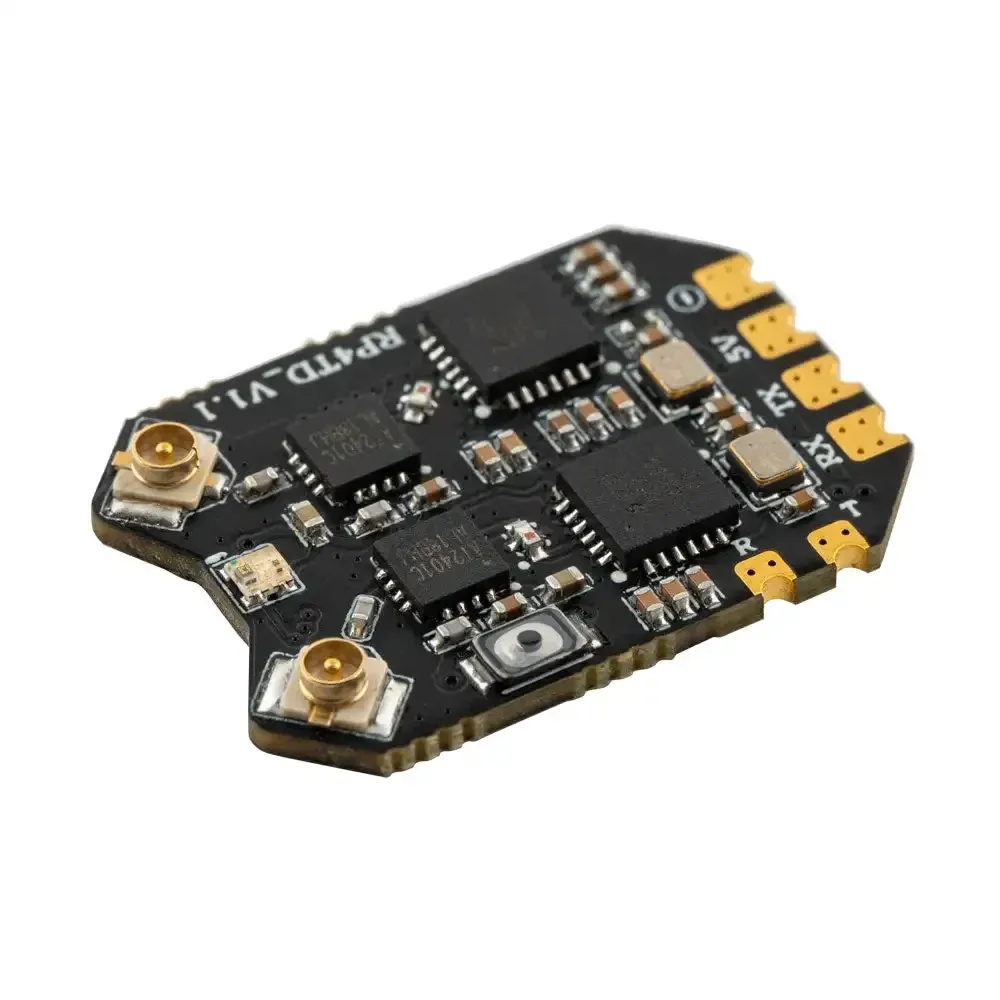

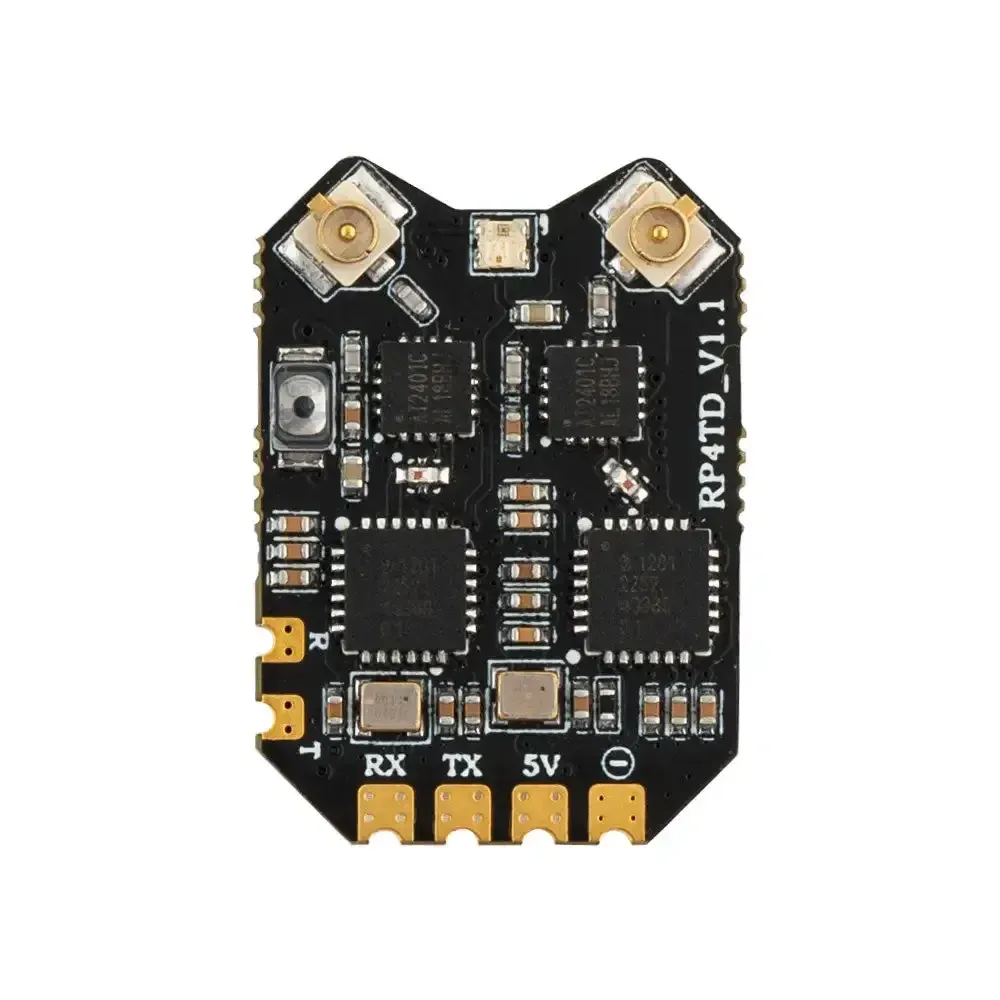

RadioMaster RP4TD ExpressLRS 2.4GHz True Diversity Receiver

Features
Gemini mode compatible
Reliable DCDC Power supply circuit
Class leading SNR and RSSI performance
Optimized PCB design for better heat dissipation

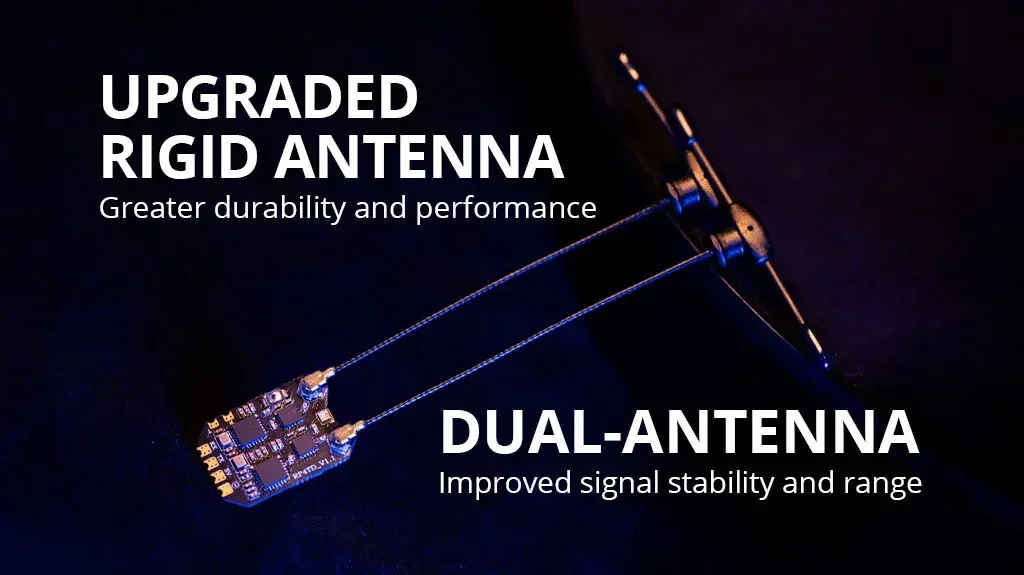

Upgraded antenna with greater durability and performance
UART pads for extended applications
Dual TCXO (temperature compensated crystal oscillator)
2x 100mw RF Telemetry power output
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

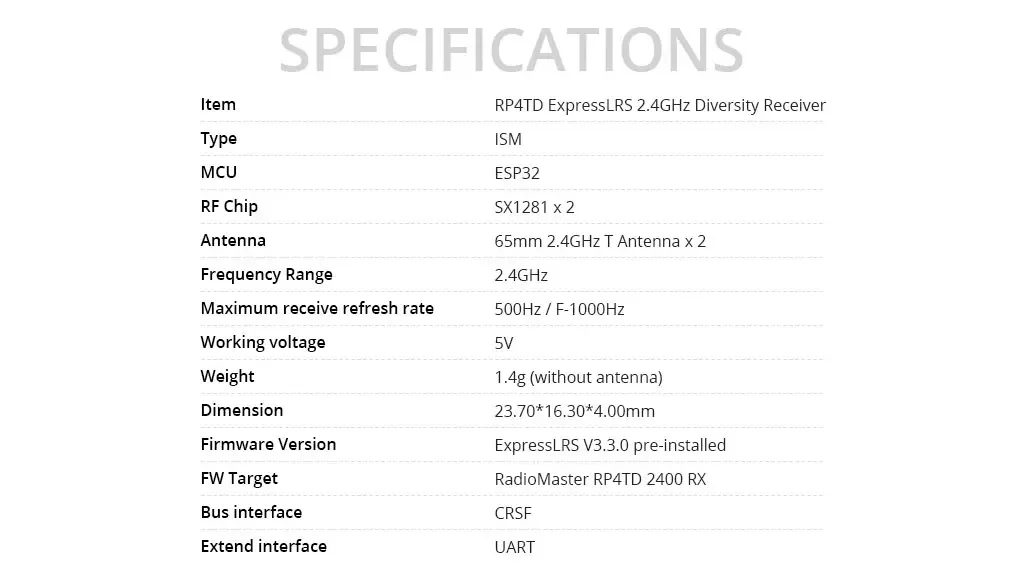

Specifications
Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
Type: ISM

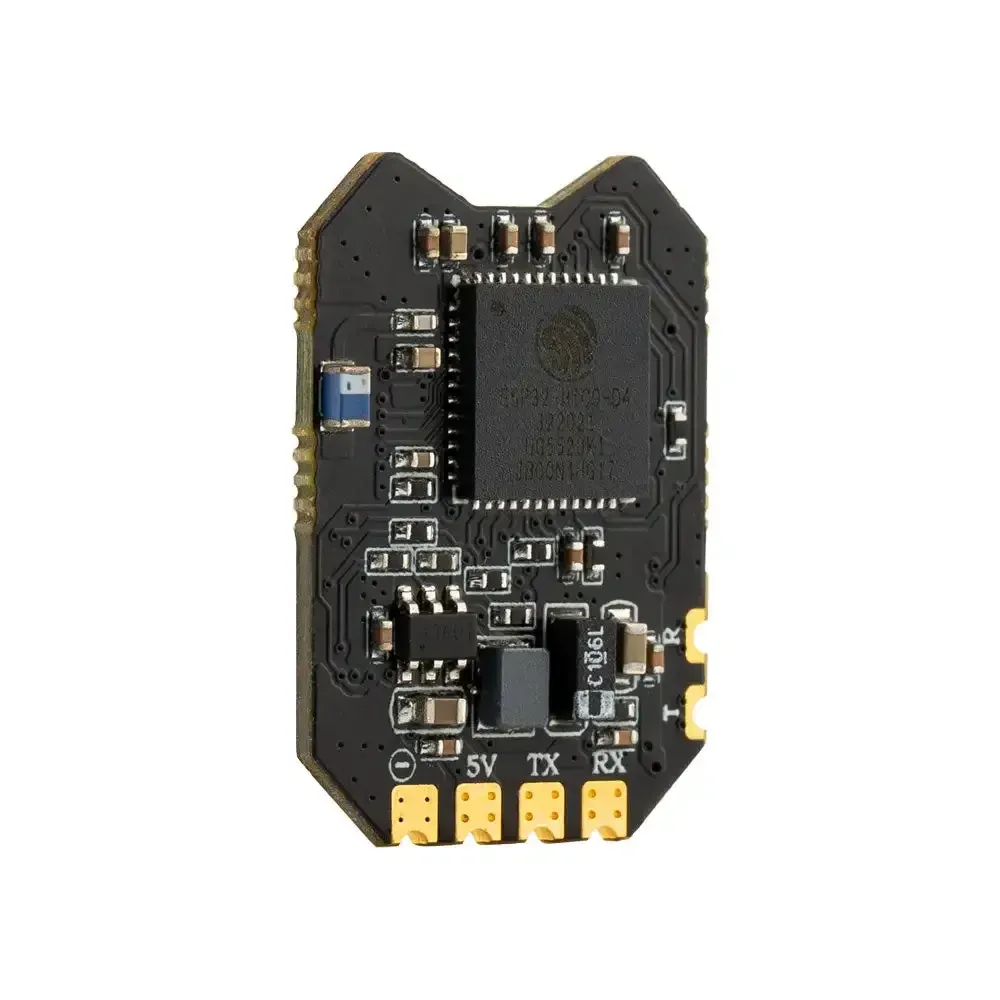

MCU: ESP32

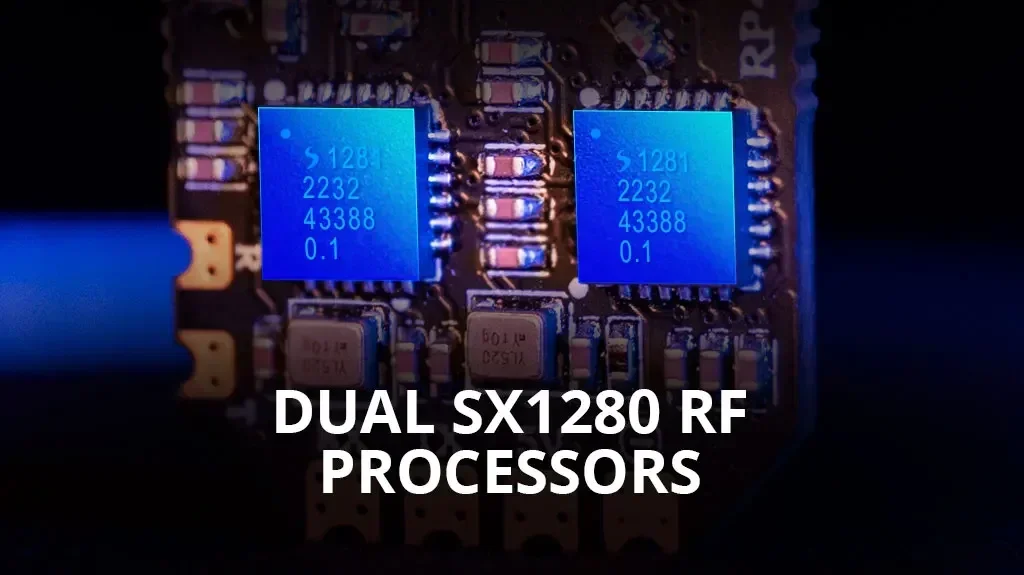

RF Chip: SX1281 x 2

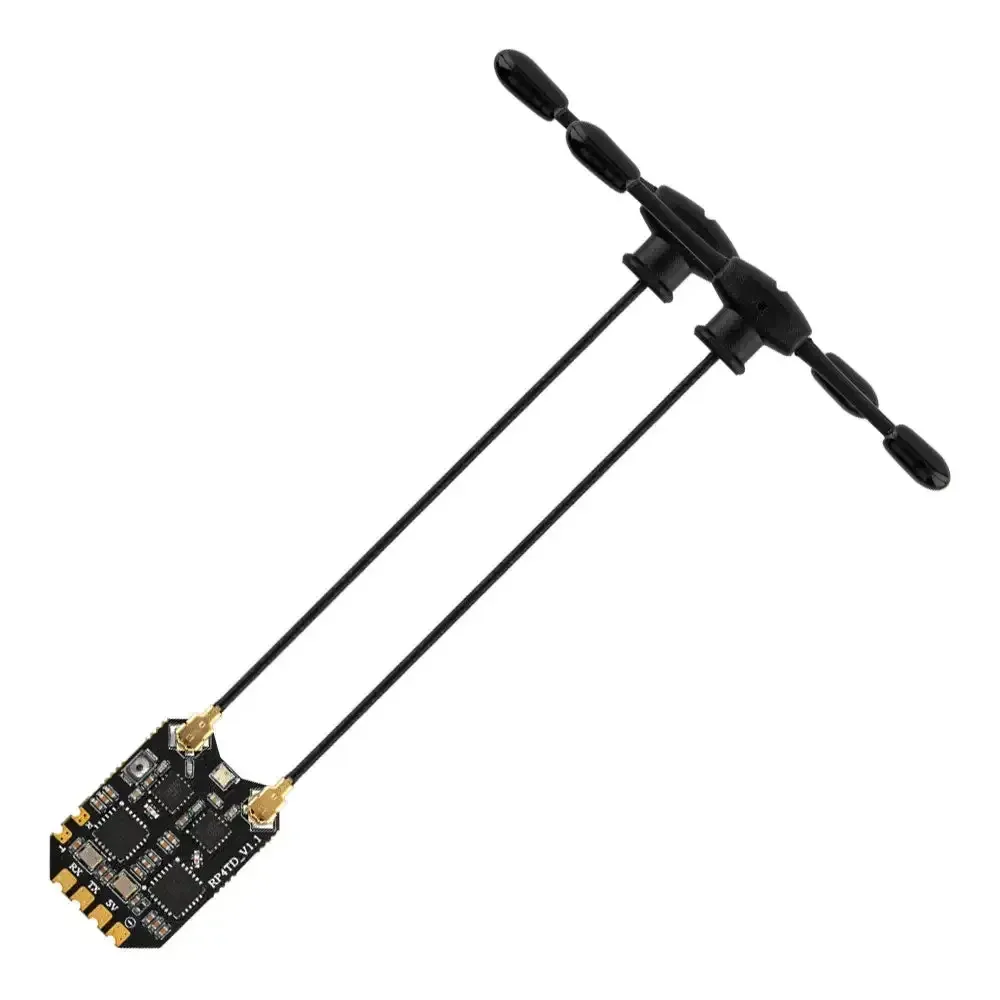

Antenna: 65mm 2.4GHz T Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2x 100mW
Working Voltage: DC 4.5-12.0V

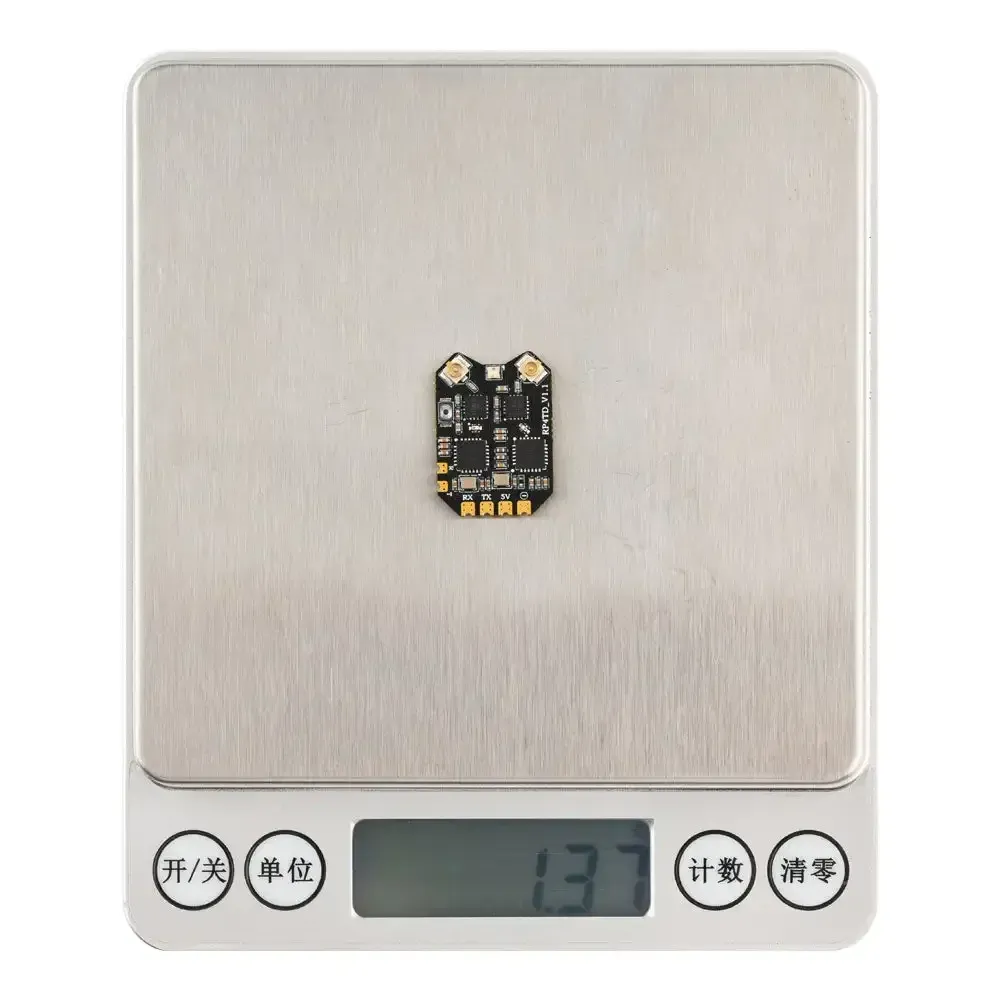

Weight: 1.4g (without antenna)

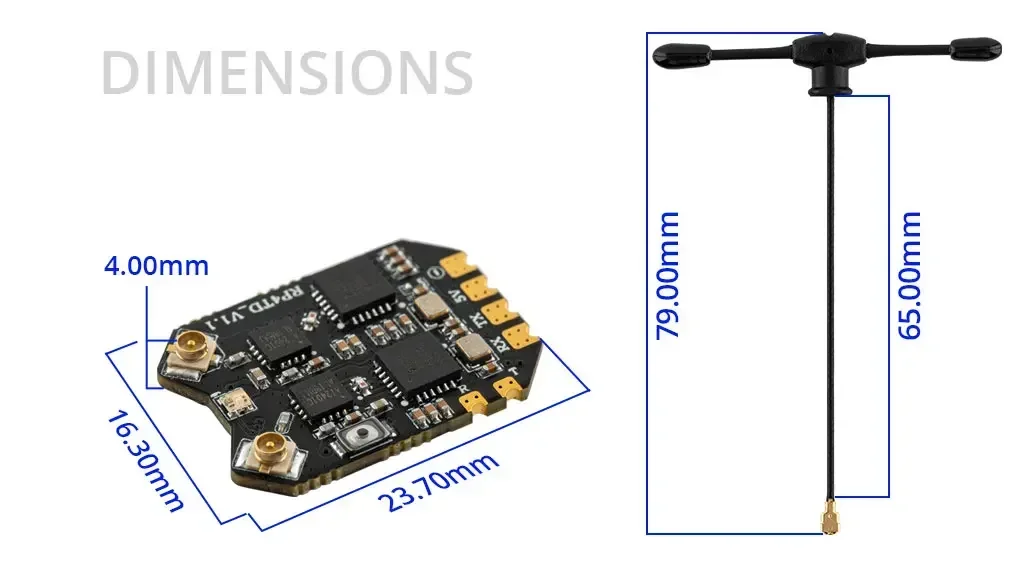

Dimension: 23.7*16.3*4.0mm
Firmware Version: ExpressLRS V3.3.0 pre-installed
FW Target: RadioMaster RP4TD 2400 RX
Bus interface: CRSF
Extend interface: UART

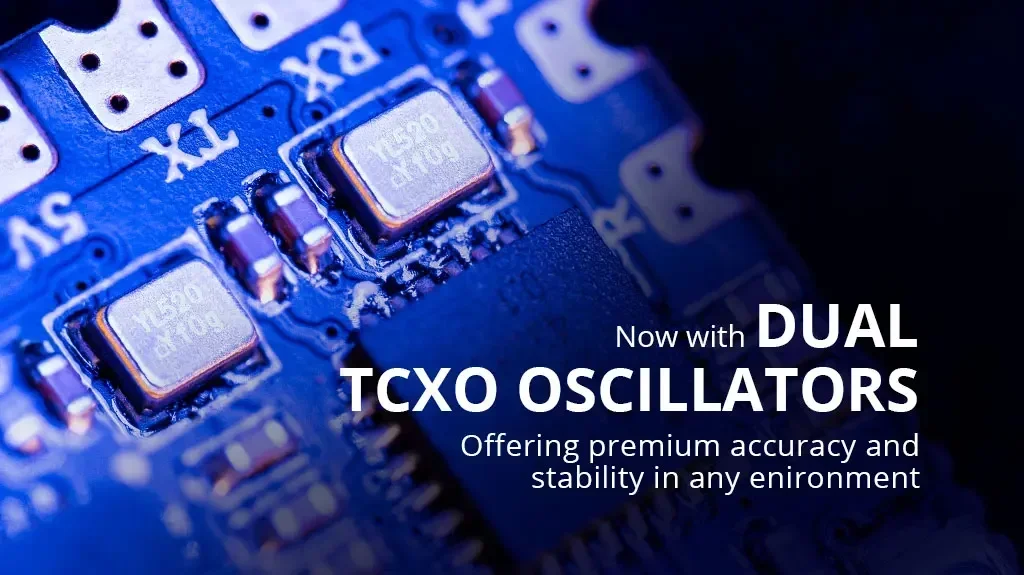

Dual TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. In our testing, we found that two TCXOs offer better advantages in true diversity receivers.
