RUSHFPV 1.3GHz 4W VTX with SMA Omni-directional Antenna Support IRC Tramp Protocol Video Transmitter

Features
-Designed for long-range flights, up to 4W transmitting power, and provide multi-level
adjustment.
-Efident PA and power calibration to ensure power consistency across all channels.

Settings

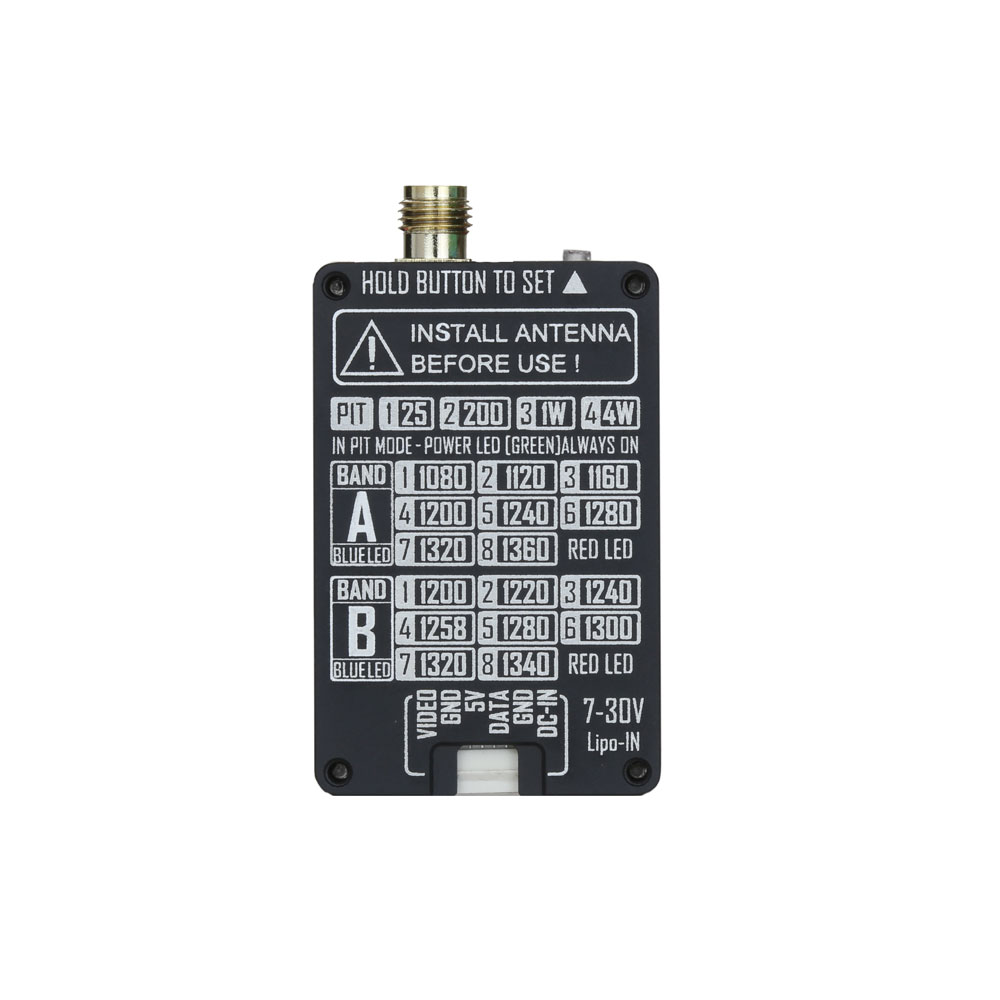

Controlled using a single button, the button integrates RGB lighting.    blue for band,red for
channel, and green for power level.
When there is no operation.    theRGB LED blinks cydically.    the number of times the RGB binks
represents the current VTX status (when the green LED is always on, the VTX enters PITMODE).
Long press the button to enter VTX setting.    at this time the RGB lights are lit altemately,
release the button under the corresponding color light to enter the corresponding function
setting.    At this time, short press the button to adjust the value.
For setup via the flight controller, connect the DATA pin and use the IRC Trump protocol.
-Customized digital PLL drouit, chip level integration, no frequency dritt.
-Built-in bandpass itter to reduce harmonic interference to navigation equipment.

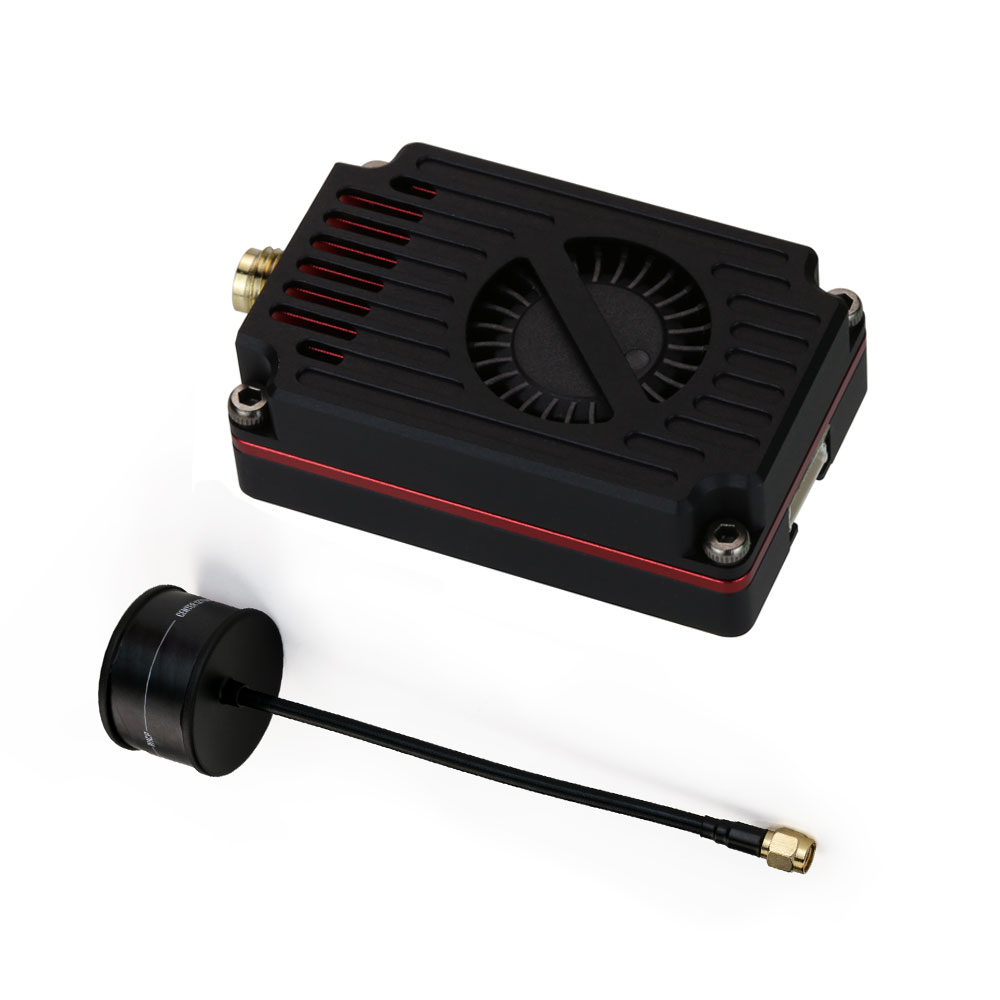

-Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat
dissipation to ensure stable output of transmitting power.

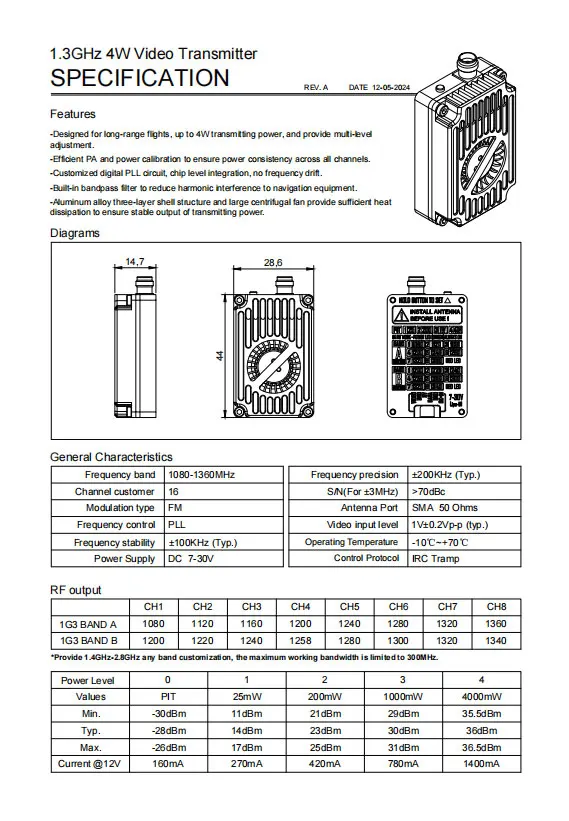

General Characteristics
Frequency band: 1080-1360MHz
Frequency precision: ±200KHz(Typ.)
Channel customer: 16
SN(For ±3MHz) >70dBc
Modulation type: FM
Antenna Port: SMA 50 Ohms
Frequency control: PLL
Video input level: 1V±0.2Vp-p (typ.)
Frequency stability: ±100KHz(Typ.)
Operating Temperature: -10℃-+70℃
Power Supply: DC 7-30V
Control Protocol: IRC Tramp

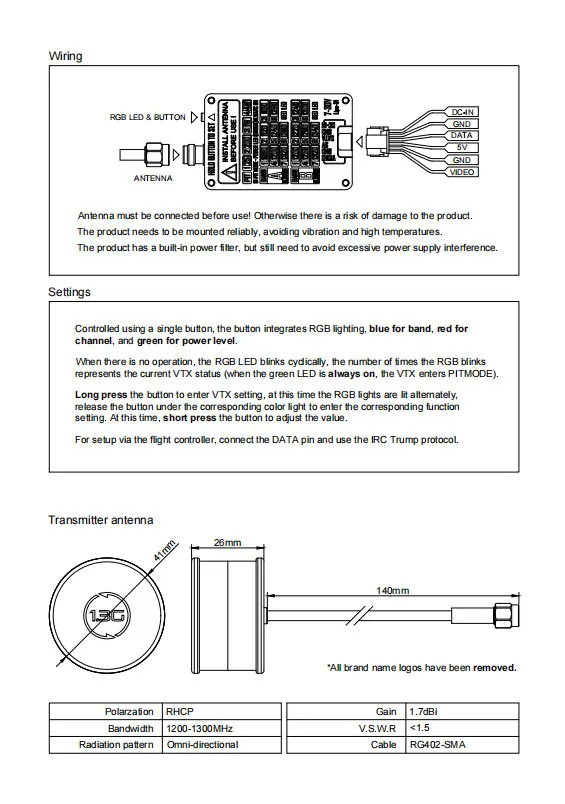

Antenna must be connected before use!      Otherwise there is a risk of damage to the product.
The product needs to be mounted reliably, avoiding vibration and high temperatures.
The product has a built-in power filter, but sill need to avoid excessive power supply interference.

Settings
Controlled using a single button, the button integrates RGB lighting.    blue for band,red for
channel, and green for power level.
When there is no operation.    theRGB LED blinks cydically.    the number of times the RGB binks
represents the current VTX status (when the green LED is always on, the VTX enters PITMODE).
Long press the button to enter VTX setting.    at this time the RGB lights are lit altemately,
release the button under the corresponding color light to enter the corresponding function
setting.    At this time, short press the button to adjust the value.
For setup via the flight controller, connect the DATA pin and use the IRC Trump protocol.

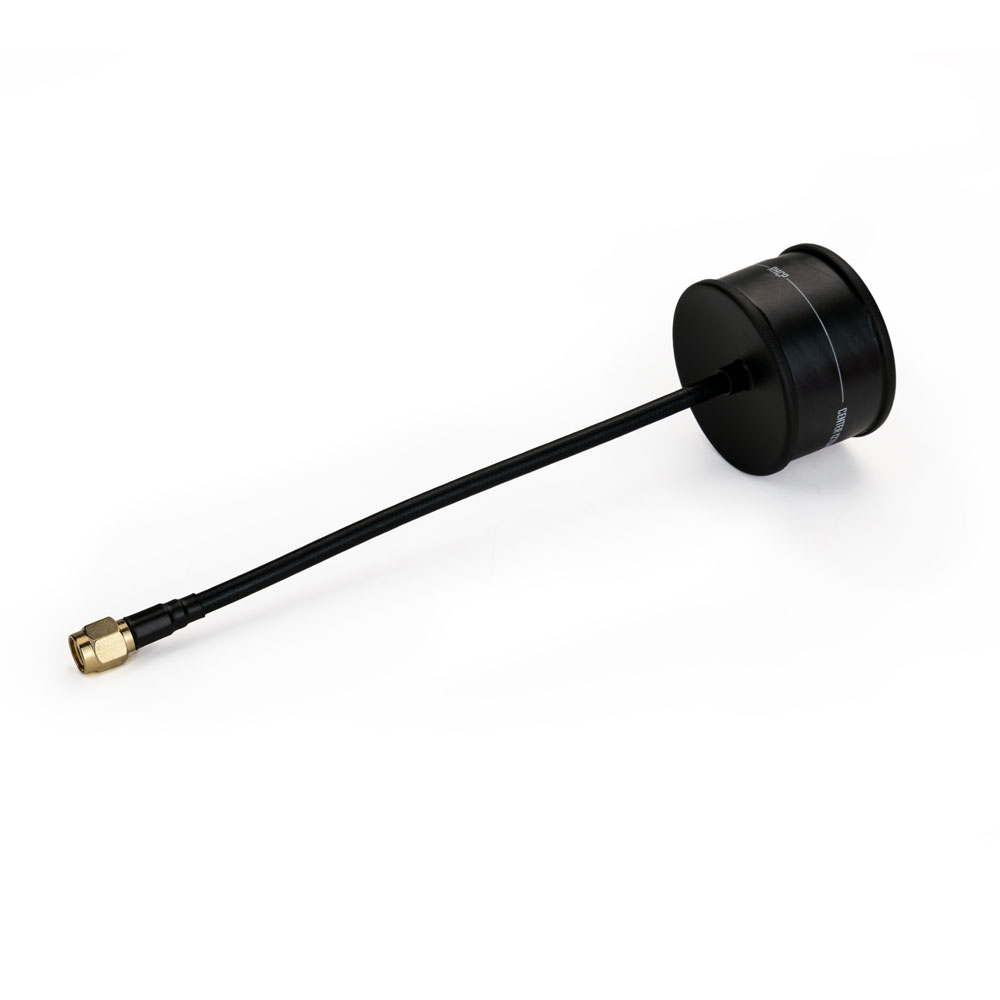

Transmitter Antenna
Polarzation: RHCP
Gain: 1.7dBi
Bandwidth: 1200-1300MHz
V.S.W.R <1.5
Radiation pattern: Omni-directional
Cable: RG402-SMA
