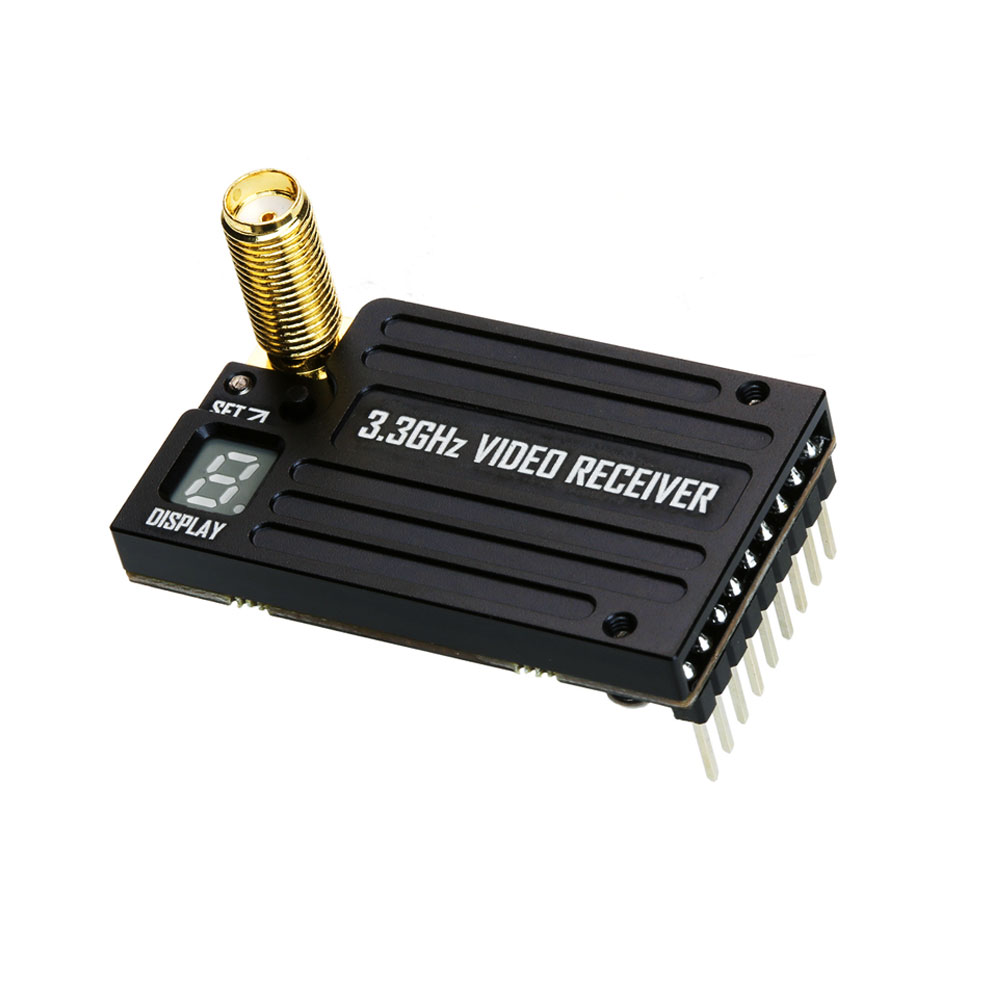

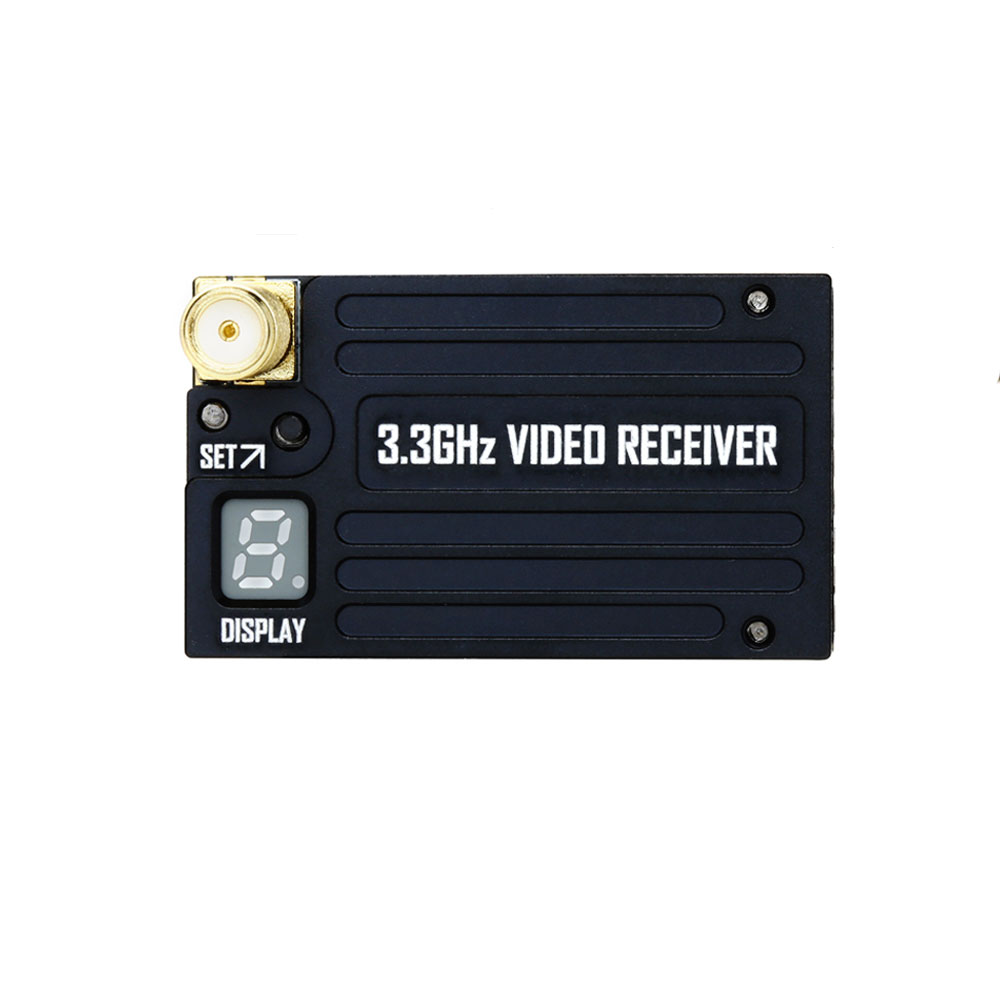

3.3GHz Glasses VRX Module
Features
-Compact unit design and covered with aluminum alloy housing, compatible with mainstream video glasses for flush mounting.
-High-performance RF circuitry with full-range sensitivity below-95dB.
-Supports 3.3GHz BAND A and B, providing operating frequency from 3170-3470MHz.
-Built-in digital tube displays current operating status.
Specification
Video Output format:CVBS PAL / NTSC
Frequency band: 3170-3470MHz

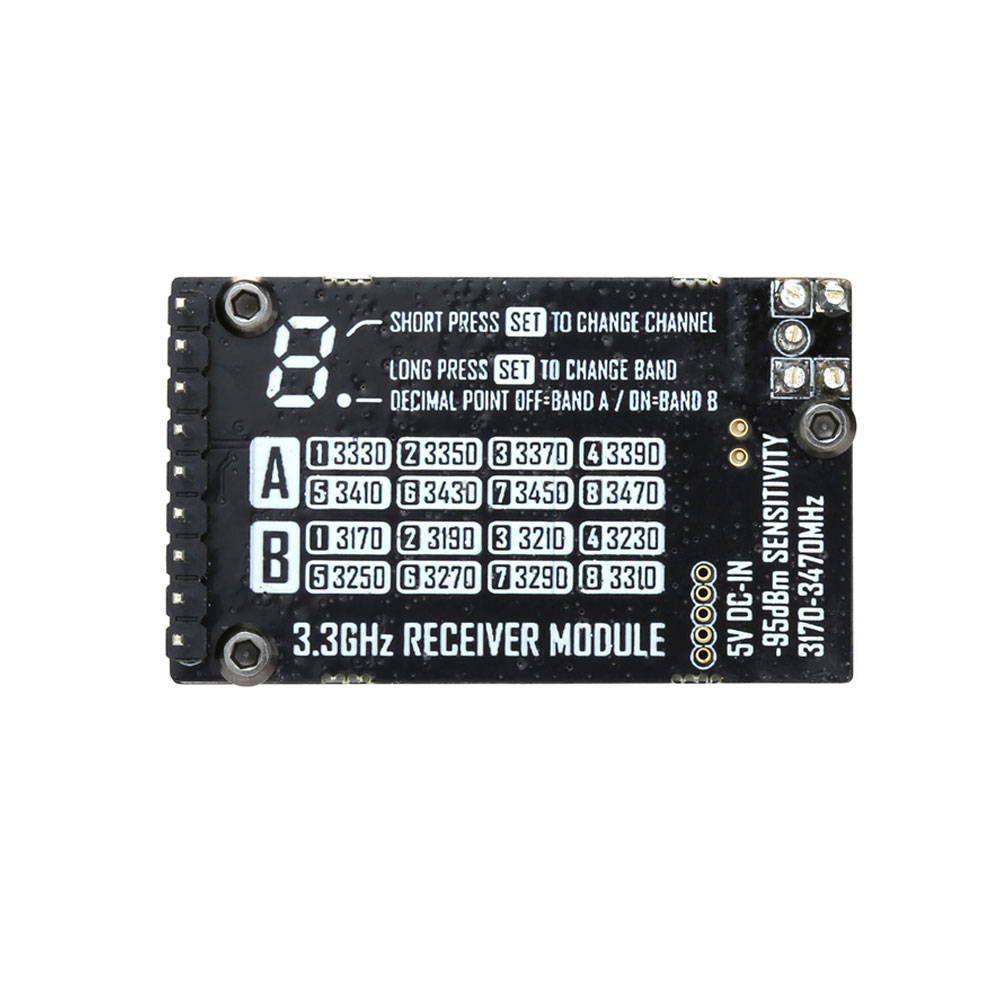

Channel Frequency:BAND A 3330 3350 3370 3390 3410 3430 3450 3470
BAND B 3170 3190 3210 3230 3250 3270 3290 3310
Receiving Sensitivity ≤-95dBm
Input Voltage: DC 5V
Operating Temp.: -10℃-+60 C
Operating humidity: 85% RH

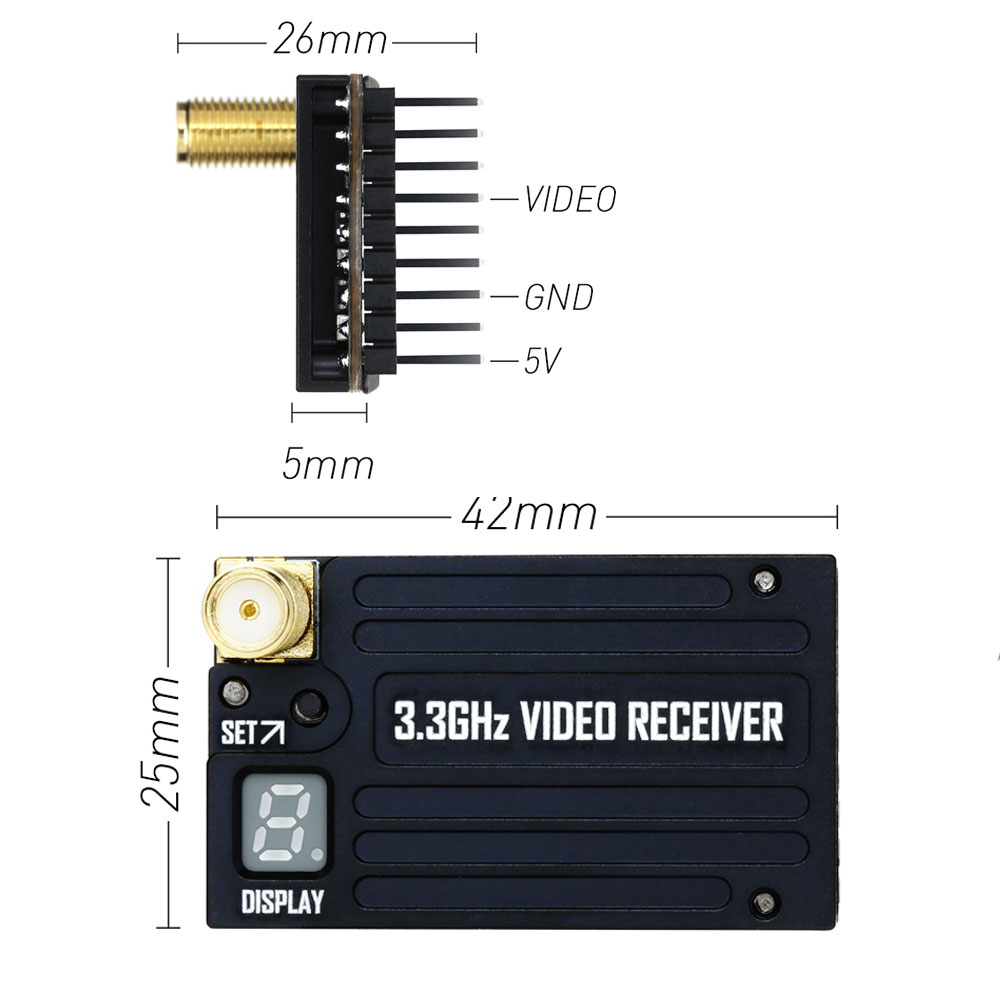

Dimension: 42mm x 25mm x 26mm
Weight : 9.5g (VRX Only)
