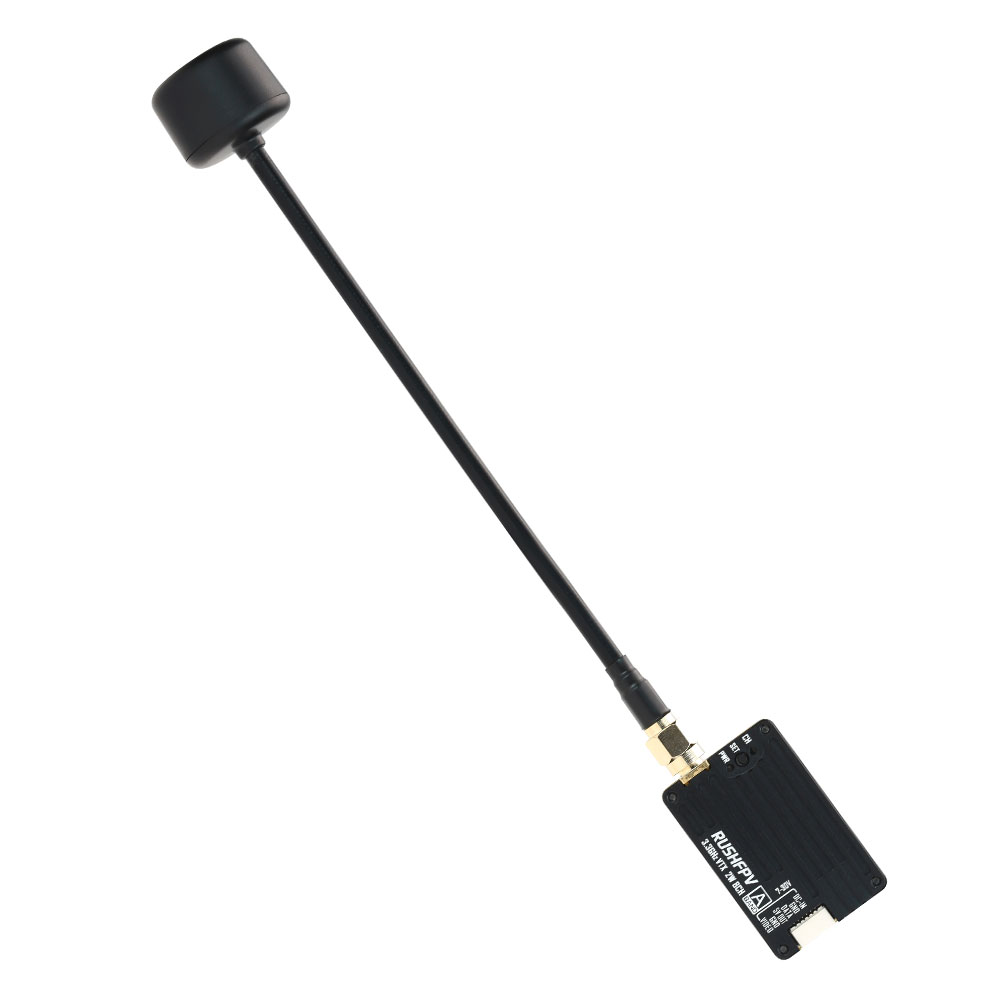

RUSHFPV 3.3GHz 2W VTX with SMA Circular Polarized Antenna Supports IRC Tramp Protocol for RC FPV Long Range Drone

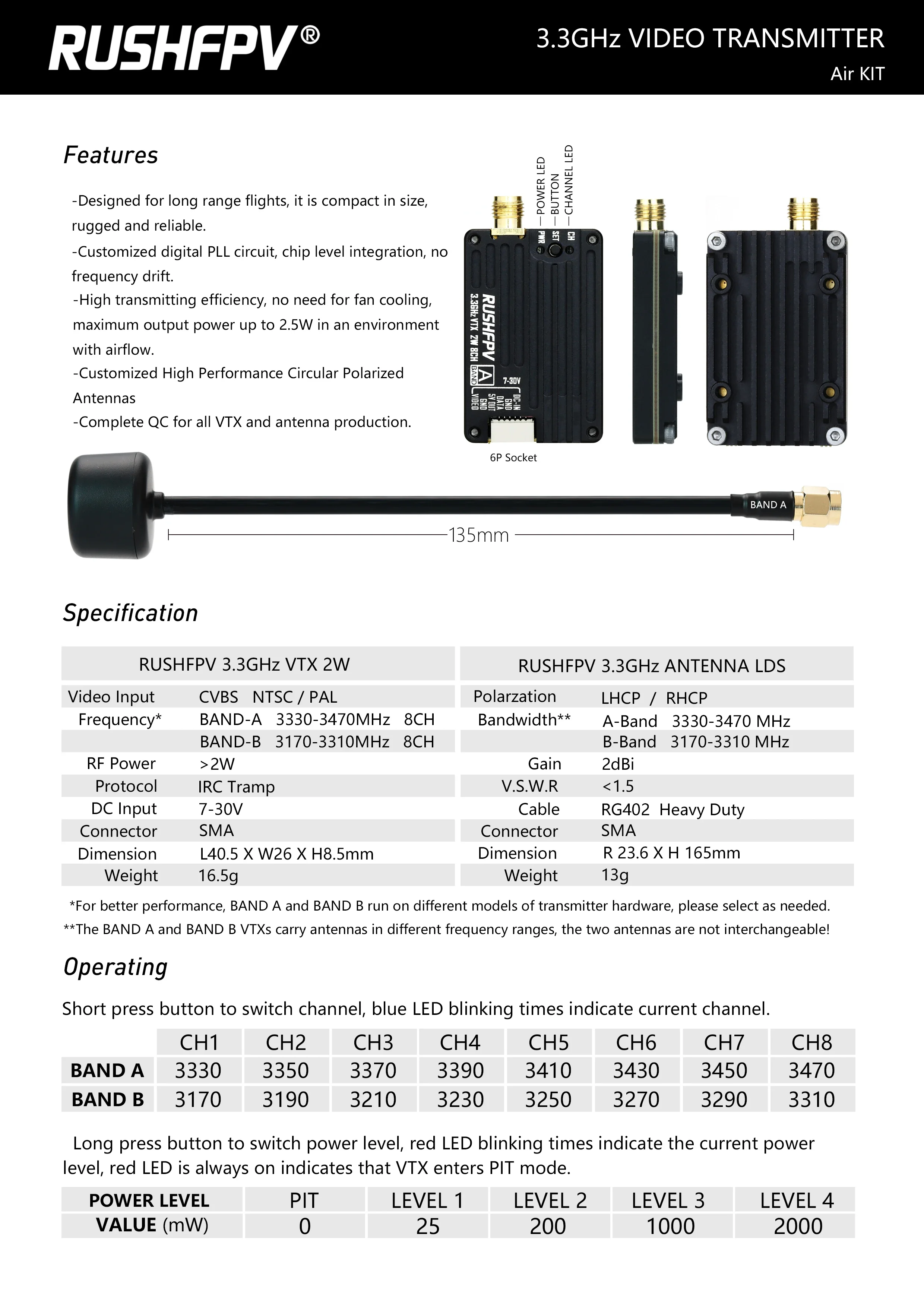

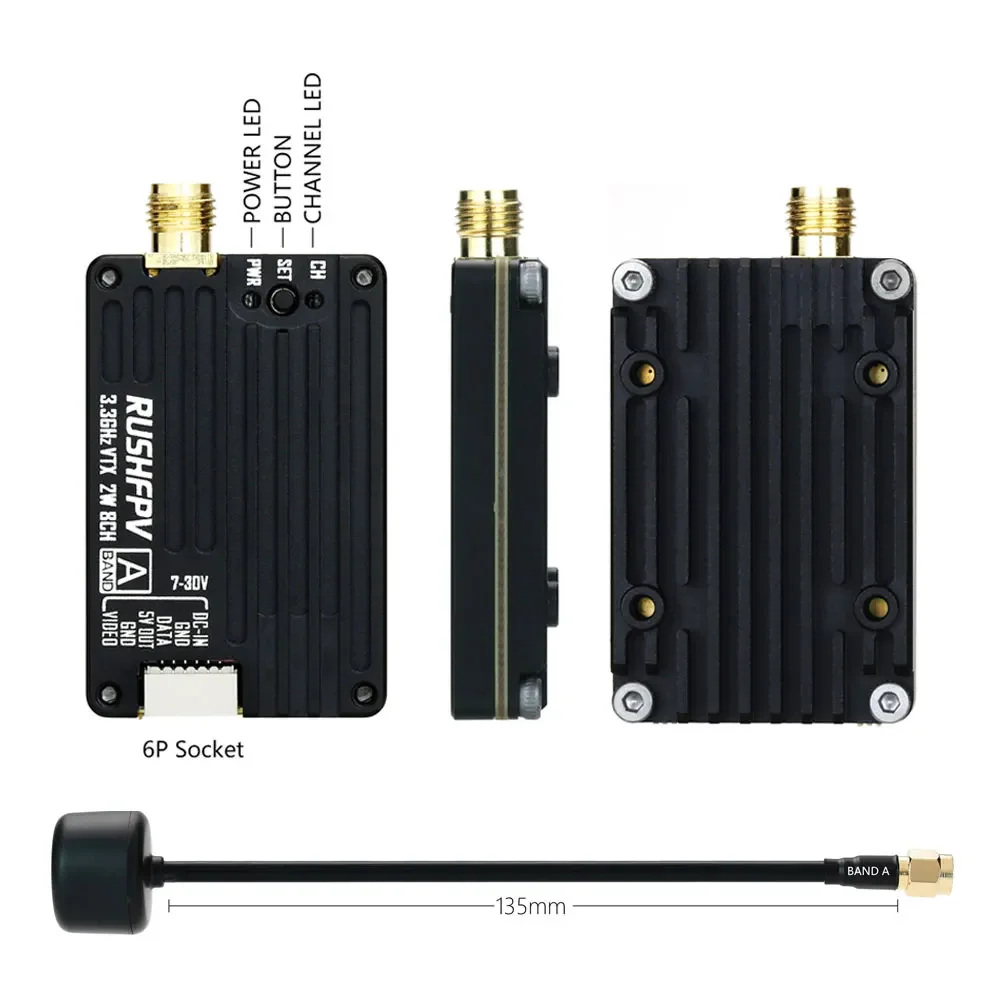

RUSHFPV 3.3GHz VIDEO TRANSMITTER
Features
-Designed for long range flights, it is compact in size,
rugged and reliable.
-Customized digital PLL circuit, chip level integration, no
frequency drift.
-High transmitting efficiency, no need for fan cooling,
maximum output power up to 2.5W in an environment with airflow.
-Customized High Performance Circular Polarized Antennas
-Complete QC for all VTX and antenna production.

Specification

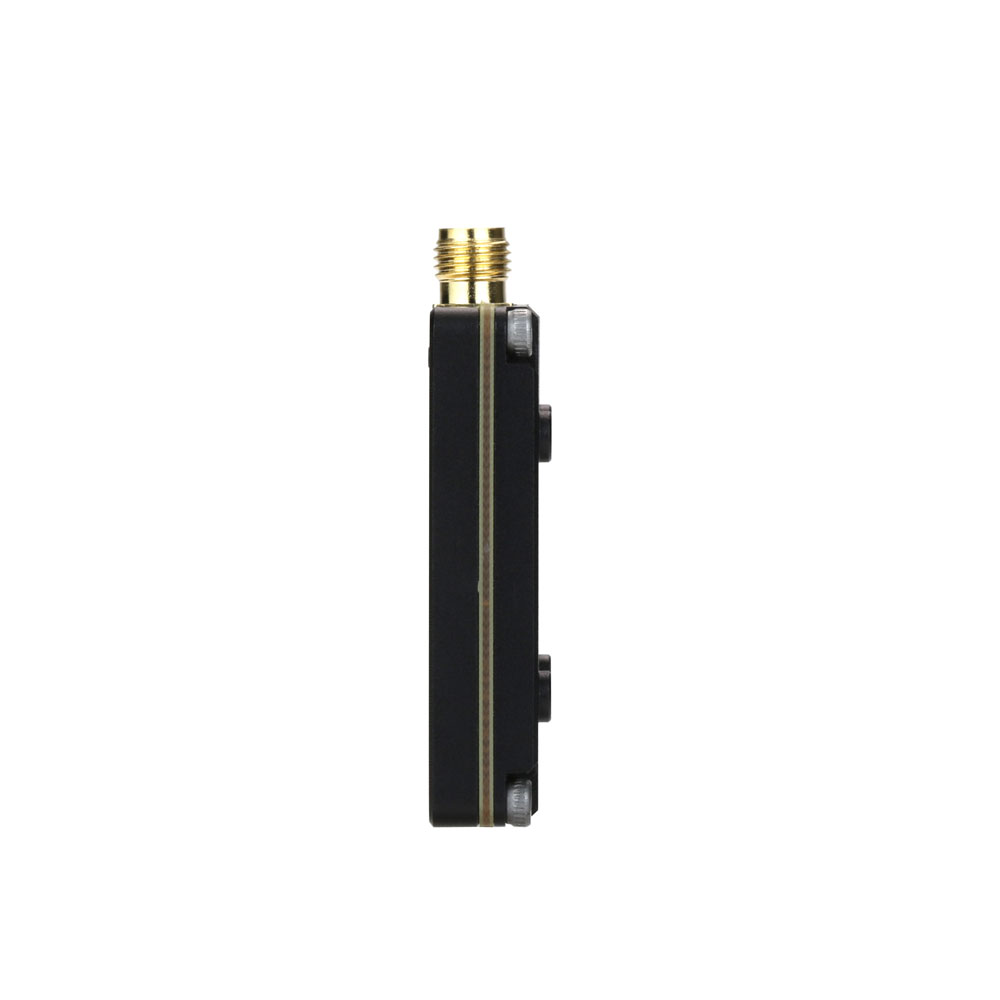

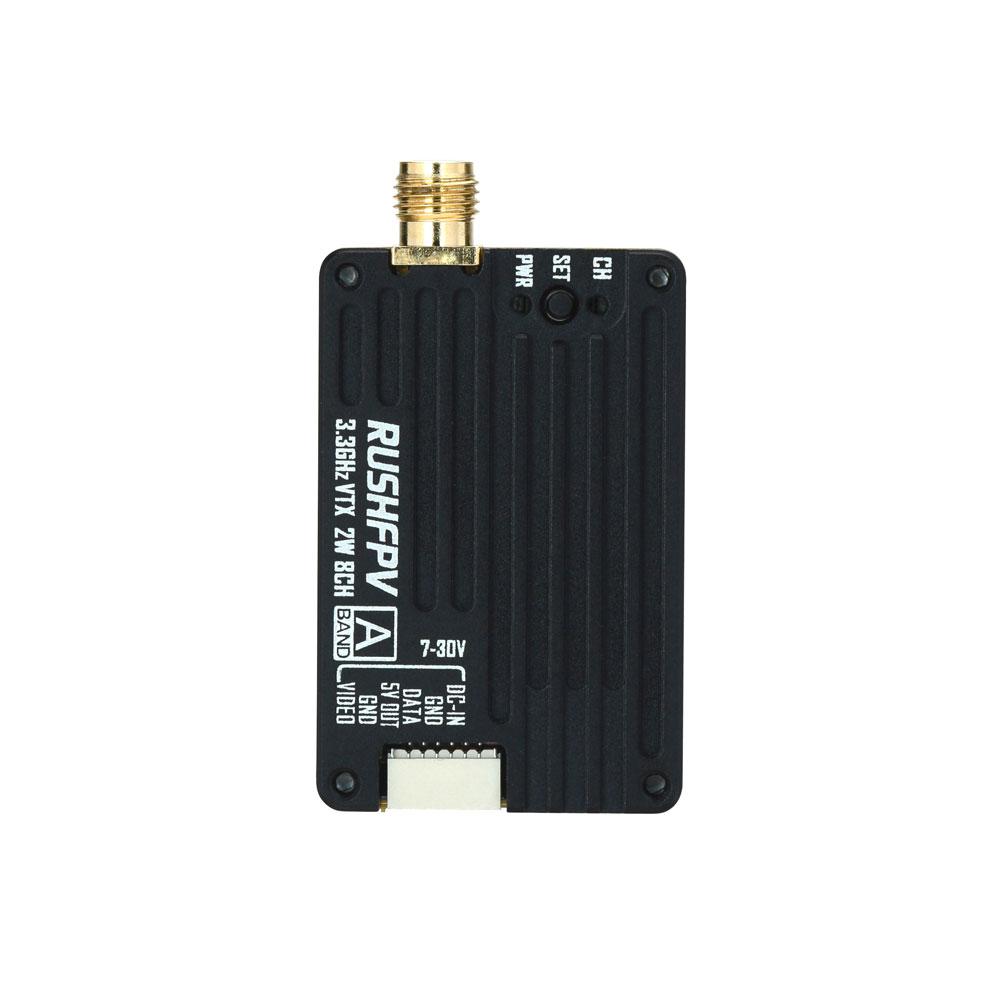

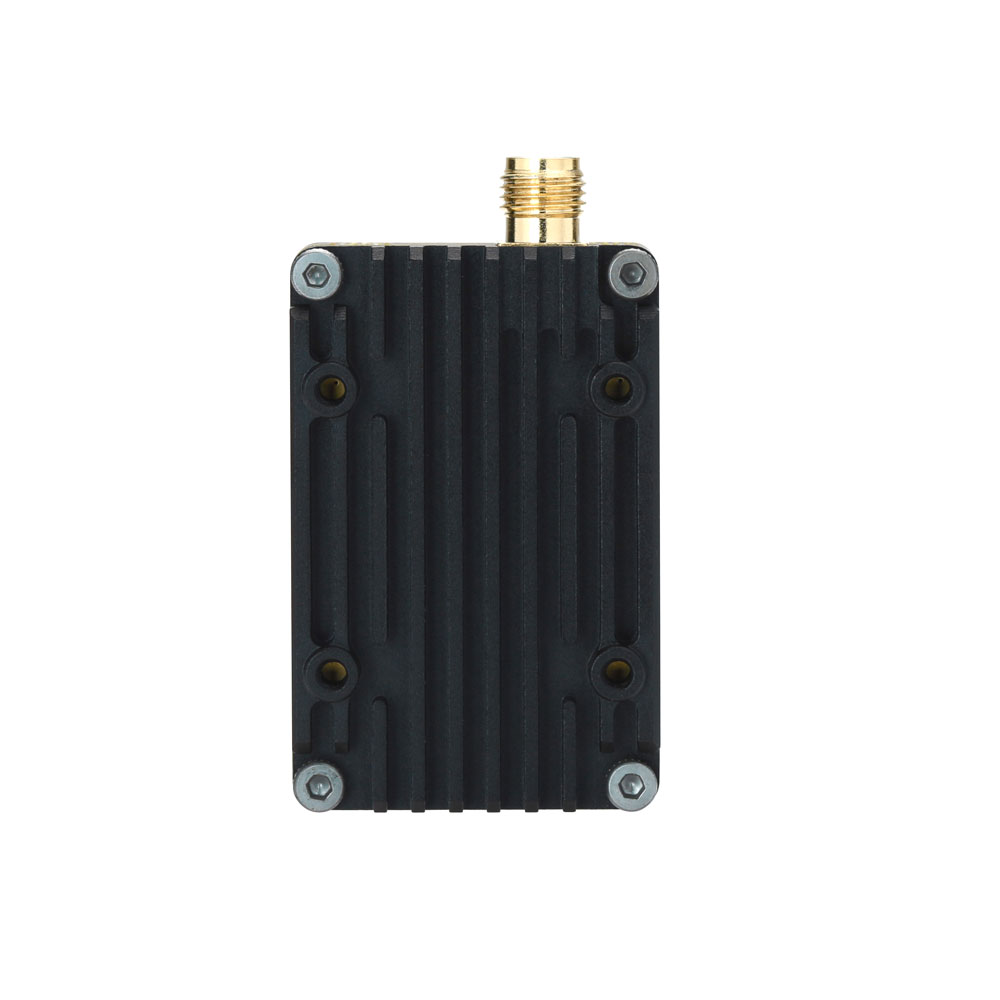

RUSHFPV 3.3GHzVTX 2W
Video Input:CVBS NTSC / PAL
Frequency:
BAND-A3330-3470MHz 8CH
BAND-B 3170-3310MHz 8CH
RF Power:>2W
Protocol:IRC Tramp
DC Input:7-30V
Connector:SMA
Dimension:L40.5 X W26 X H8.5mm
Weight:16.5g

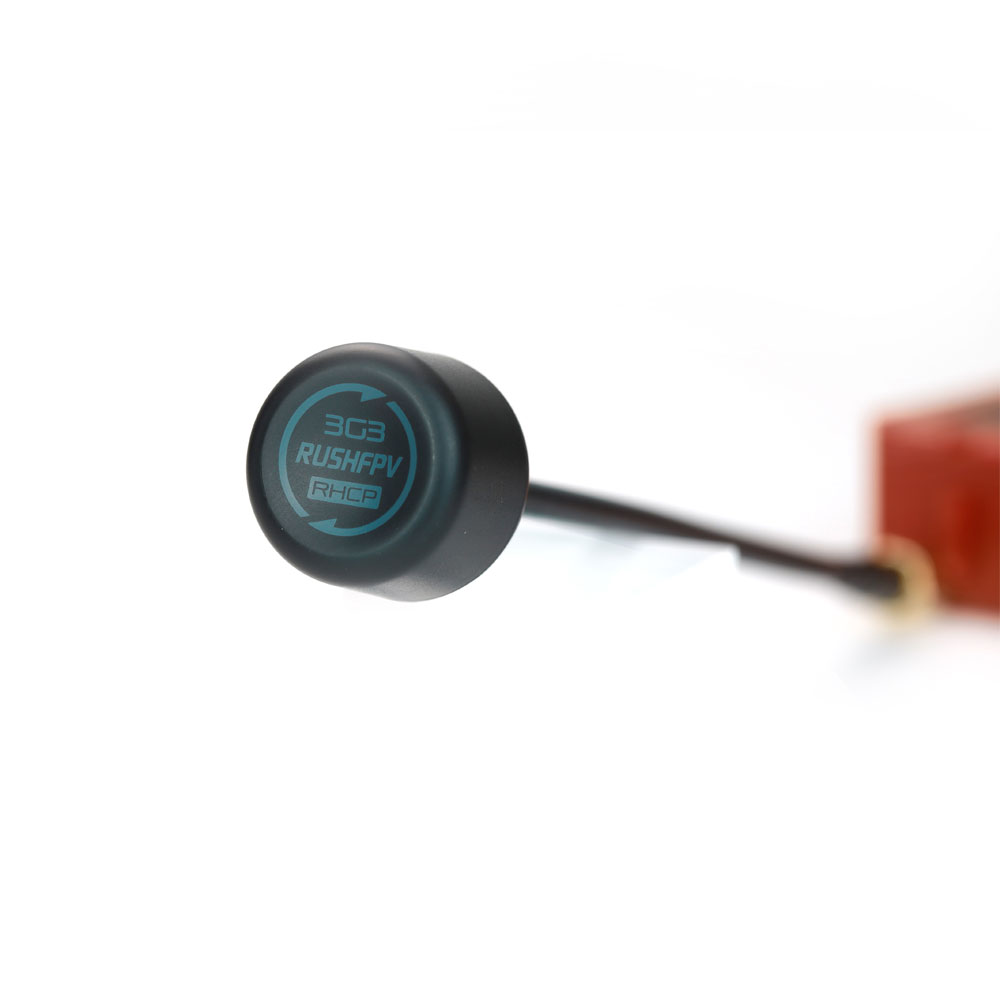

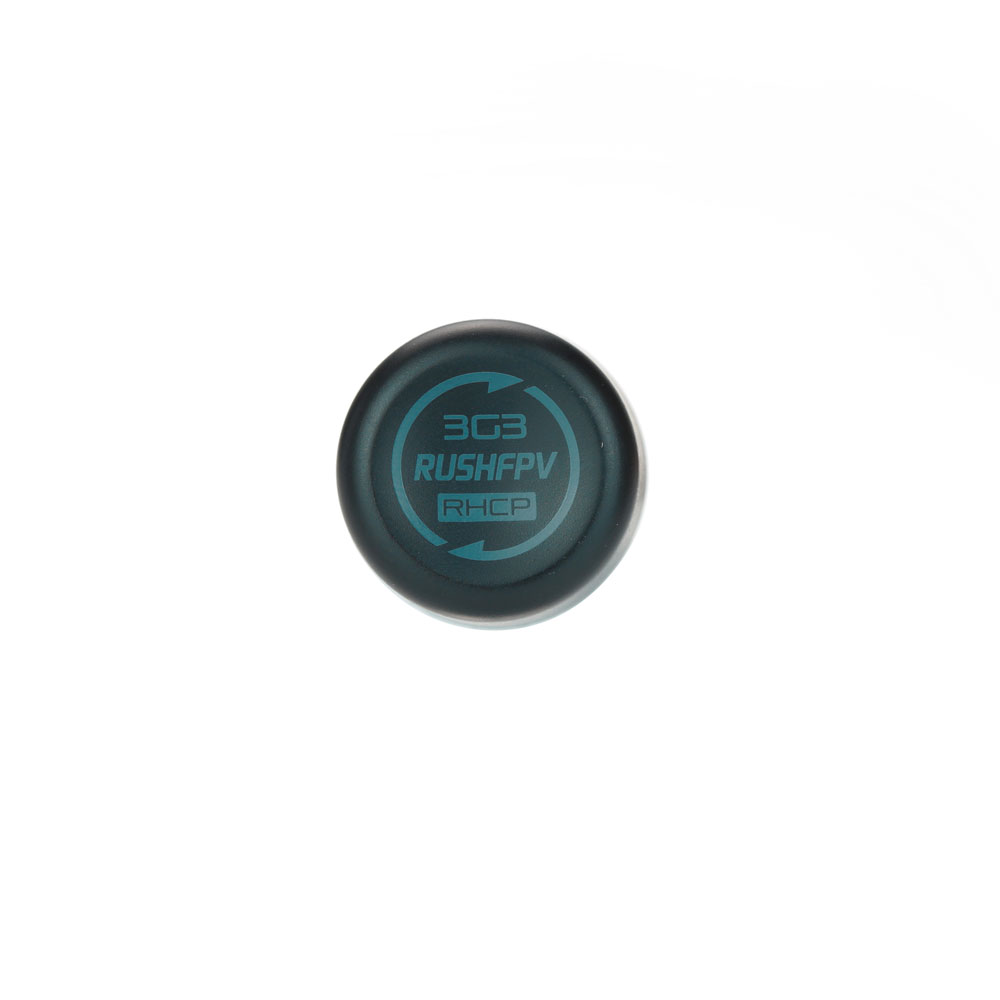

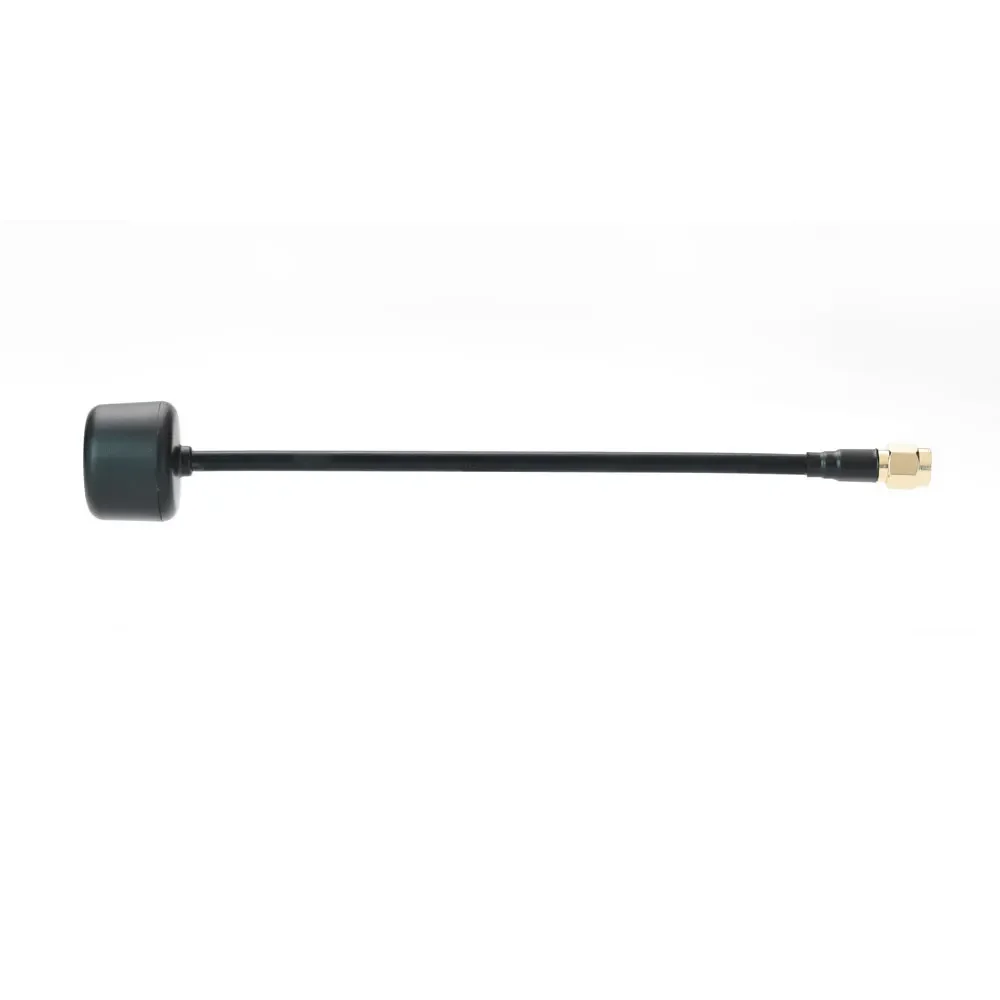

RUSHFPV 3.3GHz ANTENNA LDS
Polarzation:LHCP / RHCP
Bandwidth:
A-Band 3330-3470 MHz
B-Band 3170-3310MHz
Gain:2dBi
V.S.W.R:<1.5
Cable:RG402 Heavy Duty
Connector:SMA
Dimension:R 23.6 XH 165mm
Weight:13g

*For better performance, BAND A and BAND B run on different models of transmitter hardware, please select as needed.
**The BAND A and BAND B VTXs carry antennas in different frequency ranges, the two antennas are not interchangeable!
