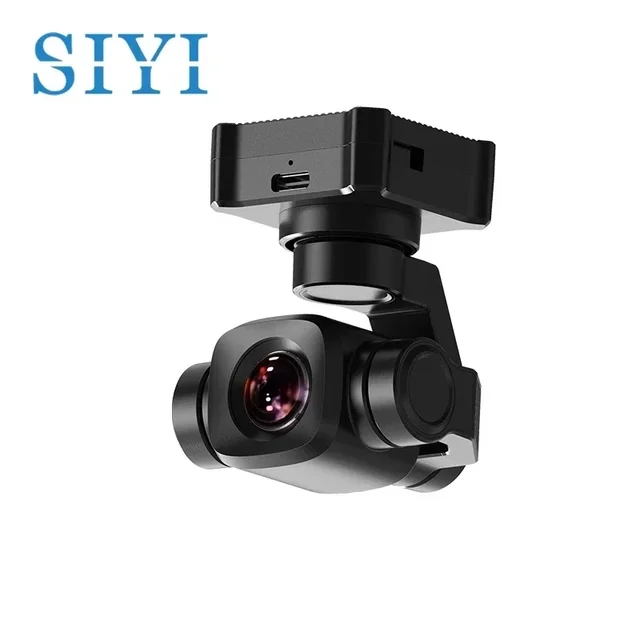

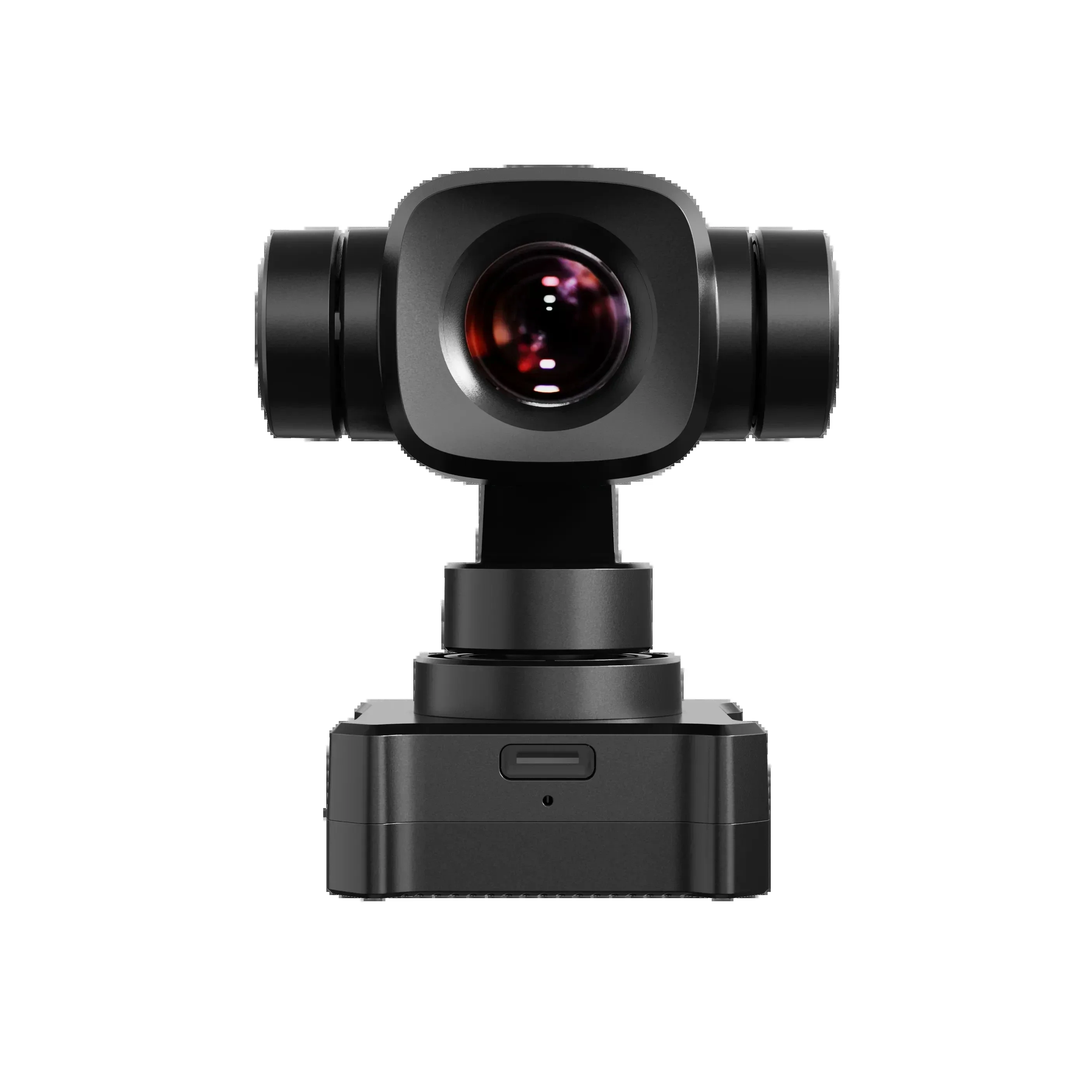

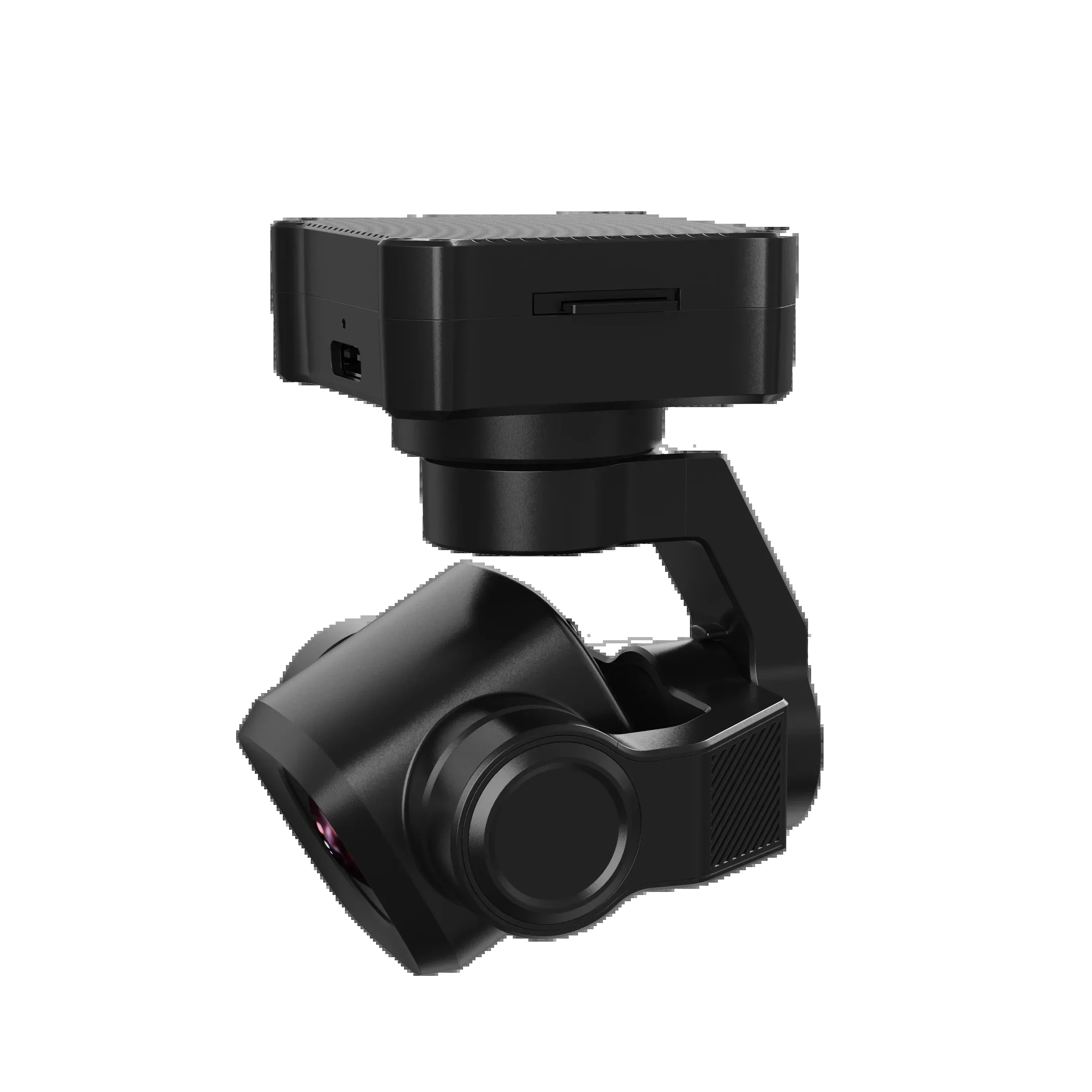

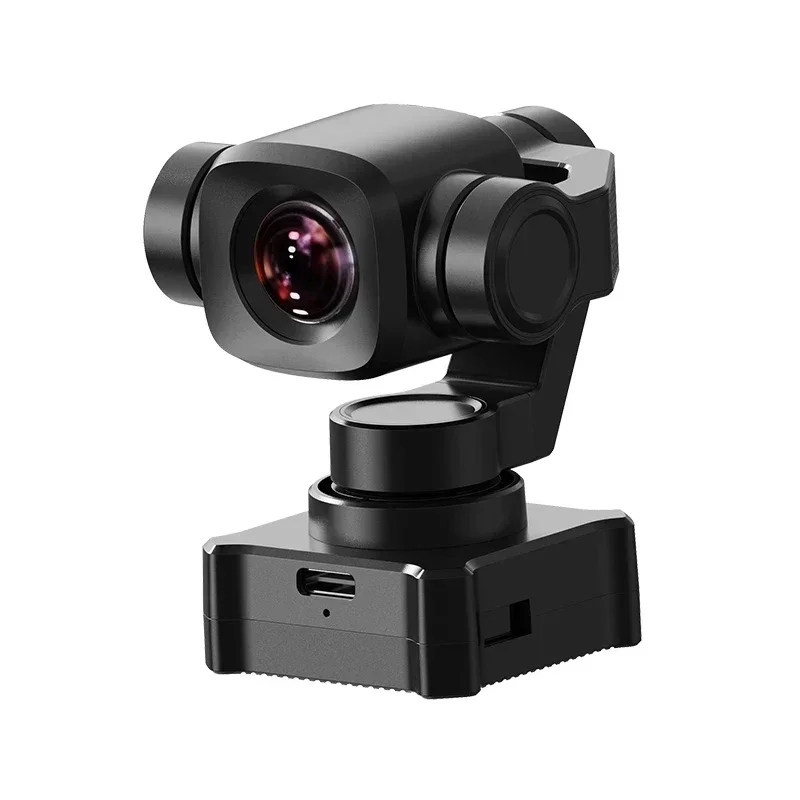

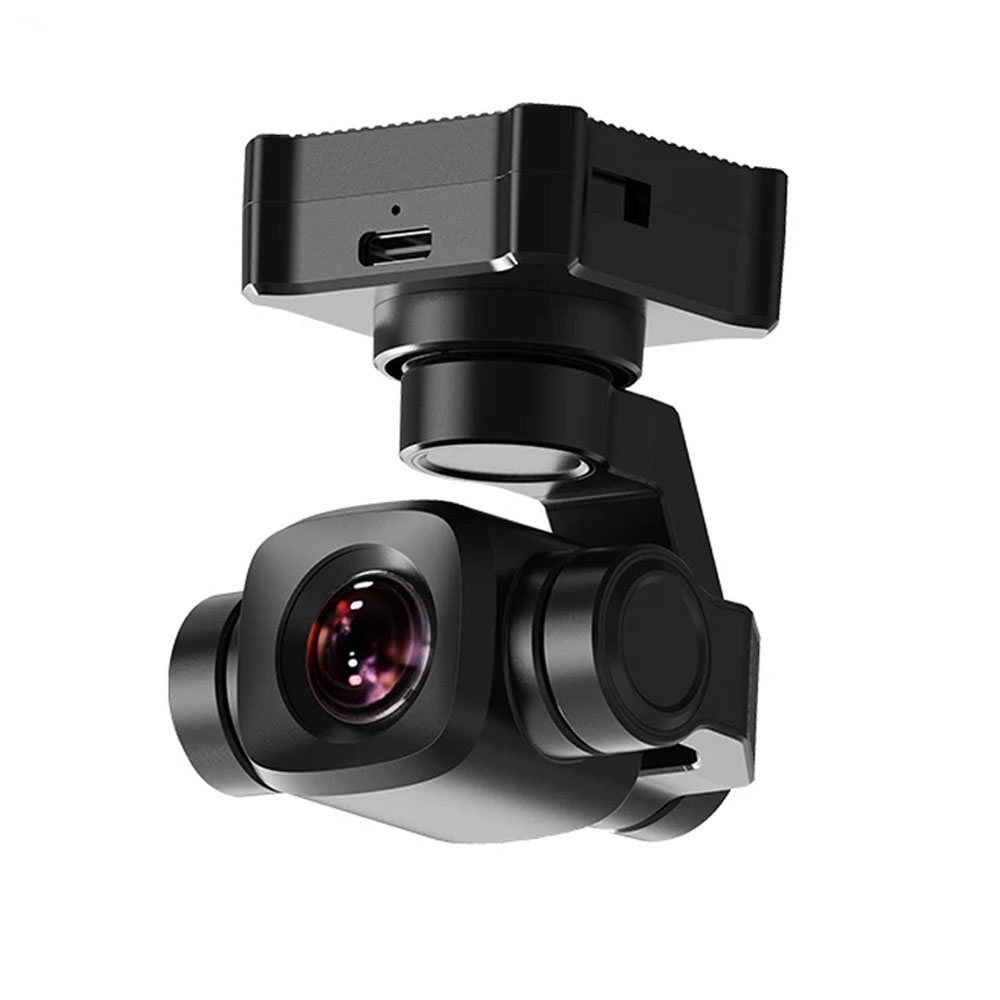

SIYI A8 mini 4K AI Mini Zoom Gimbal Camera

About this product
Model: A8 mini

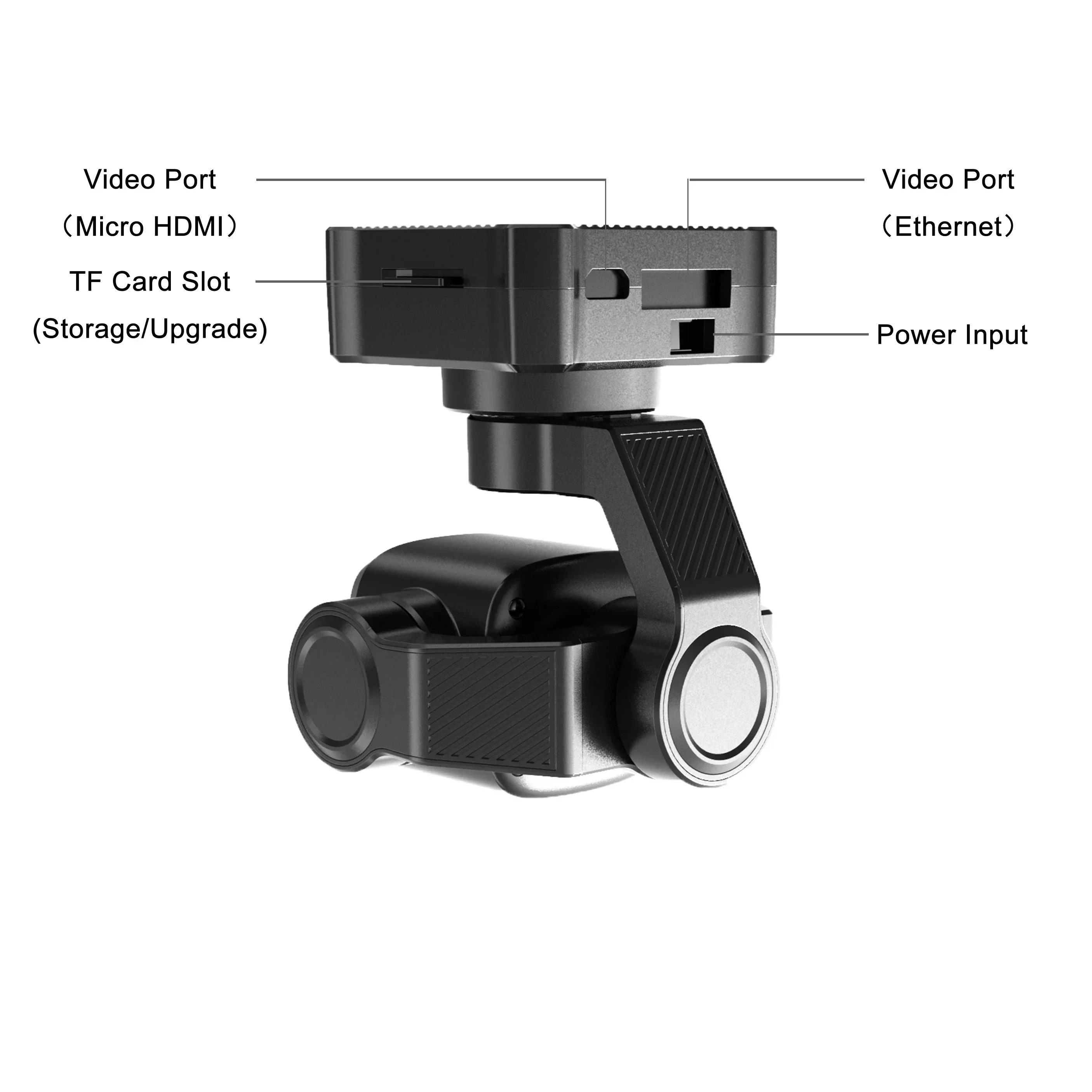

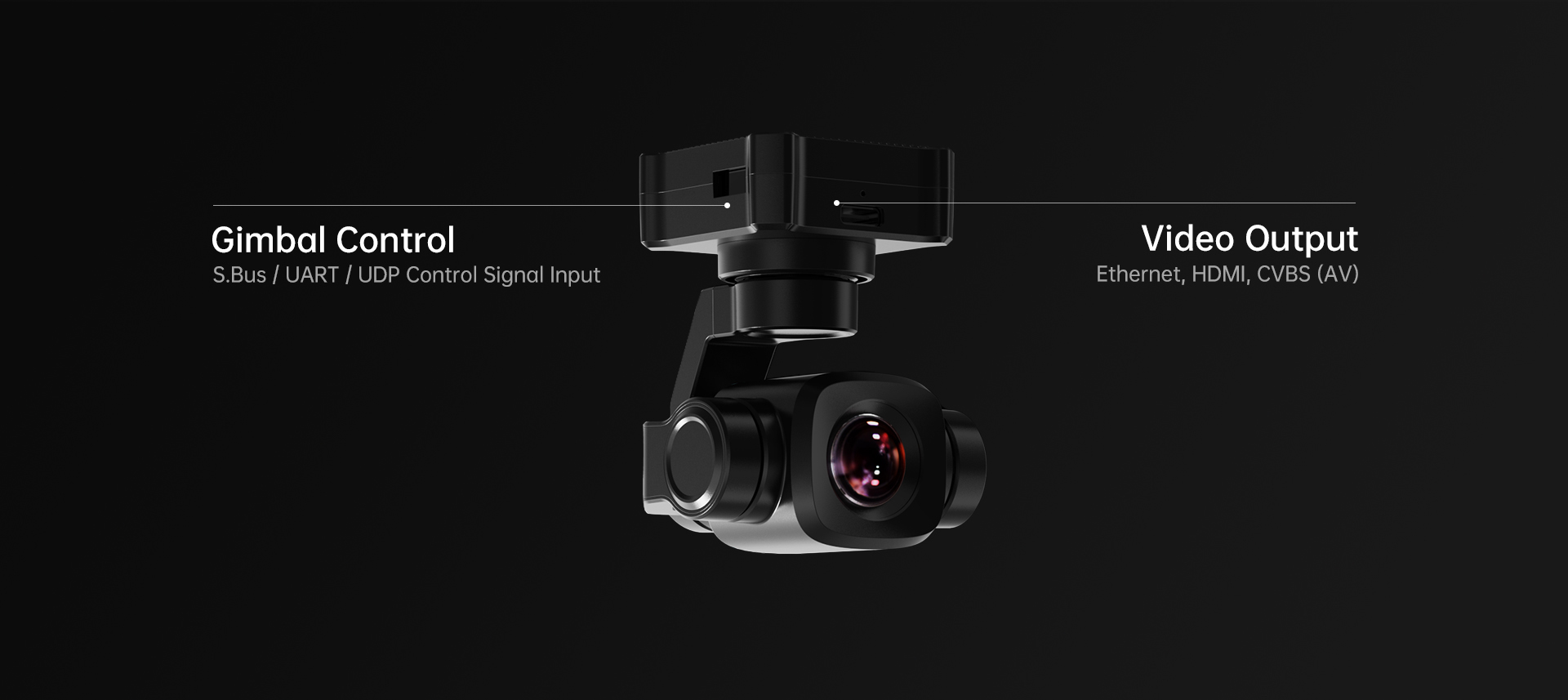

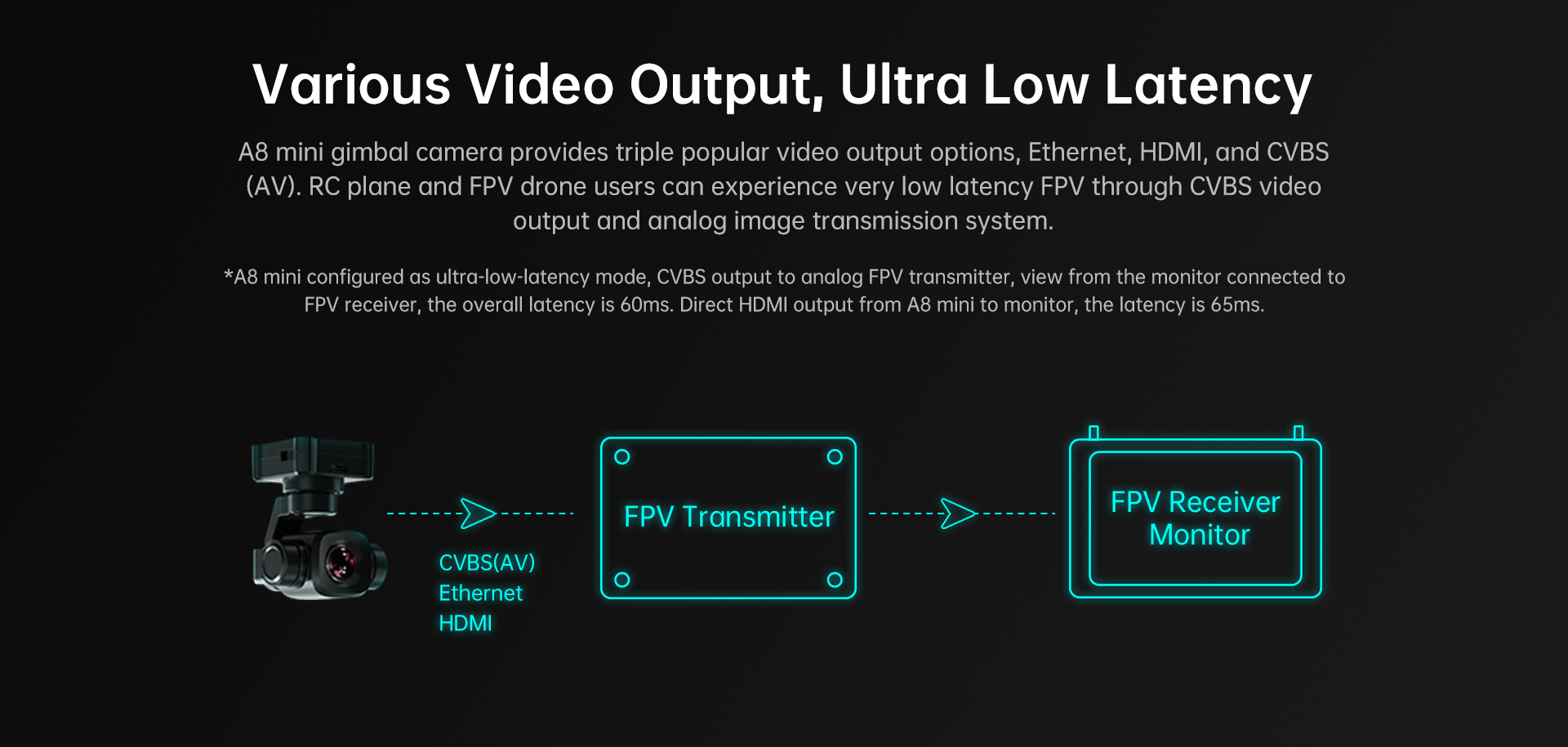

Video Output Port: Ethernet, HDMI, CVBS (AV)

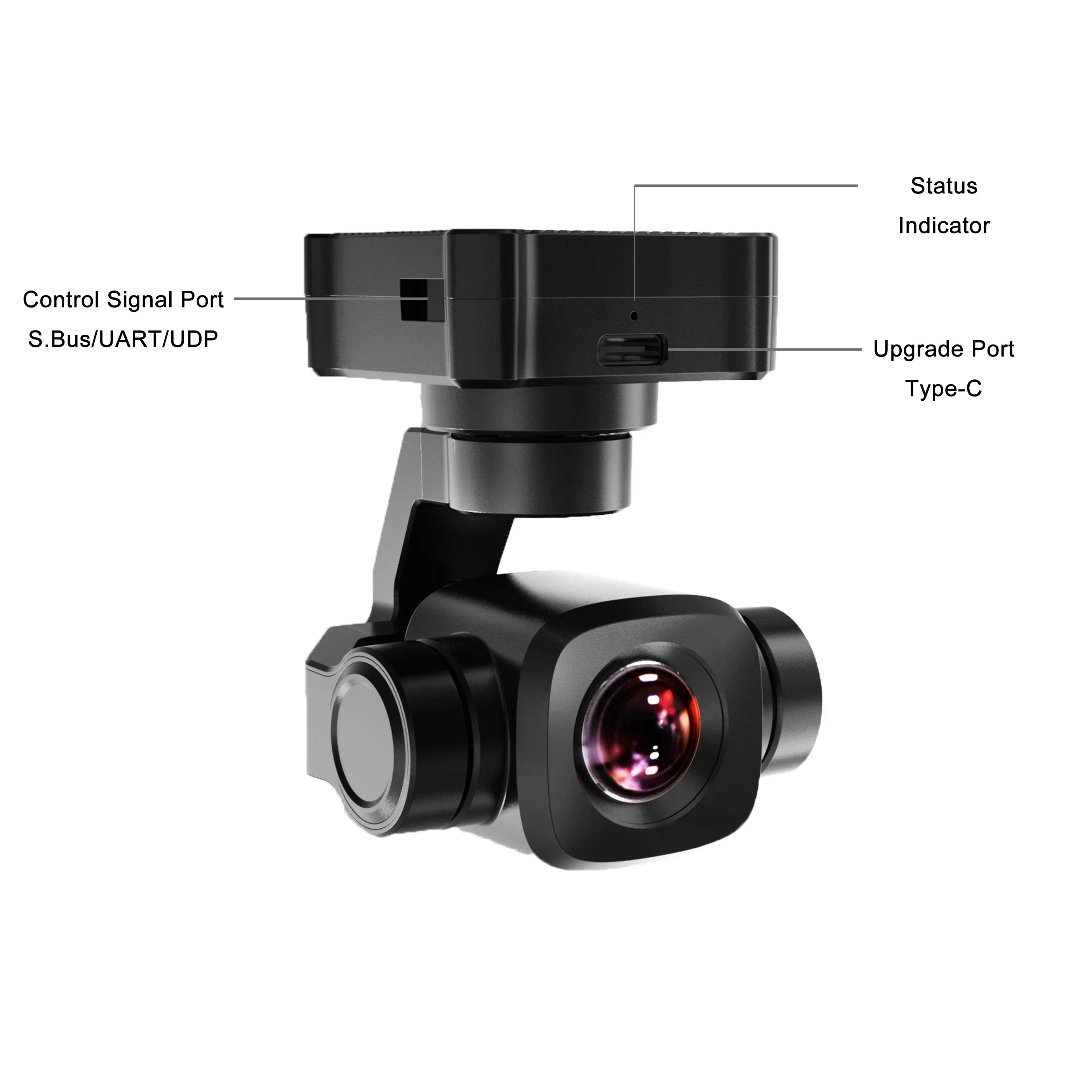

Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 14.8 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

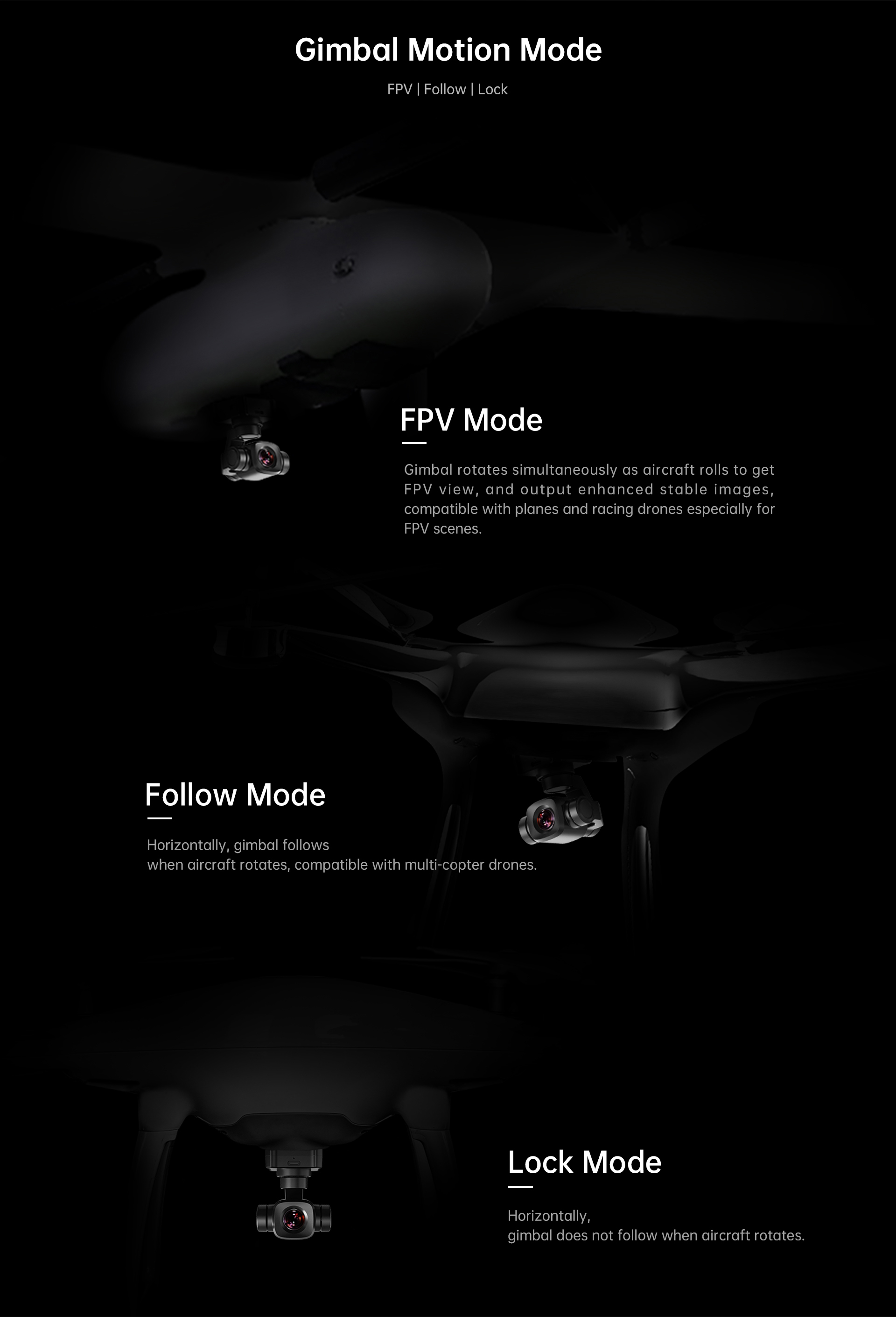

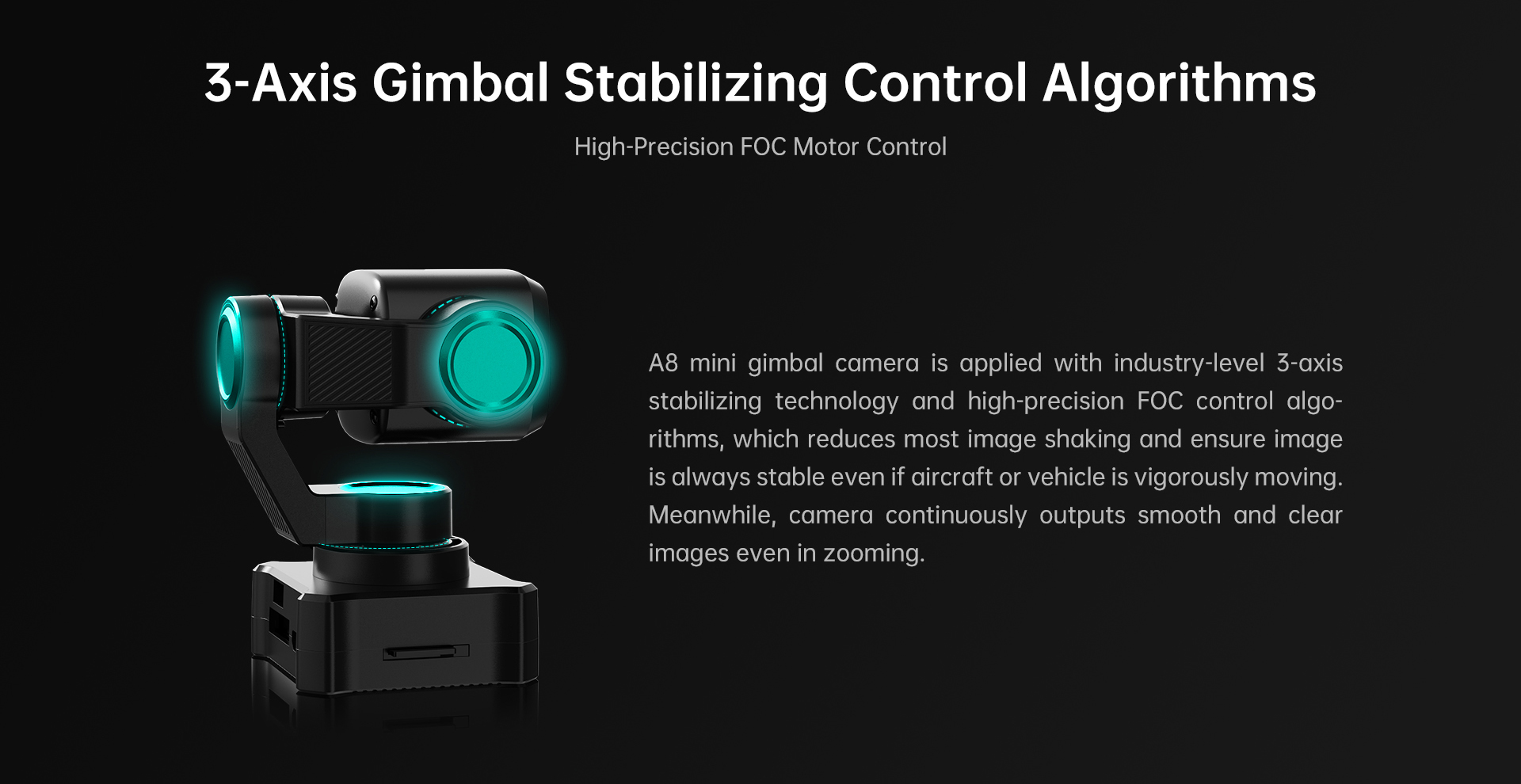

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm

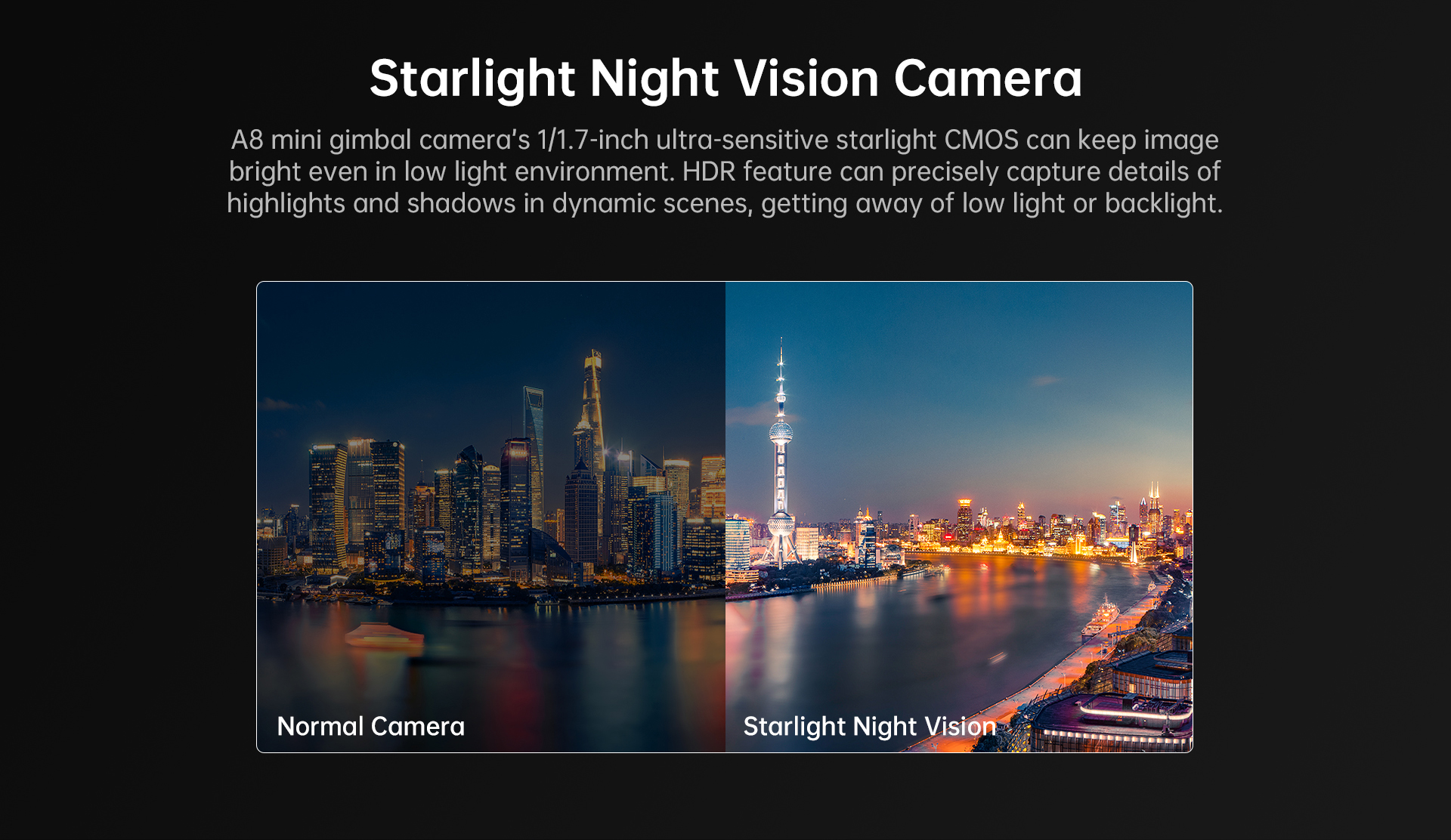

Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°
TF Recording Resolution:
4K (4096 x 2160) @ 25 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto



FIRST LOOK: NEW SIYI A8 MINI 4k Gimbal (by Painless360)
https://youtu.be/XJyB1W_3GMM

First customer video shows how A8 mini performs in flight, super stable!
https://youtu.be/XCSeiC3y-G8

4K Original Footage for your reference of A8 mini video quality:
https://youtu.be/WBcYuLRWkBE
