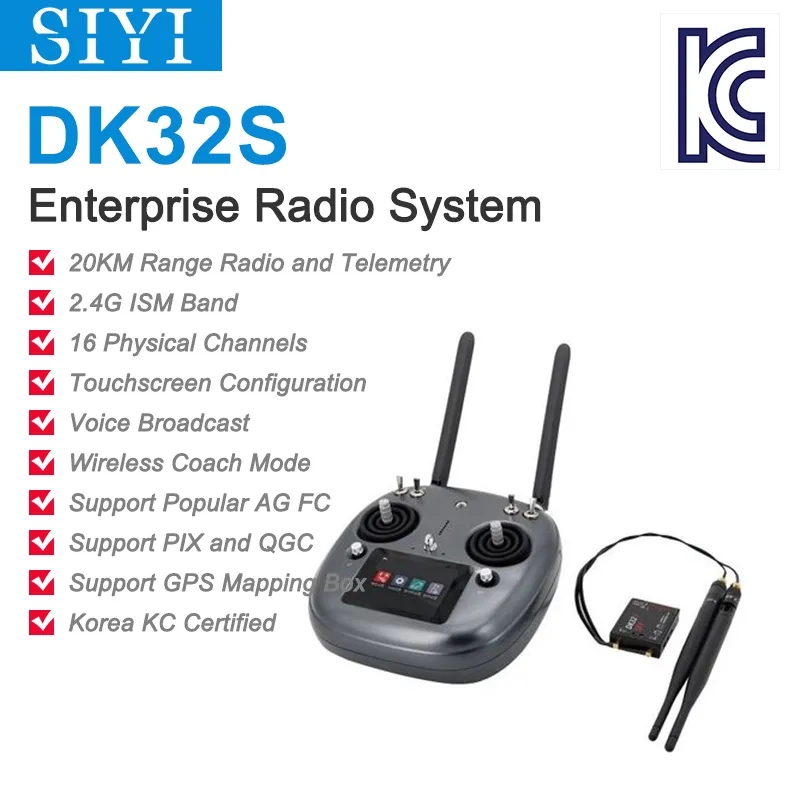

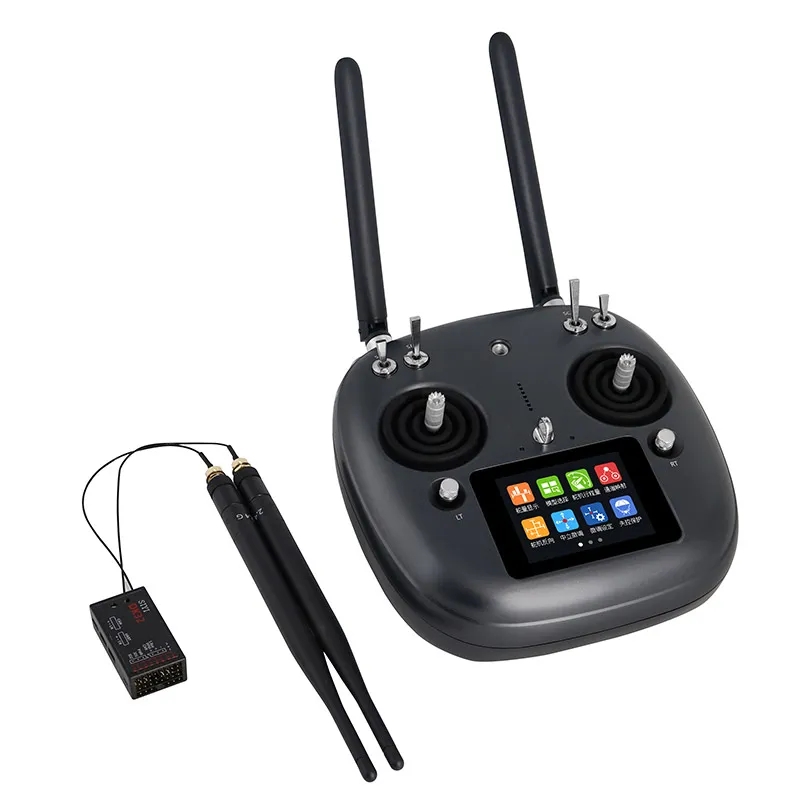

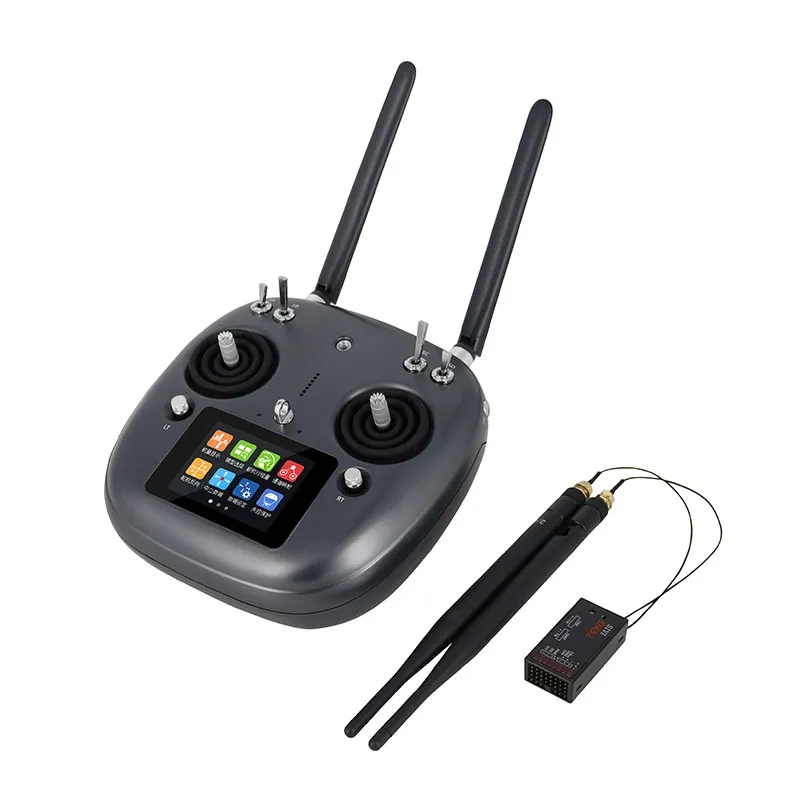

SIYI DK32S Enterprise Radio System Transmitter Remote Controller / DK32 SE Agriculture Remote Controller for Agricultural Drones

About this product

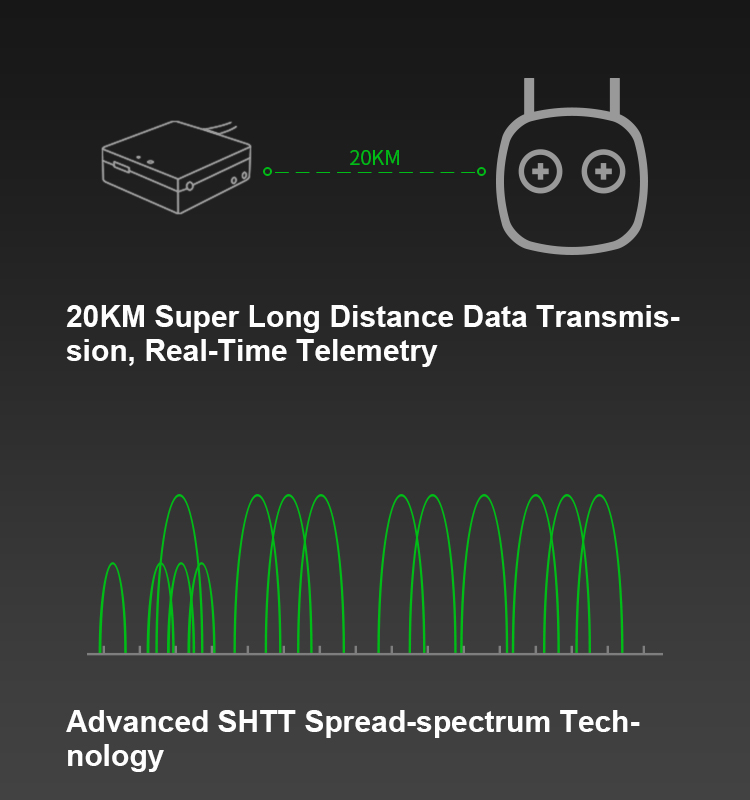

• Long-distance data transmission
• Support connecting PC, cell phone tablet and other mobile terminals

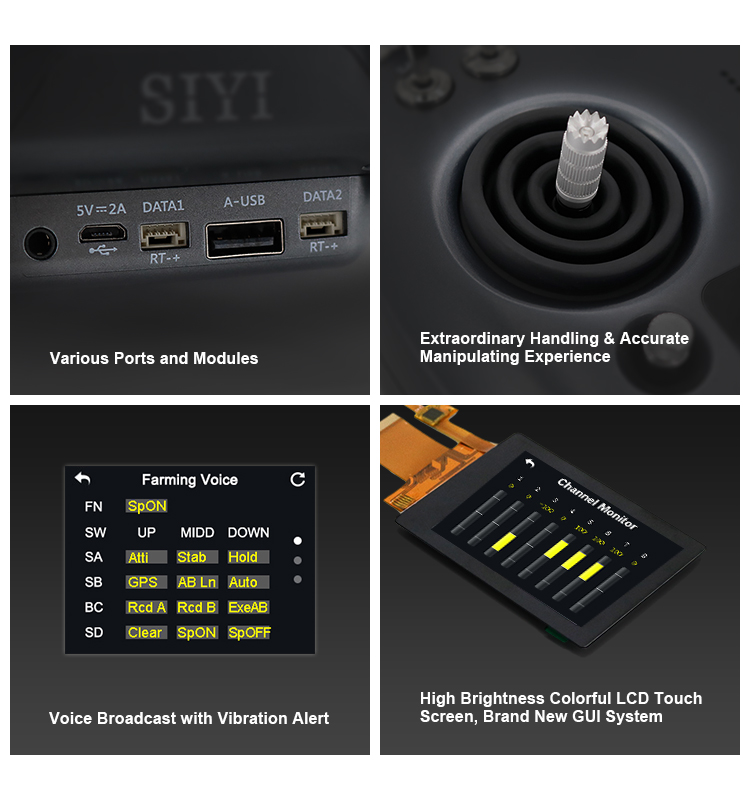

• Interface Configuration
• Advanced SHTT frequency hopping technology
• Full-featured 16-channel high-speed response mode
• Vibration prompts, Chinese and English menus and voice announcements
• Bright color LCD touch screen, new GUI system
• Powerful functions to meet a variety of complex models or robots and other models
• PC tuning upgrade software

NOTE:

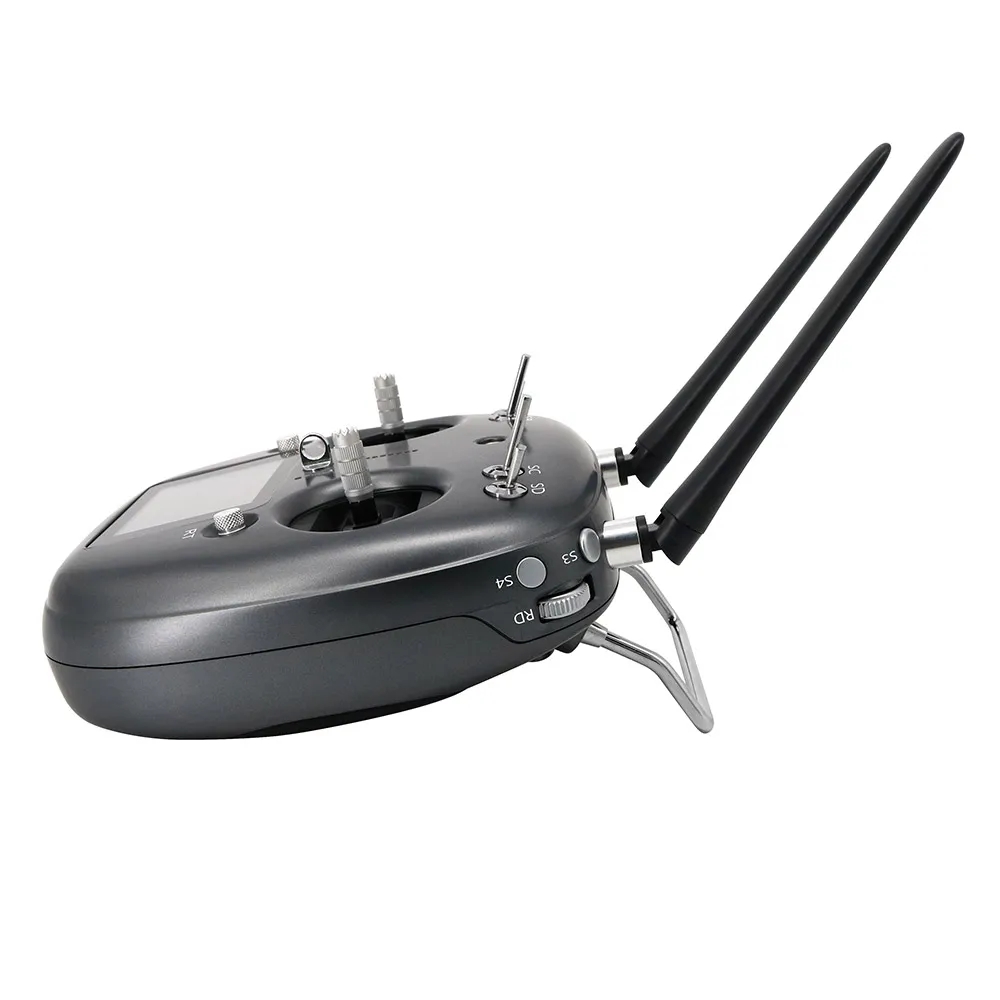

The remote control is designed for double-back, and the throttler can be switched at will.
The remote control built-in lipo-battery, USB direct connection charging

Product Description:
DK32S is an upgraded version of DK32 remote control.   The difference between DK32S and DK32 is that the transmission distance (ground-to-space) of DK32S is 20KM, and the transmission distance of DK32 is 10KM.
The agricultural plant protection operation distance of DK32S is 4-5km (ground-to-ground) and 2-3KM for DK32.

Technical Parameters:
Overall performance
Maximum communication distance (no interference, no blocking): 20 km
Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels
Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter

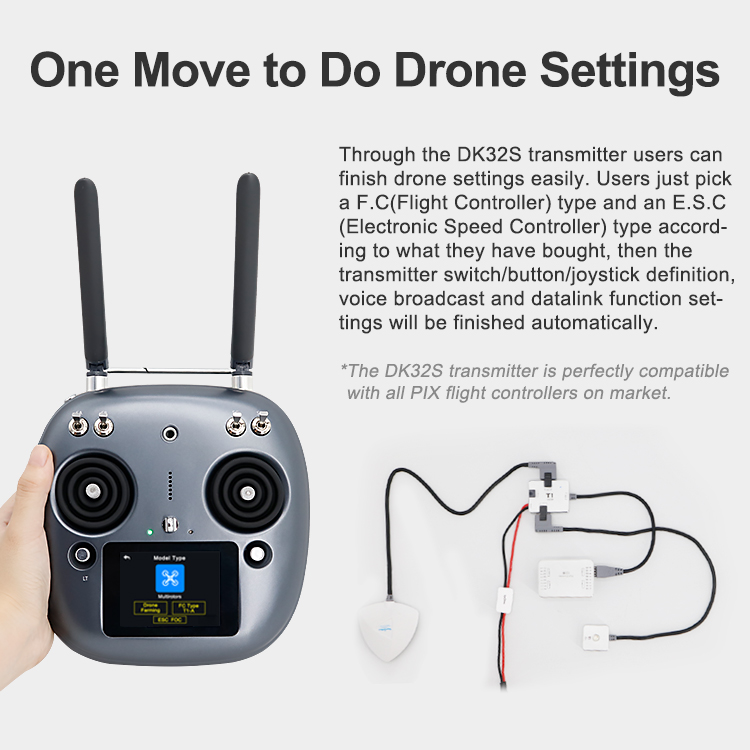

Flight control supported by digital transmission:
TopXgun T1-A
Woozoom THEONE – A
EFY Finix200
JIYI K3A
BOYING PALADIN V2
QIAO Matrix
Cfuas C1-A
Open source flight control PIX, APM
DJI N3, A3 (requires buyer to match DJI expansion module support)

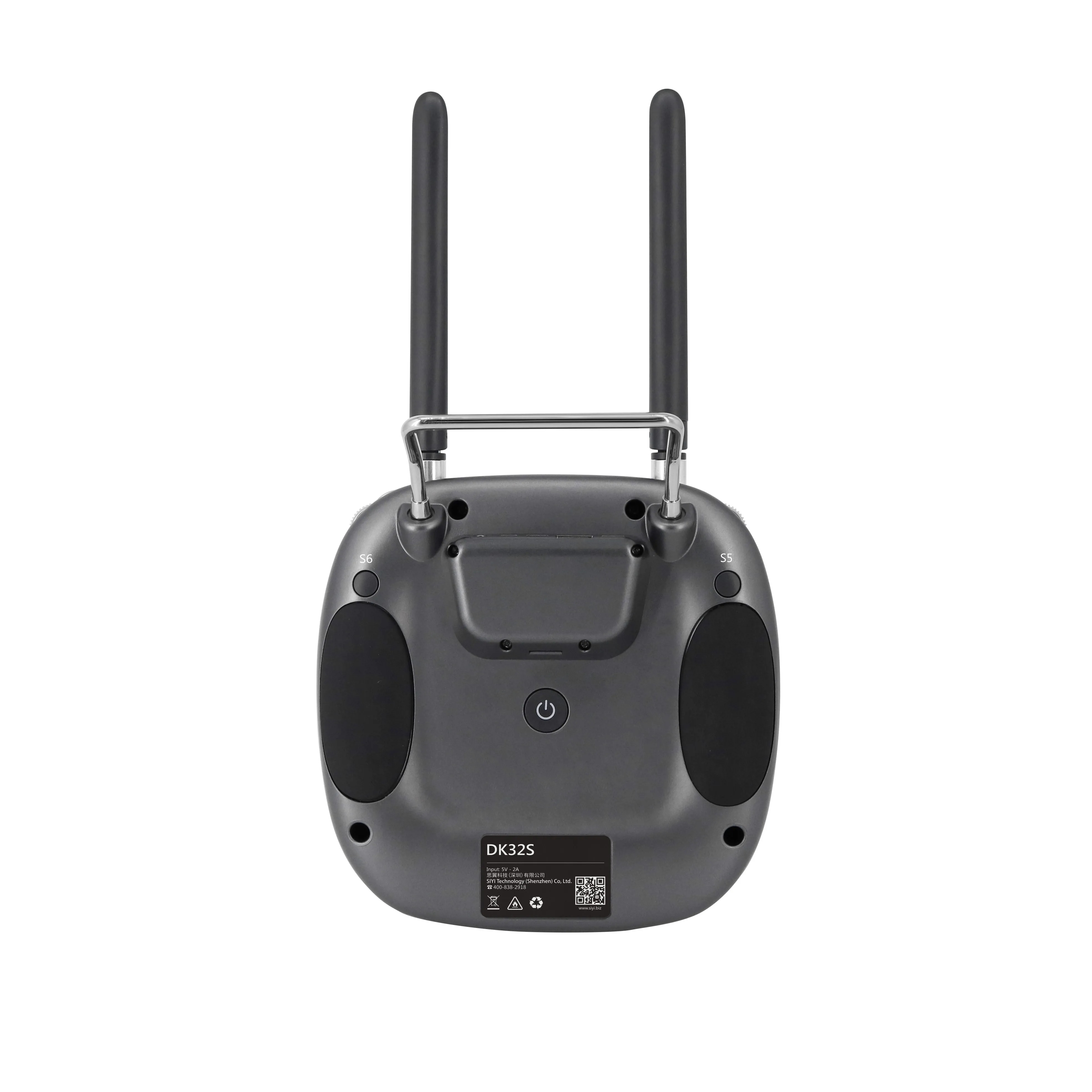

Ground terminal (remote carontrol transmitter)
Language display Chinese/English

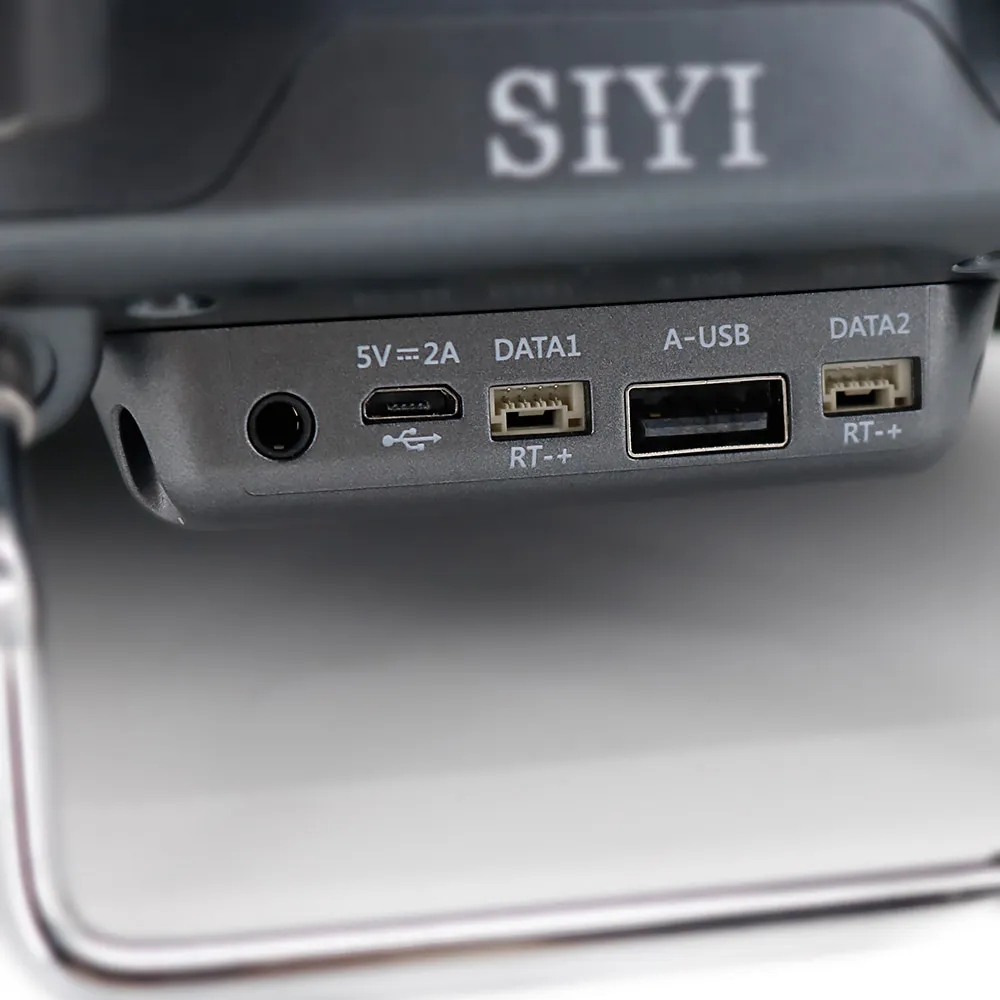

Connect mobile phone, tablet interface A-USB, Micro USB, Bluetooth, WIFI (optional)
Dimensions 194.5 x 172.5 x 114mm
Weight 610g
Battery ambient temperature 0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S
Charging Micro USB 5V 2A

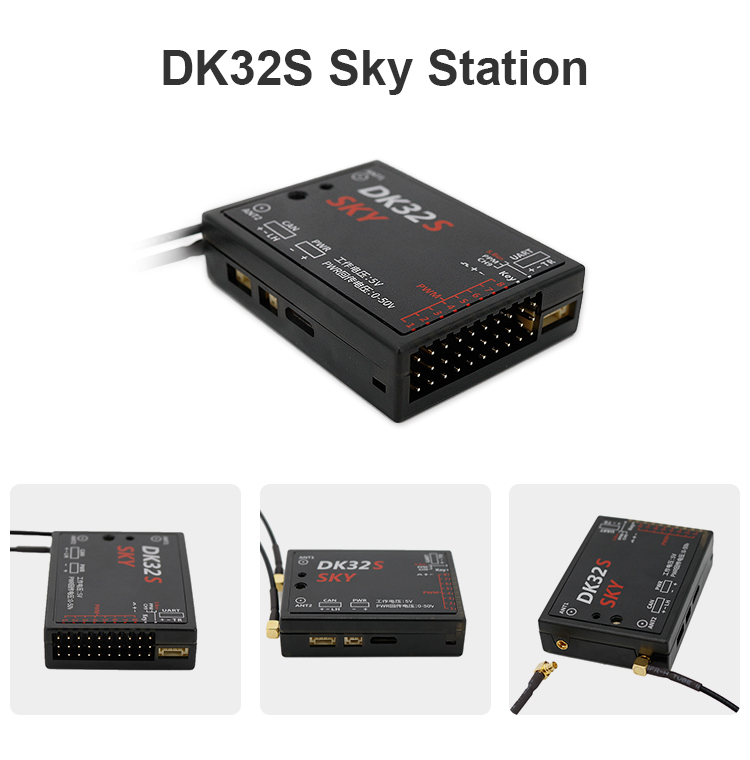

Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C

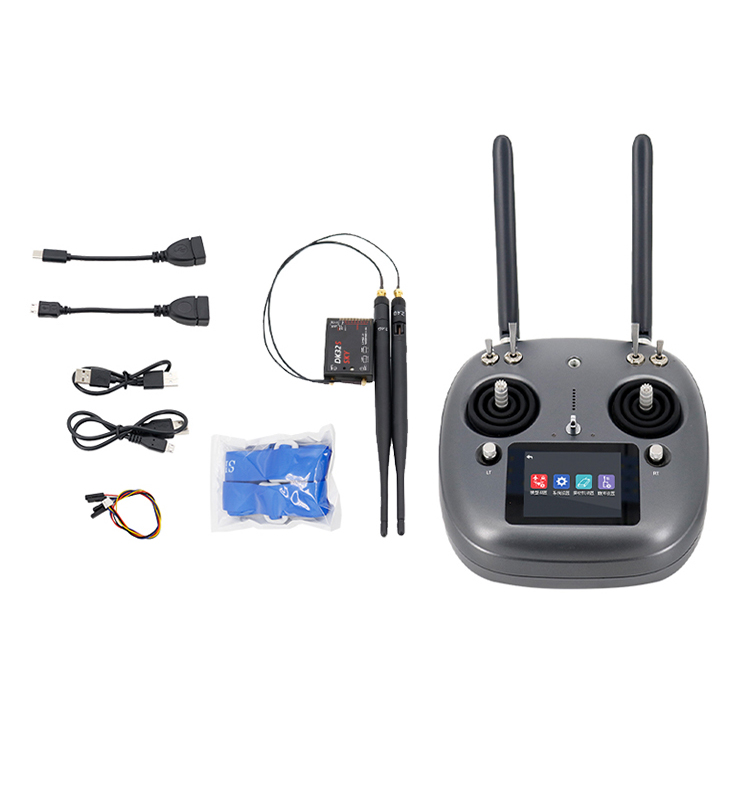

Package list
SIYI DK32S 2 remote control +receiver  * 1 set
Pad bracket * 1 piece
