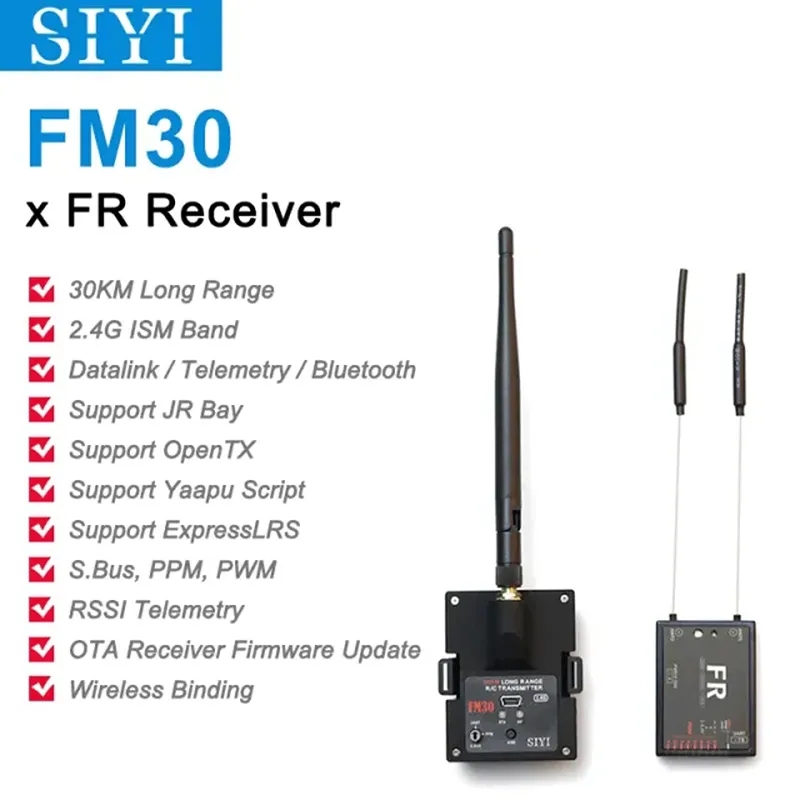

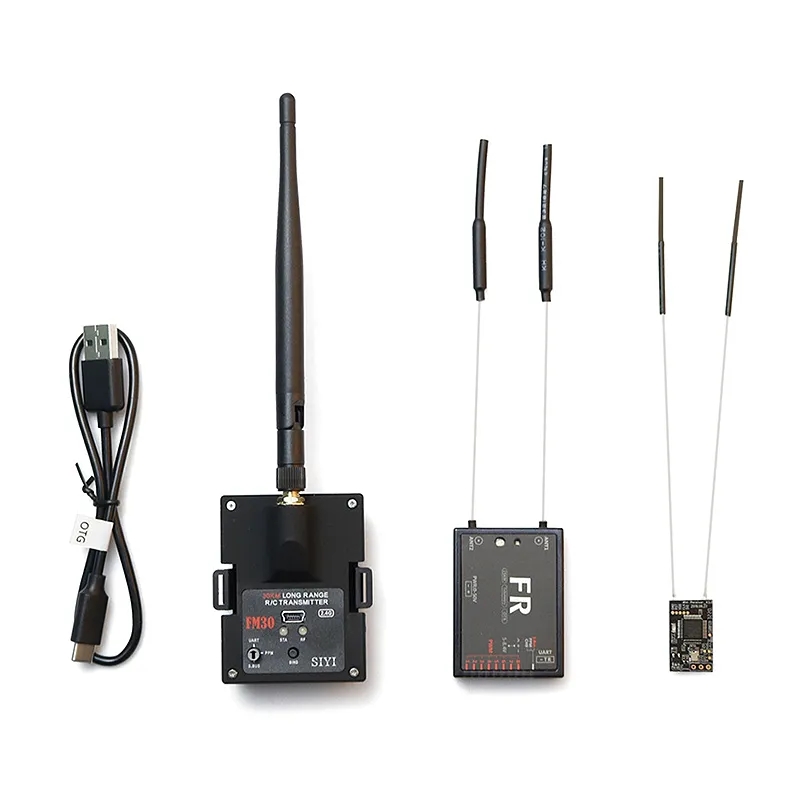

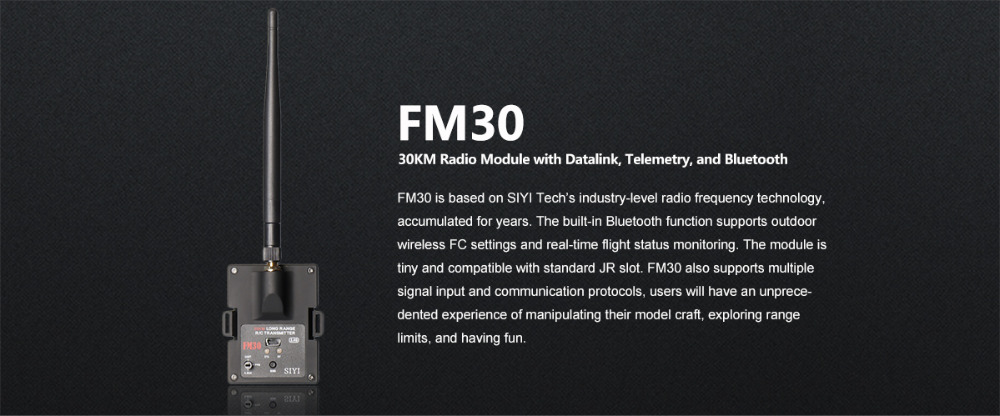

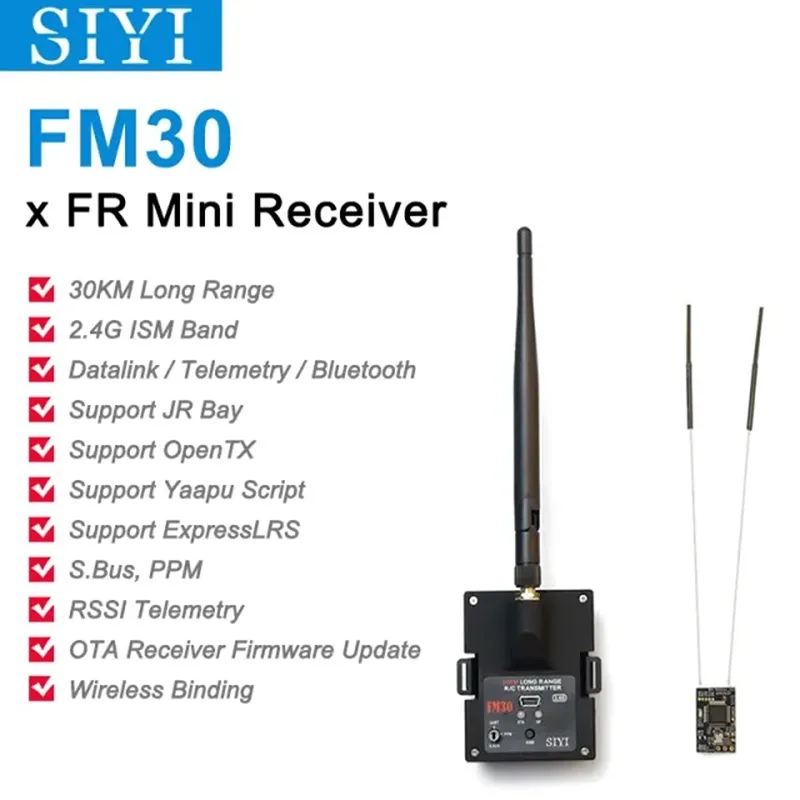

SIYI FM30 Long Range Radio Module Transmitter Datalink Telemetry Bluetooth Mini Receiver OpenTX ExpressLRS 2.4G 30KM RC Plane

• 2.4G ISM Band
• 30KM Range
• Built-in Bluetooth
• Mavlink Telemetry
• Support JR Bay
• Support OpenTX / EdgeTX
• Support Yaapu Script
• Wireless Binding
• OTA Firmware Update
• Voltage Telemetry
• Protocol: SBUS, PPM

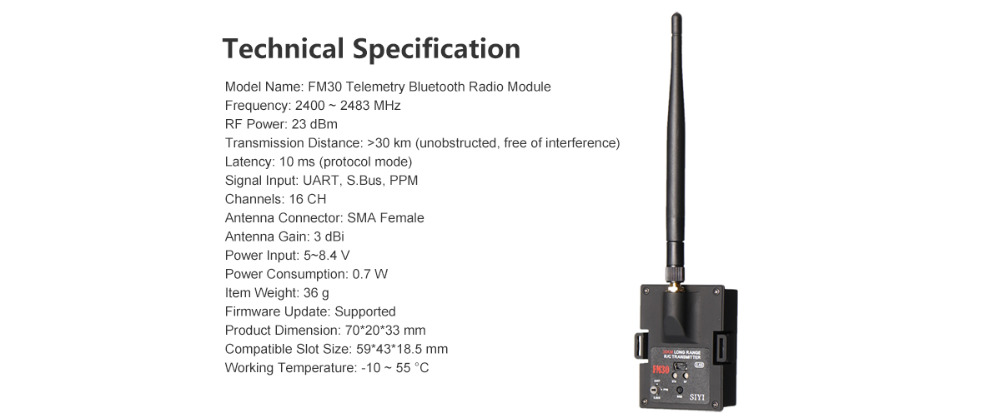

Model: FM30
Frequency Band: 2400 to 2483 MHz
Latency: 10 ms
Control Range: 30 Kilometers / 18.6 Miles (unobstructed, free of interference)
Channels: 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

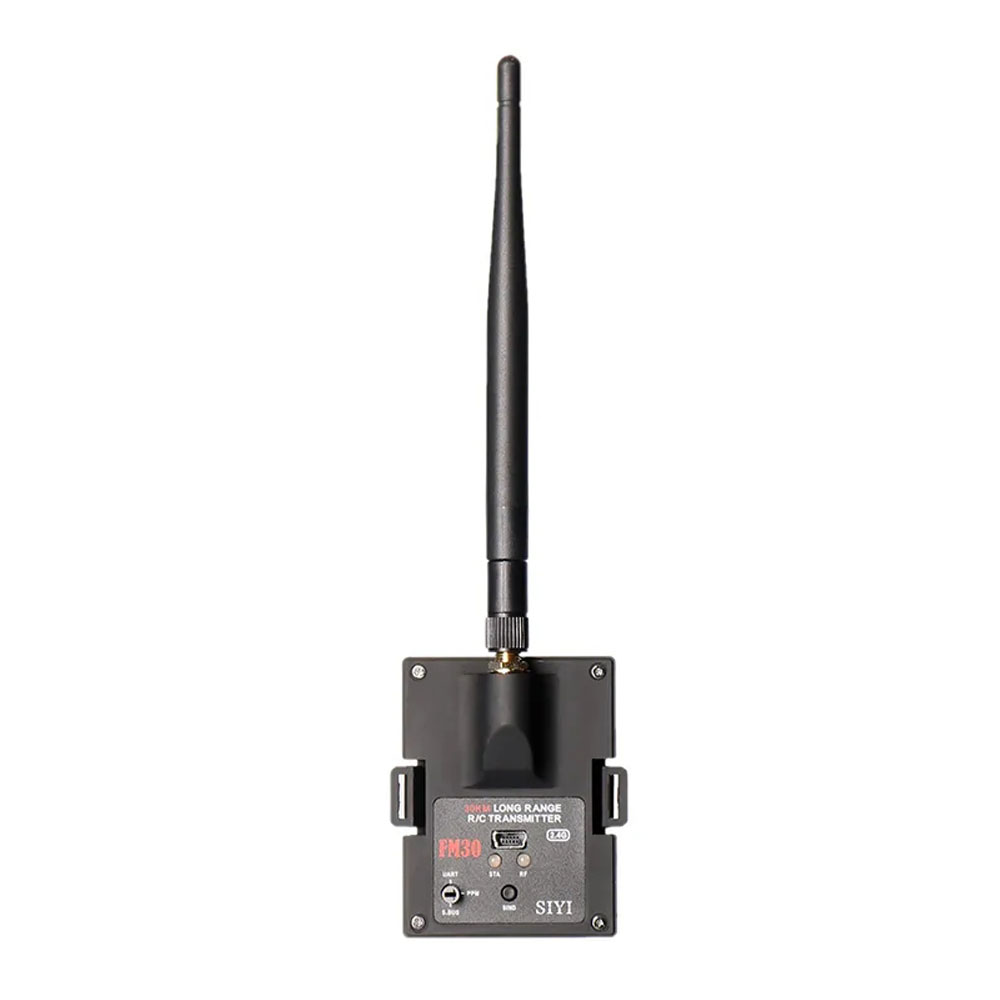

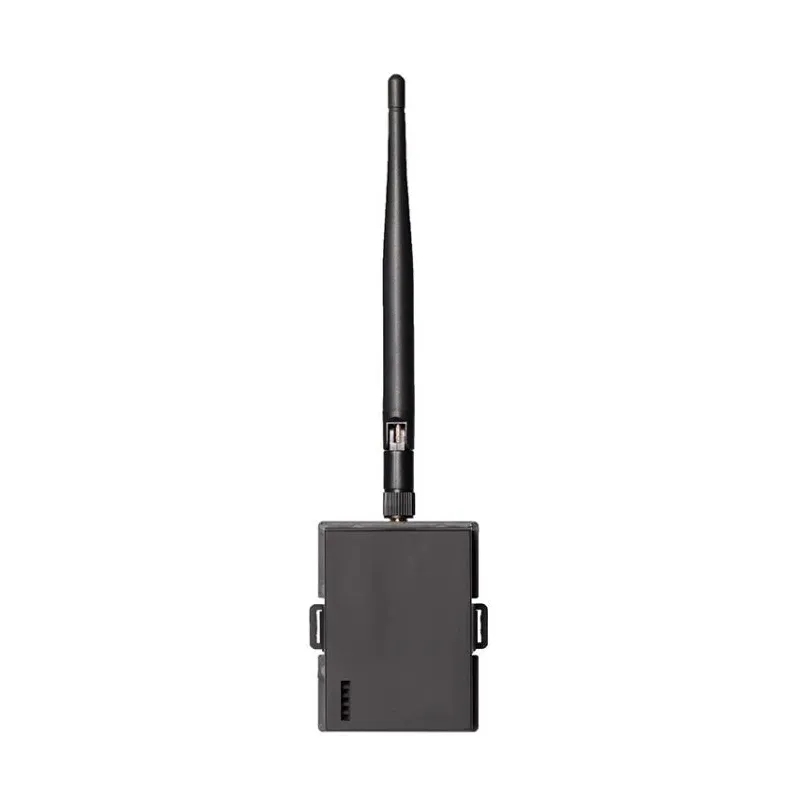

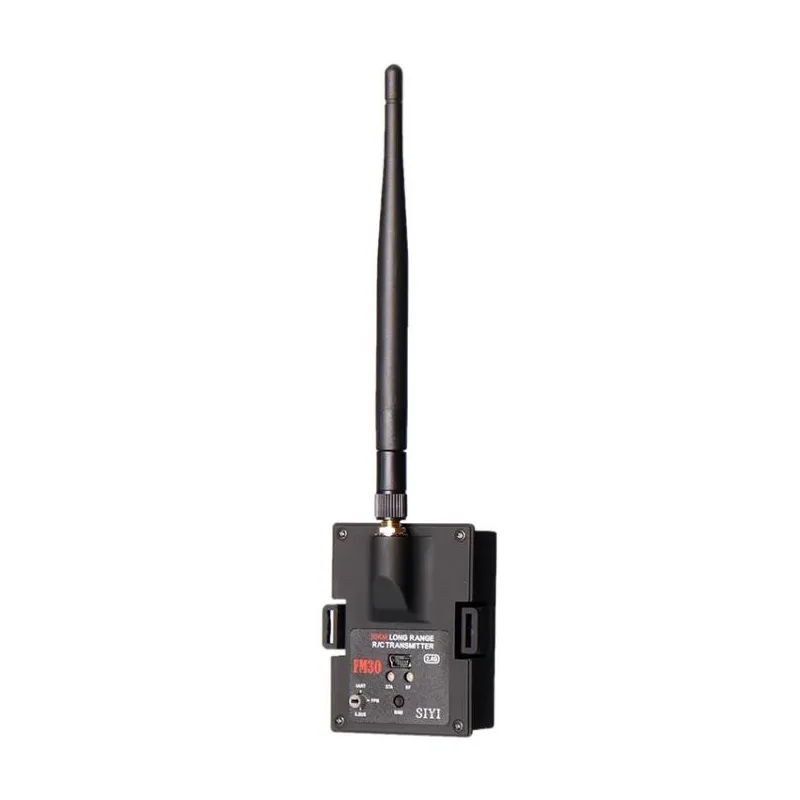

Transmitter
Signal Input: UART, S.Bus, PPM
Antenna Connector: SMA Male
Antenna Gain: 3 dBi
Power Input: 5 to 10 V
Power Consumption: 0.7 W
Dimensions (antenna detached): 59 x 43 x 18.5 mm
Weight: 36 g
Working Temperature: -10 to 55℃

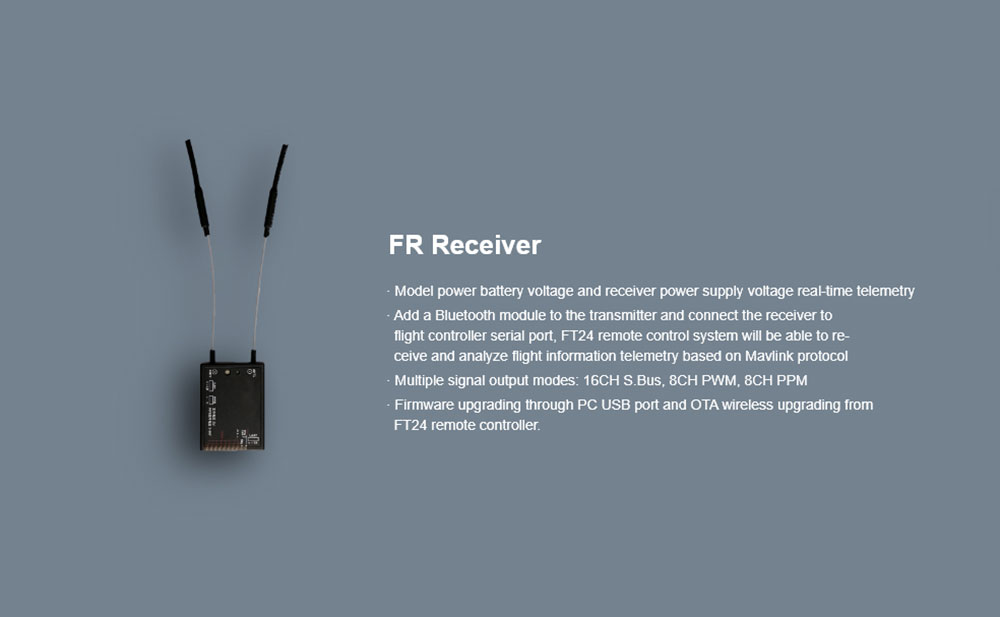

FR Receiver
Signal Output: 16 channels of S.BUS, 8 channels of PPM, 8 channels of PWM

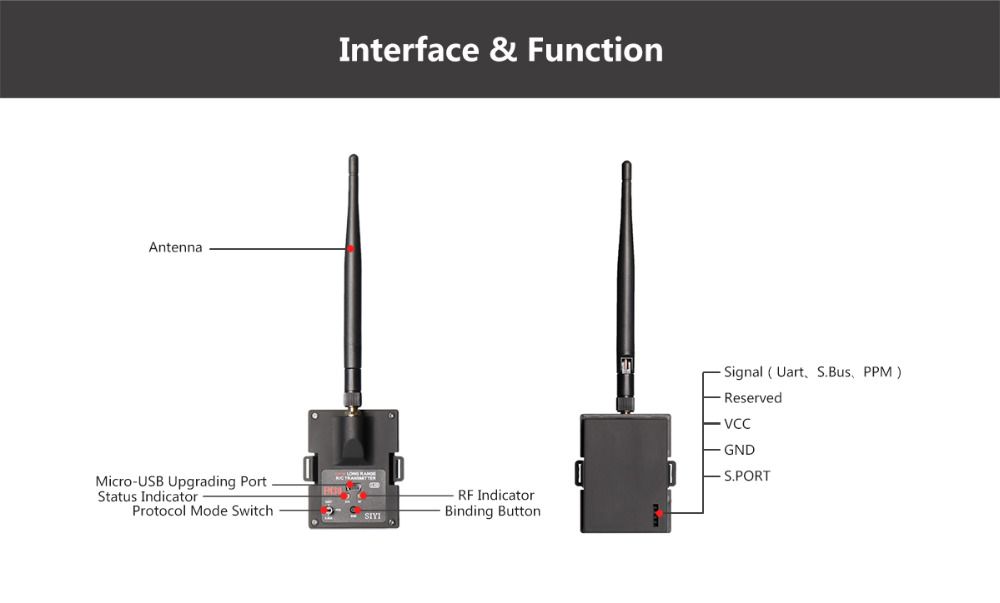

Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 51.5 x 38 x 13 mm
Weight (antenna excluded): 20 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 to 8.4 V
Voltage Telemetry Range: 0 ~ 50 V
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃

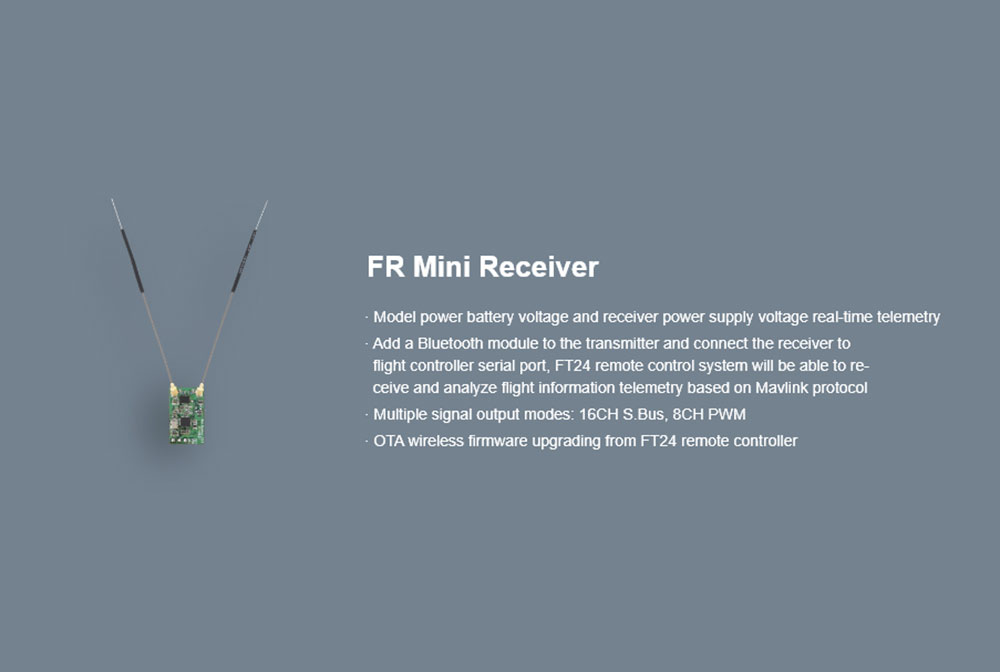

FR Mini Receiver
Signal Output: 16 channels of S.BUS, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 24 x 15 x 3 mm
Weight: 1.5 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 V
Voltage Telemetry Range: 0 ~ 26 V
Working Temperature: -10 to 55℃
