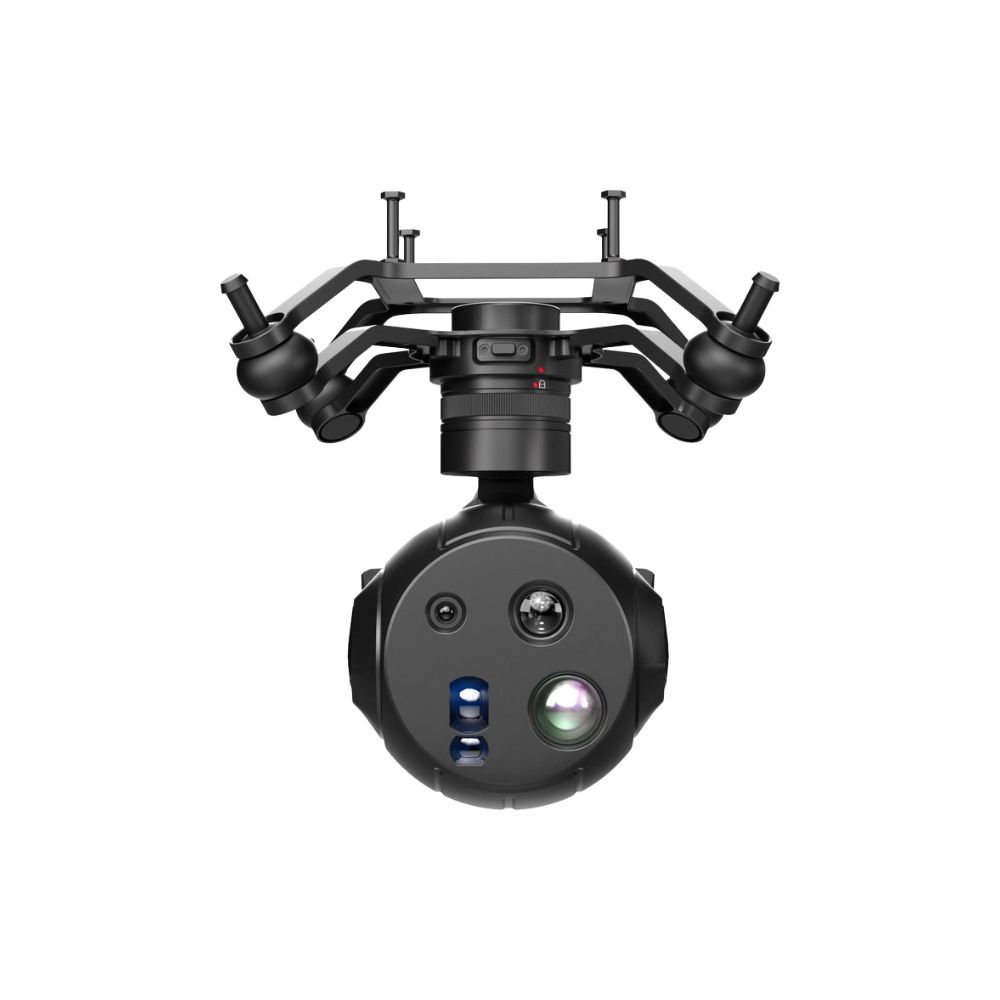

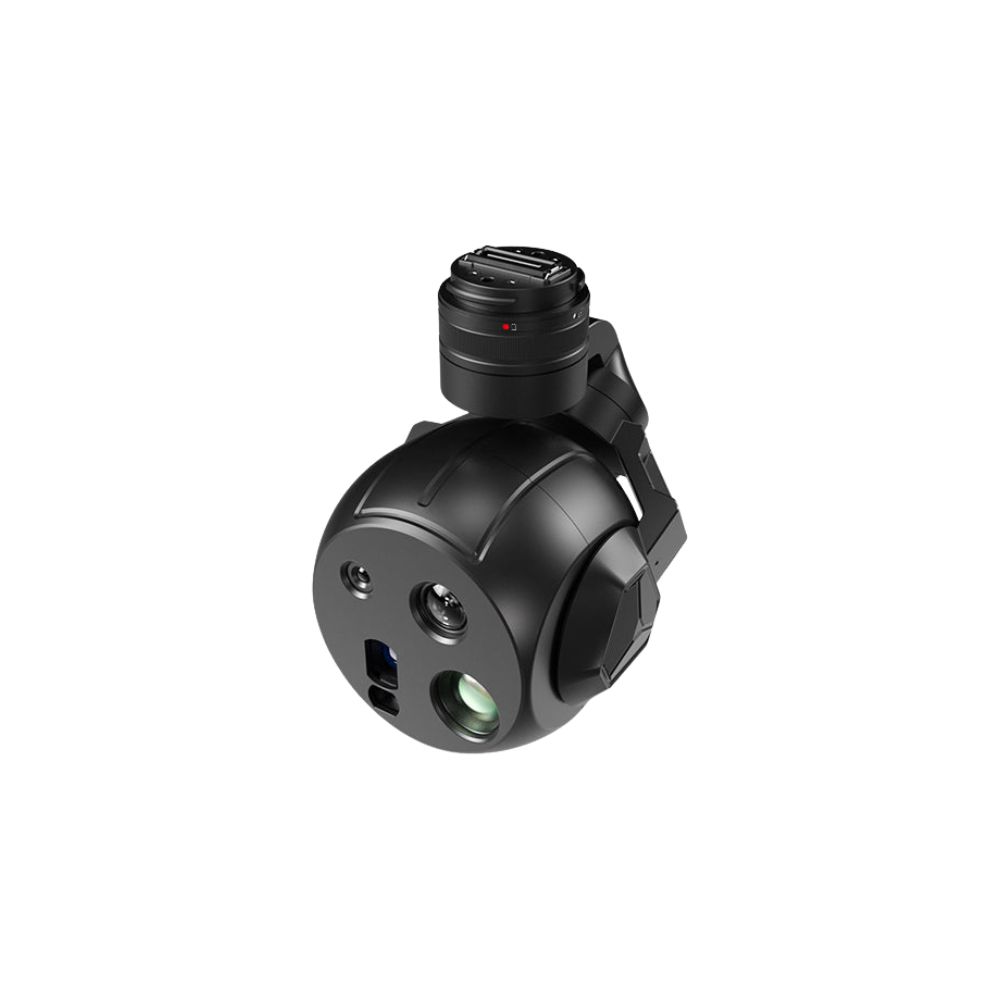

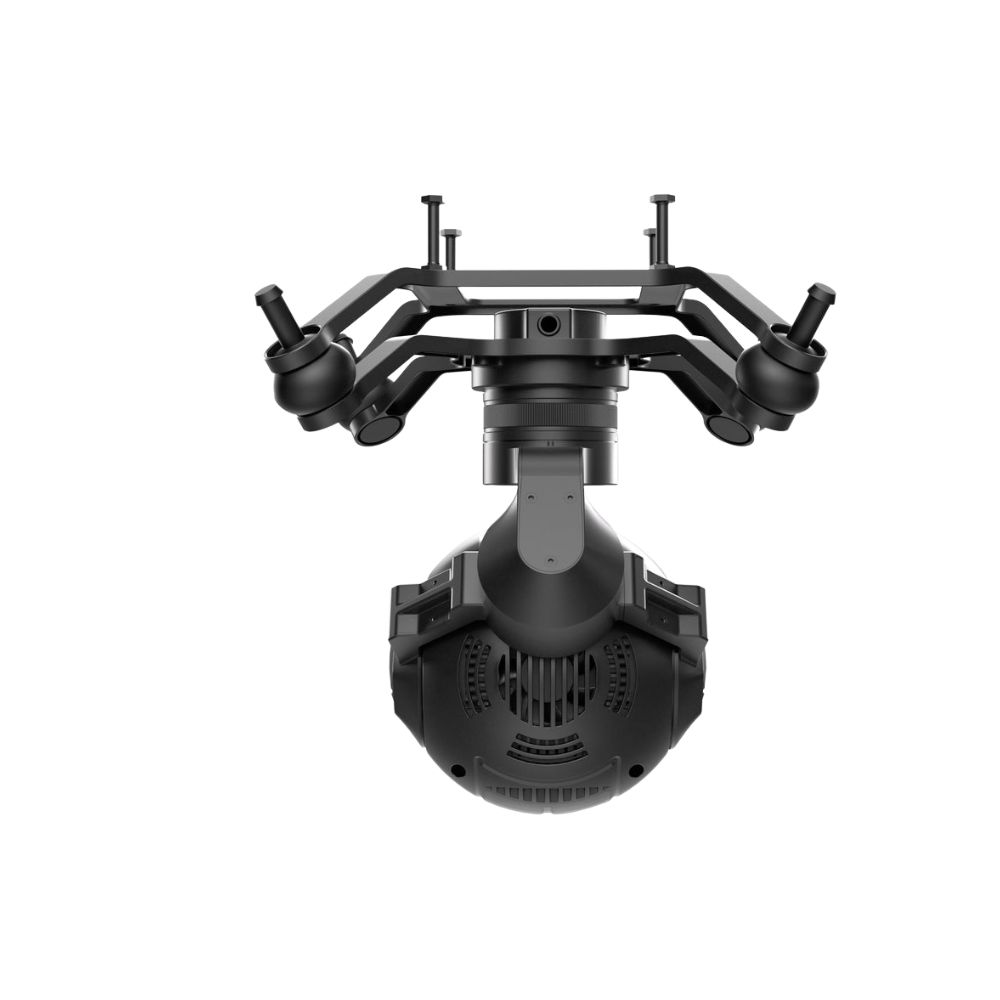

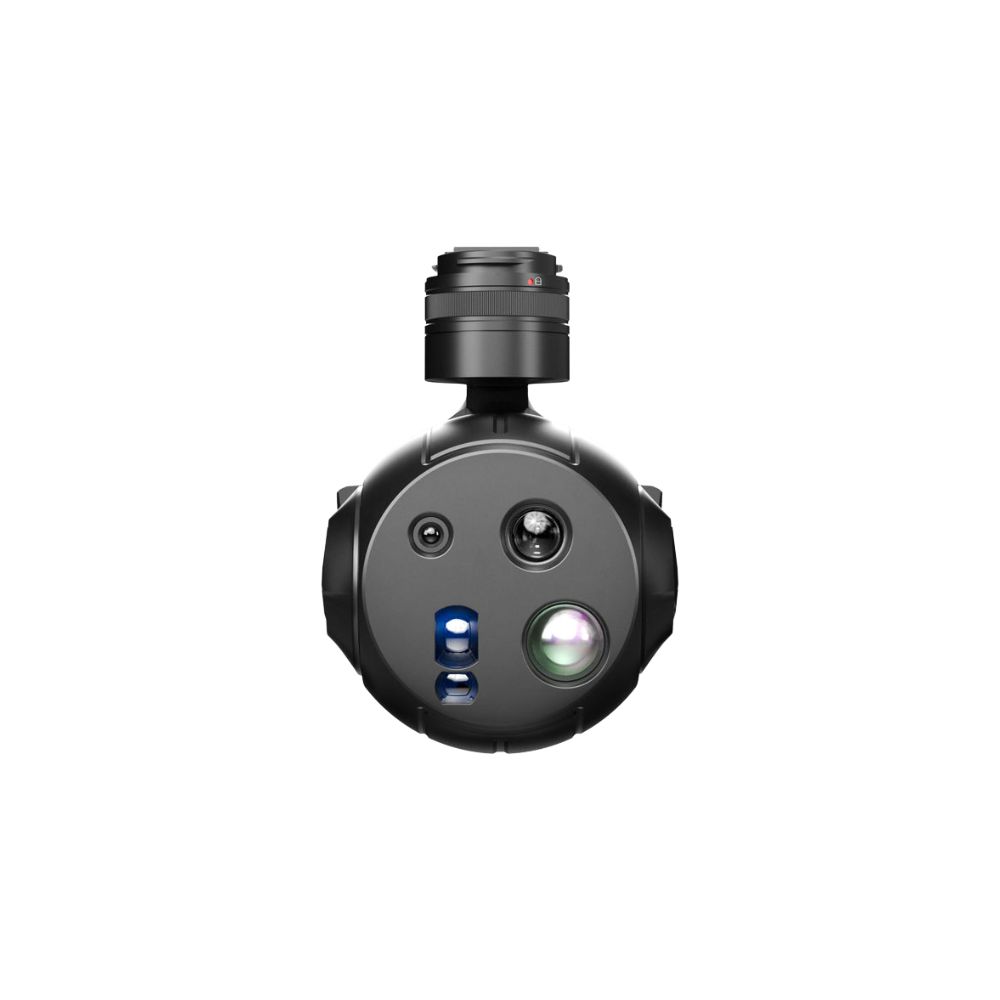

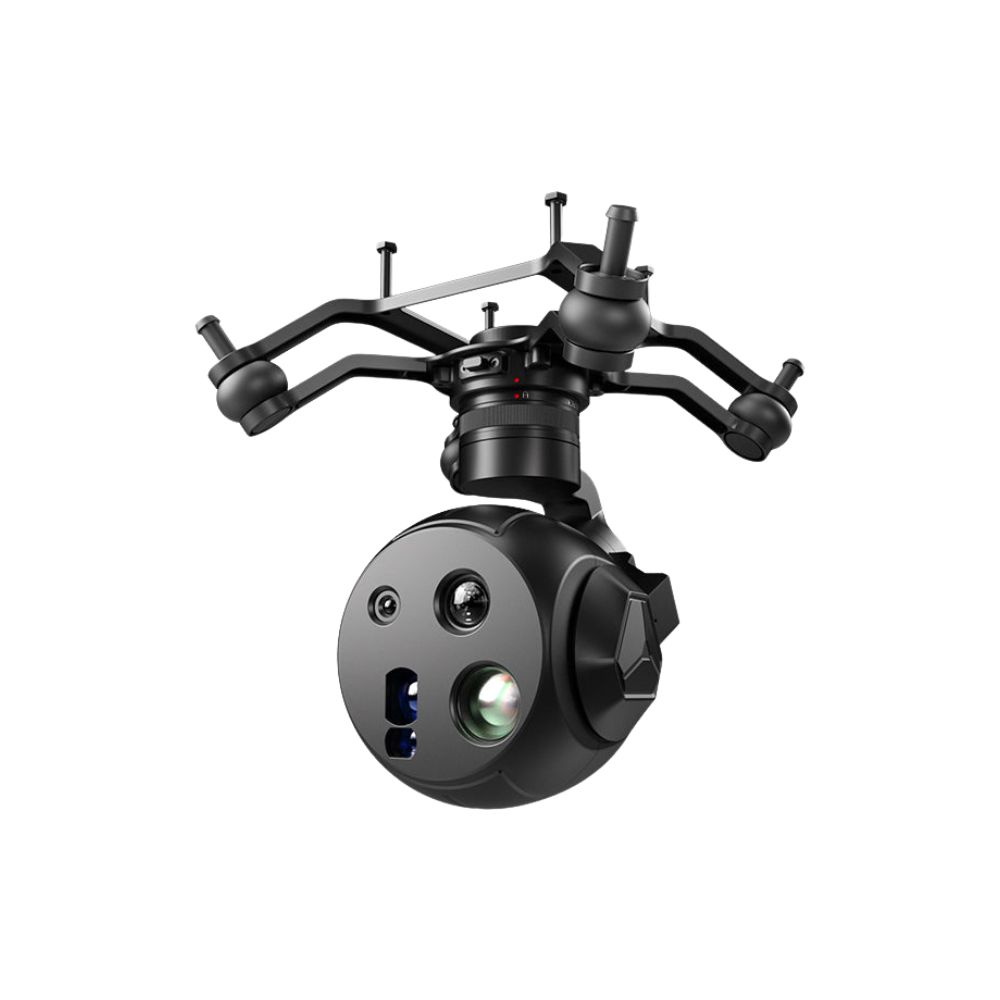

SIYI Reebot Robotics UniPod MT11 New-Era Mini Four-Sensor Optical AI Pod 8K+48MP Photography Built-in 10T Computing Power Al Module IP54 405g

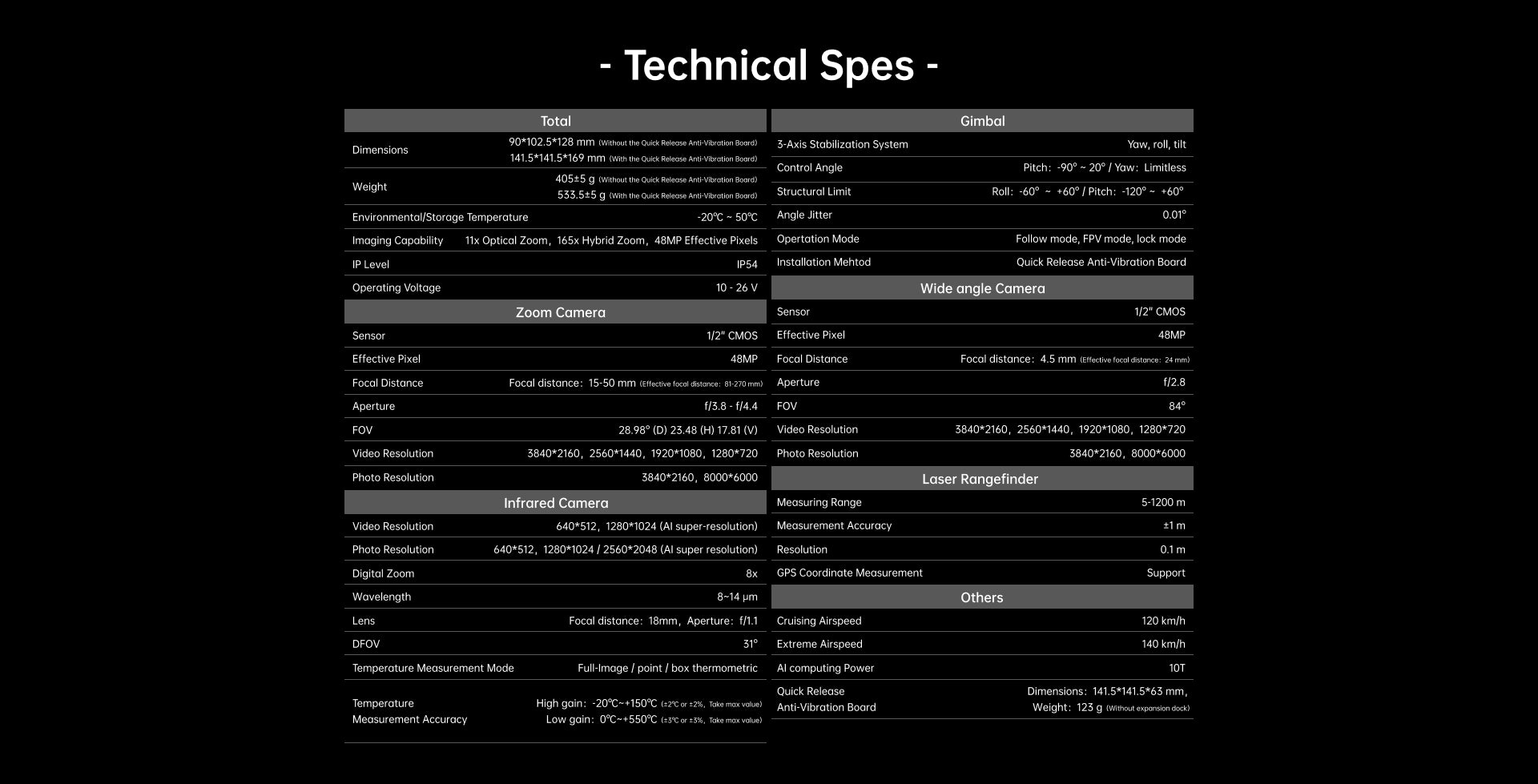

Specifications
Dimensions
141.5 × 141.5 × 169 mm (Without Quick Release Anti-Vibration Board)
90 × 102.5 × 128 mm (With Quick Release Anti-Vibration Board)
Weight
533.5 g ± 5 g (With Quick Release Anti-Vibration Board and Interface Docking Station)
405 g ± 5 g (Without Quick Release Anti-Vibration Board)
System Power Consumption: Avg. 11.4 W (26V Power Supply, Static)
IP Rating: IP54 (IEC 60529)
Note: This rating is not permanent; protection performance may degrade over time due to wear and usage.
Working Temperature: -20 ℃ to 50 ℃
Storage Temperature: -20 ℃ to 60 ℃
Extreme Airspeed: 140 km/h (Lab Data)
Cruising Airspeed: 120 km/h (Lab Data)
Control Interface Protocols: S.Bus, UART, Ethernet (TCP/UDP)
Video Output: Ethernet Port
Operating Voltage: 10–26 V (3–6S)
Requires independent power supply
Camera ISP Adjustment: Brightness (0–100), Saturation (0–100), Contrast (0–100), EV (±10), Shutter Speed, White Balance
Optical Zoom: 11x
Hybrid Zoom: 165x
AI Computing Power: 10 TOPS
Gimbal Specifications
3-Axis Stabilization: Yaw, Pitch, Roll
Angular Jitter: 0.01°

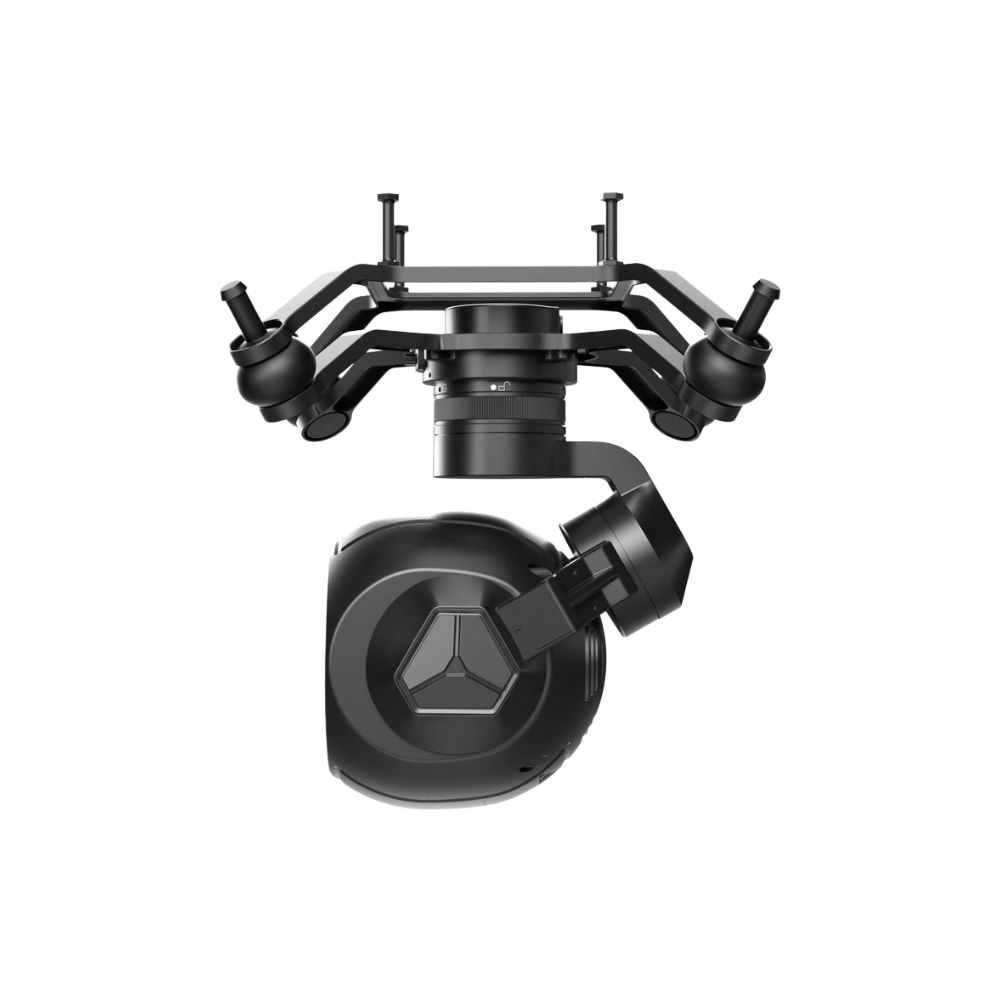

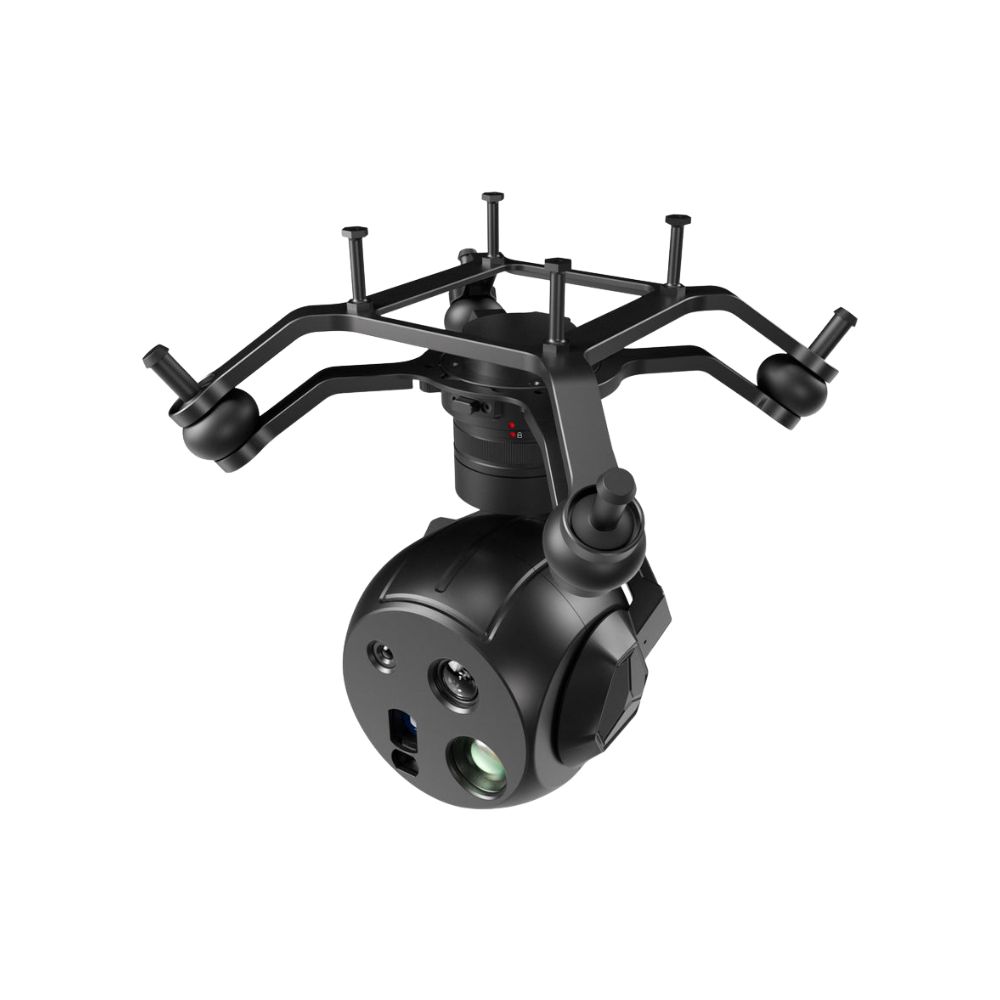

Installation: Quick-Release Anti-Vibration Board
Control Angle
Pitch: –90° to +20°
Yaw: 360° × N (Unlimited)
Structural Limit
Roll: –60° to +60°
Pitch: –120° to +60°
Operation Modes: Follow Mode, FPV Mode, Lock Mode
Wide-Angle Camera Specifications
Image Sensor: 1/2" CMOS, Effective Resolution 48 MP
Lens
Focal Length: 4.5 mm (Effective: 24 mm)
Aperture: f/2.8
FOV (DFOV): 84°
Video Resolution: 3840×2160, 2560×1440, 1920×1080, 1280×720 @30fps
Video Format: MP4
Video Encoding: H.265
Photo Resolution: 3840×2160, 8000×6000
Photo Format: JPG
Metering Modes: Avg / CW / Spot
Target Detection & Recognition Ranges
(Per Johnson criteria: pedestrian 0.75 m, vehicle 2.3 m, vessel 7 m; thresholds: 1.5 / 6 / 12 CPM)
Detection Range
Pedestrian: 2806 m
Vehicle: 8606 m
Vessel: 26192 m
Recognition Range
Pedestrian: 702 m
Vehicle: 2151 m
Vessel: 6548 m
Identification Range
Pedestrian: 351 m
Vehicle: 1076 m
Vessel: 3274 m
Zoom Camera Specifications
Image Sensor: 1/2" CMOS, Effective Resolution 48 MP
Lens
Focal Length: 15–50 mm (Effective: 81–270 mm) ±5%
Aperture: f/3.8–f/4.4
FOV
Wide: D 28.98° H 23.48° V 17.81°
Tele: D 9.06° H 7.29° V 5.49°
Focus Modes: MF, AFS
Video Resolution: 3840×2160, 2560×1440, 1920×1080, 1280×720 @30fps
Video Format: MP4
Video Encoding: H.265
Photo Resolution: 3840×2160, 8000×6000
Photo Format: JPG
Metering Modes: Avg / CW / Spot
Target Detection & Recognition Ranges
Wide
Detection: Pedestrian 9375 m | Vehicle 28750 m | Vessel 87500 m
Recognition: Pedestrian 2344 m | Vehicle 7188 m | Vessel 21875 m
Identification: Pedestrian 1172 m | Vehicle 3594 m | Vessel 10938 m
Tele
Detection: Pedestrian 31250 m | Vehicle 95833 m | Vessel 291667 m
Recognition: Pedestrian 7813 m | Vehicle 23958 m | Vessel 72917 m
Identification: Pedestrian 3906 m | Vehicle 11979 m | Vessel 36458 m
Laser Rangefinder Specifications
Wavelength: 905 nm
Measuring Range (Building): 5–1200 m
Accuracy: ±1 m
PRF: 3 Hz (5–45 m); 0.75–3 Hz (45–1200 m)
Eye Safety: Class 3R
Infrared Camera Specifications
Thermal Sensor: VOx Uncooled, Pixel Pitch 12 μm
Lens: Focal Length 18 mm, Aperture f/1.1
FOV (DFOV): 31°
Digital Zoom: 8x
Video Resolution: 640×512, 1280×1024 @AI
Video Format: MP4
Video Encoding: H.265
Photo Resolution: 640×512, 1280×1024 @AI, 2560×2048 @AI
Photo Format: JPG
NETD: 8–14 μm
Temperature Accuracy
High Gain: -20 ℃ to 150 ℃ (±2℃ or ±2%, max)
Low Gain: 0 ℃ to 550 ℃ (±3℃ or ±3%, max)
High-Temp Alarm: Supported
Measurement Modes: Full-image / Point / Box
Pseudo-Color: White Hot, Lava, Iron Red, Low Light, Aurora, Red Hot, Medical, Black Hot, Golden Red (9 modes)
Target Detection & Recognition Ranges
Detection: Pedestrian 750 m | Vehicle 2300 m | Vessel 7000 m
Recognition: Pedestrian 188 m | Vehicle 575 m | Vessel 1750 m
Identification: Pedestrian 94 m | Vehicle 288 m | Vessel 875 m
Additional Specifications
Network Streaming: RTSP (Dual Stream Supported)
Stream Encoding: H.265, H.264
Stream Display: Frame Stitching & View Selection
Storage: FAT32 / exFAT (U3/Class10/V30 or higher recommended)
Video Bitrate (H.265)
4K: 40 Mbps
2K: 20 Mbps
1080P: 10 Mbps
720P: 5 Mbps

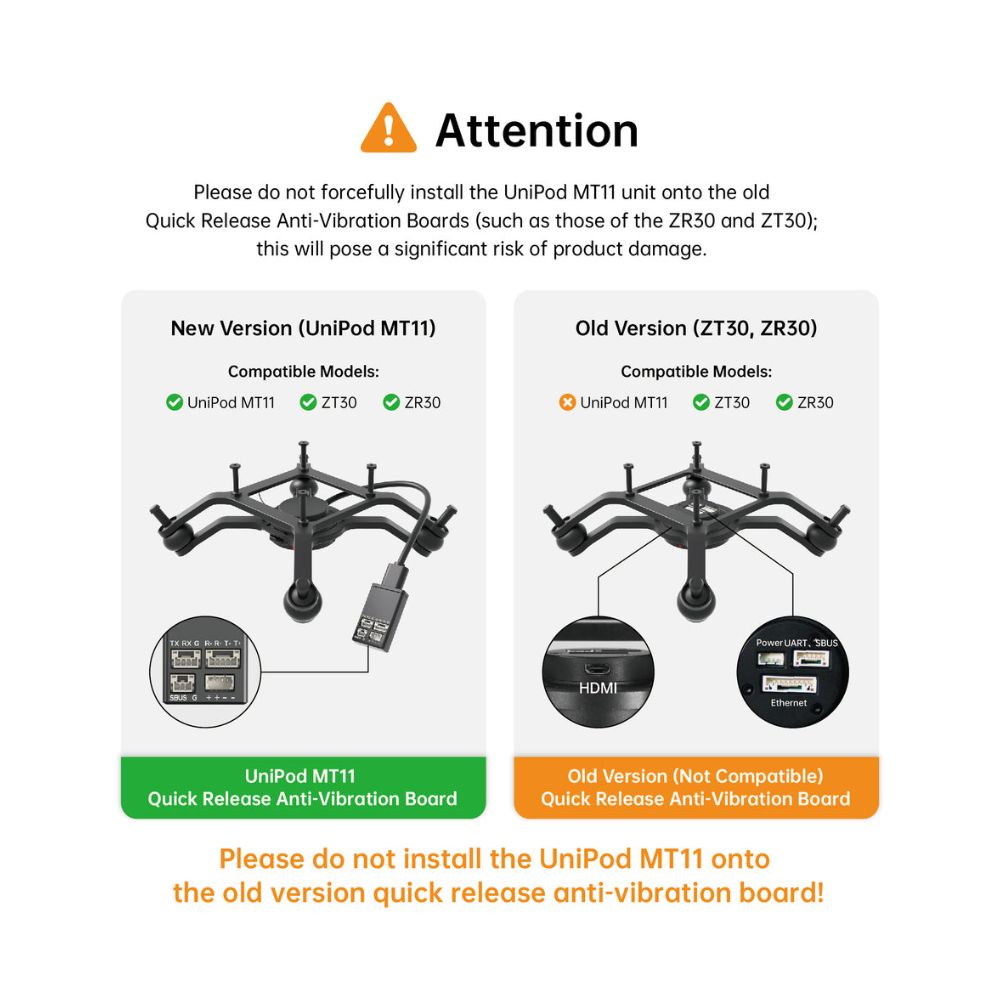

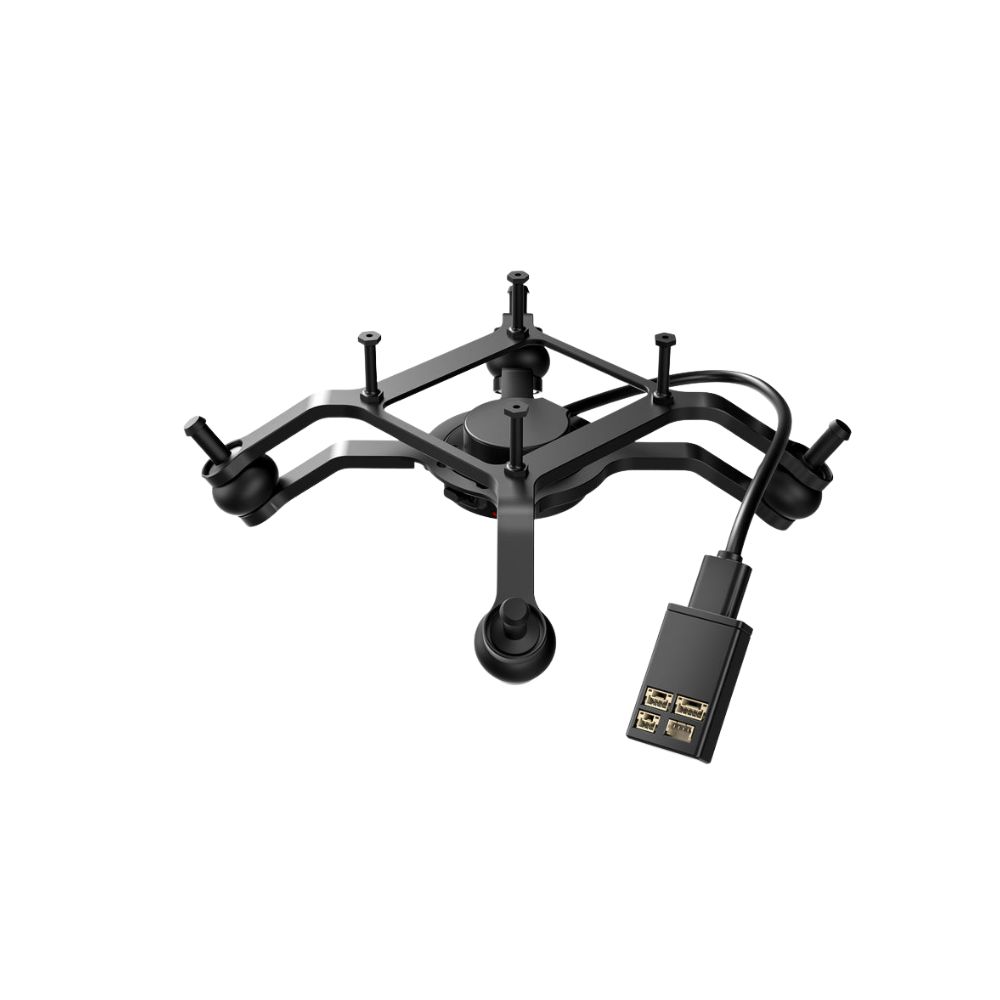

Quick Release Anti-Vibration Board
Dimensions: 141.5 × 41.5 × 63 mm
Weight: 123 g ±5 g (Without expansion dock)
