Experience seamless control and reliable connectivity with the SIYI UniRC 10 Pro Air Unit. Boasting 16-channel S.Bus remote signal, dual Ethernet ports, UART data links, and quick-release antennas, this unit ensures robust performance and flexibility for advanced aerial operations. Power up effortlessly with wide voltage support.
Specification
Remote Signal: 16-channel S.Bus
Output: 5-channel PWM (GH1.25 6Pin)
Data Link: UART×2 (GH1.25 3Pin)
Function: Video & Data: Ethernet Port×2 (GH1.25 8Pin)
Interfaces: CAN×1 (GH1.25 4Pin) / PWM×1 (GH1.25 6Pin)
Power Input: XT30
Firmware Upgrade: TYPE-C

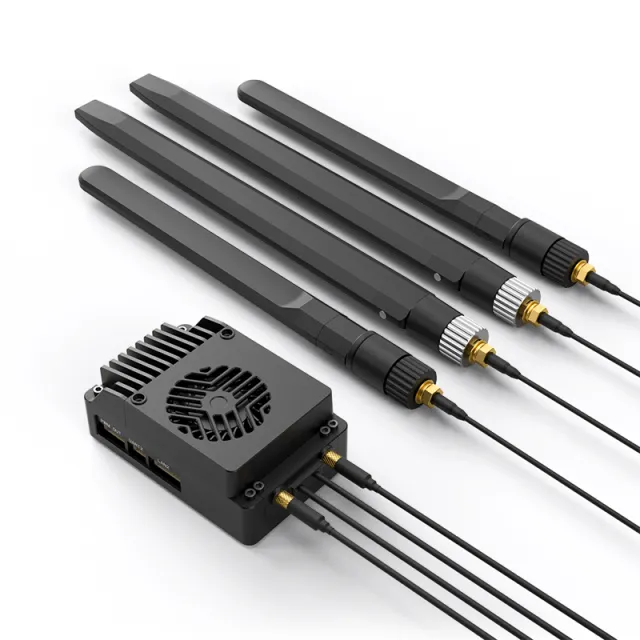

Antennas: Quick-release antennas (MMCX)×2 / Detachable antennas (IPEX)×2
Power Supply Voltage: 3S-18S
Dimensions (excluding antennas): 85×42.4×26.9 mm
Weight (excluding antennas): 200 g ±5 g
Average Power Consumption: 7 W
