Specs
Overall

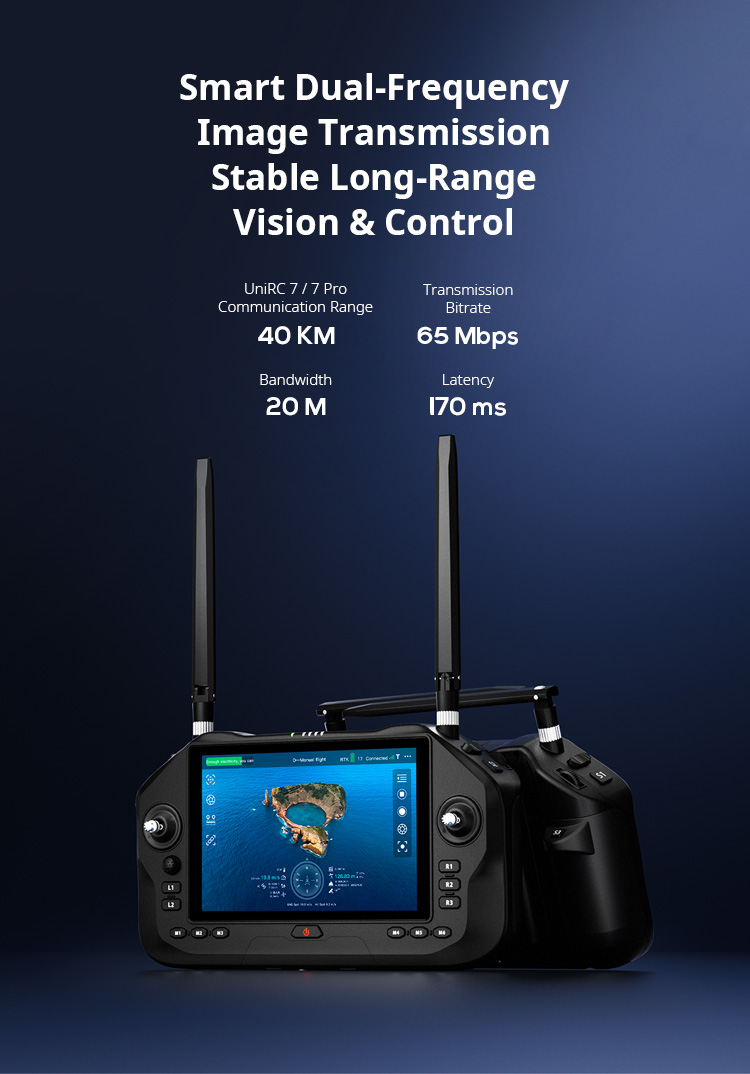

Maximum Effective Signal Range
Agriculture Spraying Altitude (3 to 6 m): 3 to 6 km
Rural Area Flight Altitude (120 m), Few Obstruction & Medium Interference: 10 to 15 km
Above Sea Flight Altitude (150 m), No Obstruction & Low Interference: 30 to 40 km
Working Frequency
UniRC 7 Pro:
2.400 GHz - 2.476 GHz
5.725 GHz - 5.829 GHz
UniRC 7:
2.400 GHz - 2.476 GHz
Physical Channels
10 x Custom Buttons
6 x Flight Mode Buttons
2 x Main Joysticks
1 x Sub Joystick
2 x Dials
2 x 3-Stage Switches

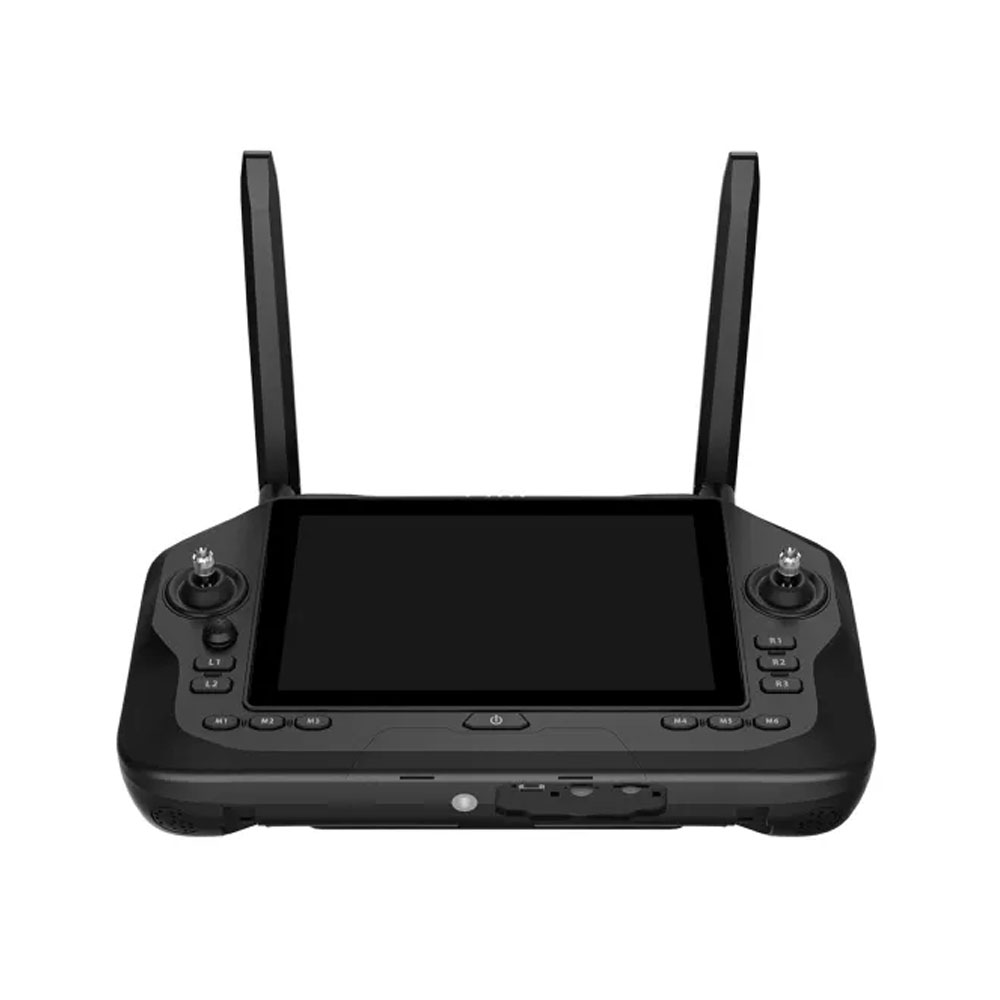

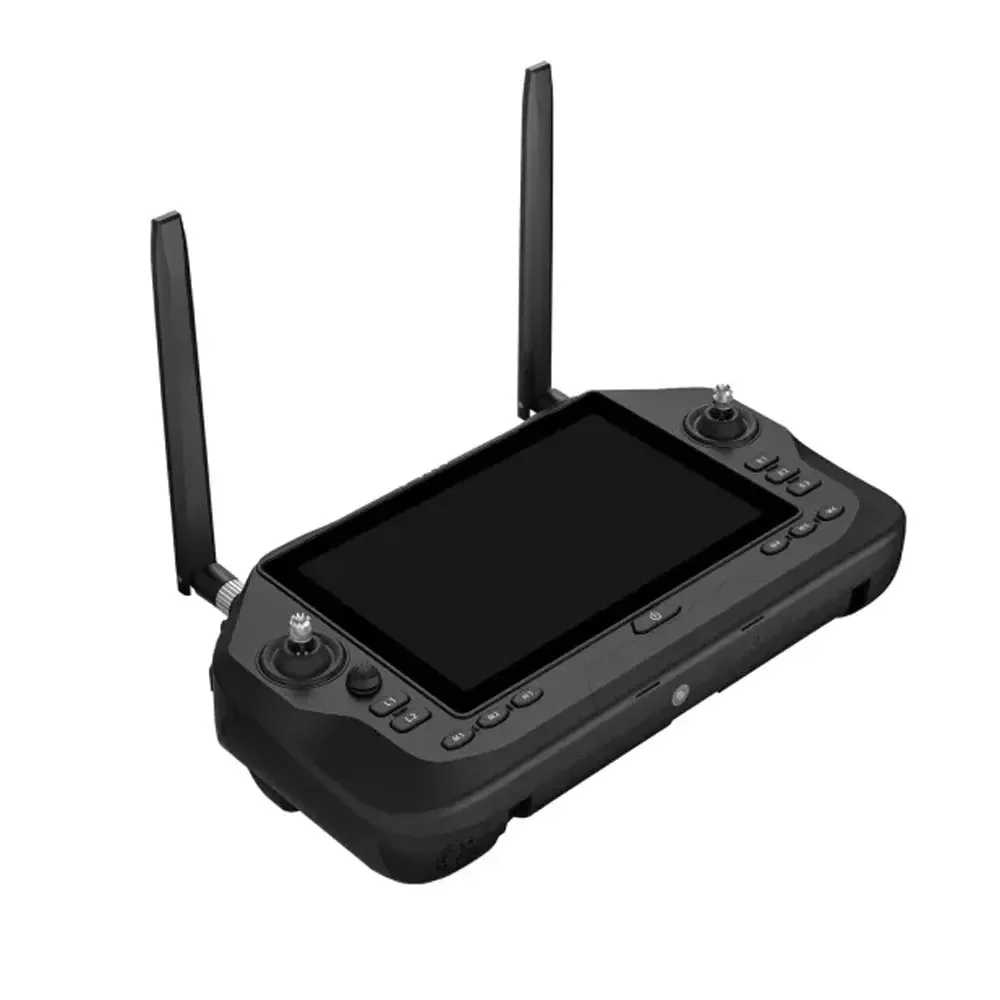

Ground Unit

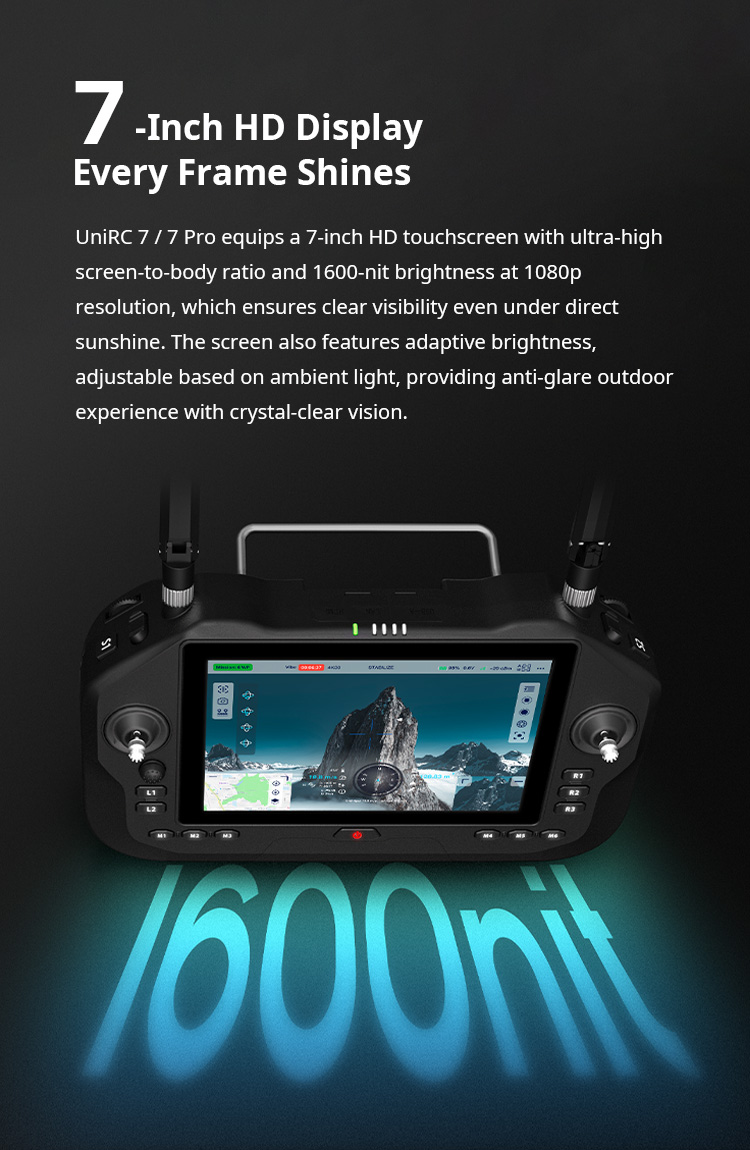

Monitor
7-inch 1080p 1600-nit High Definition and High Brightness LCD Touchscreen
UniRC 7 Pro: 1920×1200
UniRC 7: 1280×800
Operating System: Android 13
Android Hardware: 4GB RAM + 64GB ROM
Wi-Fi: Wi-Fi 5
Bluetooth: BT 5.0
GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS

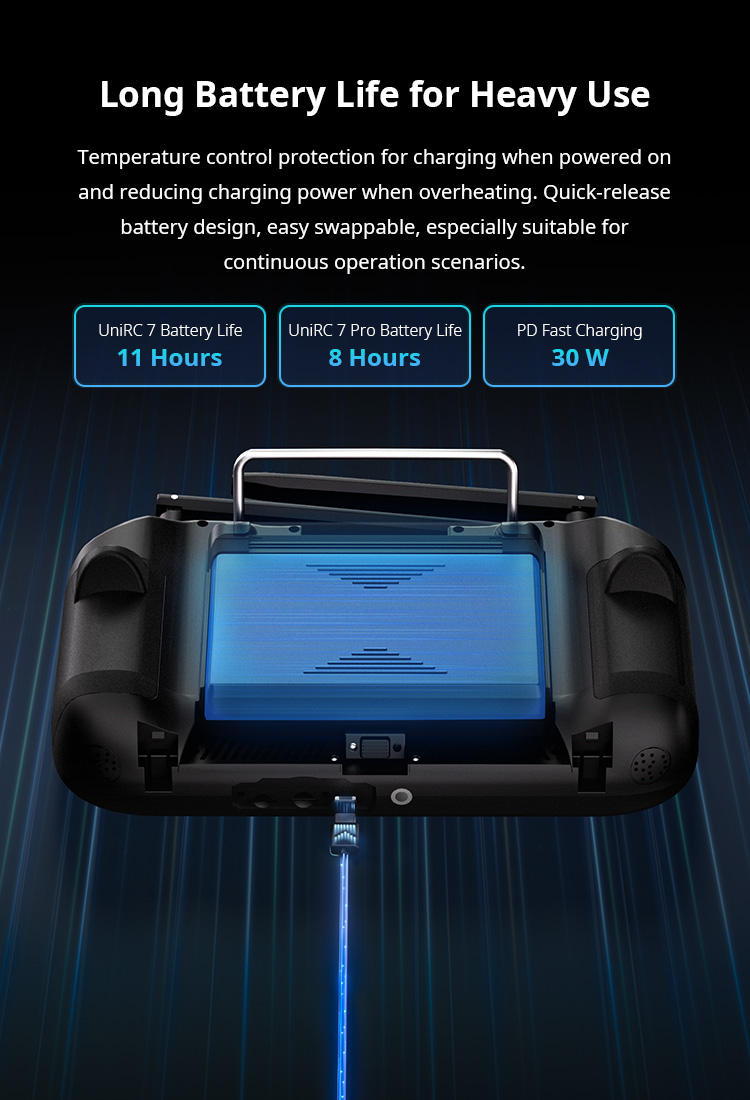

Battery Life
UniRC 7 Pro: Approx 8 hours
UniRC 7: Approx 11 hours
Battery Capacity: 13400mAh
Charging Protocol: PD 30W
Charging Time: Approx 4.5 hours
Datalink/SDK Port: UART/UDP, Bluetooth, Type-C

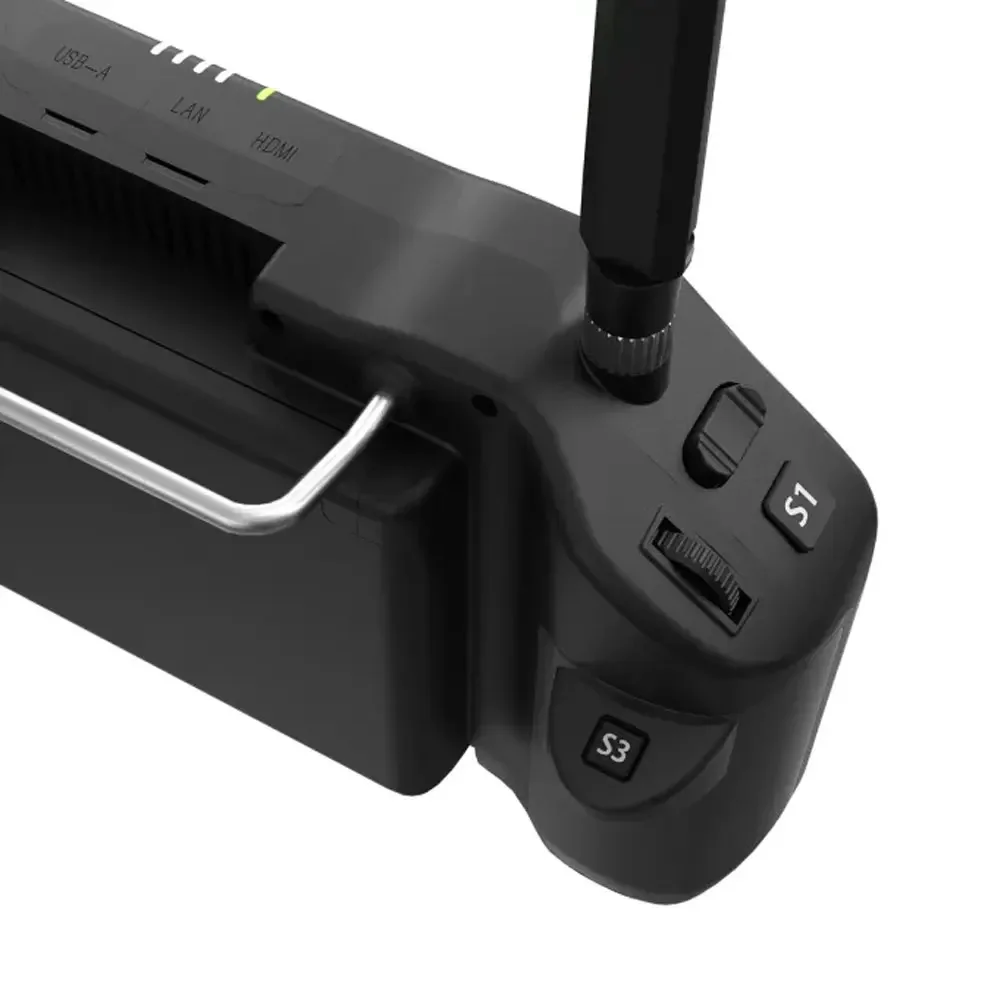

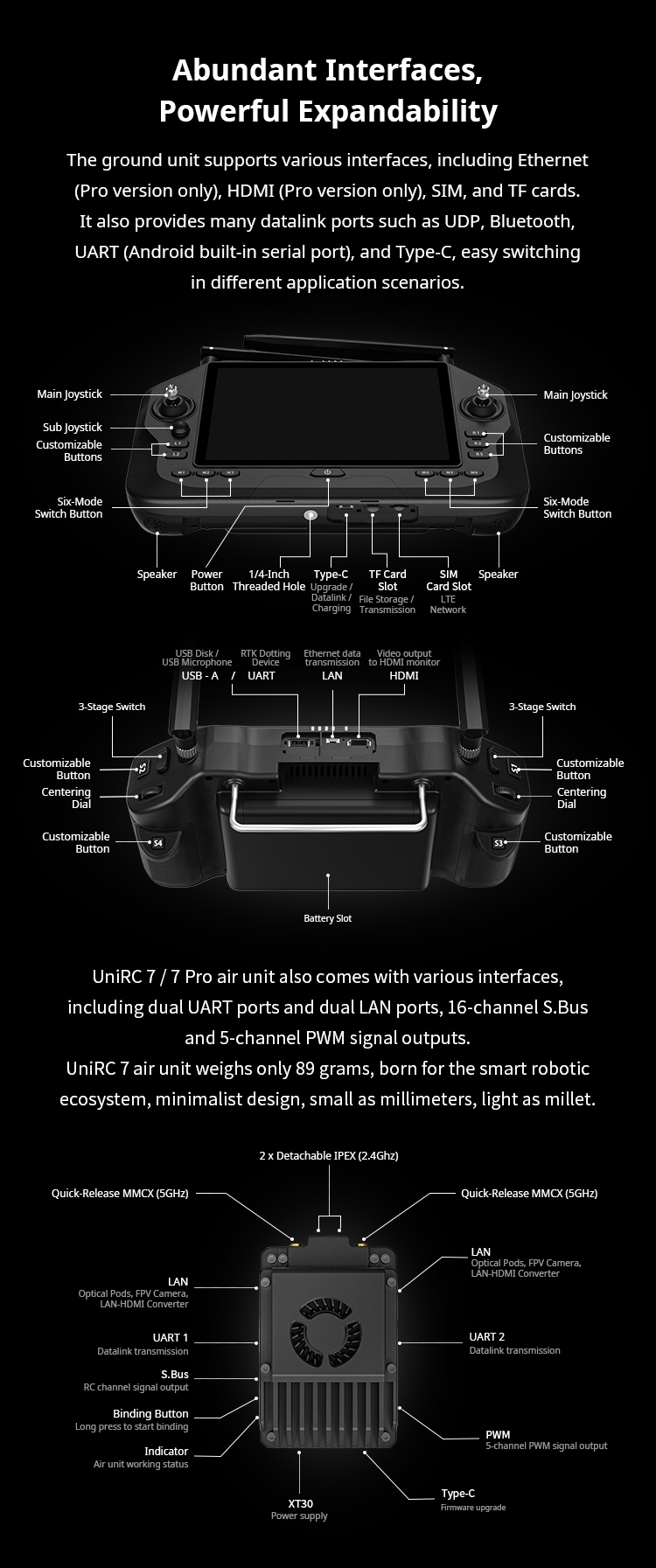

Interfaces
UniRC 7 Pro:
External Device (Mouse, USB Disk, USB Microphone): USB-A
Serial Port (for RTK Dotting Module): USB-A
File Transfer: USB-A
Video Output: Standard HDMI
Network Communication: LAN (GH1.25 4-Pin)
UniRC 7:
Serial Port (for RTK Dotting Module): USB-A
Charging: Type-C
Firmware Upgrade: Type-C
File Transfer: Type-C
Mobile Network: SIM Card Slot
External Storage: TF Card Slot / USB-A
Tripod Mount: 1/4-inch Standard Screw Hole

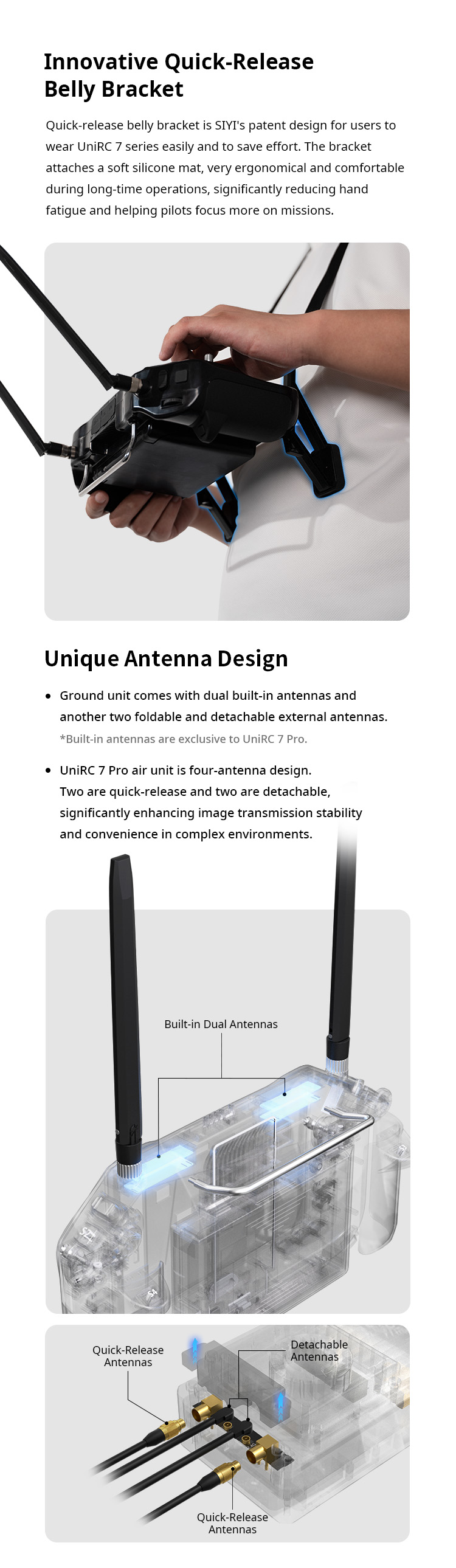

Antennas
UniRC 7 Pro:
2 x Internal (5 GHz) + 2 x External (2.4 GHz)
UniRC 7:
2 x External (2.4 GHz)
Protection Class
IP54
Dimensions
UniRC 7 Pro: L274 * W190 * H100 mm
UniRC 7: L274 * W190 * H100 mm
Weight
UniRC 7 Pro: 1.46KG
UniRC 7: 1.44KG
Air Unit
RC Signal Output
16-channel S.Bus
5-channel PWM
Interfaces
RC Signal Output: S.Bus (GH1.25 2-Pin)
RC Signal Output: PWM 1 to 5 (GH1.25 6-Pin)
Datalink: 2 x UART (GH1.25 3-Pin)
Video & Data: 2 x LAN (GH1.25 8-Pin)
Power Supply: XT30
Firmware Upgrade: Type-C
Antennas
UniRC 7 Pro:
2 x Quick-Release MMCX (5 GHz)
2 x Detachable IPEX (2.4 GHz)
UniRC 7:
2 x Detachable IPEX (2.4 GHz)
Working Voltage
7 to 76 V
Dimensions (antenna excluded)
UniRC 7 Pro: L63 * W40 * H27 mm
UniRC 7: L57 * W40 * H28 mm
Weight (antenna excluded)
UniRC 7 Pro: 115g
UniRC 7: 90g
Average Power Consumption
UniRC 7 Pro: 8W
UniRC 7: 6W
