About this product
The H12 series uses newest Qualcomm Snapdragon 625 processor, equipped with an Android embedded system and advanced SDR technology and super protocol stack, making the image clearer, lower the latency, longer distance, stronger anti-infection, whether it is drones, robots, industrial control equipment, etc. can be applied
It is used to remotely operate helicopters, fixed wings, multi-rotors, vehicles, ships, etc. for video/image transmission (camera optional), data transmission, telemetry, and control drone flight.

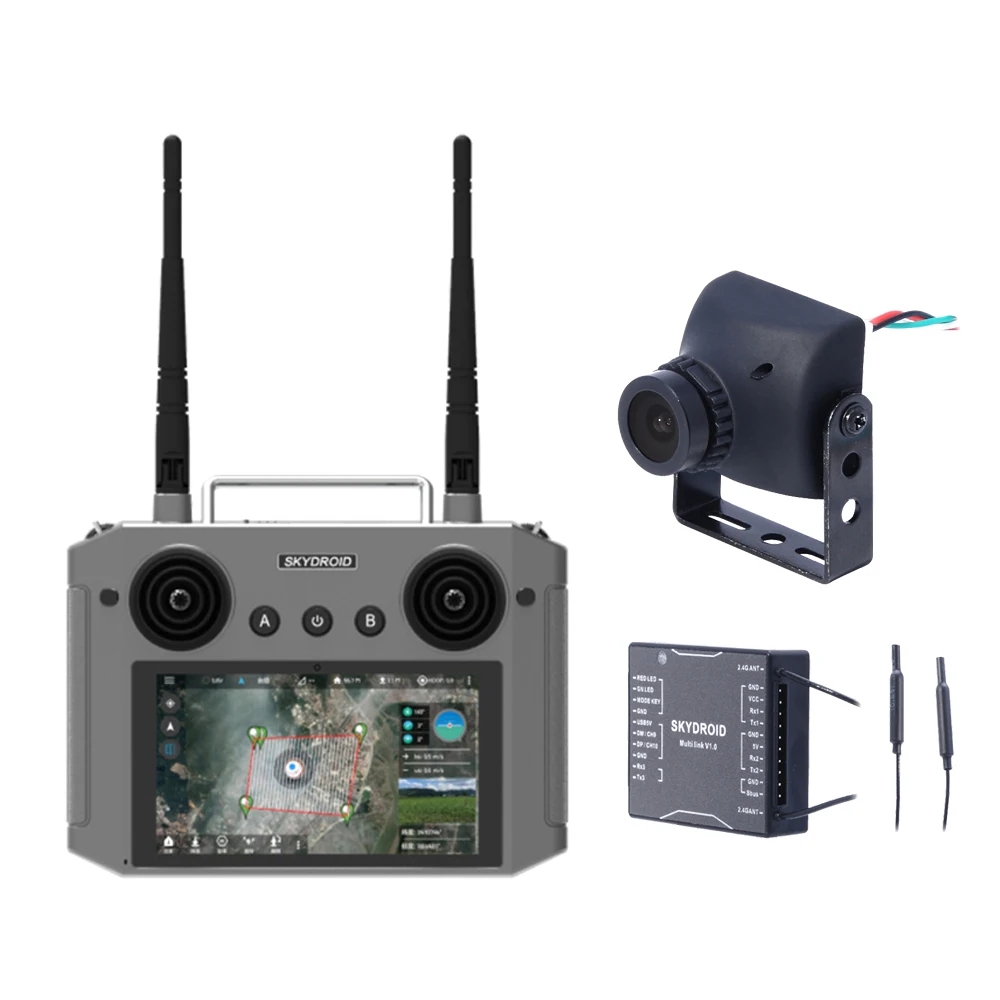

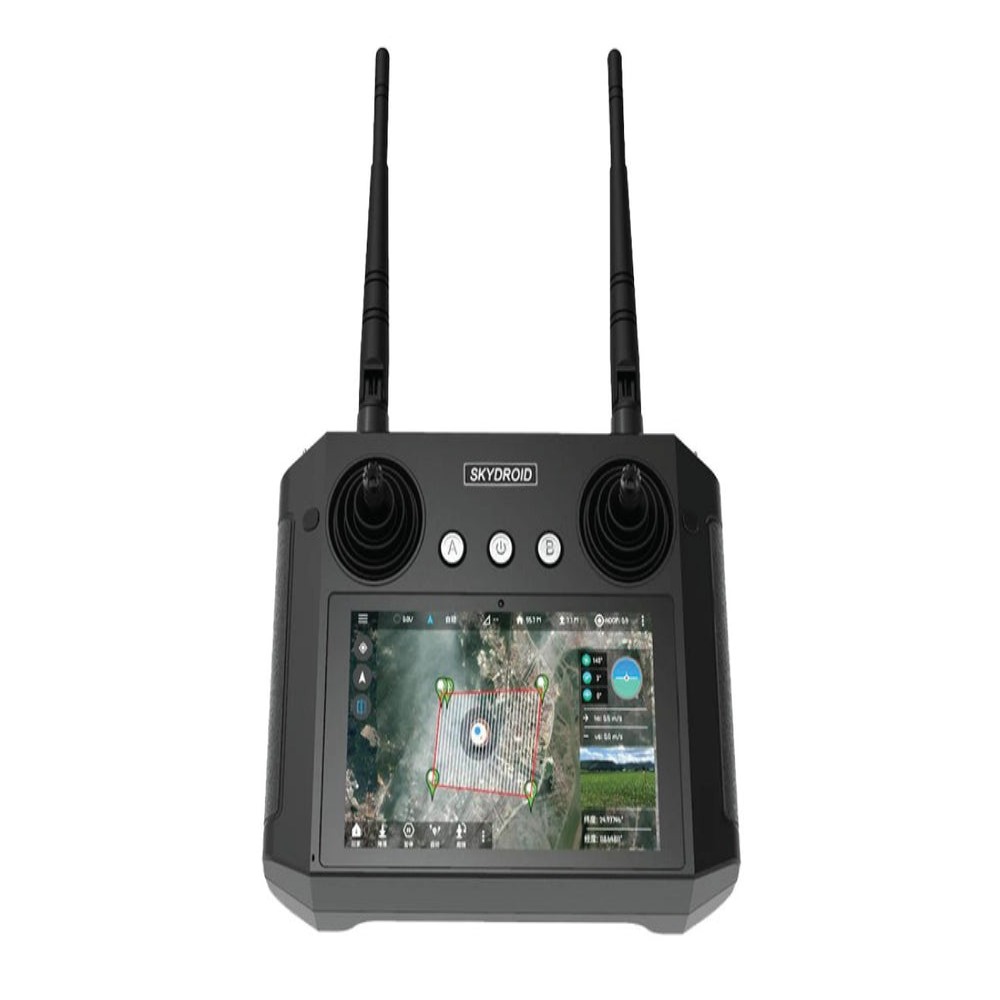

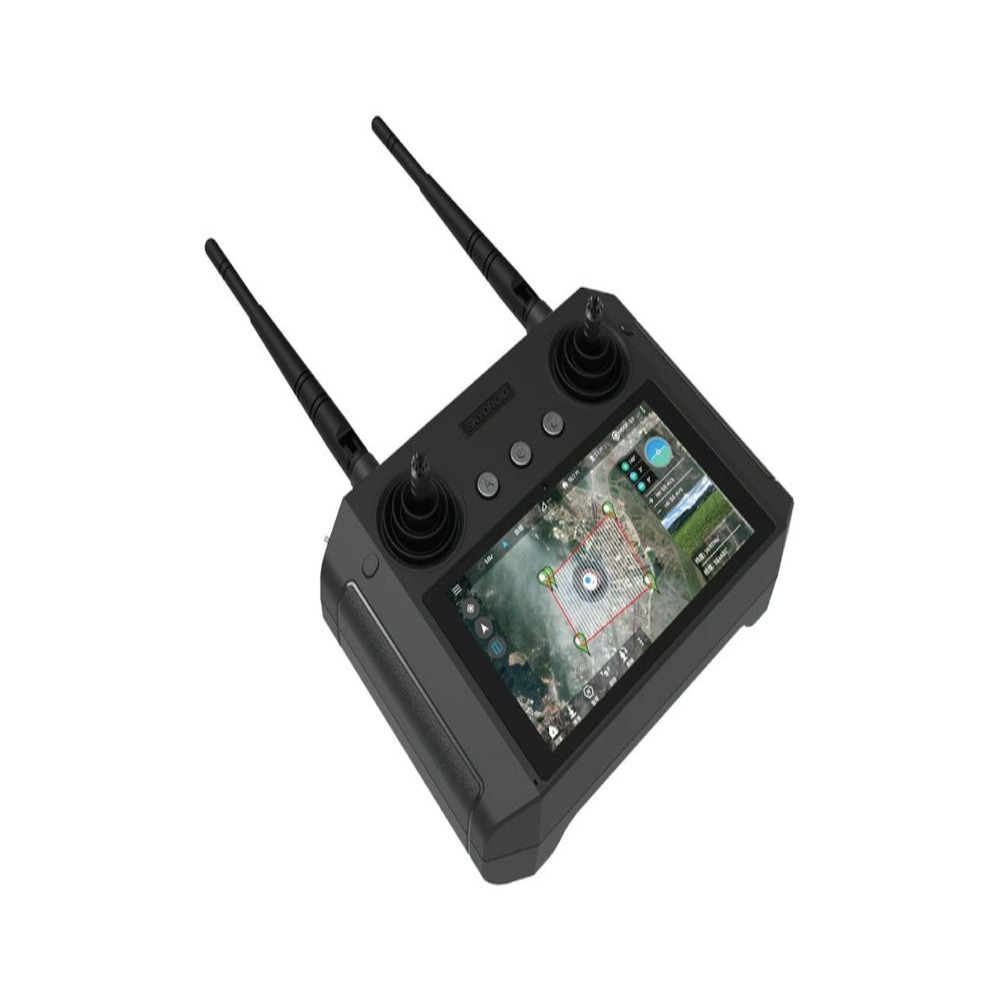

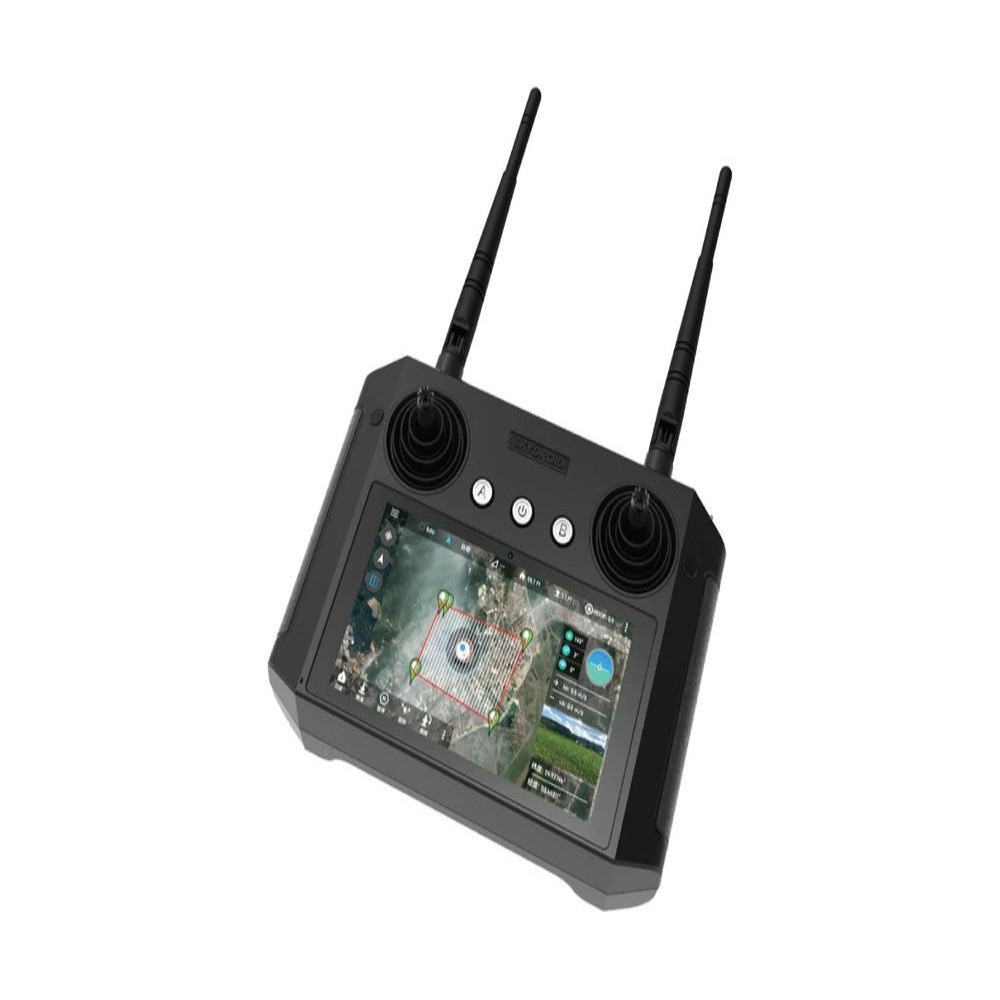

Skydroid H12 Remote Controller for Drone

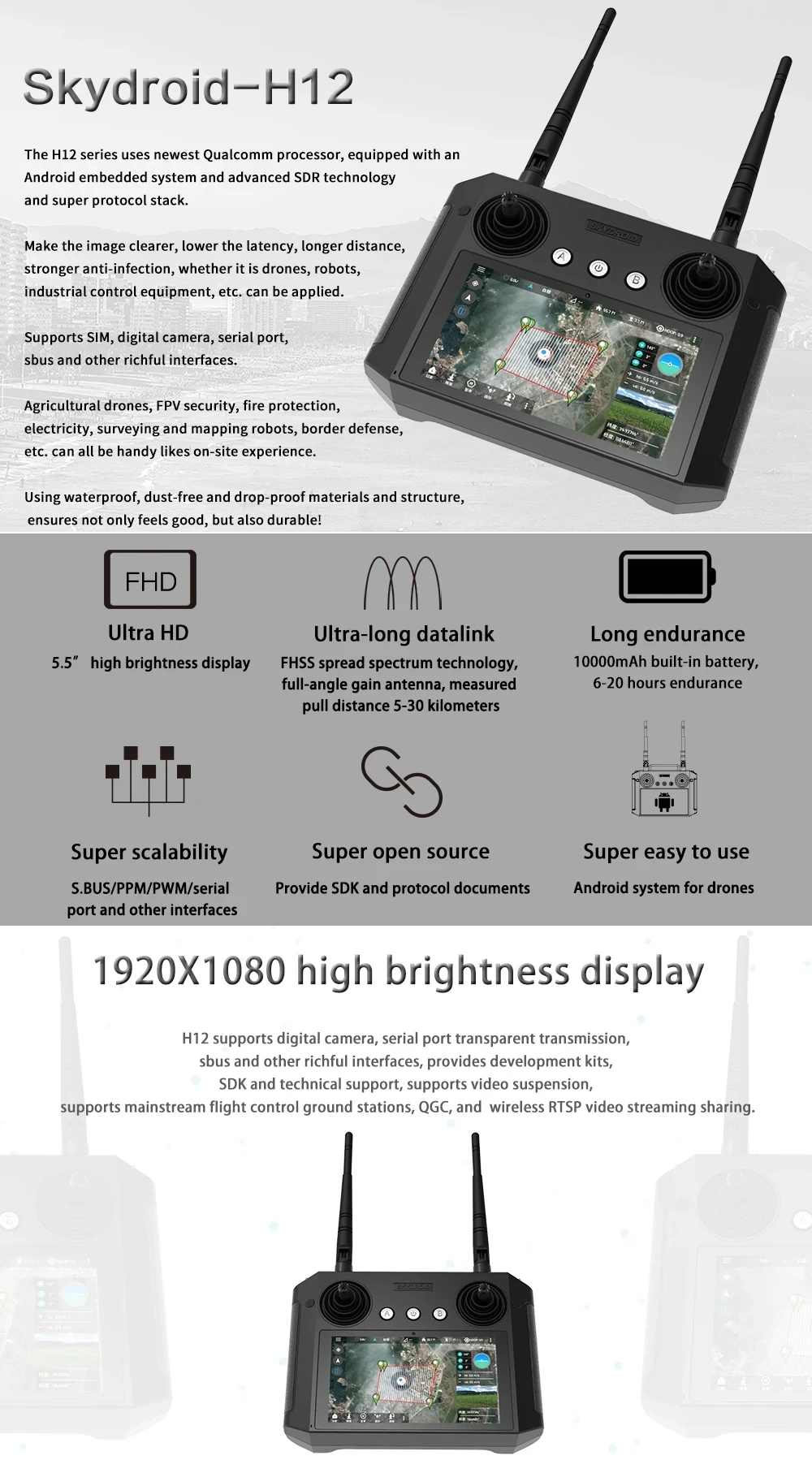

The Skydroid H12 Long Range Drone Radio System use the newest Qualcomm processor, equipped with an Android embedded system and advanced SDR technology and super protocol stack. Make the image clearer, lower the latency, long distance, stronger anti-infection, whether it is drones, robots, industrial control equipment, etc. can be applied. It can be widely used on agriculture drones, FPV security, fire protection, electric power, surveying and mapping robots, border defense, etc. The Skydroid H12 remote control is using waterproof, dust-free and drop-proof materials and structure, ensures not only feels good, but also durable!
Skydroid H12 long range radio with 5.5 inch high brightness screen is great for RC drones, RC robots, industrial application’s equipment. Skydroid video transmission H12 is a remote controller with video transmission system. With the FHSS spread spectrum technology, the full range of the Skydroid H12 can reach 5 to 30 km.
Skydroid H12 radio system supports digital camera, serial port transparent transmission, sbus, and other richful interfaces, provides development kits, SDK and technical support, supports video suspension, supports mainstream flight control ground station, QGC, and wireless RTSP video streaming sharing. The dual antenna signals complement each other, ultra-high sensitivity, untra-long distance, and advanced frequency hopping algorithms, which greatly increase the weak signal communication capability. While receiving remote control signals, reserved Tx, Rx and return flight data to the ground remote control. Maximize the use of 2.4G wireless bandwidth to solve the shortcomings of instability and non-interference in frequency bands of 433 and 915 in small drones and crowded spaces.

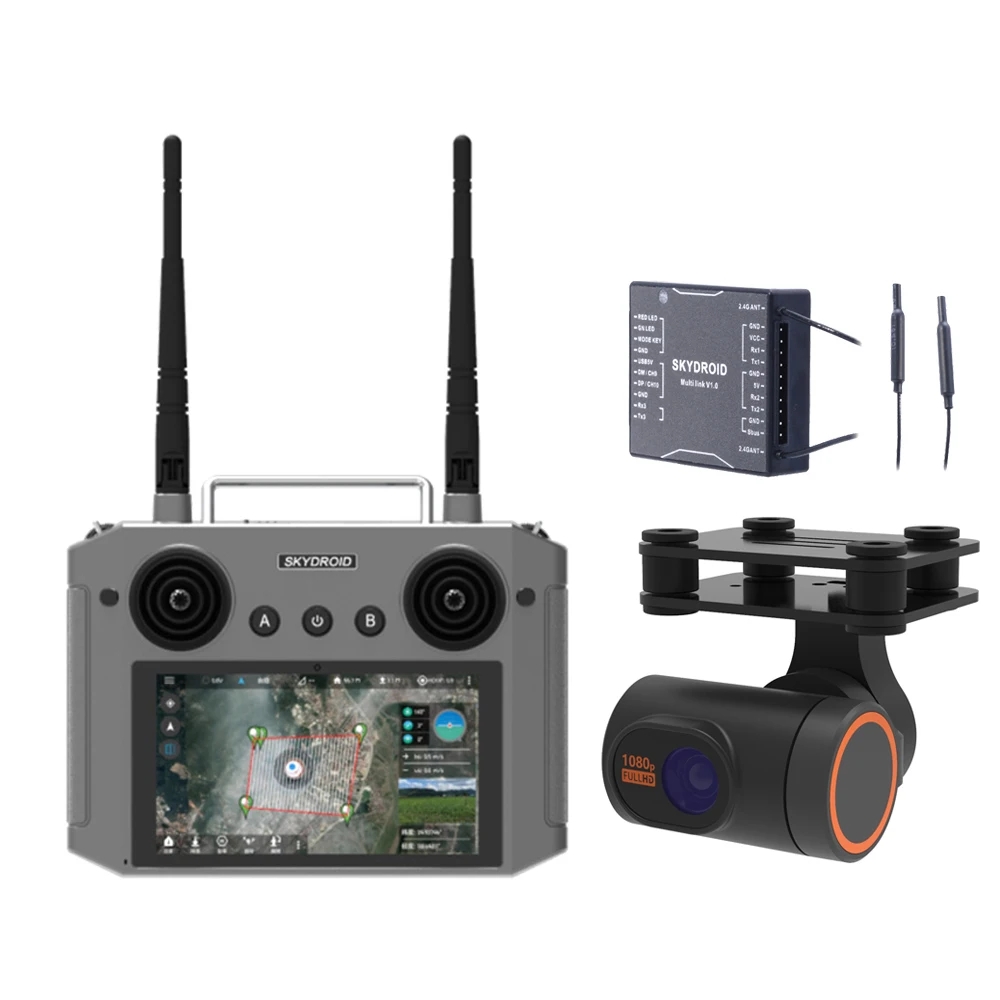

The H12 uses spring centered, hall effect gimbals for smooth control. The radio has a built-in 10000mAh battery which is said to last for 6-20 hours! Above all, the radio comes in a carry case with a receiver and either a single axis gimbal camera or LED basic night vision camera.
Skydroid H12 Telemetry Features:
Built in Android smartphone
6-20 hours battery life
Comes with receiver and camera
Up to 30 km range
HD video
Comes with a carry case for easy transport
Industrial grade radio
Perfect for any pilot
Easy to set up

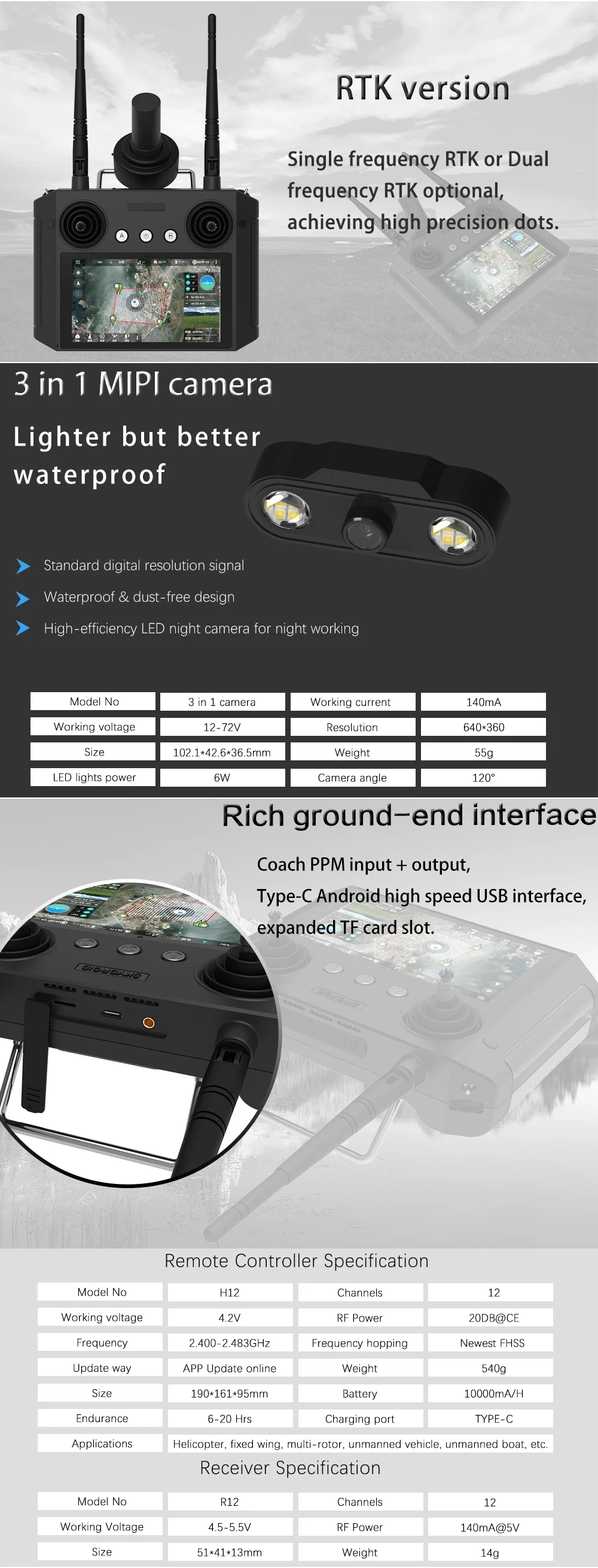

Specifications of Skydroid H12 Drone Remote Controller:
Brand Name: Skydroid
Number of channels: 12
Working current: 140mA@5V
Working voltage: 4.5-5.5V
Size: 51 * 41 * 13mm
Weight: 14g
Charge Port: Type-C
Application: Helicopter, Fixed wing, Copter, Car, boat

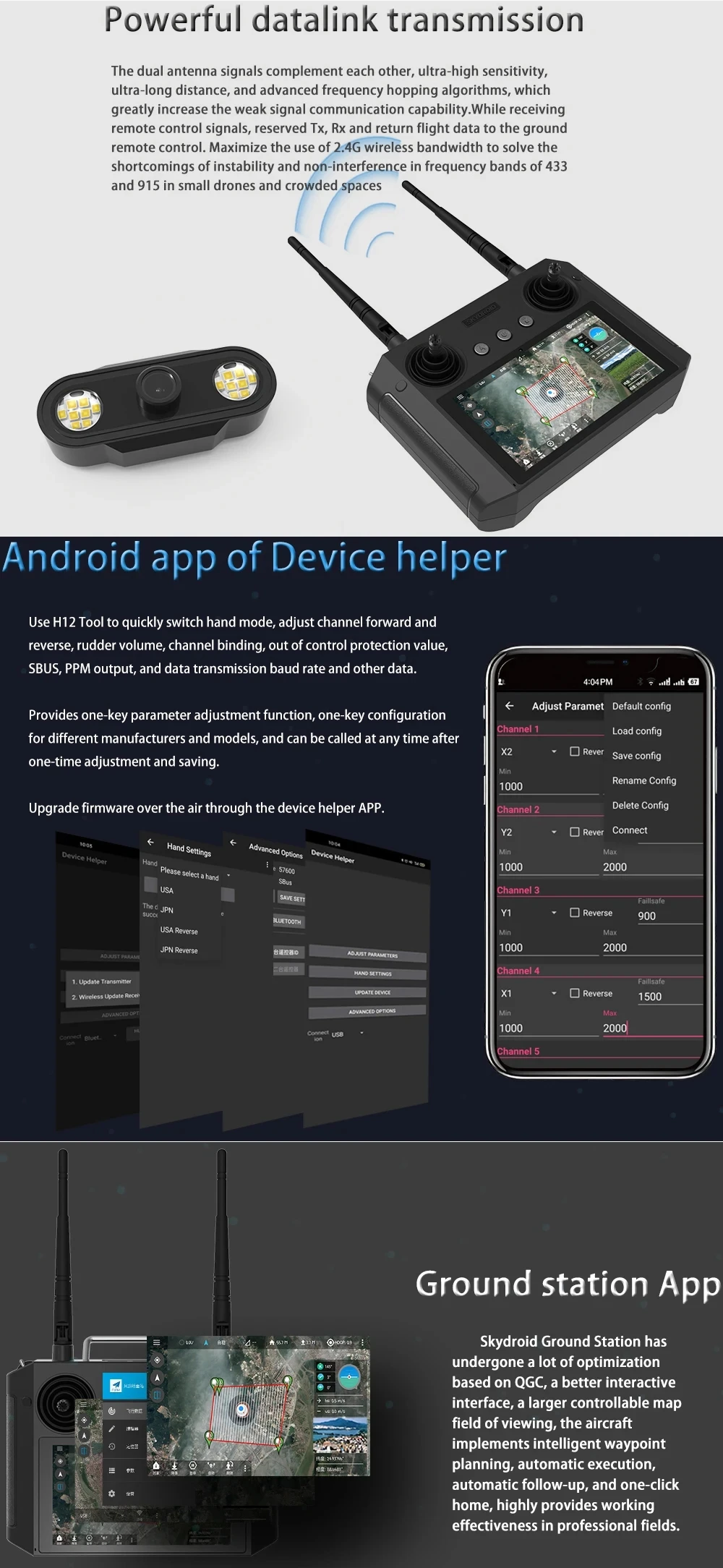

Use H12 Tool can quickly switch hand mode, adjust channel forward and reverse, rudder volume, channel binding, out of control protection value, SBUS, PPM output, and data transmission baud rate and other data. The tool provides one-key parameter adjustment function, one-key configuration for different manufacturers and models, and can be called at any time after one-time adjustment and saving. Users can also upgrade firmware over the air through the device helper app.
skydroid h12 transmitter has undergone a lot of optimization based on QGC, a better interactive interface, a larger controllable map field of viewing, the aircraft implements intelligent waypoint planning, automatic execution, automatic follow-up, and one-click home, highly provides working effectiveness in professional fields.
R12 Receiver
Model: R12
Number of channels: 12 channels
Working voltage: 4.5-5.5v
Working Current: 140mA@5V
Dimension: 51*41*13MM
Weight: 14g

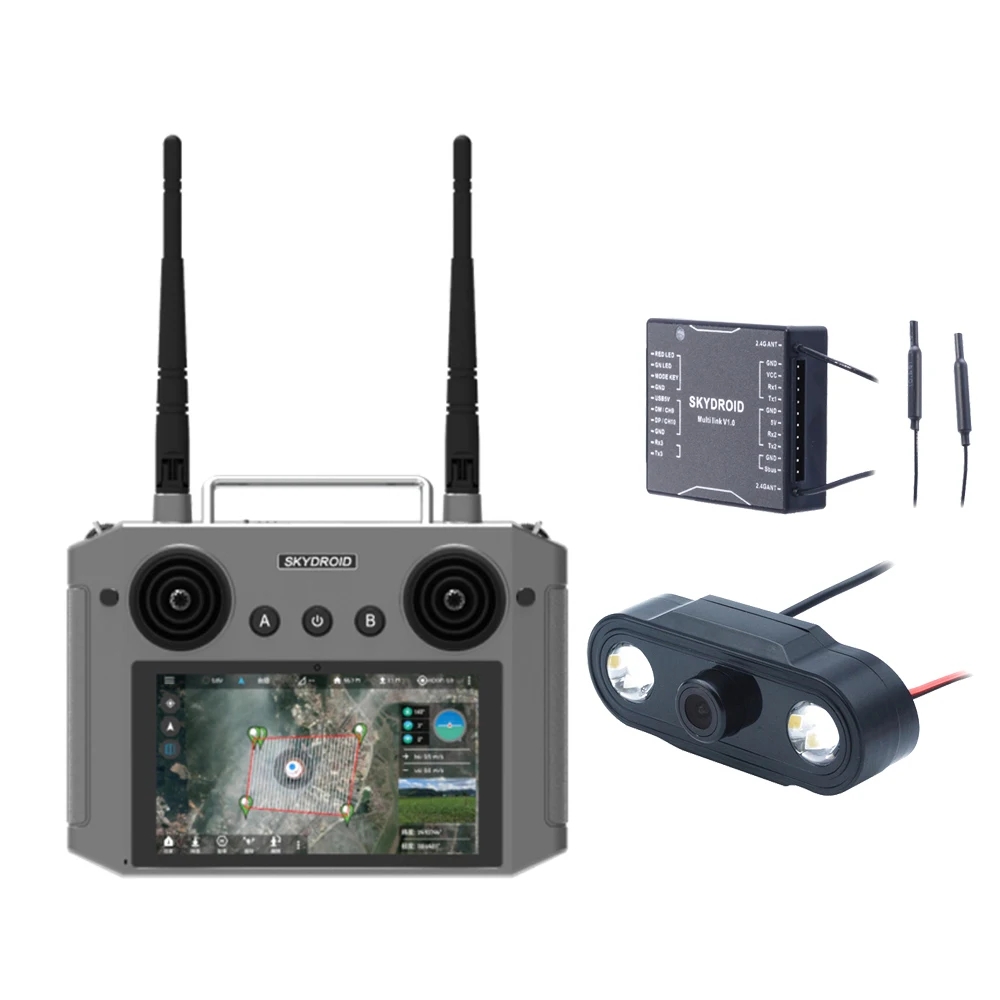

MINI Camera
Model: MINIDCAM
Power Supply: 5V
Working Temperature: 14 to 104°F(-10°-50°)
Working Current: 180mA
Dimension: 32.2*29.8*26.8MM
Weight: 15.6g
Integrated With 8W Light
Aluminum Alloy CNC Surface
Ultral High Efficiency LED. 150° Lens
