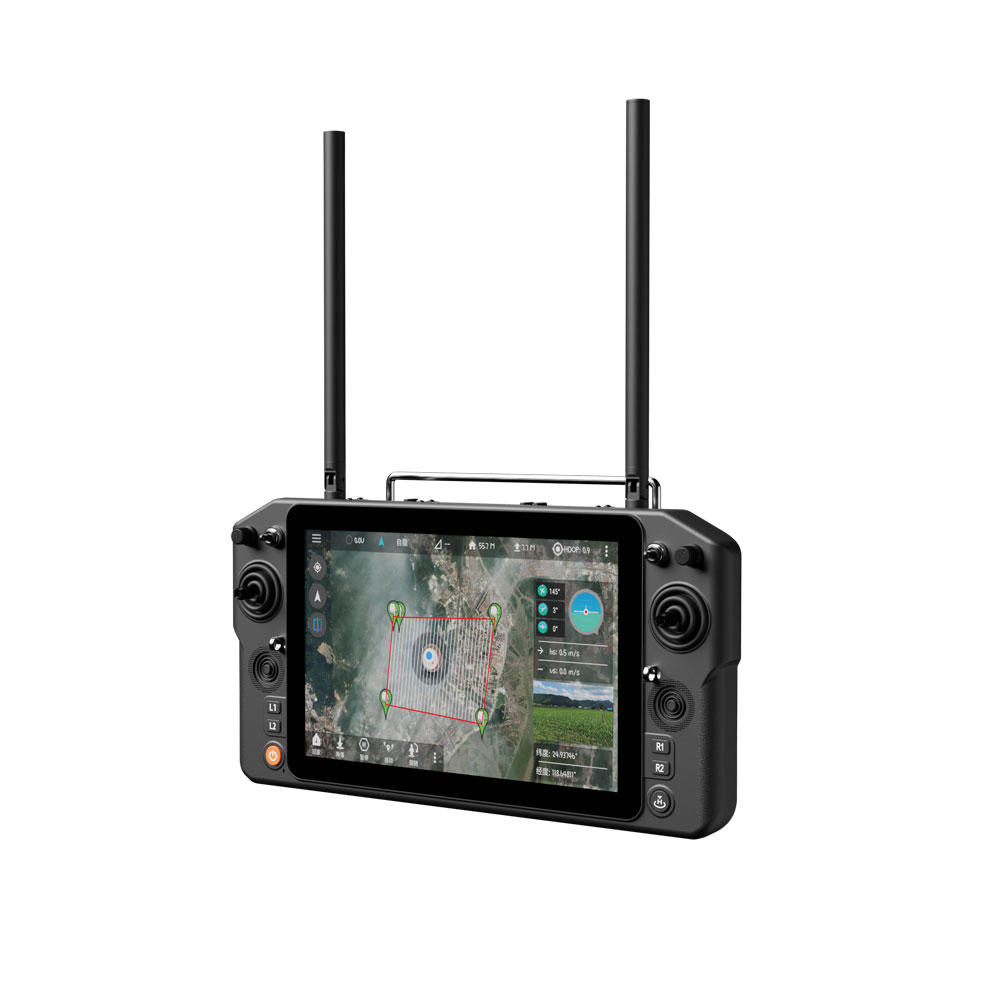

Skydroid H30 HD Video Transmission System for Drone

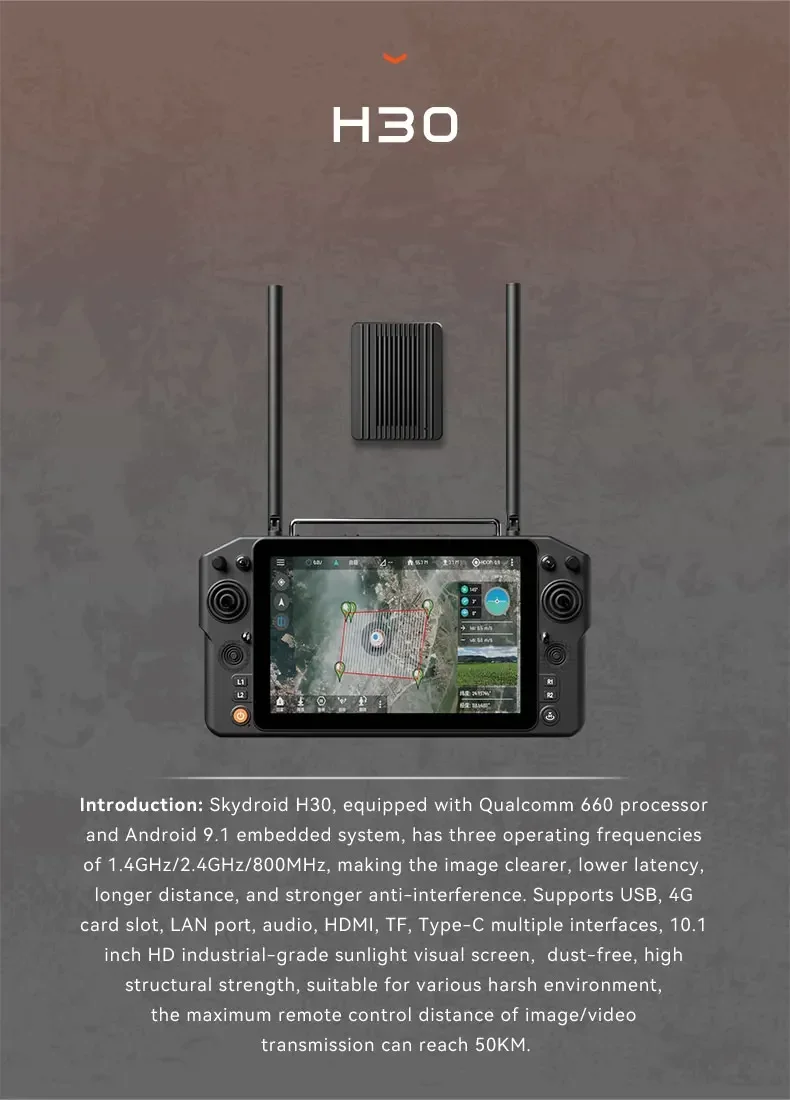

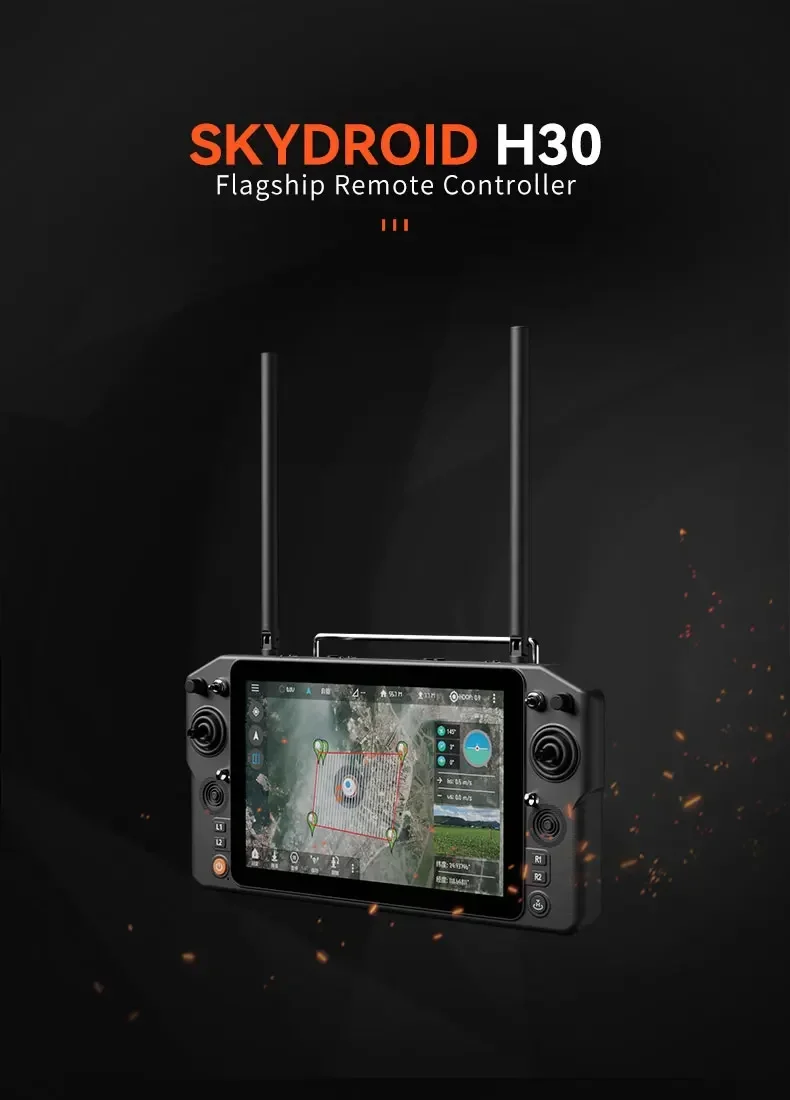

The Skydroid H30 is a portable and cost-effective drone ground control station that integrates video link, data link, remote control, and an Android system. It is designed to offer low latency, excellent anti-interference performance, and long transmission distances, making it ideal for a wide range of applications.
Key Features
Powerful Processor and Operating System: Equipped with the latest Qualcomm Snapdragon 660 8-core processor and an Android 9.1 (64-bit) embedded system, the H30 delivers smooth and powerful performance, capable of running 3D maps and various ground station software.

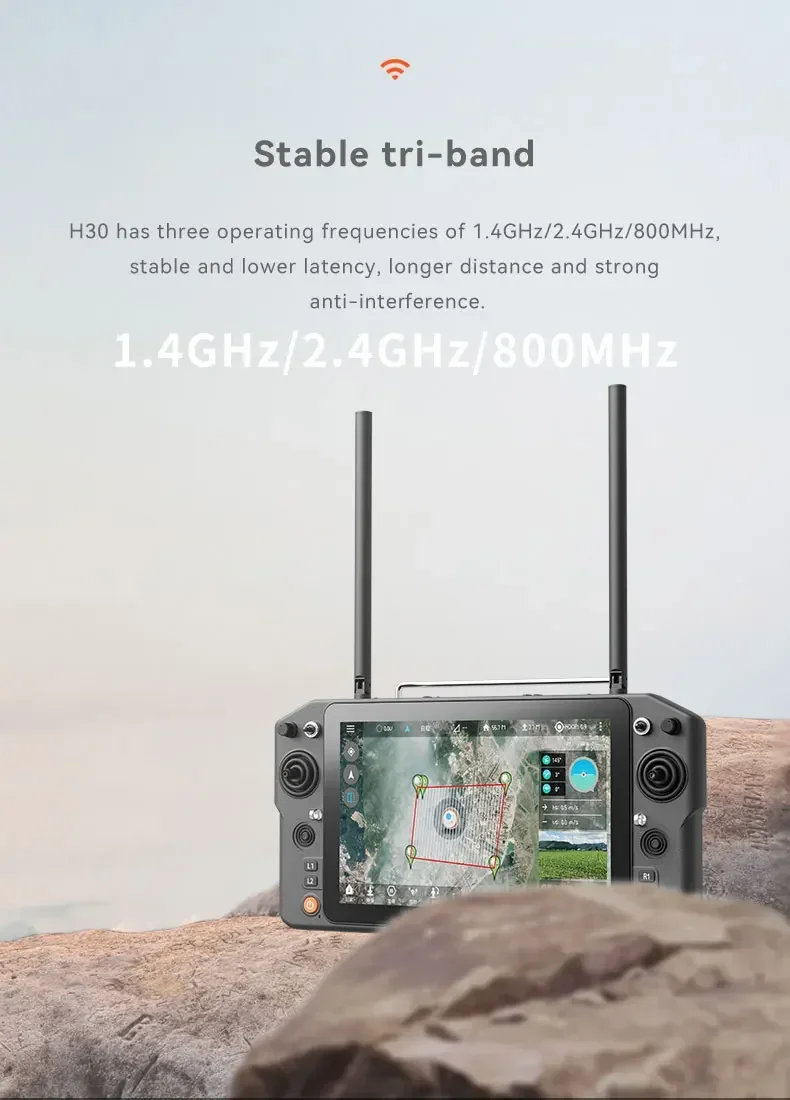

Multi-Band Frequency Support: The H30 operates on three frequencies: 800MHz (806-826MHz), 1.4GHz (1427-1467MHz), and 2.4GHz (2401.5-2481.5MHz), ensuring clear images, low latency, long transmission distances, and strong anti-interference capabilities.
Extended Transmission Range: With Skydroid's unique digital image control link technology, the H30 can achieve a maximum video transmission distance of up to 50 kilometers.

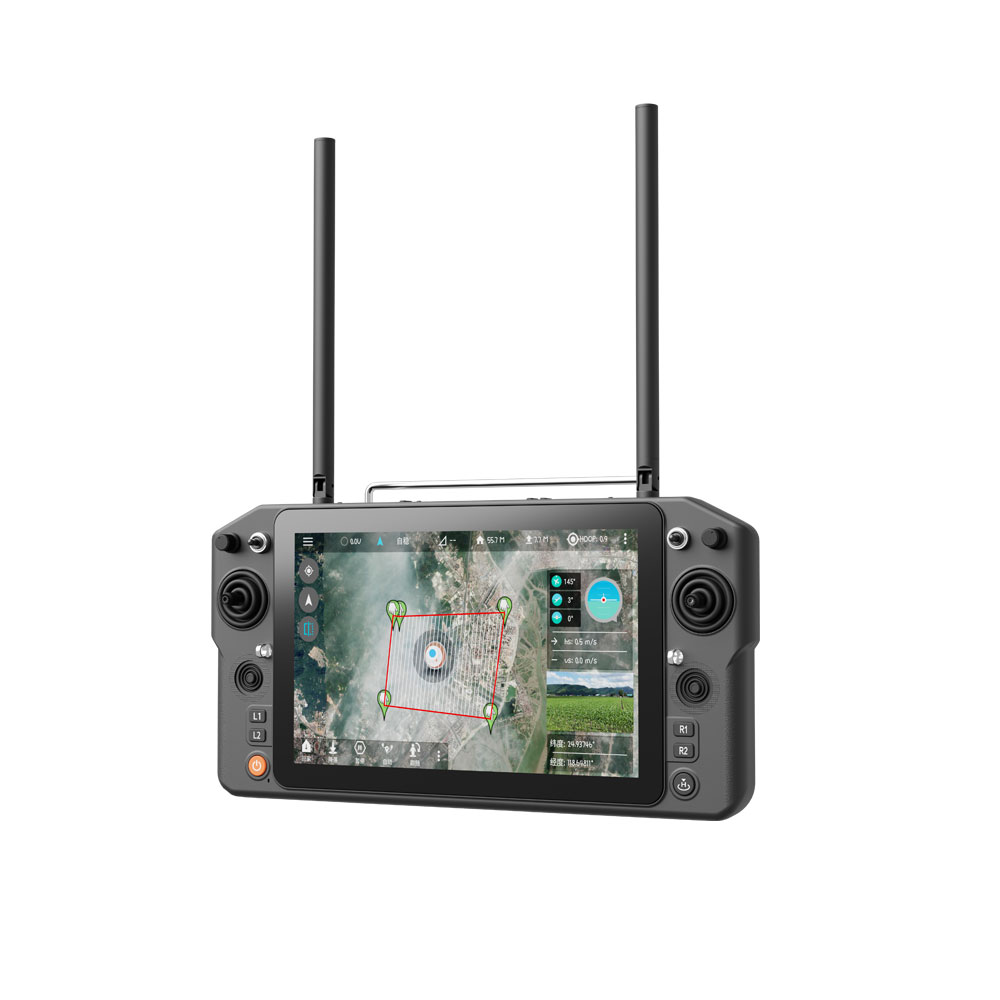

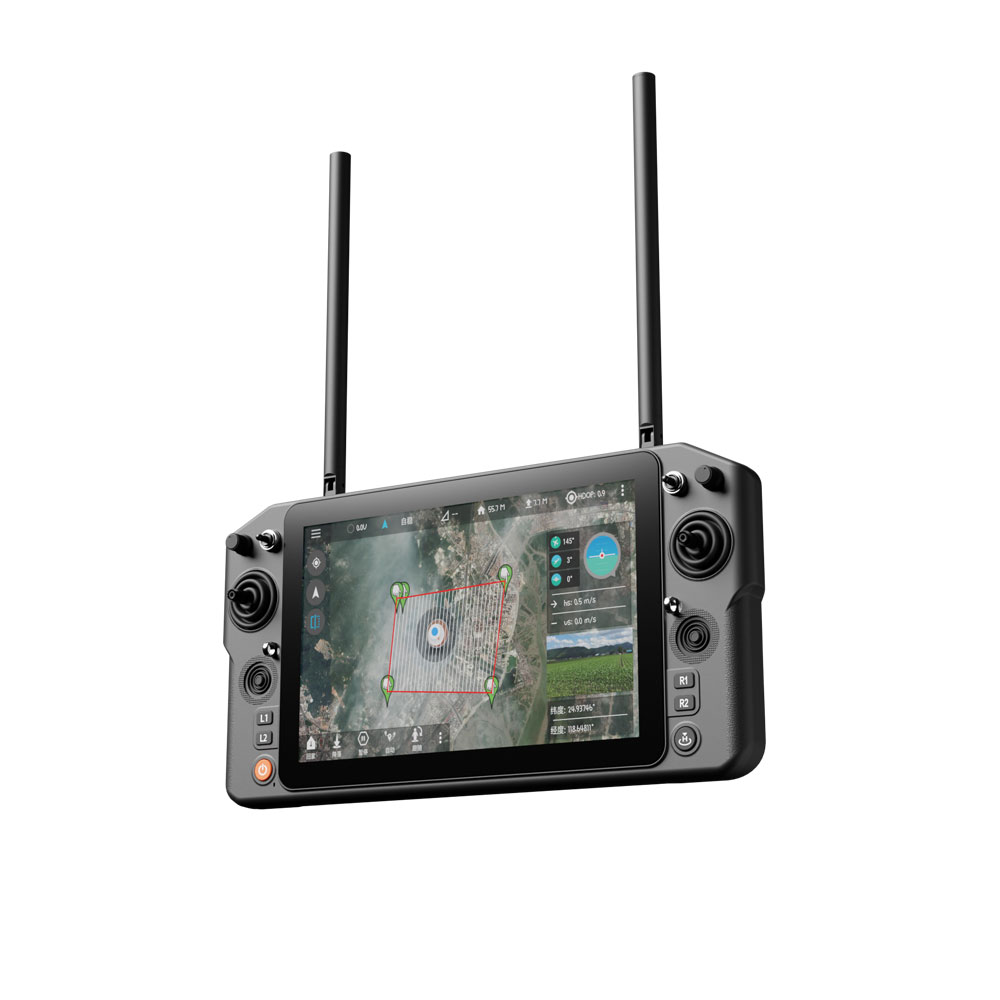

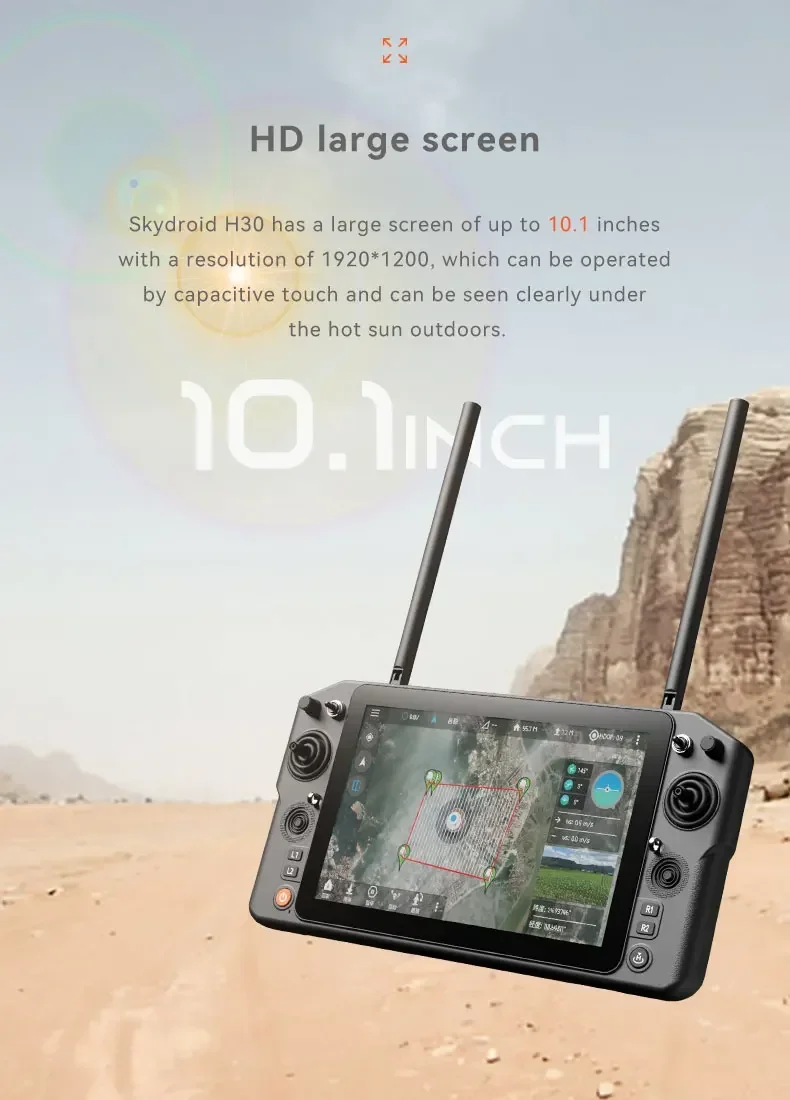

High-Definition Display: Features a 10.1-inch high-definition industrial-grade sunlight-visible screen with a resolution of 1920×1200, allowing for clear and detailed viewing even in bright outdoor conditions.

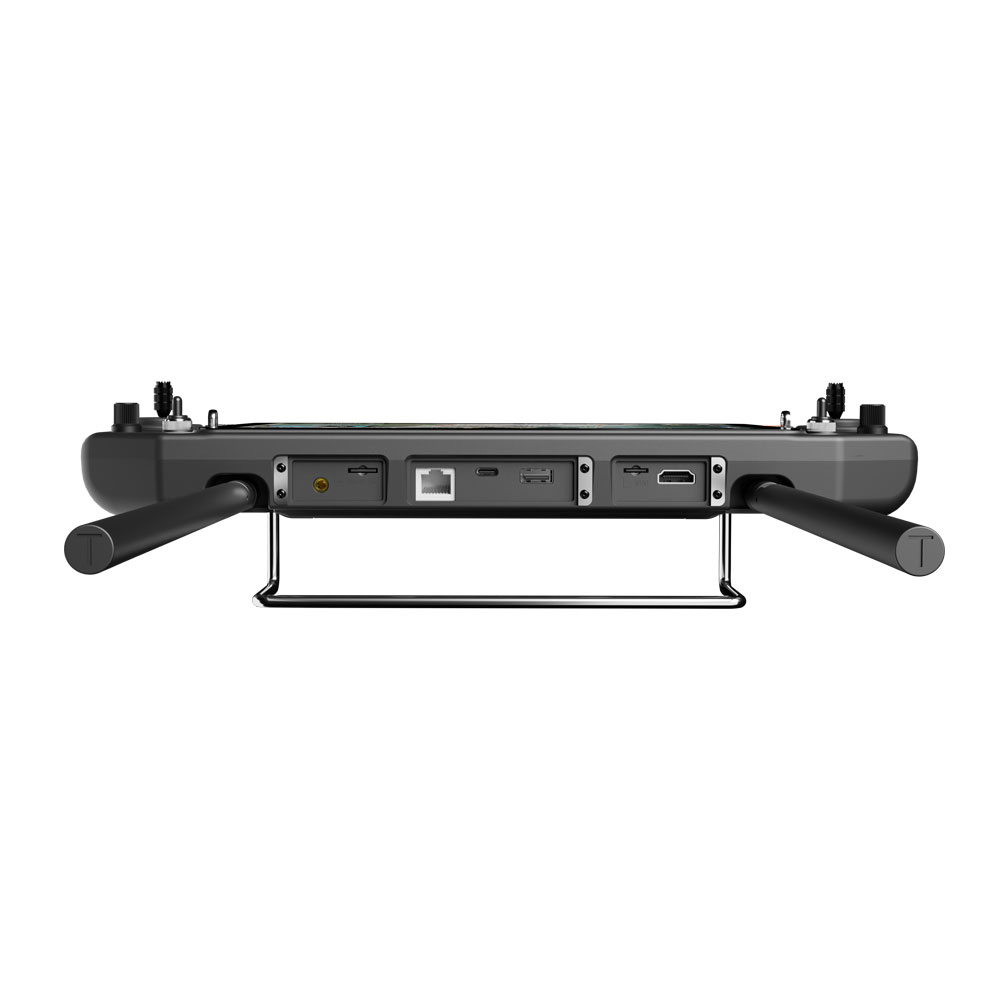

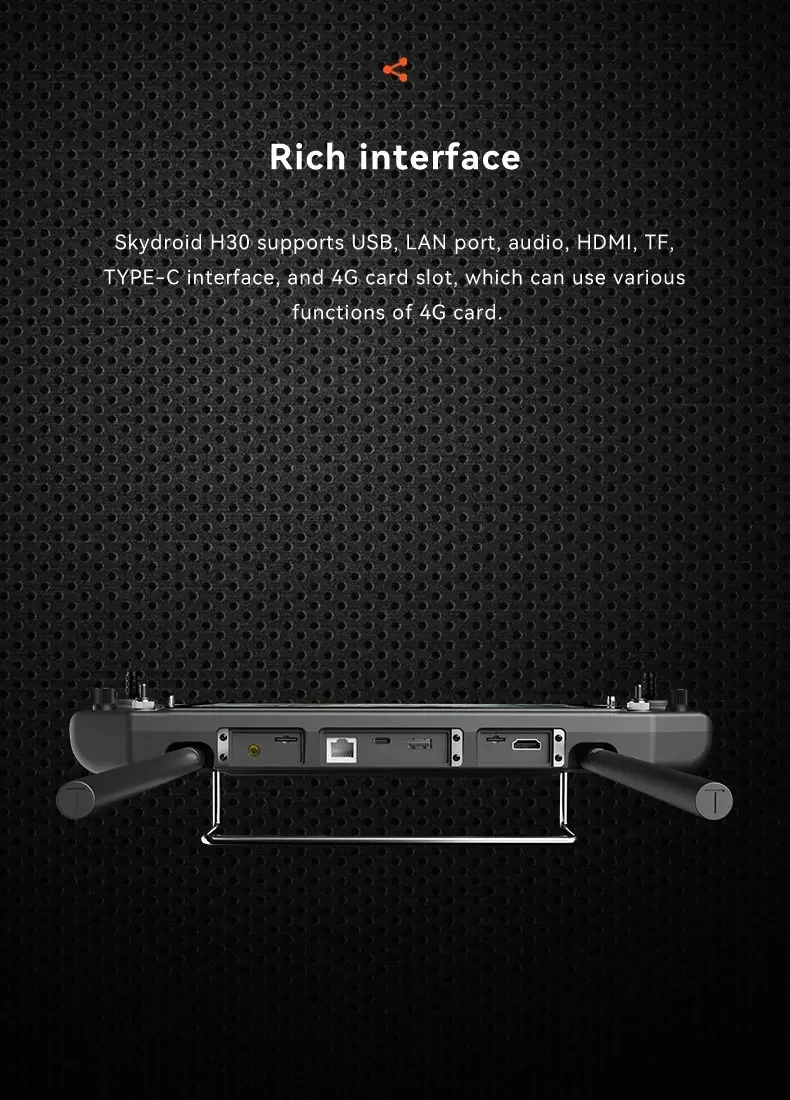

Rich Interface Options: Supports a variety of interfaces, including USB, LAN port, audio, HDMI, TF, and TYPE-C, as well as a 4G card slot for enhanced connectivity and functionality.

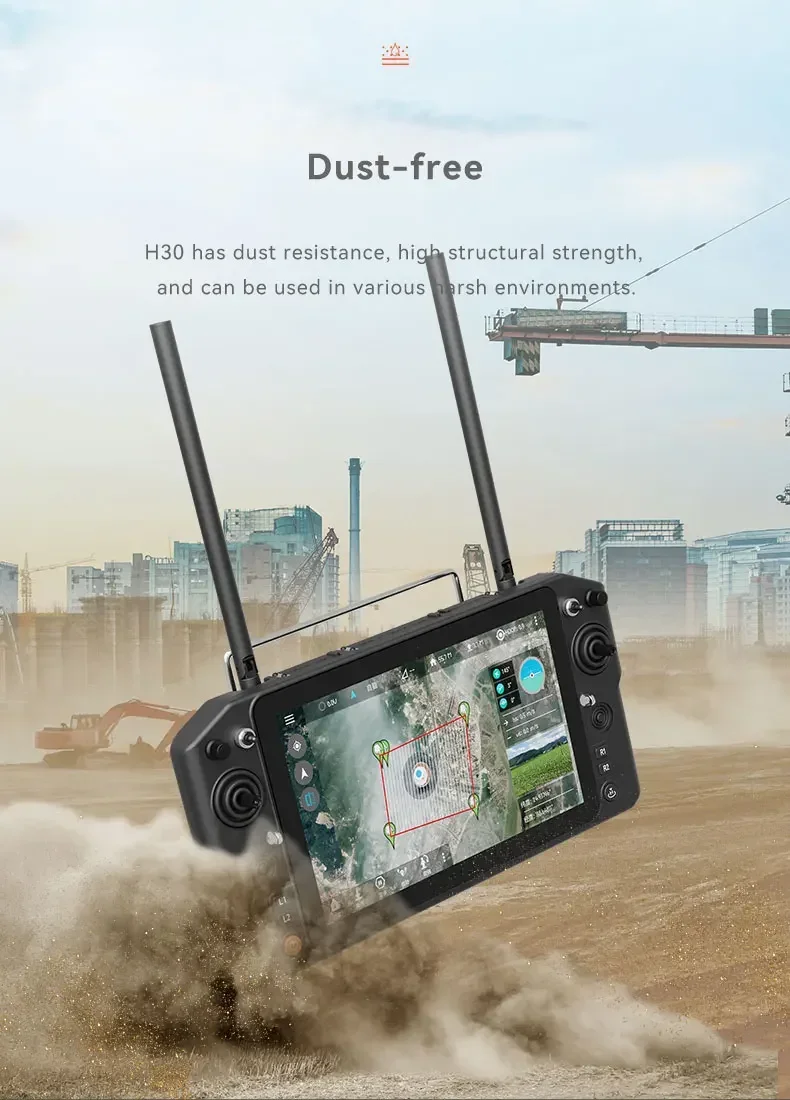

Dustproof and Waterproof Design: The H30 is built with IP67-rated dustproof and waterproof materials, ensuring high structural strength and reliability in harsh environments.
Dual Antenna System: Equipped with dual 3-frequency antennas that complement each other, providing super-strong signals and ultra-long transmission distances.
High Energy Density Battery: Features a high energy density lithium-ion battery that can last up to 5 hours on a single charge.
Versatile Compatibility: Supports a wide range of cameras, pan-tilts, pods, and other video equipment from various brands. It also includes a rich set of ground-end interfaces, such as RJ45 network interface and Type-C Android high-speed USB interface.
Independent Gimbal Joystick: Equipped with an independent 2-dimensional gimbal joystick for easy and precise control of the gimbal.
Rugged Construction: Made from weather silica gel, frosted rubber, stainless steel, and aviation aluminum alloy, the H30 is designed to withstand harsh environments and is dust-free in the fuselage, control switches, and peripheral interfaces.
Development and Support: Provides a development kit (SDK) and technical support, supports video suspension, mainstream flight control ground stations, QGC, and wireless RTSP video stream sharing.
Summary
The Skydroid H30 HD Video Transmission System is a comprehensive and robust solution for UAV ground control. Its powerful processor, multi-band frequency support, extended transmission range, high-definition display, and rugged design make it suitable for a wide range of applications, from drones and robots to industrial-controlled equipment. Whether you are a hobbyist or a professional, the H30 offers unparalleled performance, versatility, and reliability.
